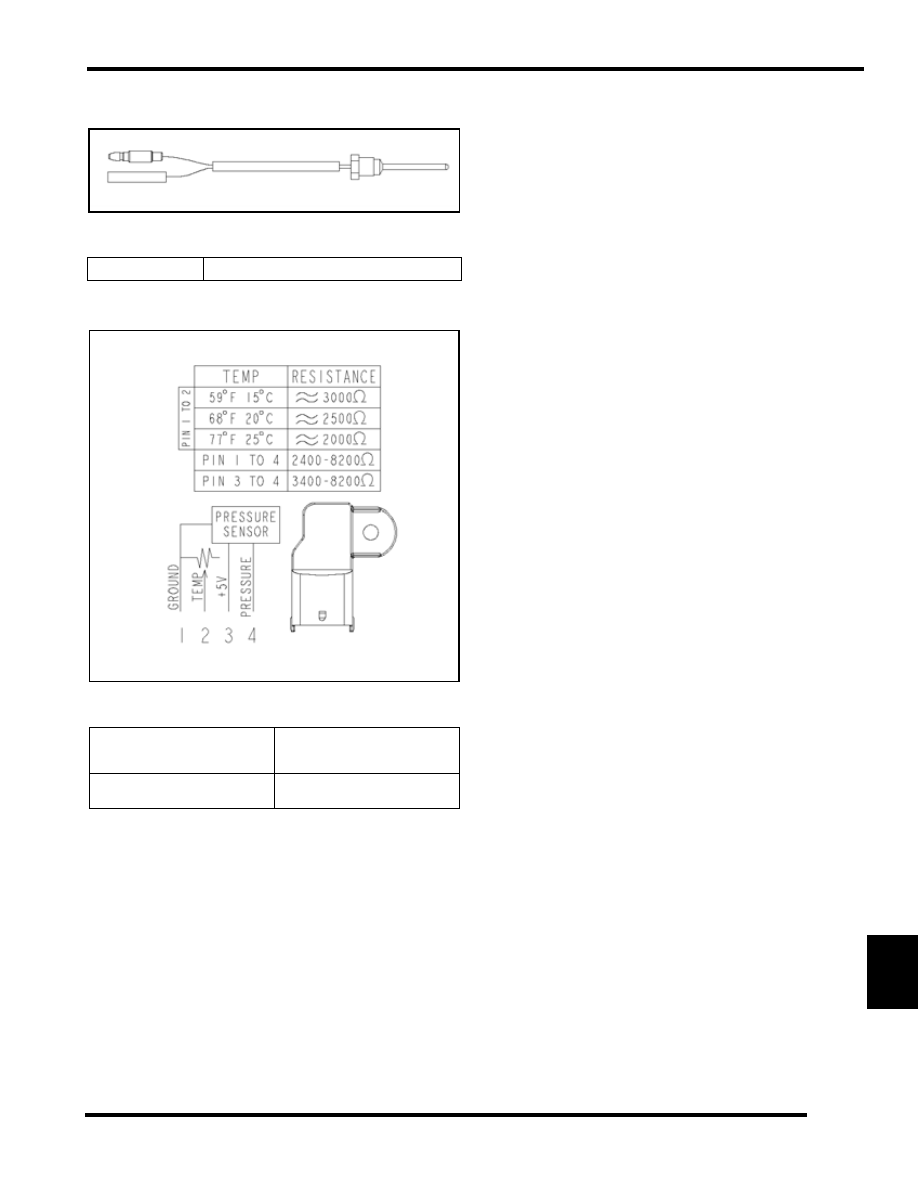

11.29

BATTERY & ELECTRICAL SYSTEMS

11

Exhaust Temperature Sensor

Temperature / Air Pressure Sensor (TBAP)

Crankshaft Position Sensors (CPS)

The 5 tooth crank position sensor picks up all 5 flywheel teeth.

The 2 tooth crank position sensor picks up 2 off set flywheel
teeth.

Both crank position sensors will have a gap to the flywheel pick
up of 0.031" (0.8mm).

These sensors must be in the correct position or the engine will
not run as expected. A sheared flywheel key will cause the
engine to not start or kill if running.

The 2 tooth pick up detects the crank angle and obtains minimal
information of the crank angle when control enters into limp
home mode.

5 tooth pickup is to obtain the following information in
combination with the 2 tooth pickup.

• Judge direction of rotation (forward and backward)

• Ignition advance angle control

• Injector drive angle control

• Excess advance ignition control at reverse

Sensor Specifications

Resistance Values

2.3M

Ω @ 392_F (200_C) - 76Ω @ 1652_F (900_C)

Sensor Specifications

Pins 1 to 2 (Temperature)

59_F (15_C) = 3000

Ω

68_F (20_C) = 2500

Ω

77_F (25_C) = 2000

Ω

Pins 1 to 4 (Pressure)
Pins 3 to 4 (Pressure)

2400 - 8200

Ω

3400 - 8200

Ω

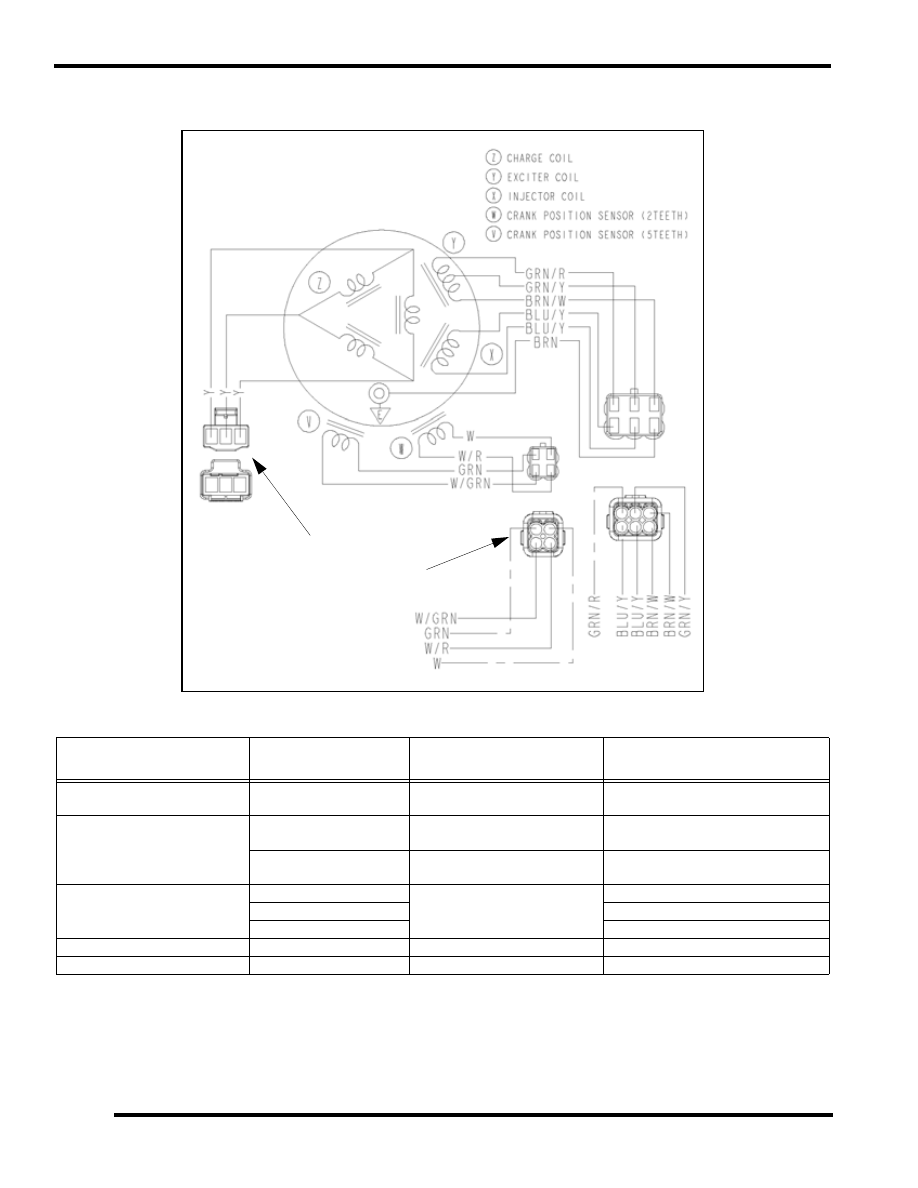

11.30

BATTERY & ELECTRICAL SYSTEMS

Stator Assembly

Stator Specifications

ITEM

COLOR

SYSTEM FUNCTION

RESISTANCE

+/- 15% @68

°

F (20

°

C)

CHARGE

YELLOW

Chassis and Battery Charge
Coils

YEL to YEL = 0.13

Ω

No continuity to ground.

CRANK POSITION SENSOR
(CPS)

GRN to WHT/GRN

Crank Position Sensor (5 Tooth)
Ignition timing.

GRN to WHT/GRN = 190

Ω

WHT to WHT/RED

Crank Position Sensor (2 Tooth)
Locates TDC and RPM.

WHT to WHT/RED = 190

Ω

COILS

GRN/RED

Exciter Coil - Powers the Ignition
Coils / ECU

GRN/RED to GRN/YEL = 15

Ω

GRN/YEL

GRN/RED to BRN/WHT = 30

Ω

BRN/WHT

BRN/WHT to Ground = 0

Ω

INJECTOR POWER COIL

BLU/YEL TO BLU/YEL

Supplies power to fuel injectors. BLU/YEL to BLU/YEL = 2.4

Ω

Engine Ground

Brown

Engine Ground

0

Ω

CRANK POSITION

SENSORS

REG REC

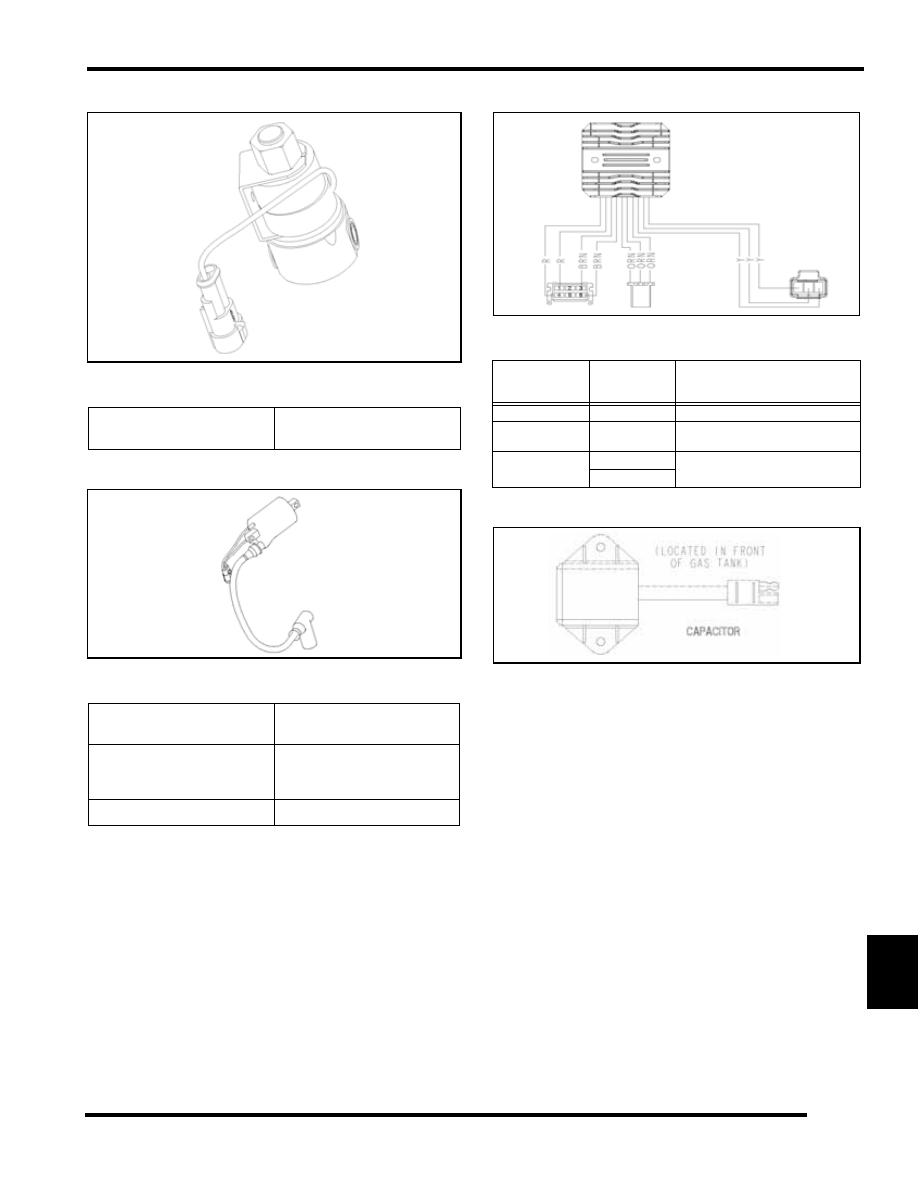

11.31

BATTERY & ELECTRICAL SYSTEMS

11

Exhaust Valve Solenoid

CFI Ignition Coils

Regulator / Rectifier

Chassis Power Capacitor

Capacitor Testing

1.

Charge the capacitor for 10 seconds using a 12 volt battery
by connecting the positive (+) lead to the Red/White wire
and the negative (-) lead to the brown wire.

2.

Monitor the capacitor voltage with a multimeter. The
voltage should slowly drain down from the initial charge.
If the cap does not hold a charge or drains rapidly, replace
the component.

Specifications

Coil Resistance
(WHT/YEL to RED)

15

Ω +/- 15% @ 68°F (20°C)

Specifications

Primary Coil Resistance
(Black to White)

0.45

Ω +/- 15% @ 68°F (20°C)

Secondary Coil Resistance
(Without Plug Cap)
(Black to High Tension Lead)

18,000

Ω +/- 15% @ 68°F

(20°C)

Plug Cap Resistance

4,000

Ω - 6,000Ω

Regulator / Rectifier Connections

CONNECTOR

WIRE

COLORS

ITEM

STATOR

YELLOW

Vac from stator charge coils.

ECU

ORANGE

Vdc supplied to ECU to boost power to
fuel injectors during engine start-up.

CHASSIS

BROWN

14.5 Vdc chassis power supply.

RED

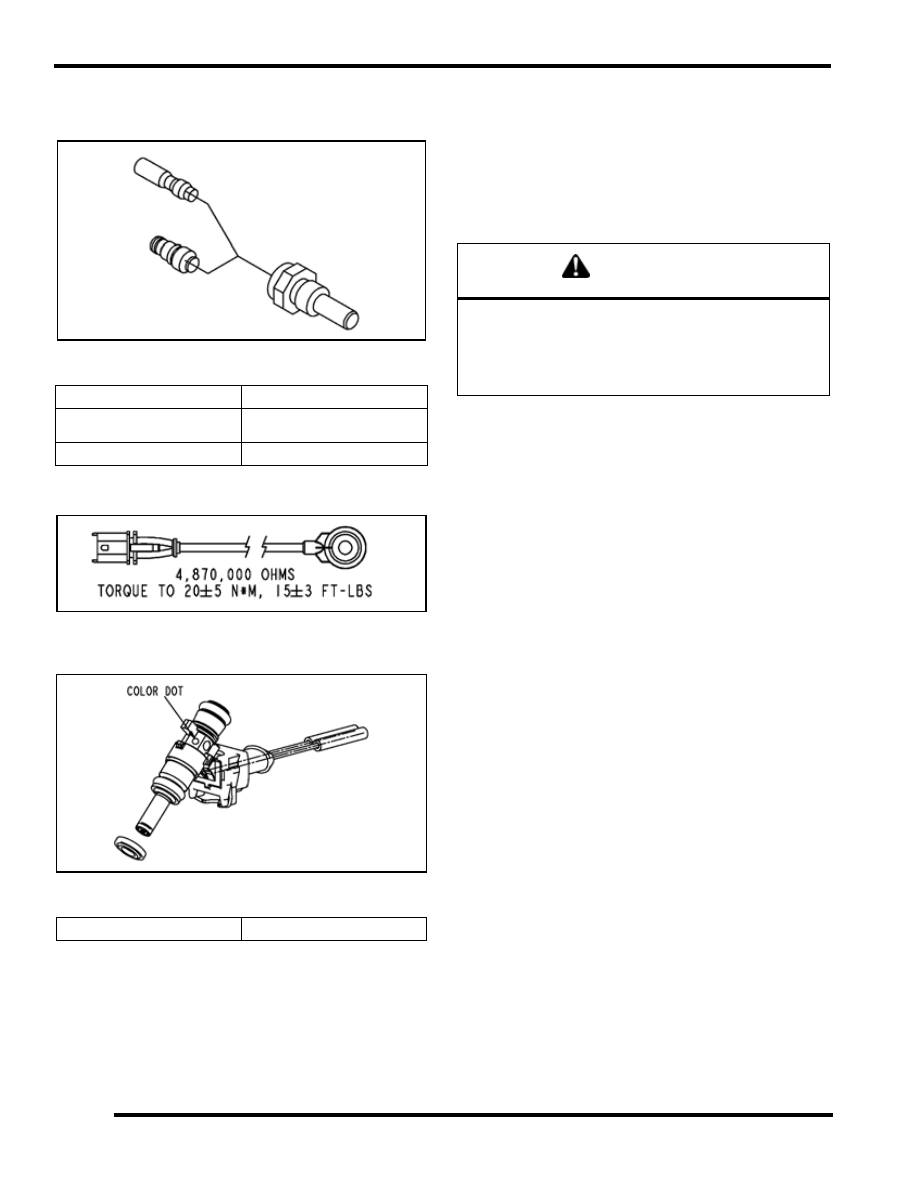

11.32

BATTERY & ELECTRICAL SYSTEMS

Engine Coolant Temperature Sensor

Knock Sensor

Fuel Injectors

Fuel injectors are flow tested and then color coded (RED,
BLUE, or YELLOW) based on upon how much fuel the injector
flows during the test.

When replacing a faulty fuel injector, always replace with an
injector with the same color code. If replacing with an injector
with a different color code, all four fuel injectors must be

replaced with the new color so all four injectors are the same
color.

After replacing all four injectors, the ECU must be reflashed so
the fuel calibration map matches the new color coded fuel
injectors.

Reference Chapter 4 for fuel injector replacement procedures.

Sensor Specifications

Operating Temperature Range

-22_F - +248 _F (-30_C - 120_C)

Resistance

2.4 - 2.6K

Ω@ 68_F (20_C)

(Measure in stirred water)

Installation Torque

29 ft.lbs. (39.2Nm)

Specifications

Resistance

12

Ω @ 68_F (20_C)

CAUTION

NEVER RUN THE ENGINE WITH DIFFERENT COLOR
FUEL INJECTORS. SEVERE ENGINE DAMAGE WILL

OCCUR.

ALWAYS VERIFY THE ECU CALIBRATION FILE

MATCHES THE FUEL INJECTOR COLOR CODES.
