27

SAFETY

Safety Decals and Locations

Operation Warning

An operation warning decal is present on the console of all POLARIS
snowmobiles:

WARNING

• To avoid serious injury or death, read and understand all warnings

and the Owner’s Manual before operation. If manual is missing, con-
tact a POLARIS dealer for a replacement.

• This vehicle is capable of high speeds. Buried objects or uneven

terrain can cause loss of control. Reduce speed and use extreme
caution when operating in unfamiliar terrain.

• Excessive speed, especially at night or with limited visibility, can

result in insufficient time for you to react to terrain changes, to
avoid unexpected obstacles, or to stop safely.

• Never consume alcohol or drugs before or while operating this vehi-

cle.

• In an emergency, push down the Auxiliary Shut-Off Switch, located

on the top of the throttle control assembly, to stop the engine. Then
pull the brake lever to stop.

• Always wear an approved helmet, eye protection, and adequate

clothing while operating this vehicle.

• This vehicle is designed for adult use only. Check local laws for age

requirements.

• When operating with a passenger (on approved models only),

reduce speed and allow extra space for steering and stopping. A
passenger reduces your ability to control the vehicle.

• When operating on hard-packed snow, ice, or when crossing roads,

steering and braking ability are greatly reduced. Reduce speed and
allow extra space to turn or stop.

• To maintain vehicle control on ice or hard-packed surfaces, you

should have a proper balance of ski carbides to track studs. See
Owner’s Manual for proper use of traction products.

• Repeated stops from high speed may cause fading or sudden loss

of braking ability.

• Parking brake may relax when used for long periods. Do not leave

brake engaged for more than five minutes.

• Before starting the engine, check throttle, brake, and steering for

proper operation. Make sure hood is latched. Be seated and in posi-
tion to control the vehicle.

Oil injection system: Use unmixed fuel only. Check oil level when
refueling.

28

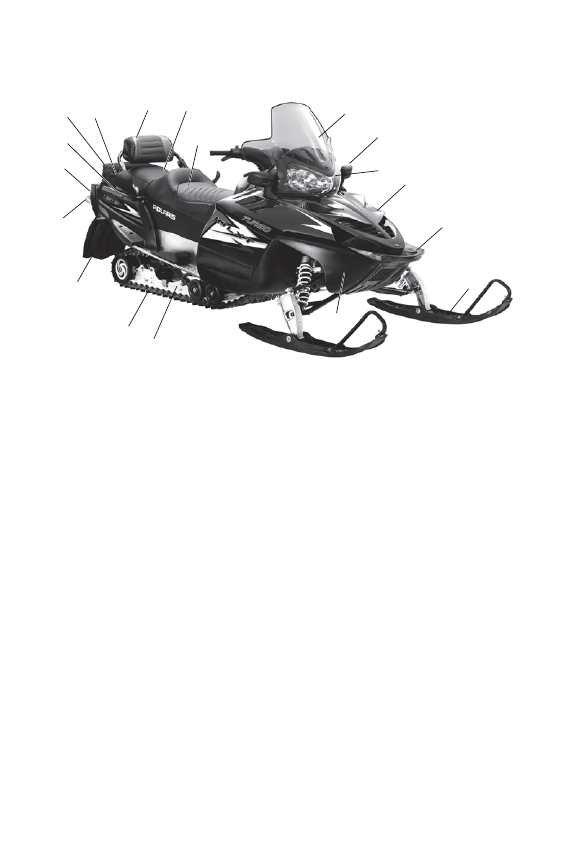

FEATURES

1.

Nosepan

2.

Skis

3.

Front Bumper (do not use for pulling or dragging the snowmobile)

4.

Hood

5.

Headlight

6.

Mirror

7.

Windshield

8.

Operator Seat

9.

Passenger Seat

10. Backrest
11. Passenger Grab Handle
12. Cargo Bag
13. Grab Handle Heater Switch
14. Taillights
15. Rear Bumper
16. Snow Flap
17. Track
18. Suspension

3

4

5

7

2

1

8

9

10

13

14

15

16

17

18

11

12

6

29

FEATURES

9

8

11

12

7

2

3

4

5

6

16

1

13

15

14

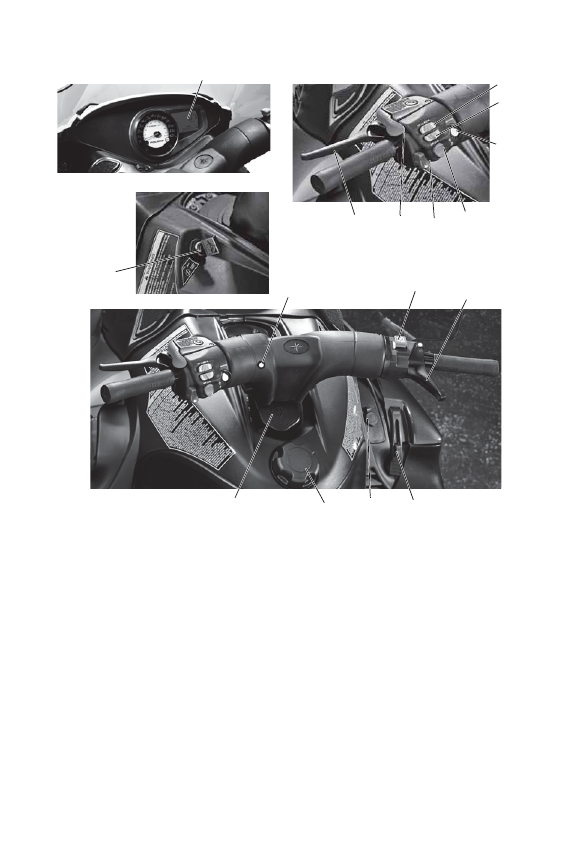

1.

MFD Display

2.

Handlebar Grip Warmer
Switch

3.

Thumbwarmer Switch

4.

Electronic Reverse Button

5.

MFD Control

6.

Headlight Dimmer Switch

7.

Parking Brake Lock

8.

Brake Lever

9.

Ignition Switch

10. Heated Windshield Power

Plug

11. Engine Stop Switch
12. Throttle Control
13. Hood Hold Down Straps
14. 12-Volt Power Plug
15. Fuel Filler Cap
16. Rider Select

®

10

30

FEATURES

Backrest

The backrest can be adjusted for rider comfort. Whenever making
adjustments, always make sure all lock levers are securely locked before
operating.

Tip: If an adjustment is difficult, rotate the lock levers to relieve tension, then

make the adjustment.

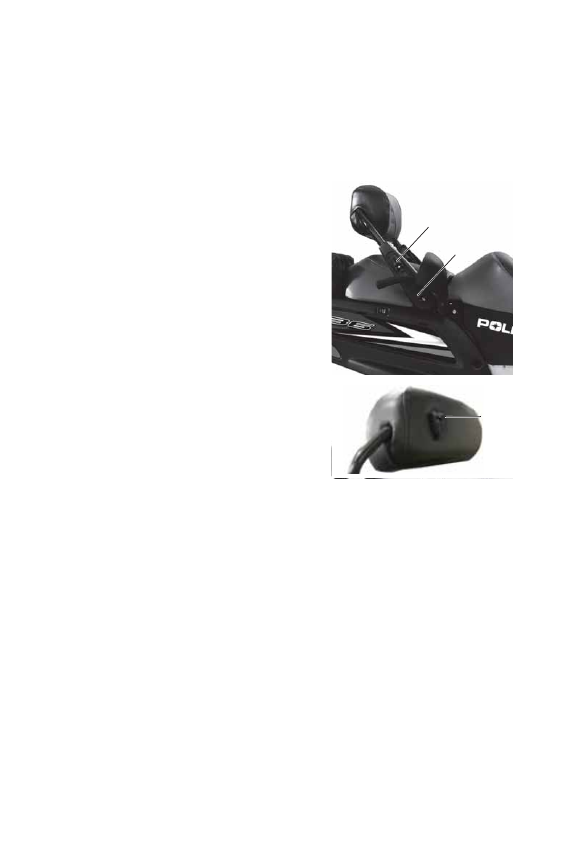

Height Adjustment

1. Lift the upper lock levers (1) on both

backrest supports to release the locks.

2. Raise or lower the backrest to the

desired position.

3. Push the lock levers inward to secure

the locks.

Angle Adjustment

1. Lift the lock lever at the center of the

backrest (3).

2. Tilt the backrest forward or rearward to

the desired position.

3. Push the lock lever inward to secure

the lock.

Operator/Passenger Conversion

1. Lift the lower lock levers (2) on both backrest supports to release

the locks.

2. Move the backrest forward for operator use or rearward for

passenger use.

3. Push the lock levers inward to secure the locks.

1

2

3
