Snowmobile Polaris PRO X (2003 year). Manual - part 45





CLUTCHING

4.48

9. Place the spider on the vise anvil and drive the

roller pin through to the second land of the spider.
NOTE: Care must be taken to ensure that the pin
is started straight. Aluminum burrs could pass
through into the roller bushing causing it to bind
and stick. Care must also be taken to ensure that
the roller remains aligned when the pin is driven
through.

Roller bushing could be damaged

causing premature wear and roller failure.

10. Center the pin in the spider lands.

11. Install new buttons into the spider.

12. Assemble the moveable sheave and spider to the

stationary sheave but do not tighten yet.

13. Mark each leg of the spider and each tower with an

A, B, or C.

With the moveable sheave open

(neutral position), insert the appropriate feeler
gauge between a button and a tower and leave it in
place (note the size of the feeler gauge used).
Measure and record the reading at the other 2 legs.
NOTE: Measurement must be taken at the bottom
of the tower (neutral position).

14. Install the required amount of shims to achieve

.000” (zero) clearance. NOTE: All shims are to
be installed on the drive side of the spider legs.
NOTE: Moveable must not bind in any position
when cycled up or down. Refer to Snowmobile
Repair Manual
for general procedures.

15. Install weights with drive head of weight pin

leading and nut trailing. Torque nuts to 30 in. lbs.

16. Assemble the clutch completely.

Torque the

spider to 200 ft. lbs (27.6 kg-m). Torque the jam
nut to 235 ft. lbs (32.4 kg-m). Torque the cover
plate bolts to 90 in. lbs. (1.04 kg-m).

17. If the clutch taper bore is rough or appears to have

spun on the crankshaft, the bore taper should be
trued using the tapered reamer (PN 2870576).
Place the reamer in a vise, lubricating with cutting
oil, and clean up the taper by manually rotating the
clutch clockwise.

18. Position the clutch on the engine crankshaft.

Install the retaining bushing and bolt. Using the
strap wrench (PN 2870336) to hold the clutch,
torque the retaining (7/16”) bolt to 40-45 ft. lbs
(5.5-6.2 kg-m) or 14mm bolt to 50 ft. lbs. NOTE:
Never use an air impact wrench for installing or
removing a drive clutch. This could cause the
spider torque value to be reduced and/or engine
crankshaft damage.

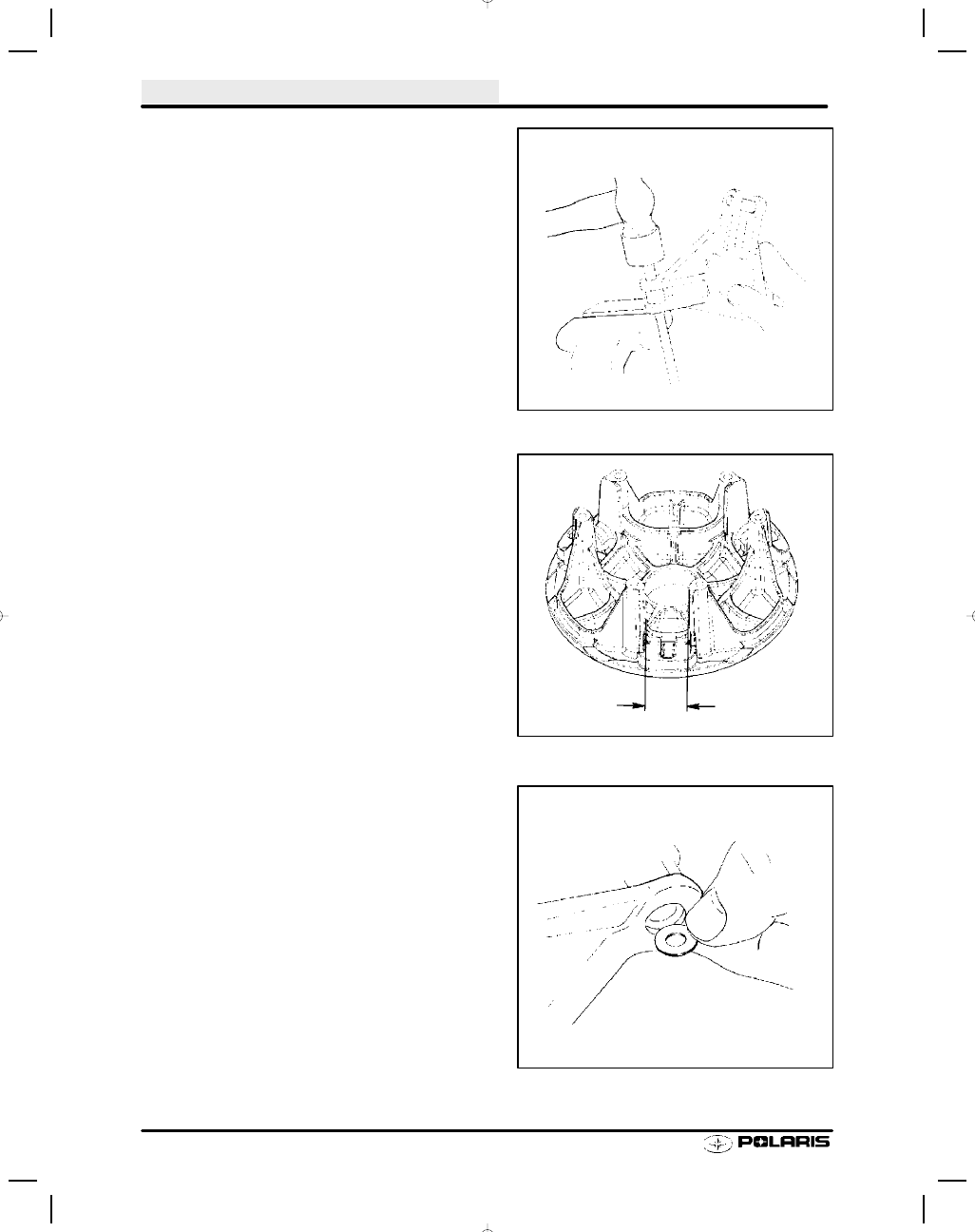

Step 9.

Step 13.

Step 14.

CLUTCHING

4.49

SYMPTOMS

PROBABLE CAUSE

REMEDY

Harsh drive clutch engage-
ment

-Drive belt worn too narrow

-Excessive belt to sheave clearance with
new belt (high performance version with-
out detent shift weight)

-Replace

-Perform belt to sheave clear-
ance adjustment with shim
washers beneath spider

Drive belt turn over

-Wrong belt for application

-Clutch alignment out of spec

-Engine mount broken or loose

-Driven clutch sheaves have excessive
runout, are bent or damaged

-Replace

-Adjust alignment offset

-Inspect, adjust or replace

-Measurement should be tak-
en .25

s in from outer circum-

ference on sheave face. Max-
imum allowable tolerance is
.015

s (.6 mm).

Noise in drive system

-Broken drive clutch components

-Excessive drive clutch button - tower
clearance

-Bearing failure/ chaincase, jackshaft or
front drive shaft

-Drive chain loose or worn, sprocket teeth
broken

-Driven clutch bushing worn excessively or
spring broken

-Drive chain adjustment too tight/too loose

-Drive belt surface flat spots

-Inspect/replace

-Install new buttons or shim
out existing buttons

-Inspect/replace

-Inspect/adjust or replace

-Inspect/replace

-Inspect/replace

Inspect/adjust

Inspect/replace

Over rev during initial accel-
eration or during heavy pulling
at low ground speeds.

Engine bogs after engage-
ment.

-Spider roller position remaining in detent

-Improper driven clutch setup

-Worn belt

-Excessive belt deflection

-Improper offset/alignment

-Broken or misadjusted torque stop

-Broken motor mount

-Jackshaft bearing seizure

-Add spider shim washers

-Add driven washers

-Reduce gear ratio (chaincase
models)

-Replace

-Subtract driven clutch wash-
ers

-Inspect/adjust

-Inspect/adjust/replace

-Inspect/replace

-Replace

CLUTCHING

4.50

SYMPTOMS

PROBABLE CAUSE

REMEDY

Engine RPM below specified
operating range, although en-
gine is properly tuned

a) Wrong or broken drive clutch spring
b) Drive clutch shift weight too heavy
c) Driven clutch spring broken or installed

in wrong helix location

d) Drive belt too long
e) Improper driven clutch setup

a) Replace with recommended spring

b) Install correct shift weight kit to

match engine application

c) Replace spring; refer to proper

installation location

d) Install new belt and/or adjust belt

tension

e) Install correct parts and/or ad just to

match engine application and ma

chine use

Erratic engine operating RPM
during acceleration or load
variations

Drive clutch binding or driven clutch
malfunction

Converter sheaves greasy; belt slippage

-

Disassemble drive clutch; inspect shift

weights for wear and free operation

Clean clutches; install new belt

-Clean and polish stationary shaft hub;

reassemble clutch without spring to

determine problem area

-Replace ramp buttons

-Inspect moveable sheave for excessive

bushing clearance/replace

Engine RPM above specified
operating range

a) Incorrect drive clutch spring (too high

spring rate)

b) Drive clutch shift weights incorrect for

application (too light)

c) Drive clutch binding
d) Driven clutch binding
e)Converter sheaves greasy; belt slippage
f)Improper driven clutch setup

a) Install proper spring

b) Install proper shift weights

c) Disassemble and clean clutch,

inspecting shift weights and buttons.

Reassemble without the spring to

determine probable cause.

d)-Disassemble, clean and inspect

driven clutch, noting worn sheave

bushing and ramp buttons and helix

spring location

e) Clean clutches; install new belt

f) Install correct parts and/or ad just t o

match engine application and ma

chine use

Burnt Belts / Premature Wear

Also see Belt Wear / Burning
Diagnosis Chart on page 4.39

a) Wrong or broken drive clutch spring
b) Drive clutch shift weight too heavy
c) Driven clutch spring broken or installed

in wrong helix location

d) Drive belt too long
e) Converter sheaves greasy; belt slip-
page.
f) Improper driven clutch setup

a) Replace with recommended spring

b) Install correct shift weight kit to match

engine application

c) Replace spring; refer to proper

installation location

d) Install new belt and/or adjust belt

tension

e) Clean clutches; install new belt

f) Install correct parts and/or adjust to

match engine application and ma

chine use

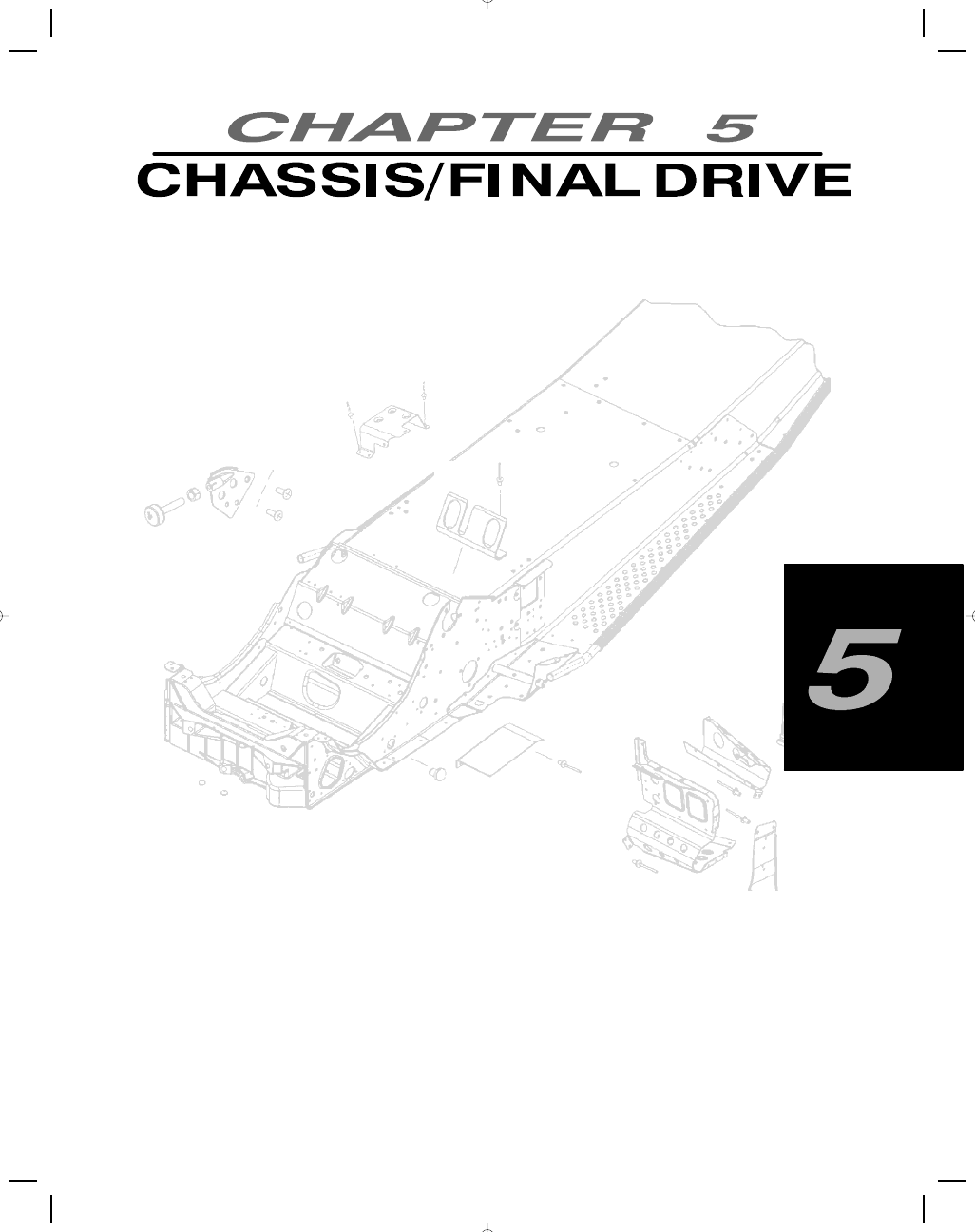

440 Pro X Changes

5.1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Gearing Matrix

5.2 -- 5.3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HYVO Sprocket Part Numbers

5.4

. . . . . . . . . . . . . . . . . . . . . . . . .

Optional Tracks/ ISR Optional Tracks

5.5

. . . . . . . . . . . . . . . . . . .

Pro X Tunnels

5.6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hydraulic Brake System Service

5.7 -- 5.13

. . . . . . . . . . . . . . . . . . . . . . .

Liquid Cooled Brake Pad Replacement

5.14

. . . . . . . . . . . . . . . . .

Rear Suspension Removal

5.15 -- 5.16

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chaincase Removal

5.16 -- 5.17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Jack Shaft / Drive Shaft Removal

5.18

. . . . . . . . . . . . . . . . . . . . . . .

Chaincase Bearing Assembly

5.19

. . . . . . . . . . . . . . . . . . . . . . . . . .

Jackshaft Installation

5.19 -- 5.20

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Drive Shaft Installation

5.21 -- 5.22

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Track Installation

5.22

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Final Assembly

5.23 -- 5.26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
