Snowmobile Polaris Power P1000i, P2000i (2018 year). Manual - part 3





7

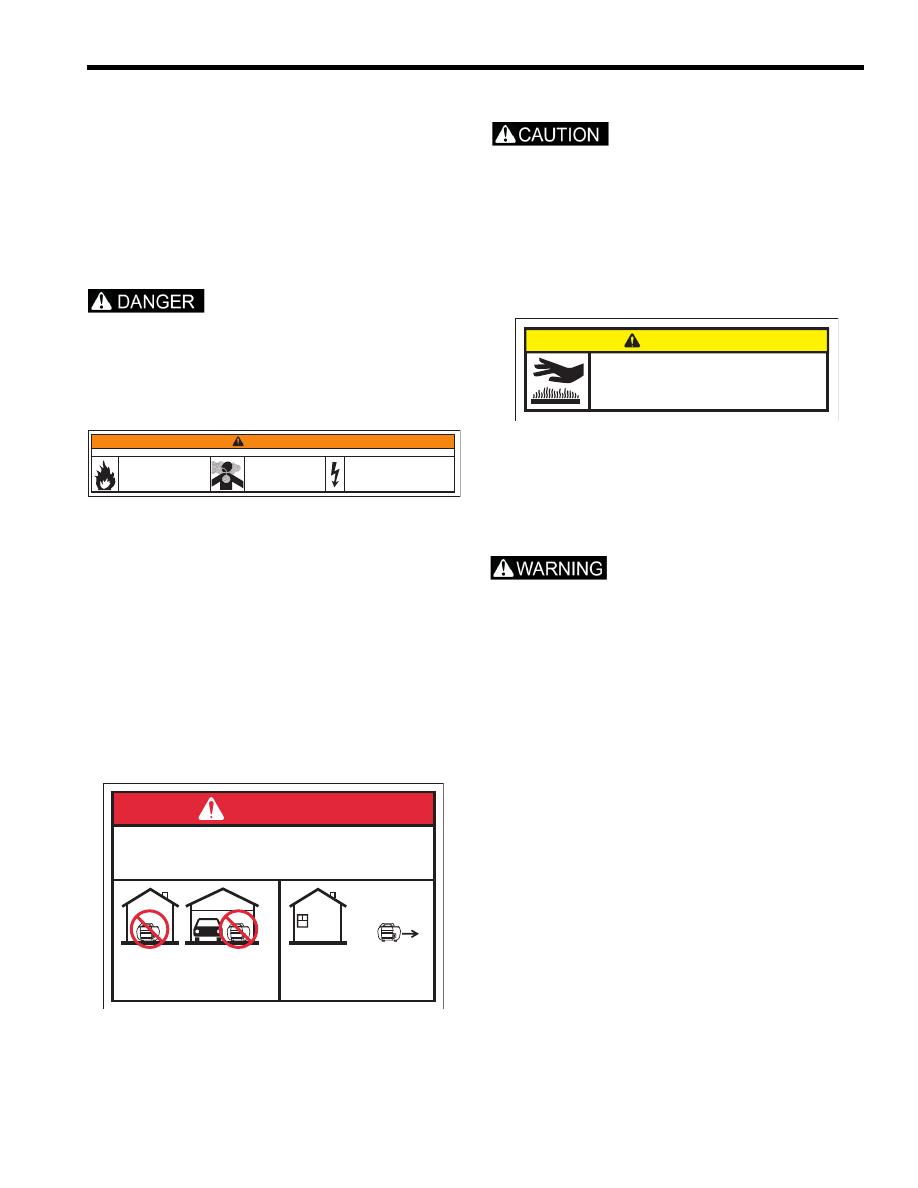

SAFETY

Safety Labels and Locations

Safety  and  warning  decals  have  been  placed  on  the
generator  for  your  protection.  Read  and  follow  the
instructions of the decals and warnings on the generator
carefully. If any of the decals depicted in this manual differ
from  the  decals  on  your  generator,  always  read  and
follow the instructions of the decals on the generator.

Carbon Monoxide Warning

Using  a  generator  indoors  CAN  KILL  YOU  IN
MINUTES.

The  carbon  monoxide  warning  is  located  on  top  of  the
generator.

Outdoor Use ONLY Danger Label

Generator  Exhaust  contains  carbon  monoxide.  This
is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors
and windows are open.

Only  use  OUTSIDE  and  far  away  from  windows,
doors, and vents.

Hot Exhaust Caution

The  hot  exhaust  caution  is  located  on  the  muffler
cover.

Contacting a hot exhaust system can cause serious
burns.

Do not touch if generator is or has been running.

Improper  Generator  use  can  result  in  SEVERE
INJURY  or  DEATH.  Read  the  OWNER’S  MANUAL.
Follow all Instructions and Warnings.

Gasoline  is  flammable  and  explosive.  Severe  burns
can  result.  ALWAYS  stop  the  engine  and  let  cool
down before refueling. ALWAYS check for fuel leaks
and wipe up any spills. ALWAYS turn the fuel to OFF
when  not  in  use.  NEVER  handle  gasoline  indoors.
NEVER overfill the fuel tank.

Generator  exhaust  contains  poisonous  Carbon
Monoxide  (CO)  vapors.  ALWAYS  operate  in  a  well-
ventilated  area.  NEVER  operate  in  a  home,  garage,
enclosed  area  or  near  windows,  doors,  or  people.
NEVER operate near flammable objects.

Electrocution can result from using generator in rain,
snow,  near  water,  with  wet  hands,  or with  improper
connections.

ALWAYS

keep

generator

and

surrounding  area  dry.  NEVER  connect  generator  to
any  building  without  electrical-isolation  protection
that meets applicable codes and regulations.

WARNING

Improper Generator use can result in SEVERE INJURY or DEATH. Read the Owner’s Manual. Follow all instructions and Warnings.

Generator exhaust contains poisonous
Carbon Monoxide (CO) vapors.

ALWAYS



operate in a well-ventilated area.

NEVER

 operate in a home, garage, enclosed

area or near windows, doors, or people.

NEVER

 operate near flammable objects.

Gasoline is flammable and explosive.  Severe
burns can result.

ALWAYS

 stop engine and let

cool before refueling.

ALWAYS

 check for fuel

leaks and wipe up any spills.

ALWAYS

 turn fuel to

OFF when not in use.

NEVER

 handle gasoline

indoors.

NEVER

 overfill fuel tank.

Electrocution can result from using generator in rain,
snow, near water, with wet hands, or with improper
connections.

ALWAYS

 keep generator and surrounding

area dry.

NEVER

 connect generator to any building

without electrical-isolation protection that meets
applicable codes and regulations.

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES.

Generator exhaust contains carbon monoxide.
This is a poison you cannot see or smell.

NEVER use inside a home
or garage. EVEN IF doors
and windows are open.

Only use OUTSIDE and
far away from windows,
doors, and vents.

CAUTION

Contacting a hot exhaust system
can cause serious burns.
Do not touch if generator is or has
been running.

9

CONTROLS AND FEATURES

CONTROLS AND FEATURES

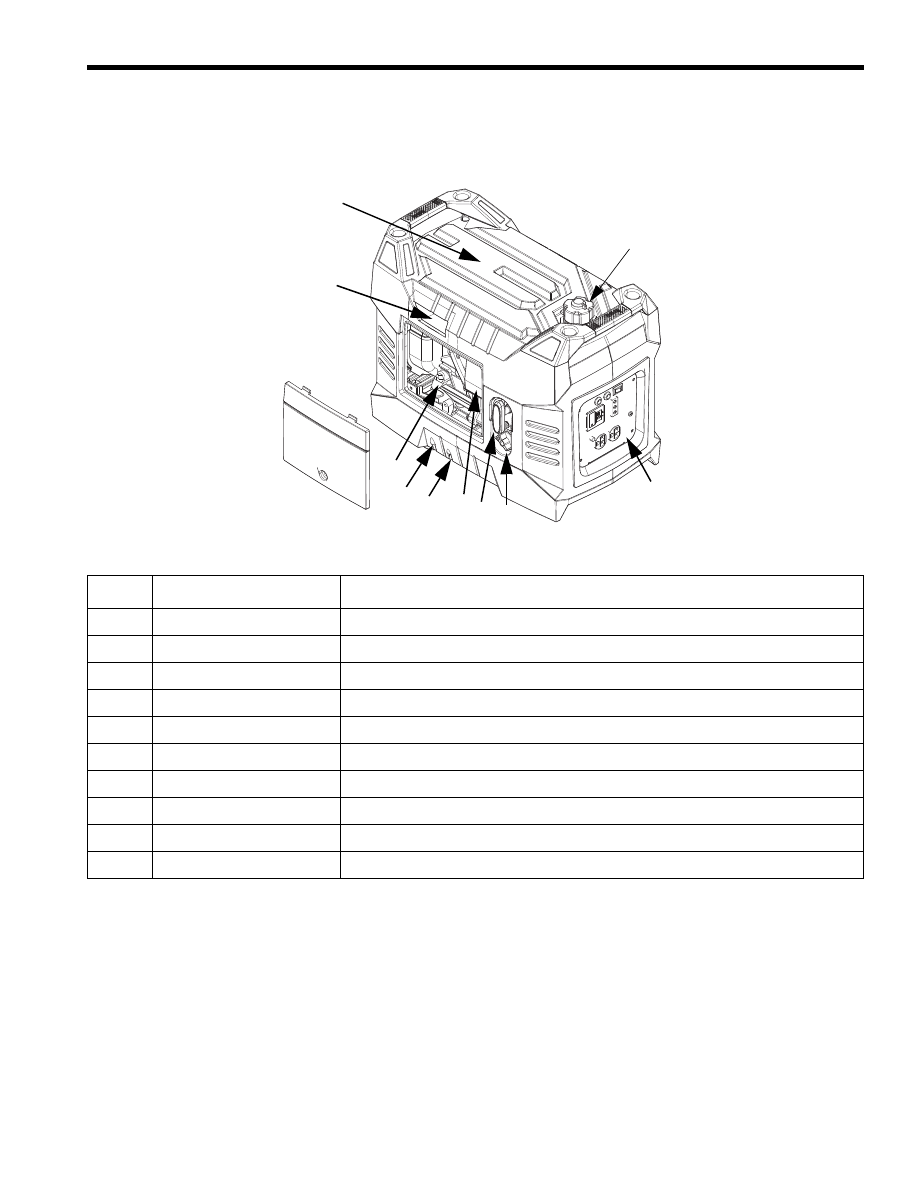

Generator Components:

B

A

C

D

E

F

H

I

J

G

ITEM

NOMENCLATURE

DESCRIPTION

A

Spark Plug Cap

Remove the top to access the spark plug

B

Control Panel

Generator controls

C

Air Filter

Protects the air flow to the carburetor from becoming obstructed with debris

D

Oil Dipstick

Measures oil level in the engine

E

Carburetor Vent Hose

Atmospheric vent

F

Carburetor Drain Hose

Drains fuel from the carburetor

G

Starter Recoil Grip

Causes the recoil starter to crank the engine when pulled

H

Choke Lever

Provides proper starting mixture when engine is cold

I

Fuel Tank Cap

Accesses fuel tank

J

Engine / Fuel Switch

Controls the ignition system and the fuel valve

10

CONTROLS AND FEATURES

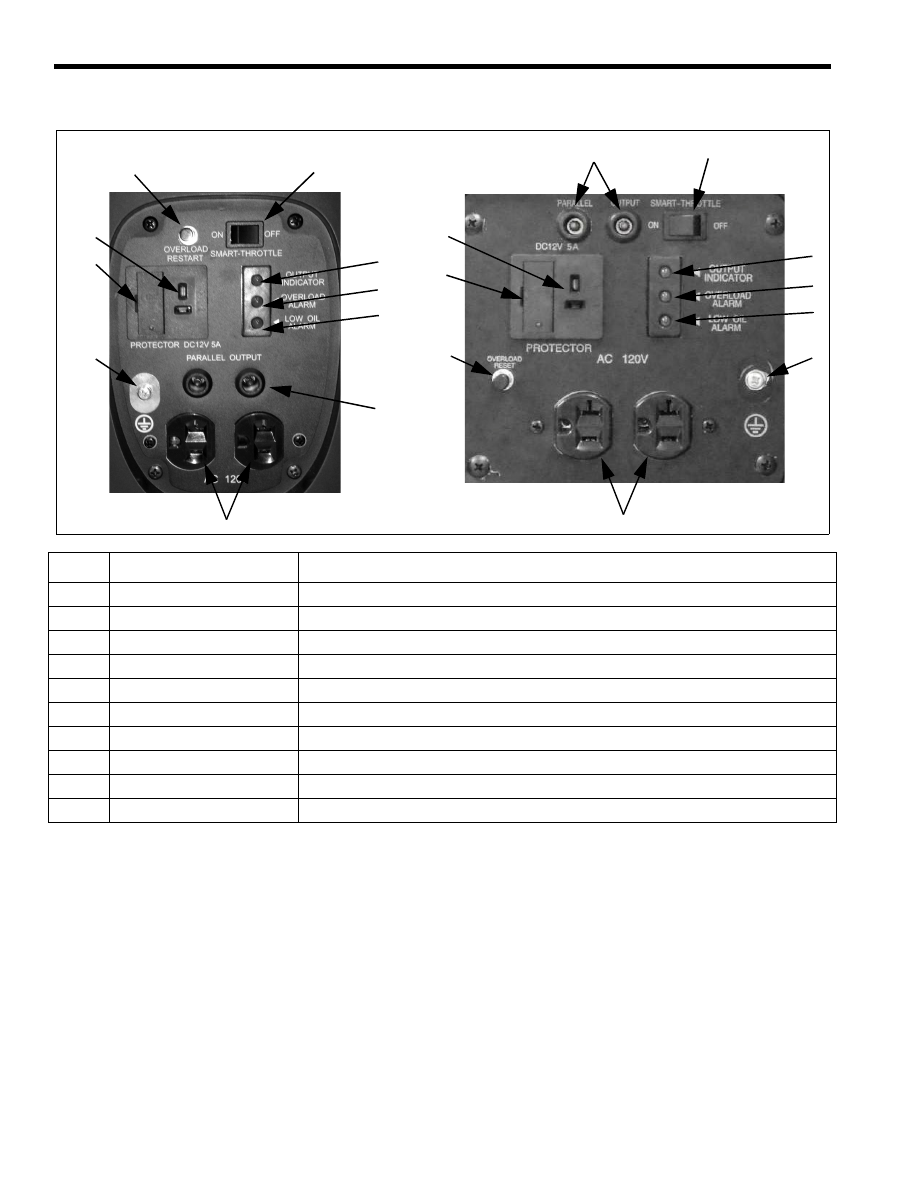

Control Panel Components:

ITEM

NOMENCLATURE

DESCRIPTION

K

Parallel Receptacles

For use with proper Polaris Parallel kits

L

SMART Throttle Switch

Automatically reduces engine speed when loads are shut off or disconnected

M

DC Fuse Protector

Protects DC charging circuit from overloads

N

12V DC Receptacle

Charges 12 Vdc batteries

O

Ground Terminal

Provides ground for non-conductive metal parts and receptacle ground terminals

P

120V AC Receptacles

Provides two connections for properly rated AC appliances

Q

Output Indicator

Illuminates GREEN when the generator is operating normally

R

Overload Indicator

Illuminates RED for appliance short circuits or overloads

S

Low Oil Indicator

Illuminates RED prior to the oil level falling below a safe limit

T

Overload Reset Switch

Resets the circuit after an AC overload

K

M

N

O

P

Q

R

S

T

U

K

M

N

P

Q

R

S

T

U

O

P1000i

P2000i

11

CONTROLS AND FEATURES

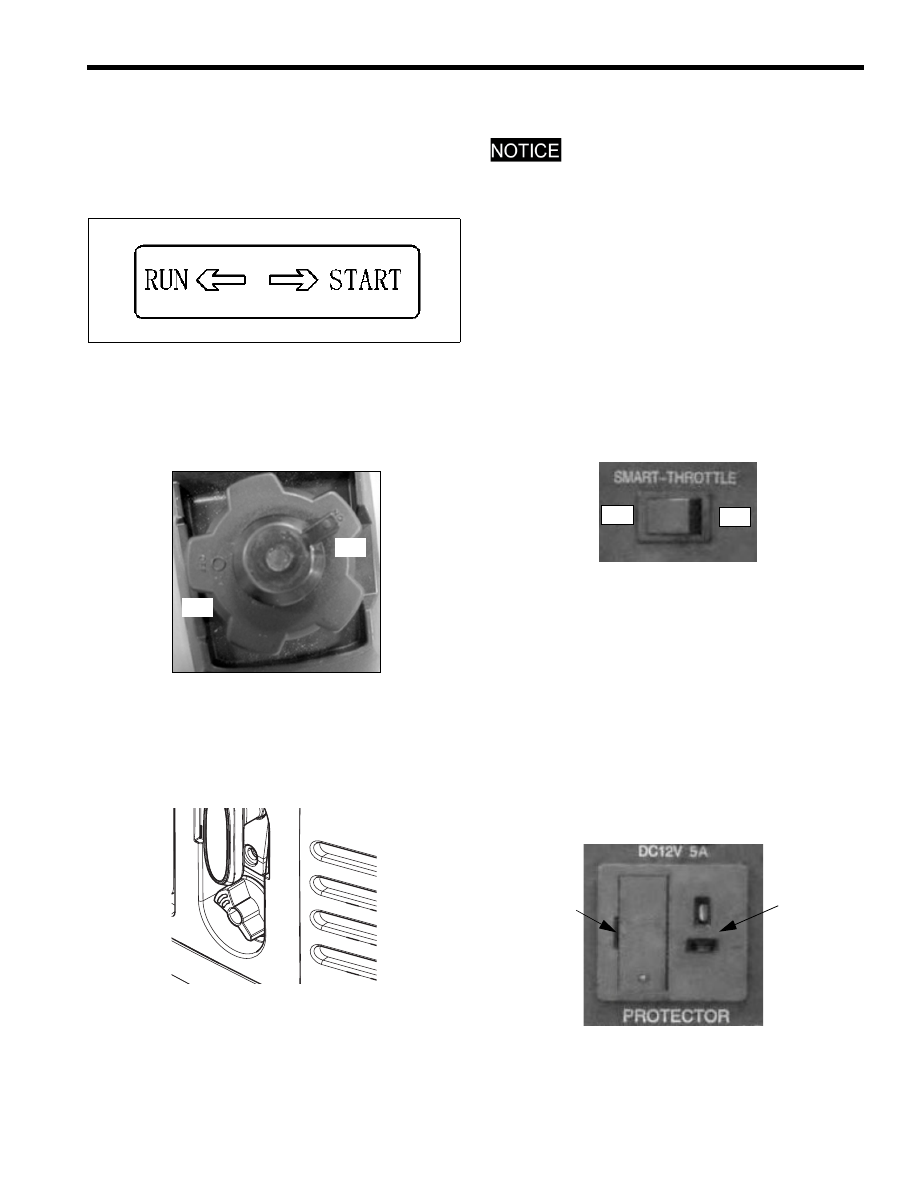

Controls and Features

Choke Lever

Move  the  choke  lever  (H)  to  the  START  position  when
starting a cold engine. Slowly move the choke lever to the
RUN position as the engine RPM stabilizes.

Fuel Tank Cap Vent Lever (if equipped)

When the engine is well-cooled and not in use, the fuel
tank cap vent lever (I) must be placed in the OFF position
to  reduce  the  possibility  of  fuel  leakage.  The  vent  lever
must be in the ON position to allow the engine to operate.

Engine Fuel Switch

The engine switch (J) controls the ignition system and the
fuel valve. ON: opens the fuel valve and allows the engine
to be started. OFF: closes the fuel valve and shuts off the
engine.

Starter Recoil Grip

Do  not  allow  starter  grip  to  snap  back  against  the
generator.  Return  it  gently  to  prevent  damage  to  the
starter.
The  starter  recoil  grip  (G)  causes  the  recoil  starter  to
crank the engine when pulled.



SMART Throttle Switch

The  SMART  throttle  switch  (L)  automatically  reduces
engine  speed  when  loads  are  shut  off  or  disconnected.
The  engine  returns  to  the  proper  speed  to  power  the
electrical  load  when  appliances  are  turned  ON  or
reconnected. Press the SMART throttle switch to the OFF
position to reduce voltage changes when high electrical
loads  are  simultaneously  connected  or  when  using  the
DC output.

DC Receptacle and Fuse

The DC receptacle (N) is protected from an overload with
a fuse. If the DC circuit is overloaded, the 5 amp fuse (M)
will blow and power to the DC receptacle will cease. The
red  light  on  the  DC  panel  will  illuminate.  The  fuse  is
located  to  the  left  of  the  receptacle  and  is  accessed  by
snapping  open  the  access  door.  Replace  the  fuse  with
one of the same capacity. Using a higher rated fuse may
cause damage to the generator alternator.

The DC receptacle charges 12 Vdc automotive-type bat-
teries. The DC charging output is not regulated.

OFF

ON

ON

OFF

ON

OFF

OFF

ON

M

N
