122

MAINTENANCE

Track Tension

WARNING! Moving parts can cut and crush body parts. When performing the
checks and adjustments recommended on the following pages, stay clear of all
moving parts. Never perform track measurement or adjustments with the engine
running.

Track adjustment is critical for proper handling. Always maintain cor-
rect tension and alignment.

Tip: Tension adjustments should be

made only after the track is
warmed up and limber.

1. Turn the engine off.

2. Lift the rear of the snowmo-

bile and safely support it off
the ground.

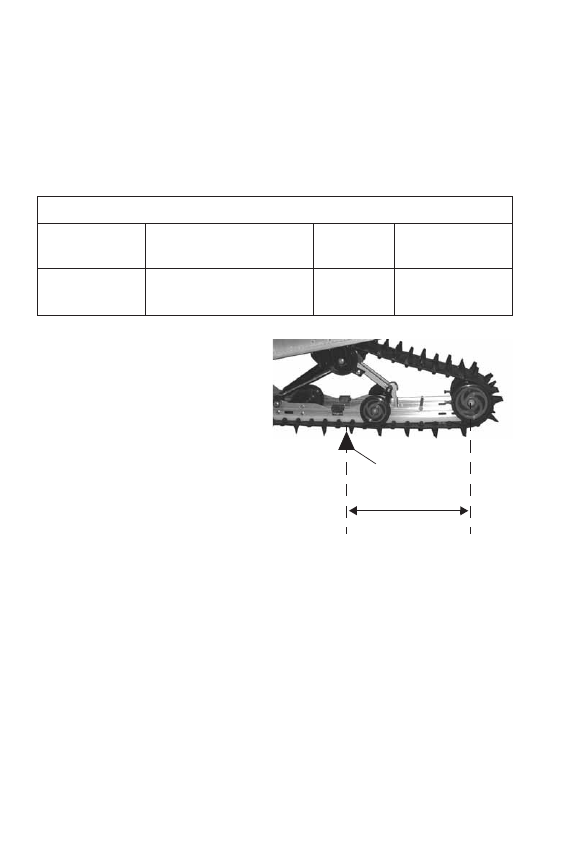

3. Place the recommended

weight or downward pressure
on the track at the specified
distance (see chart) ahead of
the center of the rear idler
wheel.

Tip: Measure at the point where the

weight is hanging.

TRACK TENSION DATA CHART

Suspension

Slack Measurement

Weight

Measurement

Location

FS IQ Widetrak

1/2-3/4 inch
(12-19 mm)

10 lbs.

(4.54 kg)

16 inches (40 cm)

ahead of rear

idler shaft

10 lbs.

(4.54 kg)

16 inches

(40 cm)

123

MAINTENANCE

Track Tension

4. Check for specified slack between the wear surface of the track clip

and the plastic rail slide.

If the track needs adjustment:

5. Loosen the rear idler shaft bolt.

6. Loosen the lock nuts.

7. Tighten or loosen the track adjusting screws as necessary to provide

equal adjustment on both sides of the track.

8. Repeat the measurement on the other side of the track.

Tip: Check more frequently when the snowmobile is new.

9. Start the engine and slowly rotate the track at least five revolutions.

Let the track come to a stop (do not apply brakes).

10. Check track alignment (see page 124) and adjust as necessary.

11. Tighten the lock nuts.

12. Tighten the idler shaft bolts. Torque to 35 ft. lbs. (47.5 Nm).

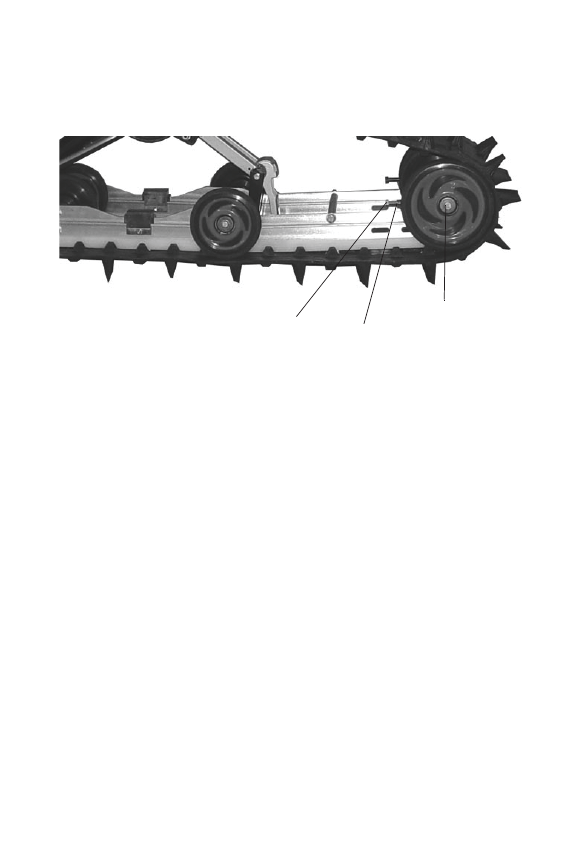

Idler Shaft

Bolt

Adjusting

Screw

Lock

Nut

124

MAINTENANCE

Track Alignment

Periodically check that the track is
centered and running evenly on the
slide rails. Misalignment will cause
excessive wear to the track and slide
rail.

1. Safely support the rear of the

snowmobile with the track off the
ground.

2. Start the engine and apply a small

amount of throttle until the track
turns slowly at least five com-
plete revolutions. Stop the engine
and let the track come to a stop
(do not apply brakes).

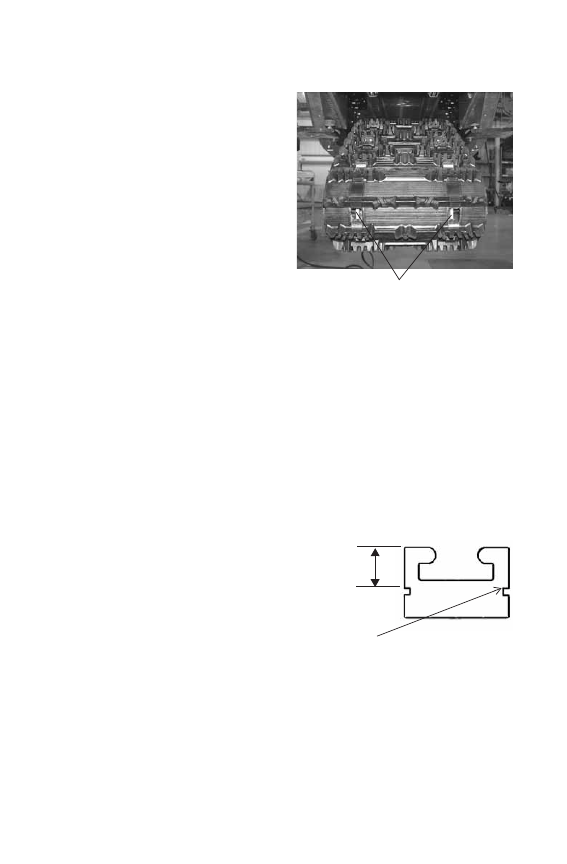

3. Inspect track alignment by looking through the track window to

make sure the rails are evenly spaced on each side. If the track runs
to the left, loosen left locknut and tighten the left adjusting bolt. If
the track runs to the right, loosen right locknut and tighten the right
adjusting bolt.

4. After adjustments are complete, tighten locknuts and torque idler

shaft bolts to 35 ft. lbs. (47.5 Nm).

5. Repeat steps 2 and 3 to verify proper alignment.

Rail Slide Wear

For ease of inspection, all
POLARIS rail slides have a
wear limit indicator groove to
indicate the minimum permissi-
ble slide thickness. Replace the
rail slides if they are worn to the
top of the groove at any point
along their length.

NOTICE: Failure to replace worn

rail slides may result in
permanent damage to
the track or rails.

Rails

Replace when

worn to top of

groove

Minimum

Thickness

125

MAINTENANCE

Steering System

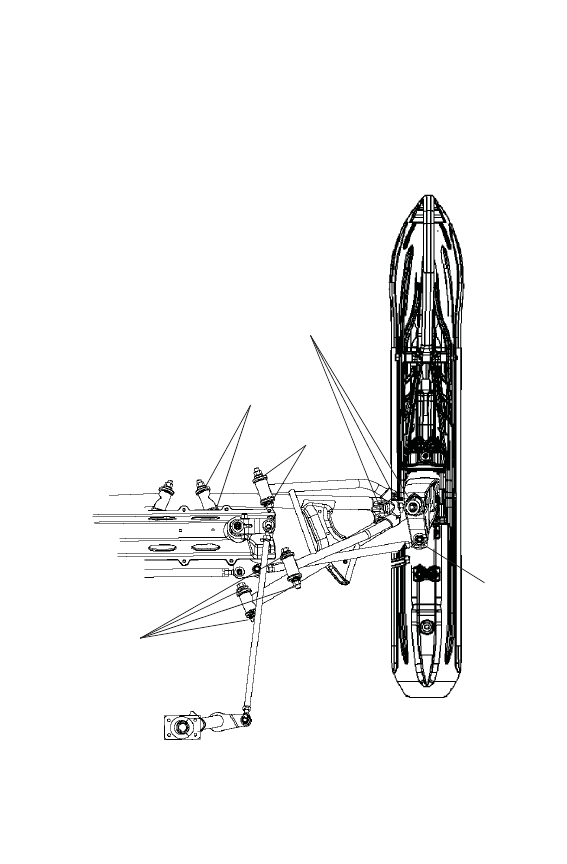

Steering Inspection and Adjustment

Each week, or before a long ride, check fasteners and tighten if neces-
sary. Specific fasteners that should be checked are marked with an (X)
in the illustration.

x

x

x

x

x
