Snowmobile Polaris FS IQ Widetrak (2013 year). Manual - part 28

114

MAINTENANCE

Electrical System

RELAY LABEL

FUSE LABEL

ITEM POWERED

START SOLENOID
RELAY

Ground side of start solenoid

CHASSIS
RELAY

SPARE 20A

None

ACCESSORY
EMERGENCY
SPARE 30A

Accessory plugs

CHASSIS
30A

High beams

Low beams

Handwarmers

Thumbwarmer

Passenger handwarmers

Work light

Tail lamp

Brake lamp

Alternator coils

EFI
RELAY

EX. SENSOR
GAUGE 20A

Exhaust sensor

Gauge

Accessory projector beam relay

Diagnostic plug

IGNITION 20A

Ignition relay power

EFI
20A

Cam phase sensor

ECU hold-on power

Forward limit switch

Start relay coil

Chassis relay coil

Ignition relay coil

Fuel pump relay coil

Fan relay coil

Fuel pump relay power

PTO injector

MAG injector

IGNITION RELAY

PTO ignition coil

MAG ignition coil

FUEL PUMP RELAY

Fuel pump

FAN RELAY

Radiator fan

115

MAINTENANCE

Clutch System

Periodically inspect clutch sheaves for damage, wear or belt residue. To
maintain optimum performance, clean with non-oil based cleaners such
as isopropyl alcohol.

WARNING! If you become aware of higher than normal clutch engagement or
an unusual vibration or shift pattern, see your dealer immediately. Do not
operate the snowmobile until repairs have been made.

WARNING! All clutch maintenance and repairs must be performed by an
authorized POLARIS dealer. Any unauthorized modifications to clutches, such
as adding or removing weights, will void the warranty.

NOTICE: The bushings in the weights and rollers of POLARIS clutches are

made of a material that may be damaged if lubricated. Do not
lubricate clutch bushings.

Clutch Alignment Offset

Clutch alignment offset is important for maintaining optimum perfor-
mance. Please see your POLARIS dealer if you experience a decrease in
performance.

116

MAINTENANCE

Clutch System

Drive Belt Condition

Periodically check the condition and tension of the drive belt, and
always carry a spare. Inspect the belt for signs of excessive wear: frayed
edges, missing cogs, cracks and excessive looseness. Replace the belt if
any of these conditions exist. See Drive Belt Troubleshooting on page
141.

For improved drive-away during extremely cold temperatures, remove
the belt and warm it to room temperature. Reinstall it before starting the
snowmobile.

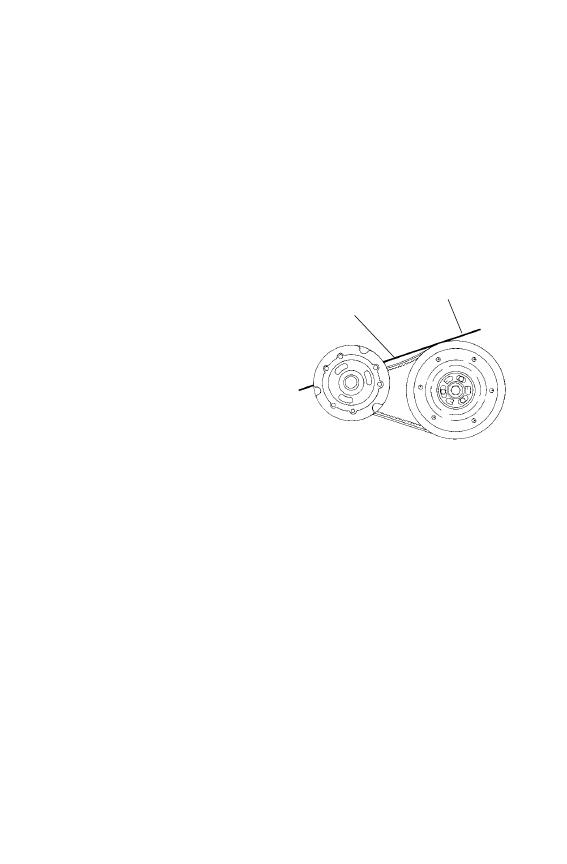

Drive Belt Deflection

Measure belt deflection with both
clutches at rest and in their full
neutral position.

Place a straight edge on the belt
and apply downward pressure
while measuring at point A. This
measurement should be 1 1/4
inches (3.2 cm).

Straight

Edge

Measure

A

117

MAINTENANCE

Clutch System

Drive Belt Adjustment

Belt deflection should be adjusted without removing the clutch from the
jackshaft.

1. Loosen the 7/16-inch jam nut on the belt width adjuster.

2. Using a 1/8-inch Allen wrench, adjust the threaded set screw as

needed.

Tip: Turn the set screw in (clockwise) to increase the distance between the

sheaves and out (counterclockwise) to decrease the distance.

3. Tighten the jam nut.
