Polaris ACE 570 (2018 year). Manual - part 28





116

MAINTENANCE

Tires

Wheel Removal

1. Position the vehicle on a level surface.
2. Place the transmission in PARK. Stop the engine.
3. Loosen the wheel nuts slightly.
4. Elevate the side of the vehicle by placing a suitable stand under the

frame.

5. Remove the wheel nuts and washers. Remove the wheel.

Wheel Installation

1. Place the transmission in PARK.
2. Place the wheel on the hub with the valve stem toward the outside

and rotation arrows on the tire pointing toward forward rotation.

WARNING! Improperly installed wheels can adversely affect tire wear and

vehicle handling, which can result in serious injury or death. Always ensure that

all nuts are torqued to specification. Do not service axle nuts that have a cotter

pin installed. See your POLARIS dealer.

3. Attach the wheel nuts and washers and finger-tighten.
4. Carefully lower the vehicle to the ground.
5. Torque the wheel nuts to specification. See page 115.

117

MAINTENANCE

Lights

Headlight and taillight lenses become dirty during normal operation.

Clean all lights frequently to ensure a clear field of vision as well as

visibility to other vehicles.
When servicing a halogen lamp, don't touch the lamp with bare fingers.

Oil from your skin leaves a residue, causing a hot spot that will shorten

the life of the lamp.

LED Headlamps (if equipped)
If a headlight becomes damaged or inoperable, the entire headlight

assembly must be replaced.

Tip: If an LED headlamp has moisture or fogging inside, disconnect the wiring

harness from the headlamp(s) for a few days to allow the moisture to clear

out. Do not operate the vehicle at night or in low light conditions without

properly working headlights.

Brake Lights

When the brake pedal is depressed, the brake light comes on. Check the

brake light before each ride.
1. Turn the ignition switch to the HEADLIGHTS ON position.
2. Apply the brakes. The brake light should come on after about 10

mm (0.4 in.) of pedal travel. If the light doesn't come on, check the

bulb.

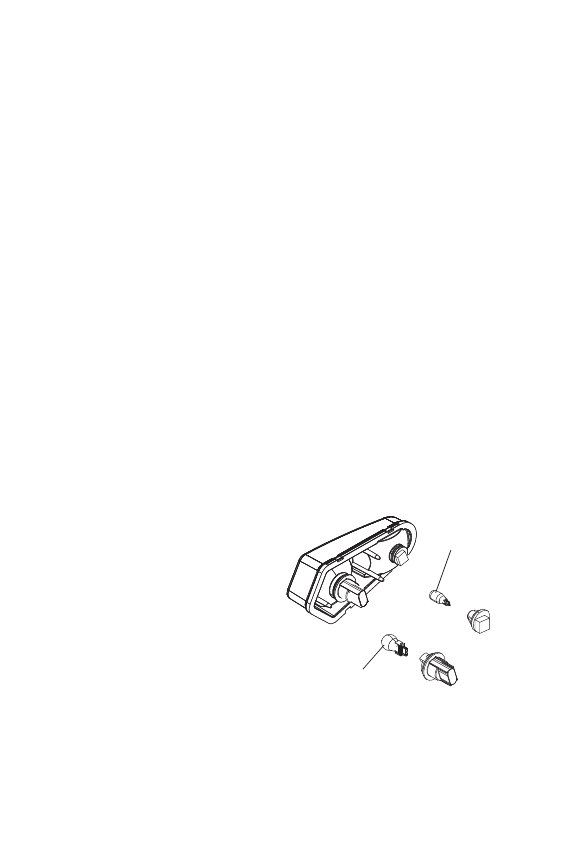

Taillight/Brake Light/Turn Signal Lamp Replacement

1. Remove the harness

connector from the back

of the light assembly.

2. Pull the lamp out of the

connector to remove it.

3. Install the new lamp.
4. Reinstall the harness

connector.

5. Test the light for proper

operation.

Taillight

Lamp

Turn Signal

Lamp

118

MAINTENANCE

Lights

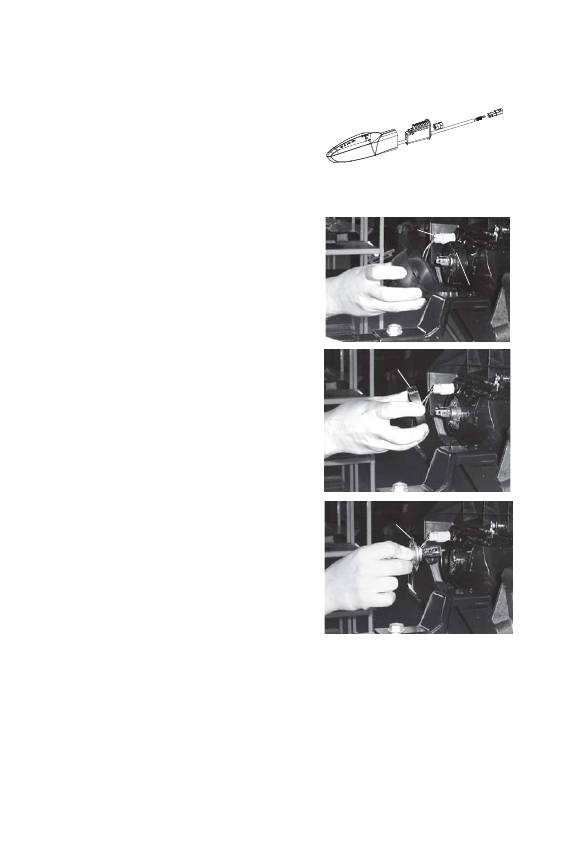

Front Turn Signal Replacement

If a front turn signal light becomes

inoperable, the lamps cannot be replaced.

Replace the entire signal lamp assembly.

Headlight/Position Light Lamp

Replacement

When servicing a halogen lamp, do not

touch the lamp with bare fingers. Oil

from your skin leaves a residue, causing

a hot spot that will shorten the life of the

lamp. Hold the plastic part of the lamp.
1. Place the transmission in PARK.
2. Open the front rack cover.
3. Remove the plug at the back of the

headlight.

4. Pull the harness plug to disconnect it

from the back of the headlight.

5. Position light: Rotate the socket to

remove it. Go to step 6. Headlamp

Reach under the bumper and remove

the rubber cover from the back of the

headlight. Turn the collar counter-

clockwise and carefully remove the

collar and socket.

6. Remove the lamp. Apply dielectric

grease to the socket and install a new

lamp.

7. Reverse all steps to reassemble the

headlight.

Position Light

Collar

Socket

Headlamp

119

MAINTENANCE

Lights

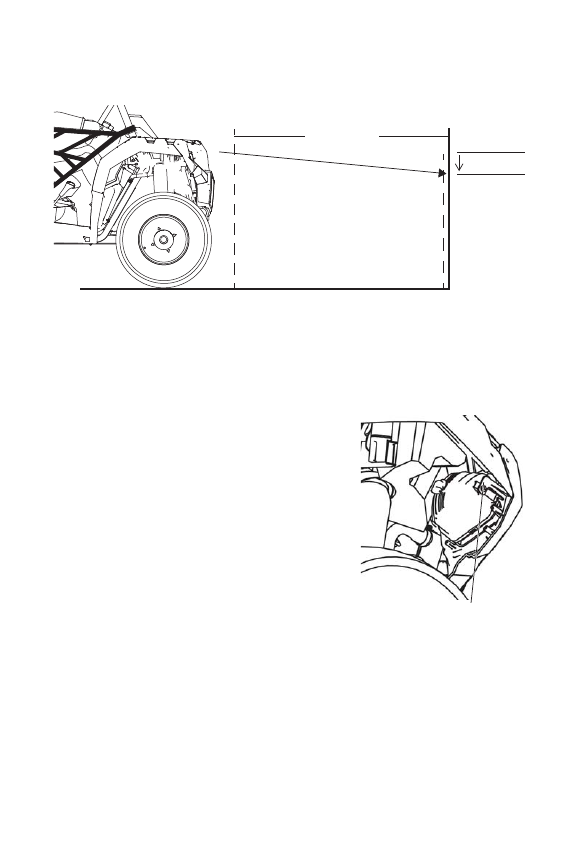

Headlight Beam Adjustment

1. Place the vehicle on a level surface with the headlight

approximately 25 ft. (7.6 m) from a wall. Place the transmission in

PARK.

2. Measure the distance from the floor to the center of the headlight

and make a mark on the wall at the same height.

3. Apply the brakes. Turn the ignition

switch to the HEADLIGHTS ON

position.

4. Observe the headlight aim. The most

intense part of the headlight beam

should be aimed 8" (20 cm) below the

mark placed on the wall in step 2.

Include the weight of a rider on the seat

while performing this step.

5. If adjustment is necessary, turn the

headlight adjustment screw to adjust the

beam.

6. Repeat steps 4-5 until the beam is

properly adjusted.

25 ft.

(7.6 m)

8" (20 cm)

X

X

Adjustment

Screw
