WINCH GUIDE

Winch Operation

14. The winch motor may become hot during winch use. If you winch

for more than 45 seconds, or if the winch stalls during operation,

stop winching and permit the winch to cool down for 10 minutes

before using it again.

15. After winching is complete, especially if winching at an angle, it

may be necessary to re-distribute the winch cable across the winch

drum. You will need an assistant to perform this task.

A. Release the clutch on the winch.
B. Feed out the winch cable that is unevenly bunched up in one area.
C. Re-engage the winch clutch.
D. Have an assistant pull the winch cable tightly with about 100 lbs. (45

kg) of tension using the hook strap.

E. Slowly winch the cable in while your assistant moves the end of the

winch cable back and forth horizontally to evenly distribute the winch

cable on the drum.

F.

Doing this reduces the chances of the winch cable “wedging” itself

between lower layers of winch cable.

81

WINCH GUIDE

Winch Cable Care

For your safety, always replace POLARIS winch parts (including the

cable) with genuine POLARIS replacement parts available at your

authorized POLARIS dealer.

WARNING! Use of worn or damaged cable could lead to sudden failure and

SEVERE INJURY.

1. Always inspect your winch before each use. Inspect for worn or

loose parts including mounting hardware. Never use the winch if

any part needs repair or replacement.

2. Always inspect your winch cable before each use. Inspect for worn

or kinked winch cable.

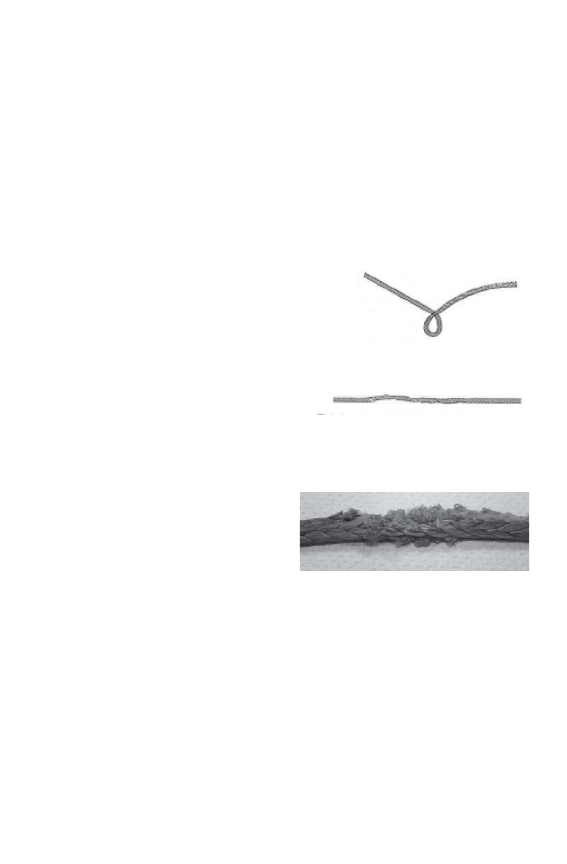

A. A kinked winch cable made of

wire rope is shown at right. Even

after being “straightened out,”

this cable has already been

permanently and severely

damaged. Promptly discontinue

use of a winch cable in this

condition.

B. A kinked winch cable made of

wire rope that has been

“straightened out” is shown at

right. Even though it may look

usable, the cable has been

permanently and severely damaged. It can no longer transmit the load

that it could prior to kinking. Promptly discontinue use of a winch cable

in this condition.

C. A winch cable made of

synthetic rope should be

inspected for signs of fraying.

Replace the cable if fraying is

observed (shown at right).

Promptly discontinue use of a

winch cable in this condition.

D. Also replace the winch cable if there are fused or melted fibers. Such

an area of the synthetic rope will be stiff and appear smooth or glazed.

Promptly discontinue use of a winch cable in this condition.

A

B

C

82

WINCH GUIDE

Shock Loading

WARNING! Your winch cable is very strong but it is NOT designed for dynamic,

or “shock” loading. Shock loading may tension a winch cable beyond its strength

and cause the cable to break. The end of a broken winch cable under such high

loading can cause SEVERE INJURY or DEATH to you and other bystanders.

Winch cables are designed to NOT absorb energy. This is true of both

wire-rope and synthetic-rope winch cables.
1. Never attempt to “jerk” a load with the winch. For example, never

take up slack in the winch cable by moving the winching vehicle in

an attempt to move an object. This is a dangerous practice. It gener-

ates high winch cable loads that may exceed the strength of the

cable. Even a slowly moving vehicle can create large shock loads in

a winch cable.

WARNING! SEVERE INJURY or DEATH can result from a broken winch cable.

2. Never quickly turn the winch ON and OFF repeatedly (“jogging”).

This puts extra load on the winch, winch cable, and generates

excessive heat from the motor. This is a form of shock loading.

3. Never tow a vehicle or other object with your winch. Towing an

object with a winch produces shock loading of the cable even when

towing at slow speeds. Towing from a winch also positions the

towing force high on the vehicle. This can cause instability of the

vehicle and possibly lead to an accident.

4. Never use recovery straps with your winch. Recovery straps are

designed to stretch and can store energy. This stored energy in the

recovery strap is released if a winch cable fails making the event

even more hazardous. Similarly, never use elastic “bungie” cords

for winching.

5. Never use the winch to tie down a vehicle to a trailer or other

transportation vehicle. This type of use also causes shock loading

that can cause damage to the winch, winch cable, or vehicles used.

Your winch cable is designed and tested to withstand the loads

produced by the winch motor when operated from a stationary

vehicle. Always remember that the winch and winch cable are NOT

designed for shock loading.

83

WINCH GUIDE

Winch Maintenance and Service Safety

WARNING! Improper or lack of winch maintenance and service could lead to

SEVERE INJURY or DEATH. Always follow all winch instructions and warnings

in this manual.

1. Always inspect your winch before each use. Inspect for worn or

kinked winch cable. Also inspect for worn or loose parts including

mounting hardware.

2. Permit your winch motor to cool down prior to servicing your

winch.

3. Never work on your winch without first disconnecting the battery

connections to prevent accidental activation of the winch.

4. For your safety, always replace POLARIS winch parts (including

the cable) with genuine POLARIS replacement parts available at

your authorized POLARIS dealer.

5. Some winch models use wire rope as the winch cable. Other

winches use a specially designed synthetic rope as the winch cable.

6. Never replace a synthetic-rope winch cable with a consumer-grade

polymer rope such as can be purchased in a hardware store.

Although they may look similar, they are NOT alike. A polymer

rope not designed for winch use will stretch and store excessive

energy when winching.

WARNING! Failure of a stretched rope under winching conditions will release

all of the stored energy. This will increase the chances of SEVERE INJURY or

DEATH.
