Snowmobile Polaris 2006 - 2007 FS / FST. Manual - part 43

8.7

PVT System

Rev. 1 07/2006

Non-ER LWT Driven Helixes

Team Driven Springs

Non-ER LWT Driven Helixes

PART NUMBER

DESCRIPTION

5135438

70/44 - .46 / 66/44 - .46

5135480

64/38 - .65 / 64/38 - .46

5135486

62/40 - .46 / 64/40 - .55

5135521

74/50 - .46 / 74/48 - .46

5135522

74/44 - .46 / 74/40 - .46

5135523

70/50 - .46 / 70/48 - .46

5135524

70/44 - .46 / 70/40 - .46

5135525

66/50 - .46 / 66/48 - .46

5135526

66/44 - .46 / 66/40 - .46

5135537

64/38 - .65

TEAM Driven Springs

PART NUMBER

COLOR

WIRE DIAMETER

LOAD @ 2.2

″(lbs)

LOAD @ 1.1

″(lbs)

Rate (Lbs. per inch)

7042181

Black/Yellow

.200

145

208

7043058

Red/Black

.218

140

240

7043059

Red/Green

.218

120

220

7042066

Green/Black

.200

135

198

7043061

Red/Silver

.207

125

175

7043062

Red/Yellow

.207

100

150

7043057

Red/Blue

.218

140

200

7043063

Black/Red

.218

155

222

7043064

Blue/Black

.218

123

203

7043060

Red/White

.218

100

200

7043069

Red/Pink

.235

140

260

110

8.8

PVT System

Rev. 1 07/2006

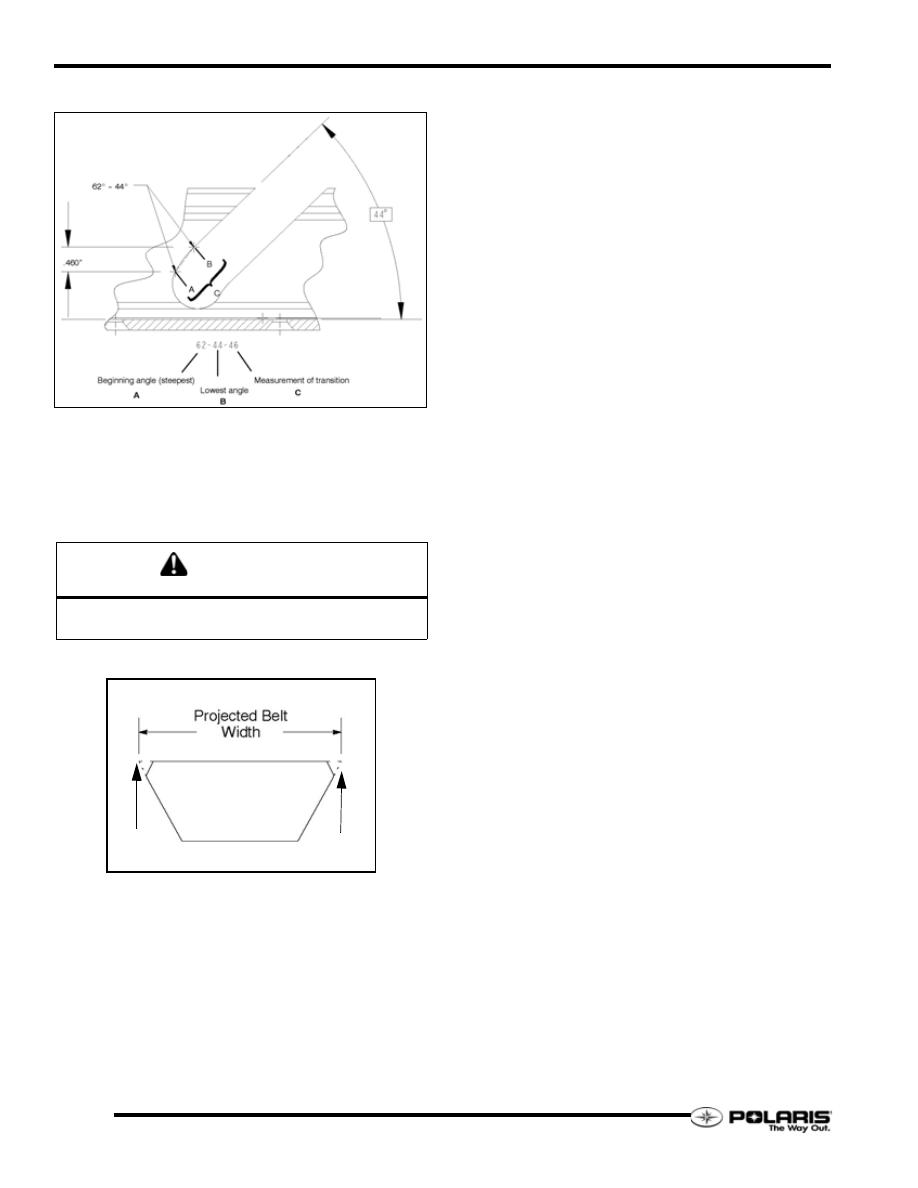

Team Ramp Angles

The Team helix is designated by the angle and length of the
angle on the back side of the ramp. The first number (A)
designates the starting angle of the ramp. The second number
(B) designates the finish angle. The last number (C) is the
transition distance (in inches) between the starting and finish
angles.

Belt Inspection

Measure the belt width and replace it if it is worn severely.
Generally a belt should be replaced if the clutches can no
longer be adjusted to provide the proper belt deflection.

• Project the side profiles and measure from corner to

corner.

• Place a straight edge on each side of the drive belt and

measure the distance where the straight edges intersect
at the top (A,B).

Inspect the belt for loose cords. missing cogs, cracks,

abrasions, thin spots or excessive wear spots. Replace if
necessary.

Inspect the belt for hour glassing (extreme circular wear in
at least one spot an on both sides of the belt). Hour glassing
occurs when the drive train does not move and the drive
clutch engages the belt. Example would be taking off while
the track is frozen to the ground. Remember to always
warm up the track and free it from the ground.

CAUTION

Do not install a non-ER helix on a Perc-equipped

snowmobile where the engine changes directions.

BELT

8.9

PVT System

Rev. 1 07/2006

Belt Wear / Burn Diagnostics

Table 8-1:

Belt Wear / Burn Diagnostics

POSSIBLE CAUSE

SOLUTION

Driving at or about engagement RPM for extended periods
of time in any type of snow condition.

Drive at higher RPM if possible. Gear the machine down.
Make sure belt deflection is at 1 1/4” to achieve optimum
starting ratio.

Cold weather startups

Be patient. Warm up engine at least 5 minutes or until it
readily responds to throttle input. For the quickest most
efficient drive away in extreme cold weather, take drive
belt off machine and bring it in to a warm environment.
Break skis and track loose from the snow. Engage throttle
aggressively for short durations for initial cold drive away

Towing another machine at or about engagement RPM

When possible, do not go in deep snow when towing
another machine. Use fast, effective throttle to engage the
clutch. Not all machines are intended for pulling heavy
loads or other machines.

Spinning track while vehicle is stuck (high RPM, low
vehicle speed, high ambient temp. Example: 8000 RPM,
10mph actual vehicle speed and 60 m.p.h. indicated on
speedometer.

Lower the gear ratio. Remove windage plates from driven
clutch. If possible, move to better snow conditions and
reduce RPM. Avoid riding in very high ambient
temperatures

Ice and snow piled up between track and tunnel overnight
or after stopping for a long period of time (enough to re-
freeze the snow).

Break loose snow and ice under tunnel. Allow longer than
normal warm-up. Allow belt to warm sufficiently and
increase grip ability on clutch sheaves. Use fast, effective
throttle when engaging clutch.

Poor running engine (Bog, Miss, Backfire, etc.)

Maintain good state of tune including throttle and choke
synchronization. Check for fouled spark plug(s). Check for
foreign material in carbs. Make sure no water or ice is
present in the fuel tank, lines, or carburetors.

Loading machine on trailer

Use caution when loading machine. Carbide skags may
gouge into trailer and prevent drive train from spinning
freely. Use enough speed to drive completely onto trailer. If
machine cannot be driven completely onto trailer, it may
need to be pulled or pushed to avoid belt wear / burning.

Clutch malfunction

Check for correct clutch components, or damage on the
clutch

Slow, easy belt engagement - easing on the throttle

Use fast, effective throttle to engage the clutch.

8.10

PVT System

Rev. 1 07/2006

Drive Belt Removal

NOTE: Turn the key to the “OFF” position and allow
the engine to come to a complete stop.

Always install a used belt in the same direction as it was installed
before removing. When installing a new belt, position the
identification numbers so they can read when viewed from the
left-side of machine.

Remove the clutch guard / air intake.

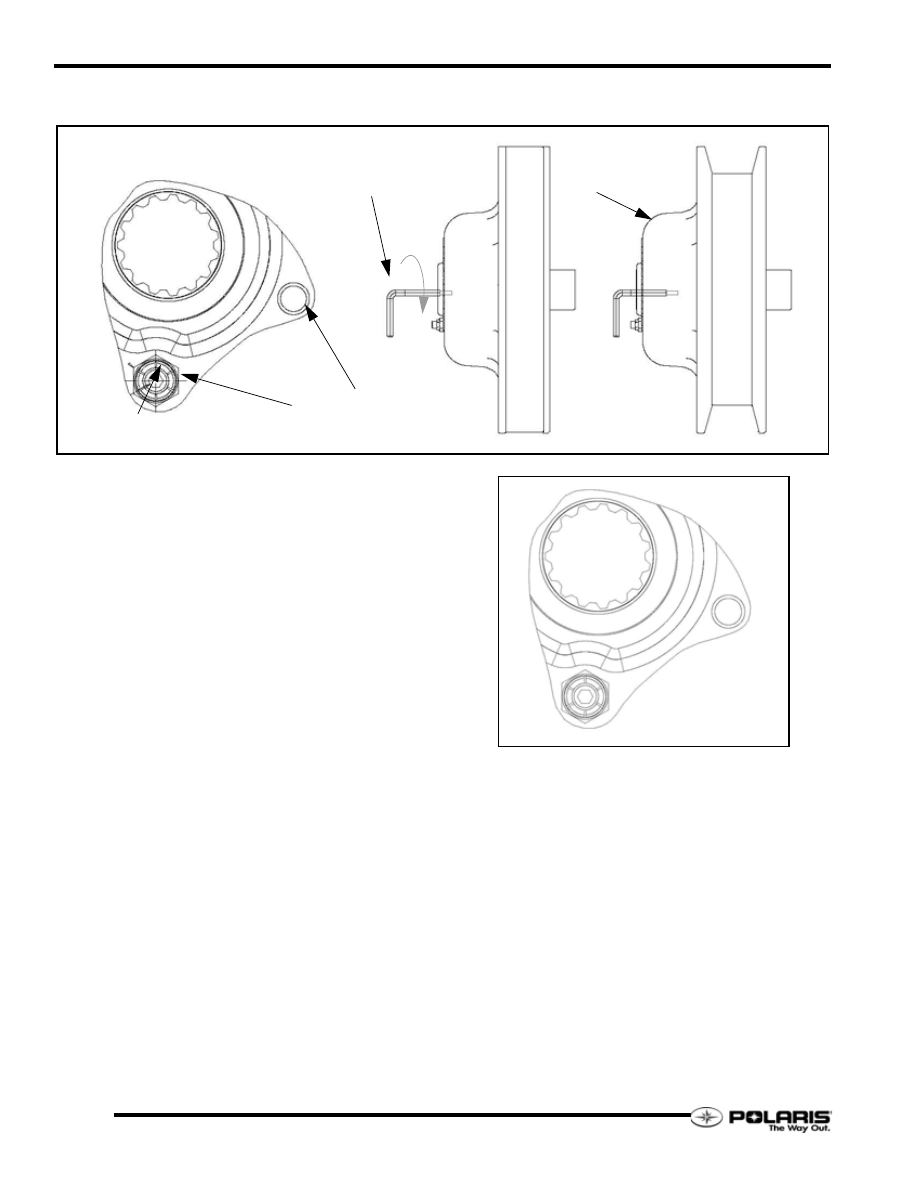

Insert the “L” wrench (A) into the threaded hole (B) located
on the driven clutch, and turn it clockwise until the clutch
sheaves are in the open position (C).

NOTE: L wrench PN 2874857

Remove the drive belt.

Drive Belt Installation

With the “L” wrench inserted into the threaded into hole
(B) and the sheaves in the open position (C), install the
drive belt.

NOTE: Install belt so that the numbers can be read
correctly on the left side of the machine.

Turn the “L” wrench counter-clockwise until the driven
clutch sheaves are in the closed position. “Wiggle” the belt
to remove slack while removing the wrench.

Reinstall the clutch guard / air intake.

Adjusting Belt Deflection

Loosen the jam nut (E).

Using an 1/8” Allen head wrench, turn the stud (F) counter-
clockwise to decrease belt deflection and clockwise to
increase belt deflection.

When the proper belt deflection is achieved torque the lock
nut (E) to 90-110 in-lb. (10-12Nm).
