24

FEATURES

8

13

5

6

7

12

11

2

1

3

4

10

9

1.

Nosepan

2.

Skis

3.

Front Bumper

4.

Hood

5.

Headlight

6.

Windshield (accessory)

7.

Handlebar

8.

Operator Seat

9.

Taillight

10. Rear Bumper
11. Snow Flap
12. Suspension
13. Track
14. Side Panel
15. Side Panel Fasteners
16. Tool Kit/Storage Bag

15

14

16

25

FEATURES

1.

Brake Lever

2.

MFD Gauge

3.

Ignition Switch

4.

Engine Stop Switch

5.

Throttle Control

6.

Recoil Starter Handle

7.

Parking Brake Lock

8.

Handlebar Grip Warmer Switch

9.

Thumbwarmer Switch

10. Electronic Reverse Button
11. Mode/Set Switch
12. Headlight Dimmer Switch

3

4

5

6

2

1

11

10

12

7

8

9

26

FEATURES

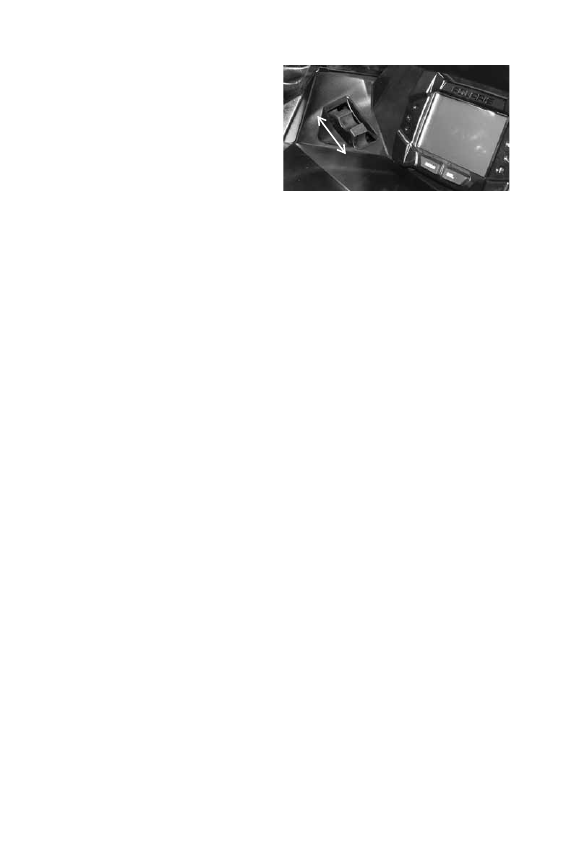

Adjustable Headlights

Move the headlight adjuster to
the left to adjust the headlight
beam upward. Move the adjuster
to the right to adjust the beam
downward.

Up

Down

27

FEATURES

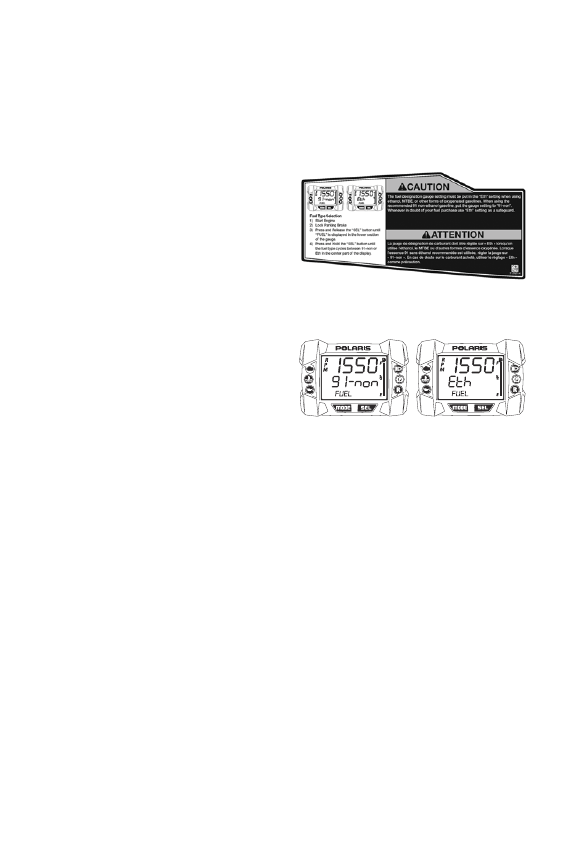

Fuel Type Selection

Whenever using ethanol, MTBE or other forms of oxygenated gaso-
lines, the fuel type designation setting must be changed to “Eth” in the
gauge. When using the recommended 91 non-ethanol gasoline, always
select the “91-non” setting.

Whenever in doubt of your fuel
purchase, use the “Eth” setting as
a safeguard.

Use the following procedure to
change the fuel type designation in
the gauge. Refer to the fuel type
selection label located inside the
left side panel.

1. Start the engine.

2. Lock the parking brake.

3. Press and release the

SELECT button or SET
switch until “FUEL” is dis-
played in the lower section of
the gauge.

4. Press and hold the SELECT button or SET switch until the desired

fuel type is displayed in the center of the screen.
