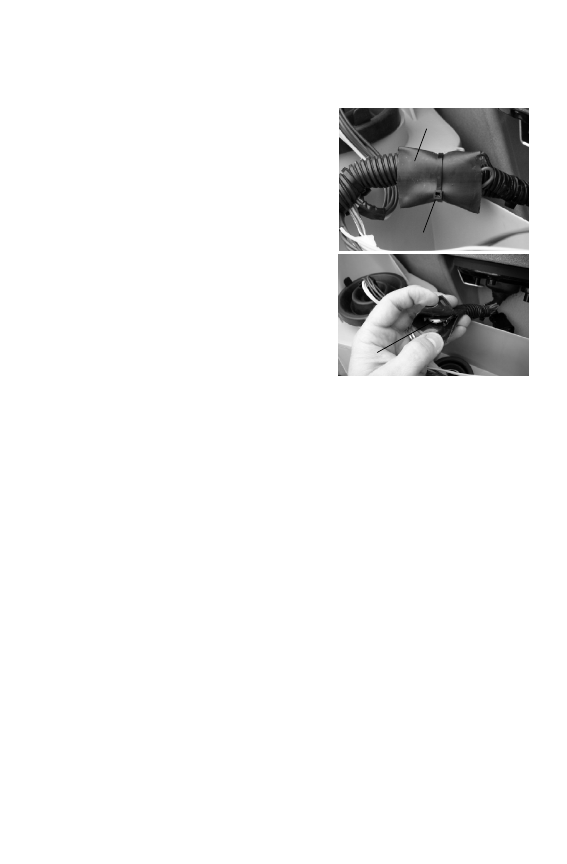

37 FEATURES Instrumentation MFD Battery Replacement If the clock function of the MFD isn’t working properly, replace the battery. Replacement batteries are available from your dealer. underside of the hood. 2. Locate the black battery compartment (1). It has a red wire and a brown wire with a white stripe. It’s located about three inches down the main harness from the point where the harness connects to the MFD. 3. Cut the plastic cable tie (2) from the outside of the compartment. 4. Carefully cut the bottom of the compartment (opposite the wires) to separate the heat-sealed seams. Squeeze the corners of the compartment inward so the battery (3) is visible. NOTE: Note the orientation of the battery before removing it. An incorrectly installed battery will not maintain the clock. 5. Using needle-nose pliers, grasp the battery and rotate it slightly so the leading edge of the battery is raised slightly away from the battery holder. Pull the battery out gently. NOTE: The battery will not come out of the holder unless the leading edge of the battery is raised. Hold the battery compartment, not the wires, while removing the battery. Pulling on the wires will separate them from the battery holder. 6. Install a new battery with fingers only. double-sided tape between the two compartment halves or high strength single-sided tape around the outside of the compartment. 8. Make sure the taped seam of the compartment faces the downward side of the wire harness. 9. Install a cable tie to secure the compartment to the wire harness in the same location where the previous cable tie was located. Make sure the battery wires are not stretched tight. 1 2 3 |
