FEATURES

Instrument Cluster

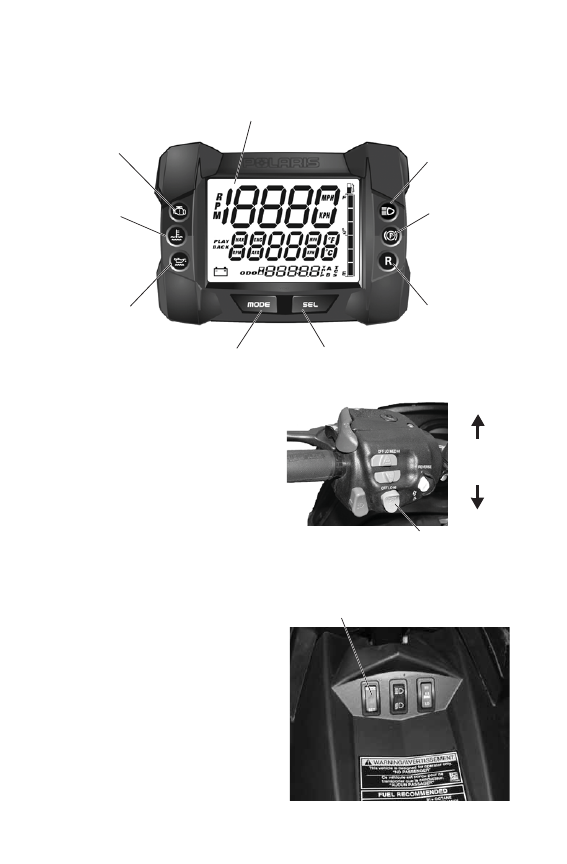

The instrument cluster contains
indicator lights and the rider infor-
mation center. The information cen-
ter can be controlled by either the
MODE and SELECT buttons on the
instrument cluster or by the MODE/
SET switch on the left handlebar or
console.

NOTICE: Certain products will damage

the lens and other plastic sur-
faces. Do not use alcohol to
clean the instrument cluster.
Immediately clean off any
gasoline that splashes on the
instrument cluster.

Rider Information

Center

Check Engine

Indicator

High Beam

Indicator

Low Oil

Indicator

Over-Tem-

perature Indi-

cator

Park Brake

Indicator

Reverse

Indicator

MODE

Button

SELECT

Button

Mode/Set Switch

(RMK)

SET

MODE

Mode/Set Switch

(PRO-RMK/ASSAULT)

35

FEATURES

Instrument Cluster

Indicators

Check Engine Indicator

This indicator appears if an EFI-related fault occurs. Do not operate the
snowmobile if this warning appears. Serious engine damage could
result. See your dealer. See page 48 for diagnostic code definitions.

Over-Temperature Indicator

This indicator illuminates to alert the operator that the engine is over-
heating. The operator should take action to cool the engine. See page 90.
If the indicator flashes, continued operation could result in serious
engine damage. Stop the engine immediately.

Low Oil Indicator

The low oil indicator light may flicker at times due to oil movement in
the bottle, but when the light comes on and remains on, add the recom-
mended oil before further operation. See page 69.

High Beam Indicator

The high beam indicator illuminates when the lights are set to high
beam.

Parking Brake Indicator

This indicator illuminates when the parking brake is engaged. It will
also illuminate when the service brake is in use. See page 60.

Reverse Indicator

This indicator flashes when the transmission is in reverse. See page 73.

36

FEATURES

Instrument Cluster

Rider Information Center

The rider information center is located in the instrument cluster. The
center displays vehicle speed, engine speed, odometer, resettable trip
meters (2), total engine hours of operation, fuel level, engine tempera-
ture and diagnostic display mode.

Setting changes must be made with the engine running or with the vehi-
cle powered by an external DC power supply connector.

The information center is set to display standard units of measurement
for distance and temperature. To change to metric units, see page 40.

2

3

6

4

5

1

37

FEATURES

Instrument Cluster

Rider Information Center

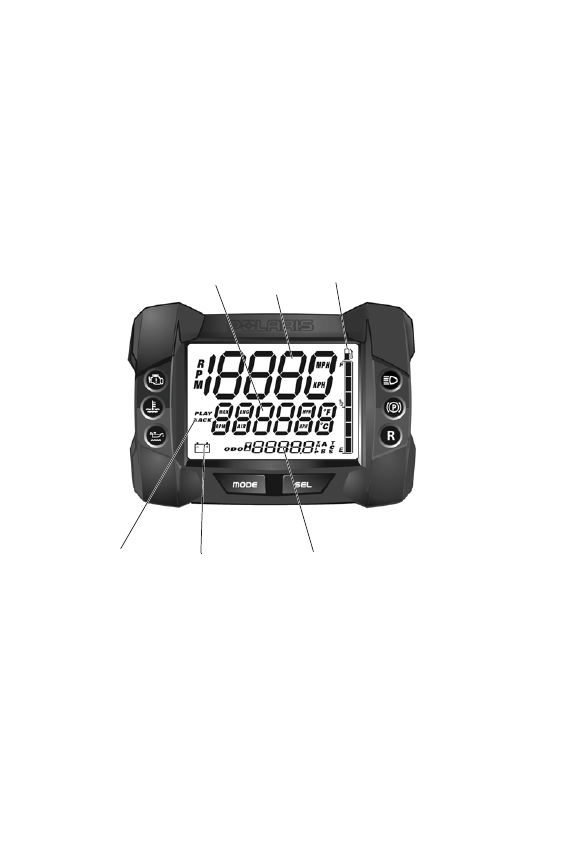

1. Information Display Area - This area displays either engine speed

or vehicle speed (whichever is not displayed in the speed display),
engine temperature and maximum vehicle speed. To change the dis-
play, see page 38.

2. Speed Display - The speed display area displays either vehicle

speed or engine speed. To change the display, see page 38.

3. Fuel Gauge - The segments of the fuel gauge show the level of fuel

in the fuel tank. When the last segment clears, a low fuel warning is
activated. All segments including the fuel icon will flash. Refuel
immediately.

Tip: If the fuel icon fails to display, an open or short circuit has occurred in the

fuel sensor circuit. See your dealer.

4. Odometer/Engine Hour Display - This area displays the odometer,

Trip A, Trip B and engine hours. To change the display, see page 39.

5. Battery Power - This indicator illuminates when battery power is

low.

6. Playback Icon - The playback function allows the rider to record

and play back engine speed, vehicle speed and throttle position sen-
sor information for up to three minutes. The playback icon flashes
while recording. See page 39.
