41

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program
Trip Settings
If the snowmobile is equipped with an

electronic fuel gauge, Trip F automati-

cally displays when the fuel level is low.

The fuel symbol and the last fuel bar on

the MFD gauge will blink when the fuel

level reaches 1/8th tank.
The Trip F odometer records distance

traveled until enough fuel is added to

raise the level above 1/4 tank. The fuel

symbol and the fuel bar will continue to

blink until the fuel level is above 1/4

tank. The Trip F odometer will automati-

cally reset to zero after refueling.

42

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program
Clock Setting (if equipped)
1. Enter the Performance Program.
2. Press and release the SET button

until the clock screen is active.

3. Press and hold the SET button for

five seconds.

4. When the hour starts flashing,

press the SET switch once to advance one hour. (Press and hold the

SET button to advance the hours quickly.)

5. Press and release the MODE button to save the hour. The minutes

will begin flashing.

6. Set the minutes in the same manner.
7. When finished, press and release the MODE button to save the new

setting. If the MODE button is not pressed within ten seconds, the

gauge will automatically save the new entry.

43

FEATURES

Instrumentation

MFD Digital Display Programs

Engine Program
The Engine Program automatically displays the engine coolant tempera-

ture, engine hours, electrical system voltage level and fuel level (if

equipped). On machines equipped with altimeter sensor and ambient air

temperature sensors, altitude and ambient air temperature will display as

additional screens in the engine program. Press the SET button to dis-

play the ambient air temperature and altitude screens. Use the following

procedures to make changes to these screens.

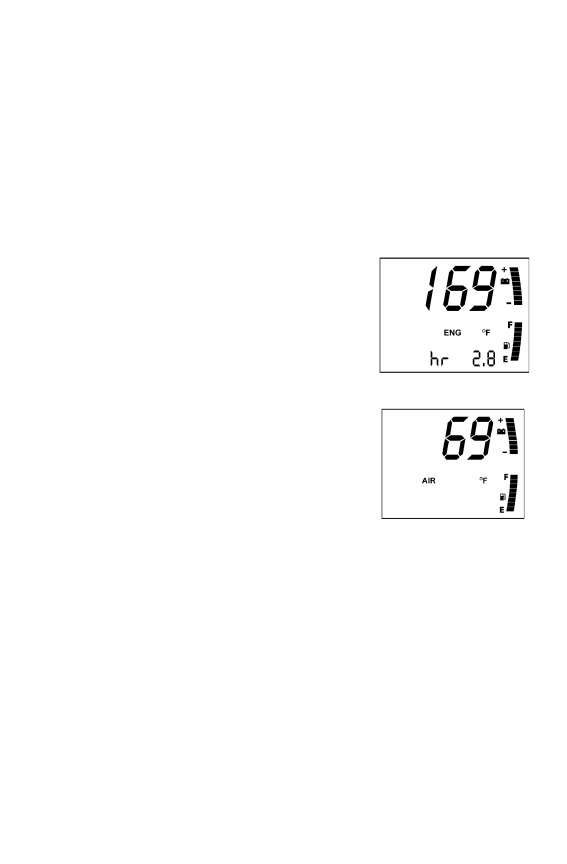

Hour Meter
The hour meter records the total hours of

engine operation since manufacture. This

meter cannot be reset.
Engine Temperature
A thermometer measures water temperature,

giving an indication of engine temperature.
Air Temperature (if equipped)
The MFD displays actual air temperature in

either standard or metric units.
1. Enter the Engine Program.
2. Press and hold the MODE switch for ten

seconds to switch between standard and

metric units of measurement.

44

FEATURES

Instrumentation

MFD Digital Display Programs

Engine Program
Altitude (if equipped)
The rider can calibrate the altimeter for current

atmospheric conditions. Altimeter accuracy

will be +/-300 ft. (91 m) after adjustment.
1. Enter the Engine Program.

Tip: Press and hold the MODE switch for ten sec-

onds to switch between standard and metric

units of measurement. When "ALt" displays, the

program is in the metric mode.

2. Press and release the SET button until the altimeter screen is active.
3. Press and hold the SET button for five seconds. When the digits

begin to flash, release the button.

4. Press and release the SET button once to advance 50 feet (15 m).

Tip: Press and hold the SET button to advance quickly by 100-foot (30 m) incre-

ments.

5. Adjust the altitude display to within 50 ft. (15 m) of current altitude.

Tip: The gauge reads barometric pressure and allows the rider to compensate

for daily fluctuations in air pressure. The gauge can adjust the displayed

altitude to +/- 1300 ft. (396 m) from the preset value. It will adjust up to

+1300 ft. (396 m) above the calibrated altitude. Once the +1300 ft. (396 m)

offset has been reached, the next adjustment is -1300 ft. (396 m) from the

calibrated altitude, and 50 ft. (15 m) will be added to the altitude each time

the SET button is pressed.

6. Press and release the MODE button to set the reading at the adjusted

value. If the MODE button is not pressed within ten seconds, the

gauge will automatically save the new entry.
