Rear Suspension Adjustments

Rider weight, riding style, trail conditions, and vehicle speed all affect
suspension action.

Each rear suspension can be adjusted to suit rider preference and deliver
excellent performance for a given set of conditions.  However, all sus-
pension designs and adjustments involve a compromise, or trade-off.
For example, a suspension set up for snowcross racing would provide a
very stiff ride on the trail.  A suspension set up for trail riding would
bottom out harshly on a snowcross course.

Refer to the suspension setup label on your snowmobile, or see your
POLARIS dealer for initial suspension setup information. Additional
adjustments can be made after initial setup. Make adjustments to one
area at a time so you can evaluate the change. For further assistance, see
your dealer.

31

THE PERFECT FIT

Rear Suspension Adjustments

Suspension Performance Tips

• Rider weight usually determines the position at which the spring pre-

load should be set. However, this may vary with riding style. With a
little experimentation, each rider can find a preferred setup. These
adjustments are easy to make, involve very little time or effort, and
greatly affect the ride.

• In deep snow, a new rail slide will offer improved performance over

worn rail slide. It can also improve top speed.

• When riding on ice or hard-packed snow, adding a set of bogie wheels

to the rail may enhance the machine's performance.  Bogie wheel kits
are available from your dealer.

• POLARIS offers track kits for improved flotation in deep snow. See

your dealer for assistance.

Tip: Keep the suspension pivot points lubricated. This will reduce moisture and

rust build-up and ensure proper function of the suspension components.
Grease rear suspension pivots before adjusting the rear suspension. Refer
to the Pre-Ride Suspension Inspection on page 45.

Track Tension

Track adjustment is critical for proper handling. Always maintain cor-
rect tension and alignment. Refer to the track tension maintenance sec-
tion beginning on page 86.

32

THE PERFECT FIT

Rear Suspension Adjustments

Initial Spring Preload Setting (Sag Method)

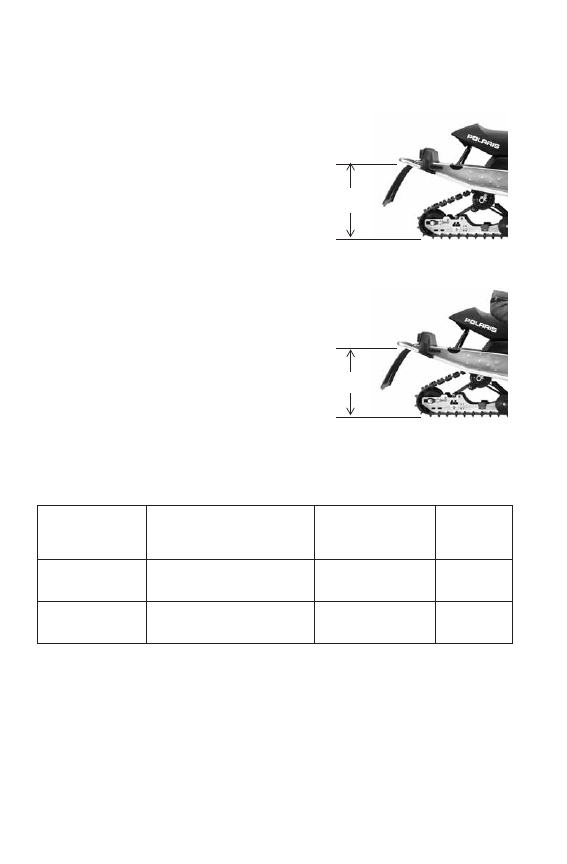

To set up the rear suspension torsion
spring preload, measure the distance
between the ground and rear bumper. This
is measurement X.

Take the first measurement with no rider
and with the rear suspension at full exten-
sion.

Tip: The rear bumper may need to be lifted

upward slightly to fully extend the rear
suspension.

Next, have the rider drop down hard on
the seat and bounce up and down several
times, collapsing the rear suspension.
With the rider seated, measure the dis-
tance between the ground and the rear
bumper at the exact location used for
measurement X. This is measurement Y.

To determine sag, commonly referred to
as ride-in, subtract measurement Y from
X (sag=X-Y). If the measured sag is
incorrect, adjust the FRA position and/or
rear torsion spring preload.

Tip: This is only an initial setup, and final spring preload may vary based on rider

preference and riding conditions. Accessory springs with a higher load rat-
ing are available for some models. Please see your dealer for availability.

Suspension

Recommended Sag

Adjustment

See

Page

IQ (121)

4-5 inches (10-13 cm)

Torsion Spring

Preload

33

IQ Comfort

(136)

4-5 inches (10-13 cm)

Torsion Spring

Preload

33

X

Y

33

THE PERFECT FIT

IQ Rear Suspension Adjustments

Torsion Spring Preload

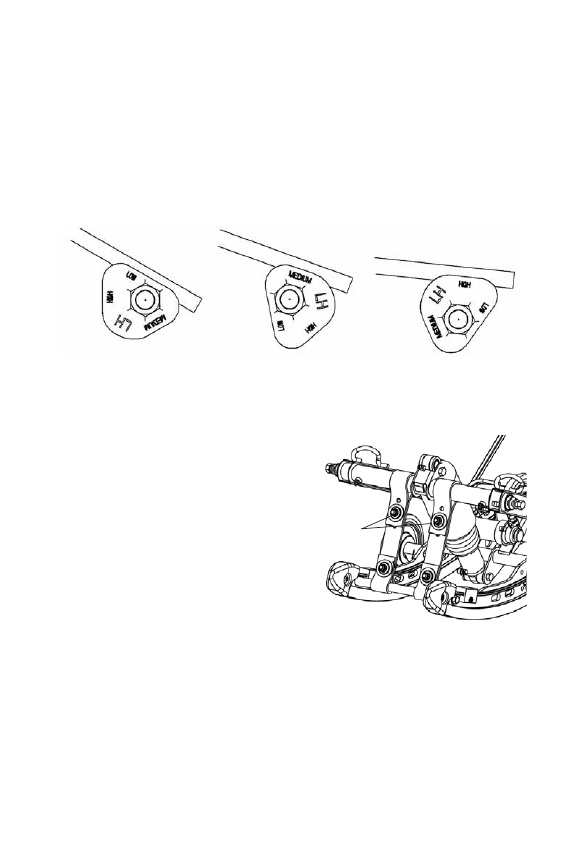

To adjust rear torsion spring preload, rotate the three-position cam using
the engine spark plug tool. Adjustment is easiest when the cam is
rotated from low to medium, and then to high. Rotating directly from
low to high will require significantly more effort.

Different rate torsion springs are available if a firmer ride is desired. See
your dealer for more information.

Limiter Strap Position (Ski Pressure)

Ski pressure is set at the factory to
deliver the optimum balance
between ride and handling. If a
rider prefers more ski pressure for
improved steering performance,
adjustments can be made to the
front limiter straps. Tighten the
straps to increase ski pressure.
Loosen the straps to reduce ski
pressure.

1. Remove the nuts and flat

washers from the upper limiter
straps.

2. Relocate the straps to the desired position.

3. Reinstall the nuts and washers. Tighten securely.

Soft

Medium

Firm

Upper

Nuts
