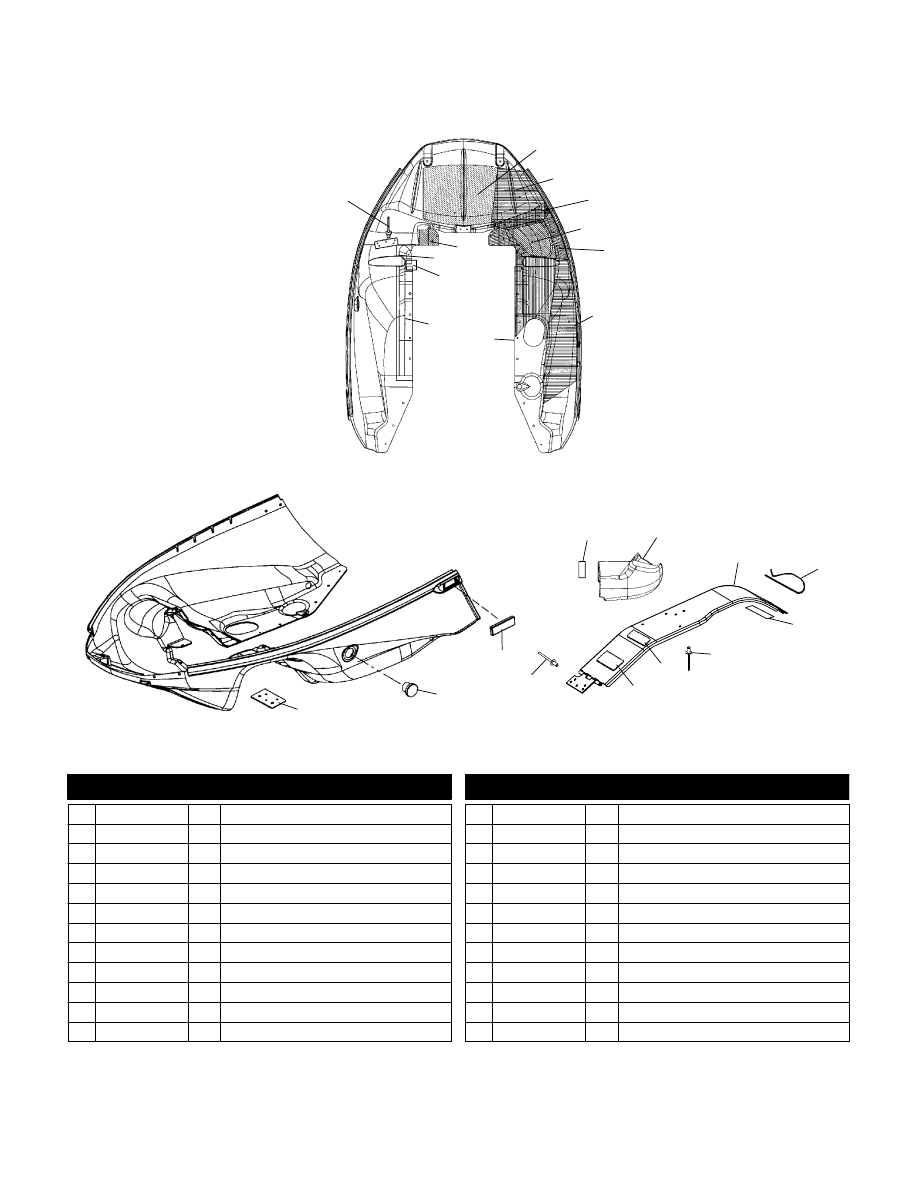

NOSEPAN

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7621462

1 Rivet

2 5811458

1 Foil, Tape

3 5812040

1 Foil, Nosepan, Front

4 5812067

1 Foil, Tape, Edge, Top, Shock

5 5812039

1 Foil, Nosepan, Shock Tower

6 5812068

1 Foil, Tape

7 5812018

1 Foil, Tape, Nosepan, Upper, RH

8 5812019

1 Foil, Tape, Nosepan, Lower, RH

9 5812020

2 Foil, Tape, Nosepan

10 7080963

1 J-Clip, Retainer

11 5811948

1 Foil

12 7670130

3 Clip, Speed, U-Type

13 5812353

1 Foam

14 5434531

1 Duct, Engine Air Outlet

15 1013069

1 Asm., Clutch Guard

16 7080698

1 Pin, Clutch Guard

17 5812352

1 Pad, Clutch Guard

18 7621485

3 Rivet

19 7079297

1 Decal, Warning, Engine and Clutch

20 7170742

1 Decal, Troubleshooting, Edge, Tour

21 7621402

5 Rivet

22 2670134

2 Asm., Reflector, Amber

23 5433926

1 Plug, Nosepan, Oblong

24 5211722

1 Plate, Backer, Clutch Guard

4/03

A10

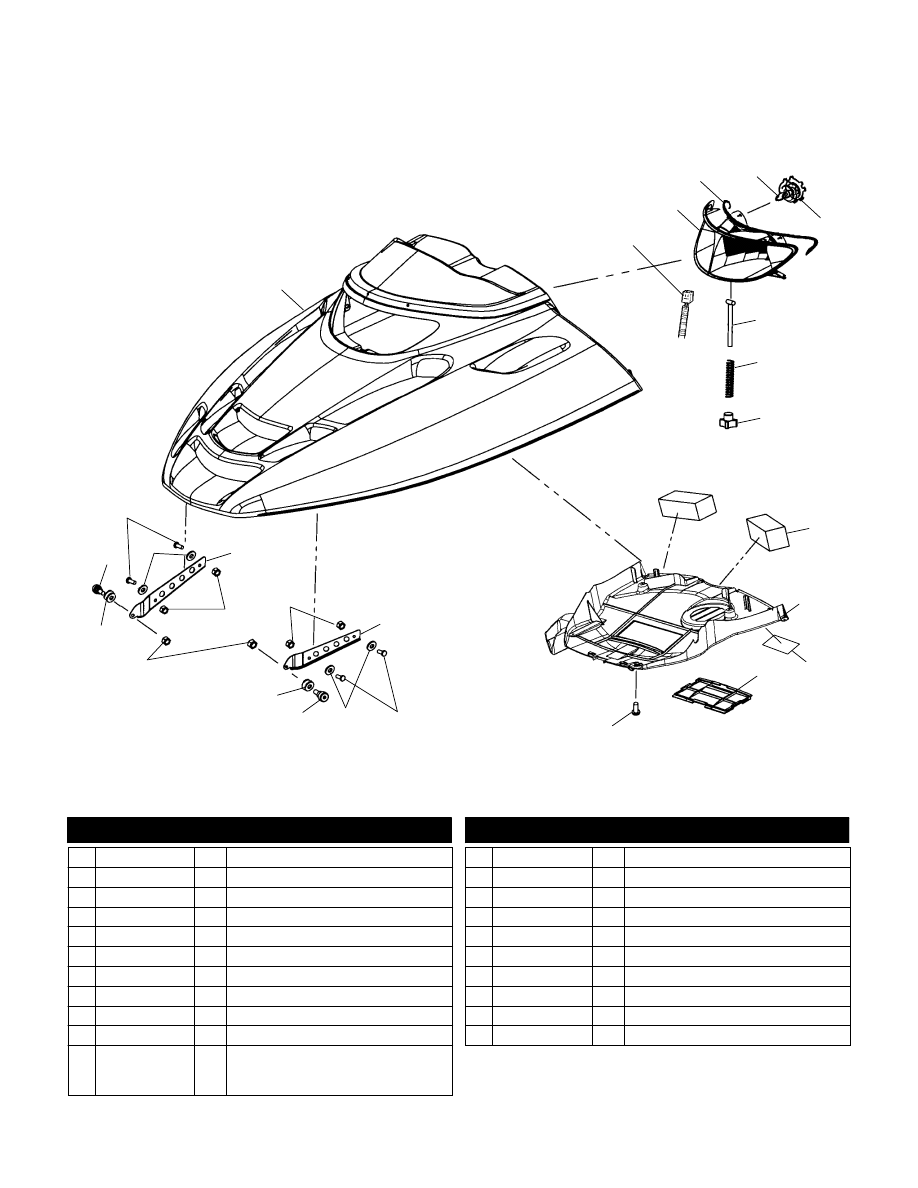

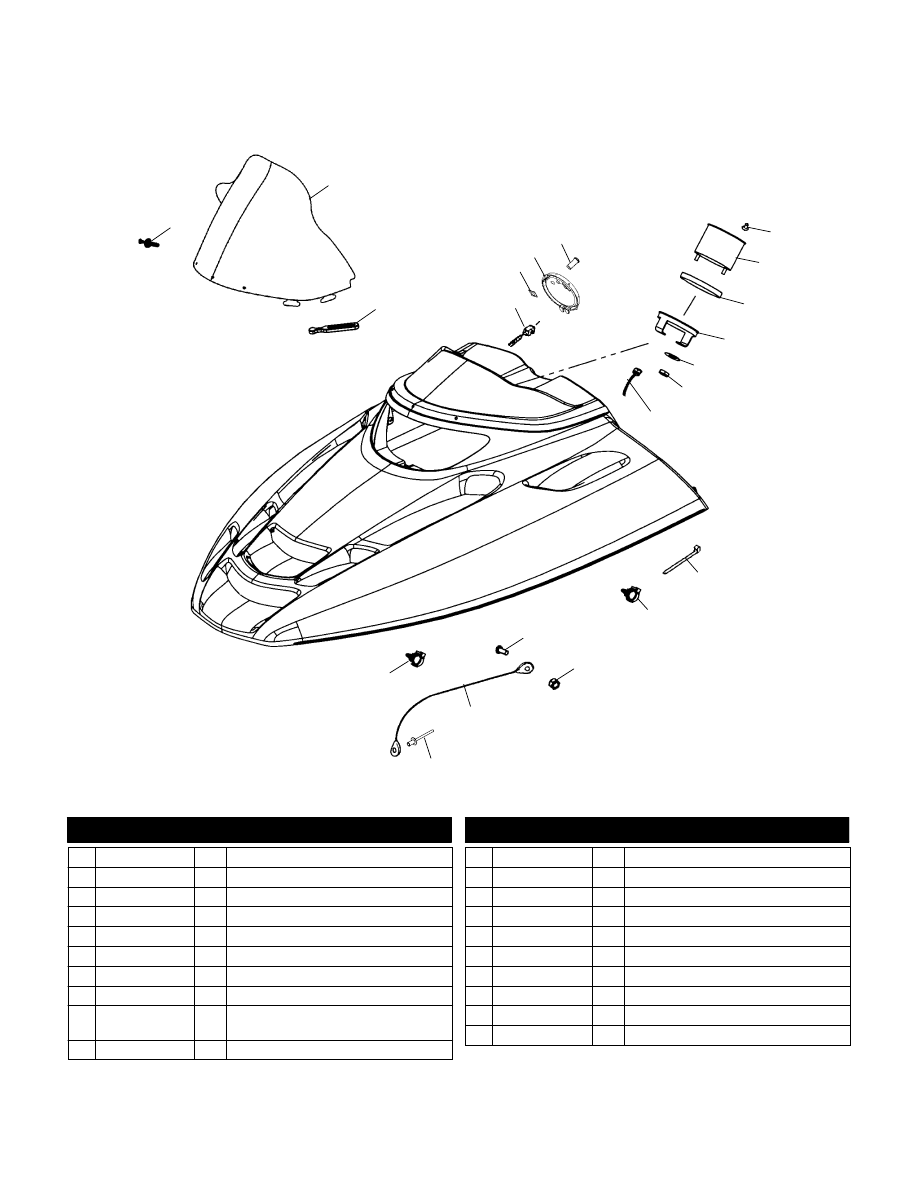

HOOD

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 2632783-341

1 Asm., Hood, Edge, Sonic Blue

2 2461015

1 Harness, Headlight, Edge, E/R

3 2410132

1 Asm., Headlamp (Incl. Bulbs)

4 5812450

1 Seal, Headlight, One Piece

5 2870448

2 Bulb, Headlight

6 4032063

2 Retainer, Headlamp Bulb

7 7517872

1 Bolt, Tee Adjuster

8 7041954

1 Spring, Headlight Adjust

9 7080887

1 Knob, Headlight Adjust, Locking

10 5811793

2 Foam, Prefilter

11 2632491

5812324

5811948

Asm., Plenum, Foil

Foil, Plenum, Edge

Foil

12 7170287

1 Decal, Suspension Set-Up

13 5433660

1 Cover, Headlight, Access

14 7512068

10 Screw

15 5243567-067

1 Hinge, Upper, LH

16 7512240

4 Bolt

17 7558301

4 Washer, Flat

18 7512113

2 Bolt

19 5332403

2 Spacer

20 7542122

6 Nut, Nylok

21 5243568-067

1 Hinge, Upper, RH

5/03

A11

HOOD

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 7621509

3 Rivet, Plastic, Lock

2 5435044

1 Windshield, 17 Inch

3 5410970

4 Retainer, Windshield

4 2461031

1 Harness, Jumper, Reverse Light

5 7670133

1 Retainer, Bolt Lamp

6 5434081

1 Plug, Dash

7 4010687

1 Indicator, Reverse

8 3280186

1 Knob, Trip Odometer

9 3280411

4030015

Asm., Speedometer

Bulb, Replacement

10 3280209

1 Cushion, Rubber

11 3280210

1 Bracket, Speedometer/Tachometer

12 3280157

2 Washer, Flat

13 7546703

2 Nut, Nylok

14 3280385

1 Cable, Speedometer

15 7080138

1 Cable Tie

16 4010589

2 Clip, Plastic, Dart Nylon

17 7541925

2 Nut, Nylok

18 7512018

2 Screw

19 7080521

2 Cable, Hood Retainer

20 7661637

2 Rivet

5/03

A12

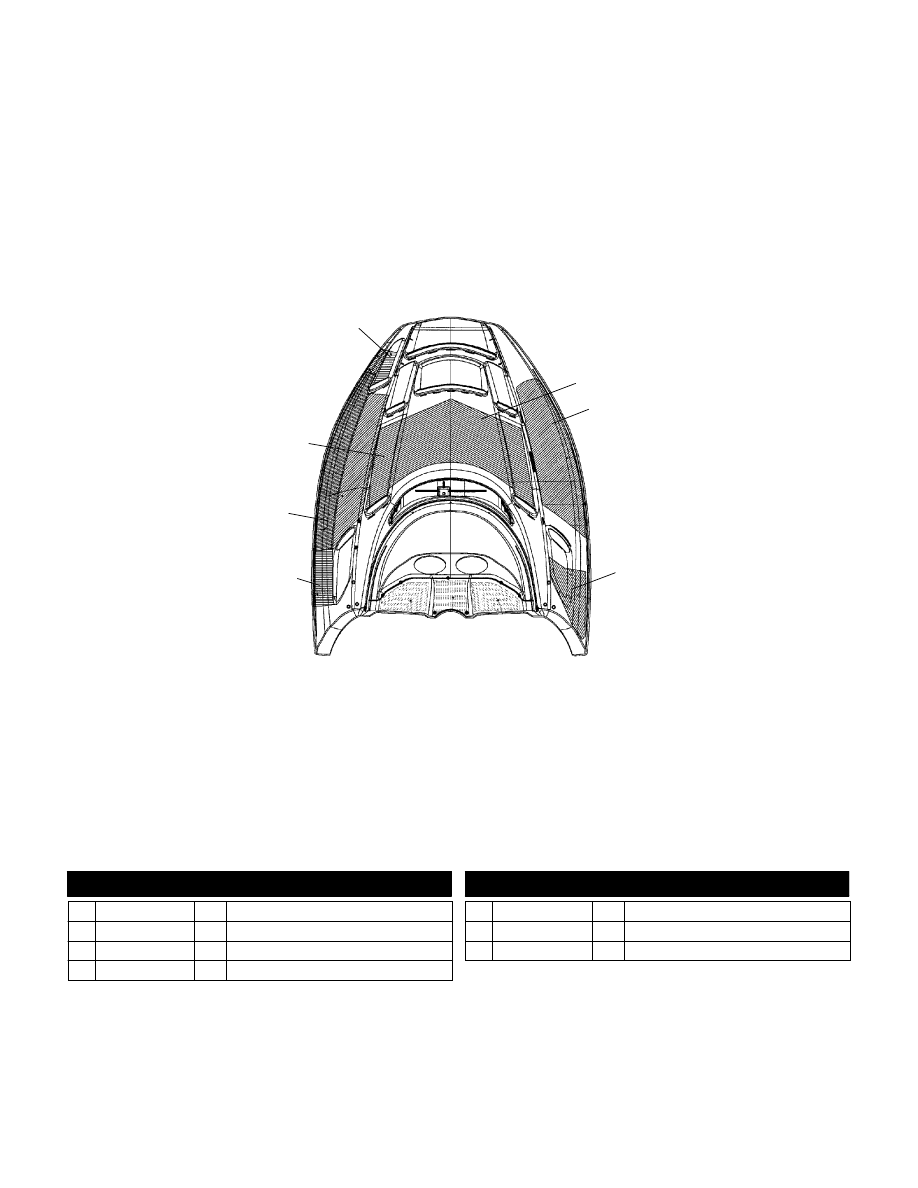

HOOD FOAM/FOIL/SCREENS

SPORT TOURING S04NU5BS and SPORT TOURING INT’L S04NU5BE

VIEW FROM UNDER HOOD

2003 Polaris Sales Inc.

Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly.

Ref. Part No.

Qty.

Description

Ref. Part No.

Qty.

Description

1 5812424

1 Foil, Hood, Louver, RH

2 5812107

1 Foil, Hood, Edge, RH

3 5812106

1 Foil, Hood, Edge, RH

4 5810345

1 Foil, Tape

5 5812270

1 Foam, Hood, Rear, LH

6 5812286

1 Foam, Hood, Front, LH

7 5811830

1 Foam, Hood, Center, Edge

4/03
