ELECTRICAL

components of water. Because of the loss of these gases and
the lowering of the electrolyte level, it will be necessary to
add pure, clean distilled water to bring the fluid to the proper
level. After filling, charge the battery to raise the specific
gravity to1.270 or greater.

OFF SEASON STORAGE

To prevent battery damage during extended periods of non-
use, the following basic maintenance items must be
performed.

1.

Remove battery from machine and wash the case and
battery tray with a mild solution of baking soda and water.
Rinse with lots of fresh water after cleaning.

2.

Using a wire brush or knife, remove any corrosion from
the cables and terminals.

3.

Make sure the electrolyte is at the proper level. Add
distilled water if necessary.

4.

Charge at a rate no greater than 1/10 of the battery's amp/
hr. capacity until the electrolyte's specific gravity reaches
1.270 or greater.

5.

The battery may be stored either in the machine with the
cables disconnected, or on a piece of wood in a cool place.

NOTE: Stored batteries lose their charge at the rate
of 1% per day. They should be fully recharged every
30 to 60 days during a non-use period. If stored
during winter months, the electrolyte will freeze at
higher temperatures as the battery discharges. The
chart indicates freezing points by specific gravity.

CHARGING PROCEDURE

Charge battery with a charger no larger than 1/10 of the
battery's amp/hr. rating and for as many hours as needed to
raise the specific gravity to 1.270 per cell or greater.

STARTER SYSTEM

DYNAMIC TESTING OF THE ELECTRIC
STARTER SYSTEM

CONDITION: Starter fails to turn the starter motor or it turns
the starter motor slowly

NOTE:  Be sure the engine crankshaft is free to turn
before proceeding. For this test a digital multitester

CAUTION

D

O



NOT



ALLOW



ANY



OF



THE



BAKING



SODA



SOLUTION



TO



ENTER



THE



BATTERY



OR



THE



ACID



WILL



BE



NEUTRALIZED

.

Table 13-3: Specific Gravity Freezing Point

Specific Gravity of Electrolyte

Freezing Point

1.265

-75_F (-59_C)

1.225

-35_F (-37_C)

1.200

-17_F (-27_C)

1.150

5_F (-15_C)

1.100

18_F (-8_C)

1.050

27_F (-3_C)

WARNING

B

ATTERY



ELECTROLYTE



IS



POISONOUS

. I

T



CONTAINS



AC

-

ID

!

S

ERIOUS



BURNS



CAN



RESULT



FROM



CONTACT



WITH



THE



SKIN

,

EYES

,

OR



CLOTHING

.

ANTIDOTE:

EXTERNAL: F

LUSH



WITH



WATER

.

INTERNAL: D

RINK



LARGE



QUANTITIES



OF



WATER



OR



MILK

. F

OLLOW



WITH



MILK



OF



MAGNESIA

,

BEATEN



EGG

,

OR



VEGETABLE



OIL

. C

ALL



PHYSICIAN



IMMEDIATELY

.

EYES: F

LUSH



WITH



WATER



FOR

 15

MINUTES



AND



GET



PROMPT



MEDICAL



ATTENTION

.

B

ATTERIES



PRODUCE



EXPLOSIVE



GASES

. K

EEP



SPARKS

,

FLAME

,

CIGARETTES

,

ETC

.

AWAY

. V

ENTILATE



WHEN



CHARGING



OR



USING



IN



CLOSED



SPACE

. A

LWAYS



SHIELD



EYES



WHEN



WORKING



NEAR



BATTERIES

.

KEEP OUT OF REACH OF CHILDREN.

WARNING

T

HE



GASES



GIVEN



OFF



BY



A



BATTERY



ARE



EXPLOSIVE

. A

NY



SPARK



OR



OPEN



FLAME



NEAR



A



BATTERY



CAN



CAUSE



AN



EXPLOSION



WHICH



WILL



SPRAY



BATTERY



ACID



ON



ANYONE



CLOSE



TO



IT

. I

F



BATTERY



ACID



GETS



ON



ANYONE

,

WASH



THE



AFFECTED



AREA



WITH



LARGE



QUANTITIES



OF



COOL



WATER



AND



SEEK



IMMEDIATE



MEDICAL



ATTENTION

.

13.7

ELECTRICAL

must be used. Meter connections are shown later in
this chapter.

Table 13-4: Electric starter troubleshooting

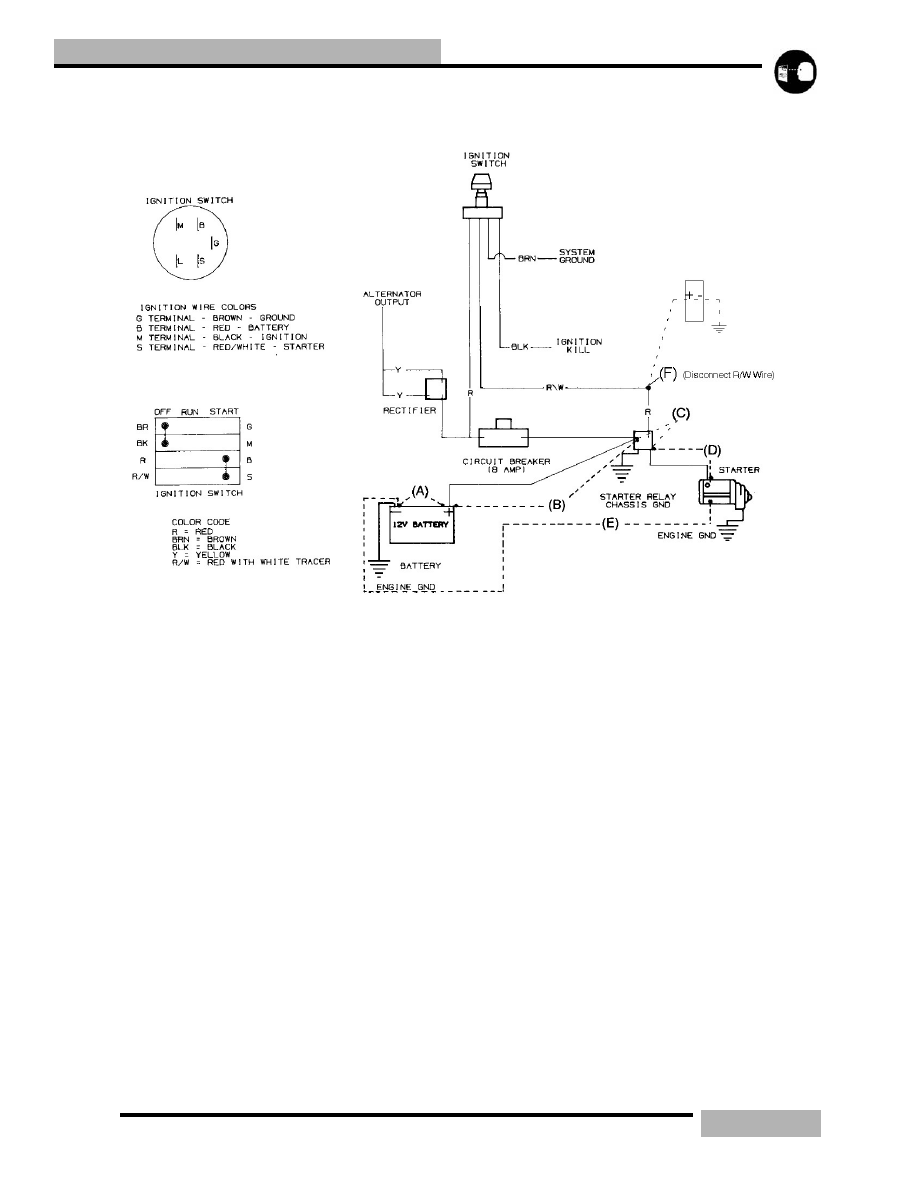

With tester on VDC, place tester black lead on battery
negative (-) terminal and tester red lead on battery positive (+)
terminal. (A) Page 13.9. Reading should be 12.6V or greater.
Is it?

NO

Remove battery, test and/or service. Install a fully
charged shop battery to continue the test and
continue with left column

YES

Disconnect red engagement coil wire from start solenoid.
Connect black tester wire to an appropriate ground and red
lead to red harness wire at solenoid. Rotate ignition key to the
start position. Meter should read battery voltage. Does it?

NO

With black tester lead on ground, check for voltage
at large relay in terminal, circuit breaker in and out
terminals, and across both sides (red and red/white)
of the ignition switch with switch on start. Repair or
replace any defective parts.

YES

Reconnect solenoid, connect tester black lead to battery
positive terminal and red tester lead to solenoid end of battery
to solenoid cable. (B) Page 13.9. Turn key to start position.
The reading must be less than.1V DC. Is it?

NO Clean battery to solenoid cable ends or replace cable.

YES

Connect black tester lead to solenoid end of solenoid to starter
cable and red tester lead to starter end of same cable. (D) Page
13.9. Turn key to start position. The reading must be less
than.1V DC. Is it?

NO Replace starter solenoid.

YES

Connect black tester lead to starter frame. Connect red tester
lead to battery negative (-) terminal. (E) Page 13.9. Turn key
to start position. The reading should be less than.1V DC. Is it?

NO

Clean ends of engine to battery negative cable or
replace cable.

If all these tests indicate a good condition, yet the starter still fails to turn, or turns slowly, the starter must be remove for
static testing and inspection.

13.8

ELECTRICAL

STARTER MOTOR STATIC TESTING

1.

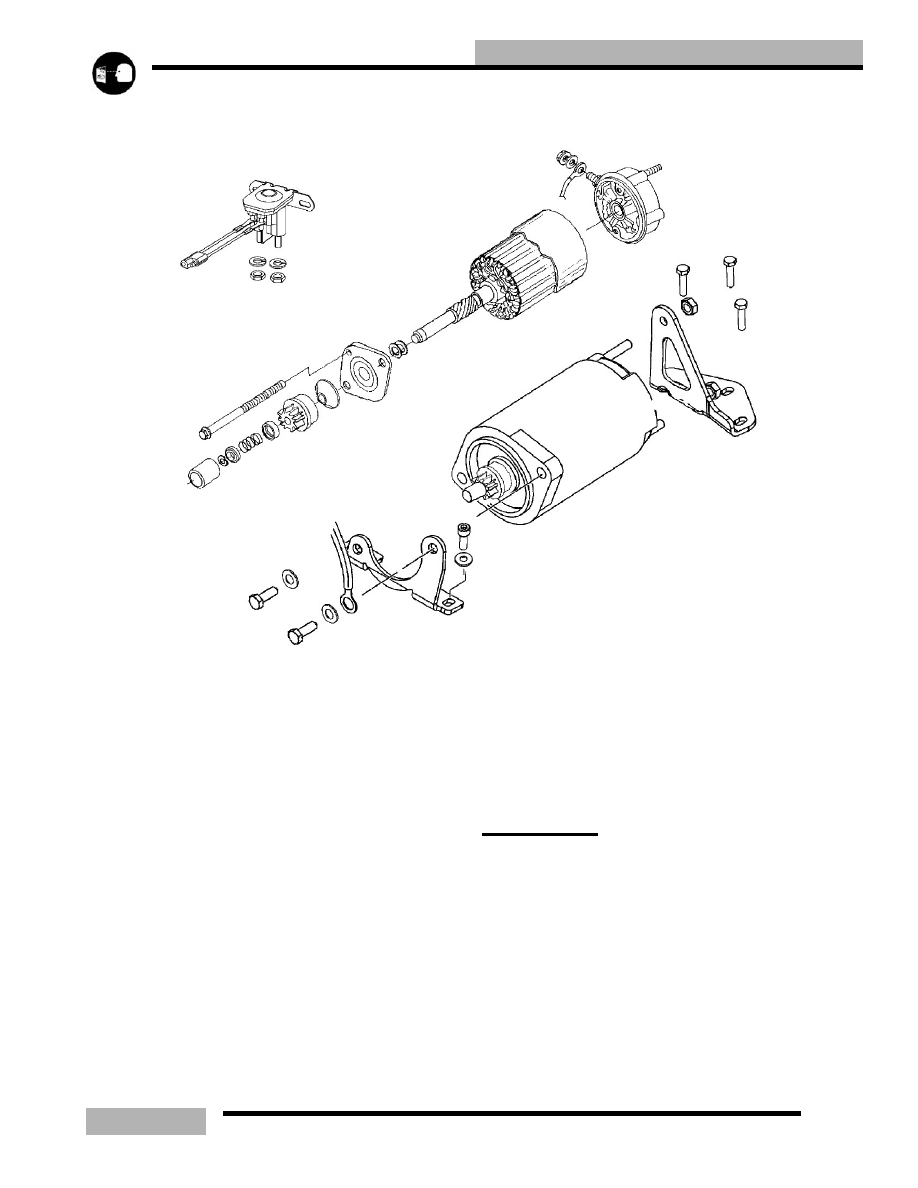

Remove starter motor and disassemble. (See page 9.14 for
exploded view) Mark end covers and housing for proper
reassembly.

2.

Remove pinion retaining snap ring, spring and pinion
gear.

3.

Remove brush end bushing dust cover.

4.

Remove housing through bolts.

5.

Slide brush end frame off end of starter.

NOTE:  The electrical input post must stay with the
field coil housing.

6.

Slide positive brush springs to the side, pull brushes out of
their guides and remove brush plate.

7.

Clean and inspect starter components.

NOTE:  Some cleaning solvents may damage the
insulation in the starter. Care should be exercised
when selecting an appropriate solvent. The brushes
must slide freely in their holders. If the commutator
needs cleaning, use only an electrical contact
cleaner and/or a non-metallic grit sandpaper.
Replace brush assembly when worn to 5/16, (.8 cm)
or less.

STARTER HOUSING AND FIELD COIL
INSPECTION

1.

Using a digital multitester, measure resistance between
starter input terminal and insulated brushes. The reading
should be.3 ohms or less.

2.

Measure resistance between insulated brushes and field
coil housing. The reading should be infinite.

3.

Inspect insulated brush wire and field coil insulation for
damage. Repair or replace components as required.

ARMATURE TESTING

1.

Using a digital multitester, measure resistance between
each of the segments of the commutator. The reading
should indicate.3 ohms or less.

2.

Measure resistance between commutator and armature
shaft. Reading should be infinity.

3.

Place armature in a growler. With the growler on, position
a hacksaw blade lengthwise 1/8, (.03 cm) above armature
coil laminates. Rotate armature 360_. If hacksaw blade is
drawn to the armature on any pole, the armature is shorted
and must be replaced.

13.9

ELECTRICAL

STARTER ASSEMBLY

1.

Slide armature into field coil housing.

2.

Lightly grease drive end bushing and install drive end
frame on armature.

3.

Mount starter vertically in a vice with brush end up.

4.

While holding negative brushes out against their springs,
slide brush plate down onto the commutator.

5.

While holding positive brush springs to the side, slide
positive brushes into their holders and correctly position
the springs on top of the brushes.

6.

Using a non-petroleum grease, lubricate brush end bushing
and slide it onto end of armature.

7.

Align threaded holes in brush plate and install dust cover
and screws.

8.

Reinstall through bolts and properly tighten all screws.

9.

Lightly grease pinion shaft and install pinion, spring
stopper and snap ring.

STARTER SOLINOID BENCH TEST

The only test which can be done on the bench is the pull in coil
resistance, which should be 3.4 ohms.

STARTER INSTALLATION

1.

Position starter motor so there is no less than.100,
clearance between the ring gear and the starter motor
pinion gear.

2.

Torque through bolt mount bracket nuts to specification.

3.

Torque 8mm (drive end) mount bolts to specification.

4.

Torque 6mm (brush end) bracket to specification.

VOLTAGE

UNREGULATED VOLTAGE

1.

Test resistance of lighting coil and compare to
specifications in the model specific wiring diagram.
Reminder: Meter resistance must be subtracted from
reading.

NOTE:  0.3 to 0.5 ohms may be less than the internal
resistance of your meter leads or meter. Before
measuring the stator resistance, short the meter
leads together and read the display and record this
measurement. Subtract this reading from the stator
resistance readings.
