2.2

GENERAL

HOW TO USE THIS MANUAL

LOCATING INFORMATION

This manual is divided into chapters that cover each of the main components of the snowmobile.

To quickly find the information that you are interested in, the first page of each chapters lists the tale of contents within the
chapter.

The first page of each chapters lists the Table of Contents within the chapter.

An index is provided at the end of this book. This will help you locate the information that you may need.

EXPLINATION METHOD OF THIS MANUAL

The step by step sections of this manual are listed in numerical order and will have a heading for removal or installation.

Page numbers are listed as chapter number and page number. Chapter number is separated by a period. Example of this is “3.12”.
The first number (3) designates the chapter, the second number (12) is the page number.

The steps may have a reference other data that is found in the manual. These references will state the title and page number that is
is located in.

Special tools that are needed for the given process may be called out in the steps.

Illustrations and/or photos are provided in some processes to aid the user for visual understanding.

The illustrations/photos will point out the item that is addressed in the process step. The call out may be a number(s) or letter(s).
The name of the item(s) may also be listed.

Torque values may also be specified within the illustration/photo. Torque is called out as ft-lb. first and Newton Meters in
parentheses (Nm).

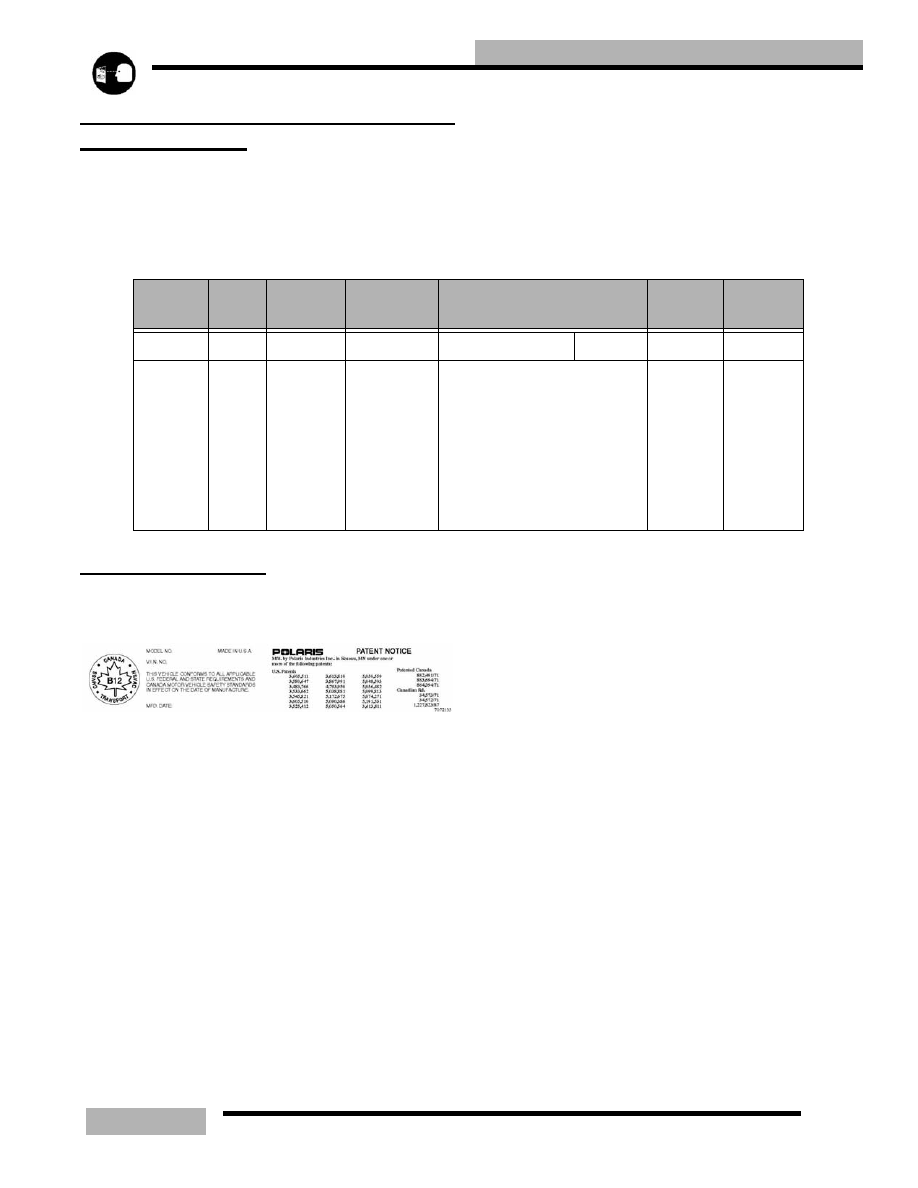

2.3

GENERAL

SNOWMOBILE MODEL NUMBER
DESIGNATION

EXAMPLE:

S06PS8DSA (900 SWITCHBACK STOCK A)

TUNNEL DECAL

TUNNEL DECAL LOCATED ON THE RIGHT
HAND SIDE OF THE SLED

These numbers should be referred to in any correspondence
regarding warranty, service or replacement parts.The machine
model and serial number identification decal is located on the
right front side of the tunnel. The serial number is permanently
stamped into the tunnel. The model number is embossed on

the decal.

Table 2-1: Model Number Designation

Identifier

Model

Year

Model

Line

Model Type

Engine Modifier

VIN

Identifier

Option

Identifier

S=Snow

06=2006
05=2005
04=2004

M=IQ

N=Edge

P= IQ RMK

S=GenII

W=Mini Indy

B=Std

D=Classic

E=M-10

J=136 RMK

K=144 RMK

L=151 RMK

M=159 RMK

N=166 RMK

P=Performance

S=Switchback

T=Touring

U=Utility

X=Racer

1A=121 F/C OHV 4 Cycle Fuji

3A=340 F/C Piston Port
4B=488 L/C Piston Port

4C=440 EV L/C Piston Port

5B=544 F/C Cylinder Reed

6E=600 EV L/C Case Reed 2 Cyl (Dom)

6F=600 EV L/C Case Reed HP 2 Cyl (Dom)

7E=750 NA
7F=750 HO

7H=755 EV DSDI Case Reed

8D=866 EV SDI Case Reed

E=Europe

Unit

S=Standard

Production

Unit

Option

Identifier

XXXXXXXXXXXXXXXXX

XXXXXXXXX

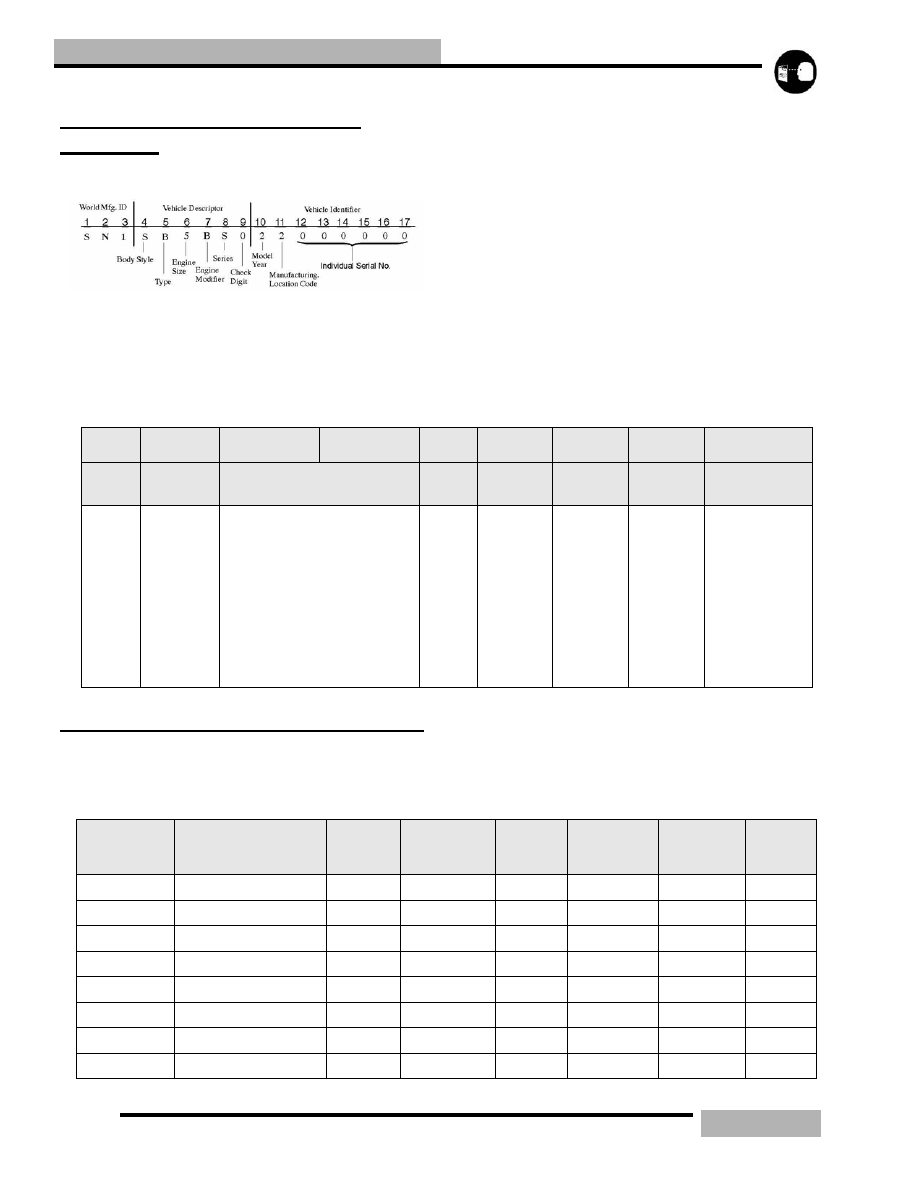

2.4

GENERAL

VIN (Vehicle Identification
Number)

VIN EXPLINATION

Current snowmobiles have a 17 digit Vehicle Identification
Number (VIN). The VIN is organized as follows:

Digits 1-3: World Manufacturer Identifier. For Polaris, this is
SN1.

Digits 4-9: Vehicle Descriptor Section.

Digits 10-17: Vehicle Indicator Section.

Digits 4-8 of the VIN identify the body style, type, engine
type, and series. The VIN and the model number must be used
with any correspondence regarding service or repair.

PUBLICATION PART NUMBERS

2006 PART NUMBERS

Table 2-2: VIN Vehicle Descriptor (4th - 8th digits)

4th

5th

6th

7th

8th

9th

10th

12-17

Body

Style

Type

Engine Modifier

Series

Ck digit

Model Year

Asm Line

Ser #

M=IQ

N=Edge

P= IQ

RMK

S=GenII
W=Mini

Indy

B=Standard

D=Classic

E=M-10

J=136 RMK

K=144 RMK

L=151 RMK

M=159 RMK

N=166 RMK

P=Performanc

S=Switchback

T=Touring

U=Utility

X=Racer

1A=121 F/C OHV 4 Cycle Fuji

3A=340 F/C Piston Port
4B=488 L/C Piston Port

4C=440 EV L/C Piston Port

5B=544 F/C Cylinder Reed

6E=600 EV L/C Case Reed 2 Cyl (Dom)

6F=600 EV L/C Case Reed HP 2 Cyl

(Dom)

7E=750 NA
7F=750 HO

7H=755 EV DSDI Case Reed

8D=866 EV SDI Case Reed

E=Europ

e Unit

S=Standa

Producti

on Unit

Check digit

6=2006

A
B
C
D

Sequential Serial
Numbers

Table 2-3: Publication Part Numbers

Model

Model Number

Owner’s

Manual

Owner’s

Manual

Supplement

Parts

Manual

Microfiche

Assembly

Instruction

Service

Manual

340 Classic

S06ND3AS

9919667

9919683

9919719

9919720

9916508

9919763

500 Classic

S06ND4BS

919667

9919938

9919939

9919940

9916508

9919763

550 Classic

S06ND5BS

9919667

9919684

9919721

9919722

9916508

9919763

600 Classic

S06ND6ES

9919667

9919884

9919885

9919886

9916508

9919763

600 Edge Touring

S06NT6ES

9919669

9919887

9919888

9919889

9916508

9919763

700 HO Classic

S06PD7HS

9919666

9919694

9919735

9919736

9916508

9919763

700 HO Touring

S06PT7HS

9919674

9919753

9919754

9916508

9919763

FS/FST Classic

S06PD7E(F)S

9919670

9919692

9919733

9919734

9916508

9919765

2.5

GENERAL

FS/FST IQ

Touring

S06PT7E(F)S

9919673

9919710

9919751

9919752

9916508

9919765

Indy 340 Touring

S06NT3AS

9919669

9919690

9919729

9919730

9916508

9919763

Trail Touring

(DLX)

S06NT5BS(A)

9919669

9919691

9919731

9919732

9916508

9919763

Widetrak LX

S06SU4BS

9919669

9919712

9919755

9919756

9916508

9919763

600 HO RMK

S06PK6FS(A)

9920058

9919696

9919739

9919740

9919882

9919763

600 Switchback

S06PS6FS(A)

9920058

9919707

9919745

9919746

9916508

9919763

700 HO RMK

S06PK(L,M)7HS(A)

9919671

9919700

9919743

9919744

9919882

9919763

900 RMK

S06P(M,N,R)8DS(A,B)

9920103

9919701

9919743

9919744

9919882

9919763

900 Switchback

S06PS8DS(A)

9920103

9919709

9919749

9919750

9916508

9919763

FST Switchback

S06PS7FS

9919672

9919708

9919747

9919748

9916508

9919765

Trail RMK

S06NJ5BS(A)

9919668

9919727

9919728

9919882

9919763

120

S06WB1AS

9919675

9919757

9919758

9916891

9919766

500 Indy

S06NB4BS

9919667

9919935

9919936

9919937

9916508

9919763

500 XC SP Edge/

M-10

S06NE(P)5CS(A,B)

9919667

9919686

9919725

9919726

9916508

9919763

600 HO Fusion

S06MP6FS(A,B)

9920057

9919680

9919713

9919714

9919882

9919763

600 HO Fusion

Lux

S06ME6FS

9920057

9919677

9919713

9919714

9919882

9919763

700 HO Fusion

S06MP7HS(A,B)

9919666

9919681

9919715

9919716

9919882

9919763

700 HO Fusion

Lux

S06ME7HS

9919666

9919678

9919715

9919716

9919882

9919763

900 Fusion

S06MP(E)8DS(A,B)

9920102

9919682

9919715

9919716

9919882

9919763

Supersport Edge/

M-10

S06N(E)P5BS(A,B)

9919667

99196859919688

9919723

9919724

9916508

9919763

Table 2-4: Misc. Publications

Publication

Track Diagnosis Poster

9918459

2006 Specification Handbook/Quick Reference Manual

9920147

Table 2-3: Publication Part Numbers

Model

Model Number

Owner’s

Manual

Owner’s

Manual

Supplement

Parts

Manual

Microfiche

Assembly

Instruction

Service

Manual
