Snowmobile Polaris (2006 year). Manual - part 12

1.46

SPECIFICATIONS

900 RMK

MODEL NUMBER: S06PN8DS(A)

Table 1-290: Engine

Engine type

Liberty

Engine displacement

866cc

Bore in/mm

3.27/83

Stroke in/mm

3.15/80

Piston to cylinder clearance in/
mm

.0045-.0074/.114-.188

Piston ring end gap

.016-.022/.41-.56

Operating RPM ±200

7600

Idle RPM ±200

1600 @ specified TPS setting

Clutch engagement RPM ±200

3700

Exhaust valve spring

Purple

Table 1-291: Fuel Delivery

Type

Cleanfire Injection

Throttle body size in/mm

2/51

Fuel pressure psi/bar

116/8

Recommended fuel octane
(R+M/2)

Table 1-292: Idle TPS voltage setting

Altitude meters/feet

Voltage ±.01v

0-1800(0-6000)

.93

1800-2700(6000-9000)

.95

> 2700 (>9000)

.97

Table 1-293: Clutching

ALTITUDE

meters

(feet)

DRIVE CLUTCH (P-85)

DRIVEN CLUTCH (TEAM)

Shift

Weight

Clutch
Spring

Driven

Helix

Gearing

0-600

(0-2000)

10-78CS

Black/

Green

Red/Black

64/38-
.25ER

20:41-76

600-1200

(2000-4000)

10-76CS

Black/

Green

Red/Black

64/38-
.25ER

20:41-76

1200-1800

(4000-6000)

10-74

Black/

Green

Red/Black

64/38-
.25ER

20:41-76

1800-2400

(6000-8000)

10-72

Black/

Green

Red/Black

64/38-
.25ER

20:41-76

2400-3000

(8000-10000)

10-70

Black/

Green

Red/Black

64/38-
.25ER

20:41-76

3000-3600

(10000-12000)

10-68

Black/

Green

Red/Black

64/38-
.25ER

20:41-76

Drive clutch bolt torque 96 ft-lbs (130Nm)

Table 1-294: Belt

Belt part number

3211080

Belt width in/cm

1.438/3.65

Belt side angle

28_

Outside diameter in/cm

46.625/118.4

Clutch center distance in/cm

11.5/29.2

Table 1-295: Chaincase

Center distance in/cm

8.373/21.27

Reverse type

PERC

Table 1-296: Fluids and capacities

Fuel gal/l

10.8/40.9

Oil qts/l

3/2.8

Coolant qts/l

6.9/6.5

Chaincase oz/ml

11/325.3

Brake fluid type

DOT 4

1.47

SPECIFICATIONS

Table 1-297: Track

Width in/cm

15/38

Length in/cm

151/384

Length in/cm

159/404

Length in/cm

166/422

151 Lug height in/cm

2/5

159/166 Lug height in/cm

2.4/6.1

Track tension sag in/cm with 10
lbs/4.54kg placed 16 in/40.6cm
ahead of rear idler shaft

.375-.50/1-1.3

Table 1-298: Front Suspension

Suspension type

IQ Mountain

IFS shocks

Arvin/7043049

IFS spring rate lbs-in/kg-mm

100/1.8

Spring installed length in/cm

Fixed

Front vertical travel in/cm

9/22.9

IFS potion shocks

Arvin/7043090*

IFS option spring rate
lbs-in/kg-mm

100/1.8

IFS option spring installed
length in/cm

10/25.4

Ski center distance in/cm

41/104

Camber in/cm

2.17±.31/5.5±.79

Toe in/mm

0-.12/0-3.0

Table 1-299: IQ Rear Suspension

Suspension type

IQ RMK

Front track shock (FTS)

7043048

FTS spring rate lbs-in/kg-
mm

170/3.0

FTS spring installed length
in/cm

Fixed

Front track shock (FTS)
option

Arvin/7042335*

FTS option spring rate lbs-
in/kg-mm

170/3.0

FTS option spring installed
length in/cm

7.25/18.4

Rear track shock (RTS)

Arvin/7043047

RTS option

Arvin/7043046*

151 Rear travel in/cm

16.5/41.9

159 Rear travel in/cm

17.5/44.5

166 Rear travel in/cm

18.5/47

* notes that shock is rebuildable

Table 1-300: Torsion spring

Torsion spring PNs
(LH/RH)

7041629/7041630

Torsion spring diameter in/mm

.359/9.1

Torsion spring tail angle

77_

Table 1-301: Dimensions

Width in/cm

46.33/118

151 Length in/cm

128/325

159/161 Length in/cm

134/340

Height in/cm

46.5/118

151 Est dry weight lb/kg

532/241.5

159 Est dry weight lb/kg

539/244.7

166 Est dry weight lb/kg

550/249.7

Table 1-302: Electrical

Stator output

400w@4000RPM

Ignition timing @ 9.6-12.7%

throttle

16_@3500

Spark plug gap in/mm

.025/.64

Spark plug

Champion RN57YCC

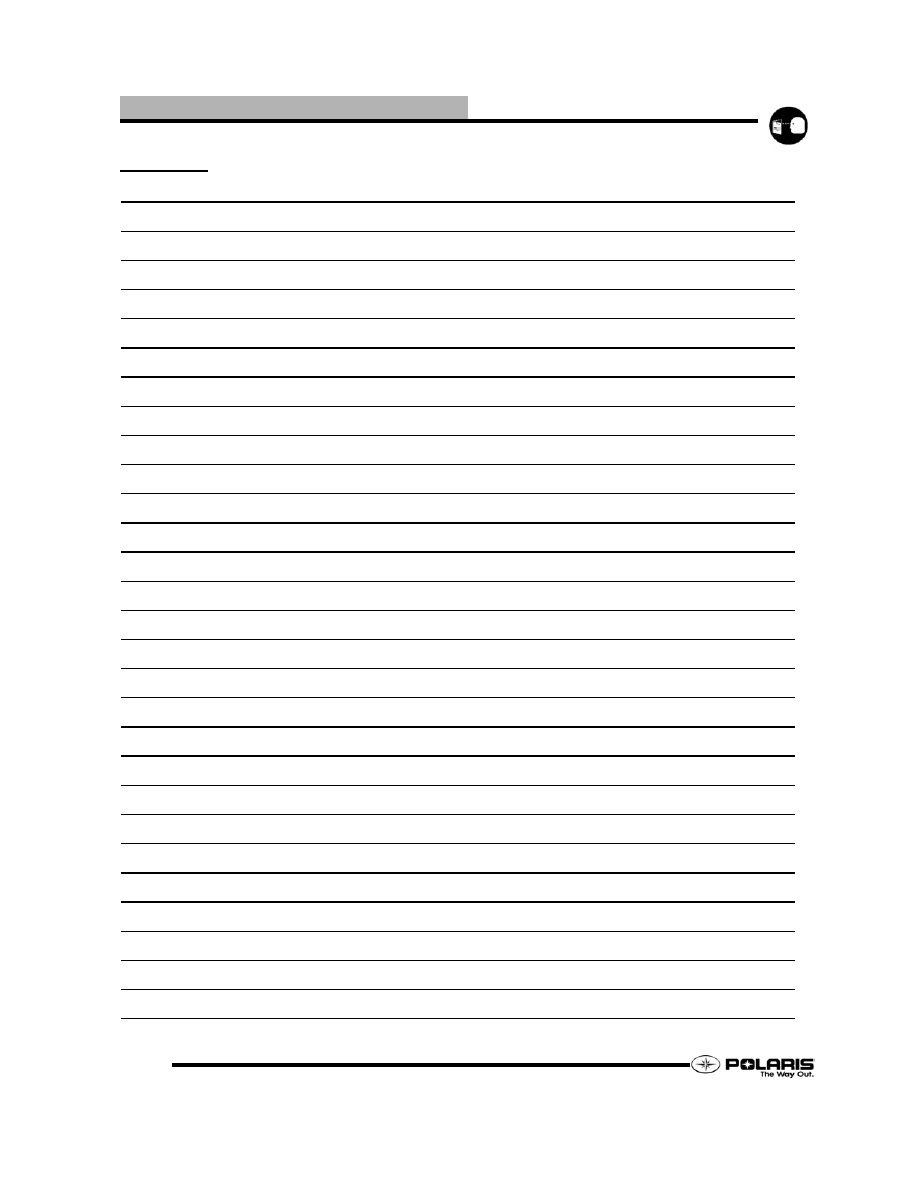

NOTES

SPECIFICATIONS

1.48

2.1

GENERAL

CHAPTER 2

GENERAL

HOW TO USE THIS MANUAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2

LOCATING INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2
EXPLINATION METHOD OF THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2

SNOWMOBILE MODEL NUMBER DESIGNATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3

EXAMPLE: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3

TUNNEL DECAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3

TUNNEL DECAL LOCATED ON THE RIGHT HAND SIDE OF THE SLED . . . . . . . . . . 2.3

VIN (VEHICLE IDENTIFICATION NUMBER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4

VIN EXPLINATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4

PUBLICATION PART NUMBERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4

2006 PART NUMBERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4

GENERAL REFERENCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6

GASOLINE INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9

GASOLINE VOLATILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9
2 STROKE GASOLINE / OIL PRE MIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.10

SPECIAL TOOLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.11
