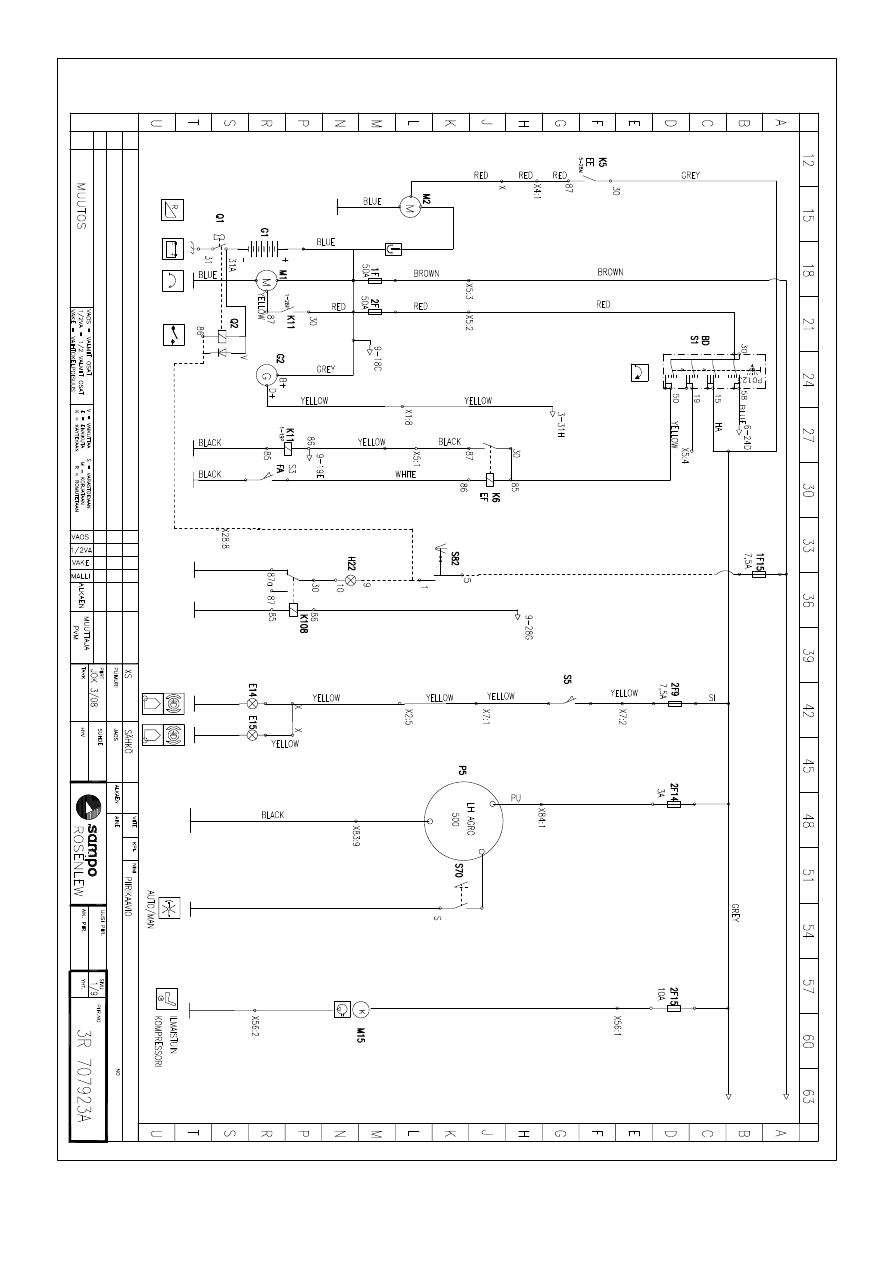

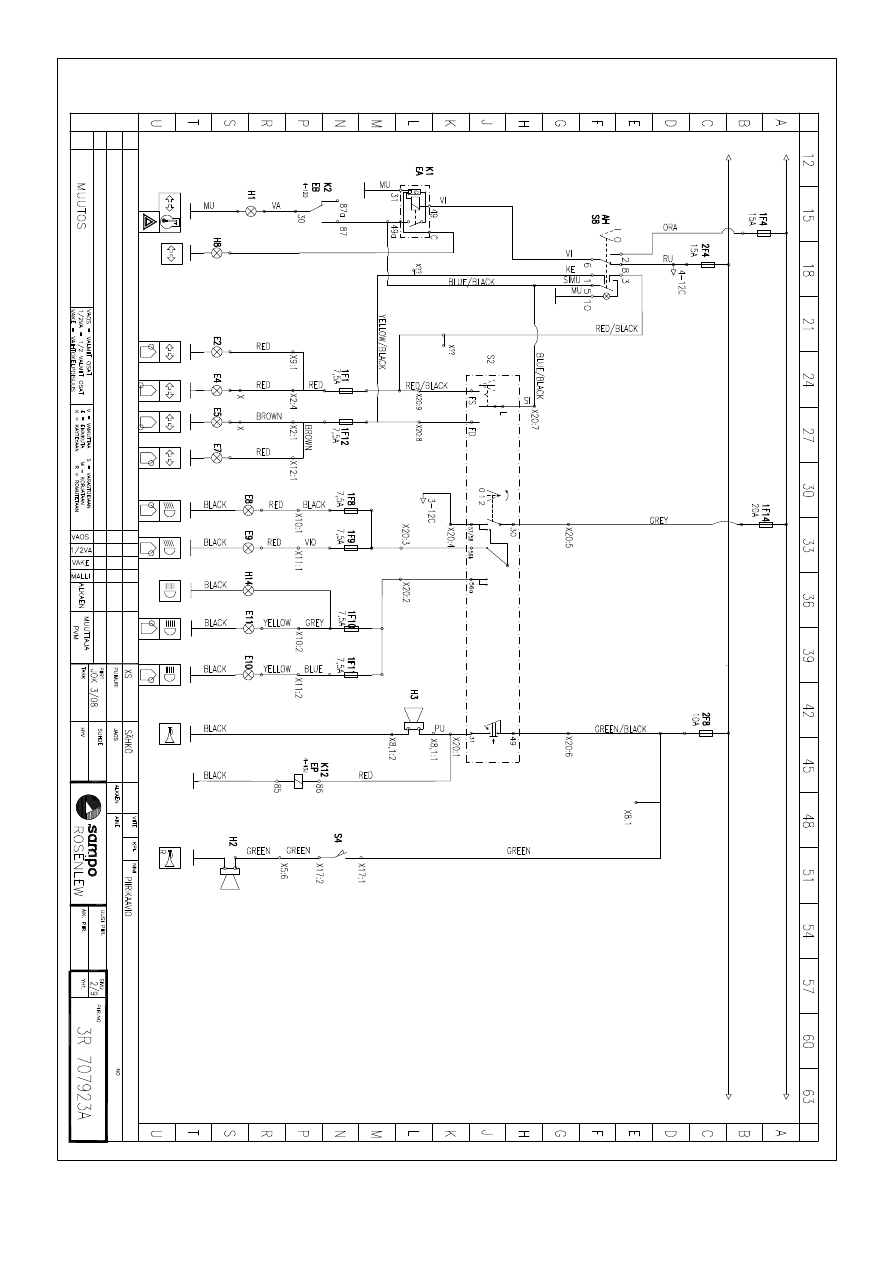

Electrical system
The engine is supplied with an alternator. The
main switch or the battery cables must not
be disconnected with the engine running.

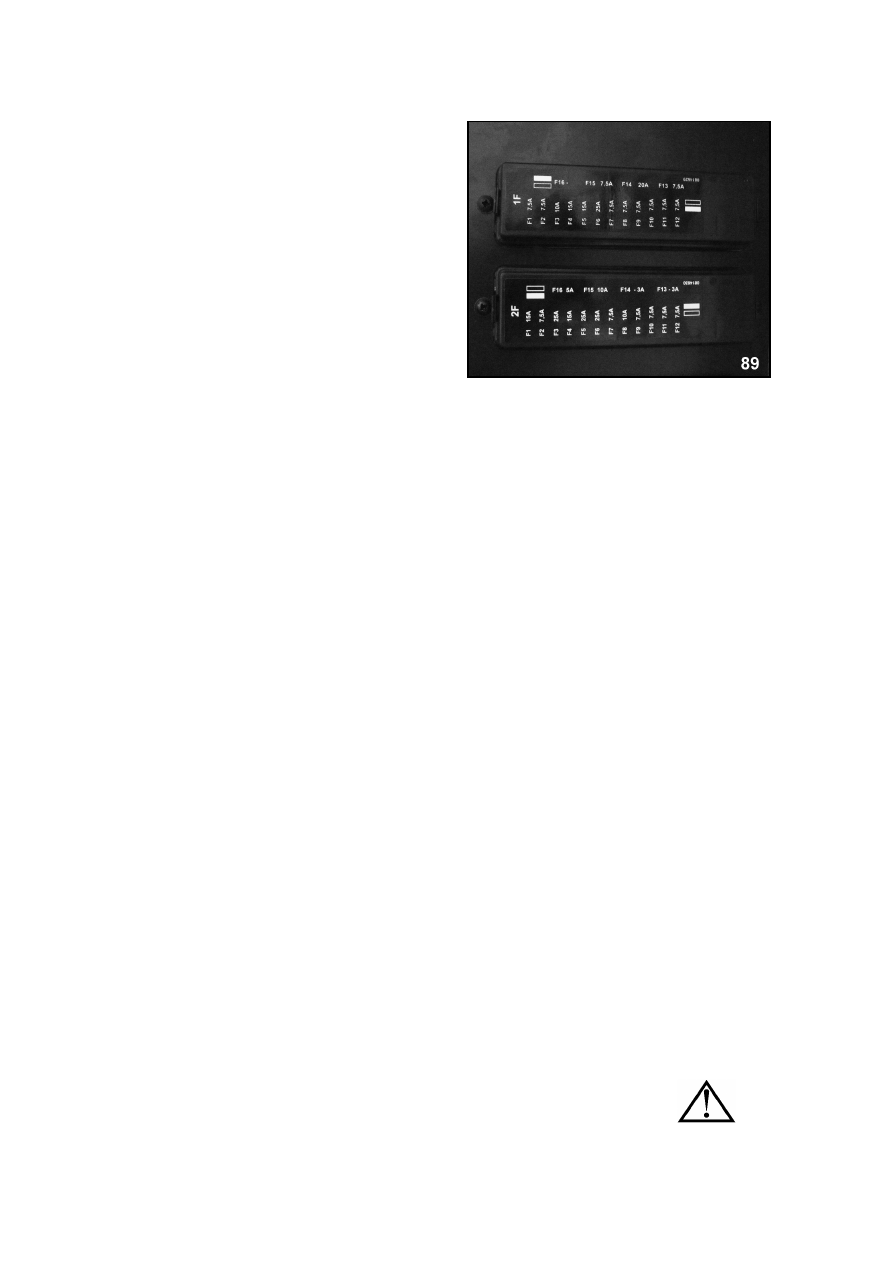

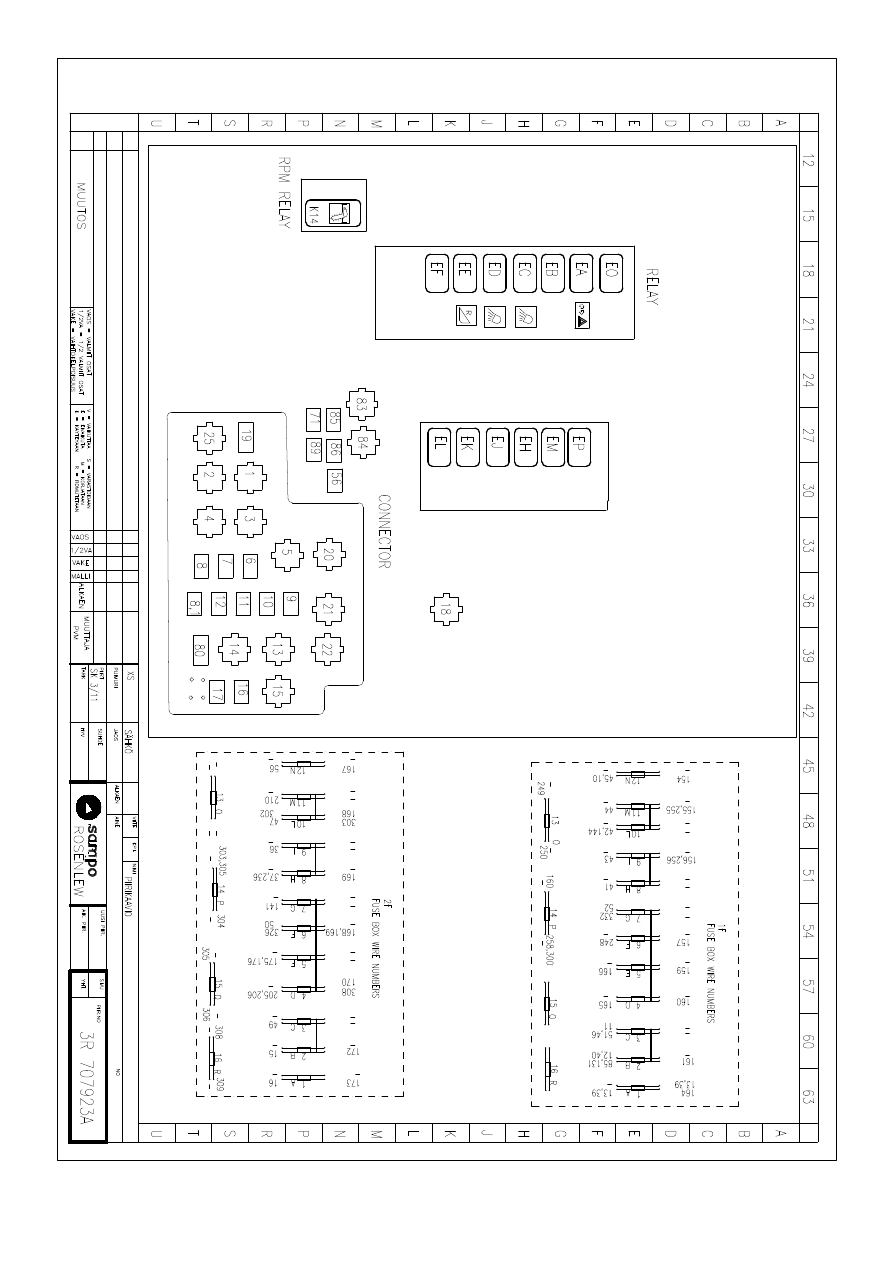

Fuses, Fig 89
Most fuses are located in boxes 1F and 2F on
the instrument panel. To gain access to them,
remove the box cover from inside the cab.
There are two fuse boxes on the instrument
panel of the combine.
Fuse box 1F:
1. Flashing indicator left
7,5 A
2. Rear light left
7,5 A
Parking light left
Switch lights, instr. panel
3. Rear light right
10 A
Parking light right
Switch lights, grain tank light
4. Emergency flasher
15 A
5. Rotating flasher
15 A
6.
7. 12v out, Radio, Cabin light 7,5 A
8. Head light left short
7,5 A
9. Head light right short
7,5 A
10. Head light left long
7,5 A
11. Head light right long
7,5 A
12. Flashing indicator right
7,5 A
13. Radio
7,5
A
14. Lightswitch
20
A
15. Electrical mainswitch
7,5 A
Fuse box 2F:
1. Workinglight unloading, sieve area 15 A
2. Workinglight strawhood
7,5 A
3. Working light, cab
25 A
4. Flasher
15
A
Warning lights
5. Control motors
25 A
Hydraulic valve control
6. Cabin ventilator
25 A
A.C. compressor switch, 4WD
7. Meters
7,5
A
8. Horn
10
A
Reversing signal horn
9. Brake lights
7,5 A
10. Radio
7,5 A
11. Engine feed pump solenoid
7,5 A
12. Anti-dazzle switch
7,5 A
13.
14. LH
Agro
3
A
15. Air suspended seat
10 A
Do not fit an oversized fuse since it may damage hardness and the electrical device in question.
If the fuse of one and same accessory blows repeatedly, find the cause of blowing.
