Operation



53





(10) Adjusting the header height when

harvesting




Under normal condition (crops grow normally), the
harvesting height should be 60-70cm from the spike tip.

[IMPORTANT]





If the harvesting height exceeds 70cm, the power
consumption will be increased and energy
efficiency be decreased; the threshing chamber
may be accumulated with dust, swing separator be
blocked, and threshing loss be increased, leading to
poor screening.







If the harvesting height is below 60cm, friction effect
in the threshing chamber will be impaired and grain
loss be increased. Put the chaff discharge adjust
lever to “Close” to reduce loss.





(11) Push the main shift lever forward to

start harvesting slowly



Put the main shift lever to “Standard” or lower speed gears in
case of grain loss during “High Speed” harvesting of ledged,
moist, immaturely or high-yield crops.




[Note]
If the range shift lever is to be operated during
traveling, stop the machine before switching.


(12) Upon completion of harvesting, put

the header clutch lever to “OFF”, and
after no grain is discharged from the
outlet, move the threshing clutch lever
to “OFF”, and then turn off the engine.





















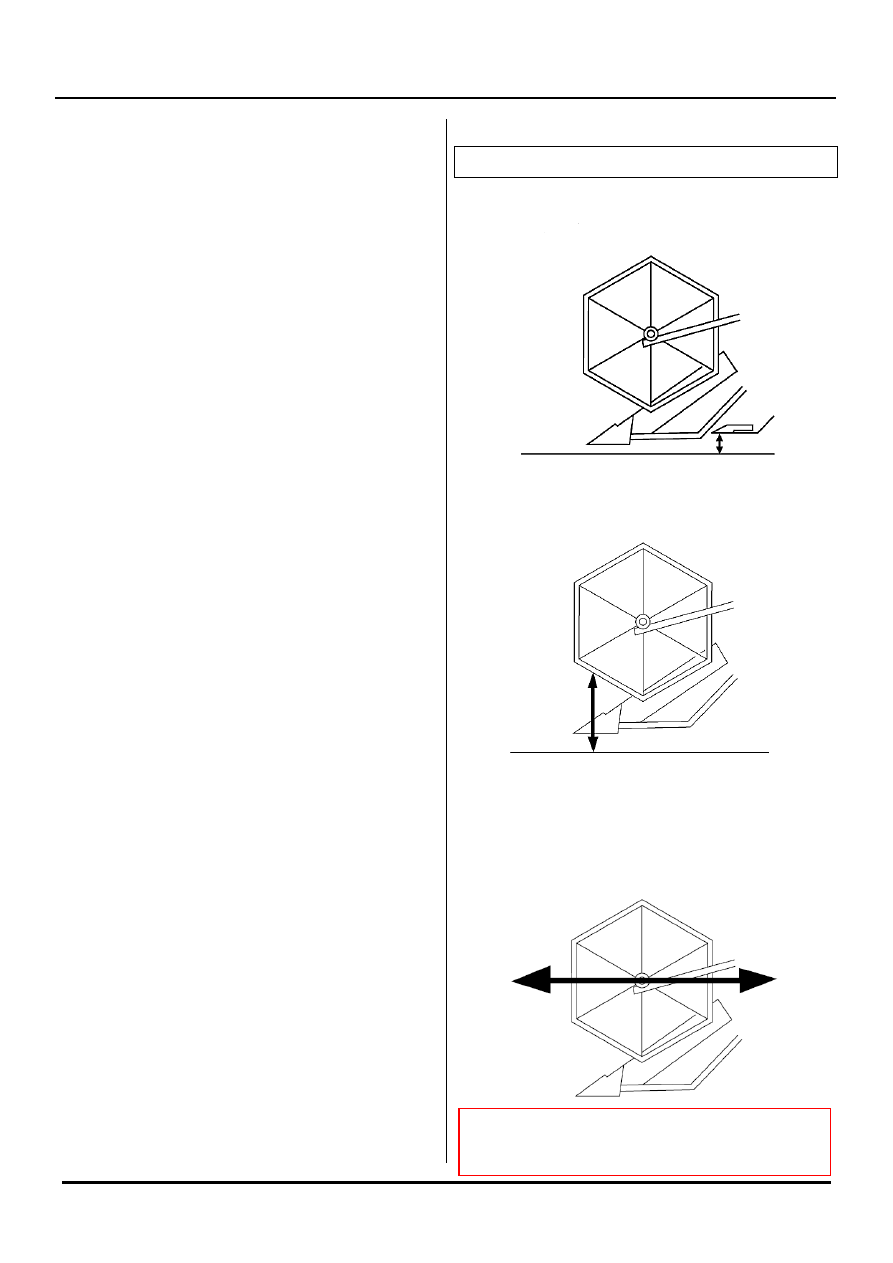

Harvesting the ridged crops






  Harvesting height: To prevent missing during harvesting,






  Reel height: To be lowered down as possible.






  Front/rear position of reel: The reel should be extended to

an appropriate height to prevent missing in gripping and
reeling up mud.





  Change to a low-speed sprocket (accessory) and

slow down the reel speed.

Harvesting height

Reel height

Front / rear position of reel



Operation



54







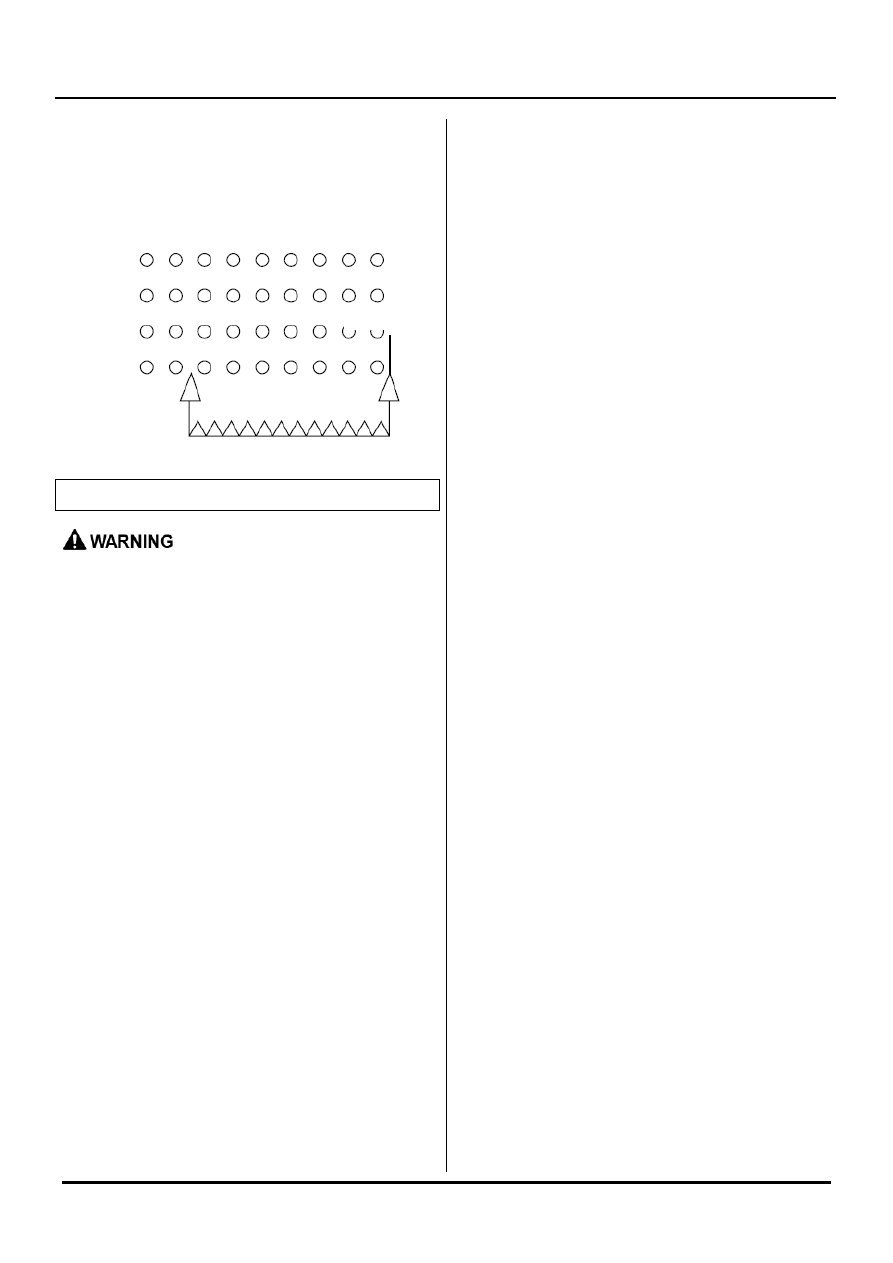

  Position of crop dividers: To be determined based on that

of the right divider to prevent missing in harvesting.





Turning during operation







Be sure to warn the co-worker (s) before
turning, moving forward or backward
during operation.
If turning is required after harvesting, raise
the header to prevent hitting any stubble
or crops discharged.



[Precaution]


  Do not put the threshing clutch lever to “OFF” or

reduce the engine speed during turning, when the
threshing section is still working.



  The total loss rate may be increased if you turn at a

high speed during harvesting of crops high in yield.
Turn slowly.





























Right divider

Position of crop dividers



Operation



55





Operating speed




Select the gears of range shift lever and main shift lever
according to the condition of operation and crops to
ensure optimum efficiency of operation.







[Precaution]
Put the main shift lever to “4” or lower before
operation if you are a beginner or unfamiliar with
the machine or the field condition is operation.
Move the main shift lever to the highest speed
according to the condition of crops and field after
you become skilled.






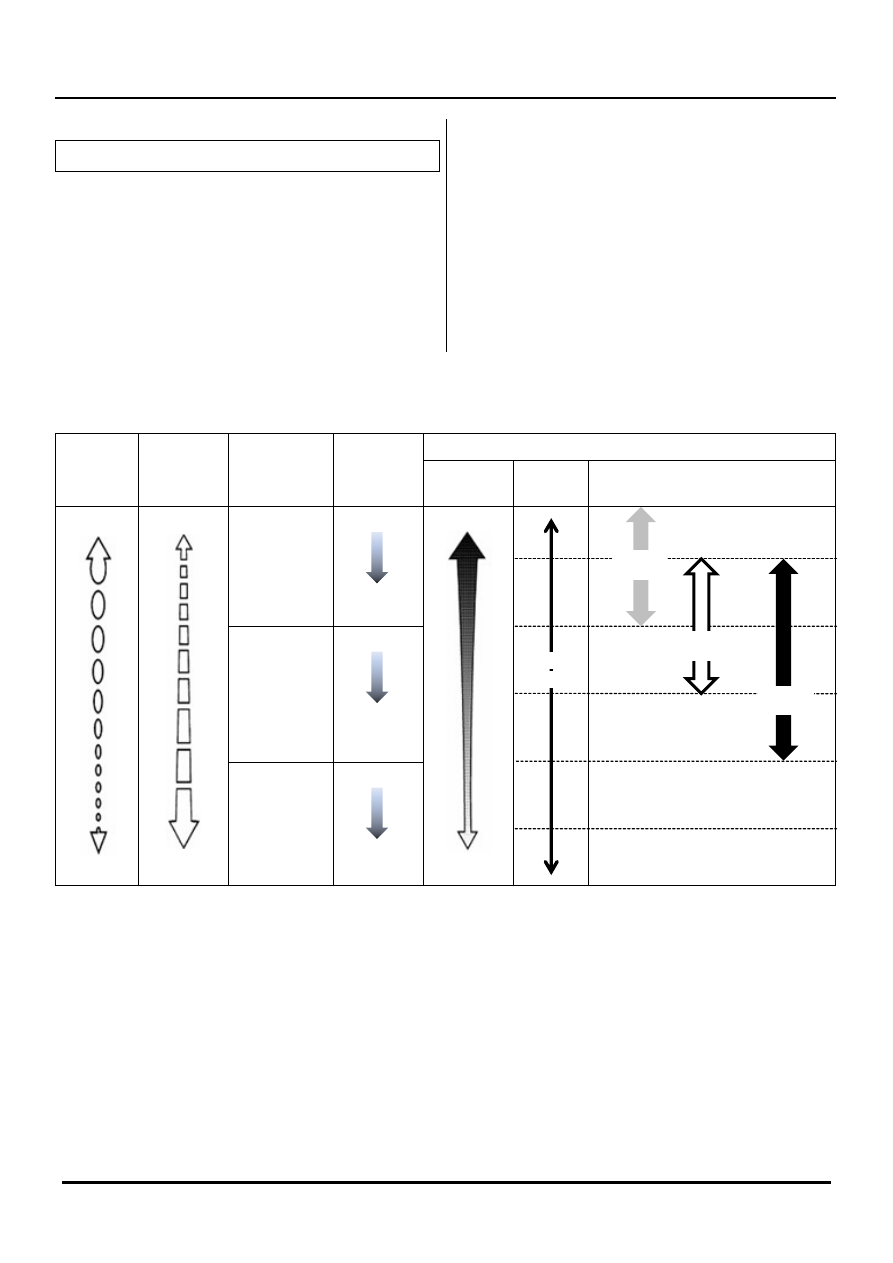

Use the main shift lever and auxiliary shift lever to adjust the harvesting speed in reference to the table below

.



Crop

moisture

Operating

speed

Position of
range shift

lever

Position of

main shift

lever

Lodged crops

Lodging

angle



Harvesting direction and speed

Much



Little

Low



High

Low

Stop





Forward

Large



Small





Standard

Stop





Forward

Traveling

Stop





Forward











Upright

Crops

Forward

harvesting



Left / right

lodging



Reverse

harvesting

Operation



56





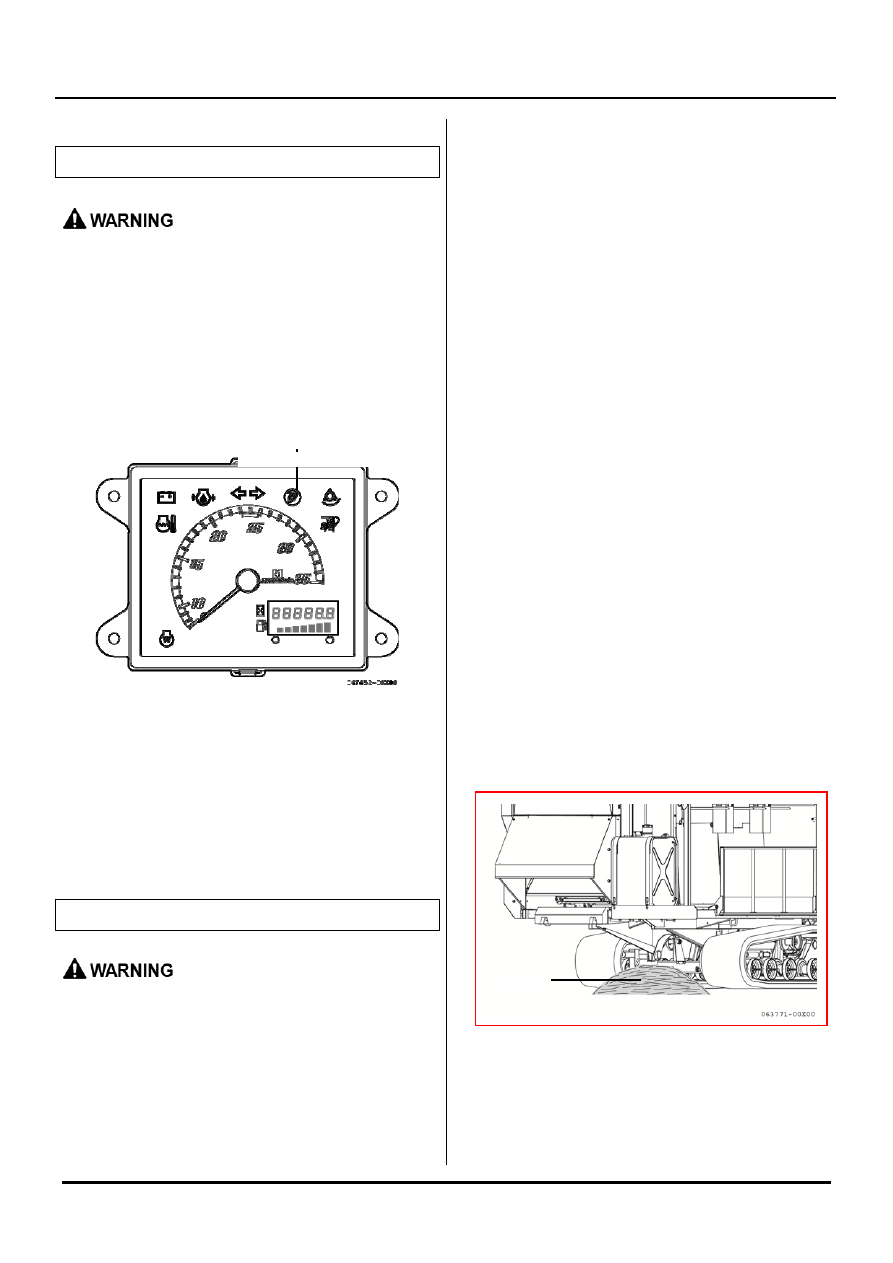

Replacing the grain bag









When removing obstacles or observing the
operating status of grain tank while the
machine is running, do not put your hand
or body deep in the machine. Otherwise,
you may be injured.


1- The alarm buzzer will sound and the full grain tank

alarm on the instrument panel will be lit when the
tank is full of grain.






2- After the bag if filled with grain, close the discharging

gate and replace the bag.



[Precaution]
Check the volume of grain tank frequently during
operation. If the grain tank is excessively filled,
grain will block the outlet of lift conveyer to cause
blocking, burning of belt and other failures.


Manual threshing







●

Park the combine on a horizontal
ground and engage the parking brake.



●

Two persons should be assigned for
coordination during threshing by the
means of feeding, one of which
should seat in the operator seat to
stop the engine immediately in case of
abnormality.





●

You may be rolled in the reel and
injured in the process of threshing by
feeding. So, be sure to follow the
instructions below.



●

A co-worker must sit in the operator
seat during operation so as to timely
stop the engine in case of
abnormality.



●

Roll up your cuff, and do not wear a
towel around your head, neck or waist
during operation.



●

The operator should stand diagonally
away from the reaping section and
feed crops gradually in small amount.



●

Chaff may pile up below the dust
exhauster hood during threshing by
feeding. Do not let the piled chaff
come into contact with the engine
exhaust pipe. Otherwise, fire hazard
may be caused.



●

Discharged straw and chaff may pile
up below the discharging section in
case of large-amount threshing while
the combine harvester is stopped. Fire
hazard may be caused by chaff in
contact with the outlet of engine
exhaust pipe. In this case, move the
machine or remove the piled chaff.









Full grain tank alarm

Chaff
