Challenger Terra Gator 3244 Chassis. Manual - part 117

Electrical Sysem

6-10

627333-A

28

Section 2 Input

28

-

29

Section 3 Input

29

-

30

Section 4 Input

30

-

31

Section 5 Input

31

-

32

Right-Hand End Row Input

32

-

33

-

33

-

34

-

34

-

35

-

35

-

36

-

36

-

37

-

37

-

38

-

38

-

39

-

39

-

40

Main BSO Input

40

-

41

-

41

-

42

-

42

-

43

-

43

-

44

-

44

-

45

-

45

-

46

-

46

CAN A Low

47

-

47

CAN A High

48

-

48

CAN B Low

49

-

49

CAN B High

50

Ground

50

Ground

Master Module

J1

J2

627333-A

6-11

Electrical Sysem

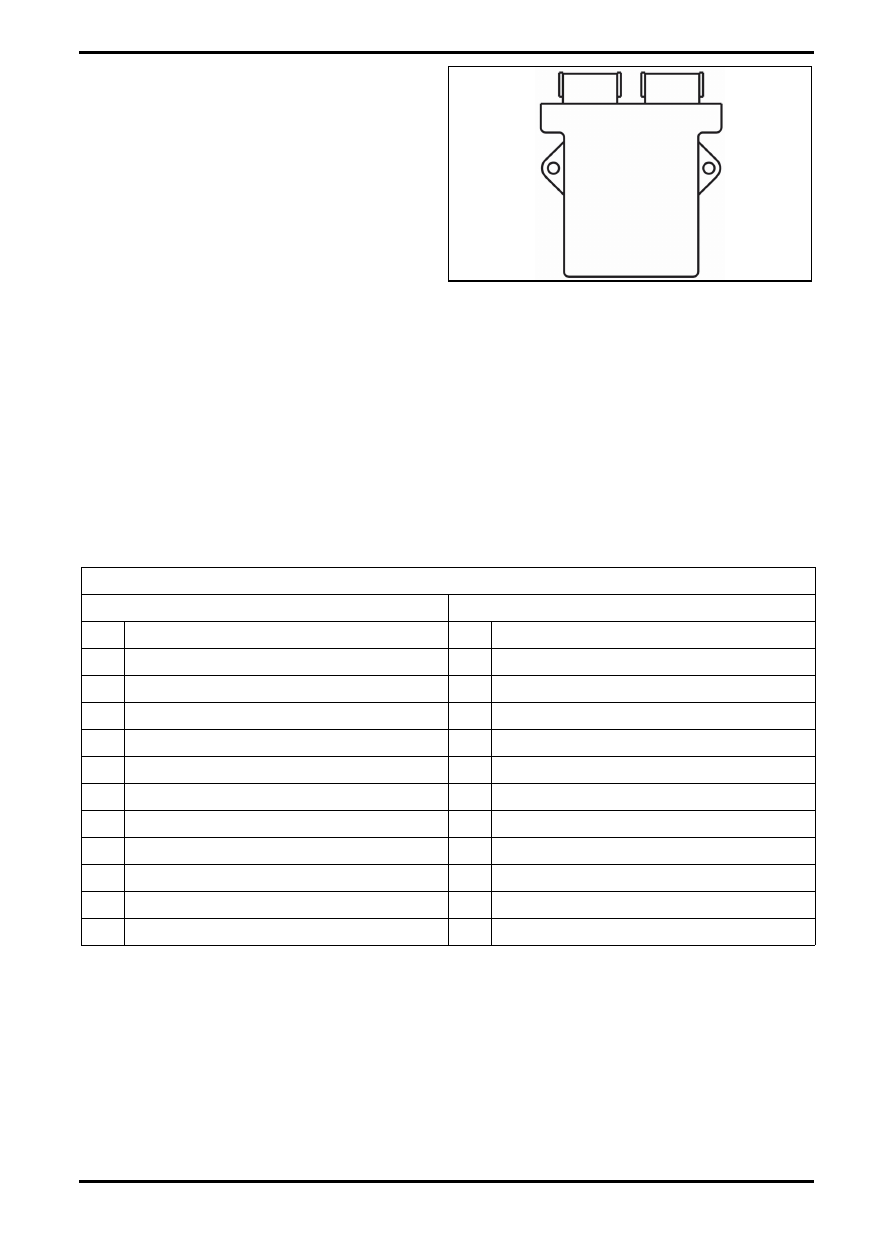

FIG. 4: I/O Interface Module

I/O modules accept commands or signals from master

module and activate respective component(s). I/O

module also accepts signals from components outside

cab and forwards them back to master module.

Number of I/O modules used varies depending on

application system.

J2 (gray) pin 1 is 12 volts and pin 12 ground. Power for

pin 1 comes from PDM 1 F9 fuse. Same on J3 plug

(black).

J2 pins 2, 3 and 4 are module identification pins. These

are a combination of grounds and positive voltage pins.

If pins have no wires, they are grounds. (So I/O module

0 would have no wire on pins 2, 3 and 4. Older

machines did have wires on these pins. They were

white 4438 and 4439 wires.)

J2 has inputs on pins 5 through 9. Pins 10 and 11 are

outputs. They have an H-bridge which can be used to

reverse polarity. (Example: open and close a servo).

J3 (black) pin 1 is 12 volts and pin 12 is ground. Pin 2 is

CAN low and pin 3 is CAN high. Pins 4 through 11 are

outputs.

Pins can be checked connector with proper spades for

CAN high and low, power and ground. If there is a

broken wire between J3 connector and a component,

an error code will be displayed.

FIG. 4

Q000086S

I/O MODULE 5

J2

J3

1

B+

1

B+

2

12 Volts

2

CAN Low

3

Ground

3

CAN High

4

12  Volts

4

-

5

-

5

-

6

-

6

-

7

-

7

-

8

Filter 2 Input

8

-

9

-

9

-

10

-

10

-

11

-

11

-

12

Ground

12

Ground

Electrical Sysem

6-12

627333-A

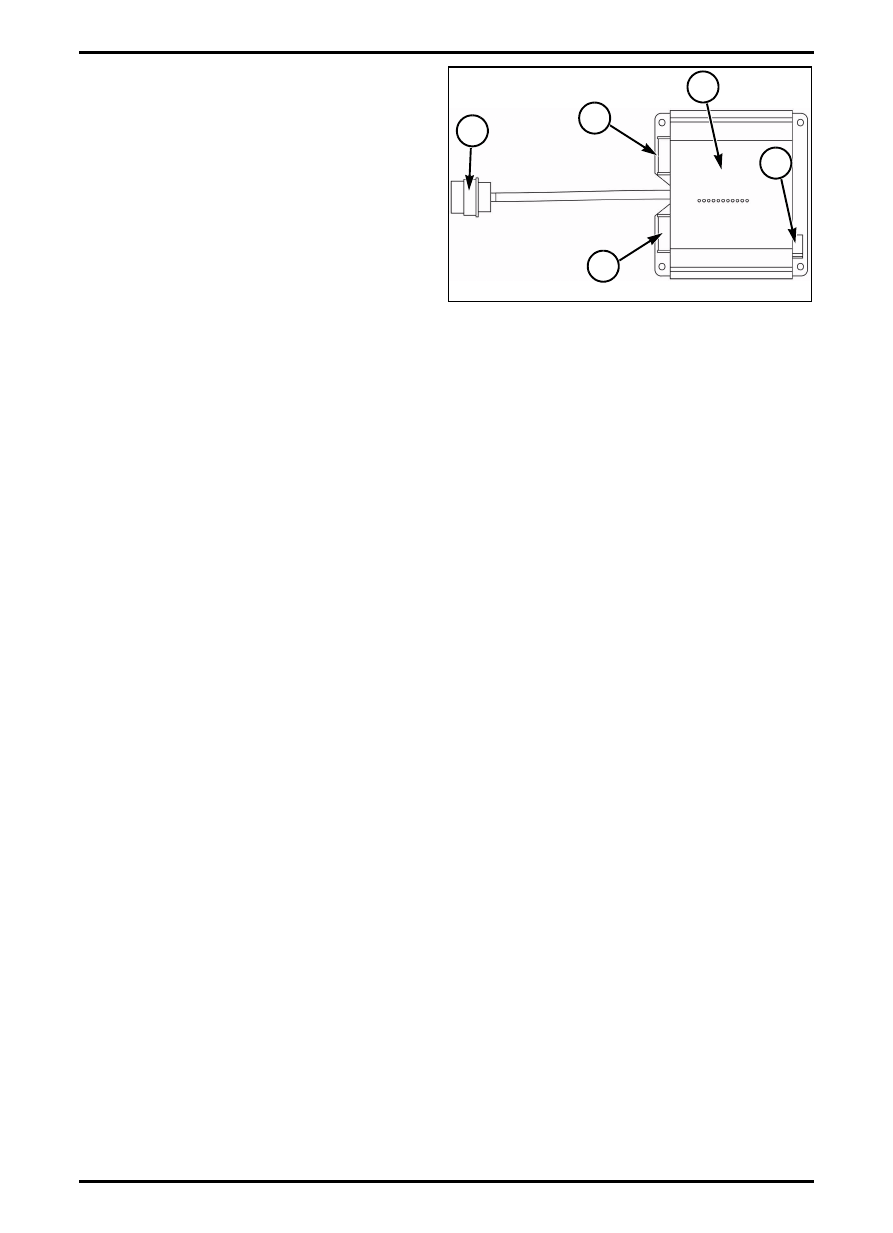

FIG. 5: High Current Module

J1 (1) - Power In / CAN Backbone In Pin Outs:

•

Pin 1 - Switched Power Input

•

Pin 2 - CAN Low

•

Pin 3 - Battery Power Input

•

Pin 4 - Ground

•

Pin 5 - CAN Shield

•

Pin 6 - CAN High

J2 (2) Pin Outs:

•

Pin 1 - Output 1 (10 amps maximum)

•

Pin 2 - Output 2 (10 amps maximum)

•

Pin 3 - Output 3 (10 amps maximum)

•

Pin 4 - Output 4 (10 amps maximum)

•

Pin 5 - Output 5 (10 amps maximum)

•

Pin 6 - Output 6 (10 amps maximum)

•

Pin 7 - Output 7 (3 amps maximum)

•

Pin 8 - Output 8 (3 amps maximum)

•

Pin 9 - Input 1 (analog input 0 - 10 volts)

•

Pin 10 - Input 2 (analog input 0 - 10 volts)

•

Pin 11 - Input 3 (analog input 0 - 10 volts)

•

Pin 12 - Input 4 (analog input 0 - 10 volts)

J3 (3) Pin Outs:

•

Pin 1 - Ground for Output 1

•

Pin 2 - Ground for Output 2

•

Pin 3 - Ground for Output 3

•

Pin 4 - Ground for Output 4

•

Pin 5 - Ground for Output 5

•

Pin 6 - Ground for Output 6

•

Pin 7 - Ground for Output 7

•

Pin 8 - Ground for Output 8

•

Pin 9 - 8 VDC Output

•

Pin 10 - Input 5 (analog input 0 - 10 volts)

•

Pin 11 - Switched Power Bus Ground

•

Pin 12 - Switch Power Bus Power

J4 (4) - CAN Backbone Out Pin Outs:

•

A - CAN High

•

B - CAN Low

•

C  -  Shield

Status LEDs (5)

•

Two LEDs nearest terminator are CAN signals high

and low (these will be dim and flashing if

comuncating).

•

Bottom LED is I/O power.

•

Other LEDs are for output functions.

FIG. 5

Q000087S

1

2

3

5

4

627333-A

6-13

Electrical Sysem

Connectors J2 and J3 can be configured for different

applications. Below are two examples:

J2 and J3 configured as I/O Module 3:

I/O MODULE 3

J2

J3

1

Low Beam

1

Low Beam Ground

2

High Beam

2

High Beam Ground

3

Work Lights 1

3

Work Lights 1 Ground

4

Work Lights 2

4

Work Lights 2 Ground

5

Work Lights 3

5

Work Lights 3 Ground

6

Work Lights 4

6

Work Lights 4 Ground

7

Left-Hand Amber Flashing Warning Light

7

Left-Hand Amber Flashing Warning Light Gnd

8

Right-Hand Amber Flashing Warning Light

8

Right-Hand Amber Flashing Warning Light Gnd

9

Fuel Level Input

9

8 VDC Output (Fuel Sender Pull-Up)

10

Hydraulic Oil Temperature Input

10

No Connection

11

Hydraulic Oil Level Input

11

Switched Power Bus Ground

12

Air Pressure Input

12

Switched Power Bus Power

I/O MODULE 7

J2

J3

1

Left-Hand Amber Flashing Warning Light

1

Left-Hand Amber Flashing Warning Light Gnd

2

Right-Hand Amber Flashing Warning Light

2

Right-Hand Amber Flashing Warning Light Gnd

3

Reverse Lights

3

Reverse Lights Ground

4

Work Lights 4

4

Work Lights 4 Ground

5

Park Lights

5

Park Lights Ground

6

No Connection

6

Left Stop Ground

7

Left Stop

7

Right Stop Ground

8

Right Stop

8

No Connection

9

Radar Signal Input

9

Jumper to Pin 10

10

No Connection

10

Jumper to Pin 9

11

No Connection

11

Switched Power Bus Ground

12

No Connection

12

Switched Power Bus Power
