WIRE COLORS

Color

Function

Blue

Machine Functions

Clear

Shielded Ground

Gray

Ground (Dirty Ground)

Gray/Black

Ground (Clean Ground)

Green

CAN Bus Low

Light Green

Communications Signals

Orange

AutoGuide

Pink

Lights

Purple

Hazards and Flashers (Flasher Module)

Red

Power (Dirty Power)

Red/White

Power (Clean Power - Straight From Battery)

Tan

Transmission

White

Cruise Control (Engine Inputs and Outputs)

Yellow

CAN Bus High (Or Sense Wire)

627333-A

6-7

Electrical Sysem

ELECTRICAL SYSEM

DESCRIPTION

Manual has been written as an aid in troubleshooting

problems that may occur in machine CAN bus electrical

system. Manual is arranged in order or error codes with

some additional sections following for circuits that are

not associated with a code.

REQUIREMENTS

This manual is to be used by a qualified technician with

basic knowledge of electrical systems.

Technician must have a multimeter and experience in

using the meter.

Technician must have proper tooling and repair

supplies for various connectors described throughout

this manual.

IMPORTANT: CAN bus system must be rebooted

connection has been altered. This is

accomplished by disconnecting battery with

negative cable disconnect assembly located in

battery box. Often problems are fixed by

simply rebooting.

DEFINITION

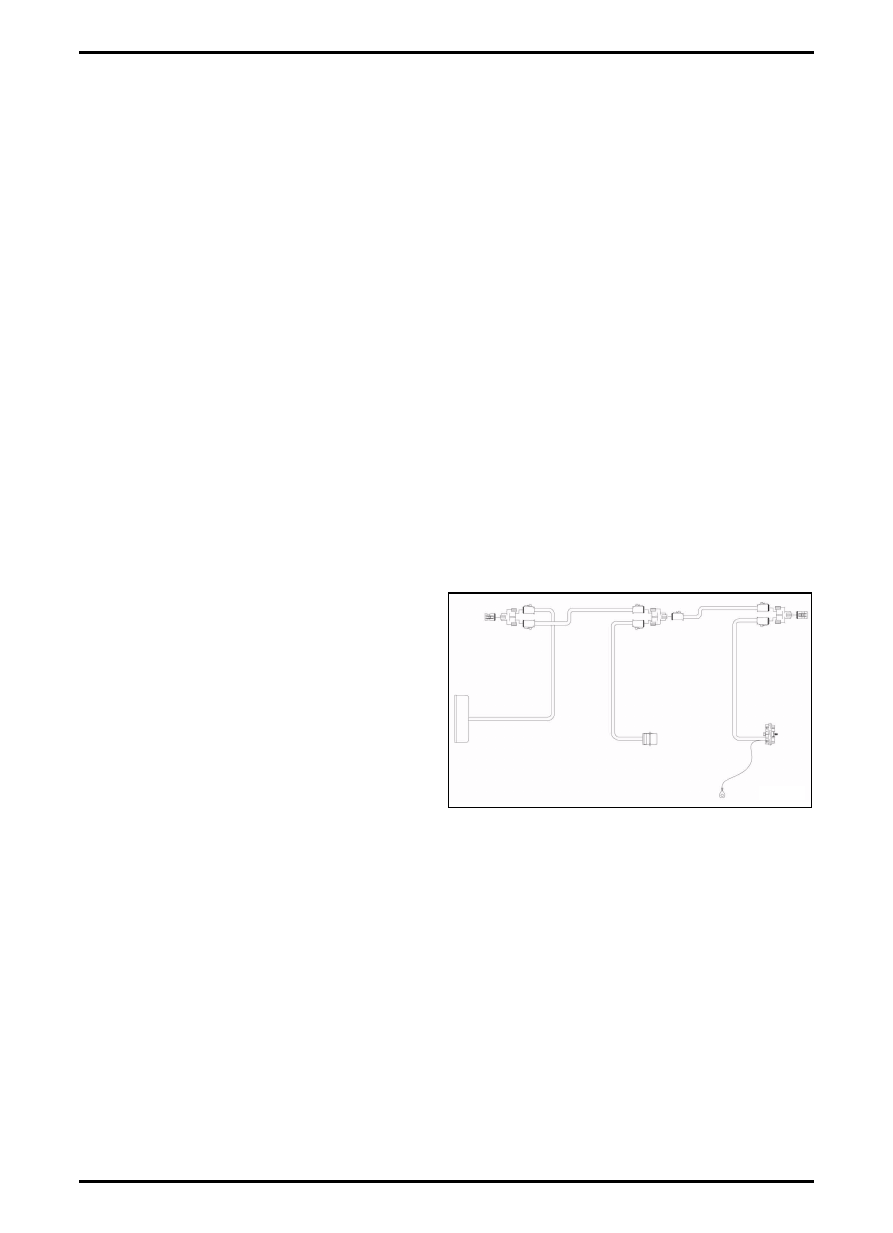

FIG. 1: CAN (Controller Area Network) is a method of

communication which allows a large amount of data to

be transferred through two which wires. A CAN network

is similar to a computer network, using a server(s)

(master module), and terminals (I/O Input / Output

interface modules) to communicate in a controlled and

standardized binary code. Use of a CAN network

allows greatly reduced amount of wiring in many

electrical circuits.

Machine chassis and system will use CAN bus for

following functions:

1. All lighting circuits;

2. Sensors;

Air Pressure;

Fuel Level;

Hydraulic Level;

Radar.

3. Engine;

4. Transmission;

5. Drive lever.

FIG. 1

Q000084S

Electrical Sysem

6-8

627333-A

COMPONENT LOCATION

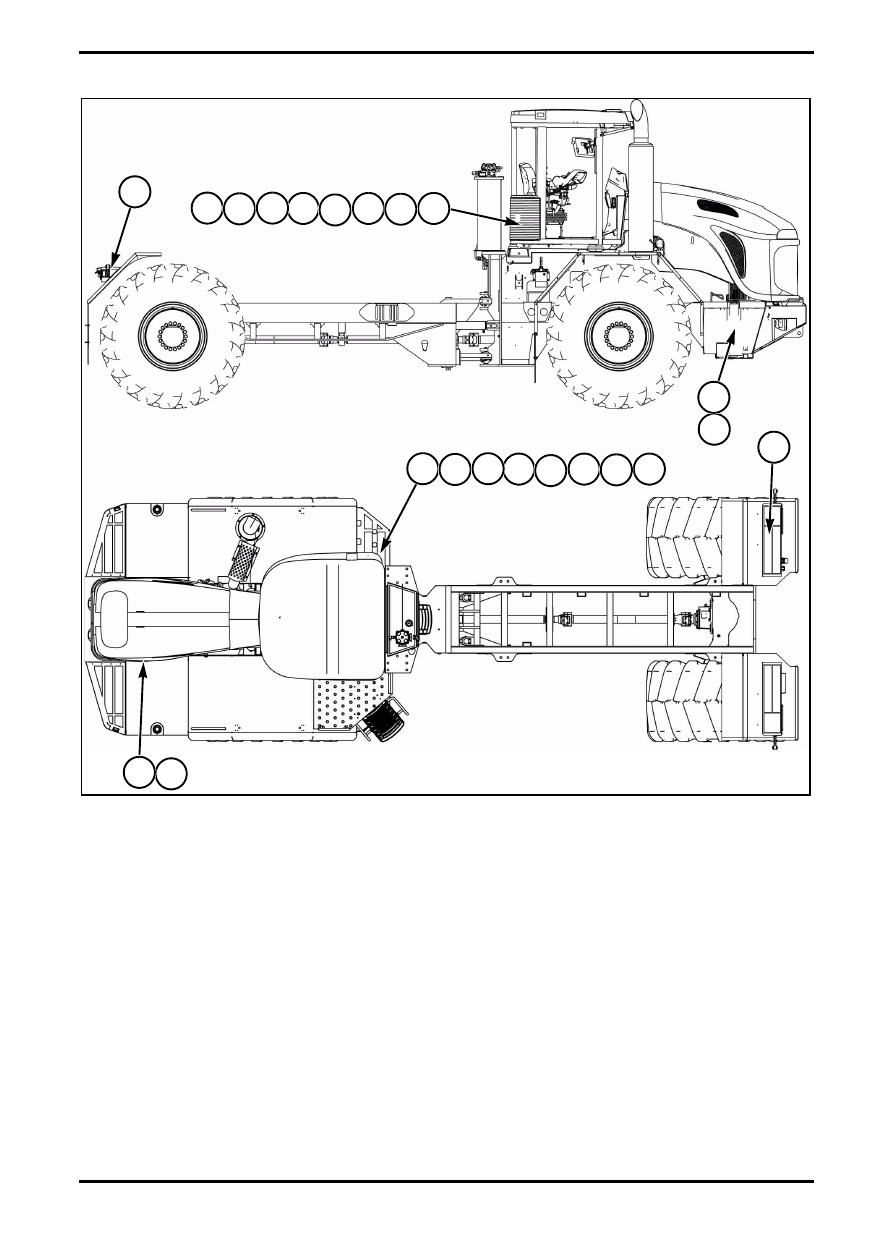

Component layout:

1. Master Module;

2. PDM 1 (Power Distribution Modules);

3. PDM 2;

4. PDM 3;

5. 2 - Pack Relay Modules;

6. 4 - Pack Relay Modules;

7. Flasher Module;

8. Power Supply Block;

9. I/O Module 3 (underneath the engine);

10. I/O Module 5 (underneath the engine);

11. I/O Module 7.

FIG. 2

Q000163S

1

8

7

5

6

4

3

2

8

1

2

4

3

5

6

7

10

10

11

9

9

11

627333-A

6-9

Electrical Sysem

PRIMARY CAN BUS COMPONENTS

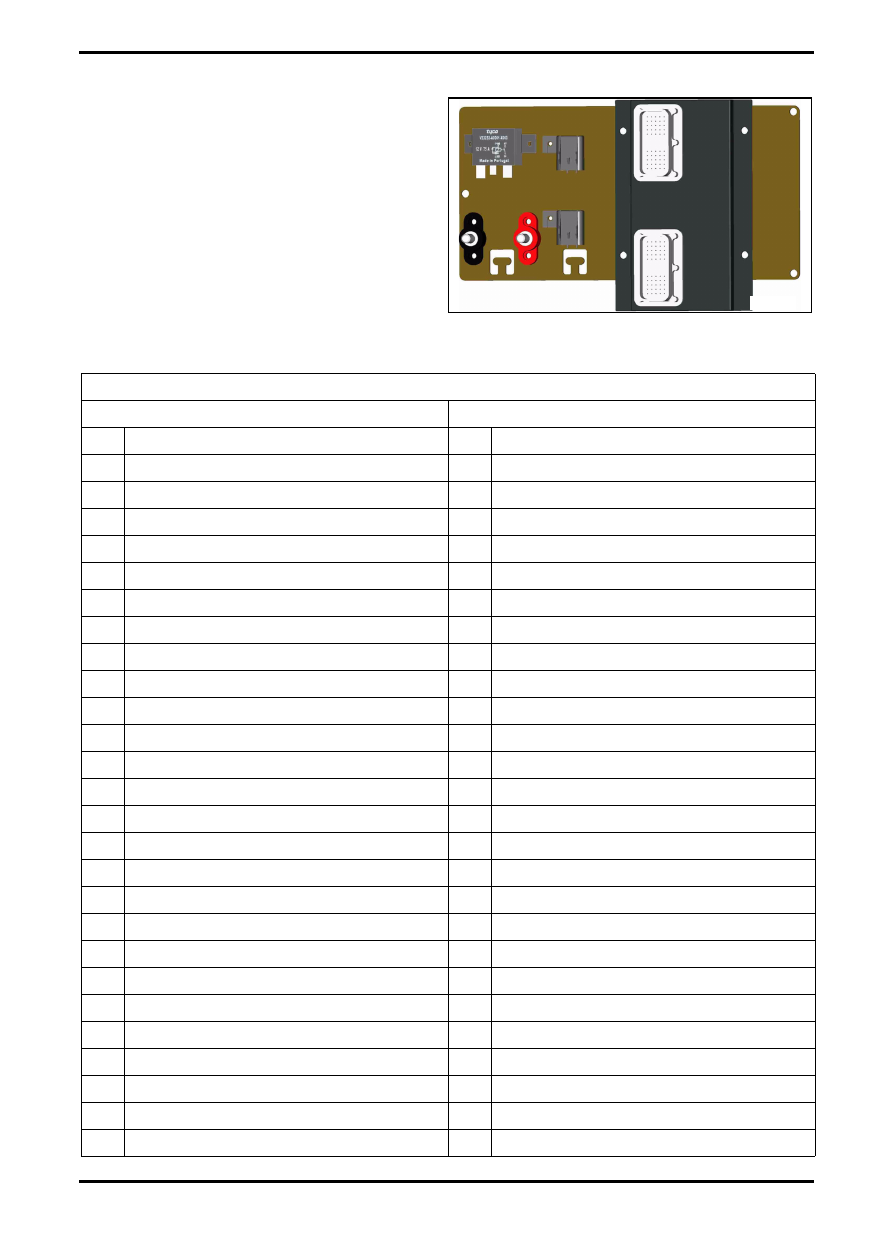

FIG. 3: Master Module

Master Module is located behind the right rear curved

panel on outside of the cabin. To access panel loosen

hand nut located in center of curved panel. Master

module accepts signals from switches and other

modules in cab, translates, and transfers those

commands via a two-wire shielded harness to I/O

(Input/Output) interface module. Master module also

accepts inputs back from I/O interface modules and

forwards those signals to proper component.

J1 Connector (1) - pins are inputs except where

designated.

J2 Connector (2) - pin  is output except where

designated.

FIG. 3

Q000085S

Master Module

J1

J2

1

B+

1

B+

2

Left-Hand Foam Marker Input

2

Radar Output

3

Right-Hand Foam Marker Input

3

Left-Hand Turn Signal Output

4

Master Apply

4

Right-Hand Turn Signal Output

5

-

5

Left-Hand Amber Flashing Warning Light Out

6

-

6

Right-Hand Amber Flashing Warning Light Out

7

-

7

Low Beams Output

8

-

8

High Beams Output

9

-

9

Work Lights 1 Output

10

-

10

Work Lights 2 Output

11

-

11

-

12

-

12

Work Lights 4 Output

13

-

13

Reverse Output

14

-

14

Service Brake Output

15

-

15

Park Brake Output

16

Work Light #6

16

Park Lights Output

17

-

17

-

18

-

18

-

19

Work Light #5

19

-

20

Work Light #7

20

-

21

Fog Light

21

Foam Marker On Output

22

Beacon

22

-

23

-

23

-

24

-

24

-

25

BCO Input

25

-

26

Left-Hand End Row Input

26

-

27

Section 1 Input

27

-
