HUAWEI OptiX OSN 8800 T64/T32 Intelligent Optical Transport Platform. Product Description - part 55
Table 9-167 lists the specifications of the colored optical interfaces of the SFD64 board.
Table 9-167 Specifications of the colored optical interfaces that comply with ITU-T G.692
Item
Value
Nominal bit rate
10.709 Gbit/s
Dispersion limit (km)
40
Mean launched optical power (dBm)
-1 to 2
Receiver sensitivity (dBm)
-19
Minimum overload (dBm)
0
Maximum allowed dispersion (ps/
800
nm)
Minimum extinction ratio (dB)
10
Laser Safety Class
The laser safety class of the optical interface is CLASS 1, indicating that the maximum output
optical power of each optical interface is less than 10 dBm (10 mW).
Mechanical Specifications
The mechanical specifications of the SFD64 board are as follows:
l Dimensions: 25.4 mm (W) x 220 mm (D) x 266.7 mm (H)
l Weight: 1.2 kg (2.6 lb.)
Power Consumption
Typical power consumption at 25°C (77°F): 38.2 W
9.6.6 Specifications of the SL64
Specifications include optical specifications, laser safety class, mechanical specifications, and
power consumption.
Optical Specifications
Table 9-168 lists the optical specifications of the SL64 board.
Table 9-168 Optical specifications of the SL64 board
Item
Value
Nominal bit
9953280 kbit/s
rate
587
Item
Value
Application
I-64.1
S-64.2b
P1L1-2D2
Le-64.2
V-64.2b
code
(OBU101 +
OBU101 +
DCU +
MR2)a
Transmissio
0 to 2
2 to 40
40 to 80
35 to 60
80 to 120
n distance
(km)
Type of fiber
Single-mode
Single-mode
Single-mode
Single-mode
Single-mode
LC
LC
LC
LC
LC
Operating
1290 to 1330
1530 to 1565
1530 to 1565
1530 to 1565
1550.12
wavelength
range (nm)
Mean
-6 to -1
-1 to +2
0 to +4
+2 to +4
-1 to 2
launched
(without the
optical
OBU, DCU,
power (dBm)
or MR2)
16 (with the
OBU, DCU,
or MR2)
Receiver
-11
-14
-24
-21
-17 (without
sensitivity
the OBU,
(dBm)
DCU, or
MR2)
-26 (with the
OBU, DCU,
or MR2)
Minimum
-1
-1
-7
-8
-1
overload
(dBm)
Minimum
6
8.2
9
8.2
10.5
extinction
ratio (dB)
a: "OBU101 + OBU101 + DCU + MR2" indicates that the specifications of the V-64.2b optical
interface are measured when the OBU, DCU, and MR2 are used.
Table 9-169 lists the specifications of the colored optical interfaces of the SL64 board.
588
Table 9-169 Specifications of the colored optical interfaces that comply with ITU-T G.692
Item
Value
Nominal bit rate
9953280 kbit/s
Dispersion limit (km)
40
Mean launched optical power (dBm)
-1 to 2
Receiver sensitivity (dBm)
-17
Minimum overload (dBm)
-1
Maximum allowed dispersion (ps/
800
nm)
Minimum extinction ratio (dB)
10.5
Laser Safety Class
The laser safety class of the optical interface is CLASS 1, indicating that the maximum output
optical power of each optical interface is less than 10 dBm (10 mW).
Mechanical Specifications
The mechanical specifications of the SL64 board are as follows:
l Dimensions: 25.4 mm (W) x 220 mm (D) x 266.7 mm (H)
l Weight: 0.6 kg (1.3 lb.)
Power Consumption
Typical power consumption at 25°C (77°F): 15.2 W
9.6.7 Specifications of the SLD64
Specifications include optical specifications, laser safety class, mechanical specifications, and
power consumption.
Optical Specifications
Table 9-170 lists the optical specifications of the SLD64 board.
Table 9-170 Optical specifications of the SLD64 board
Item
Value
Nominal bit
9953280 kbit/s
rate
Application
I-64.1
S-64.2b
code
589
Item
Value
Transmission
0 to 2
2 to 40
distance (km)
Type of fiber
Single-mode LC
Single-mode LC
Operating
1290 to 1330
1530 to 1565
wavelength
range (nm)
Mean
-6 to -1
-1 to +2
launched
optical power
(dBm)
Receiver
-11
-14
sensitivity
(dBm)
Minimum
-1
-1
overload
(dBm)
Minimum
6
8.2
extinction
ratio (dB)
Laser Safety Class
The laser safety class of the optical interface is CLASS 1, indicating that the maximum output
optical power of each optical interface is less than 10 dBm (10 mW).
Mechanical Specifications
The mechanical specifications of the SLD64 board are as follows:
l Dimensions: 25.4 mm (W) x 220 mm (D) x 266.7 mm (H)
l Weight: 1.1 kg (2.4 lb.)
Power Consumption
Typical power consumption at 25°C (77°F): 20.3 W
9.6.8 Specifications of the SLH41
Specifications include optical specifications, laser safety class, mechanical specifications, and
power consumption.
Optical Specifications
Table 9-171 lists the optical specifications of the SLH41 board when the STM-1 optical module
is used.
590
Table 9-171 Optical specifications of the SLH41 board when the STM-1 optical module is used
Item
Value
Nominal bit rate
155520 kbit/s
Line code pattern
NRZ
Application code
S-1.1
Transmission distance (km)
0 to 15
Type of fiber
Single-mode LC
Operating wavelength range (nm)
1261 to 1360
Launched optical power range (dBm)
-15 to -8
Receiver sensitivity (dBm)
-28
Overload optical power (dBm)
-8
Minimum extinction ratio (dB)
8.2
Table 9-172 lists the optical specifications of the SLH41 board when the STM-4 optical module
is used.
Table 9-172 Optical specifications of the SLH41 board when the STM-4 optical module is used
Item
Value
Nominal bit rate
622080 kbit/s
Line code pattern
NRZ
Application code
S-4.1
Transmission distance (km)
0 to 15
Operating wavelength range (nm)
1274 to 1356
Type of fiber
Single-mode LC
Launched optical power range (dBm)
-15 to -8
Receiver sensitivity (dBm)
-28
Minimum overload (dBm)
-8
Minimum extinction ratio (dB)
8.2
Electrical Specifications
Table 9-173 lists the electrical specifications of the SLH41 board when the STM-1 electrical
module is used.
591
Table 9-173 Electrical specifications of the SLH41 board when the STM-1 electrical module is
used
Item
Value
Type of interface
139264 kbit/s, 155520 kbit/s
Code pattern
CMI
Bit rate of the output signal
Compliant with G.703
Permitted frequency deviation on the input
interface
Permitted attenuation on the input interface
Laser Safety Class
The laser safety class of the optical interface is CLASS 1, indicating that the maximum output
optical power of each optical interface is less than 10 dBm (10 mW).
Mechanical Specifications
The mechanical specifications of the SLH41 board are as follows:
l Dimensions: 25.4 mm (W) x 220 mm (D) x 266.7 mm (H)
l Weight: 1.0 kg (2.2 lb.)
Power Consumption
Typical power consumption at 25°C (77°F): 48.5 W
9.6.9 Specifications of the SLO16
Specifications include optical specifications, laser safety class, mechanical specifications, and
power consumption.
Optical Specifications
Table 9-174 lists the optical specifications of the SLO16 board.
Table 9-174 Optical specifications of the SLO16 board
Item
Value
Nominal bit rate
2488320 kbit/s
Line code pattern
NRZ
Application code
I-16
S-16.1
L-16.1
L-16.2
Transmission
0 to 2
2 to 15
25 to 40
50 to 80
distance (km)
592
Item
Value
Type of fiber
Single-mode
Single-mode
Single-mode LC
Single-mode
LC
LC
LC
Operating
1266 to 1360
1260 to 1360
1280 to 1335
1500 to 1580
wavelength range
(nm)
Launched optical
-10 to -3
-5 to 0
-2 to +3
-2 to +3
power range (dBm)
Receiver sensitivity
-18
-18
-27
-28
(dBm)
Minimum overload
-3
0
-9
-9
(dBm)
Minimum extinction
8.2
8.2
8.2
8.2
ratio (dB)
Laser Safety Class
The laser safety class of the optical interface is CLASS 1, indicating that the maximum output
optical power of each optical interface is less than 10 dBm (10 mW).
Mechanical Specifications
The mechanical specifications of the SLO16 board are as follows:
l Dimensions: 25.4 mm (W) x 220 mm (D) x 266.7 mm (H)
l Weight: 0.8 kg (1.8 lb.)
Power Consumption
Typical power consumption at 25°C (77°F): 21.5 W
9.6.10 Specifications of the SLQ16
Specifications include optical specifications, laser safety class, mechanical specifications, and
power consumption.
Optical Specifications
Table 9-175 lists the optical specifications of the SLQ16 board.
Table 9-175 Optical specifications of the SLQ16 board
Item
Value
Nominal bit rate
2488320 kbit/s
593
Item
Value
Application code
I-16
S-16.1
L-16.1
L-16.2
Transmission
0 to 2
2 to 15
25 to 40
50 to 80
distance (km)
Type of fiber
Single-mode
Single-mode
Single-mode LC
Single-mode
LC
LC
LC
Operating
1266 to 1360
1260 to 1360
1280 to 1335
1500 to 1580
wavelength range
(nm)
Launched optical
-10 to -3
-5 to 0
-2 to +3
-2 to +3
power range (dBm)
Receiver sensitivity
-18
-18
-27
-28
(dBm)
Minimum overload
-3
0
-9
-9
(dBm)
Minimum extinction
8.2
8.2
8.2
8.2
ratio (dB)
Laser Safety Class
The laser safety class of the optical interface is CLASS 1, indicating that the maximum output
optical power of each optical interface is less than 10 dBm (10 mW).
Mechanical Specifications
The mechanical specifications of the SLQ16 board are as follows:
l Dimensions: 25.4 mm (W) x 220 mm (D) x 266.7 mm (H)
l Weight: 0.7 kg (2.0 lb.)
Power Consumption
Typical power consumption at 25°C (77°F): 12.8 W
9.6.11 Specifications of the SLQ64
Specifications include optical specifications, laser safety class, mechanical specifications, and
power consumption.
Optical Specifications
Table 9-176 lists the optical specifications of the SLQ64 board.
594
Table 9-176 Optical specifications of the SLQ64 board
Item
Value
Nominal bit rate
9953280 kbit/s
Application code
I-64.1
S-64.2b
Transmission distance
0 to 10
10 to 40
(km)
Type of fiber
Single-mode LC
Single-mode LC
Operating wavelength
1290 to 1330
1530 to 1565
range (nm)
Launched optical
-6 to -1
-1 to +2
power range (dBm)
Receiver sensitivity
-11
-14
(dBm)
Minimum overload
-1
-1
(dBm)
Minimum extinction
6
8.2
ratio (dB)
Laser Safety Class
The laser safety class of the optical interface is CLASS 1, indicating that the maximum output
optical power of each optical interface is less than 10 dBm (10 mW).
Mechanical Specifications
The mechanical specifications of the SLQ64 board are as follows:
l Dimensions: 25.4 mm (W) x 220 mm (D) x 266.7 mm (H)
l Weight: 1.4 kg (3.1 lb.)
Power Consumption
Typical power consumption at 25°C (77°F): 37.2 W
9.6.12 Specifications of the EAS2
The technical specifications of the EAS2 include the parameters specified for optical interfaces,
dimensions, weight, and power consumption.
Parameters Specified for Optical Interfaces
Table 9-177 lists the parameters specified for the optical interfaces of the EAS2.
595
Table 9-177 Parameters specified for the optical interfaces of the EAS2
Parameter
Value
Transmission rate
10.3125 Gbit/s or 9.953 Gbit/s
Processing capability
2x10GE signals
Type of optical interface
10GBASE-LR/LW
Type of fiber
Single-mode LC
Operating wavelength
1290 to 1330
range (nm)
Transmission distance (km)
10
Maximum mean launched
0.5
power (dBm)
Minimum mean launched
-8.2
power (dBm)
Receiver sensitivity (dBm)
-12.6
Minimum extinction ratio
3.5
(dB)
Connector type
LC
Laser Safety Class
The safety class of the laser on the board is Class 1. The maximum launched optical power of
the optical interfaces is less than 10 dBm (10 mW).
Ethernet Performance Specifications
Figure 9-3 shows the connection for testing the throughput specifications, packet loss ratio in
the case of overloading, latency specifications, and back-to-back specifications of the EAS2.

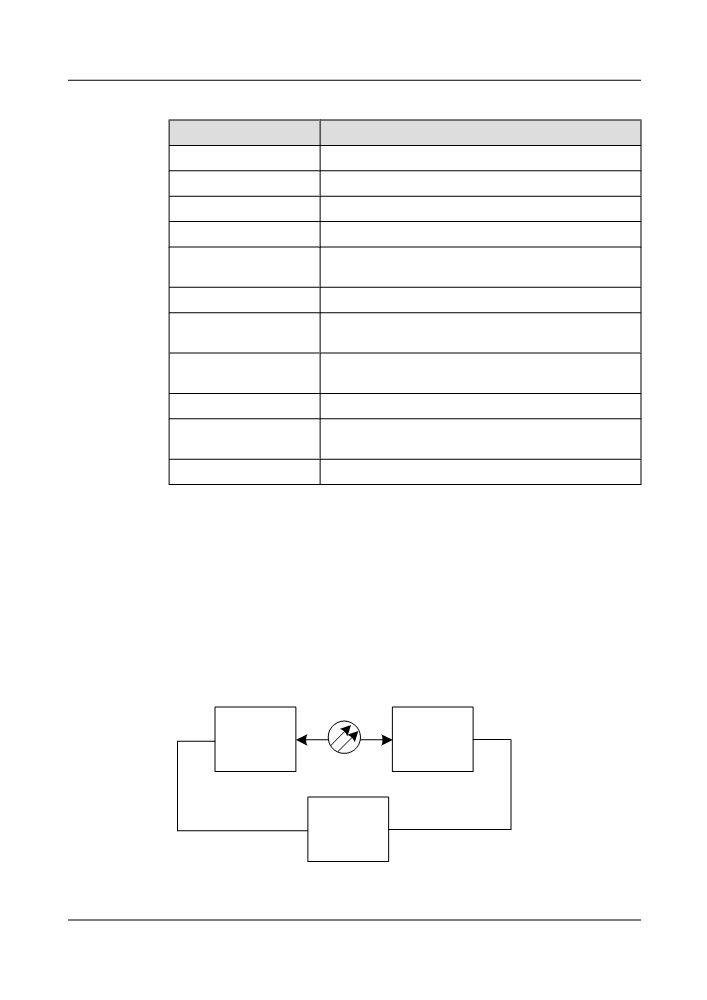

Figure 9-3 Connection for testing the throughput specifications, packet loss ratio in the case of
overloading and latency specifications
Tested
Tested
equipment 1
equipment 2
Port 1
Port 2
Data network
performance
analyzer
596
Table 9-178 lists the throughput specifications of the EAS2. Table 9-179 lists the packet loss
ratio in the case of overloading of the EAS2. Table 9-180 lists the latency specifications of the
EAS2.
NOTE
l The specifications vary according to the configuration and networking of the test environment and
the VC services bound on the VCG side. The specifications that are obtained in the actual environment
are used.
l The specifications in the following tables are obtained in the following scenario: EPL services are
configured and 64 VC-4s are bound on the 10xGE port.
l The data network performance is measured by using the SmartBits. The specification values in the
following tables are obtained by using the SmartFlow software of the SmartBits analyzer.
l The specific test results depend on the settings on the SmartFlow. The values listed in the following
tables are the values displayed on the SmartBits analyzer.
l In the following tables, the value such as (01,01,01) indicates the equipment No., slot No., and port
No. "(01,01,01) to (01,01,02)" and "(01,01,02) to (01,01,01)", however, indicate the forward and
reverse tests values, respectively.
Table 9-178 Throughput specifications of the EAS2
Frame Size
Passed Rate
Tx Frames (pks/
Rx Frames (pks/
Total (%)
(byte)
(%)
sec)
sec)
64
100.00000
14880952
14880952
100.00000
128
98.00000
8278145
8278145
100.00000
256
98.00000
4432624
4432624
100.00000
512
98.00000
2302025
2286453
99.32000
1024
97.00000
1161710
1156436
99.55000
1280
97.00000
932835
927296
99.41000
1518
97.00000
788146
783050
99.35000
Table 9-179 Packet loss ratio in the case of overloading of the EAS2
Frame Size
Rate Tested
Tx Frames (pks/
Rx Frames (pks/
Total (%)
(byte)
(%)
sec)
sec)
64
100.00000
14880952
14880952
0.00
128
100.00000
8445945
8445945
0.00
256
99.00000
4480286
4470526
0.21
512
98.00000
2302025
2286453
0.67
1024
97.00000
1161710
1156469
0.45
1280
97.00000
932835
927323
0.59
1518
97.00000
788146
783073
0.64
597
