HUAWEI OptiX OSN 8800 T64/T32 Intelligent Optical Transport Platform. Product Description - part 1
About This Document
Related Versions
The following table lists the product versions related to this document.
Product Name
Version
OptiX OSN 8800 T64
V100R006C01
OptiX OSN 8800 T32
V100R006C01
iManager U2000
V100R005C00
iManager U2000 Web LCT
V100R005C00
Intended Audience
This document describes the orientation, technical features, functions, software and hardware
structure, and technical specifications of the product in addition to the compliance standards.
This document is intended for:
l Network Planning Engineer
l Data Configuration Engineer
l System Maintenance Engineer
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Indicates a hazard with a high level of risk, which if not
avoided, will result in death or serious injury.
DANGER
ii
Symbol
Description
Indicates a hazard with a medium or low level of risk, which
if not avoided, could result in minor or moderate injury.
WARNING
Indicates a potentially hazardous situation, which if not
avoided, could result in equipment damage, data loss,
CAUTION
performance degradation, or unexpected results.
TIP
Indicates a tip that may help you solve a problem or save
time.
NOTE
Provides additional information to emphasize or supplement
important points of the main text.
GUI Conventions
The GUI conventions that may be found in this document are defined as follows.
Convention
Description
Boldface
Buttons, menus, parameters, tabs, window, and dialog titles
are in boldface. For example, click OK.
>
Multi-level menus are in boldface and separated by the ">"
signs. For example, choose File > Create > Folder.
Change History
Updates between document issues are cumulative. Therefore, the latest document issue contains
all updates made in previous issues.
Updates in Issue 03 (2012-03-29) Based on Product Version
V100R006C01
This issue is the third official release for OptiX OSN 8800 T64/T32 V100R006C01. Compared
with the second official release, the manual of this issue provides the following updates.
Update
Description
4.1 System
System Architecture is modified.
Architecture
iii
Update
Description
2.3.1 Service
Types of Access Services is modified.
Types
Whole manual
Some bugs in the manual of the previous version are fixed.
Updates in Issue 02 (2011-10-31) Based on Product Version
V100R006C01
This issue is the second official release for OptiX OSN 8800 T64/T32 V100R006C01. Compared
with the first official release, the manual of this issue provides the following updates.
Update
Description
4.1 System
System Architecture is modified.
Architecture
5.4 Protection
Equipment Level Protection is modified.
5.7 OTN
l ODUflex is modified.
Technologies
l Mapping and Multiplexing is added.
Whole manual
Some bugs in the manual of the previous version are fixed.
Updates in Issue 01 (2011-07-30) Based on Product Version
V100R006C01
This issue is the first official release for OptiX OSN 8800 T64/T32 V100R006C01. Compared
with OptiX OSN 8800 T64/T32 V100R006C00, OptiX OSN 8800 V100R006C01 provides the
following updates.
Update
Description
1 Overview
Overview is added.
4.2.1 Cabinet
Cabinet is modified.
5.7 OTN
Added the descriptions of ODUflex and OTN Technologies.
Technologies
4.2.4.1 Function
Added the descriptions of TN13OAU101, TN13OAU103,
Boards
TN13OAU105, TN11LOA, TN53NS2, TN53ND2, TN53NQ2,
TN55TQX, TN53TDX, TN12D40, TN12M40, TN12M40V,
TN55NPO2E, TNK4SXM, TNK4SXH, TNK4XCT boards.
iv
Update
Description
9 Technical
Added the descriptions of TN13OAU101, TN13OAU103,
Specifications
TN13OAU105, TN11LOA, TN53NS2, TN53ND2, TN53NQ2,
TN55TQX, TN53TDX, TN12D40, TN12M40, TN12M40V,
TN55NPO2E, TNK4SXM, TNK4SXH, TNK4XCT boards.
Whole manual
The structure of the contents is adjusted.
Some bugs in the manual of the previous version are fixed.
Updates in Issue 03 (2011-09-15) Based on Product Version
V100R006C00
This issue is the third official release for OptiX OSN 8800 T64/T32 V100R006C00. Compared
with the second official release, the manual of this issue provides the following updates.
Update
Description
4.2.1 Cabinet
Cabinet is modified.
Introduction
Introduction to PID IPA is added.
Whole manual
The structure of the contents is adjusted.
Some bugs in the manual of the previous version are fixed.
Updates in Issue 02 (2011-04-15) Based on Product Version
V100R006C00
This issue is the second official release for OptiX OSN 8800 T64/T32 V100R006C00. Compared
with the first official release, the manual of this issue provides the following updates.
Update
Description
4.2.4.1 Function
Added the descriptions of SXH, THA and TOA boards.
Boards
4.2.4.3 Tributary
Added the descriptions of TN53TQX, TN54THA and TN54TOA
Board
boards.
9 Technical
Added the descriptions of TNKS2XH, TN12OBU1P1, TN53TQX,
Specifications
TN54THA and TN54TOA boards.
6 NE Type and
Modified the typical configuration according to the principle of the
Signal Flow
separated optical and electrical subracks.
v
Update
Description
B Power
Added the descriptions of TNKS2XH, TN12OBU1P1, TN54TOA,
Consumption,
TN54THA and TN53TQX boards.
Weight, and Valid
Slots of Boards
Whole manual
Deleted the descriptions of TN11BMD4, TN11BMD8, TN12PTQX,
TN12ELQX boards.
Some bugs in the manual of the previous version are fixed.
Updates in Issue 01 (2010-12-31) Based on Product Version
V100R006C00
This issue is the first official release for OptiX OSN 8800 T64/T32 V100R006C00. Compared
with OptiX OSN 8800 T64/T32 V100R005C00, OptiX OSN 8800 V100R006C00 provides the
following updates.
Update
Description
UPM
Added the descriptions of UPM.
DC Power
Added the descriptions of TN16PDU.
Distribution Box
4.2.4.1 Function
Added the descriptions of TN11DAS1, TN11LSQ and TN11WSMD9
Boards
boards.
9 Technical
Added the specifications of TN11DAS1, TN11LSQ and
Specifications
TN11WSMD9 boards.
Updates in Issue 04 (2011-08-30) Based on Product Version
V100R005C00
This issue is the fourth official release for OptiX OSN 8800 V100R005C00. Compared with the
third official release, the manual of this issue provides the following updates.
Update
Description
5.8.3 Nominal Central
Changed the number of CWDM wavelengths from 16
Wavelengths of the CWDM
to 8.
System
vi
Updates in Issue 03 (2011-05-25) Based on Product Version
V100R005C00
This issue is the third official release for OptiX OSN 8800 V100R005C00. Compared with the
second official release, the manual of this issue provides the following updates.
Update
Description
4.2.4.1 Function Boards
Deleted the descriptions of TN12PTQX, TN12ELQX,
TN11BMD4 and TN11BMD8 boards.
9 Technical Specifications
Deleted the specifications of TN12PTQX,
TN12ELQX, TN11BMD4 and TN11BMD8 boards.
B Power Consumption, Weight,
Deleted the power consumption of TN12PTQX,
and Valid Slots of Boards
TN12ELQX, TN11BMD4 and TN11BMD8 boards.
Added the power consumption of TN52XCM02 board.
Updates in Issue 02 (2010-11-20) Based on Product Version
V100R005C00
This issue is the second official release for OptiX OSN 8800 V100R005C00. Compared with
the first official release, the manual of this issue provides the following updates.
Update
Description
5.12 Network
Deleted the descriptions of MDS 6630.
Management Tools
and Protocols
5.13 License Control
Deleted the descriptions of version license.
8.7 Master-Slave
Modified the descriptions of master-slave subrack.
Subrack
Management
4.2.4.1 Function
Deleted the descriptions of TN13LSXL board.
Boards
9 Technical
Deleted the specifications of TN13LSXL board.
Specifications
Updates in Issue 01 (2010-07-30) Based on Product Version
V100R005C00
This issue is the first official release for OptiX OSN 8800 V100R005C00. Compared with OptiX
OSN 8800 V100R002C02, OptiX OSN 8800 V100R005C00 provides the following updates.
vii
Update
Description
Whole manual
The equipment name is changed from OptiX
OSN 8800 I to OptiX OSN 8800 T32 or from
OptiX OSN 8800 II to OptiX OSN 8800 T64.
Whole manual
Added the description of OCS system.
5.4.2 Network Level Protection
Added the descriptions of SW SNCP protection,
VLAN SNCP protection, DBPS protection and
Ethernet protection.
5.5 Data Characteristics
Added the section "Data Characteristics".
4.2.4.1 Function Boards
Added the descriptions of TN11LEM24,
TN11LEX4, TN54NS3, TN53TSXL,
TN54ENQ2, TN54NPO2, TN12WSMD4,
TN11ST2, TN11SFIU and TN11OPM8 boards.
9 Technical Specifications
Added the specifications of TN11LEM24,
TN11LEX4, TN54NS3, TN53TSXL,
TN54ENQ2, TN54NPO2, TN12WSMD4,
TN11ST2, TN11SFIU and TN11OPM8 boards.
viii
1
Overview
About This Chapter
This chapter describes types and appearance of OTN products.
1.1 Product Appearance
This chapter describes the appearance of OTN equipment.
1
1.1 Product Appearance
This chapter describes the appearance of OTN equipment.

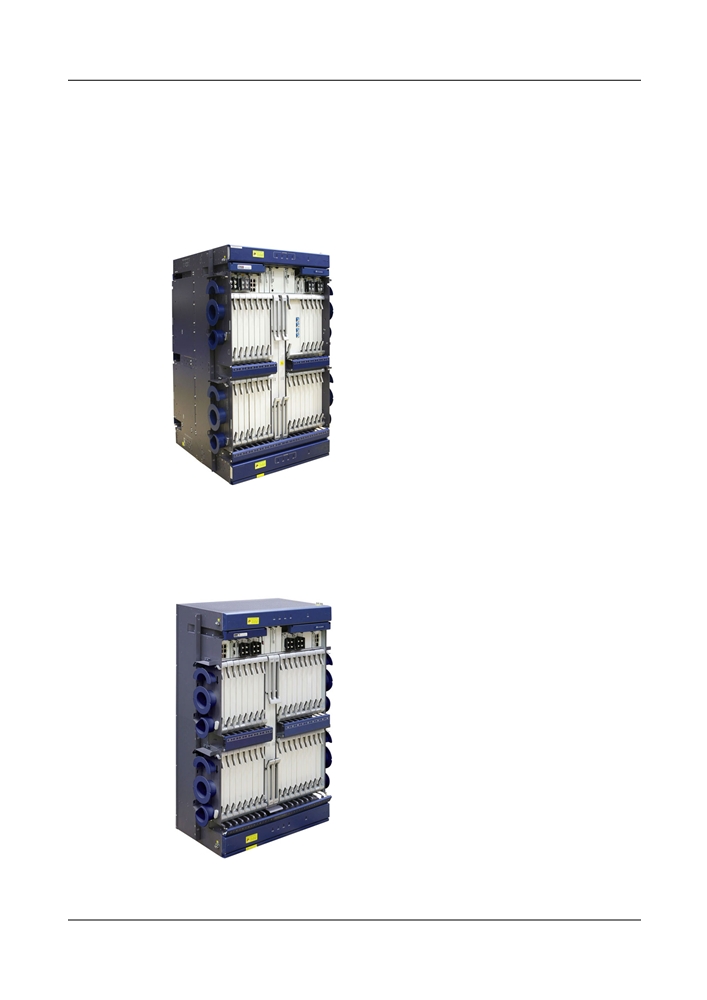

Figure 1-1 shows the appearance of the OptiX OSN 8800 T64.
Figure 1-1 The appearance of the OptiX OSN 8800 T64
Figure 1-2 shows the appearance of the OptiX OSN 8800 T32.
Figure 1-2 The appearance of the OptiX OSN 8800 T32
2
2
Introduction
About This Chapter
2.1 Positioning
The OptiX OSN 8800 T32 and OptiX OSN 8800 T64 are mainly applicable to the backbone
core layers. They are also applicable to the core layers and metropolitan convergence layers.
2.2 Product Features
As a one-box product (OTN+OCS), the equipment integrates functions such as WDM
transport, ROADM, 40G, electrical T-bit cross-connection, cross-connections of any granularity
in the range of 100M to 40G, ASON, and rich management and protection.
2.3 Service Access
The OptiX OSN 8800 T64/8800 T32 supports synchronous digital hierarchy (SDH) service,
synchronous optical network (SONET), Ethernet service, storage area network (SAN) service,
optical transmission network (OTN) service, video service and others.
