CAMSHAFTS

5-32

Bolts “2”: l = 45 mm (1.77 in)
Bolts “3”: l = 70 mm (2.76 in)

▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲▲▲

EAS24080

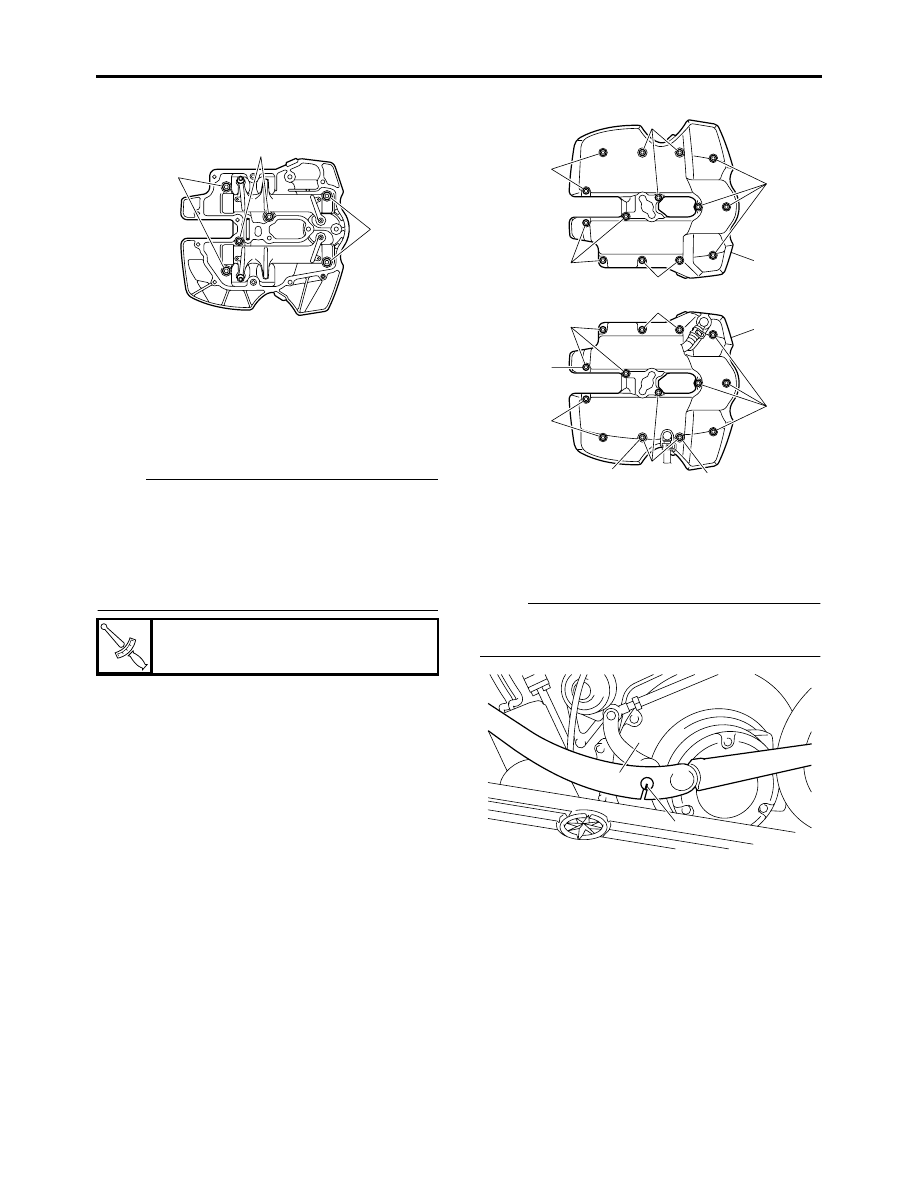

INSTALLING THE CYLINDER HEAD
COVERS

1. Install:

• Rear cylinder head cover “1”
• Front cylinder head cover “2”

NOTE:

Due to the small clearance between the frame
and the rear cylinder head cover, the three bolts
“3” cannot be installed when the cover is in
place. Set the bolts in the cylinder head cover,
and then install the cover from the right side of
the vehicle.

Bolts “4”: l = 40 mm (1.57 in)
Bolts “5”: l = 60 mm (2.36 in)

ET1D71032

INSTALLING THE SHIFT PEDAL ASSEMBLY

1. Install:

• Shift pedal assembly “1”

NOTE:

Align the mark “a” on the shift pedal shaft with
the slot in the shift pedal.

T



R

.



Cylinder head cover bolt

10 Nm (1.0 m·kg, 7.2 ft·lb)

1

3

2

1

4

5

5

5

5

2

4

5

5

5

5

3

3

3

a

1

CYLINDER HEADS

5-33

EAS24110

CYLINDER HEADS

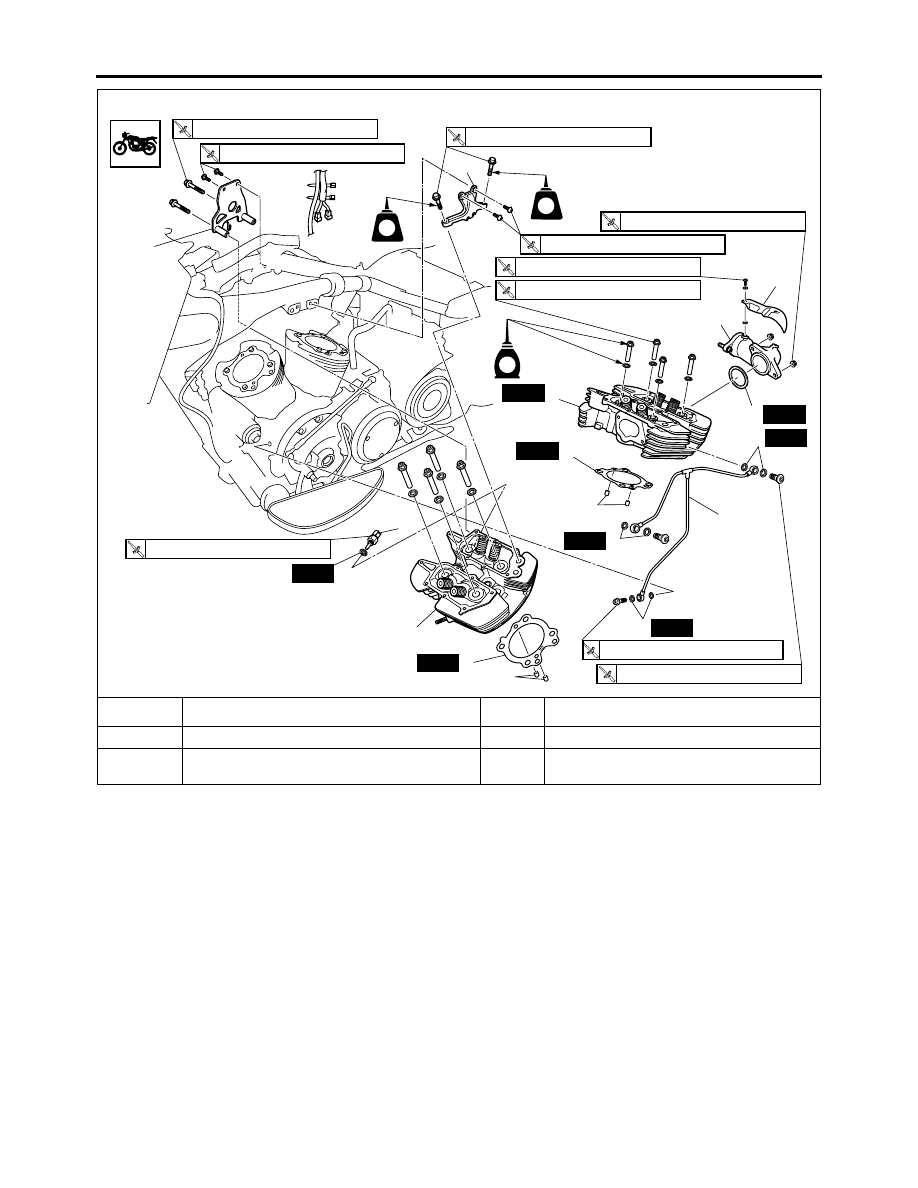

Removing the cylinder heads

Order

Job/Parts to remove

Q’ty

Remarks

Cylinder-#1 ignition coil bracket

Refer to “ENGINE REMOVAL” on page 5-1.

Throttle bodies/Intake manifolds

Refer to “THROTTLE BODIES” on page 6-6.

Cylinder head covers/Rocker arms

Refer to “CAMSHAFTS” on page 5-14.

1

Engine bracket (right upper side)

1

2

Engine bracket (left upper side)

1

3

Engine temperature sensor

1

4

Oil pipe 1

1

5

Copper washer

4

6

Copper washer

2

7

Rear cylinder head

1

8

Front cylinder head

1

9

Cylinder head gasket

2

10

Dowel pin

4

11

Rear exhaust pipe joint cover

1

12

Rear exhaust pipe joint

1

4

13

3

8

9

10

1

11

5

2

12

7

9

5

6

10



R

18 Nm (1.8 m

•



kg, 13 ft



•



Ib)

T



R

20 Nm (2.0 m

•



kg, 14 ft



•



Ib)

T



R

59 Nm (5.9 m

•



kg, 43 ft



•



Ib)

T



R

53 Nm (5.3 m

•



kg, 38 ft



•



Ib)

T



R

66 Nm (6.6 m

•



kg, 48 ft



•



Ib)

T



R

53 Nm (5.3 m

•



kg, 38 ft



•



Ib)



R

20 Nm (2.0 m

•



kg, 14 ft



•



Ib)



R

10 Nm (1.0 m

•



kg, 7.2 ft



•



Ib)



R

60 Nm (6.0 m

•



kg, 43 ft



•



Ib)

T



R

21 Nm (2.1 m

•



kg, 15 ft



•



Ib)

New

LT

E

New

New

New

New

New

New

New

LT

(3)

CYLINDER HEADS

5-34

13

Rear exhaust pipe gasket

1

For installation, reverse the removal proce-
dure.

Removing the cylinder heads

Order

Job/Parts to remove

Q’ty

Remarks

4

13

3

8

9

10

1

11

5

2

12

7

9

5

6

10



R

18 Nm (1.8 m

•



kg, 13 ft



•



Ib)

T



R

20 Nm (2.0 m

•



kg, 14 ft



•



Ib)

T



R

59 Nm (5.9 m

•



kg, 43 ft



•



Ib)

T



R

53 Nm (5.3 m

•



kg, 38 ft



•



Ib)

T



R

66 Nm (6.6 m

•



kg, 48 ft



•



Ib)

T



R

53 Nm (5.3 m

•



kg, 38 ft



•



Ib)



R

20 Nm (2.0 m

•



kg, 14 ft



•



Ib)



R

10 Nm (1.0 m

•



kg, 7.2 ft



•



Ib)



R

60 Nm (6.0 m

•



kg, 43 ft



•



Ib)

T



R

21 Nm (2.1 m

•



kg, 15 ft



•



Ib)

New

LT

E

New

New

New

New

New

New

New

LT

(3)

CYLINDER HEADS

5-35

EAS24140

REMOVING THE CYLINDER HEADS

1. Remove:

• Cylinder head nuts

NOTE:

• Loosen the nuts in the proper sequence as

shown.

• Loosen each nut 1/2 of a turn at a time. After all

of the nuts are fully loosened, remove them.

EAS24170

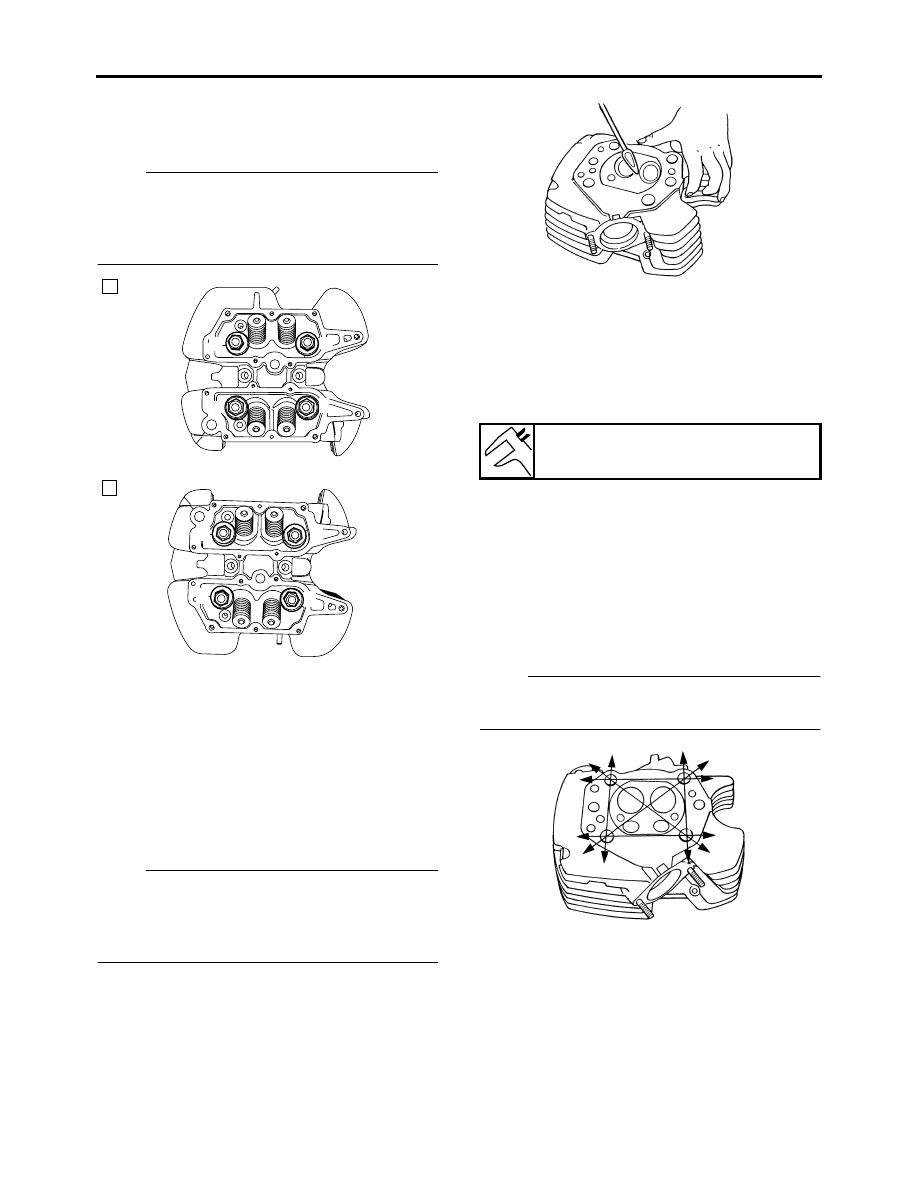

CHECKING THE CYLINDER HEADS

The following procedure applies to all of the cyl-
inder heads.
1. Eliminate:

• Combustion chamber carbon deposits

(with a rounded scraper)

NOTE:

Do not use a sharp instrument to avoid damag-
ing or scratching:
• Spark plug bore threads
• Valve seats

2. Check:

• Cylinder head

Damage/scratches

→

 Replace.

3. Measure:

• Cylinder head warpage

Out of specification

→

 Resurface the cylinder

head.

▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼▼▼

a. Place a straightedge and a thickness gauge

across the cylinder head.

b. Measure the warpage.
c. If the limit is exceeded, resurface the cylinder

head as follows.

d. Place a 400–600 grit wet sandpaper on the

surface plate and resurface the cylinder head
using a figure-eight sanding pattern.

NOTE:

To ensure an even surface, rotate the cylinder
head several times.

▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲▲▲

EAS24220

CHECKING THE OIL PIPE

1. Check:

• Oil pipe 1

Damage

→

 Replace.

Obstruction

→

 Wash and blow out with com-

pressed air.

A. Front cylinder
B. Rear cylinder

2

4

3

1

A

2

4

3

1

B



Warpage limit

0.03 mm (0.0012 in)

CYLINDER HEADS

5-36

EAS24250

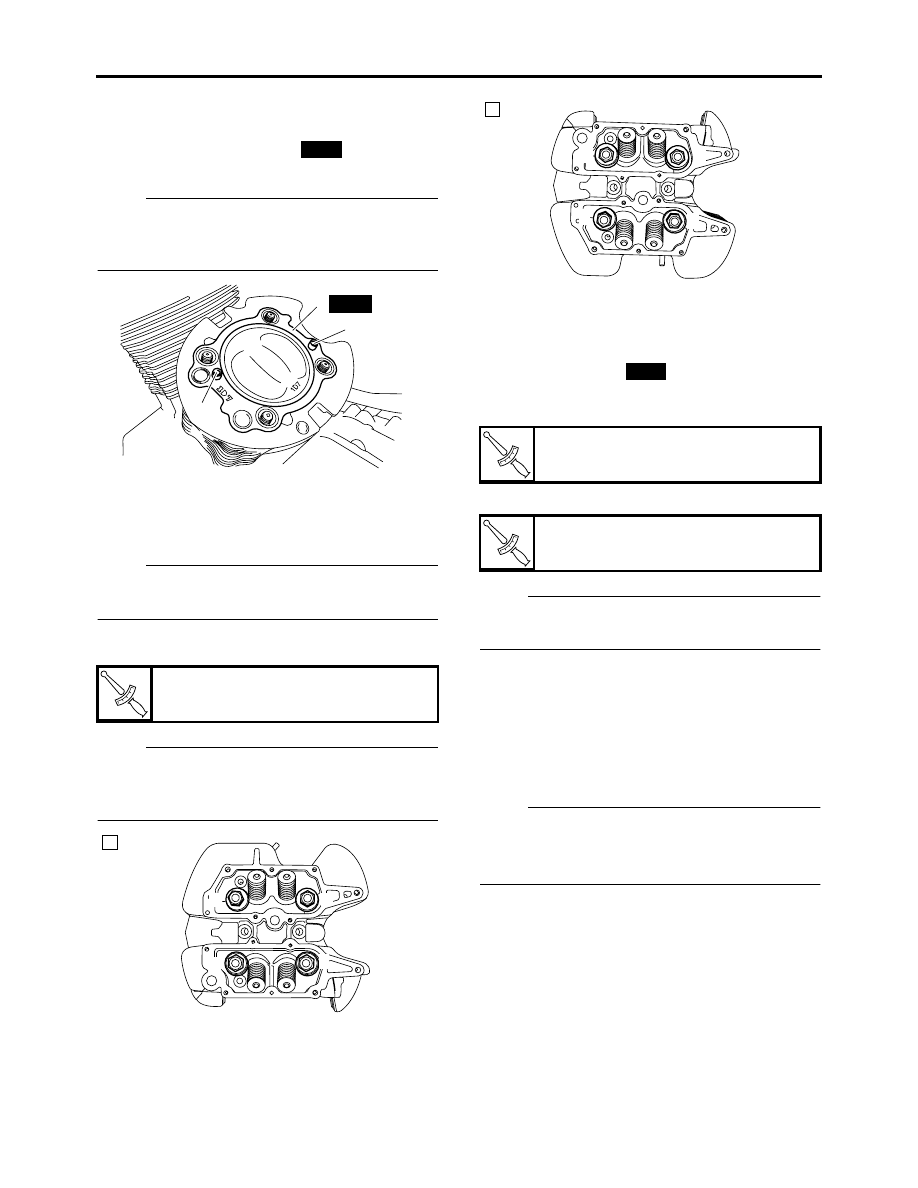

INSTALLING THE CYLINDER HEADS

1. Install:

• Cylinder head gasket “1”
• Dowel pins “2”

NOTE:

The “1D7” mark on the cylinder head gasket
must face up and towards the left side of the cyl-
inder.

2. Install:

• Cylinder heads
• Washers
• Cylinder head nuts

NOTE:

Lubricate the cylinder head nuts and washers
with engine oil.

3. Tighten:

• Cylinder head nuts

NOTE:

Tighten the cylinder head nuts in the proper
tightening sequence as shown and torque them
in two stages.

4. Install:

• Copper washers
• Oil pipe 1
• Oil pipe union bolt (M8)

• Oil pipe union bolts (M10)

NOTE:

Tighten the three union bolts evenly, and then
torque them to specification.

5. Install:

• Engine bracket (right upper side)
• Engine bracket bolts (right upper side)
• Engine mounting bolts (right upper side)
• Engine bracket (left upper side)
• Engine bracket bolts (left upper side)
• Engine mounting bolts (left upper side)

NOTE:

• Apply locking agent (LOCTITE

®

) to the threads

of the engine mounting bolts (left upper side).

• Do not fully tighten the bolts.

6. Tighten:

• Engine mounting bolts (right upper side)
• Engine mounting bolts (left upper side)
• Engine bracket bolts (right upper side)
• Engine bracket bolts (left upper side)

T



R

.



Cylinder head nut

60 Nm (6.0 m·kg, 43 ft·lb)

New

2

2

1

New

3

1

2

4

A

A. Front cylinder
B. Rear cylinder

T



R

.



Oil pipe union bolt (M8)

18 Nm (1.8 m·kg, 13ft·lb)

T



R

.



Oil pipe union bolt (M10)

21 Nm (2.1 m·kg, 15 ft·lb)

3

1

2

4

B

New

CYLINDER HEADS

5-37

T



R

.



Engine mounting bolt (right up-
per side)

59 Nm (5.9 m·kg, 43 ft·lb)

Engine mounting bolt (left upper
side)

66 Nm (6.6 m·kg, 48 ft·lb)
LOCTITE

®

Engine bracket bolt (right upper
side)

53 Nm (5.3 m·kg, 38 ft·lb)

Engine bracket bolt (left upper
side)

53 Nm (5.3 m·kg, 38 ft·lb)

VALVES AND VALVE SPRINGS

5-38

EAS24270

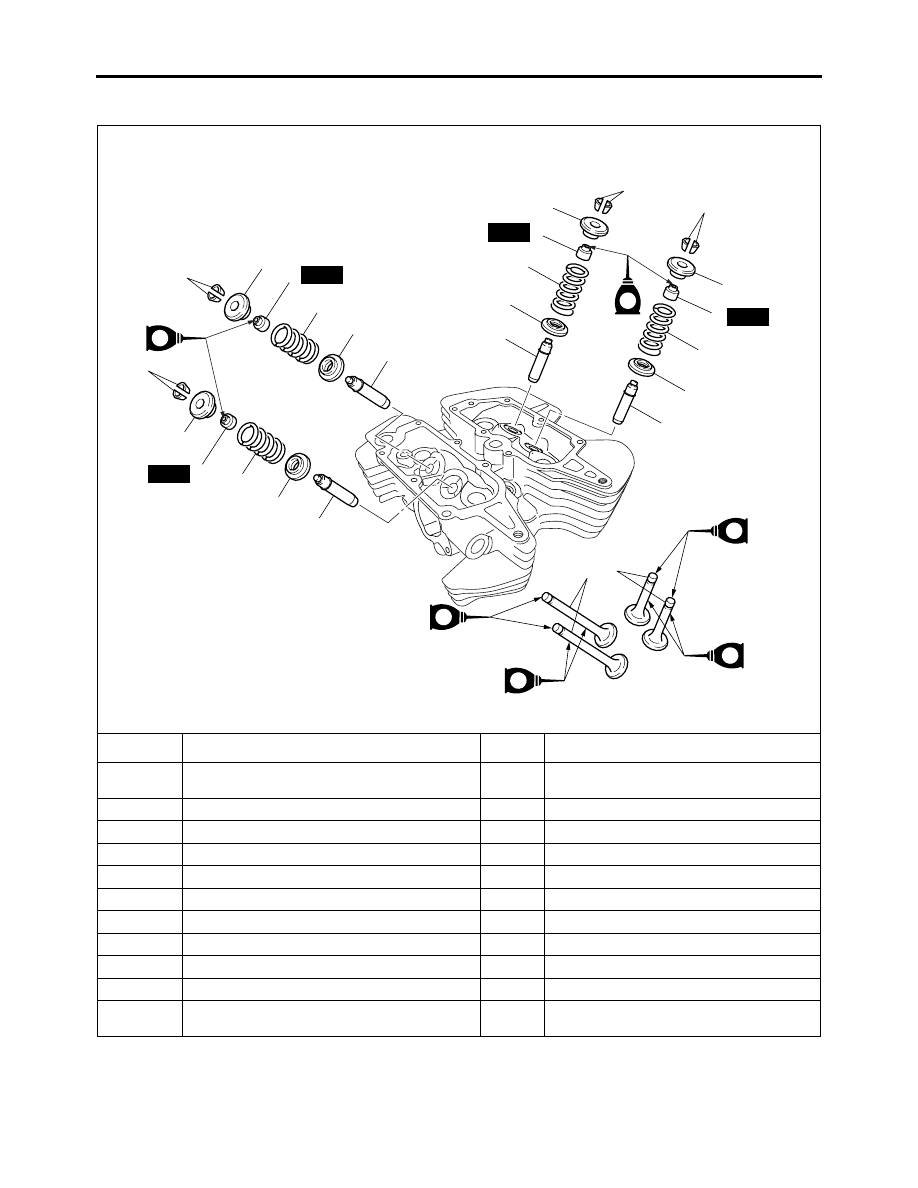

VALVES AND VALVE SPRINGS

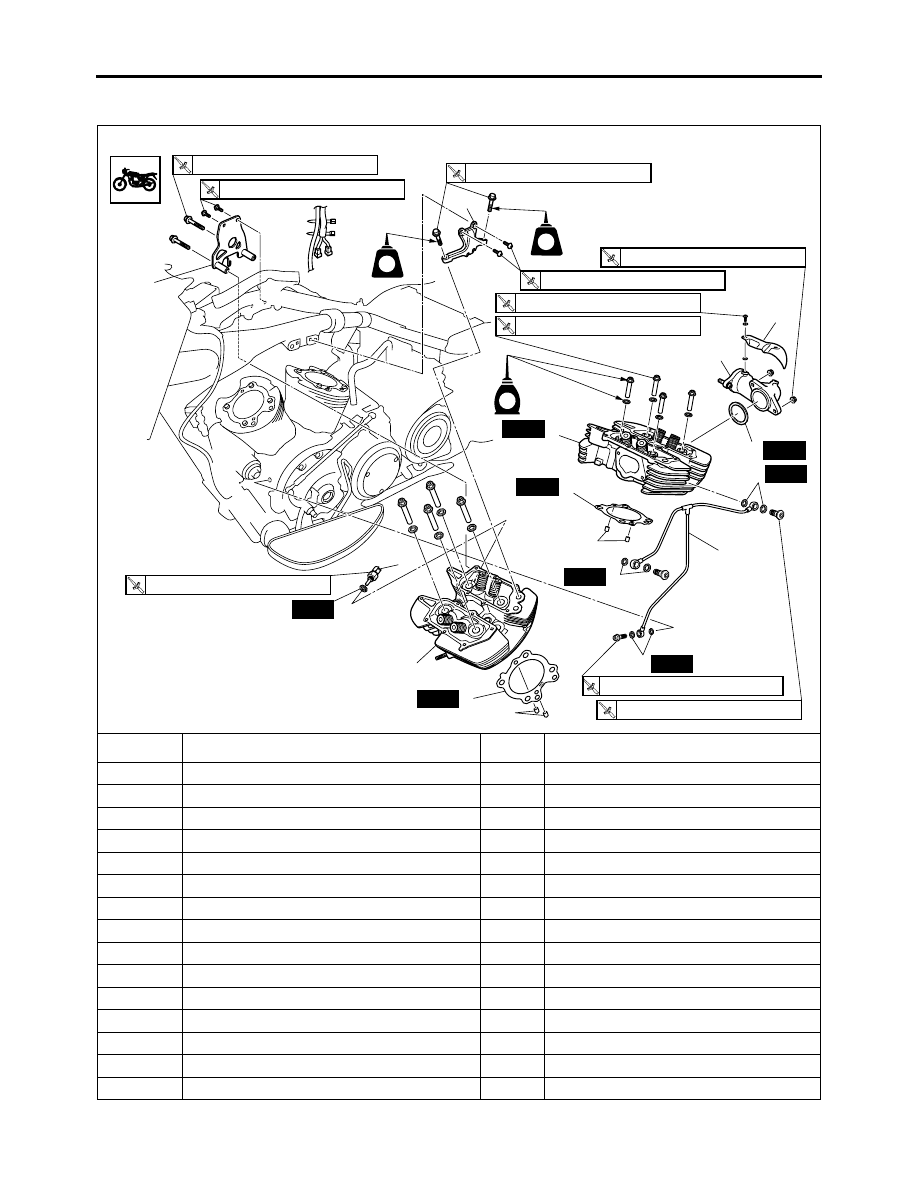

Removing the valves and valve springs

Order

Job/Parts to remove

Q’ty

Remarks

The following procedure applies to both cyl-
inders.

Cylinder heads

Refer to “CYLINDER HEADS” on page 5-33.

1

Valve cotter

8

2

Upper spring seat

4

3

Valve spring

4

4

Intake valve

2

5

Exhaust valve

2

6

Valve stem seal

4

7

Lower spring seat

4

8

Valve guide

4

For installation, reverse the removal proce-
dure.

1

M

E

M

E

New

New

New

New

M

M

7

3

6

2

1

7

3

6

2

1

8

8

8

7

3

6

2

7

3

6

2

1

8

4 5

VALVES AND VALVE SPRINGS

5-39

EAS24280

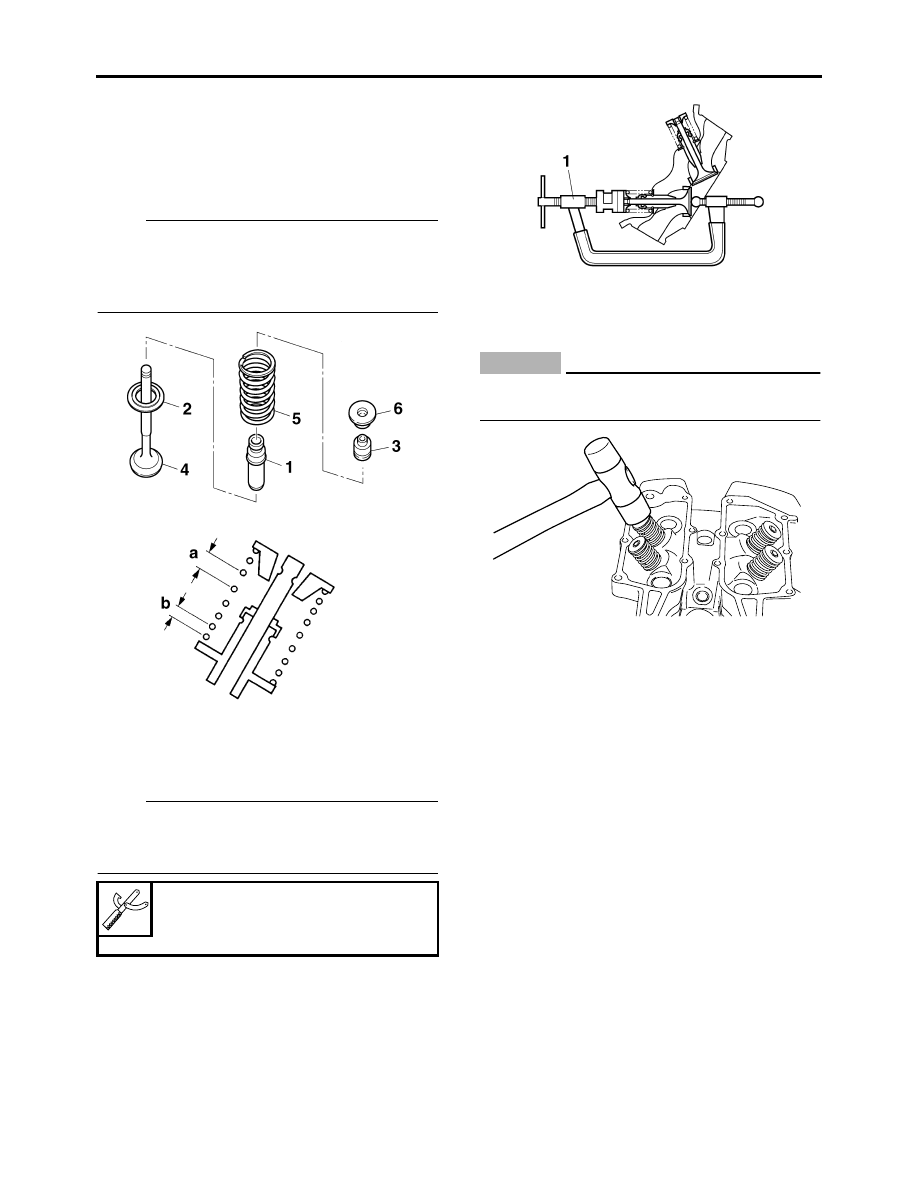

REMOVING THE VALVES

The following procedure applies to all of the
valves and related components.

NOTE:

Before removing the internal parts of the cylinder
head (e.g., valves, valve springs, valve seats),
make sure the valves properly seal.

1. Check:

• Valve sealing

Leakage at the valve seat

→

 Check the valve

face, valve seat, and valve seat width.
Refer to “CHECKING THE VALVE SEATS”
on page 5-41.

▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼▼▼

a. Pour a clean solvent “a” into the intake and

exhaust ports.

b. Check that the valves properly seal.

NOTE:

There should be no leakage at the valve seat “1”.

▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲▲▲

2. Remove:

• Valve cotters

NOTE:

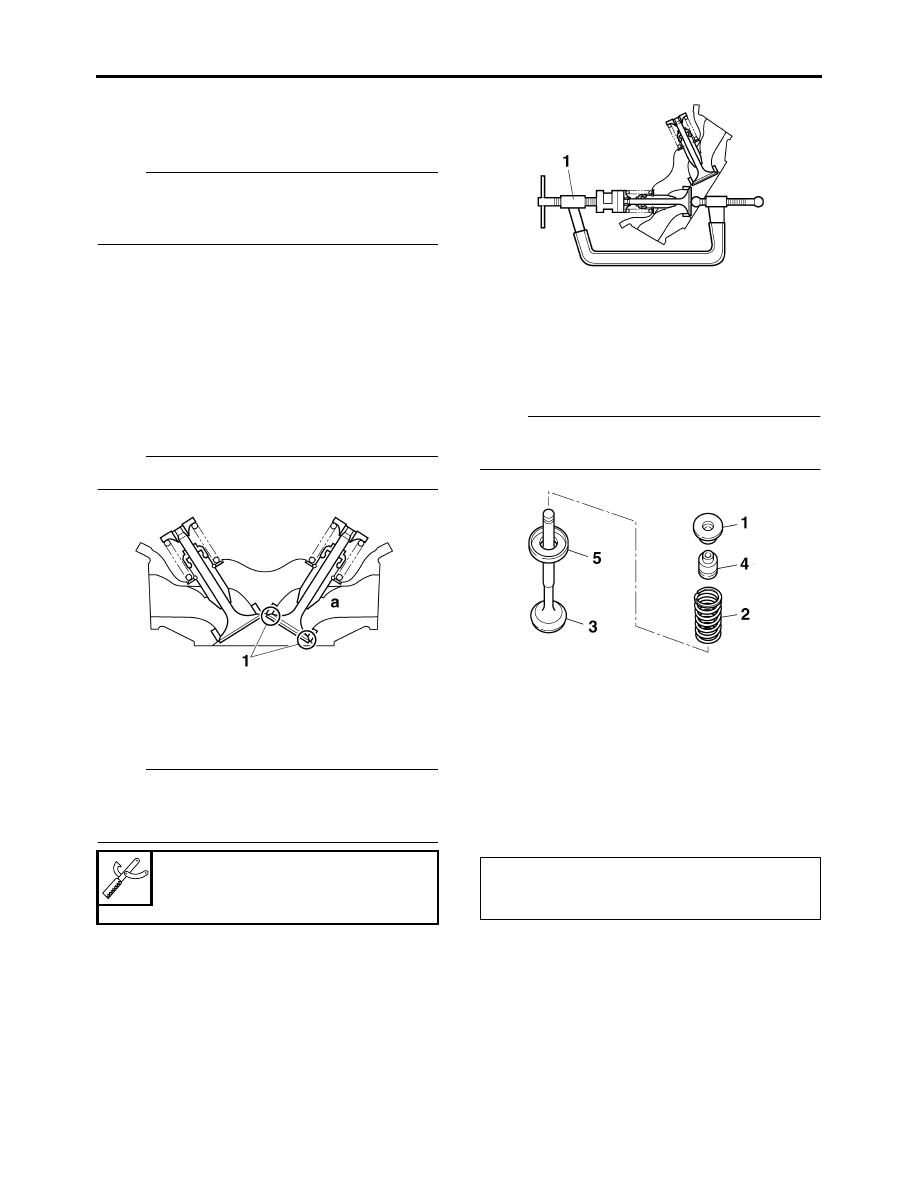

Remove the valve cotters by compressing the
valve springs with the valve spring compressor
set “1”.

3. Remove:

• Upper spring seat “1”
• Valve spring “2”
• Valve “3”
• Valve stem seal “4”
• Lower spring seat “5”

NOTE:

Identify the position of each part very carefully so
that it can be reinstalled in its original place.

EAS24290

CHECKING THE VALVES AND VALVE
GUIDES

The following procedure applies to all of the
valves and valve guides.
1. Measure:

• Valve-stem-to-valve-guide clearance

Out of specification

→

 Replace the valve

guide.



Valve spring compressor

90890-04019
YM-04019

• Valve-stem-to-valve-guide clearance =

Valve guide inside diameter “a” -
Valve stem diameter “b”

VALVES AND VALVE SPRINGS

5-40

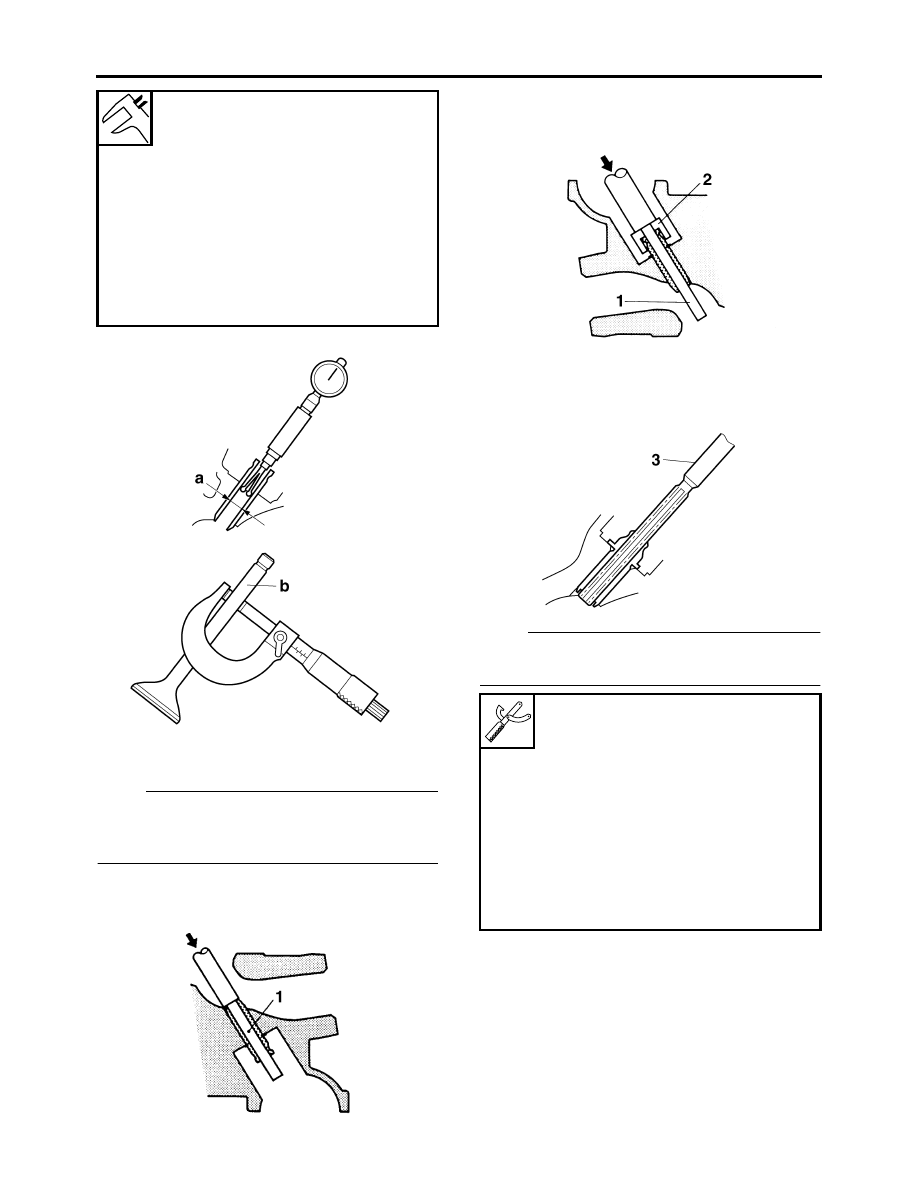

2. Replace:

• Valve guide

NOTE:

To ease valve guide removal and installation,
and to maintain the correct fit, heat the cylinder
head to 100 °C (212 °F) in an oven.

▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼▼▼

a. Remove the valve guide with the valve guide

remover “1”.

b. Install the new valve guide with the valve

guide installer “2” and valve guide remover
“1”.

c. After installing the valve guide, bore the valve

guide with the valve guide reamer “3” to ob-
tain the proper valve-stem-to-valve-guide
clearance.

NOTE:

After replacing the valve guide, reface the valve
seat.

▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲▲▲

3. Eliminate:

• Carbon deposits

(from the valve face and valve seat)

4. Check:

• Valve face

Pitting/wear

→

 Grind the valve face.



Valve-stem-to-valve-guide clear-
ance (intake)

0.010–0.037 mm (0.0004–0.0015
in)

Limit

0.080 mm (0.0032 in)

Valve-stem-to-valve-guide clear-
ance (exhaust)

0.025–0.052 mm (0.0010–0.0020
in)

Limit

0.100 mm (0.0039 in)



Valve guide remover (ø6)

90890-04064

Valve guide remover (6.0 mm)

YM-04064-A

Valve guide installer (ø6)

90890-04065

Valve guide installer (6.0 mm)

YM-04065-A

Valve guide reamer (ø6)

90890-04066

Valve guide reamer (6.0 mm)

YM-04066

VALVES AND VALVE SPRINGS

5-41

• Valve stem end

Mushroom shape or diameter larger than the
body of the valve stem

→

 Replace the valve.

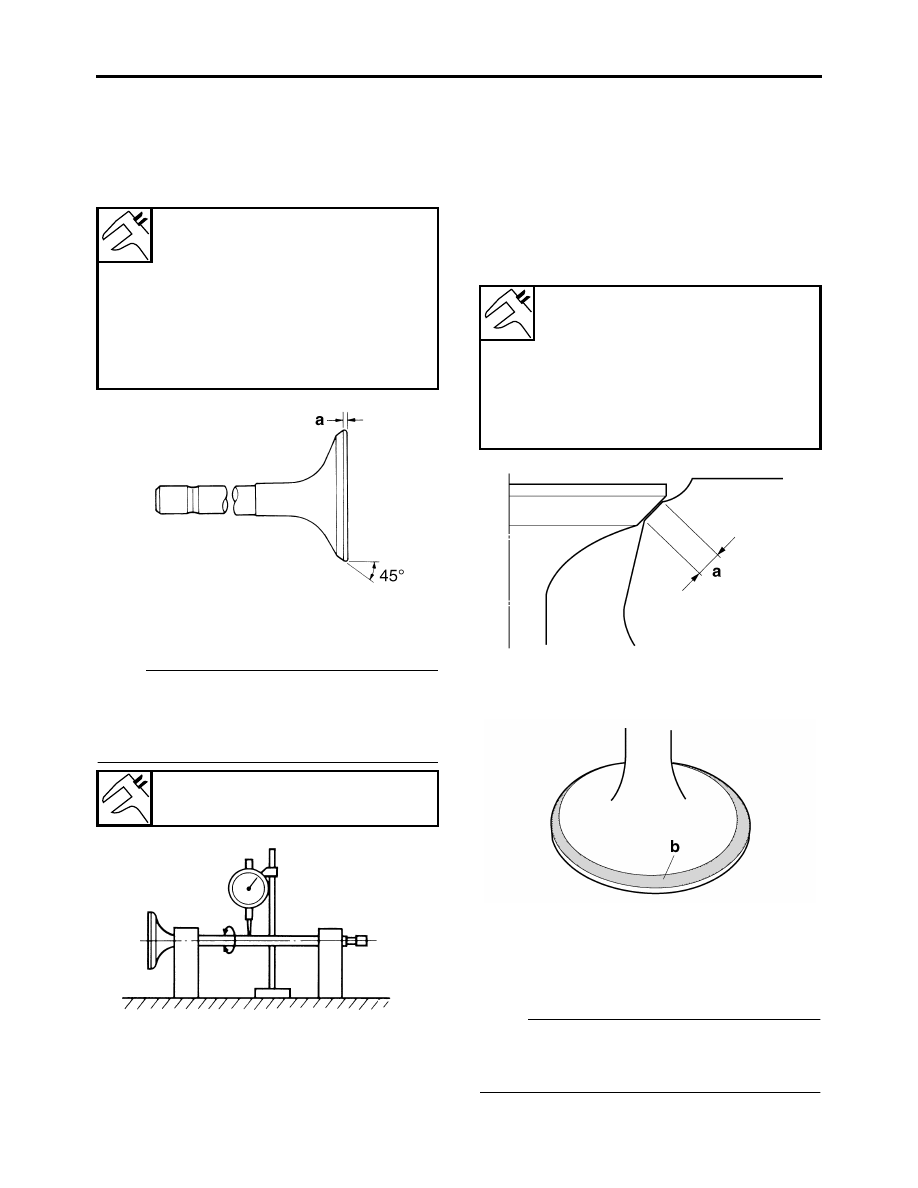

5. Measure:

• Valve margin thickness D “a”

Out of specification

→

 Replace the valve.

6. Measure:

• Valve stem runout

Out of specification

→

 Replace the valve.

NOTE:

• When installing a new valve, always replace

the valve guide.

• If the valve is removed or replaced, always re-

place the valve stem seal.

EAS24300

CHECKING THE VALVE SEATS

The following procedure applies to all of the
valves and valve seats.

1. Eliminate:

• Carbon deposits

(from the valve face and valve seat)

2. Check:

• Valve seat

Pitting/wear

→

 Replace the cylinder head.

3. Measure:

• Valve seat width C “a”

Out of specification

→

 Replace the cylinder

head.

▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼▼▼

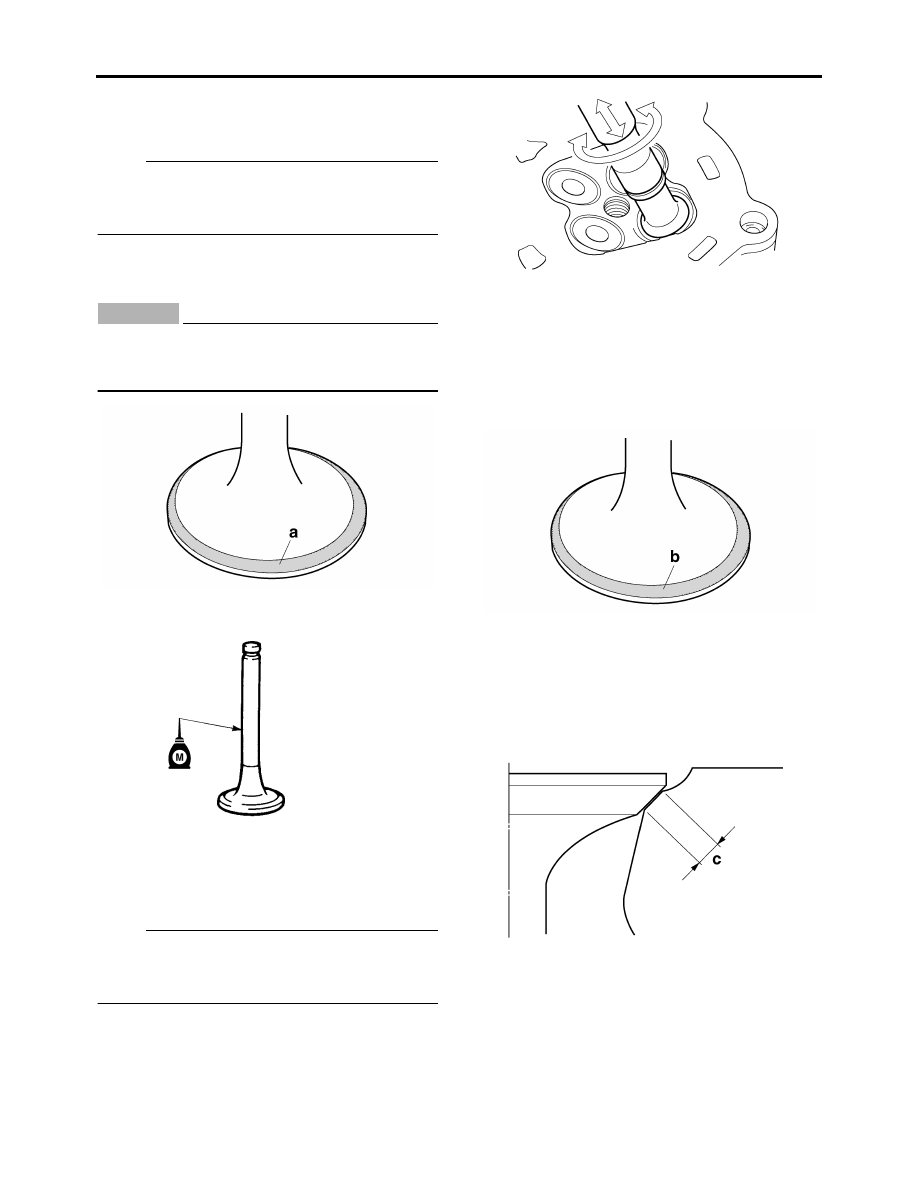

a. Apply Mechanic’s blueing dye (Dykem) “b”

onto the valve face.

b. Install the valve into the cylinder head.
c. Press the valve through the valve guide and

onto the valve seat to make a clear impres-
sion.

d. Measure the valve seat width.

NOTE:

Where the valve seat and valve face contacted
one another, the blueing will have been re-
moved.

▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲▲▲



Valve margin thickness D (intake)

1.15–1.45 mm (0.0453–0.0571 in)

Limit

0.4 mm (0.02 in)

Valve margin thickness D (ex-
haust)

1.15–1.45 mm (0.0453–0.0571 in)

Limit

0.4 mm (0.02 in)



Valve stem runout

0.010 mm (0.0004 in)



Valve seat width C (intake)

1.10–1.30 mm (0.0433–0.0512 in)

Limit

2.0 mm (0.08 in)

Valve seat width C (exhaust)

1.10–1.30 mm (0.0433–0.0512 in)

Limit

2.0 mm (0.08 in)

VALVES AND VALVE SPRINGS

5-42

4. Lap:

• Valve face
• Valve seat

NOTE:

After replacing the cylinder head or replacing the
valve and valve guide, the valve seat and valve
face should be lapped.

▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼▼▼

a. Apply a coarse lapping compound “a” to the

valve face.

CAUTION:

ECA13790

Do not let the lapping compound enter the
gap between the valve stem and the valve
guide.

b. Apply molybdenum disulfide oil onto the

valve stem.

c. Install the valve into the cylinder head.
d. Turn the valve until the valve face and valve

seat are evenly polished, then clean off all of
the lapping compound.

NOTE:

For the best lapping results, lightly tap the valve
seat while rotating the valve back and forth be-
tween your hands.

e. Apply a fine lapping compound to the valve

face and repeat the above steps.

f. After every lapping procedure, be sure to

clean off all of the lapping compound from the
valve face and valve seat.

g. Apply Mechanic’s blueing dye (Dykem) “b”

onto the valve face.

h. Install the valve into the cylinder head.
i. Press the valve through the valve guide and

onto the valve seat to make a clear impres-
sion.

j. Measure the valve seat width “c” again. If the

valve seat width is out of specification, reface
and lap the valve seat.

▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲▲▲

EAS24310

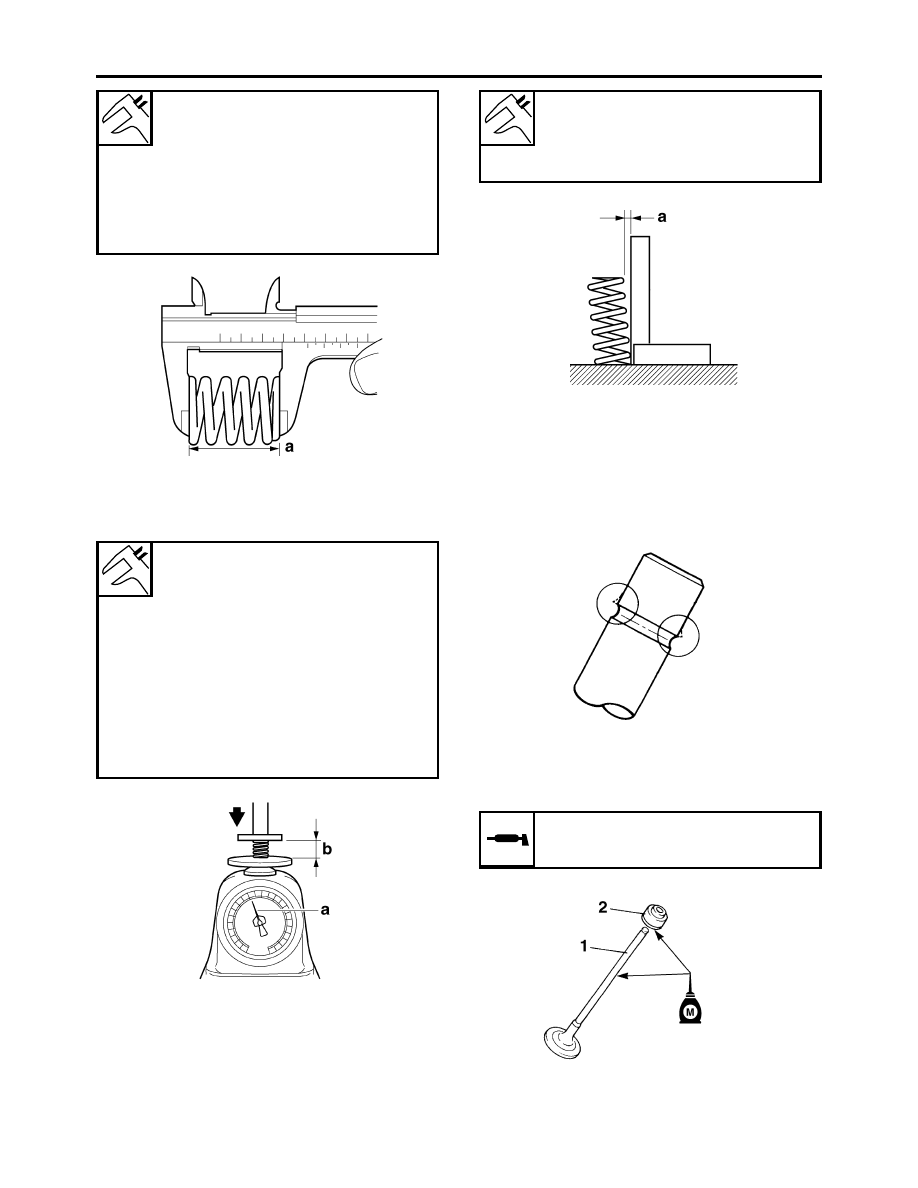

CHECKING THE VALVE SPRINGS

The following procedure applies to all of the
valve springs.
1. Measure:

• Valve spring free length “a”

Out of specification

→

 Replace the valve

spring.

VALVES AND VALVE SPRINGS

5-43

2. Measure:

• Compressed valve spring force “a”

Out of specification

→

 Replace the valve

spring.

3. Measure:

• Valve spring tilt “a”

Out of specification

→

 Replace the valve

spring.

EAS24340

INSTALLING THE VALVES

The following procedure applies to all of the
valves and related components.
1. Deburr:

• Valve stem end

(with an oil stone)

2. Lubricate:

• Valve stem “1”
• Valve stem seal “2”

(with the recommended lubricant)

3. Install:

• Valve guide “1”



Free length (intake)

46.71 mm (1.84 in)

Limit

44.71 mm (1.76 in)

Free length (exhaust)

46.71 mm (1.84 in)

Limit

44.71 mm (1.76 in)



Installed compression spring
force (intake)

217.00–249.00 N (48.78–55.98 lb)
(22.13–25.39 kgf)

Installed compression spring
force (exhaust)

217.00–249.00 N (48.78–55.98 lb)
(22.13–25.39 kgf)

Installed length (intake)

32.66 mm (1.29 in)

Installed length (exhaust)

32.66 mm (1.29 in)

b. Installed length



Spring tilt (intake)

2.5 °/2.0 mm

Spring tilt (exhaust)

2.5 °/2.0 mm



Recommended lubricant

Molybdenum disulfide oil

VALVES AND VALVE SPRINGS

5-44

• Lower spring seat “2”
• Valve stem seal “3”
• Valve “4”
• Valve spring “5”
• Upper spring seat “6”

(into the cylinder head)

NOTE:

• Make sure each valve is installed in its original

place.

• Install the valve springs with the larger pitch “a”

facing up.

4. Install:

• Valve cotters

NOTE:

Install the valve cotters by compressing the
valve springs with the valve spring compressor
set “1”.

5. To secure the valve cotters onto the valve

stem, lightly tap the valve tip with a soft-face
hammer.

CAUTION:

ECA13800

Hitting the valve tip with excessive force
could damage the valve.

b. Smaller pitch



Valve spring compressor

90890-04019
YM-04019

CYLINDERS AND PISTONS

5-45

EAS24360

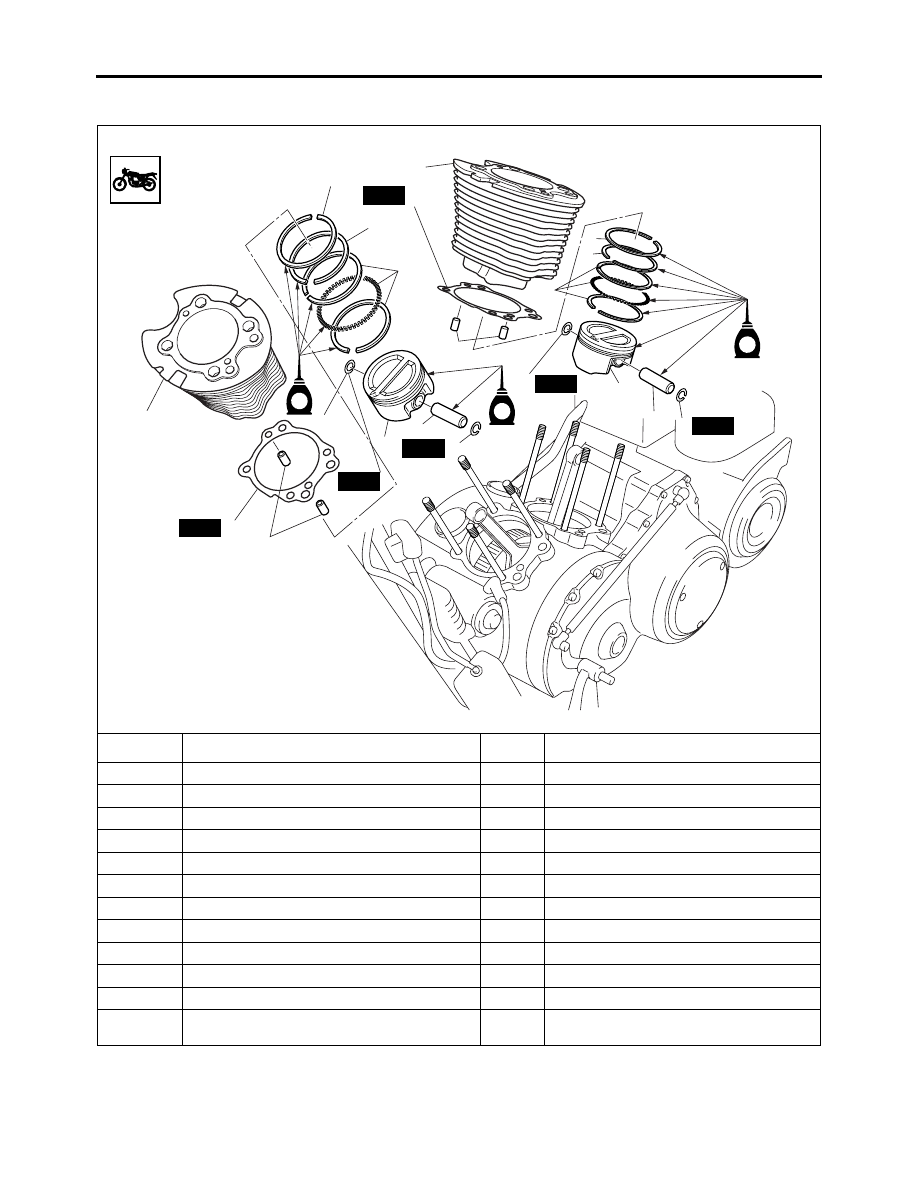

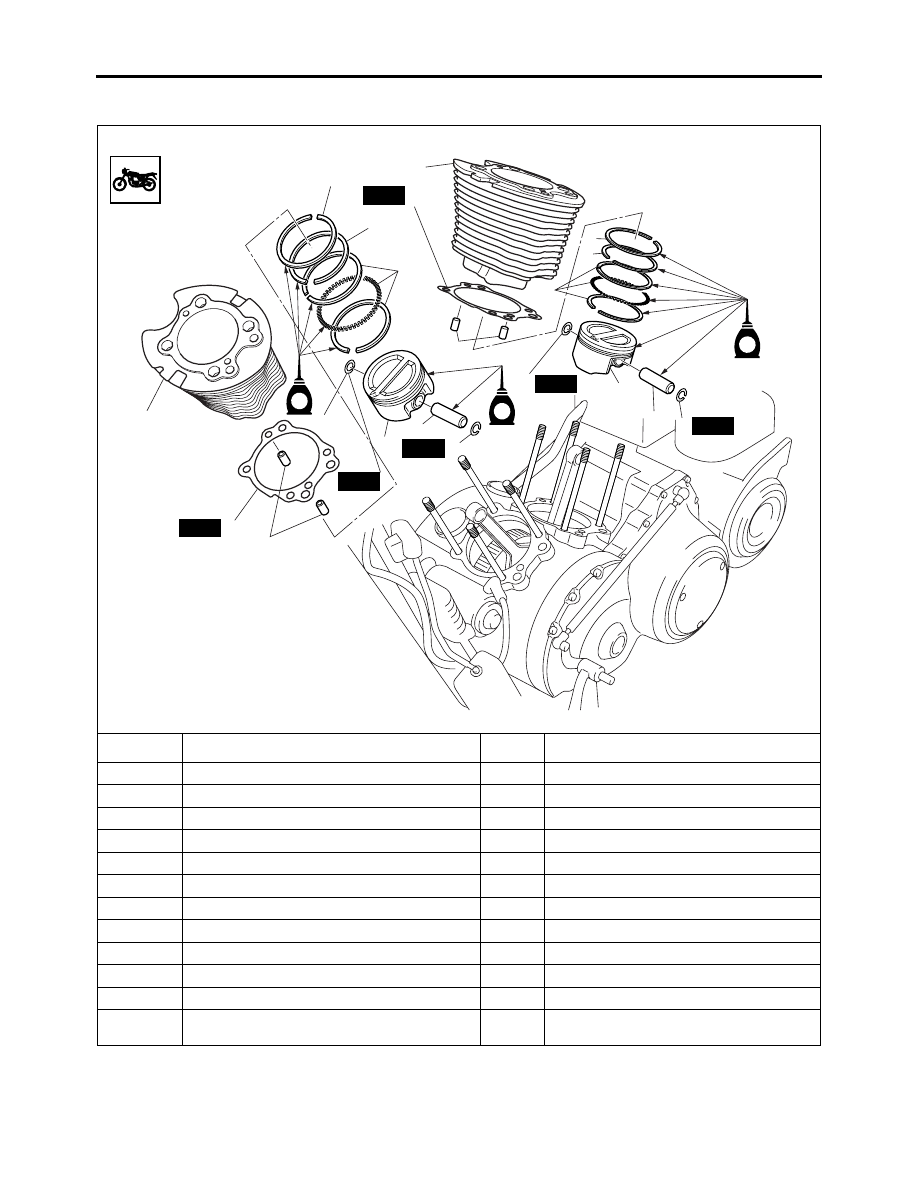

CYLINDERS AND PISTONS

Removing the cylinders and pistons

Order

Job/Parts to remove

Q’ty

Remarks

Cylinder heads

Refer to “CYLINDER HEADS” on page 5-33.

1

Front cylinder

1

2

Rear cylinder

1

3

Cylinder gasket

2

4

Dowel pin

4

5

Circlip

4

6

Piston pin

2

7

Piston

2

8

Top ring

2

9

2nd  ring

2

10

Oil ring

2

For installation, reverse the removal proce-
dure.

8

9

2

10

3

5

4

3

7

6

5

4

5

8

9

10

7

6

5

1

New

E

New

E

E

New

New

New

New

CYLINDERS AND PISTONS

5-46

EAS24380

REMOVING THE PISTON

1. Remove:

• Piston pin clips “1”
• Piston pin “2”
• Piston “3”

CAUTION:

ECA13810

Do not use a hammer to drive the piston pin
out.

NOTE:

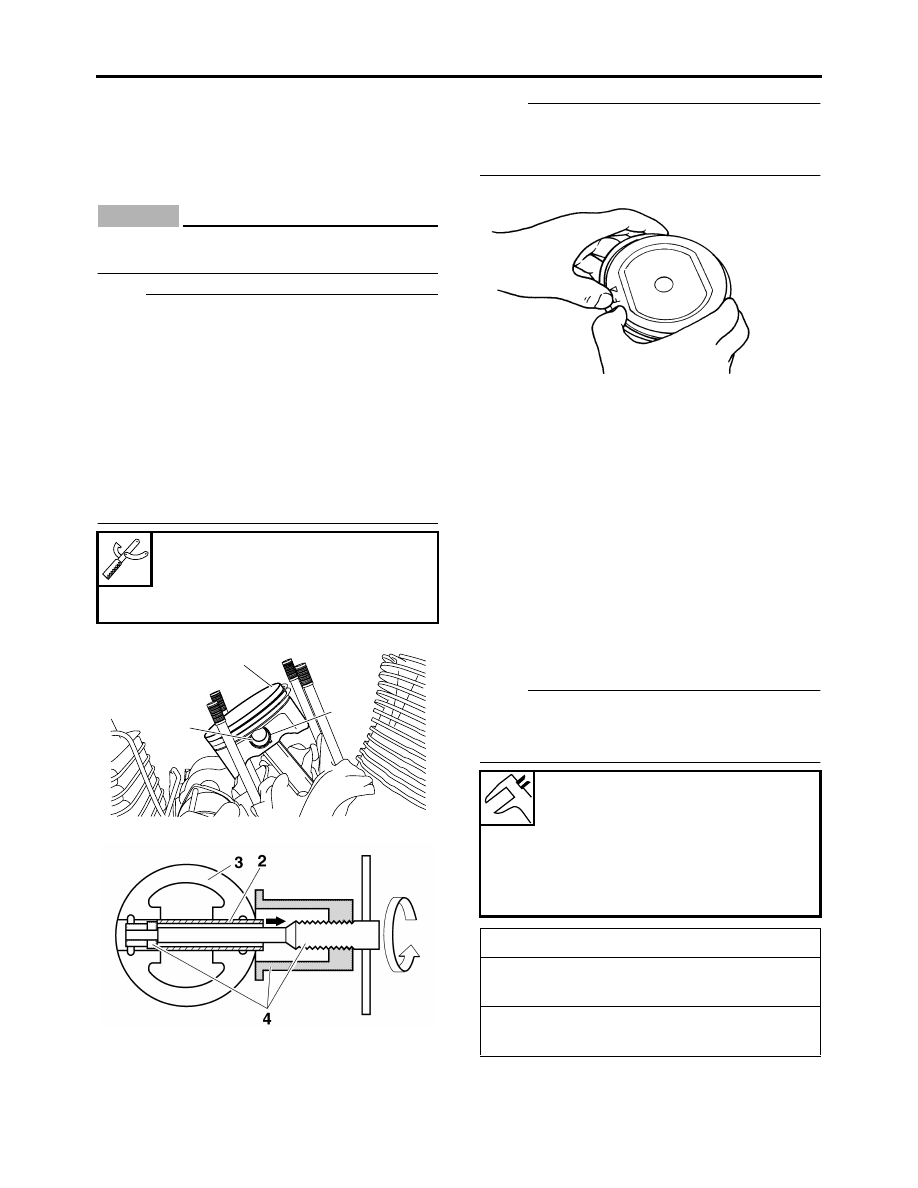

• Before removing the piston pin clip, cover the

crankcase opening with a clean rag to prevent
the piston pin clip from falling into the crank-
case.

• For reference during installation, put an identi-

fication mark on each piston crown.

• Before removing the piston pin, deburr the pis-

ton pin clip’s groove and the piston’s pin bore
area. If both areas are deburred and the piston
pin is still difficult to remove, remove it with the
piston pin puller set “4”.

2. Remove:

• Top ring
• 2nd ring
• Oil ring

NOTE:

When removing a piston ring, open the end gap
with your fingers and lift the other side of the ring
over the piston crown.

EAS24410

CHECKING THE CYLINDERS AND PISTONS

The following procedure applies to all of the cyl-
inders and pistons.
1. Check:

• Piston wall
• Cylinder wall

Vertical scratches

→

 Rebore or replace the

cylinder, and replace the piston and piston
rings as a set.

2. Measure:

• Piston-to-cylinder clearance

▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼ ▼▼▼

▼

▼▼▼

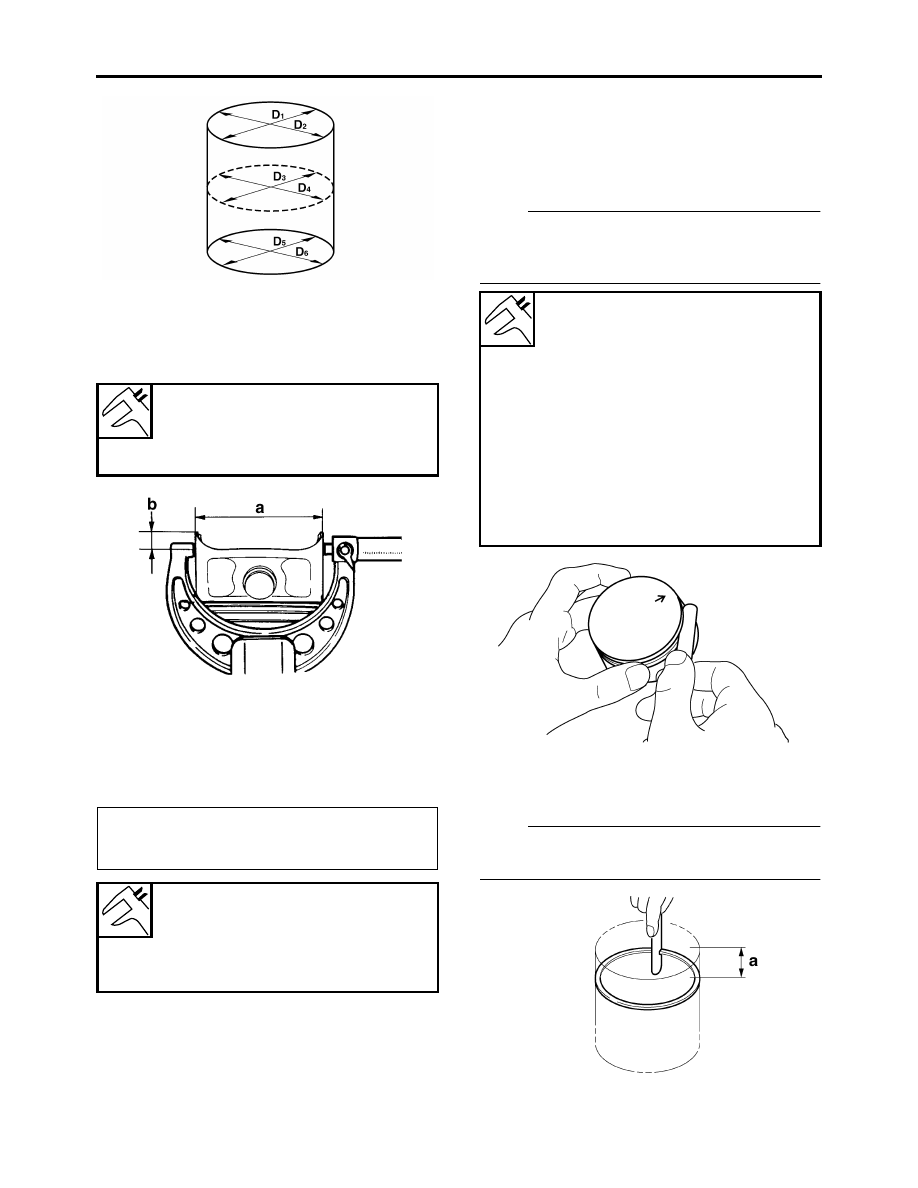

a. Measure cylinder bore “C” with the cylinder

bore gauge.

NOTE:

Measure cylinder bore “C” by taking side-to-side
and front-to-back measurements of the cylinder.
Then, find the average of the measurements.



Piston pin puller set

90890-01304

Piston pin puller

YU-01304

3

2

1



Bore

100.000–100.010 mm (3.9370–
3.9374 in)

Taper limit

0.050 mm (0.0020 in)

Out of round limit

0.050 mm (0.0020 in)

“C” = maximum of D

1

–D

6

“T” = maximum of D

1

 or D

2

 - maximum of D

5



or D

6

“R” = maximum of D

1

, D

3

 or D

5

 - minimum of

D

2

, D

4

 or D

6

CYLINDERS AND PISTONS

5-47

b. If out of specification, rebore or replace the

cylinder, and replace the piston and piston
rings as a set.

c. Measure piston skirt diameter D “a” with the

micrometer.

d. If out of specification, replace the piston and

piston rings as a set.

e. Calculate the piston-to-cylinder clearance

with the following formula.

f. If out of specification, rebore or replace the

cylinder, and replace the piston and piston
rings as a set.

▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲ ▲▲▲

▲

▲▲▲

EAS24430

CHECKING THE PISTON RINGS

1. Measure:

• Piston ring side clearance

Out of specification

→

 Replace the piston

and piston rings as a set.

NOTE:

Before measuring the piston ring side clearance,
eliminate any carbon deposits from the piston
ring grooves and piston rings.

2. Install:

• Piston ring

(into the cylinder)

NOTE:

Level the piston ring into the cylinder with the
piston crown.



Piston

Diameter D

99.960–99.975 mm (3.9354–
3.9360 in)

b. 10 mm (0.39 in) from the bottom edge of the

piston

• Piston-to-cylinder clearance =

Cylinder bore “C” -
Piston skirt diameter “D”



Piston-to-cylinder clearance

0.025–0.050 mm (0.0010–0.0020
in)

Limit

0.15 mm (0.0059 in)



Piston ring

Top ring

Ring side clearance

0.030–0.080 mm (0.0012–
0.0032 in)

Limit

0.120 mm (0.0047 in)

2nd ring

Ring side clearance

0.030–0.070 mm (0.0012–
0.0028 in)

Limit

0.120 mm (0.0047 in)

a. 10 mm (0.39 in)
