CFMoto motorcycle V-Night CF150-2C. Service Manual - part 4

- 49-

[Battery Model Number]

[Inspection and Maintenance of the Battery]

When dismantling, first dismantle the lead of negative electrode
It is necessary to clean the terminals of positive electrode



and negative electrode

of the battery on a

regular basis. When installing, first install the lead



of



the



positive



electrode



and then the lead of the

negative electrode

and ensure that the terminals of the positive and negative electrodes are tight

;

the



positive and negative electrodes cannot be reversely connected.
When replacing the battery, it is necessary to use the battery with the same model number and specification.

The Battery Model Number of the vehicle is

:

YTX7L-BS

 ，

the capacity is

:

12V 6Ah. It is under the seat

.

The vehicle is equipped with maintenance-free battery, so it is not necessary to inspect the electrolyte
quantity or add distilled water. Once the electrolyte is poured into the storage battery, the seal cannot be
taken down. However,



to ensure the best service life of the storage battery, it is necessary to charge the

storage battery appropriately to ensure sufficient power for starting the motor. When the motorcycle is
used frequently, the charging system of the motorcycle will charge the storage battery automatically. If the
motorcycle is used occassionally or for a short period, the battery power is insufficient. The storage battery



will



produce



self

-

discharge

,

the



discharge



speed



of



which



varies



according



to



type



of



the



battery



and



environmental



temperature

.

When the motorcycle is not used for a long time

,

it



is



necessary



to



take



down



the



storage battery from the

motorcycle for storage and regularly charge the battery

;

-5 0-



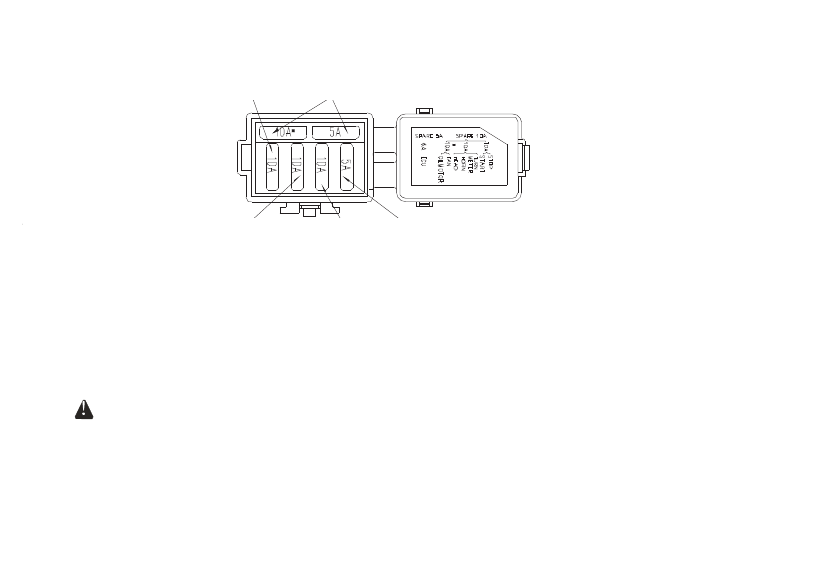

Figure24 Fuse Box

Start-up circuit

 spare fuse

Horn

;

lighting

;

instrument



circuit

;

oil



pump

;

fan



circuit

;

ECUcircuit



[Fuse Replacement]

The rated current of the starting relay fuse is 20A and It is on the starting relay behind the battery.
There is one spare fuse below the rubber sheath of the  Starting relay

;

The fuse box is in the front part underneath the seat cushion

，

The function is as shown in Figure 24.

If the fuse is burned frequently, it means the circuit System is short or overloaded and it is necessary to send
It to

“

CFMOTO



Service



Station

”

for repair.



When replacing the fuse, dismantle the old fuse and install the new one and connect it.

WARNING

Before inspection or replacement of fuse, it is necessary to turn off the ignition switch and
electric switches in case of short circuit.
Never use fuse that is inconsistent with the rated current, otherwise the electric system of
the vehicle will be damaged or cause fire. Or during nighttime or driving, it might result in
failed turning on of the lights or engine failure.

(11) Maintenance Instructions to Water-cooling System

[Cooling System]

The radiator is in the front of the engine. You should regularly remove dust and dirt from the radiator
according to the conditions of the driving roads.

Coolant Type

Notes：

Check the Volume of the Coolant

1.Make the longitudinal plane of the motorcycle be perpendicular  to the level ground during inspection

;

2.



Check level of the coolant when the engines is cooling down

.

3. The coolant should be between the upper and lower scale lines.

- 51-

It should only adopt high-qualitly ethylene glycol based and corrosion inhibitor-inclusive antifreeze agent,
which is especially for alumnium engine.
The cooling system of the motorcycle includes 50% antifreeze agent and 50% water before delivery.

It should only adopt high-qualitly ethylene glycol based and corrosion inhibitor-inclusive
antifreeze agent, which is especially for alumnium engine.
The cooling system of the motorcycle includes 50% antifreeze agent and 50% water before delivery.

Upper  line

Filler cap

①

Radiator



②

Fan

③

Lower  line

④

⑤

Reservoir  tank

⑥

Cap of reservoir tank

⑦

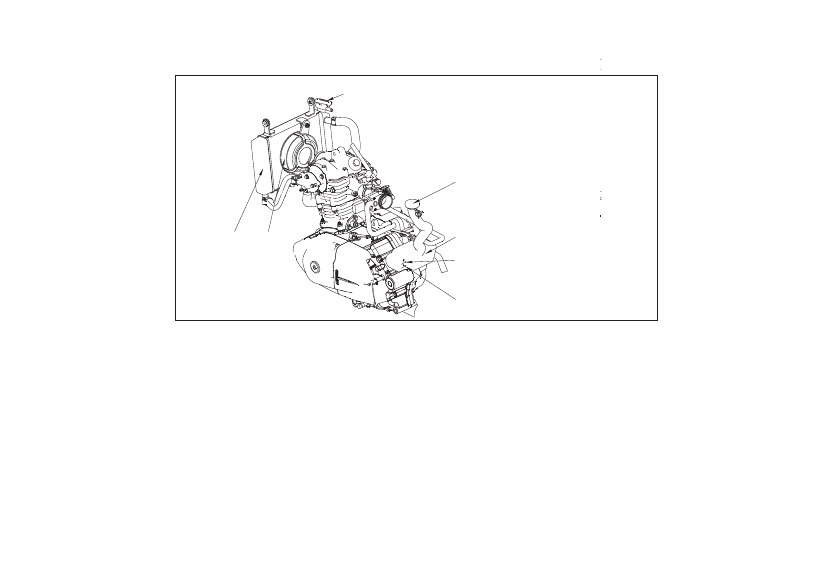

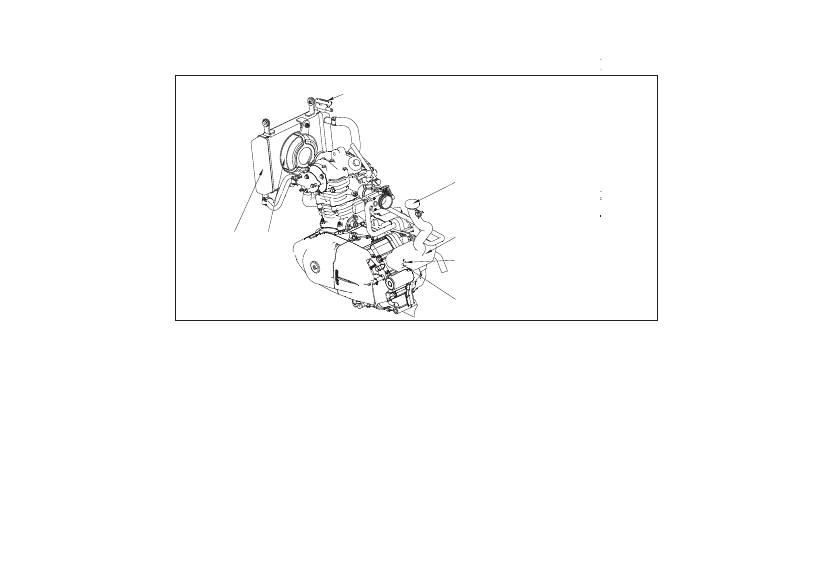

Figure26 Cooling System

Add a Few Coolant

-5 2-

If the coolant



is



at



or



lower than

④

lower



line

,

Please add special coolant



timely



until



reaching

  ⑤

Upper line

Adding procedures

:

1. Make the longitudinal plane of the motorcycle be perpendicular to the level ground

;

2.



Dismantle the seat

;

3.



Open the

 ⑦

cap



of



reservoir



tank



in



the



Figure25, Add coolant



until



reaching

⑤

Upper line

;



4 .

Install

⑦

cap



of



reservoir



tank



and



seat

.

Note：

If it needs to replace the coolant or there is leakage of coolant

,

please send it to the

“

CFMOTO

Service



Station or authorized local dealer

”

for replacement and repair.

(12)Vehicle Cleaning and Storage

[Vehicle Cleaning]

WARNING

- 53-

Clean the motorcycle regularly in order to detect damage, wear or leakage



problems



timely

.

When cleaning, flush with clean water. After cleaning, wipe dry the motorcycle and start the engine to run
for several minutes

;

lubricate



the



drive



chain



with



the



lubricating



oil

;

before



road



driving

,

check



brake



and



the



front



and



rear



brakes must be normal.

1. Parts cannot be cleaned by high pressure water: ignition switch, electric switch,
instrument, electric parts, battery, air filter, wheel hub, exhaust pipe outlet, the lower part
of the fuel tank and so on.
2. After cleaning, the brake performance might be reduced. Thus, it is necessary to test the
motorcycle and inspect it for adjustment and restoration before use.

[Vehicle Storage]

[Vehicle Use after Storage]

-5 4-

After use, the user should store the motorcycle in dry, good-ventilated safe area with small temperature
difference.
For long-term storage

 (

over 30 days)

,

it



is



necessary



to



carry



out



indispensable



repair



before



storing



the



motorcycle

;

otherwise

,

repair



problems



might



be



forgotten



after



storage

.

For long-term storage

 (

over 30 days)

,

besides



the above maintenance, it is necessary to implement the

following

:

1.



Clean and dry the motorcycle and wax the whole painted surface

;

2.



Drain the fuel in the fuel tank and inject anti-rust agent inside the fuel tank

;

3. Take down the spark plug and inject a few lubricating oil

(

15

～

20 ml

)

to the cylinder

;

and then install the

spark plug

;

4.



Dismantle the spark plug and store it in good-ventilated, dry, cool area without direct sunlight

;

5.



Inflate the tire until reaching specified pressure and place the motorcycle on the cushion block to make

the front and rear wheels get off the ground

;

6.



Cover the motorcycle with the strong air permeable material and store it in dry, good-ventilated safe area

with small temperature difference.

1.



Take down the motorcycle covering and clean the motorcycle.

2. Check voltage of the storage battery. If the voltage is below 12.8V, carry out low-speed charging to
supplement the battery power and then install storage battery.
3. Remove the anti-rust agent inside the fuel tank and add fresh fuel.
4. Try to ride the motorcycle in the safety place and check whether the motorcycle performance is normal.

(13) Vehicle Service Life and Vehicle Handling

[Vehicle Service Life]

For vehicle service life, implement according to the regulations of the traffic administration department or
local vehicle administration station.

[Vehicle Handling]

- 55-

1.



Handling of waste lubricating oil: the waste lubricating oil repaced by the motorcycle should be stored

in the plastic cask and submitted to the company for handling. The user cannot discharge the waste
lubricating oil at will, otherwise, site, soil, water source and so on will be damaged.



2

.

Handling of the waste storage battery, bulb, appearance parts, filter element, tire, iron parts, alumnium

parts and so on: these scrapped parts shall be classified into the waste bin as the waste. The user should not
discard such waste at will and cannot discard the dilute sulphuric acid of the storage battery, which will
cause injury to people or pollution to environment.
3.



After scrapping, handle the vehicle according to the regulations of the traffic administration department

or local vehicle administration station.

(14)Relevant Adjustment Data of Motorcycle

Free travel of the front

(

hand

)

brake 10-30mm                   Free clearance of the throttle handle

:

2-6mm

Free travel of the rear

(

foot

)

brake 10-30mm                      Free travel of the clutch

:

10-20mm

Chain looseness

:

10-20mm                                                   Spark plug gap

:

0.8-0.9 mm

Intake and exhaust valve clearance

:

0.10-0. 15 mm

Torque rating of the clamp nut of the rear shock absorber

:

35-45 N.



m

Torque rating of the clamp bolt of the handle

:

10-14N.



m



Torque rating of the clamp nut of the fork

:

50-80 N.



m

Torque rating of the clamp nut of the front axle

:

50-80N.



m



Torque rating of the clamp nut of the steering system

:

60-90 N.



m

Torque rating of the clamp nut the rear axle

:

50-80 N.



m



Torque rating of the clamp bolt of the front shock absorber and upper connecting plate

: 1 0-14

N

.

m

Torque rating of the clamp bolt of the front shock absorber and direction column

:

20-25 N.



m

Torque rating of the clamp nut of engine suspension

:

M8

:

20-30 N.



m

,

M10

:

34-40 N.



m

-5 6-

(15)CF150-2C Main Technical Parameteres Table

Vehicle Model(Items)

CF150-2C(Specifications)

Complete
vehicle
parameters

Manufacturer name
Vehicle model number
Implementation standard
Vehicle brand
Vehicle type
Vehicle identification number
Approved passenger capacity
Steering form
Gear form
Brake form
Brake operation method
Clutch form
Clutch operation method
Start-up method
Length

×

width

×

height

Wheel base
Minimum ground clearance
Complete vehicle kerb mass
Maximum load quality

Fuel tank capacity
Number of tires
Front wheel specification
Rear wheel specification

Zhejiang CFMOTO Power Co.,Ltd.
CF150-2C
Q/CFD 013-2011
CFMOTO (CFMOTO)
General motorcycle
LCEPDKL8

××× × ××× × ×

2 persons

(

1 driver and 1 passenger

)

Handlebar



6



gear constant mesh

Front wheel:disc  Rear wheel:disc
Front wheel:Hand braking Rear wheel:Pedal braking
Wet (oil-immersed ) multiple-disc
Manual operation
Pure electric start-up
1920

×

705

×

1100

(

mm

)

1310

(

mm

)

200

(

mm

)

138kg
150kg
12.5

(

L

)

2
80/90-17 M/C 44S
110/80-17 M/C 57S

- 57-

Vehicle Model(Items)

CF150-2C(Specifications)

Electric
device

Ignition method
Spark plug model number
Headlight specification
Turn light specifications



Tailight /brake light specification
Fuse specification
Battery specification



CDI



CR9EP
12V35W/35W
LED
LED
20 A

(

1

),10

A

(

3

)

and 5A

(

1

)

YTX7L-BS  12V 6Ah

Engine

Engine type
Engine model
Compression ratio
Cylinder volume
Max. net power
Max.torque
Cylinder bore

×

travel

Idle speed
Brand of engine lubricating oil
Lubricating oil capacity
Fuel brand
Spark plug gap

Vertical,single-cylinder, 4 stroke, liquid cooled



157MJ-3A-(A1)
10.5

:

1

149.4ml
10.5kW/9000rpm
12.2N

·

m/6500rpm

57

×

58.6

1500

±

150 rpm

SAE15W-40/SG
Replacement:1.2  overhaul:1.4L
93#
0.8

～

0.9 mm

-5 8-

Vehicle Model(Items)

CF150-2C(Specifications)

Gear ratio

Primary ratio
1 gear



ratio



2 gear ratio
3 gear ratio
4 gear ratio
5 gear ratio
6 Igear ratio
Final ratio

3.5
3
1.857
1.368
1.143
0.957
0.875
2.867

Performance

Max.vehicle speed
Gradeability
Fuel consumption

100km/h
≥20

°

≤2.9L/100km

- 59-

-6 0-

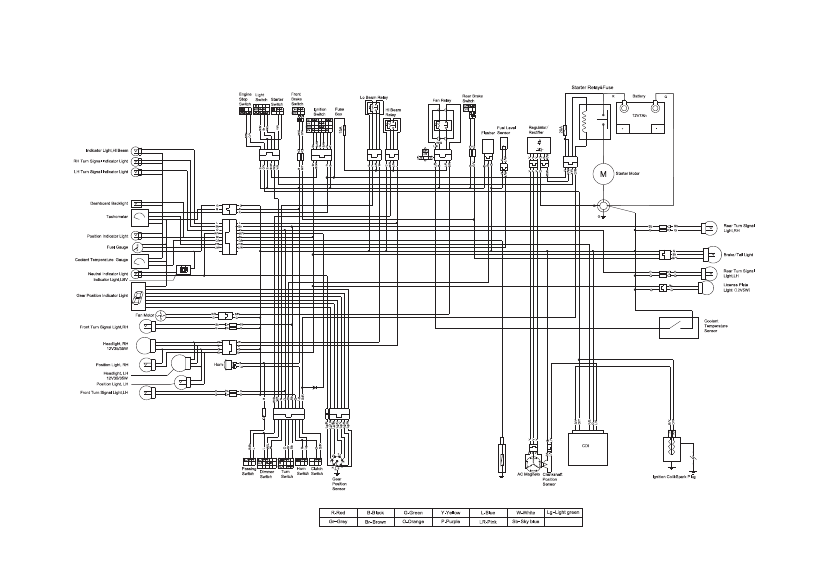

(16)WIRING DIAGRAM(CF150-2C)

(17) Common Failure and Cause of the Motorcycle

Part location

Solutions

Fail to be
started

Fuel system

Ignition
system

No fuel in the fuel tank
Fuel switch and strainer are blocked or worn

:

poor fuel quality



Fuel hose blocked or poor fuel quality
Intake air pipe leakage or overused for long time
Carburetor needle valve blocked or poor quality fuel

Spark plug failure

:

too many carbon deposits and long-term use

Spark plug cap failure

:

poor contact or burned

Ignition coil failure

:

poor contact or



burned

CDI



failure

:

poor contact or burned

Trigger coil failure

:

poor contact or burned

Stator failure

:

poor contact or burned

Cable failure

:

poor contact

Start-up mechanism failure

:

worn or damaged

Failure of intake and exhaust valves and valve seat

:

too



much fuel colloidal or



long

-

term use

Failure of cylinder, piston and piston ring

:

too



much



fuel



colloidal or wear
Air leakage of the intake pipe

:

long-term use

Valve timing failure

Cylinder
pressure
system

Fueling

Cleaning or replacement

Cleaning or replacement

Adjustment or replacement

Cleaning or replacement

Inspection or replacement

Inspection or replacement

Inspection or replacement

Inspection or replacement

Inspection or replacement

Inspection or replacement

Inspection or adjustment

Inspection or replacement

Inspection or replacement

Inspection or replacement

Adjustment or replacement

Adjustment or replacement

Insufficient
power

Valve piston

Too much carbon deposit in the intake and exhaust valves and
piston

:

poor fuel quality and poor engine oil

Clutch

Clutch slipping

:

poor engine oil

,

long

-

term use and overloaded



Cylinder ring  Worn cylinder and piston ring

:

poor engine oil

,

long

-

term use

Repair or replacement

Adjustment or replacement

Replace engine oil

- 61-

Problems

Troubleshooting

Part location

Solutions

Insufficient
power

Brake

Brake is thoroughly separated

:

the brake is too tight

Large chain

The drive chain is too tight

:

improper adjustment

Engine

The engine is overheated

:

gas mixture is too thick or thin, poor

engine oil and fuel quality, barrier and so on.

Spark plug

Improper spark plug gap

,

normal range is 0.8-0.9 mm

Intake pipe

Air leakage of intake pipe: long-term use

Cylinder head  Air leakage of the cylinder head or air valve
Electric system  There is failure



in



electric



system



Air filter

Blocked air filter

Cleaning or adjustment

Inspection or repair

inspection or replacement

Adjustment or replacement

Adjustment or replacement

Adjustment or replacement

Adjustment

Adjustment

Headlight



and tailight



do not work



Cable

Poor circuit contact

Left and right
switches

poor switch contact or the switch is damaged



Headlamp

Bulb and lamp holder inspection

Voltage
regulator

Inspection of the voltage regulator

:

poor contact or burned

Magneto

Magnetor coil inspection

:

poor contact or burned

Hor n do es n

'

t

work

Battery

No power in the



battery



Left switch

Horn button inspection

Cable

Poor circuit contact

Horn

Horn is damaged

Adjustment or replacement

Adjustment or repair

Adjustment or replacement

charging or replacement

inspection or replacement

inspection or replacement

Adjustment or replacement

Adjustment or replacement

Adjustment

The above listed are the common failures of the motorcycle. If there is any failure in your motorcyle, please
contact

“

CFMOTO Service



Station

”

timely for inspection and repair.

It should be noted that: Do not handle motorcycle failures at one's discretion, otherwise
potential safety hazard or safety accident will be caused. The users shall be responsible
for safety accidents due to failure handling at their own discretion.

-6 2-

Problems

Troubleshooting
