Communicating Through TCP/IP over Telnet
Executing SCPI Commands Over Telnet
6. Enter the desired SCPI commands as follows:
For a single SCPI command: Type or copy the desired command in
the Telnet editor window, and then press ENTER to execute it.
For multiple SCPI commands: Copy the desired commands from
any script file, enclose them in a BEGIN and END block in the
Telnet editor window, and then press ENTER. For more
information, see Internal Commands of the TCP/IP over Telnet
Protocol on page 459.
Note: Multiple commands that are not enclosed in BEGIN...END blocks will be
executed, but problems may occur (results of one command mixed with
the results of another one, skipped commands, etc.).
Once at least one valid command is executed, the module is blocked
for any other sessions until the module is released. For more
information, see Releasing Modules on page 458.
FTB-2 and FTB-2 Pro
455
Communicating Through TCP/IP over Telnet
Executing SCPI Commands Over Telnet
7. Click
to close the session.

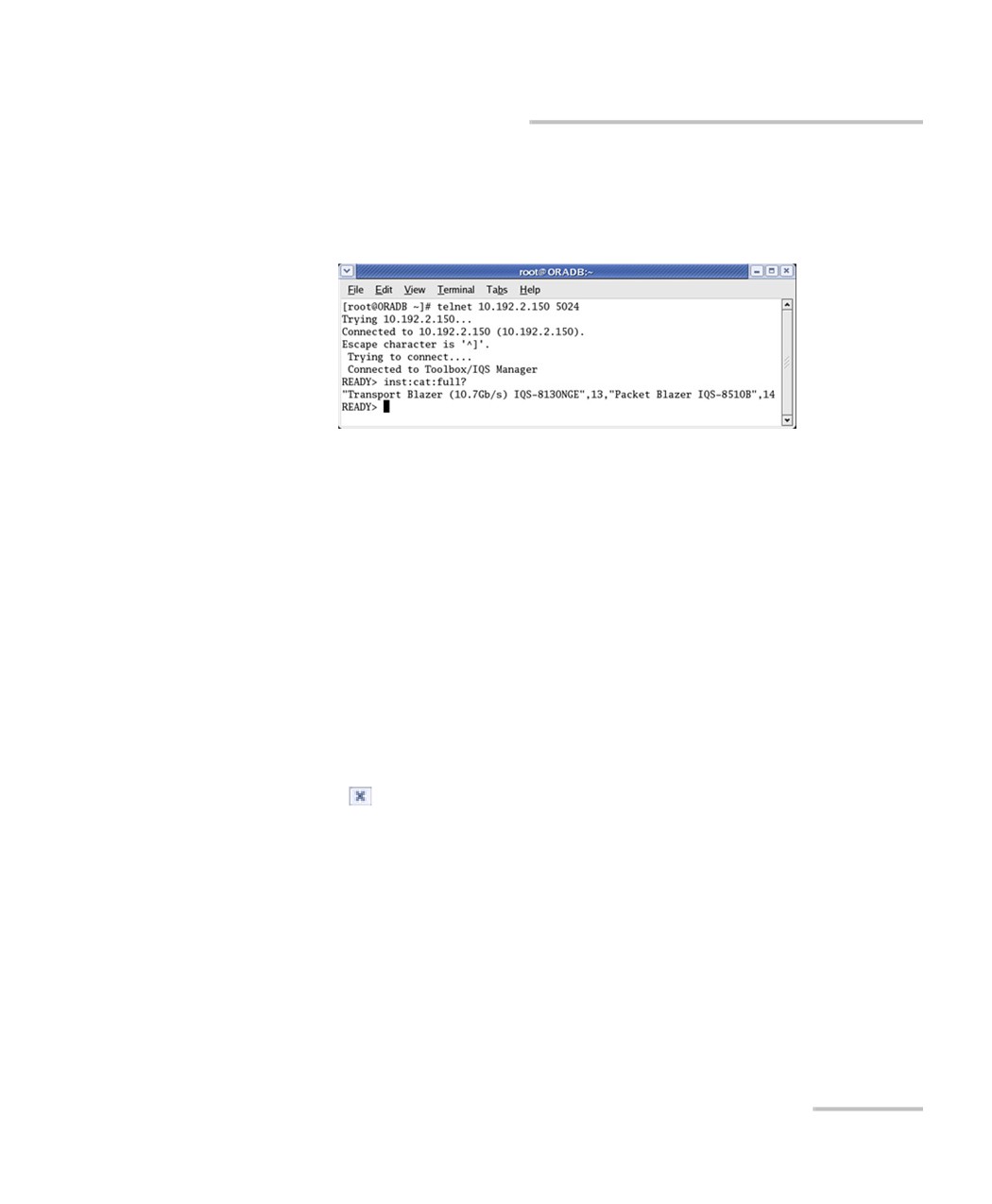

To connect through TCP/IP over Telnet from a remote Linux client:
1. From your computer, right-click on the desktop, and then click Open
Terminal.
The command prompt is displayed in the Telnet editor window.
2. Connect to the TCP/IP Telnet Service by typing the
OPEN <IP_ADDRESS_OF_TELNET_SERVER> <PORT> command:
Example: open 10.192.2.45 5024
Note: Port 5024 is designated for sending SCPI commands in the Telnet protocol.
The connection is established when the message Connected to
Toolbox/IQS Manager is displayed in the Telnet editor window.
456
FTB-2 and FTB-2 Pro
Communicating Through TCP/IP over Telnet
Executing SCPI Commands Over Telnet
3. Enter the desired SCPI commands as follows:
For a single SCPI command: Type or copy the desired command in
the Telnet editor window, and then press ENTER to execute it.
For multiple SCPI commands: Copy the desired commands from
any script file, enclose them in a BEGIN and END block in the
Telnet editor window, and then press ENTER. For more
information, see Internal Commands of the TCP/IP over Telnet
Protocol on page 459.
Note: Multiple commands that are not enclosed in BEGIN...END blocks will be
executed, but problems may occur (results of one command mixed with
the results of another one, skipped commands, etc.).
Once at least one valid command is executed, the module is blocked
for any other sessions until the module is released. For more
information, see Releasing Modules on page 458.
4. Click
to close the session.
FTB-2 and FTB-2 Pro
457
Communicating Through TCP/IP over Telnet
Releasing Modules
Releasing Modules
A module is blocked as soon as a connection is established from any user
session executing the internal command CONNECT LINS, or a valid
instrument (SCPI) command.
For example, when the SCPI command
LINS10:SOURce:DATA:TELecom:CLEar command is executed for the first
time by client session 10.192.2.155:1364, the module is blocked for any
other client/session until you release it.
A module is released by one of the following actions:
Executing the CLOSE LINS command to disconnect the link with the
module. For more information, see CLOSE LINS on page 462.
Executing the CLOSE command to end the current session once the
execution of all the desired commands has been completed. For more
information, see CLOSE on page 461.
Closing the current session by clicking the Close button on the Telnet
editor windows’ title bar.
Shutting down and restarting the client computer.
A network interruption.
A module can also be released when you terminate the communication by
using the KILL LINS command. For more information, see KILL LINS on
page 464.
458
FTB-2 and FTB-2 Pro
Communicating Through TCP/IP over Telnet
Internal Commands of the TCP/IP over Telnet Protocol
Internal Commands of the TCP/IP over Telnet
Protocol
The internal commands allow you to perform certain actions such as send
SCPI commands as a script instead of one by one, force the disconnection
of an active session, view the status of modules and of connected clients,
etc. The internal commands are not case-sensitive.
By default, log files are generated both for client and server (all logs are
kept on your unit). You can delete them with the CLEAR LOGS command
(see CLEAR LOGS on page 461), or manually via the file explorer. The client
and sever logs are kept respectively in the C:\ProgramData\EXFO\SCPI
Over TCPIP Logs\Client log and in the C:\ProgramData\EXFO\SCPI Over
TCPIP Logs\Server log folders.

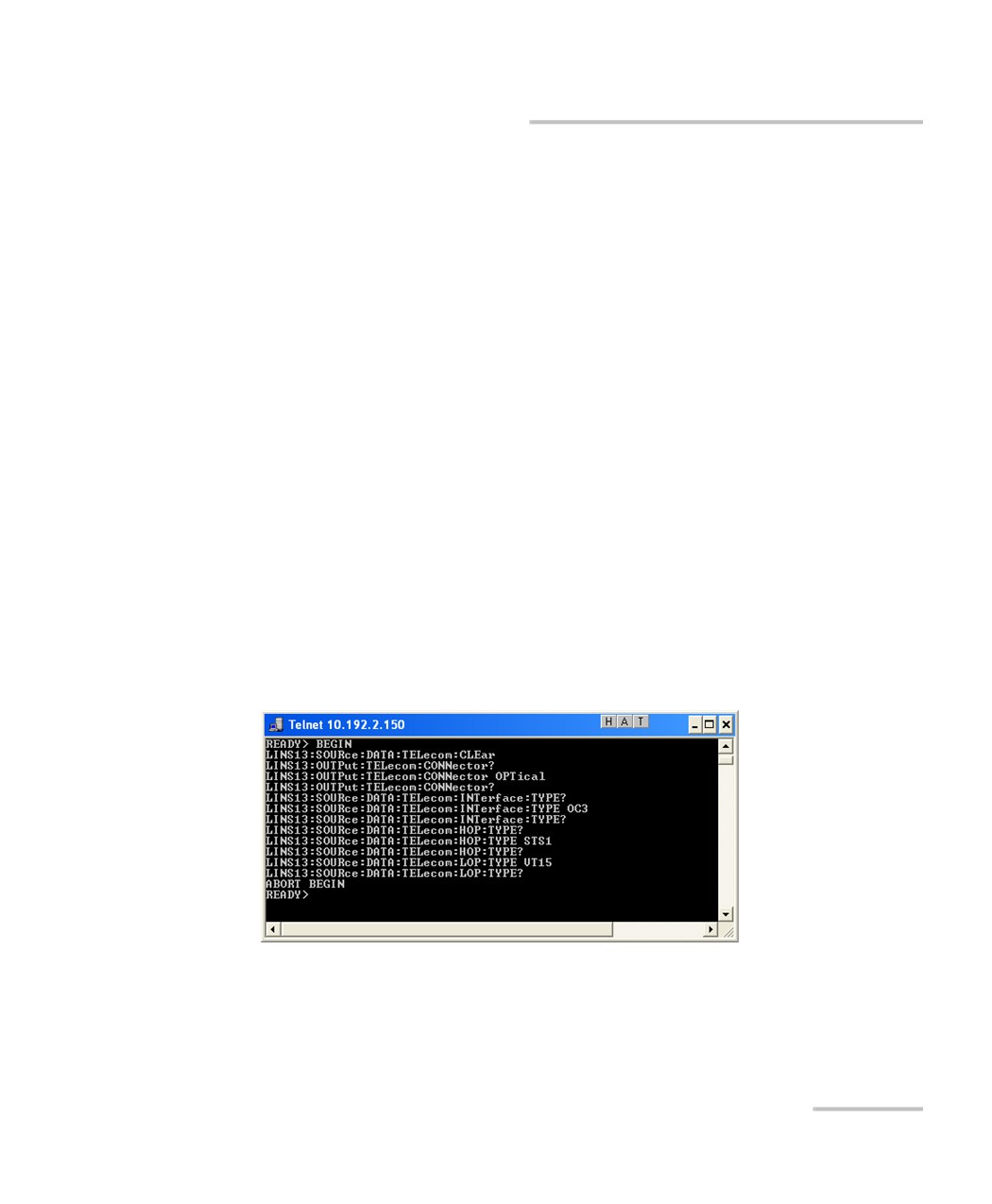

ABORT BEGIN
Syntax: ABORT BEGIN
The ABORT BEGIN command stops the execution of the SCPI commands
that are enclosed in a BEGIN and END block, and returns to the READY>
prompt in the Telnet editor window.
FTB-2 and FTB-2 Pro
459
Communicating Through TCP/IP over Telnet
Internal Commands of the TCP/IP over Telnet Protocol
BEGIN and END
To execute multiple SCPI commands, you must enclose them in BEGIN
and END blocks in a Telnet editor window.
Note: To execute a single command, simply type or paste the command in the
Telnet editor window.
Note: You cannot enclose internal commands in a BEGIN and END block, except
the ABORT BEGIN command.
460
FTB-2 and FTB-2 Pro
Communicating Through TCP/IP over Telnet
Internal Commands of the TCP/IP over Telnet Protocol

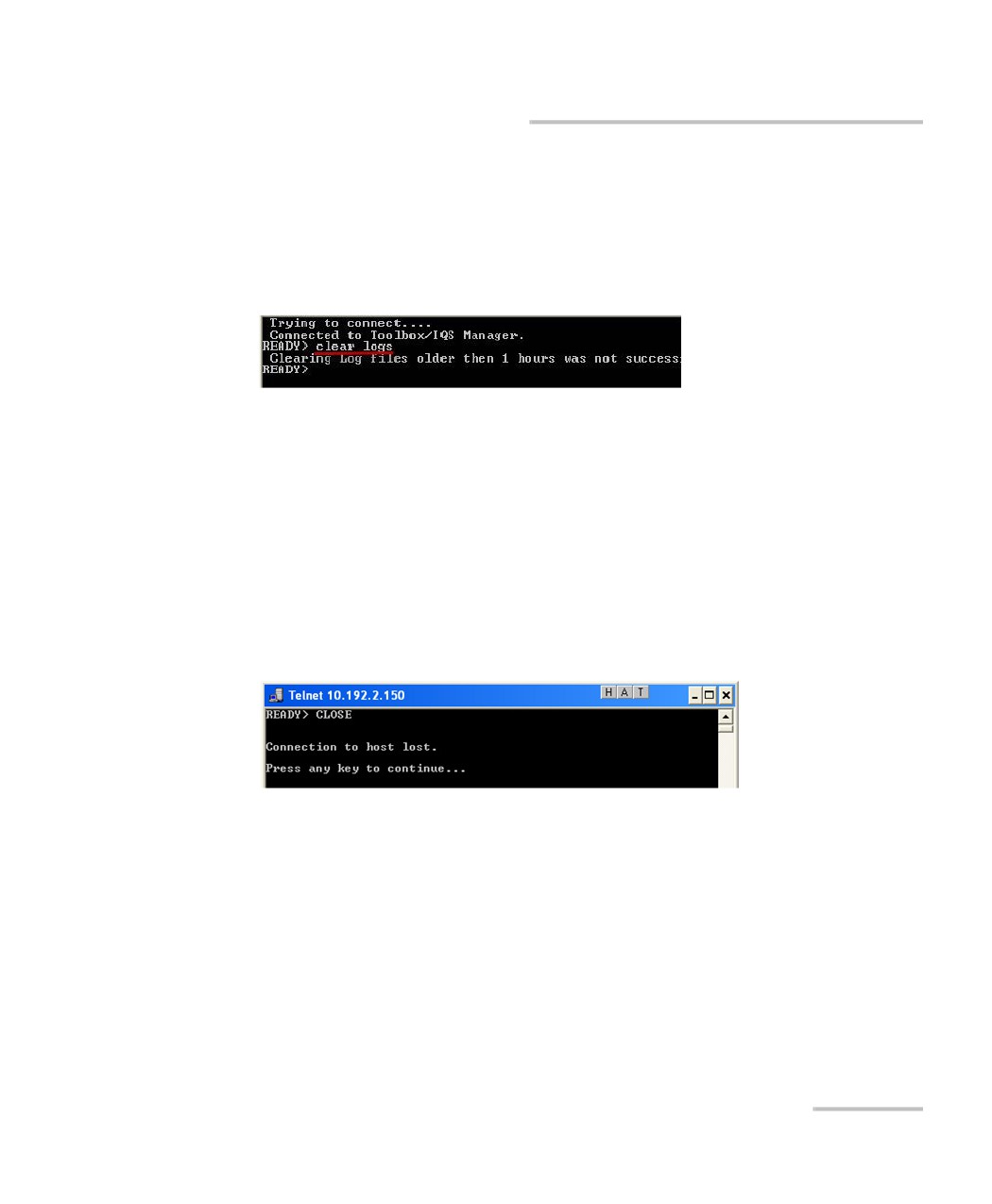

CLEAR LOGS
Syntax: CLEAR LOGS
This command clears all the client and server log files that are older than
36 hours (default value) from the time you execute the command.
Note: You can also delete the logs manually via the file explorer. The client and
sever logs are kept respectively in the C:\ProgramData\EXFO\SCPI Over
TCPIP Logs\Client log and in the C:\ProgramData\EXFO\SCPI Over TCPIP
Logs\Server log folders.
CLOSE
Syntax: CLOSE
The CLOSE command terminates the current Telnet session.
FTB-2 and FTB-2 Pro
461
Communicating Through TCP/IP over Telnet
Internal Commands of the TCP/IP over Telnet Protocol

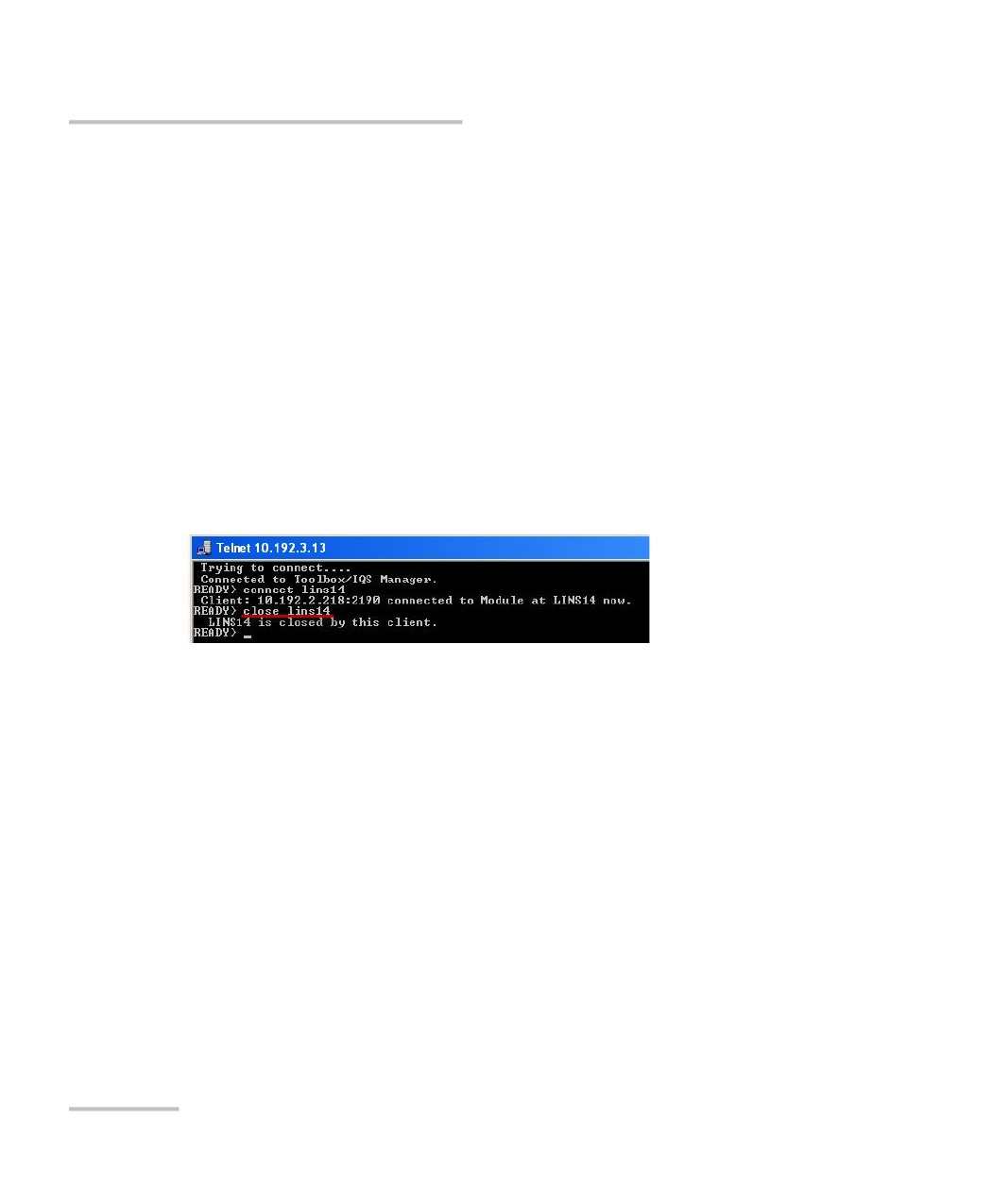

CLOSE LINS
Syntax: CLOSE LINS<Unit_Number><Module_Slot_Number>
You must specify the unit number and the slot number identifying the
module for which you want to close the connections.
This command allows to close active connections. You can send this
command to close all client’s connections with any module, including the
current connection.
If the command is not executed successfully, the possible reasons could
be:
The module is not present at the specified position.
The provided information does not correspond to a valid LINS.
462
FTB-2 and FTB-2 Pro
Communicating Through TCP/IP over Telnet
Internal Commands of the TCP/IP over Telnet Protocol

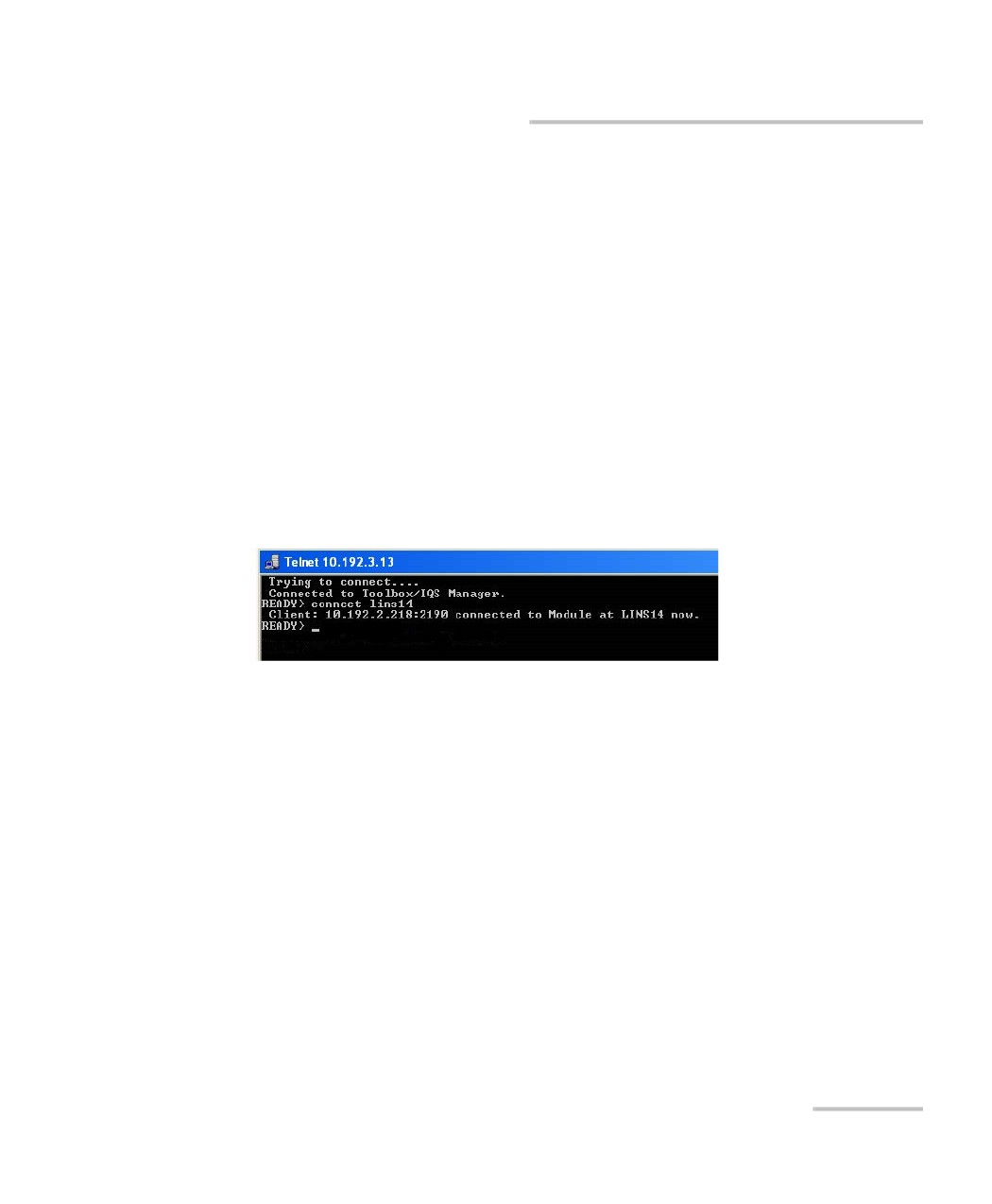

CONNECT LINS
Syntax: CONNECT LINS<Unit_Number><Module_Slot_Number>
You must specify the unit number and the slot number identifying the
module to which the session will connect.
This command allows to connect to different modules through TCP/IP. You
can connect to multiple modules from a single session.
If the command is not executed successfully, the possible reasons could
be:
The module is already connected to a different client session.
The module is not present at the specified position.
The provided information does not correspond to a valid LINS.
Note: For backward compatibility reasons, to connect to a single module, you do
not have to use the CONNECT LINS command. A valid instrument
command (for example, Lins10:SOURce:DATA:TELecom:CLEar) for a valid
LINS position will work for a first module. However, you will need to use
the CONNECT LINS command if you want to connect to other modules as
well.
FTB-2 and FTB-2 Pro
463
Communicating Through TCP/IP over Telnet
Internal Commands of the TCP/IP over Telnet Protocol
KILL LINS
Syntax: KILL LINS<Unit_Number><Module_Slot_Number>
You must specify the unit number and the slot number identifying the
module for which you want to terminate the session.
This command allows any user to terminate the session that contains the
specified connection (LINS). This means it will terminate all active
connections that belongs to a session.
To know the status of the modules before terminating connections using
the KILL LINS command, you can first enter the STATUS CLIENT
command. For more information, see STATUS CLIENT on page 465.

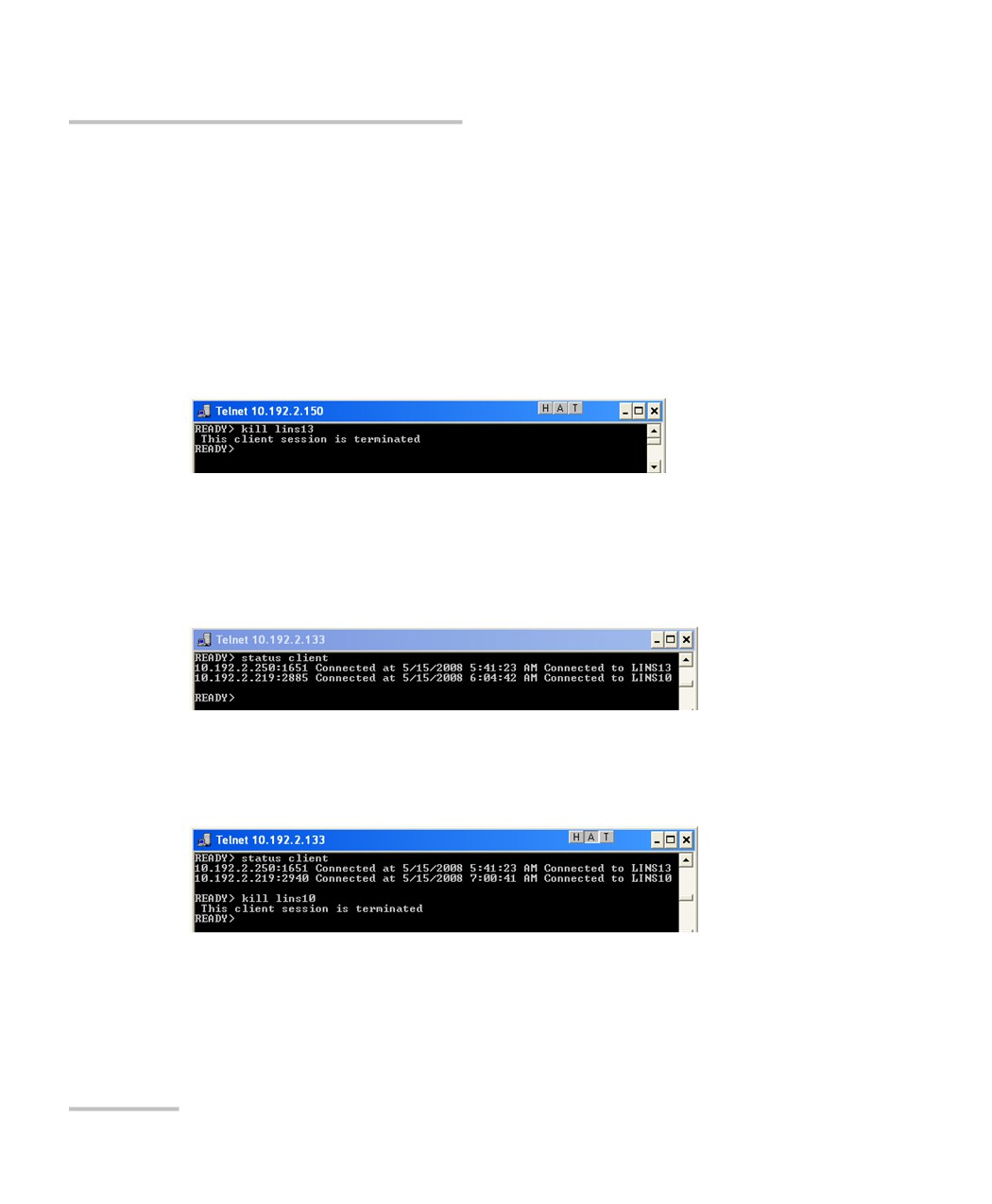

In the example below, two modules are connected: LINS13 and LINS10.
To disconnect the LINS10 module used by another session, enter the kill
lins10 command. The This client session is terminated message is
displayed once the module is disconnected.
464
FTB-2 and FTB-2 Pro
Communicating Through TCP/IP over Telnet
Internal Commands of the TCP/IP over Telnet Protocol

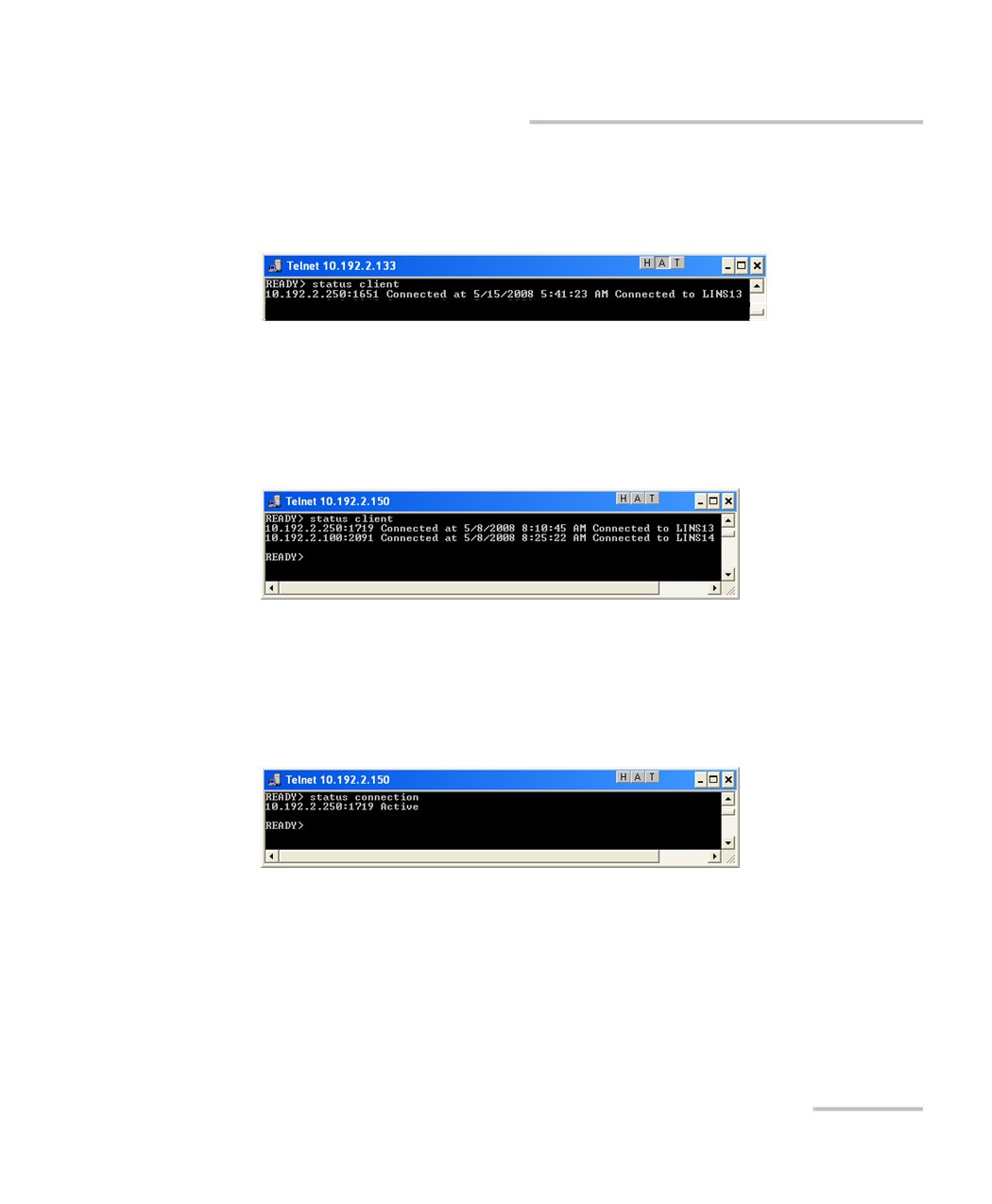

Enter again the STATUS CLIENT command to confirm the termination of
the module (LINS10 in our example). Only the information of the
remaining connected client is displayed.
STATUS CLIENT
Syntax: STATUS CLIENT
This command lists out all clients with their connection time and modules.
STATUS CONNECTION
Syntax: STATUS CONNECTION
This command lists out all the connections with their Idle or Active status.
Note: If any connection is idle for a certain period (5 minutes by default), the
service automatically changes the status to Idle.
FTB-2 and FTB-2 Pro
465
Communicating Through TCP/IP over Telnet
Internal Commands of the TCP/IP over Telnet Protocol

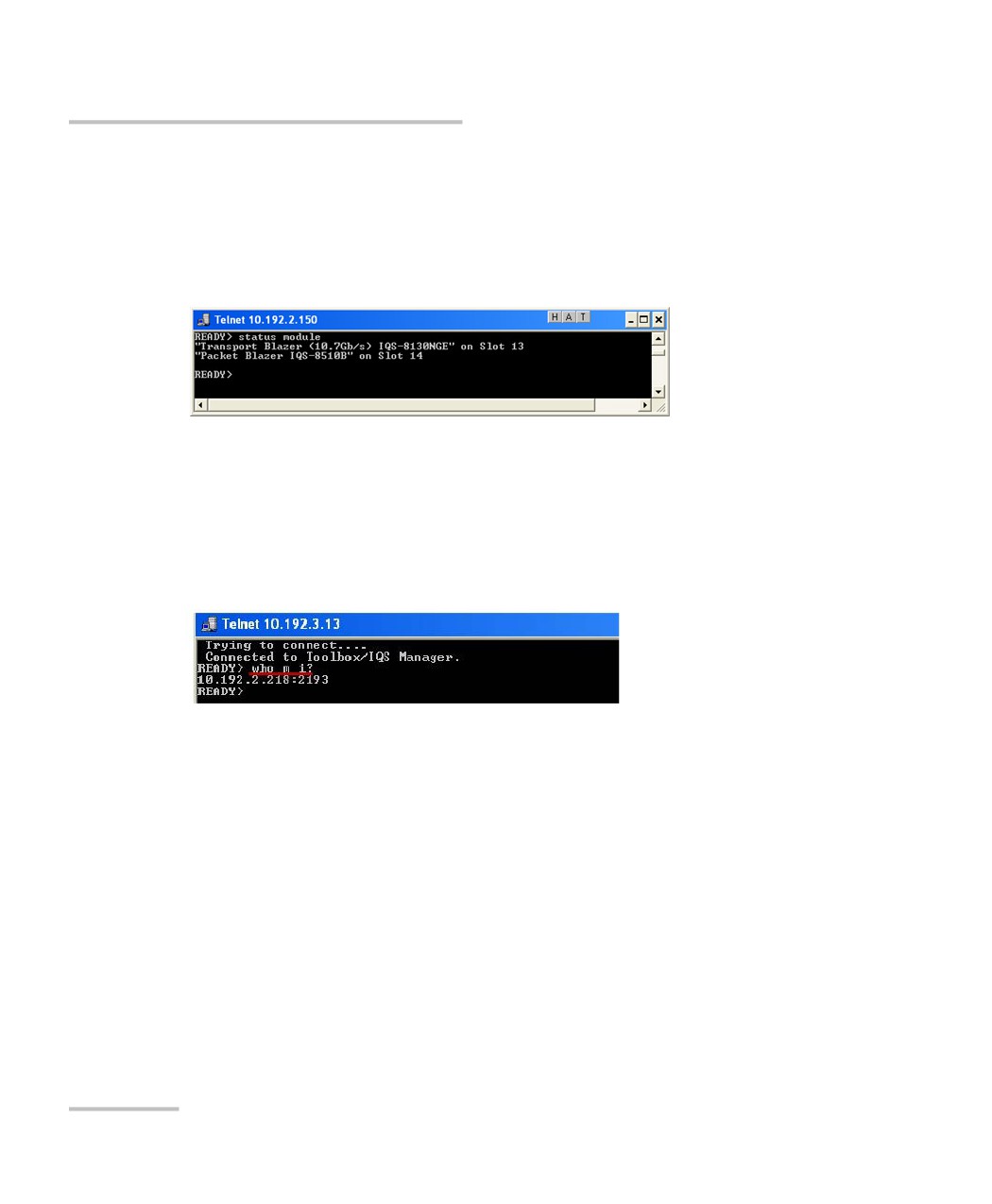

STATUS MODULE
Syntax: STATUS MODULE
This command lists out all the modules with the slot numbers where they
are located.
WHO M I?
Syntax: WHO M I?
This command retrieves the IP address and the communication port of the
current session.
466
