Parker Variable Speed Drive AC30 series. User’s Manual (2017)

Parameter Reference

D-177

Soft Menus

Parameters::Device Manager::Soft Menus

Parameter Name

No.

Path

Default

Range

Units

Writable

Control Screen Mode

0908

Parameters::Device Manager::Soft
Menus

0:DISABLED
1:AUTO
2:CUSTOM

STOPPED

Defines the operation of the Control Screen

0. DISABLED

1. AUTO

2. CUSTOM

When set to DISABLED, the Control Screen menu is hidden.

When set to AUTO, the contents of the Control Screen menu depends on the sequencing mode of the drive, (local, remote or
communications).

When set to CUSTOM, the contents of the Control Screen may be defined by writing parameter numbers to the elements of the

1352

Control Screen

array. Note that the contents of the

1352

Control Screen

array are not saved in non-volatile memory, so the values

need to be initialised following a power-on reset.

Control Screen

1352

Parameters::Device Manager::Soft
Menus

ALWAYS

An array of PNOs that identifies the parameters to be shown in the Control Screen. The contents of this screen are set automatically by
the AC30 firmware when the control mode is changed.

Favourites

1188

Parameters::Device Manager::Soft
Menus

ALWAYS

An array of PNOs that identifies the parameters to be shown in the Favourites menu

Setup

1311

Parameters::Device Manager::Soft
Menus

ALWAYS

An array of PNOs that identifies the parameters to be shown in the Setup menu

D-178

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Monitor

1270

Parameters::Device Manager::Soft
Menus

ALWAYS

An array of PNOs that identifies the parameters to be shown in the Monitor menu

Functional Description

The Soft Menus group of parameters are used to populate the associated menus depending on the associated application, (Control Screen, Setup
and Monitor) or the requirements of the location, (Favourites). The contents of the Setup and Monitor menus may only be set by the application itself.
The contents of the Favourites menu may be set by writing to the parameters in the Favourites array. Alternatively parameters may be added to or
removed from the Favourites menu by use of the GKP. Navigate to the parameter of interest and hold the OK key until the attributes screen is
shown. If the parameter is not already in the Favourites menu a pressing Soft Key 2 adds the parameter to Favourites. This operation is indicated by
the icon

. Similarly, to remove a parameter from Favourites, navigate to the parameter in the Favourites menu then press OK until the

parameter attributes are shown. Remove the parameter from Favourites by pressing Soft Key 2. This operation is indicated by the icon

Parameter Reference

D-179

Spd Direct Input

Parameters::Motor Control::Spd Direct Input

Only apply to SVC control mode, IM or PMAC.

Parameter Name

No.

Path

Default

Range

Units

Writable

Direct Input Select

0528

Parameters::Motor Control::Spd Direct
Input

0:NONE
1:ANIN1
2:ANIN2

ALWAYS

The direct input to the speed loop is an analog input which is sampled synchronously with the speed loop. This ensures that the speed
loop always has the most up-to-date value of the input, allowing it to respond faster. Either of the two analog inputs can be selected as
the direct input. If NONE is selected, the input is set to zero. When not in use, it should be disabled by selecting NONE.

Direct Input Ratio

0529

Parameters::Motor Control::Spd Direct
Input

1.0000

-10.0000 to 10.0000

ALWAYS

The Direct Input is multiplied by this parameter.

Direct Input Pos Lim

0530

Parameters::Motor Control::Spd Direct
Input

110.00

-600.00 to 600.00

ALWAYS

This limits the upper value of the Direct Input.

Direct Input Neg Lim

0531

Parameters::Motor Control::Spd Direct
Input

-110.00

-600.00 to 600.00

ALWAYS

This limits the lower value of the Direct Input.

Functional Description

The Drive is commanded to run the motor at a certain speed, which is derived from various sources, such as comms, analog inputs, commands from
the keypad, etc. Most of these are derived from sources which respond relatively slowly, eg every 1ms. For processes which require a faster
response, the direct input is provided. This is an analog input which is sampled synchronously with the speed loop, as described above. It is added
on to the other sources of speed command to give a total speed command.

D-180

Parameter Reference

Spd Loop Diagnostics

Parameters::Motor Control::Spd Loop Diagnostics

Refer to the diagram in

Spd Loop

Settings

function.

Only applies to SVC control mode, IM or PMAC.

Parameter Name

No.

Path

Default

Range

Units

Writable

Total Spd Demand RPM

0533

Parameters::Motor Control::Spd Loop
Diagnostics

x.xx

-100000.00 to 100000.00

RPM

NEVER

This diagnostic shows the final values of the speed demand in rpm obtained after summing all sources. This is the value which is
presented to the speed loop

Total Spd Demand %

0534

Parameters::Motor Control::Spd Loop
Diagnostics

x.xx

-200.00 to 200.00

NEVER

This diagnostic shows the final values of the speed demand as a % of

100% Speed in RPM

of the

Scale Setpoint

obtained after

summing all sources. This is the value which is presented to the speed loop.

Speed Loop Error

0535

Parameters::Motor Control::Spd Loop
Diagnostics

x.xx

-600.00 to 600.00

NEVER

This diagnostic shows the difference between the total speed demand and the speed feedback

Speed PI Output

0536

Parameters::Motor Control::Spd Loop
Diagnostics

x.xx

-600.00 to 600.00

NEVER

This diagnostic shows the difference between the total speed demand and the speed feedback

Speed Limiter Active

0536

Parameters::Motor Control::Spd Loop
Diagnostics

x.xx

-600.00

to 600.00

NEVER

This diagnostic is TRUE if the drive is in Torque Control mode ( i.e. Sel Torq Ctrl Only is TRUE ), the speed limiter validated ( i.e. Spd
Limiter Torq Ctrl is TRUE ) and the drive is in speed limit condition.

Parameter Reference

D-181

Spd Loop Settings

Parameters::Motor Control::Spd Loop Settings

This function block controls the speed of the motor by comparing the actual speed to the demanded speed, and applying more or less torque in
response to the error.

Only applies to SVC control mode, IM or PMAC.

Parameter Name

No.

Path

Default

Range

Units

Writable

Speed Loop Auto Set

1246

Parameters::Motor Control::Spd Loop
Settings

TRUE

ALWAYS

Only for PMAC Motor

TRUE : Allows to automatically calculate speed loop control parameters : Speed Loop Pgain and Speed Loop I Time.

To do a correct estimation, Ratio Load Mot Inert should be correctly filled in.

FALSE : no automatic calculation

Ratio Load Mot Inert

1247

Parameters::Motor Control::Spd Loop
Settings

1.0

0.1 to 100.0

ALWAYS

Only for PMAC Motor

Enter the correct inertia ratio between the load and the motor (For a no load condition, a value of 0.1 should be used).

This is used to automatically estimate the correct Speed Loop Pgain and Speed Loop I Time.

Speed Loop Bandwidth

1248

Parameters::Motor Control::Spd Loop
Settings

0:LOW
1:MEDIUM
2:HIGH

ALWAYS

Only for PMAC Motor

When Speed Loop Auto Set is TRUE, allows to select the speed loop bandwidth level :

Low :provides a low speed loop bandwidth

Medium : provides a medium speed loop bandwidth

High : provides a high speed loop bandwidth

D-182

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Speed Loop Pgain

0515

Parameters::Motor Control::Spd Loop
Settings

20.00

0.00 to 3000.00

ALWAYS

Sets the proportional gain of the loop.

Speed error x proportional gain = torque percent.

Speed Loop I Time

0516

Parameters::Motor Control::Spd Loop
Settings

0.100

0.001 to 1.500

ALWAYS

This is the integral time constant of the speed loop. A speed error which causes the proportional term to produce a torque demand T,
will cause the integral term to also ramp up to a torque demand T after a time equal to

Speed Loop I Time

Speed Loop Int Defeat

0517

Parameters::Motor Control::Spd Loop
Settings

FALSE

ALWAYS

When TRUE, the integral term does not operate.

Speed Loop Int Preset

0518

Parameters::Motor Control::Spd Loop
Settings

-600 to 600

ALWAYS

The integral term will be preset to this value when the drive starts.

Spd Loop Dmd Filt TC

0519

Parameters::Motor Control::Spd Loop
Settings

0.0

0.0 to 15.0

ALWAYS

The speed demand is filtered to reduce ripple. The filter is first order with time constant equal to the value of this parameter.

Spd Loop Fbk Filt TC

0520

Parameters::Motor Control::Spd Loop
Settings

1.0

0.0 to 15.0

ALWAYS

The speed feedback is filtered to reduce ripple. The filter is first order with time constant equal to the value of this parameter.

Parameter Reference

D-183

Parameter Name

No.

Path

Default

Range

Units

Writable

Spd Loop Aux Torq Dmd

0521

Parameters::Motor Control::Spd Loop
Settings

0.00

-600.00 to 600.00

ALWAYS

When the drive is operating in speed control mode, the value of this parameter is added on to the torque demand produced by the
speed loop PI. When the drive is operating in torque control mode (i.e.

Set Torq Ctrl Only

is TRUE) the speed loop PI does not

operate, and the torque demand becomes the sum of this parameter plus the DIRECT INPUT (if selected).

Spd Loop Adapt Thres

0523

Parameters::Motor Control::Spd Loop
Settings

0.00

0.00 to 10.00

ALWAYS

If the speed demand is less than the

Spd Loop Adapt Thres

, the speed loop proportional gain is the

Spd Loop Adapt Pgain

0524

Parameters::Motor Control::Spd Loop
Settings

20.00

0.00 to 300.00

ALWAYS

Proportional gain used if speed demand <

Spd Loop Adapt Thres

Spd Demand Pos Lim

0525

Parameters::Motor Control::Spd Loop
Settings

110.00

-110.00 to 110.00

ALWAYS

This sets the upper limit of the speed demand.

Spd Demand Neg Lim

0526

Parameters::Motor Control::Spd Loop
Settings

-110.00

-110.00 to 110.00

ALWAYS

This sets the lower limit of the speed demand.

Sel Torq Ctrl Only

0527

Parameters::Motor Control::Spd Loop
Settings

FALSE

ALWAYS

Selects between Speed Control mode and Torque Control mode. When TRUE, (Torque Control mode) the torque demand output from
the speed loop feature is the sum of the Direct Input plus the Spd Loop Aux Torq Dmd

parameter.

D-184

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Spd Limiter Torq Ctrl

1781

Parameters::Motor Control::Spd
Loop Settings

FALSE

ALWAYS

When set to TRUE, and the drive is in Torque Control mode, this parameter prevents operation outside the speed limits defined in Spd
Demand Pos Lim and Spd Demand Neg Lim. The torque setpoint is compensated if the motor speed reaches these speed limits.

Functional Description

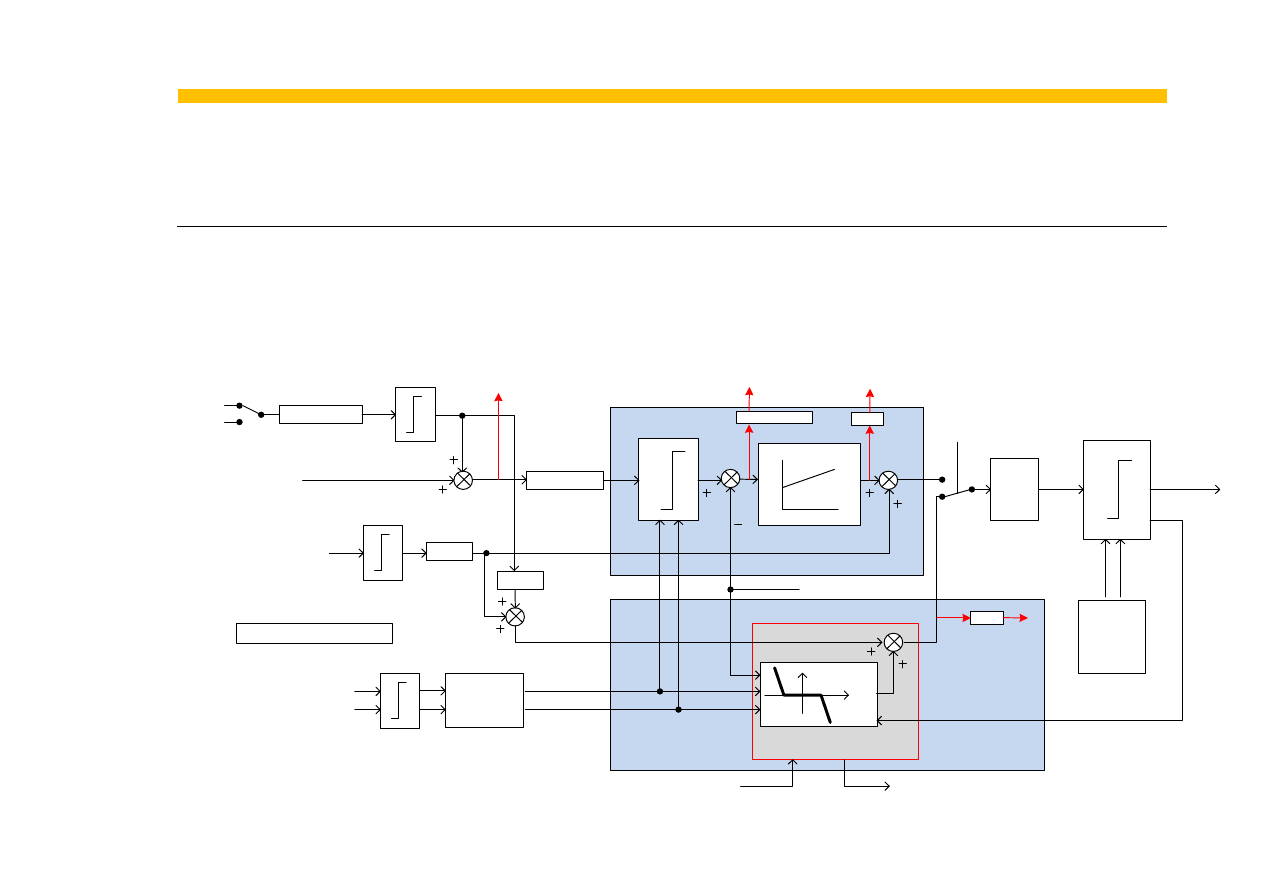

The speed error (speed demand minus speed feedback) is calculated and processed via a proportional + integral (PI) controller. The output of the
PI controller is a torque demand, which is passed directly to the torque control feature.

When the drive is in SENSORLESS VEC mode, the speed feedback is calculated from the voltages and currents flowing in the motor, and the motor
model.

Speed reference %

Direct input

Aux torque demand %

Speed limiter

Filter on

Torque

Demand

Speed Feedback Hz

Sel Torq Ctrl Only

Compensated torque reference

Pos torque %

Neg torque %

x (scaling/100)

x 1/100

-300%

300%

-300%

Neg speed Hz

Pos speed Hz

Spd demand Neg Lim %

Spd demand Pos Lim %

-110%

110%

% to Hz :

x ( scaling/100 )

525

526

464

speed

torque

534

x (100/scaling)

x100

535

536

scaling = 100% Speed in RPM/60

1.0 = 100% Torque

521

anin1

anin2

Volts/amps to %

530

531

Torque

Limit

In torque limit

x100

536

Spd Limiter Active

1781

Spd Limiter Torq Ctrl

1780

TORQUE CONTROL

SPEED CONTROL

Parameter Reference

D-185

Speed Error Trip

Parameters::Trips::Speed Error Trip

This function allows the user to program the response of the drive in a situation where persistent speed error (as a difference between setpoint and
actual measured or estimated speed) occurs.

Parameter Name

No.

Path

Default

Range

Units

Writable

Speed Error Trip Enable

1746

Parameters::Trips::Speed Error Trip

TRUE

ALWAYS

A boolean that enables the speed error trip.

Speed Error Threshold

1747

Parameters::Trips::Speed Error Trip

50.00

0.00 to 100.00

ALWAYS

Level of speed error required to trigger the trip.

Speed Error Trip Delay

1748

Parameters::Trips::Speed Error Trip

10.000

0.000 to 2000.000

ALWAYS

Time period after which the drive trips. After half of this time a warning is issued.

Functional Description

If the difference between the setpoint and the actual motor speed is greater than a level defined in parameter 1747

(Speed Error Threshold)

for a period longer than time defined in parameter 1748

(Speed Error Trip Delay)

, the drive will trip. After half of that period a warning will be

produced. This is only operational if enabled via parameter 1746

(Speed Error Trip Enable).

D-186

Parameter Reference

Speed Ref

Parameters::Motor control::Speed Ref

This function holds all the parameters concerning the generation of the setpoint reference (reference ramp, speed trim, setpoint reverse, etc.).

Parameter Name

No.

Path

Default

Range

Units

Writable

Ref Min Speed Clamp

1264

Parameters::Motor Control::Speed Ref

-110.00

-110.00 to 0.00

ALWAYS

Minimum value for

Ramp Speed Output

Ref Max Speed Clamp

1265

Parameters::Motor Control::Speed Ref

110.00

0.00 to 110.00

ALWAYS

Maximum value for

Ramp Speed Output

Ref Speed Trim

1266

Parameters::Motor Control::Speed Ref

0.00

-300.00 to 300.00

ALWAYS

The trim is added to the ramp output to form the

Ramp Speed Output

(unconditionally in remote mode).

In local mode, it is added is the

Ref Trim Local

parameter is set to TRUE

Ref Trim Local

1267

Parameters::Motor Control::Speed Ref

FALSE

ALWAYS

When TRUE, the trim is added to the ramp output in local mode.

When FALSE, the trim is not added to the ramp output in local mode.

Parameter Reference

D-187

Stabilisation

Parameters::Motor Control::Stabilisation

Designed for VOLTS/Hz motor Control Mode.

Parameter Name

No.

Path

Default

Range

Units

Writable

Stabilisation Enable

0364

Parameters::Motor Control::Stabilisation

TRUE

ALWAYS

Enable/Disable stabilisation

Functional Description

Enabling this function reduces the problem of unstable running in induction motors. This can be experienced at approximately half full speed, and
under low load conditions.

D-188

Parameter Reference

Stack Inv Time

Parameters::Motor Control::Stack Inv Time

The purpose of the inverse time is to automatically reduce the drive current limit in response to prolonged overload conditions.

For a short time given by Short Overload Time, the drive is able to provide the Short Overload Level

For a long time given by Long Overload Time, the drive is able to provide the Long Overload Level

These 2 protections work in parallel, the output limit current is the maximum value if

Inv Time Active

= False. If

Inv Time Active

= True, the

current limit is determined by Long Overload Level

the current limit is not yet ramped down. If already ramped down, the current limit is due to the long overload.

When the maximum overload value is reached, the inverse time current limit is ramped down. The rate at which the inverse time current limit is
ramped to the Inv Aiming Point is defined by

Inv Time Down Rate

. When the overload condition disappears, the inverse time current limit is ramped

up. The rate at which the inverse time current limit is ramped to the maximum value is defined by

Inv Time Up Rate.

% Are all referring to drive/stack ratings.

Parameter Name

No.

Path

Default

Range

Units

Writable

100% Stk Current

0343

Parameters::Motor Control::Stack Inv
Time

x.x

0.0 to 10000.0

NEVER

Stack rating in rms amps corresponding to 100% stack current

Long Overload Level

0344

Parameters::Motor Control::Stack Inv
Time

0 to 200

NEVER

Overload value in % of the stack amps for long overload condition(*)

Long Overload Time

0345

Parameters::Motor Control::Stack Inv
Time

0.000 to 100000.000

NEVER

Maximum duration under long overload condition (typically 60s)

Parameter Reference

D-189

Parameter Name

No.

Path

Default

Range

Units

Writable

Short Overload Level

0346

Parameters::Motor Control::Stack Inv
Time

0 to 200

NEVER

Overload value in % of the stack amps for short overload condition(*)

Short Overload Time

0347

Parameters::Motor Control::Stack Inv
Time

0.000 to 10000.000

NEVER

Maximum duration under short overload condition (typically 3s)

Inv Time Aiming Point

0348

Parameters::Motor Control::Stack Inv
Time

105.00

0.00 to 125.00

ALWAYS

Current in % where the power stack can undertake the load current permanently

Inv Time Output

0349

Parameters::Motor Control::Stack Inv
Time

0 to 600

NEVER

Actual output current limit as a % of the stack current

Inv Time Up Rate

0350

Parameters::Motor Control::Stack Inv
Time

5.000

0.000 to 120.000

STOPPED

Ramp value to ramp up current when overload condition disappears

Inv Time Down Rate

0351

Parameters::Motor Control::Stack Inv
Time

5.000

0.000 to 120.000

STOPPED

Ramp value to reach the aiming point under prolonged overload condition

Inv Time Warning

0352

Parameters::Motor Control::Stack Inv
Time

NEVER

The protection starts to integrate overload conditions

D-190

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Inv Time Active

0353

Parameters::Motor Control::Stack Inv
Time

NEVER

The drive protection is limiting the output current

(*) : Depending on the frame size, overload capabilities are reduced when the electrical speed is below 3Hz and with the heatsink temperature. Refer
to Parker Hannifin Manufacturing for detailed values.
Above 3Hz electrical speed, overload capabilities are those defined by the

0390 Duty Selection

Functional Description

Stack Short overload

Stack Long overload

arbitration

Motor overload (

150%, 60s)

Min

Feedback Amps

Move to Stack %

Convert to Motor %

Motor Load (Only for IM Motor)

Inv Time in Motor %

Inv Time Output

Short Overload : is using 180% of the Heavy Duty rating, for 3s.
Long Overload : is using the overload mode selected in

0390 Duty Selection

Inv Time in Motor %

is used to limit the current. It is one of the inputs of the

Current Limit

Function features

Parameter Reference

D-191

Stall Trip

Parameters::Trips::Stall Trip

The function protects the motor from damage that may be caused by continuous operation beyond specification.

Parameter Name

No.

Path

Default

Range

Units

Writable

Stall Limit Type

0906

Parameters::Trips::Stall Trip

0:TORQUE
1:CURRENT
2:TORQUE OR CURRENT

ALWAYS

This parameter determines whether the stall trip operates on motor toque, on motor current, on motor torque or motor current.

Stall Time

0907

Parameters::Trips::Stall Trip

120.000

0.100 to 2000.000

ALWAYS

The time after which a stall condition will cause a trip.

Stall Torque Active

0909

Parameters::Trips::Stall Trip

NEVER

TRUE if tripped under torque trip operation

Stall Current Active

0910

Parameters::Trips::Stall Trip

NEVER

TRUE is tripped under current trip operation

Stall Speed Feedback

0911

Parameters::Trips::Stall Trip

-200 to 200

NEVER

A copy of the speed Feedback in Hz

Functional Description

If Stall Limit Type is set to TORQUE and the estimated load exceeds the active TORQUE LIMIT for a time greater than

Stall Time,

then the stall trip

will become active.

If the Stall Limit Type is set to CURRENT and the measured current exceeds the active Current Limit for a time greater than

Stall Time,

then the

stall trip will become active.

D-192

Parameter Reference

System Board IO

Parameters::System Board::System Board IO

Parameter Name

No.

Path

Default

Range

Units

Writable

Output Enable

1678

Setup::Inputs and Outputs::System
Board Option
Parameters::System Board::System
Board IO

FALSE

ALWAYS

Turns on the system board A, B and Z outputs.

Output Source

1679

Same as PNO 1678

0:SYSTEM BOARD SLOT 1
1:SYSTEM BOARD SLOT 2
2:SYNTHETIC ENCDR
3:DIGITAL OUTPUTS

STOPPED

Selects the source of the retransmit output. i.e. Slot 1, Slot 2, or synthetic encoder.

Output Voltage

1680

Same as PNO 1678

0:5 V
1:12 V
2:15 V
3:20 V

ALWAYS

Sets the voltage output of the system board encoder retransmit.

Synth Encoder Lines

1696

Same as PNO 1678

2048

1 to 15000000

ALWAYS

Number of lines per revolution to be simulated by the synthetic encoder function. This affects the Z output pulse.

Synth Encoder Speed

1698

Same as PNO 1678

0 to 15000000

RPM

ALWAYS

Simulated speed to output when the synthetic encoder mode is selected.

Synth Encoder Invert

1702

Same as PNO 1678

FALSE

ALWAYS

Sets the direction of the synthetic encoder rotation.

Parker Variable Speed Drive AC30 series. User’s Manual (2017) - page 30
