Preset Speeds

Setup::Application::Preset Speeds
Monitor::Application::Preset Speeds*

This function is available when the

Presets

macro is selected.

The

Presets

function selects 1 of 8 values to be used as a reference.

Parameter Name

No.

Path

Default

Range

Units

Writable

Preset Speed 0

1916

Setup::Application::Preset Speeds

0.0

-100.0 to 100.0

ALWAYS

Preset Speed Output when Selected Preset equals 0

Preset Speed 1

1917

Setup::Application::Preset Speeds

0.0

-100.0 to 100.0

ALWAYS

Preset Speed Output when Selected Preset equals 1

Preset Speed 2

1918

Setup::Application::Preset Speeds

0.0

-100.0 to 100.0

ALWAYS

Preset Speed Output when Selected Preset equals 2

Preset Speed 3

1919

Setup::Application::Preset Speeds

0.0

-100.0 to 100.0

ALWAYS

Preset Speed Output when Selected Preset equals 3

Preset Speed 4

1920

Setup::Application::Preset Speeds

0.0

-100.0 to 100.0

ALWAYS

Preset Speed Output when Selected Preset equals 4

Preset Speed 5

1921

Setup::Application::Preset Speeds

0.0

-100.0 to 100.0

ALWAYS

Preset Speed Output when Selected Preset equals 5

Preset Speed 6

1922

Setup::Application::Preset Speeds

0.0

-100.0 to 100.0

ALWAYS

Preset Speed Output when Selected Preset equals 6

Preset Speed 7

1923

Setup::Application::Preset Speeds

0.0

-100.0 to 100.0

ALWAYS

Preset Speed Output when Selected Preset equals 7

Selected Preset

1924

Monitor::Application::Preset Speeds

0 to 7

NEVER

Monitor showing selected preset number

Preset Speed Output

1925

Monitor::Application::Preset Speeds

-100.0 to 100.0

NEVER

Monitor showing selected preset value

Select 0

This is connected to a Digital Input as part of the selected macro. It provides bit 0 of the Selected Preset number.

Select 1

This is connected to a Digital Input as part of the selected macro. It provides bit 1 of the Selected Preset number.

Select 2

This is connected to a Digital Input as part of the selected macro. It provides bit 2 of the Selected Preset number.

D-146

Parameter Reference

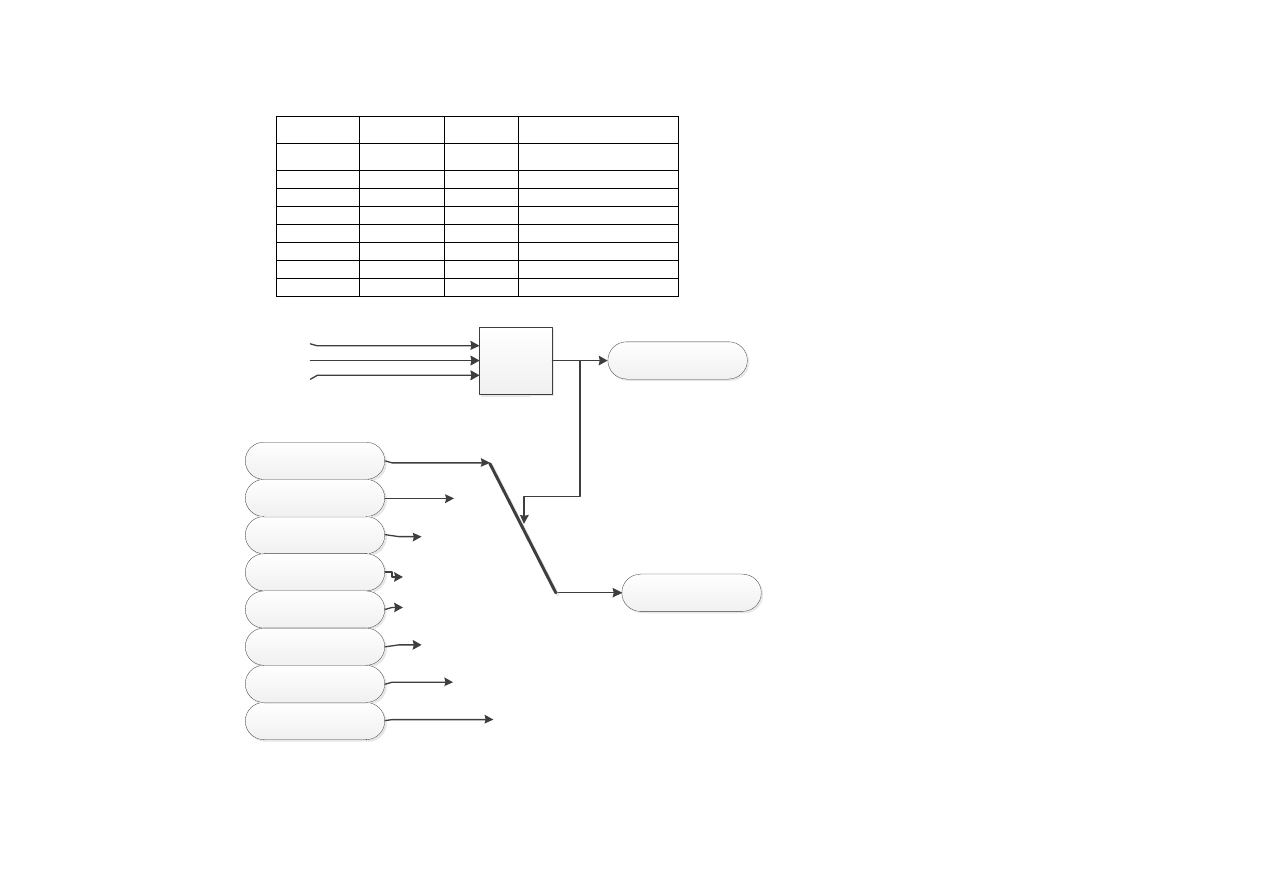

Functional Description

Select 2

Select 1

Select 0

Selected Preset

FALSE

Preset Speed 0

FALSE

TRUE

Preset Speed 1

FALSE

TRUE

FALSE

Preset Speed 2

FALSE

TRUE

Preset Speed 3

TRUE

FALSE

TRUE

Preset Speed 4

TRUE

FALSE

Preset Speed 5

TRUE

FALSE

Preset Speed 6

TRUE

FALSE

Preset Speed 7

Preset Speed Output

Preset Speed 0

Preset Speed 1

Preset Speed 2

Preset Speed 3

Preset Speed 4

Preset Speed 5

Preset Speed 6

Preset Speed 7

Selected Preset

Select 0

Select 1

Select 2

Parameter Reference

D-149

Raise Lower

Setup::Application::Raise Lower
Monitor::Application::Raise Lower*

Appears when the

Raise/Lower

macro is selected.

The

Raise/Lower

function acts as an internal motorised potentiometer (MOP) used as a reference source.

Parameter Name

No.

Path

Default

Range

Units

Writable

RL Ramp Time

1901

Setup::Application::Raise Lower

10.0

0.0 to 600.0

ALWAYS

Rate of change of the

Output

. Defined as the time to change from 0.00% to 100.00% . Note that the raise and lower rates are always

the same.

L Reset Value

1902

Setup::Application::Raise Lower

0.0

-500.0 to 500.0

ALWAYS

The value Output is set to when the Reset Input is TRUE.

RL Maximum Value

1903

Setup::Application::Raise Lower

100.0

-500.0 to 500.0

ALWAYS

The maximum value to which

Output

will ramp up to.

RL Minimum Value

1904

Setup::Application::Raise Lower

-100.0

-500.0 to 500.0

ALWAYS

The minimum value to which

Output

will ramp down to.

Reset Input

This is connected to a Digital Input as part of the selected Macro. When TRUE forces

Output

to track

Reset Value

Raise Input

This is connected to a Digital Input as part of the selected Macro. When TRUE causes

Output

to ramp up.

D-150

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Lower Input

This is connected to a Digital Input as part of the selected Macro. When TRUE causes

Output

to ramp down.

Raise Lower Output

1905

Monitor::Application::Raise Lower

0.0

-500.0 to 500.0

NEVER

The ramp output monitor.

Output

is preserved during the power-down of the Drive.

Functional Description

The table below describes how

Output

is controlled by

Raise Input

Lower Input

and

Reset Input

Reset

Raise Input

Raise Output

Action

TRUE

Any

Output

tracks

Reset Value

FALSE

TRUE

FALSE

Output

ramps up to

Maximum Value

Ramp Time

FALSE

TRUE

Output

ramps down to

Minimum Value

Ramp Time

FALSE

Output

not changed. *

FALSE

TRUE

Output

not changed. *

* If

Output

is greater than

Maximum Value

the

Output

will ramp down to

Maximum Value

Ramp Time

. If

Output

is less

than

Minimum Value

the

Output

will ramp up to

Minimum Value

Ramp Time

IMPORTANT:

If Maximum Value is less than or equal to Minimum Value, then Output is set to Maximum Value.

Parameter Reference

D-151

Ramp

Parameters::Motor Control::Ramp

This function forms part of the reference generation. It provides the facility to control the rate at which the Drive will respond to a changing setpoint
demand.

Parameter Name

No.

Path

Default

Range

Units

Writable

Seq Stop Method VHz

0484

Setup::Motor Control::Control and Type
Parameters::Motor Control::Ramp

0:DISABLED VOLTAGE
1:RAMP
2:STOP RAMP
3:DC INJECTION

ALWAYS

Volts/Hz control mode only

Selects stopping mode that the controller will use once the run command has been removed. The choices are:

Enumerated Value : Stopping Mode

Seq Stop Method SVC

1257

Setup::Motor Control::Control and Type
Parameters::Motor Control::Ramp

0:DISABLED VOLTAGE
1:RAMP
2:STOP RAMP

ALWAYS

All Control modes except Volts/Hz

Selects stopping mode that the controller will use once the run command has been removed. The choices are:

Enumerated Value : Stopping Mode

When DISABLED VOLTAGE ( COAST ) is selected the motor will free-wheel. When RAMP is selected the Drive will decelerate using
the reference ramp deceleration time, provided it is non-zero. When STOP RAMP is selected the motor will decelerate in

Stop Ramp

Time

Acceleration Time

0486

Same as PNO 484

10.000

0.000 to 3000.000

ALWAYS

The time that the Drive will take to ramp the setpoint from 0.00% to 100.00% when

Ramp Type

is LINEAR.

Deceleration Time

0487

Same as PNO 484

10.000

0.000 to 3000.000

ALWAYS

The time that the Drive will take to ramp the setpoint from 100.00% to 0.00% when

Ramp Type

is LINEAR.

D-152

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Symmetric Mode

0488

Parameters::Motor Control::Ramp

FALSE

ALWAYS

Select whether to use

Acceleration Time

and

Deceleration Time

pair of ramp rates, or to use

Symmetric Time

to define the ramp

rate for the Drive.

Ramp Type

0485

Parameters::Motor Control::Ramp

0:LINEAR
1:S RAMP

ALWAYS

Selects the ramp type

Symmetric Mode

0488

Parameters::Motor Control::Ramp

FALSE

ALWAYS

Symmetric Time

0489

Parameters::Motor Control::Ramp

10.000

0.000 to 3000.000

ALWAYS

The time that the Drive will take to ramp from 0.00% to 100.00% and from 100.00% to 0.00% when

Symmetric Mode

is TRUE.

Sramp Continuous

0490

Parameters::Motor Control::Ramp

FALSE

ALWAYS

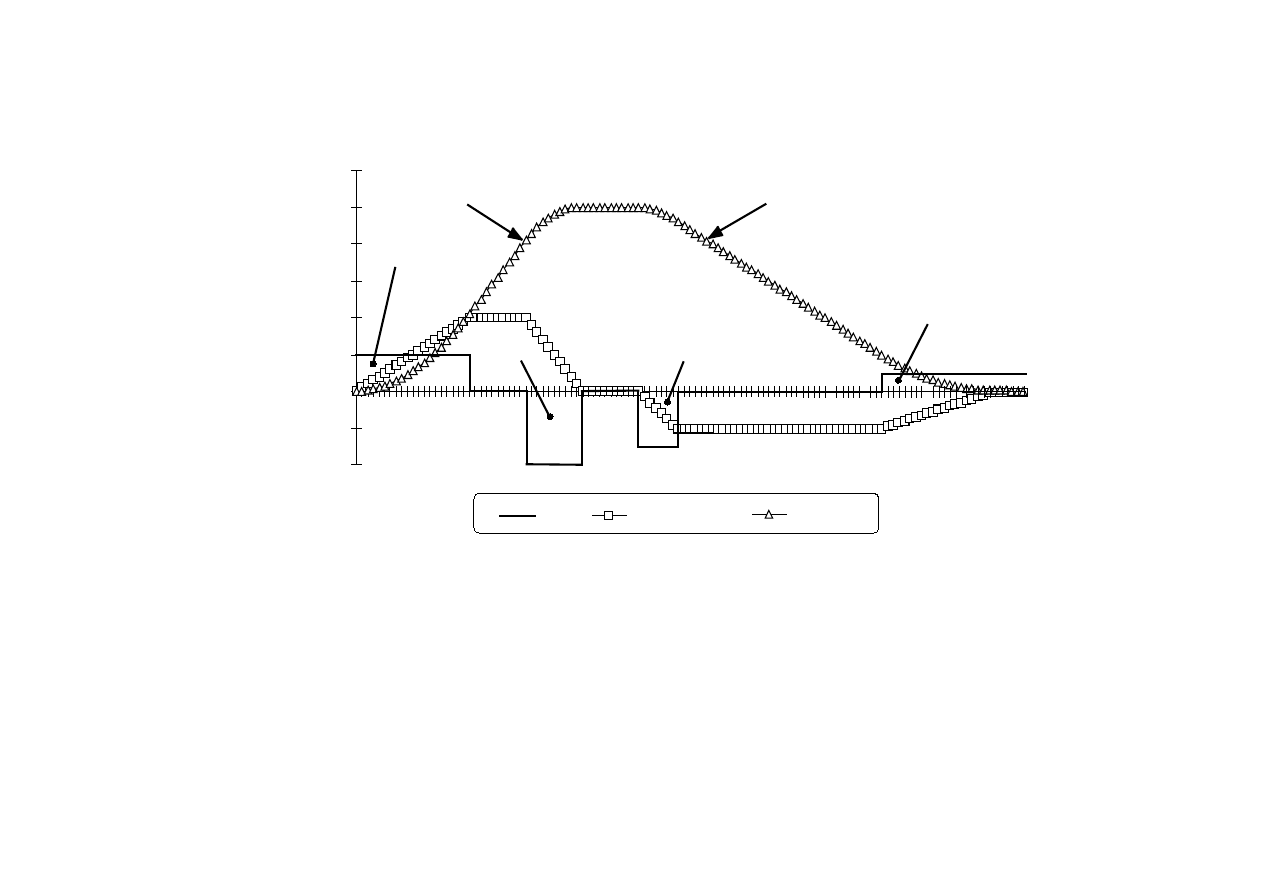

When TRUE, and S ramp is selected in

Ramp Type

, forces a smooth transition if the speed setpoint is changed when ramping. The

curve is controlled by the

Sramp Acceleration

and

Sramp Jerk1

Sramp Jerk 4

parameters. When FALSE, there is an immediate

transition from the old curve to the new curve.

Sramp Acceleration

0491

Parameters::Motor Control::Ramp

10.0

0.0 to 100.0

%/s²

ALWAYS

Sets the acceleration rate in units of percent per second², i.e. if the full speed of the machine is 1.25m/s then the acceleration will be:

1.25 x 75.00% = 0.9375m/s²

Sramp Deceleration

0492

Parameters::Motor Control::Ramp

10.0

0.0 to 100.0

%/s²

ALWAYS

This functions in the same way as

Sramp Acceleration

above.

Parameter Reference

D-153

Parameter Name

No.

Path

Default

Range

Units

Writable

Sramp Jerk 1

0493

Parameters::Motor Control::Ramp

10.0

0.0 to 100.0

%/s³

ALWAYS

Rate of change of acceleration for the first segment of the curve in units of percent per second³, i.e. if the full speed of the machine is
1.25m/s then the jerk will be:

1.25 x 50.00% = 0.625m/s³

Sramp Jerk 2

0494

Parameters::Motor Control::Ramp

10.0

0.0 to 100.0

%/s³

ALWAYS

Rate of change of acceleration in units of percent per second³ for segment 2

Sramp Jerk 3

0495

Parameters::Motor Control::Ramp

10.0

0.0 to 100.0

%/s³

ALWAYS

Rate of change of acceleration in units of percent per second³ for segment 3

Sramp Jerk 4

0496

Parameters::Motor Control::Ramp

10.0

0.0 to 100.0

%/s³

ALWAYS

Rate of change of acceleration in units of percent per second³ for segment 4

Ramp Hold

0497

Parameters::Motor Control::Ramp

FALSE

ALWAYS

When TRUE the output of the ramp is held at its last value

Ramping Active

0498

Parameters::Motor Control::Ramp

NEVER

Set TRUE when ramping.

Ramp Spd Setpoint Input

0499

Parameters::Motor Control::Ramp

x.x

-200.0 to 200.0

NEVER

Input speed setpoint to the ramp

D-154

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Ramp Speed Output

0500

Parameters::Motor Control::Ramp

x.x

-200.0 to 200.0

NEVER

Output speed

Jog Setpoint

0501

Parameters::Motor Control::Ramp

10.0

0.0 to 100.0

ALWAYS

The setpoint is the target reference that the Drive will ramp to

Jog Acceleration Time

0502

Parameters::Motor Control::Ramp

1.000

0.000 to 3000.000

ALWAYS

The time that the Drive will take to ramp the jog setpoint from 0.00% to 100.00%.

Jog Deceleration Time

0503

Parameters::Motor Control::Ramp

1.000

0.000 to 3000.000

ALWAYS

The time that the Drive will take to ramp the jog setpoint from 100.00% to 0.00%.

Stop Ramp Time

0504

Same as PNO 484

10.000

0.000 to 600.000

ALWAYS

Rate at which the demand is ramped to zero after the ramp has been quenched

Zero Speed Threshold

0505

Parameters::Motor Control::Ramp

0.1

0.0 to 100.0

ALWAYS

Hold for zero speed detection used by stop sequences

Zero Speed Stop Delay

0506

Parameters::Motor Control::Ramp

0.500

0.000 to 30.000

ALWAYS

Sets the time at which the Drive holds zero speed before quenching after a normal stop or a jog stop. This may be particularly useful if
a mechanical brake requires time to operate at zero speed, or for jogging a machine to position

Parameter Reference

D-155

Parameter Name

No.

Path

Default

Range

Units

Writable

Quickstop Time Limit

0507

Parameters::Motor Control::Ramp

30.000

0.000 to 3000.000

ALWAYS

Maximum time that the Drive will try to Quickstop, before quenching

Quickstop Ramp Time

0508

Parameters::Motor Control::Ramp

0.100

0.000 to 600.000

ALWAYS

Rate at which the

Speed Demand

is ramped to zero when Quickstop is active

Final Stop Rate

0509

Parameters::Motor Control::Ramp

1200

1 to 4800

Hz/s

ALWAYS

Rate at which any internally generated setpoint trims are removed. For example, the trim due to the slip compensation in Volts/Hz
control mode.

Parameter Reference

D-157

Real Time Clock

Parameters::Device Manager::Real Time Clock

Parameter Name

No.

Path

Default

Range

Units

Writable

Time and Date

1186

Parameters::Device Manager::Real Time
Clock

1970/01/01

1970/01/01 to 2106/02/07

ALWAYS

Time and Date in the format yyyy/mm/dd hh:mm:ss

Functional Description

IO Option Fitted with Real Time Clock

When an IO Option is fitted, (part number 7004-01-00 or 7004-02-00), this parameter reports the time from the associated Real Time Clock
hardware. On receiving an IO Option from the factory the time is not set and the value will be fixed at 1970/01/01 00:00:00. To set the correct time
write to parameter 1186. Once set the RTC hardware on the IO option will maintain the time even when power to the drive is removed.

No IO Option

When no IO Option is fitted this parameter may be used as the destination of a broadcast time from a communications master.

D-158

Parameter Reference

Resolver

Setup::Inputs and Outputs::Option
Parameters::Option IO::Resolver

Parameter Name

No.

Path

Default

Range

Units

Writable

Resolver Voltage

1790

Setup::Inputs and Outputs::Option
Parameters::Option IO::Resolver

0:0V
1:4V
2:5V
3:6V
4:7V
5:8V
6:9V
7:10V
8:11V
9:12V

STOPPED

The r.m.s. amplitude of the sinusoidal excitation voltage output.
This is set to the resolver’s requirement.
Setting 0V will disable the excitation output.

Resolver Frequency

1791

Same as PNO 1790

8.0

2.0 to 20.0

kHz

STOPPED

The frequency of the sinusoidal excitation voltage output.
This is set to the resolver’s requirement.

Resolver Ratio

1792

Same as PNO 1790

0.50

0.15 to 3.00

STOPPED

The ratio of the amplitudes of the sine / cosine feedbacks to the excitation voltage output.
This is set to the resolver’s characteristic.

Resolver Max Speed

1825

Setup::Inputs and Outputs::Option
Parameters::Option IO::Resolver

20000

0 to 120000

RPM

STOPPED

Parameter Reference

D-159

Parameter Name

No.

Path

Default

Range

Units

Writable

The maximum operating resolver shaft speed required.
This is set to the application requirements, which must be no greater than the resolver rating.
If the resolver is not the active feedback, this is used to auto-select the best possible speed / position resolution.

Resolver Poles

1793

Same as PNO 1790

2 to 100

STOPPED

        The number of poles in the resolver.
        This is set to the resolver’s characteristic
        A 2-pole resolver has one sine / cosine amplitude cycle for each mechanical rotation of the shaft.

Resolver Speed Hz

1822

Parameters::Option IO::Resolver

x.x

NEVER

The mechanical gearing of the resolver, reflecting resolver shaft turns per resolver coil turn.
This is set to the resolver’s characteristic.
For example, a multi-turn 2-pole resolver, that requires 10 resolver shaft rotations for each sine / cosine amplitude cycle, would use value 10.0.

Resolver Invert

1810

Same as PNO 1790

FALSE

STOPPED

Used to set the direction of rotation which results in the position increasing positively, and the speed reporting as positive.

resolver position

1824

Same as PNO 1811

NEVER

(ENGINEER view level only.)
Actual resolver coil position, expressed as a count value, where one complete amplitude cycle is 65536 counts.

Resolver Turns

1811

Monitor::Inputs and Outputs
Parameters::Option IO::Resolver

NEVER

The integer number of completed resolver shaft mechanical turns.

Resolver Fraction Turns

1812

Same as PNO 1811

NEVER

The fractional part of the number of resolver shaft mechanical turns.

Resolver Speed Filter

1815

Same as PNO 1790

1000

10 to 10000

ALWAYS

The corner frequency of the speed-tracking, single-order filter applied to the raw resolver speed, before it is reported in the Resolver Speed
parameters or used as speed feedback.
Expressed in terms of the ratio of filter corner frequency to raw resolver cycle frequency.
Used to remove speed ripple caused by the resolver measurement, particularly when the option is used as a reference speed input.

D-160

Parameter Reference

Parameter Name

No.

Path

Default

Range

Units

Writable

Resolver Min Filter

1851

Same as PNO 1825

100

10 to 1000

ALWAYS

Limit applied as the minimum corner frequency of the speed-tracking, single-order filter applied to the raw resolver speed.
Used to prevent the speed-tracking filter from causing control instabilities at low speed.

Resolver Actual Filter

1826

Parameters::Option IO::Resolver

20 to 8000

NEVER

The actual corner frequency being used for the speed-tracking, single-order filter applied to the raw resolver speed.
The actual filter corner frequency is limited to 8000Hz maximum.

Resolver speed RPM

1813

Parameters::Option IO::Resolver

x.x

RPM

NEVER

Resolver mechanical speed diagnostic / output.

Resolver Speed %

1814

Same as PNO 1811

x.x

NEVER

Resolver mechanical speed diagnostic / output.

Resolver Speed Hz

1821

Parameters::Option IO::Resolver

x.x

NEVER

Resolver mechanical speed diagnostic / output.

Resolver Speed Ripple

1823

Parameters::Option IO::Resolver

x.xx

0.00 to 1000.00

NEVER

The peak-to-peak ripple in resolver speed samples.
Used to assist the trimming process which gain matches the sine to cosine inputs.
Calculated from max. speed – min. speed over last 128 samples on a 1ms sampling interval.
% is scaled by

464 100% Speed in RPM

Resolver Resolution

1816

Same as PNO 1790

0:AUTO
1:12 BITS
2:14 BITS
3:16 BITS

STOPPED

The target resolution setting for the speed / position feedback.
See ‘Specifications’ for limitations, prior to changing this parameter.
The ‘AUTO’ setting is used to automatically select the best, allowable resolution, given other parameter settings.
The resolution setting affects the dynamic performance of the feedback. In ‘AUTO’ mode, the actual resolution in use may be different from the
target resolution, depending on other parameter settings
Only change this parameter when motor is stopped / torque is off.

Parker Variable Speed Drive AC30 series. User’s Manual (2017) - page 28
