Operating and Maintenance Manual 148
Appendix
Crawler type and application
Choosing the track shoe meet the operating requirements.
According to the floatability and grounding pressure to choose the width of the track shoe, choosing the
narrowest track shoe possibly. If the used track shoe is wider than needed, it will increase the load of the
track shoe, and lead the track bend, link broken pin-axis broken, loosen of the track shoe and other kinds of
problems.
List 4-3 Crawler use table
Type
Use
Notices when using
Stony ground, riverbed,
If the ground has big obstacles, like cobble, down-tree and rough ground, using the
A
common earth
low speed to travel.
Only can use the high speed and medium speed on the level ground; if passing the
Common earth, and soft
obstacles can not be avoided, slow down the machine and use the half speed of the
B
ground
low speed to travel; can not be used on the rough ground with cobble and
down-tree.
Extra-soft groun（marshland
Only use this type when the machine sink and the places where the type A and B
C
ground）
can not be used.
List 4-4 Track shoe type table
XE210C/XE210C3Ⅶ/XE210C2/XE210C2Ⅶ
Technical specification
Type
Standard
600mm three grousers track shoe
A
Selective
700mm three grousers track shoe
B
purchasing
Selective
800mm three grousers track shoe
C
purchasing
Attention：700, 800mm width track shoe can not be used on the ground with lots of gravels and
stones.
r
Operating and Maintenance Manual 149
Bucket type and application
List 4-5 Bucket application table
Bucket capacity
XE210C/XE210C3Ⅶ/XE210C2/XE210C2Ⅶ
Bucket type
(m3)
(Pileup)
2.52m
2.91m
Bucket Lever
Bucket Lever
Strengthened
0.8
△
△
bucket
Strengthened
0.91
△
△
bucket
Strengthened
1.0
△
h
bucket
Strengthened
1.1
h
h
bucket
Light load bucket
1.0
ƻ
ƻ
Light load bucket
1.2
h
h
Rock bucket
0.7
■
■
Rock bucket
0.8
■
■
Rock bucket
0.9
■
h
Rock bucket
1.0
h
h
Notice：the meanings of the symbols on the above table.
ƻ：Light load digging
■：Heavy load digging
h：Can not be used
z
Application type
Heavy load digging: digging or loading mountain gravel, explosion stone, hard clay, soft stone and so
on.
Common digging: digging or loading sand, gravel, clay and common earth.
Light load digging: digging or loading dry and incompact earth, sand, mud and so on. Their volume
density is required below 1600kg/m3.
Importance： using the improper bucket may lead serious damage of the boom, arm,
hydraulic cylinders and other working device elements.
z
For digging or loading hard soil or stone, suggested to use the rock bucket with high intensity and
high degree anti-wear ability。
r
Operating and Maintenance Manual 150
Hammer-type Knapper (Optional)
Relief valve
Front
Operational
Bucket
Moving
Knapper
Excavator
pedal
lever
arm
Body frame
Pump
Left front
Right front
Relief valve
Hydraulic
Off: not used
oil tank
Control valve
On: used

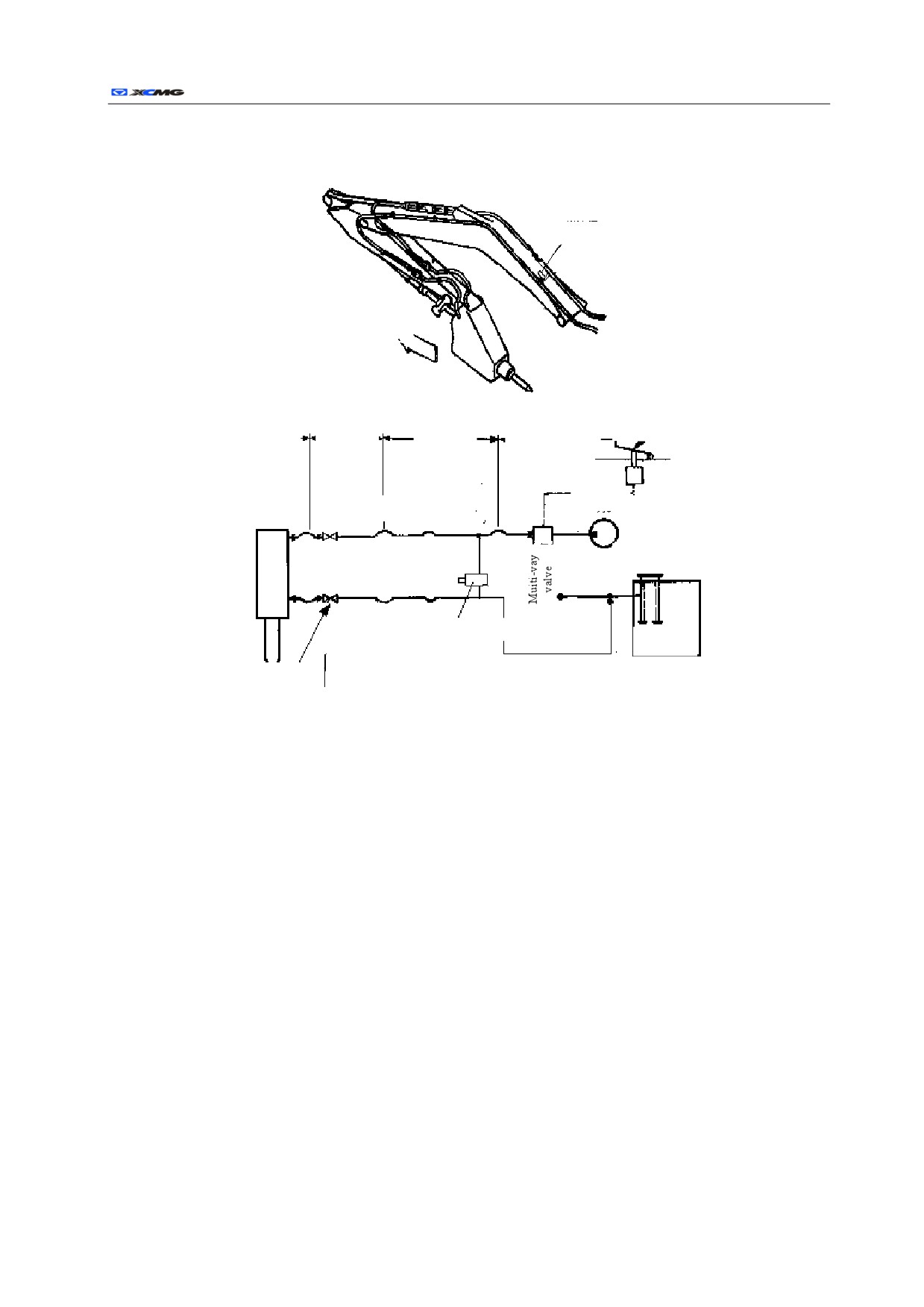

Fig. 1-2 Drawing of hammer-style knapper
The operator must choose proper hammer-style knapper for the equipment.
Before installing the knapper onto scoop lever, please read carefully this book and operational manual of
hammer-style knapper and verify or check it according to the requirement. The installment of knapper tubing
should refer to the above picture.
Important: when connecting tubes of hammer-style knapper, pay more attention to: 1)
while changing the bucket or scoop into knapper, don’t let the dirt enter hydraulic
system.2) when the knapper is not in use, lid should be placed on the tube inlet on the top
of scoop lever and the plug should be put on the hose end of the knapper to prevent the
dirts into the system. While standby lid and plug must be contained in toolkit for the
convenience of usage.3) after the connection, check the sealing of connection to see if there
is any oil leakage or flexibility of pipe connectors.
z
Weight of hammer-style knapper
a)
When the components other than the standard bucket is installed on the machine, the stability of
machine may change, for the heavy parts will not only affect the controlling ability, but also reduce
the stability of the machine, leading to the problem of safety possibly.
r
Operating and Maintenance Manual 151
b)
Before installing hydraulic hammer-style knapper, make sure to take the controlling ability of the
knapper into consideration and refer to the following list to choose hammer-style knapper.
List 1-1 Permitted weight of hammer-style knapper
Basic Machine
Hammer-style knapper
Standard Weight,
Type
Bucket Lever
Max. Weight, kg
kg
XE210C
1500
1750
XE210C3Ⅶ
Standard
1500
1750
XE210C2
1500
1750
XE210C2Ⅶ
1500
1750
c)
When choosing the hammer-style knapper, weight is not the only considered factor, instead,
“SPECIFICATION LIST OF HAMMER-STYLE KNAPPER” should be referred to choose the best.
d)
Hammer-style knapper with too big installment length should be avoided, which may lead to the
damage on the knapper.
e)
While putting on the knapper with the max. weight listed above make sure to stand in the front or at
the rear of the machine, meanwhile try your best not to work at the max. working radius of the
machine.
z
Specification of hammer-style knapper
The following list shows some hammer-style knapper, which can be fixed on Xugong excavator.
Before the adoption, please inquire the dealer of hammer-style knapper in earnest.
When using the parts other than the standard bucket, the load on machine body normally is bigger
than that with the bucket in use. If the operation is unsuited, it will damage the parts even the machine
body. So please read all this book to prevent the happening of such accident.
List 1-2 Specification List of Hammer-style Knapper (1)
Type of Excavator
XE210C
Korea
Japan
Germany
Knapper Producer
Korea Shuishan
Japan Guhe
Gongbing
Dongkong
KRUPP
Type of Kanpper
SB81N
GB220E
F20
TNB14E
HM960CS
Weight, kg
1500
1620
1430
1487
1500
Oil Capacity, L／min
100～150
125～150
125～150
130～170
130～170
Operational Pressure, MPa
15.7～17.7
15.7～17.7
15.7～17.7
12.7～16.7
11.8～13.7
Designed pressure of
17.7
17.7
17.7
17.7
16.7
valve，MPa
r
Operating and Maintenance Manual 152
List 1-3 Specification List of Hammer-style Knapper (2)
Type of Excavator
XE230, XE260C
Korea
Japan
Knapper Producer
Korea Shuishan
Japan Guhe
Germany KRUPP
Gongbing
Dongkong
Type of Knapper
SB81
GB220E
TNB-150LU
F20
HM960CS
Weight，kg
1740
1620
1678
1430
1500
Oil Capacity，L／min
120～150
125～150
160～200
125～150
130～170
Operational Pressure，MPa
15.7～17.7
15.7～17.7
12.7～16.7
15.7～17.7
11.8～13.7
Designed Pressure of Valve，
17.7
17.7
17.7
17.7
16.7
MPa
r
Operating and Maintenance Manual 153
Weight of work load
Note: the weight is an approximate value of estimated average volume and capacity.
Table 4-6 Table of Material Desity
Low density
Intermediate density
High density
Material
≤1100kg/m3
≤1600kg/m3
≤2000kg/m3
Charcoal
400
Coke
500
Coal, asphalt
880
Coal, stone coal
900
Dry ball clay
1000
Wet clay of raw subgrade
1750
Dry particles of common
1500
concrete
Dolomite fragments
1500
Dry or soft soil
1200
Firm and dry soil
1500
Wet muddy soil
1750
Burned lime paste
960
(hot powder)
3" crushed lime paste
1500
Overstacked dry gravel
1800
fragments
Overstacked wet gravel
1900
fragments
At least 2-class limestone
1300
Crushed limestone
1500
Good limestone
1600
Rock phosphate
1300
Salt
930
Small-density snow
530
Dry and soft sand
1500
Overstacked wet sand
1900
Broken shale
1400
Broken sulphur
530
