Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 47

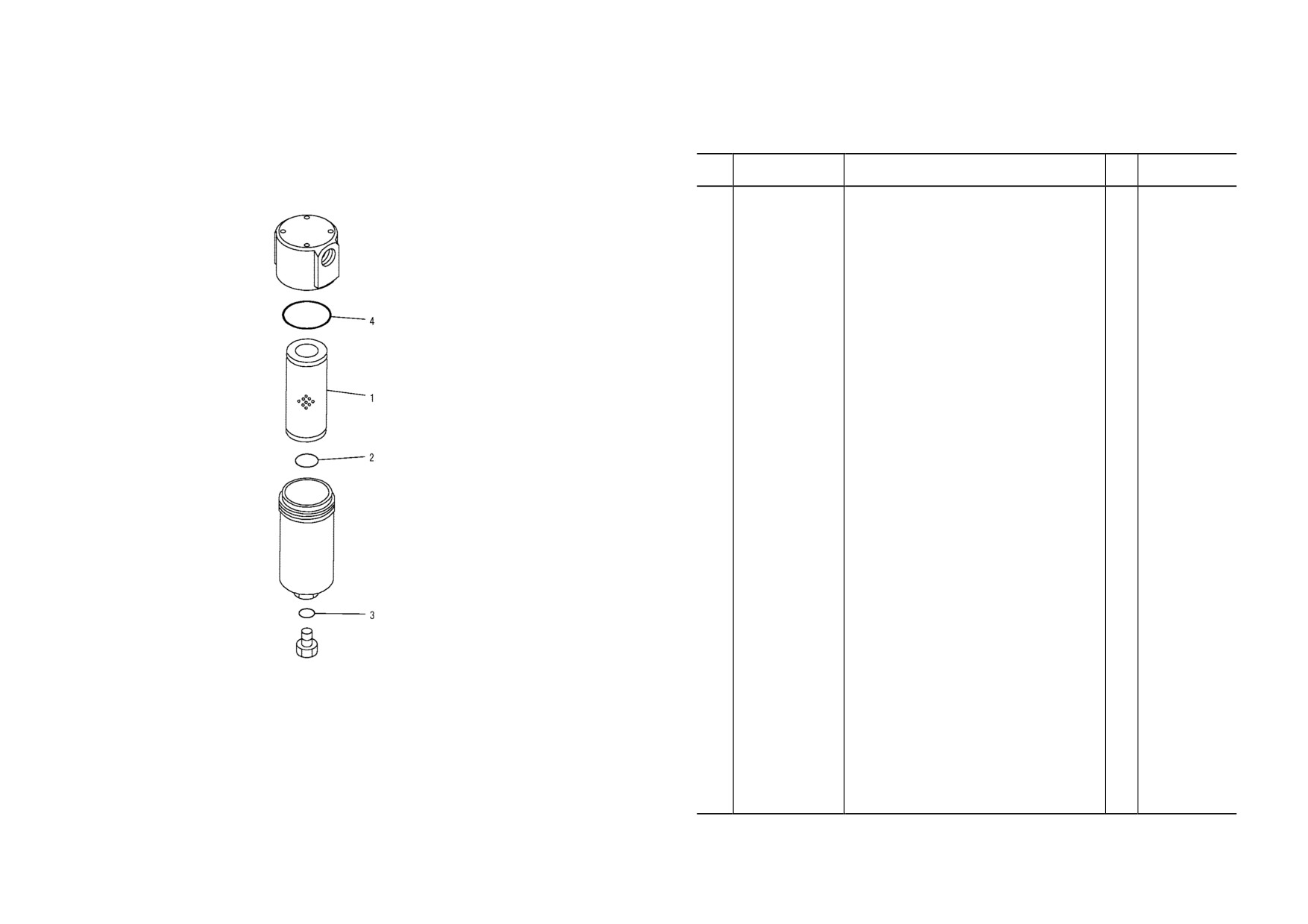

FIG NO. ：Y1851-01A0
FIG. Y1851-01A0 FILTER (INNER PARTS)(OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-970-2700
FILTER ASS'Y
1
DBB0001~
1
20Y-970-1820
. ELEMENT
1
DBB0001~
2
07000-13050
.. O-RING
1
DBB0001~
3
07000-12014
. O-RING
1
DBB0001~
4
07000-12115
. O-RING
1
DBB0001~
PW1C043
YO- 178
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 179

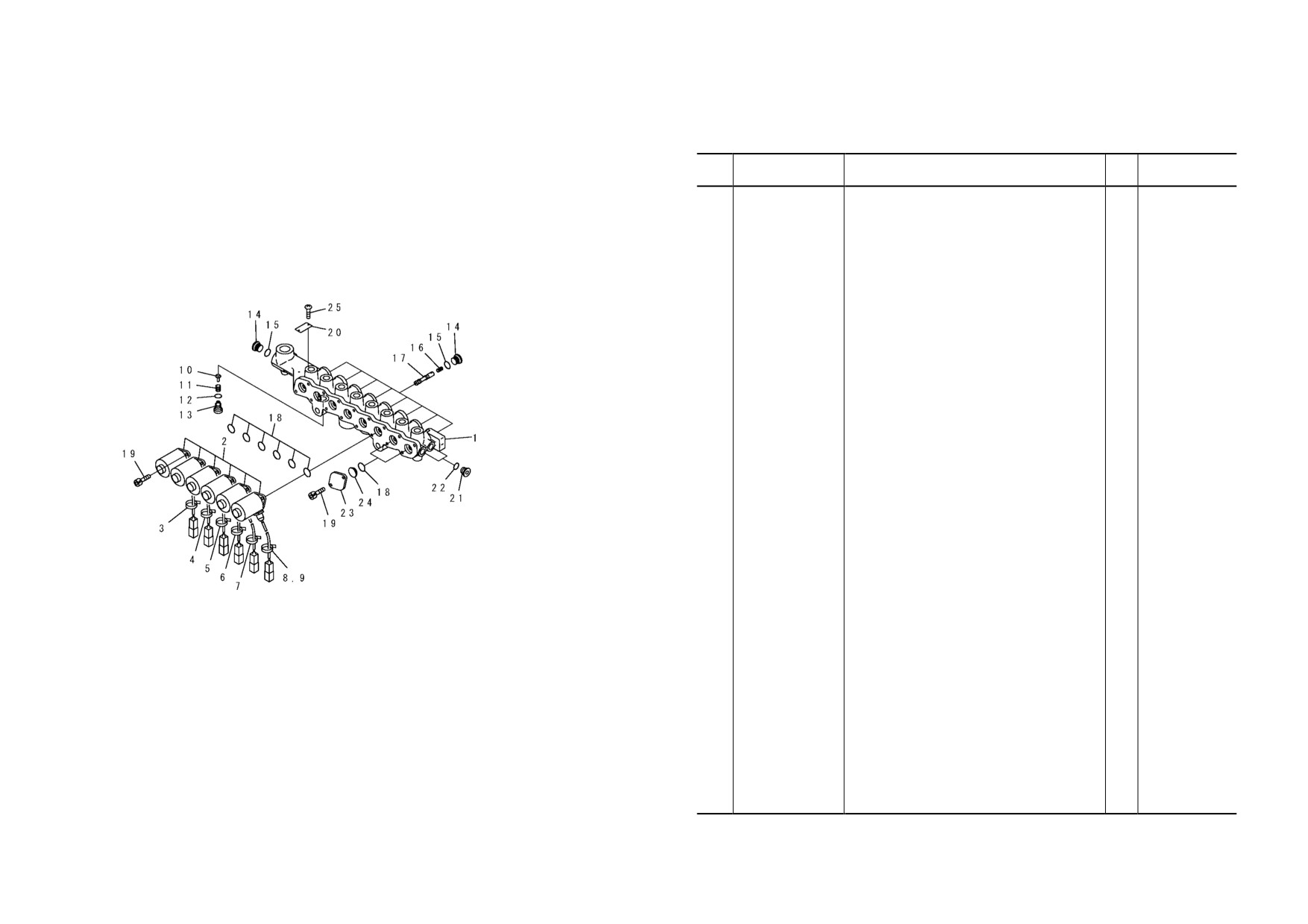

FIG NO. ：Y1860-01A0
FIG. Y1860-01A0 SOLENOID VALVE (INNER PARTS)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-60-31212
VALVE ASS'Y
1
DBB0001~
1
☆
. BLOCK
1
DBB0001~
2
20Y-60-32120
. SOLENOID ASS'Y
6
DBB0001~
3
NY07207-11700
. TUBE
1
DBB0001~
4
NY07529-10200
. TUBE
1
DBB0001~
5
NY07529-10300
. TUBE
1
DBB0001~
6
NY07529-10400
. TUBE
1
DBB0001~
7
NY07529-10500
. TUBE
1
DBB0001~
8
NY07529-10600
. TUBE
1
DBB0001~
9
NY89103-00090
. BAND
6
DBB0001~
10
NY05062-1170A
. PLUNGER
1
DBB0001~
11
NY05062-11800
. SPRING
1
DBB0001~
12
NY86711-01010
. O-RING
1
DBB0001~
13
NY06277-1320A
. PLUG
1
DBB0001~
14
NY80000-02200
. PLUG
9
DBB0001~
15
NY86711-02011
. O-RING
9
DBB0001~
16
NY06339-10200
. SPRING
8
DBB0001~
17
NY07493-10200
. SPOOL
8
DBB0001~
18
07000-12016
. O-RING
8
DBB0001~
19
NY81446-05012
. BOLT
16
DBB0001~
20
NY09000-11400
. PLATE
1
DBB0001~
21
NY80000-02100
. PLUG
3
DBB0001~
22
NY86711-01008
. O-RING
3
DBB0001~
23
NY07926-10100
. PLATE
2
DBB0001~
24
NY01720-10600
. STOPPER
2
DBB0001~
25
NY84110-00248
. SCREW
2
DBB0001~
PW1C000
YO- 180
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 181

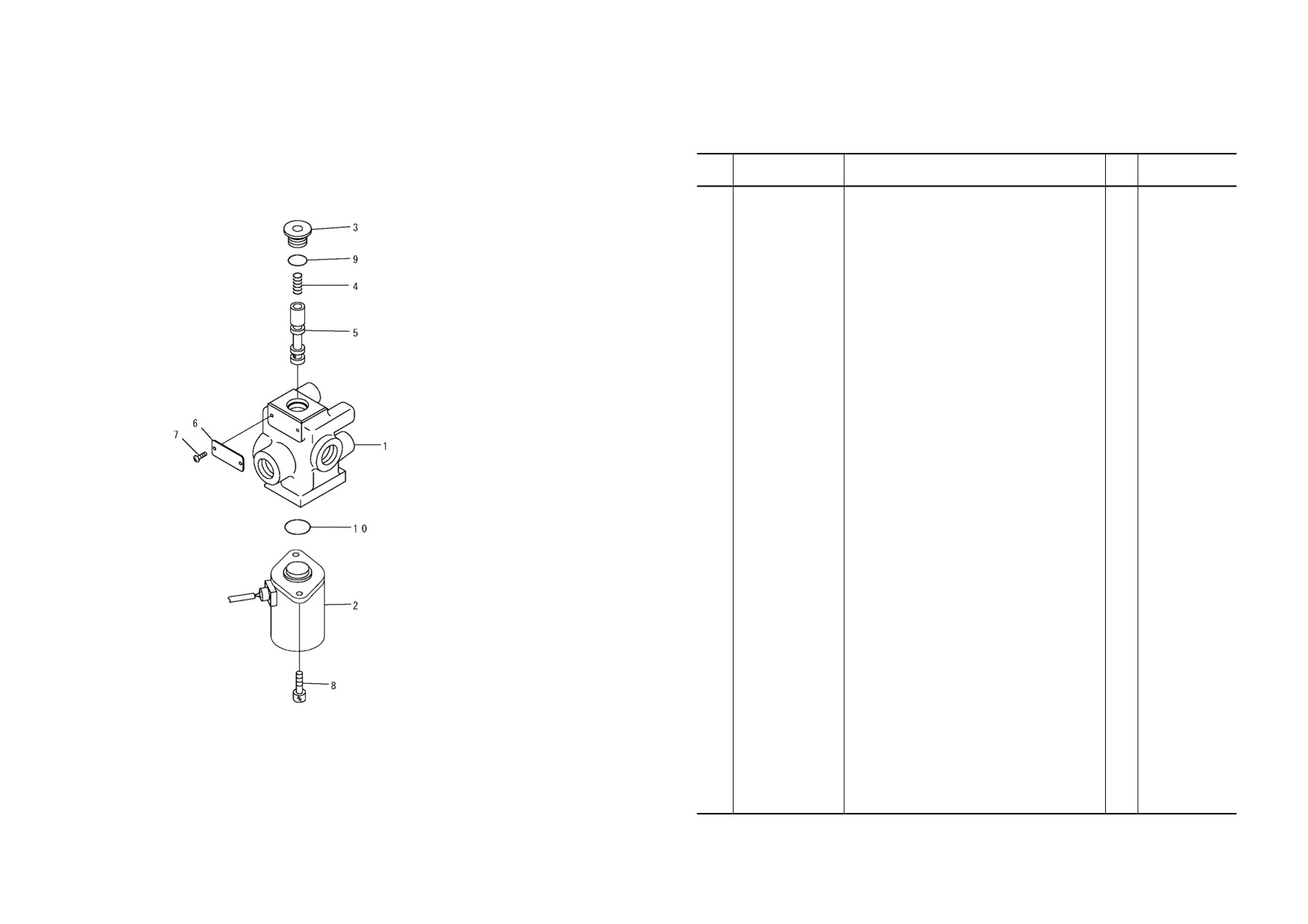

FIG NO. ：Y1861-01A0
FIG. Y1861-01A0 SOLENOID VALVE (INNER PARTS)(OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-60-32110
VALVE ASS'Y
1
DBB0001~
1
☆
. BLOCK
1
DBB0001~
2
20Y-60-32120
. SOLENOID ASS'Y
1
DBB0001~
3
NY08000-02200
. PLUG
1
DBB0001~
4
NY06339-10200
. SPRING
1
DBB0001~
5
NY07493-10200
. SPOOL
1
DBB0001~
6
NY09000-11400
. PLATE
1
DBB0001~
7
NY84110-00264
. SCREW
2
DBB0001~
8
NY81446-05010
. BOLT
2
DBB0001~
9
NY86711-02011
. O-RING
1
DBB0001~
10
07000-12016
. O-RING
1
DBB0001~
PW1C025
YO- 182
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 183

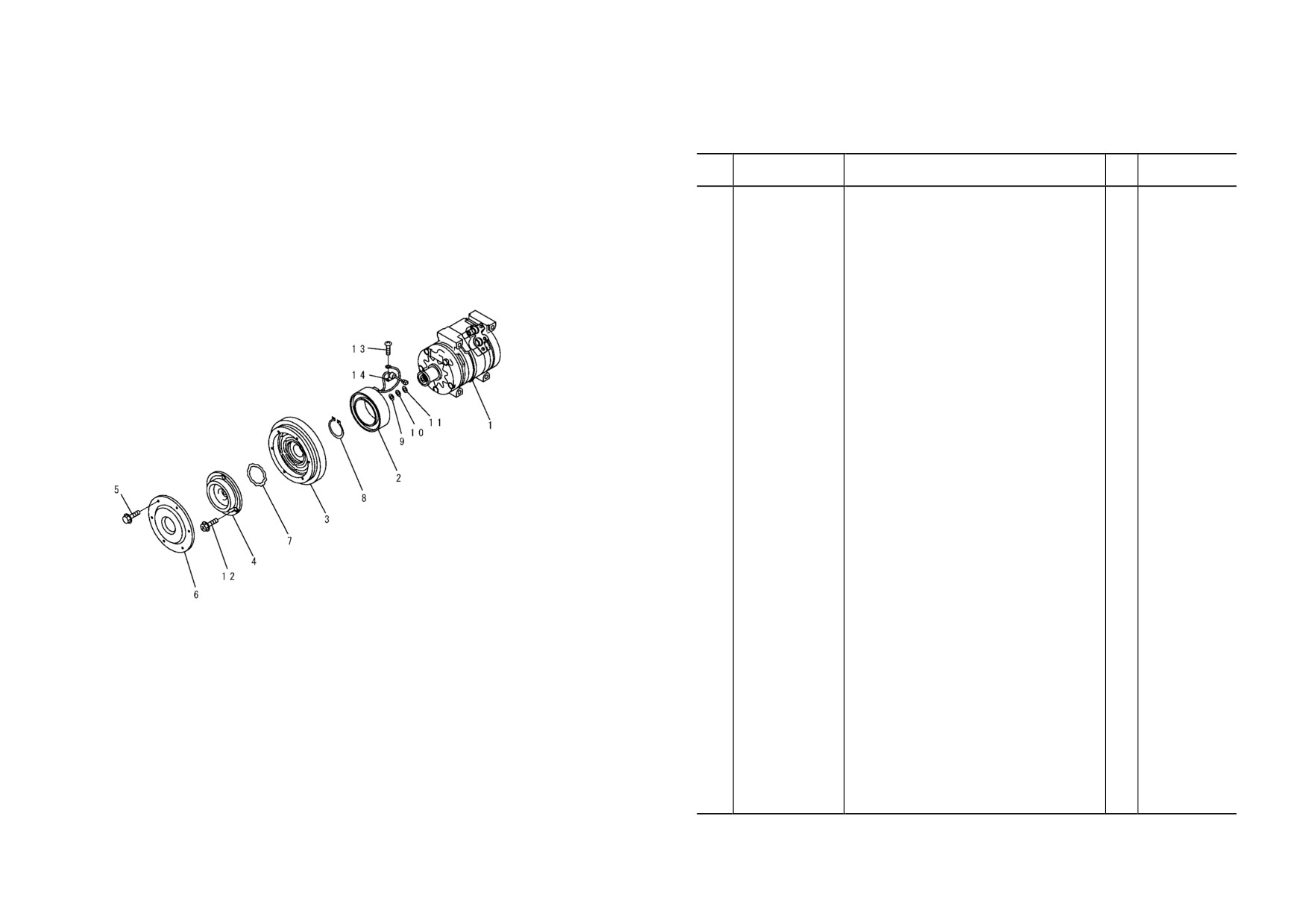

FIG NO. ：Y1979-01A0
FIG. Y1979-01A0 COMPRESSOR ASS'Y (FOR AIR CONDITIONER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-979-6121
COMPRESSOR ASS'Y
1
DBB0001~
1
ND447220-4051
. COMPRESSOR ASS'Y
1
DBB0001~
ND247300-0510
. CLUTCH ASS'Y, MAGNET
1
DBB0001~
2
ND047310-7240
.. STATOR, MAGNET CLUTCH
1
DBB0001~
3
☆
.. ROTOR, MAGNET CLUTCH
1
DBB0001~
4
ND047410-1570
.. HUB, CLUTCH
1
DBB0001~
ND047410-1580
.. HUB, CLUTCH
1
DBB0001~
5
ND949047-2950
.. BOLT, WASHER
6
DBB0001~
6
ND047372-0660
.. COVER, DUST
1
DBB0001~
7
ND949070-1360
. RING, SNAP
1
DBB0001~
ND949070-0640
. RING, SNAP
1
DBB0001~
8
ND949070-1390
. RING, SNAP
1
DBB0001~
9
ND949013-7480
. WASHER, 0.1MM, PLATE
1
DBB0001~
10
ND949013-7500
. WASHER, 0.3MM, PLATE
1
DBB0001~
11
ND949013-7510
. WASHER, 0.5MM, PLATE
1
DBB0001~
12
ND949048-0430
. BOLT, WASHER HEAD
1
DBB0001~
13
ND91310-05081
. SCREW, WASHER
1
DBB0001~
14
ND146691-4470
. CLAMP
1
DBB0001~
PW1D039
YO- 184
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 185
FIG NO. ：Y1979-11A0

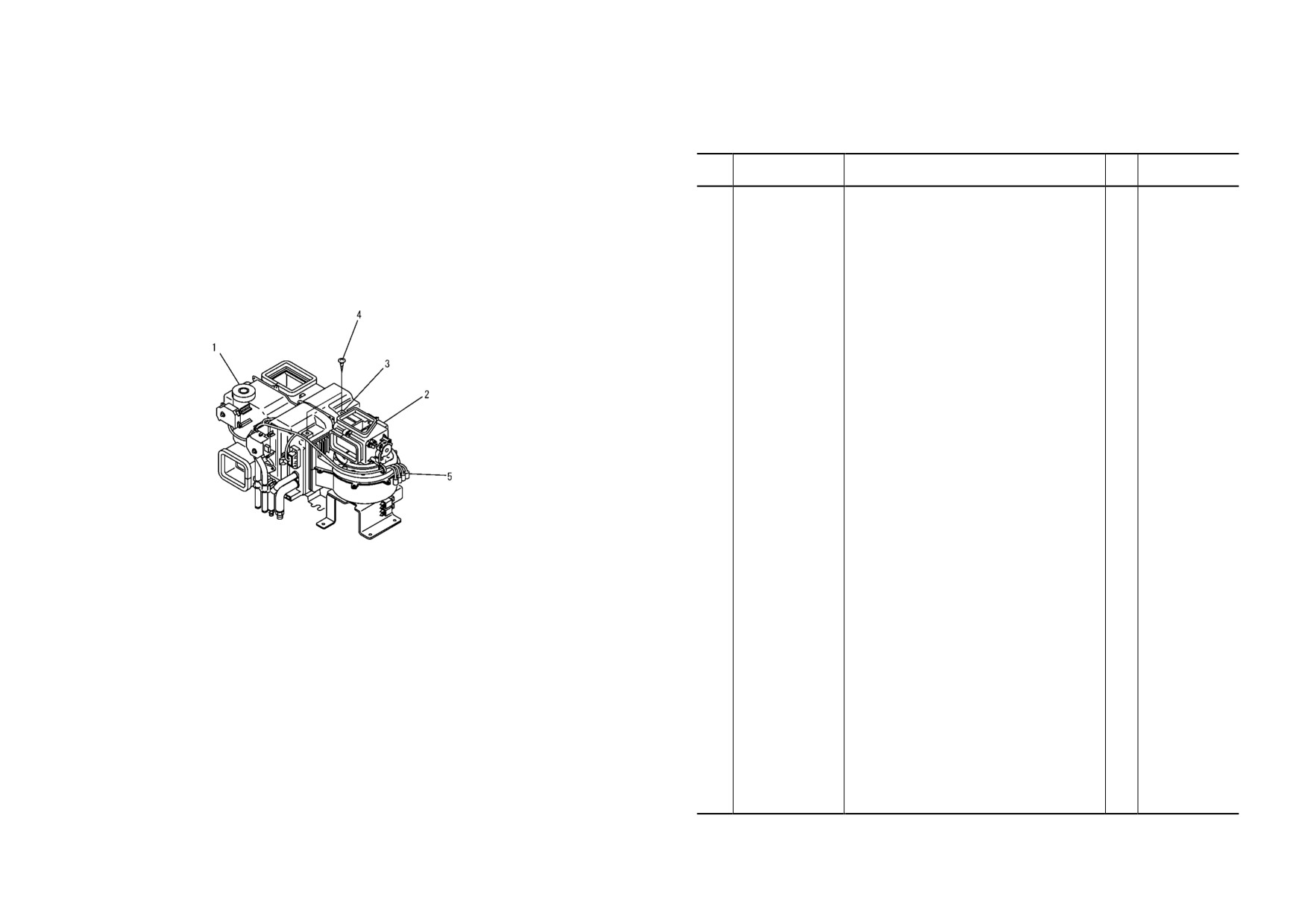

FIG. Y1979-11A0 UNIT ASS'Y (FOR AIR CONDITIONER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-979-6111
UNIT ASS'Y
1
DBB0001~DBB4708
1
（ND448800-5222）
. UNIT ASS'Y, COOLING
1
DBB0001~DBB4708
2
（ND117200-0843）
. BLOWER ASS'Y
1
DBB0001~DBB4708
3
ND146525-6041
. BRACKET, PARTS
2
DBB0001~DBB4708
4
ND90930-06141
. SCREW, TAPPING
2
DBB0001~DBB4708
5
ND246460-9451
. HARNESS SUB ASS'Y, AIR CONDITIONER
1
DBB0001~DBB4708
PW1D040
YO- 186
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 187

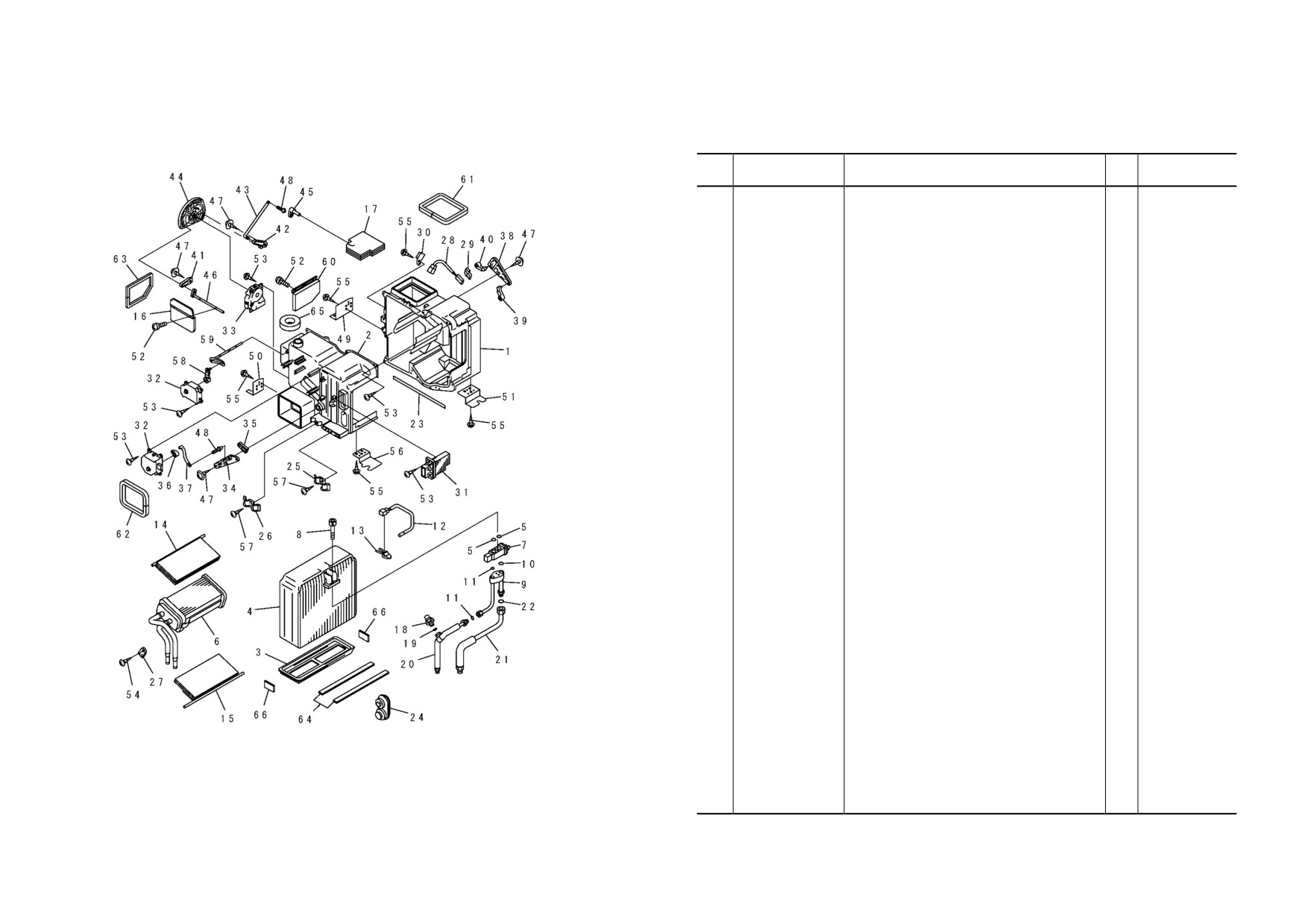

FIG NO. ：Y1979-21A0
FIG. Y1979-21A0 UNIT ASS'Y (COOLING) (FOR AIR CONDITIONER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
ND448800-5222
UNIT ASS'Y, COOLING
1
DBB0001~DBB4708
1
ND245450-2221
. CASE, COOLING
1
DBB0001~DBB4708
2
ND245450-1721
. CASE, COOLING
1
DBB0001~DBB4708
3
ND116569-5010
. PLATE
1
DBB0001~DBB4708
4
ND447600-4970
. EVAPORATOR
1
DBB0001~DBB4708
5
ND949142-0030
.. O-RING
2
DBB0001~DBB4708
6
ND116120-7990
. CORE ASS'Y, HEATER
1
DBB0001~DBB4708
7
ND447500-1390
. VALVE, EXPANSION
1
DBB0001~DBB4708
8
ND949046-2150
. BOLT
2
DBB0001~DBB4708
9
ND446870-5650
. TUBE, ACCESSORY
1
DBB0001~DBB4708
10
ND949142-0030
.. O-RING
1
DBB0001~DBB4708
11
ND949142-0010
.. O-RING
2
DBB0001~DBB4708
12
ND077500-0710
. THERMISTOR
1
DBB0001~DBB4708
13
ND246690-2840
. CLAMP
2
DBB0001~DBB4708
14
ND116650-8800
. DOOR ASS'Y
1
DBB0001~DBB4708
15
ND116650-8820
. DOOR ASS'Y
1
DBB0001~DBB4708
16
ND116650-8840
. DOOR ASS'Y
1
DBB0001~DBB4708
17
ND116640-4652
. DAMPER ASS'Y
1
DBB0001~DBB4708
18
ND443440-0030
. SWITCH, PRESSURE
1
DBB0001~DBB4708
19
ND949142-0040
.. O-RING
1
DBB0001~DBB4708
20
ND446830-3880
. TUBE
1
DBB0001~DBB4708
21
ND446810-9520
. TUBE, SUCTION
1
DBB0001~DBB4708
22
ND949142-0030
.. O-RING
1
DBB0001~DBB4708
23
ND146678-4930
. PACKING
1
DBB0001~DBB4708
24
ND949321-9940
. GROMMET
1
DBB0001~DBB4708
25
ND246770-6990
. CLAMP, PIPING
1
DBB0001~DBB4708
26
ND017231-1400
. CLAMP
1
DBB0001~DBB4708
27
ND017660-3490
. BRACKET
1
DBB0001~DBB4708
28
ND170400-4310
. SENSOR ASS'Y, THERMO
1
DBB0001~DBB4708
PW1D483
29
ND146690-6020
. CLAMP
1
DBB0001~DBB4708
30
ND246634-6010
. BRACKET
1
DBB0001~DBB4708
31
ND499300-2051
. I. C. POWER
1
DBB0001~DBB4708
32
ND063700-7200
. SERVO MOTOR ASS'Y
2
DBB0001~DBB4708
YO- 188
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 189

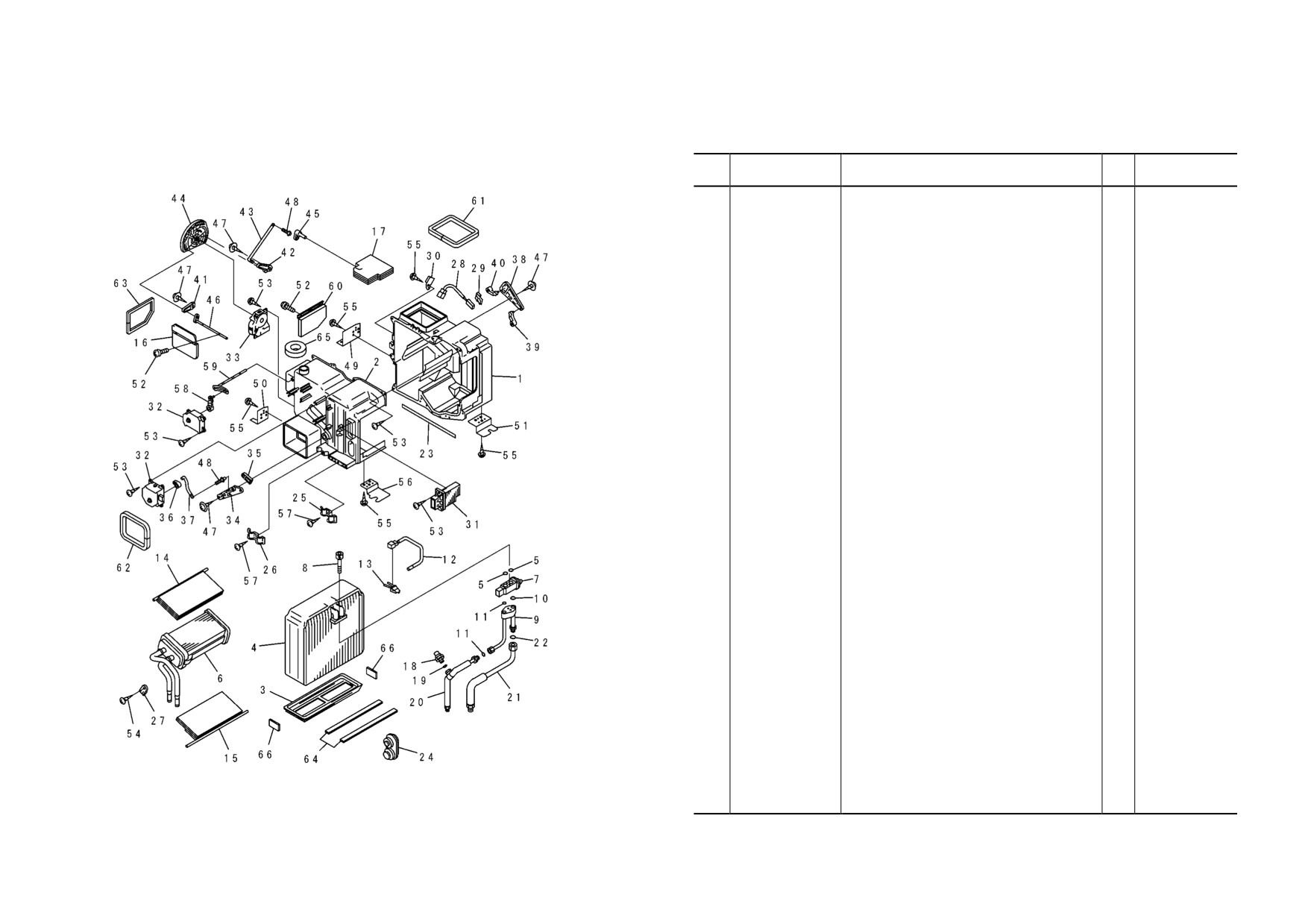

FIG NO. ：Y1979-21A0
FIG. Y1979-21A0 UNIT ASS'Y (FOR AIR CONDITIONER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
33
ND063700-7210
. SERVO MOTOR ASS'Y
1
DBB0001~DBB4708
34
ND116569-5020
. PLATE
1
DBB0001~DBB4708
35
ND116682-0930
. LEVER
1
DBB0001~DBB4708
36
ND116682-0960
. LEVER
1
DBB0001~DBB4708
37
ND116662-4850
. SHAFT
1
DBB0001~DBB4708
38
ND116569-5030
. PLATE
1
DBB0001~DBB4708
39
ND116682-0940
. LEVER
1
DBB0001~DBB4708
40
ND116682-0951
. LEVER
1
DBB0001~DBB4708
41
ND116569-5041
. PLATE
1
DBB0001~DBB4708
42
ND116569-5051
. PLATE
1
DBB0001~DBB4708
43
ND116662-4860
. SHAFT
1
DBB0001~DBB4708
44
ND116569-5062
. PLATE
1
DBB0001~DBB4708
45
ND116682-0920
. LEVER
1
DBB0001~DBB4708
46
ND116682-0910
. LEVER
1
DBB0001~DBB4708
47
ND949008-0460
. SCREW, TAPPING
4
DBB0001~DBB4708
48
17M-911-3290
. CLAMP
2
DBB0001~DBB4708
49
ND146535-1311
. BRACKET
1
DBB0001~DBB4708
50
ND146535-0411
. BRACKET
1
DBB0001~DBB4708
51
ND146525-6070
. BRACKET
1
DBB0001~DBB4708
52
ND91310-03081
. SCREW, WASHER
4
DBB0001~DBB4708
53
ND949001-1730
. SCREW, TAPPING
23
DBB0001~DBB4708
54
ND90930-05121
. SCREW, TAPPING
1
DBB0001~DBB4708
55
ND90930-06141
. SCREW, TAPPING
8
DBB0001~DBB4708
56
ND146535-0421
. BRACKET
1
DBB0001~DBB4708
57
ND90930-05161
. SCREW, TAPPING
2
DBB0001~DBB4708
58
ND116682-3440
. LEVER
1
DBB0001~DBB4708
59
ND017730-8380
. LEVER, CONTROL
1
DBB0001~DBB4708
60
ND116660-2770
. DOOR ASS'Y
1
DBB0001~DBB4708
61
ND146698-6930
. PACKING
1
DBB0001~DBB4708
62
ND146698-6950
. PACKING
1
DBB0001~DBB4708
PW1D483
63
ND146698-8480
. PACKING
1
DBB0001~DBB4708
64
ND146637-5650
. PACKING
2
DBB0001~DBB4708
65
ND146647-0712
. PACKING
1
DBB0001~DBB4708
66
ND146647-3880
. PACKING
2
DBB0001~DBB4708
YO- 190
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 191

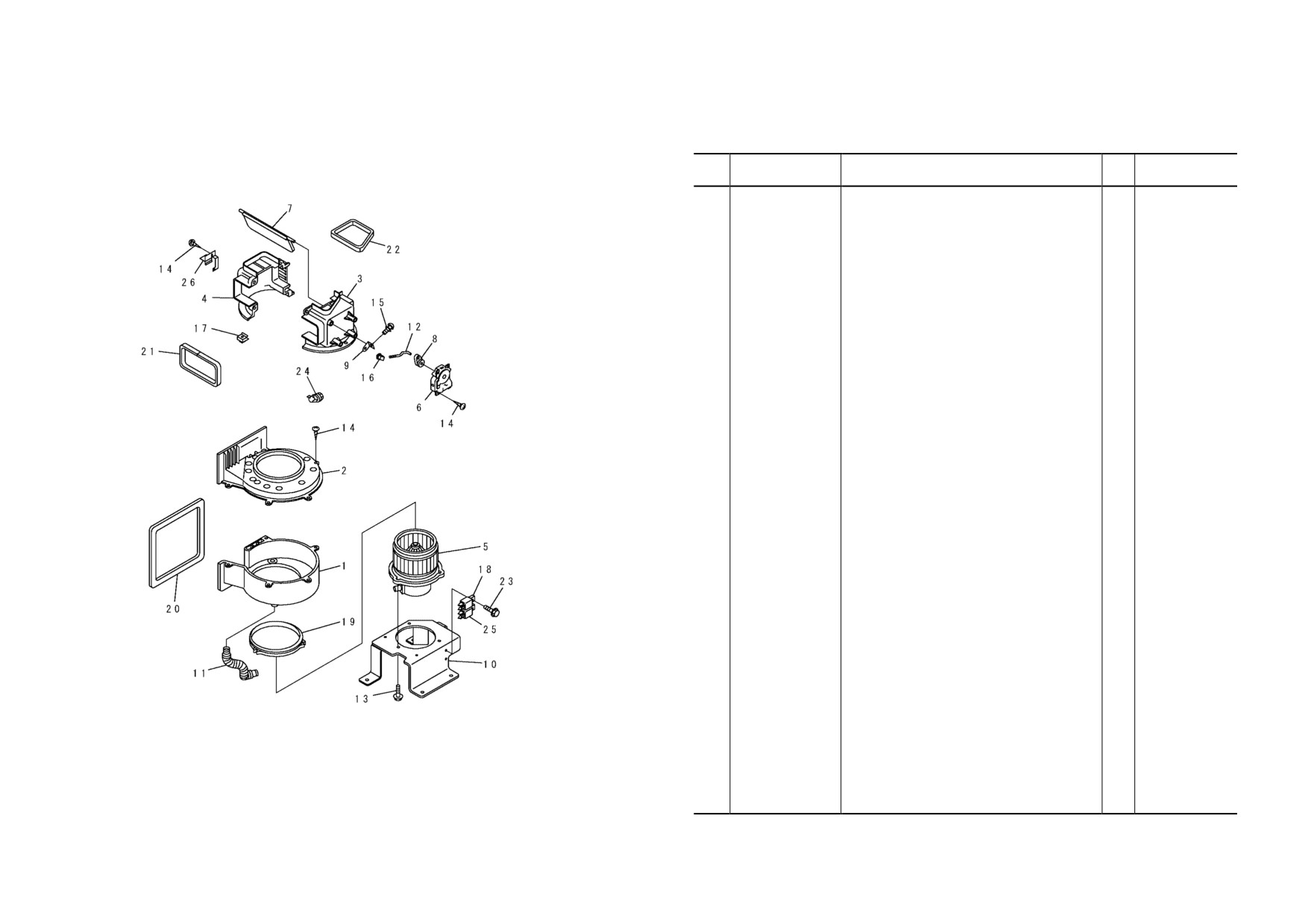

FIG NO. ：Y1979-31A0
FIG. Y1979-31A0 BLOWER ASS'Y (FOR AIR CONDITIONER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
ND117200-0843
BLOWER ASS'Y
1
DBB0001~DBB4708
1
ND116241-3220
. CASE, BLOWER
1
DBB0001~DBB4708
2
ND116241-3230
. CASE, BLOWER
1
DBB0001~DBB4708
3
ND017321-3202
. CASE, AIR DAMPER
1
DBB0001~DBB4708
4
ND017321-3212
. CASE, AIR DAMPER
1
DBB0001~DBB4708
5
ND116340-3860
. MOTOR ASS'Y, FAN
1
DBB0001~DBB4708
6
ND063700-7210
. SERVO MOTOR ASS'Y
1
DBB0001~DBB4708
7
ND116660-4680
. DOOR ASS'Y
1
DBB0001~DBB4708
8
ND116682-0980
. LOVER
1
DBB0001~DBB4708
9
ND116682-0970
. LEVER
1
DBB0001~DBB4708
10
ND146535-1320
. BRACKET
1
DBB0001~DBB4708
11
205-979-7260
. PIPE
1
DBB0001~DBB4708
12
ND116662-7120
. SHAFT
1
DBB0001~DBB4708
13
ND949047-2370
. BOLT, WASHER
3
DBB0001~DBB4708
14
ND949001-1730
. SCREW, TAPPING
17
DBB0001~DBB4708
15
ND91370-03081
. SCREW, WASHER
1
DBB0001~DBB4708
16
17M-911-3290
. CLAMP
1
DBB0001~DBB4708
17
ND949057-0190
. NUT, PLATE
1
DBB0001~DBB4708
18
ND056700-8170
. RELAY ASS'Y
1
DBB0001~DBB4708
19
ND146622-6880
. PACKING
1
DBB0001~DBB4708
20
ND146678-4901
. PACKING
1
DBB0001~DBB4708
21
ND146678-5060
. PACKING
1
DBB0001~DBB4708
22
ND146647-0790
. PACKING
1
DBB0001~DBB4708
23
ND91570-06141
. BOLT, WASHER
2
DBB0001~DBB4708
24
ND146625-4450
. BUSH
1
DBB0001~DBB4708
25
ND056800-3130
. RELAY ASS'Y
1
DBB0001~DBB4708
26
ND146530-9530
. BRACKET ASS'Y
1
DBB0001~DBB4708
PW1D484
YO- 192
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 193

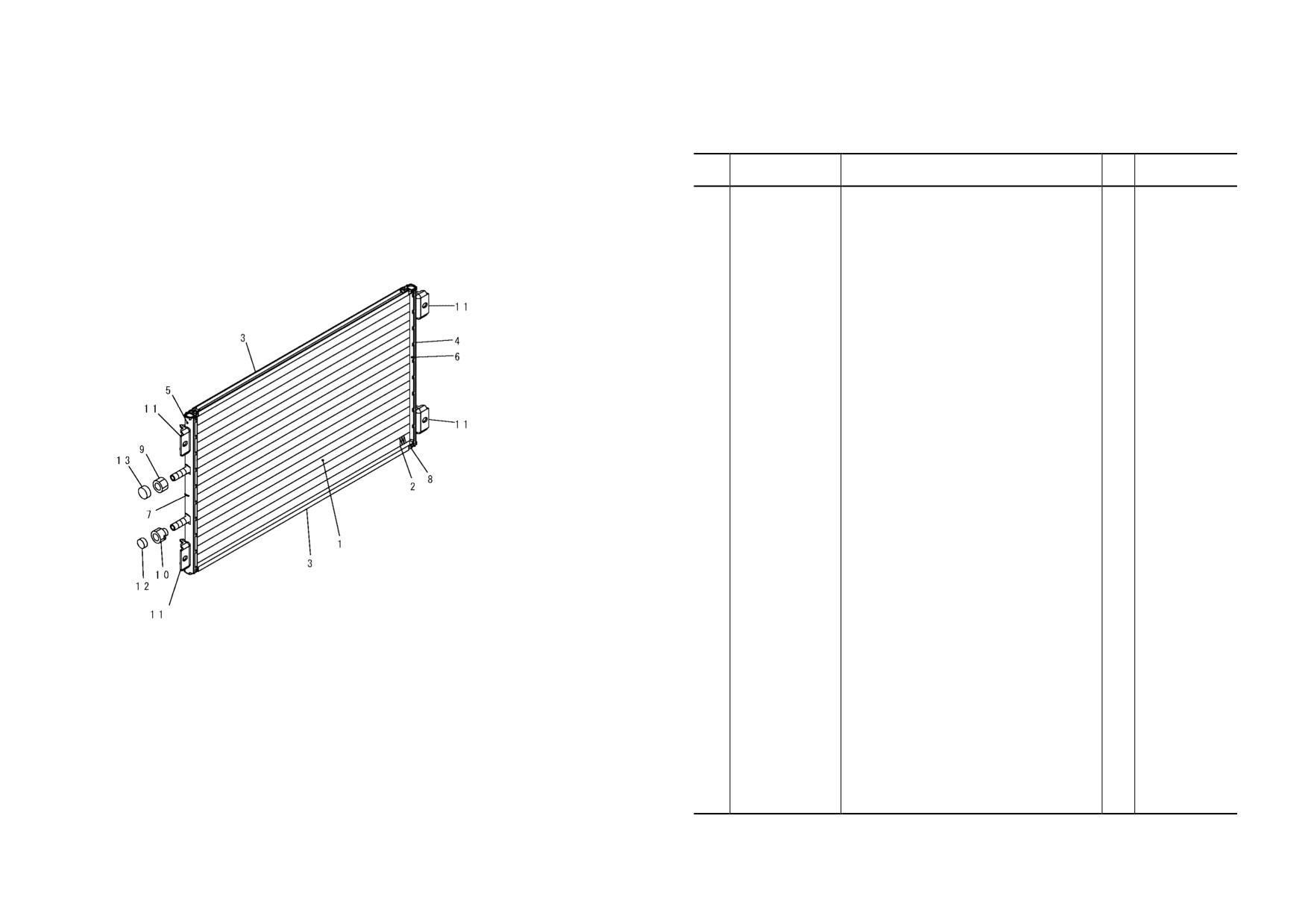

FIG NO. ：Y1979-41A0
FIG. Y1979-41A0 CONDENSER ASS'Y (FOR AIR CONDITIONER)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-979-6131
CONDENSER ASS'Y
1
DBB0001~DBB4708
1
ND7930-591100
. TUBE
36
DBB0001~DBB4708
2
ND7922-571450
. FIN
37
DBB0001~DBB4708
3
ND047761-2760
. SIDE PLATE
2
DBB0001~DBB4708
4
ND047762-0540
. TANK
1
DBB0001~DBB4708
5
ND047762-3000
. TANK
1
DBB0001~DBB4708
6
ND7935-163610
. PLATE
2
DBB0001~DBB4708
7
ND047764-0021
. PLATE, SEPARATOR
1
DBB0001~DBB4708
8
ND047765-0020
. CAP
4
DBB0001~DBB4708
9
ND445013-0811
. UNION, HALF
1
DBB0001~DBB4708
10
ND445013-0521
. UNION, HALF
1
DBB0001~DBB4708
11
ND047782-3720
. BRACKET
4
DBB0001~DBB4708
12
ND445021-0060
. PLUG
1
DBB0001~DBB4708
13
ND445021-0070
. PLUG
1
DBB0001~DBB4708
PW1D041
YO- 194
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 195
FIG NO. ：Y1662-01A0

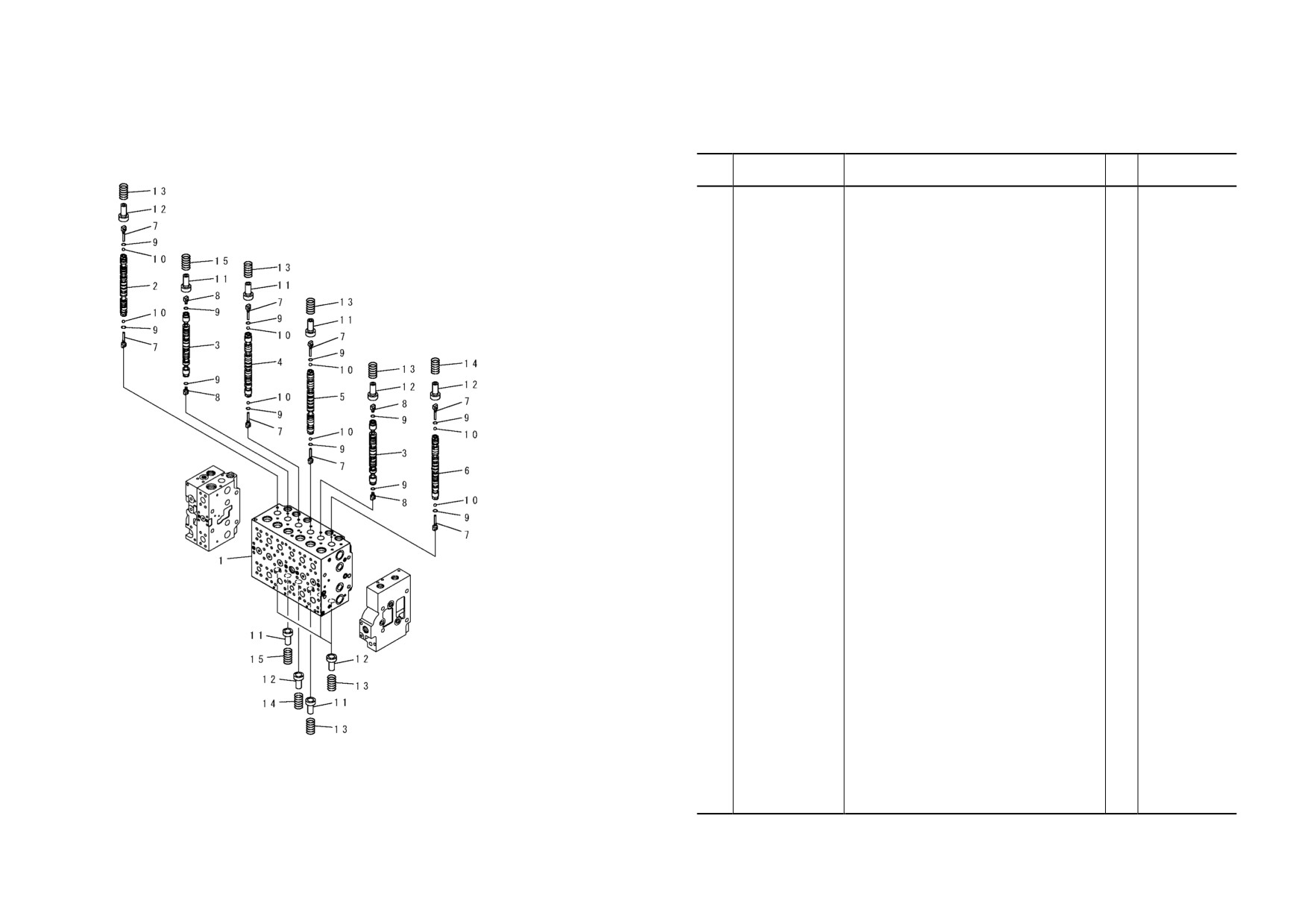

FIG. Y1662-01A0 MAIN VALVE (1-ACTUATOR) (1/19)(OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
723-47-20402
VALVE ASS'Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1662-01A0 TO Y1662-19A0
☆
. BODY SUB ASS'Y
1
DBB0001~
1
☆
.. BLOCK, VALVE
1
DBB0001~
2
☆
.. SPOOL
1
DBB0001~
3
☆
.. SPOOL
2
DBB0001~
4
☆
.. SPOOL
1
DBB0001~
5
☆
.. SPOOL
1
DBB0001~
6
☆
.. SPOOL
1
DBB0001~
7
723-46-15130
.. PLUG
8
DBB0001~
8
723-46-15140
.. PLUG
4
DBB0001~
9
07002-10823
.. O-RING
12
DBB0001~
10
708-7T-16460
.. BALL
8
DBB0001~
11
723-46-15120
.. RETAINER
5
DBB0001~
12
723-46-15690
.. RETAINER
7
DBB0001~
13
723-46-14110
.. SPRING
8
DBB0001~
14
723-46-14270
.. SPRING
2
DBB0001~
15
723-46-14131
.. SPRING
2
DBB0001~
PW5H653
Y1- 104
PC200, 210(LC)-7
PC200, 210(LC)-7
Y1- 105
