Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 45
FIG NO. ：Y1660-10A0

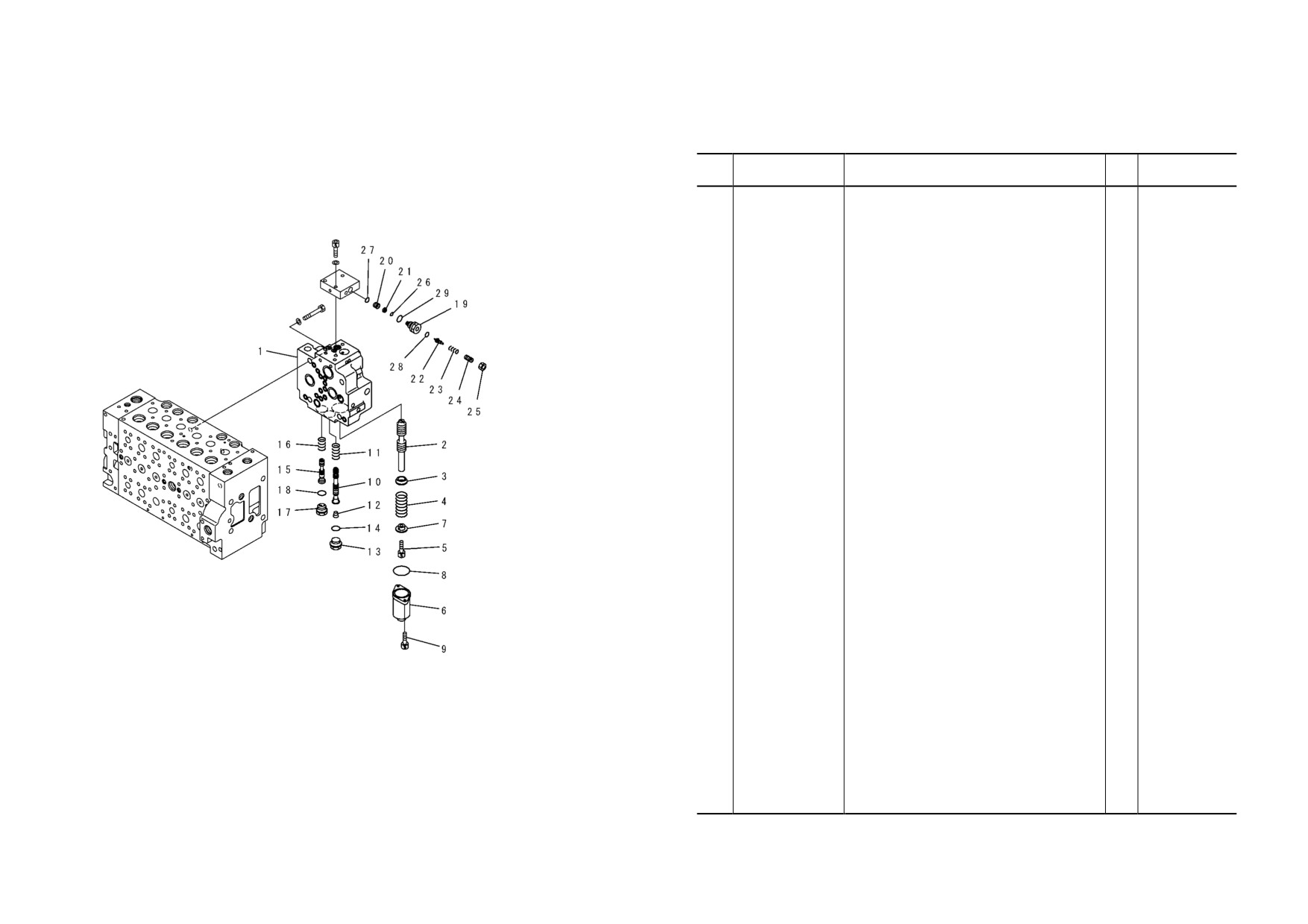

FIG. Y1660-10A0 MAIN VALVE (10/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
723-40-66701
. VALVE ASS' Y
1
DBB0001~
1
☆
.. CASE
1
DBB0001~
2
☆
.. SEAT
1
DBB0001~
3
☆
.. SEAT
1
DBB0001~
4
708-8H-11530
.. PLUG
1
DBB0001~
5
07002-11423
.. O-RING
1
DBB0001~
6
☆
.. SEAT
2
DBB0001~
7
☆
.. BALL
2
DBB0001~
8
☆
.. PLUG
1
DBB0001~
723-40-66601
. VALVE ASS' Y
1
DBB0001~
9
☆
.. CASE
1
DBB0001~
10
☆
.. SEAT
3
DBB0001~
11
☆
.. SEAT
3
DBB0001~
12
☆
.. BALL
3
DBB0001~
13
☆
.. PLUG
1
DBB0001~
14
01252-61050
.. BOLT
14
DBB0001~
15
01643-51032
.. WASHER
14
DBB0001~
723-40-60101
. VALVE ASS' Y
1
DBB0001~
16
☆
.. SLEEVE
1
DBB0001~
17
☆
.. VALVE
1
DBB0001~
18
☆
.. PISTON
1
DBB0001~
19
☆
.. PISTON
1
DBB0001~
20
☆
.. SPRING
1
DBB0001~
21
07000-12020
.. O-RING
1
DBB0001~
22
07001-02020
.. RING, BACK-UP
1
DBB0001~
23
709-25-11390
.. O-RING
1
DBB0001~
24
☆
.. SPRING
1
DBB0001~
25
☆
.. PLUG
1
DBB0001~
26
☆
.. O-RING
1
DBB0001~
27
☆
.. SEAL
1
DBB0001~
PW5H280
28
☆
.. O-RING
1
DBB0001~
YO- 88
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 89

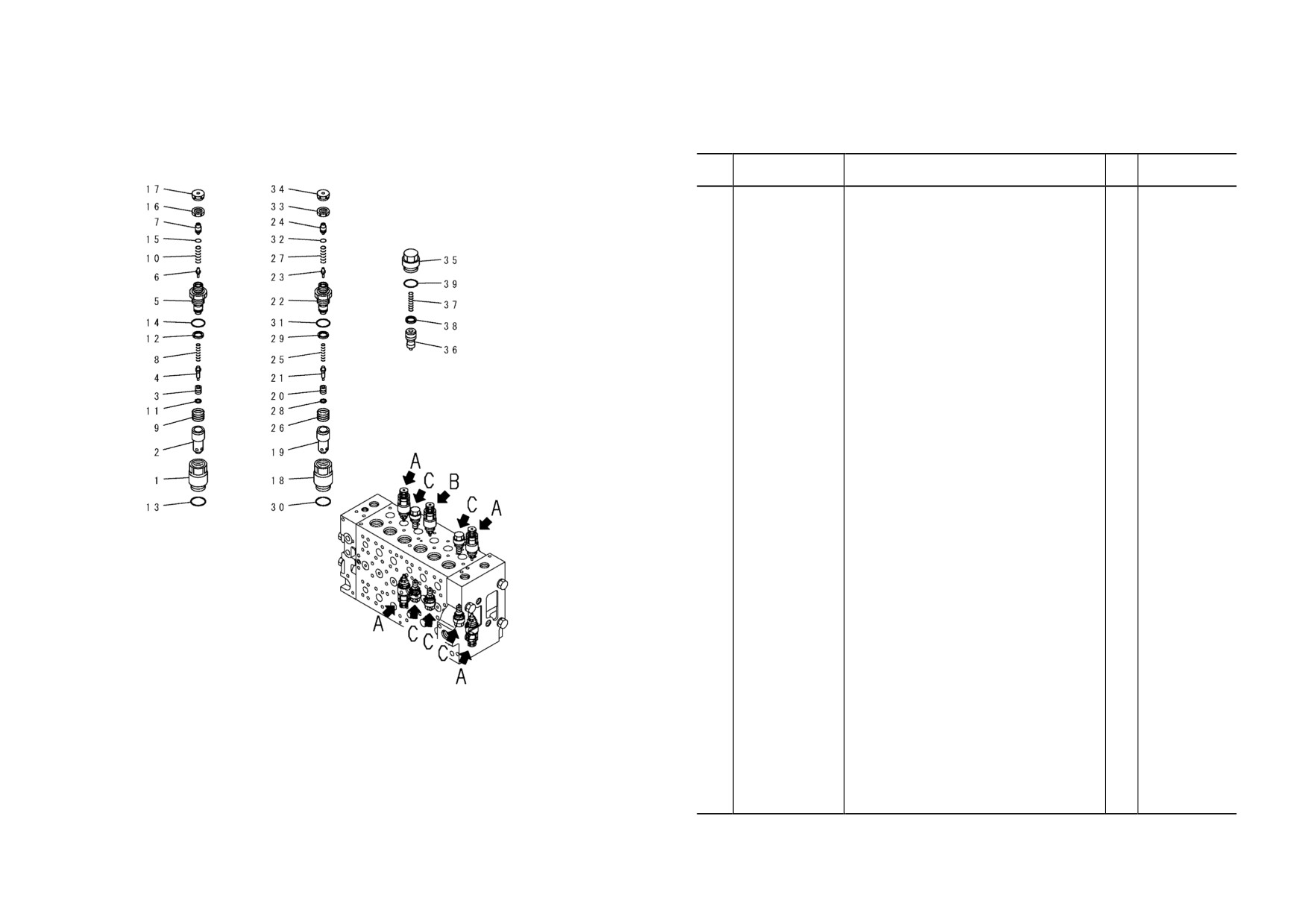

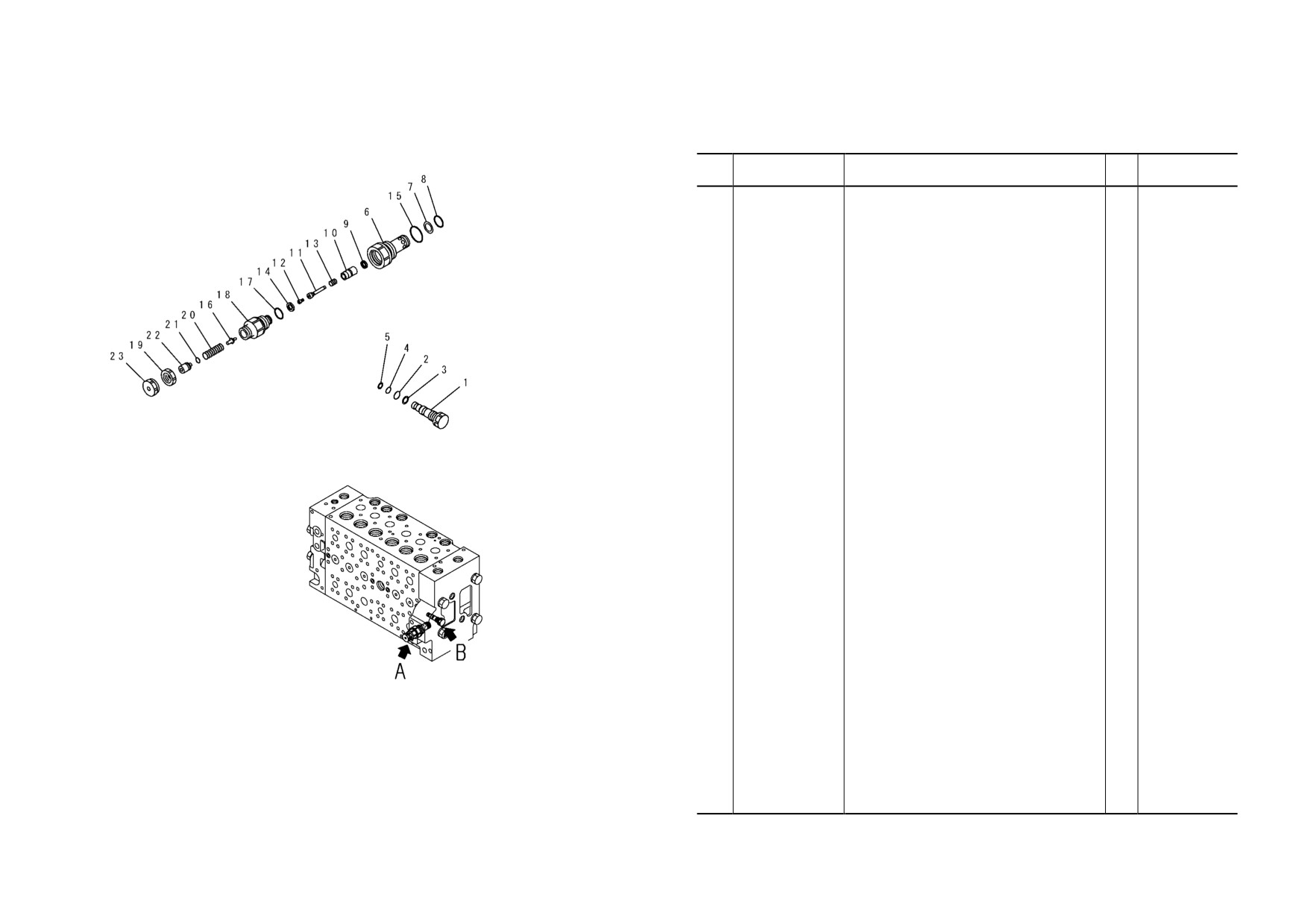

FIG NO. ：Y1660-11A0
FIG. Y1660-11A0 MAIN VALVE (11/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
723-46-17701
. PLUG ASS' Y
1
DBB0001~
1
723-46-17711
.. PLUG
1
DBB0001~
2
07000-11009
.. O-RING
1
DBB0001~
3
07001-01009
.. RING, BACK-UP
1
DBB0001~
4
07000-11007
.. O-RING
1
DBB0001~
5
07001-01007
.. RING, BACK-UP
1
DBB0001~
Detail A
723-40-91500
. VALVE ASS' Y, RELIEF
1
DBB0001~
6
☆
.. SLEEVE
1
DBB0001~
7
700-80-64220
.. RING
1
DBB0001~
8
700-22-11410
.. O-RING
1
DBB0001~
9
☆
.. SEAL
1
DBB0001~
Detail B
10
☆
.. POPPET
1
DBB0001~
11
☆
.. PISTON
1
DBB0001~
12
☆
.. SEAT
1
DBB0001~
13
☆
.. SPRING
1
DBB0001~
14
☆
.. SEAL
1
DBB0001~
15
709-25-11390
.. O-RING
1
DBB0001~
16
☆
.. POPPET
1
DBB0001~
17
☆
.. O-RING
1
DBB0001~
18
☆
.. PLUG
1
DBB0001~
19
☆
.. NUT
1
DBB0001~
20
☆
.. SPRING
1
DBB0001~
21
☆
.. O-RING
1
DBB0001~
22
☆
.. SPACER
1
DBB0001~
23
☆
.. NUT
1
DBB0001~
PW5H281
YO- 90
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 91

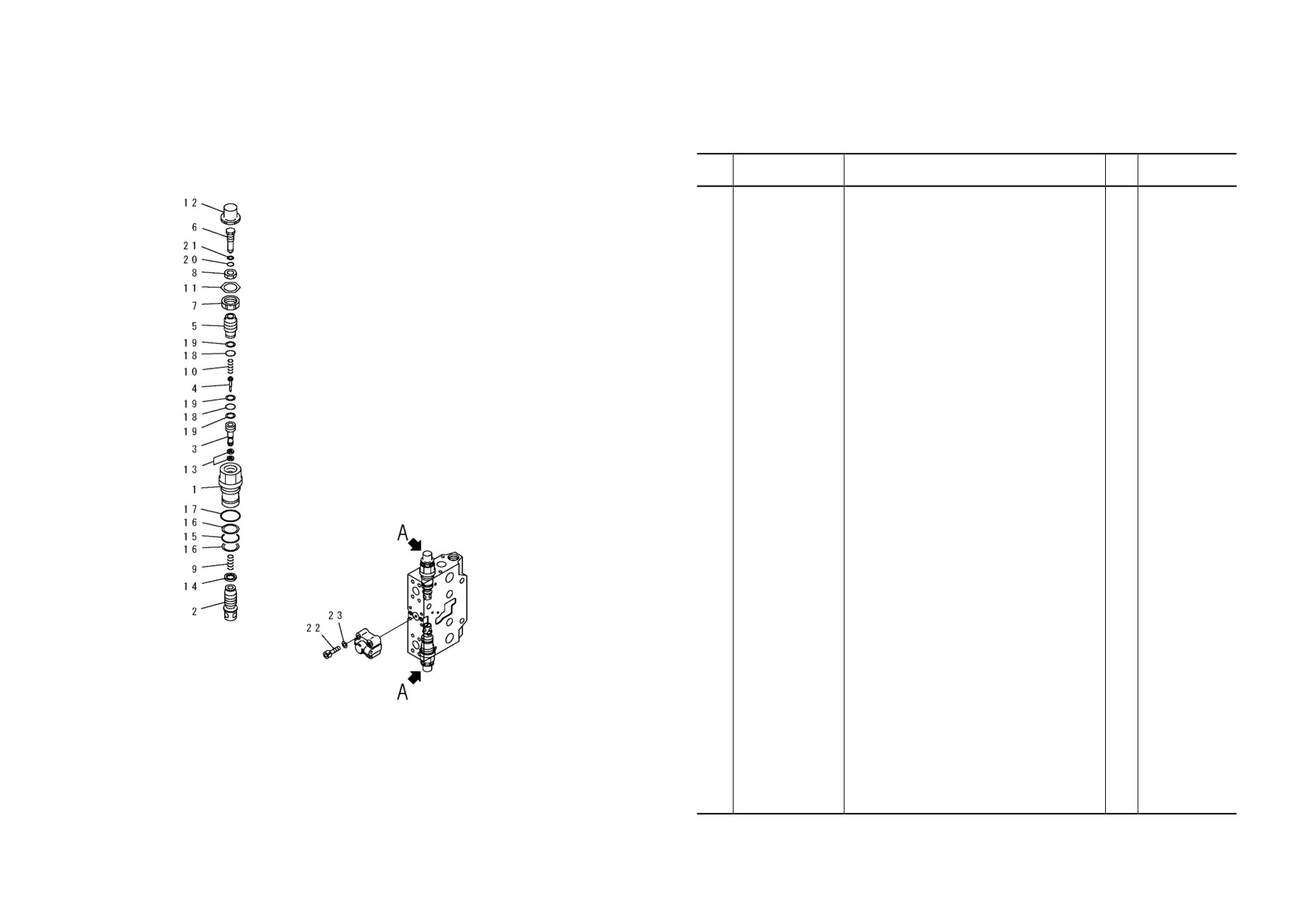

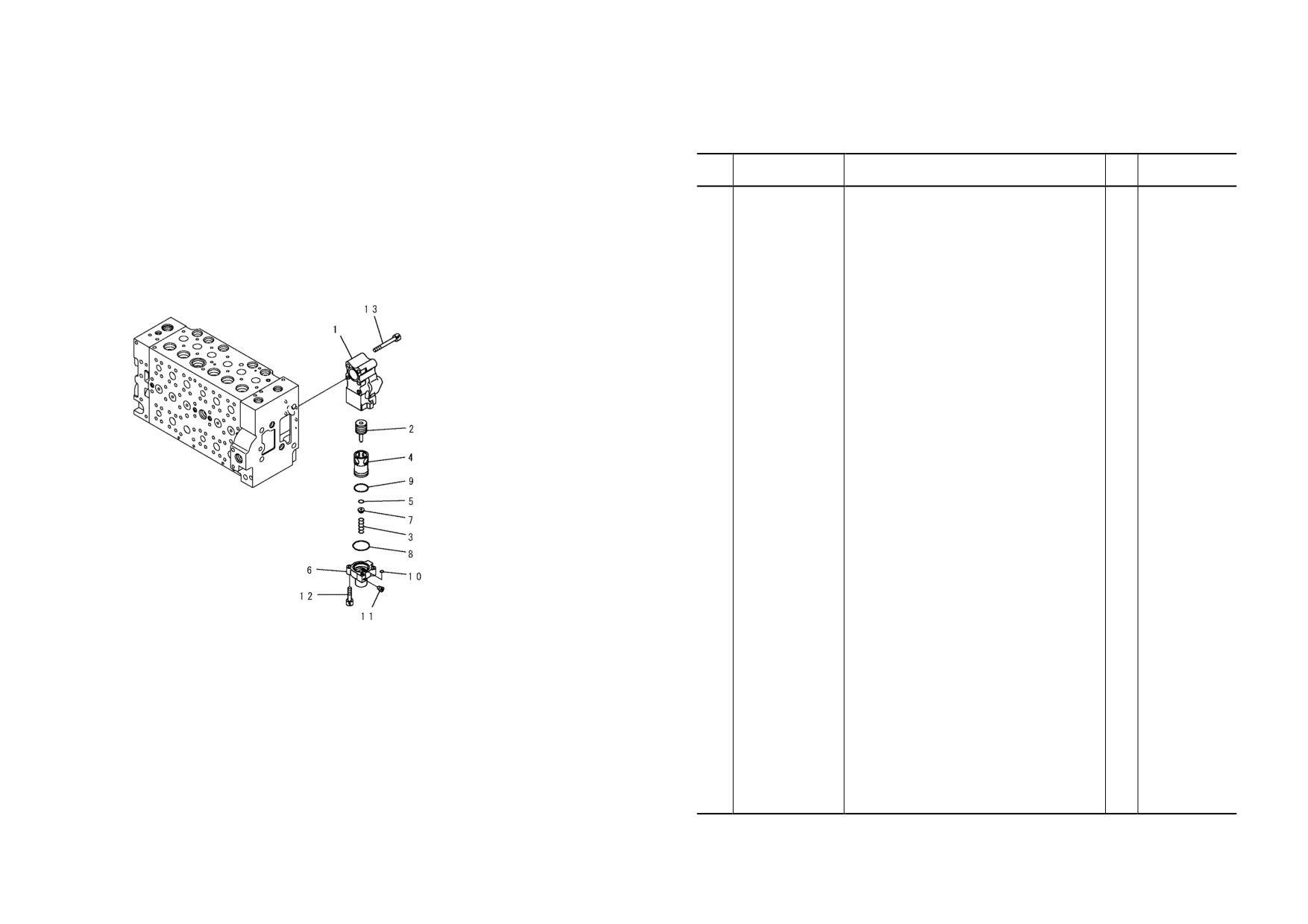

FIG NO. ：Y1660-12A0
FIG. Y1660-12A0 MAIN VALVE (12/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
723-40-91200
. VALVE ASS' Y SUCTION AND SAFETY
4
DBB0001~
1
☆
.. SLEEVE
1
DBB0001~
2
☆
.. SLEEVE
1
DBB0001~
3
☆
.. POPPET
1
DBB0001~
4
☆
.. PISTON
1
DBB0001~
5
☆
.. PLUG
1
DBB0001~
6
☆
.. POPPET
1
DBB0001~
Detail C
7
☆
.. SPACER
1
DBB0001~
8
☆
.. SPRING
1
DBB0001~
9
☆
.. SPRING
1
DBB0001~
10
☆
.. SPRING
1
DBB0001~
11
☆
.. SEAL
1
DBB0001~
12
☆
.. SEAL
1
DBB0001~
13
709-25-11390
.. O-RING
1
DBB0001~
14
☆
.. O-RING
1
DBB0001~
15
☆
.. O-RING
1
DBB0001~
Detail A
16
☆
.. NUT
1
DBB0001~
Detail B
17
☆
.. NUT
1
DBB0001~
723-90-61600
. VALVE ASS' Y, SUCTION AND SAFETY
1
DBB0001~
18
☆
.. SLEEVE
1
DBB0001~
19
☆
.. SLEEVE
1
DBB0001~
20
☆
.. POPPET
1
DBB0001~
21
☆
.. PISTON
1
DBB0001~
22
☆
.. PLUG
1
DBB0001~
23
☆
.. POPPET
1
DBB0001~
24
☆
.. SPACER
1
DBB0001~
25
☆
.. SPRING
1
DBB0001~
26
☆
.. SPRING
1
DBB0001~
27
☆
.. SPRING
1
DBB0001~
PW5H651
28
☆
.. SEAL
1
DBB0001~
29
☆
.. SEAL
1
DBB0001~
30
07000-13024
.. O-RING
1
DBB0001~
YO- 92
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 93
FIG NO. ：Y1660-12A0
FIG. Y1660-12A0 MAIN VALVE (12/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
31
☆
.. O-RING
1
DBB0001~
32
☆
.. O-RING
1
DBB0001~
33
☆
.. NUT
1
DBB0001~
34
☆
.. NUT
1
DBB0001~
723-40-85100
. VALVE ASS' Y, SUCTION
5
DBB0001~
35
☆
.. SLEEVE
1
DBB0001~
36
☆
.. VALVE
1
DBB0001~
37
☆
.. SPRING
1
DBB0001~
38
☆
.. SEAL
1
DBB0001~
Detail C
39
709-25-11390
.. O-RING
1
DBB0001~
Detail A
Detail B
PW5H651
YO- 94
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 95

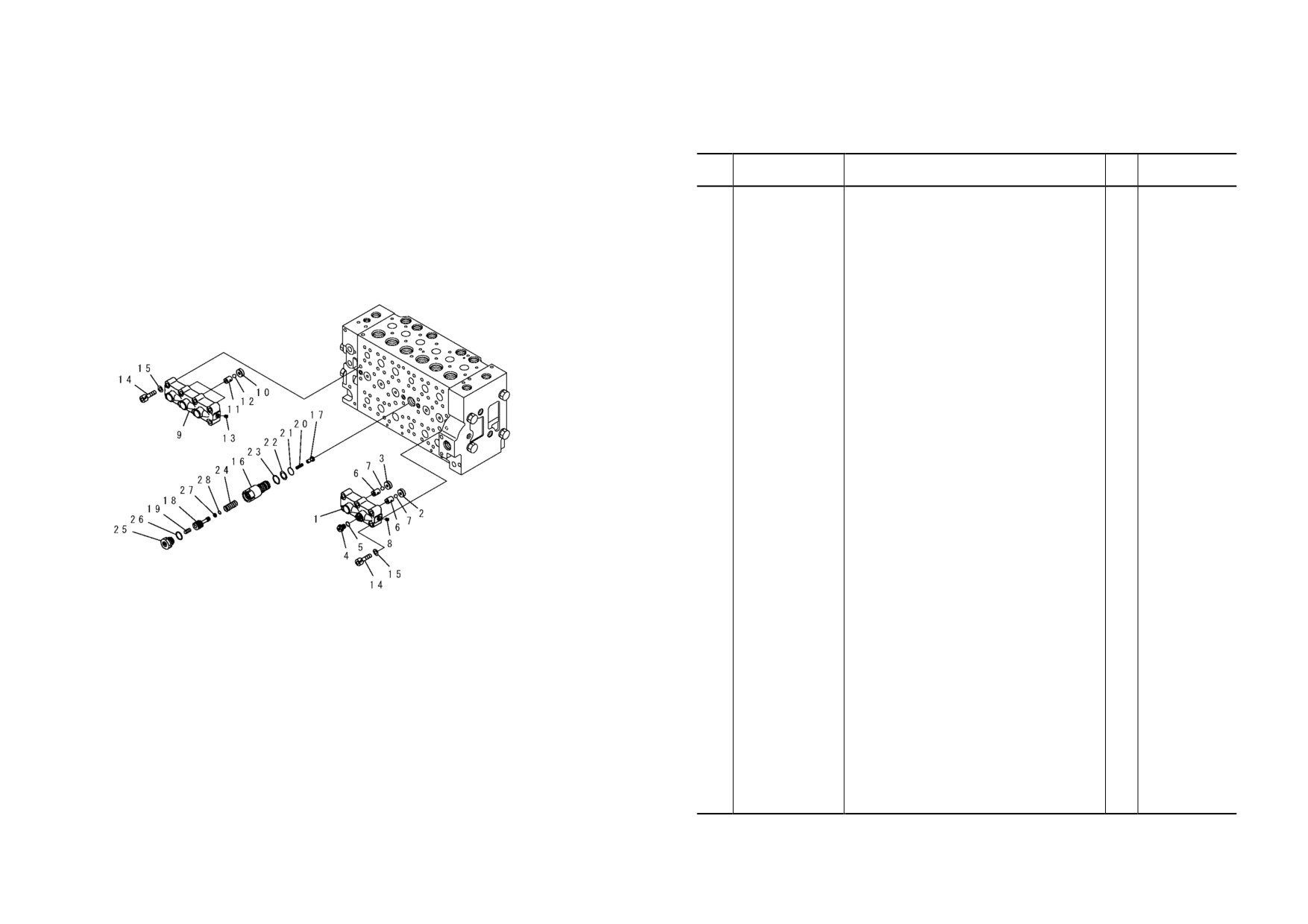

FIG NO. ：Y1660-13A0
FIG. Y1660-13A0 MAIN VALVE (13/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS'Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
723-40-71102
. VALVE ASS'Y
1
DBB0001~
1
☆
.. BODY
1
DBB0001~
2
☆
.. SPOOL
1
DBB0001~
3
723-40-71330
.. RETAINER
1
DBB0001~
4
723-40-71340
.. SPRING
1
DBB0001~
5
01252-60816
.. BOLT
1
DBB0001~
6
723-46-15111
.. CASE
1
DBB0001~
7
723-40-71350
.. RETAINER
1
DBB0001~
8
07430-71380
.. O-RING
1
DBB0001~
9
01252-60820
.. BOLT
2
DBB0001~
10
☆
.. SPOOL
1
DBB0001~
11
723-40-71440
.. SPRING
1
DBB0001~
12
☆
.. PLUG
1
DBB0001~
13
709-74-91860
.. PLUG
1
DBB0001~
14
07002-12434
.. O-RING
1
DBB0001~
15
☆
.. SPOOL
1
DBB0001~
16
723-40-71390
.. SPRING
1
DBB0001~
17
723-40-61150
.. PLUG
1
DBB0001~
18
07002-12434
.. O-RING
1
DBB0001~
☆
.. VALVE ASS'Y, RELIEF
1
DBB0001~
19
☆
... SLEEVE
1
DBB0001~
20
702-21-55750
... COLLAR
1
DBB0001~
21
702-21-55760
... FILTER
1
DBB0001~
22
☆
... POPPET
1
DBB0001~
23
☆
... SPRING
1
DBB0001~
24
☆
... SCREW
1
DBB0001~
25
☆
... NUT
1
DBB0001~
26
723-11-19660
... O-RING
1
DBB0001~
27
702-16-53920
... O-RING
1
DBB0001~
PW5H283
28
☆
... O-RING
1
DBB0001~
29
07002-11623
... O-RING
1
DBB0001~
YO- 96
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 97

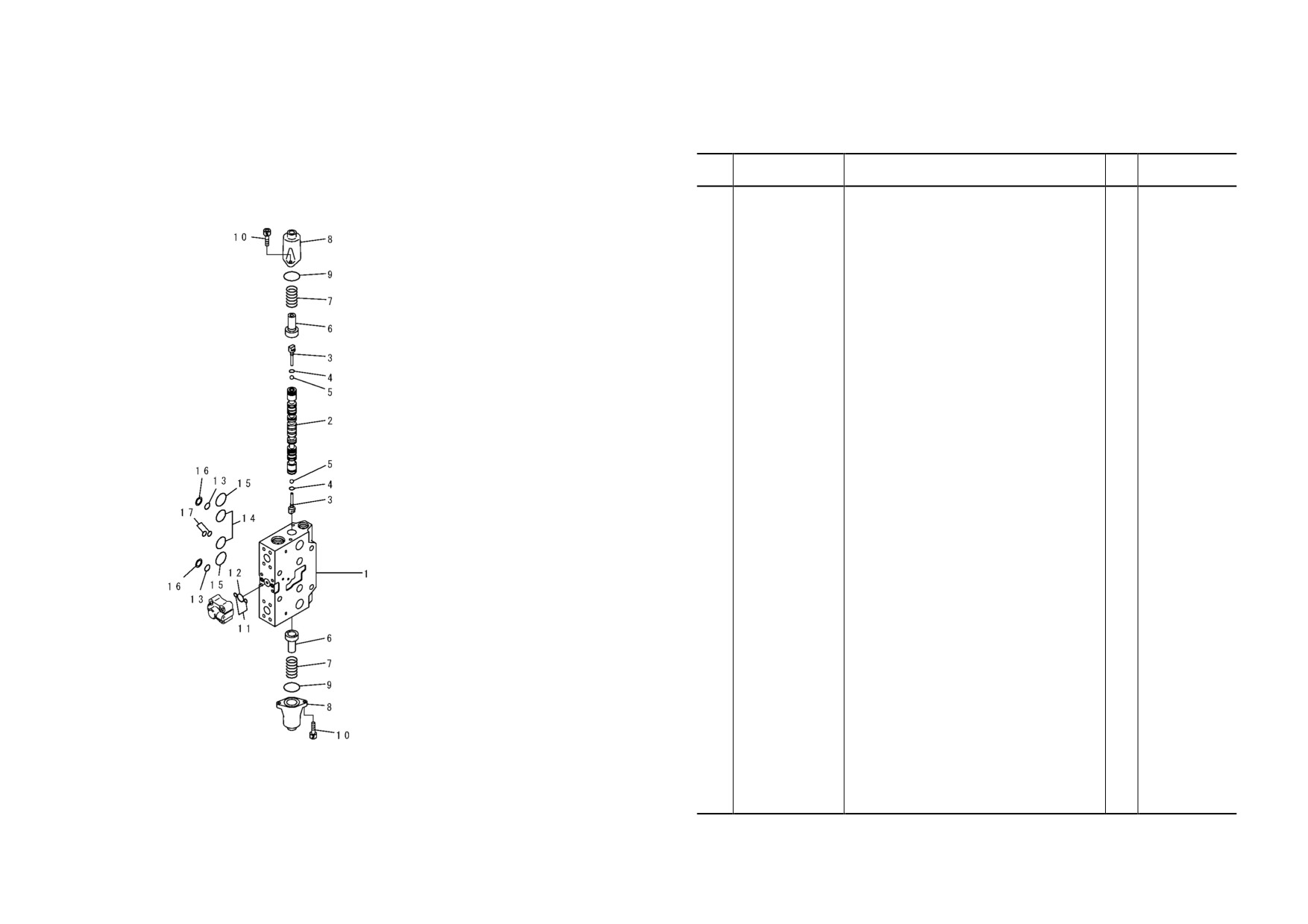

FIG NO. ：Y1660-14A0
FIG. Y1660-14A0 MAIN VALVE (14/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS'Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
(723-40-71102)
. VALVE ASS'Y
1
DBB0001~
1
723-40-71430
.. VALVE
1
DBB0001~
2
702-21-55460
.. SPRING
1
DBB0001~
3
702-21-55420
.. O-RING
1
DBB0001~
4
702-21-55520
.. O-RING
1
DBB0001~
5
702-21-55440
.. O-RING
1
DBB0001~
6
702-21-53120
.. FILTER
1
DBB0001~
7
07000-12011
.. O-RING
1
DBB0001~
8
☆
.. BLOCK
1
DBB0001~
9
☆
.. SPOOL
1
DBB0001~
10
☆
.. SPRING
1
DBB0001~
11
702-21-55620
.. PLUG
1
DBB0001~
12
07002-11423
.. O-RING
1
DBB0001~
13
702-21-55710
.. SEAT
1
DBB0001~
14
702-21-55720
.. SPRING
1
DBB0001~
15
04260-00793
.. BALL
1
DBB0001~
16
07000-11009
.. O-RING
1
DBB0001~
17
☆
.. PLUG
2
DBB0001~
18
708-8H-11530
.. PLUG
1
DBB0001~
19
07002-11423
.. O-RING
1
DBB0001~
20
01252-61040
.. BOLT
3
DBB0001~
21
01643-51032
.. WASHER
3
DBB0001~
22
702-21-55620
.. PLUG
1
DBB0001~
23
07002-11423
.. O-RING
1
DBB0001~
24
708-8E-16160
.. PLUG
1
DBB0001~
25
07002-11023
.. O-RING
1
DBB0001~
26
07000-12011
.. O-RING
1
DBB0001~
27
☆
.. PLUG
15
DBB0001~
28
01010-61470
. BOLT
3
DBB0001~
29
01010-61460
. BOLT
1
DBB0001~
30
01643-31445
. WASHER
4
DBB0001~
PW5H652
31
723-46-17560
. PLATE
1
DBB0001~
32
01643-51032
. WASHER
2
DBB0001~
33
01010-81040
. BOLT
2
DBB0001~
YO- 98
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 99

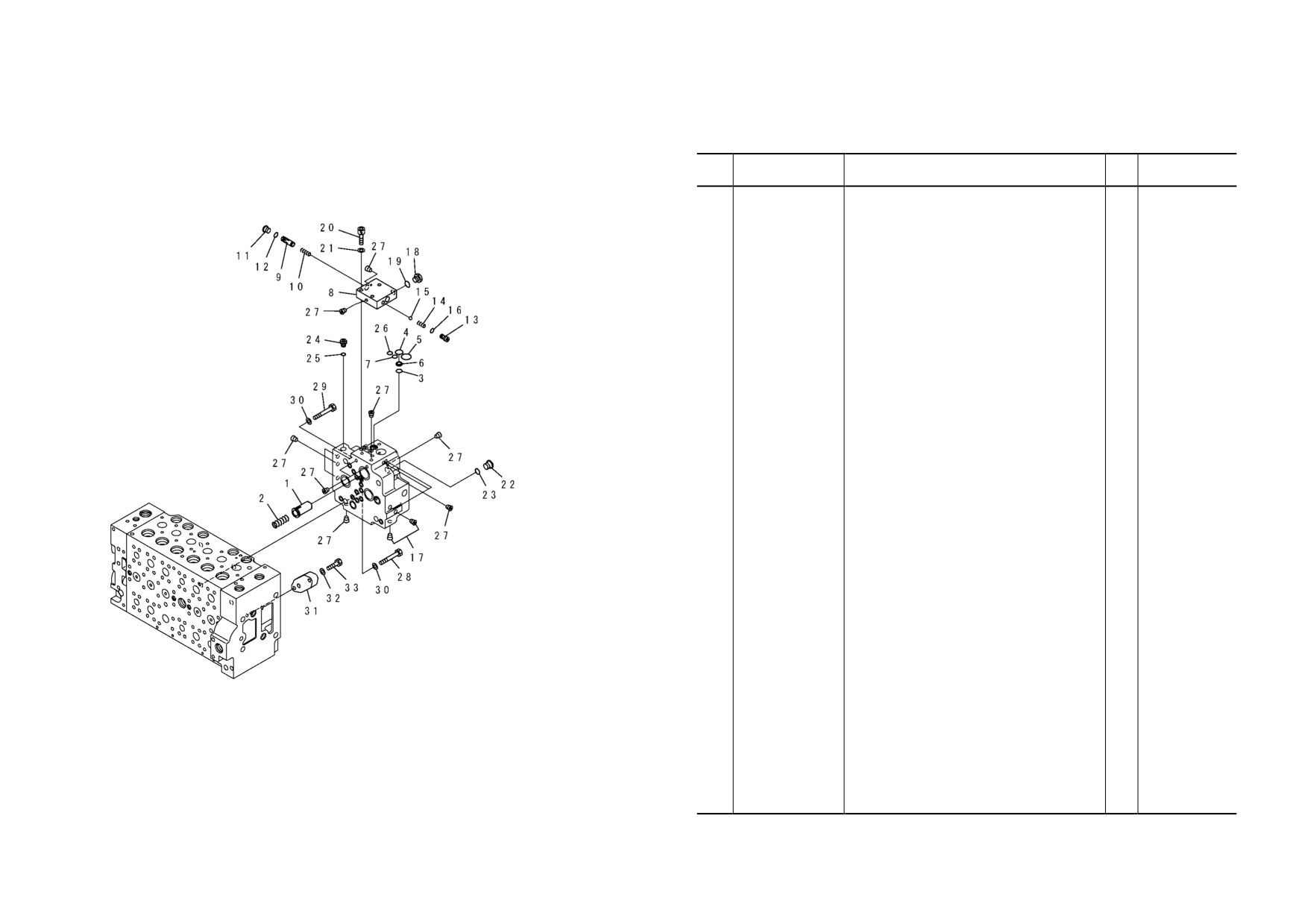

FIG NO. ：Y1660-15A0
FIG. Y1660-15A0 MAIN VALVE (15/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS'Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
723-40-87200
. VALVE ASS'Y
1
DBB0001~
1
723-40-87110
.. BODY
1
DBB0001~
2
723-40-87240
.. SPOOL
1
DBB0001~
3
723-40-87260
.. SPRING
1
DBB0001~
4
☆
.. SLEEVE
1
DBB0001~
5
☆
.. SEAL
1
DBB0001~
6
☆
.. CASE
1
DBB0001~
7
723-40-87250
.. RETAINER
1
DBB0001~
8
723-40-87170
.. O-RING
1
DBB0001~
9
07000-13035
.. O-RING
1
DBB0001~
10
07000-11007
.. O-RING
1
DBB0001~
11
☆
.. SCREW
1
DBB0001~
12
01252-60830
.. BOLT
2
DBB0001~
13
01252-61075
. BOLT
4
DBB0001~
PW5H285
YO- 100
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 101

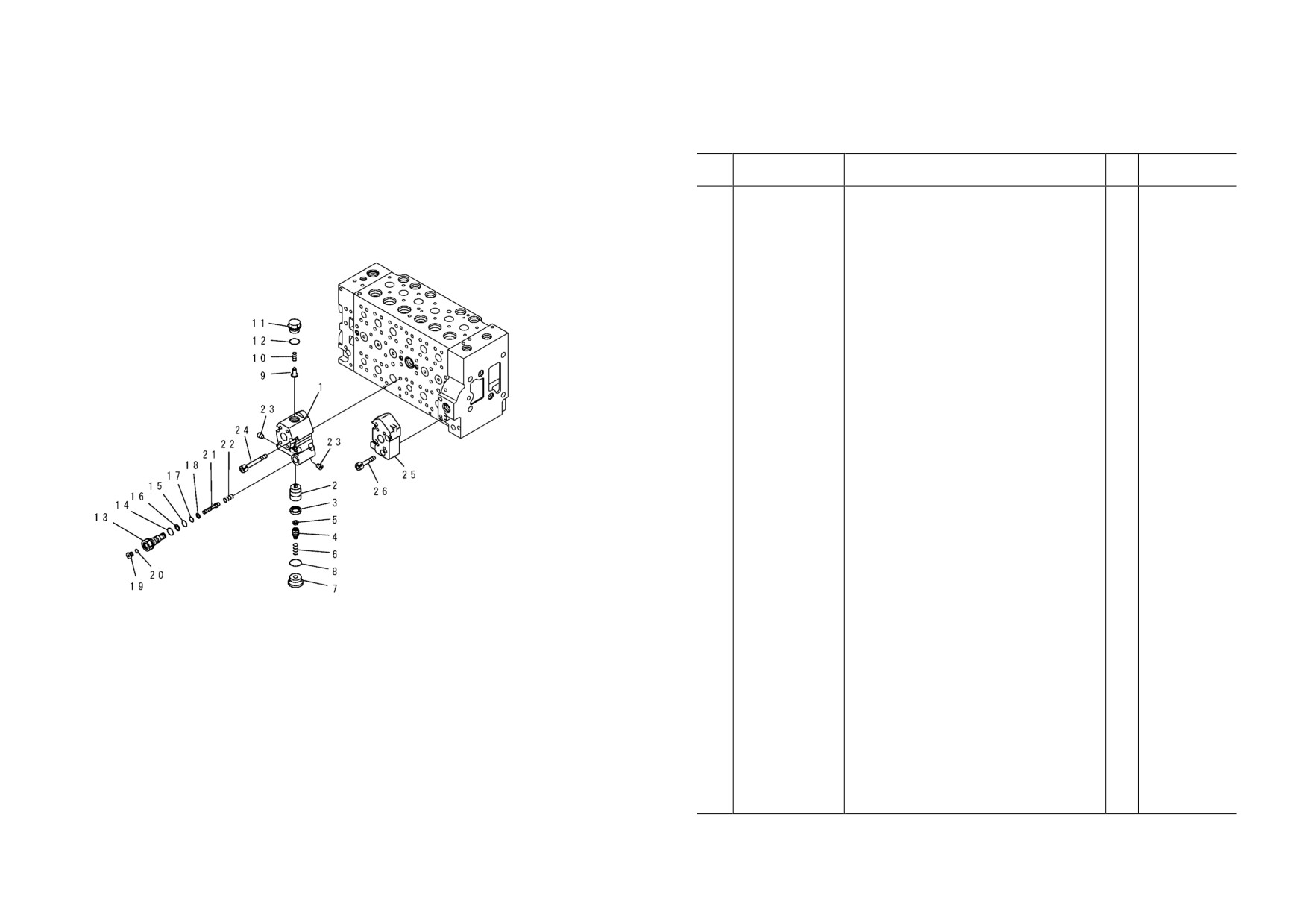

FIG NO. ：Y1660-16A0
FIG. Y1660-16A0 MAIN VALVE (16/16)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-46-20403)
VALVE ASS'Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1660-01A0 TO Y1660-16A0
723-40-82500
. VALVE ASS'Y
1
DBB0001~
1
☆
.. BODY
1
DBB0001~
2
☆
.. VALVE
1
DBB0001~
3
☆
.. SEAL
1
DBB0001~
4
723-40-82210
.. PLUG
1
DBB0001~
5
723-40-82220
.. FILTER
1
DBB0001~
6
723-40-82140
.. SPRING
1
DBB0001~
7
723-40-82150
.. PLUG
1
DBB0001~
8
07002-13334
.. O-RING
1
DBB0001~
9
709-25-11650
.. VALVE, CHECK
1
DBB0001~
10
709-25-11361
.. SPRING
1
DBB0001~
11
723-40-82161
.. PLUG
1
DBB0001~
12
07000-13024
.. O-RING
1
DBB0001~
13
☆
.. PLUG
1
DBB0001~
14
07002-11823
.. O-RING
1
DBB0001~
15
07000-12011
.. O-RING
1
DBB0001~
16
07001-02011
.. RING
1
DBB0001~
17
07000-11010
.. O-RING
1
DBB0001~
18
07001-01010
.. RING
1
DBB0001~
19
723-11-18190
.. PLUG
1
DBB0001~
20
07002-11023
.. O-RING
1
DBB0001~
21
☆
.. PISTON
1
DBB0001~
22
723-40-82290
.. SPRING
1
DBB0001~
23
☆
.. SCREW
2
DBB0001~
24
01252-61075
. BOLT
4
DBB0001~
PW5H286
25
723-46-17570
. BLOCK
1
DBB0001~
26
01252-61045
. BOLT
4
DBB0001~
YO- 102
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 103
FIG NO. ：Y1669-01A0
FIG.
Y1669-01A0
SERVICE VALVE (1/3) (SPECIAL PIPING FOR BREAKER) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
723-41-08500
VALVE ASS'Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1669-01A0 TO Y1669-03A0
☆
. BODY SUB ASS'Y
1
DBB0001~
1
☆
.. BLOCK, VALVE
1
DBB0001~
2
☆
...SPOOL
1
DBB0001~
3
723-46-15130
.. PLUG
2
DBB0001~
4
07002-10823
.. O-RING
2
DBB0001~
5
708-7T-16460
.. BALL
2
DBB0001~
6
723-46-15120
.. RETAINER
2
DBB0001~
7
723-46-14110
.. SPRING
2
DBB0001~
8
723-46-15111
.. CASE
2
DBB0001~
9
07430-71380
.. O-RING
2
DBB0001~
10
01252-60820
.. BOLT
4
DBB0001~
11
07000-11009
.. O-RING
2
DBB0001~
12
07000-12021
.. O-RING
1
DBB0001~
13
723-11-19130
.. O-RING
2
DBB0001~
14
07000-13032
.. O-RING
2
DBB0001~
15
723-46-17510
.. O-RING
2
DBB0001~
16
723-46-17520
.. RING, BACK-UP
2
DBB0001~
17
723-46-17530
.. O-RING
2
DBB0001~
PW5H791
YO- 148
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 149
FIG NO. ：Y1669-02A0
FIG. Y1669-02A0 SERVICE VALVE (2/3) (SPECIAL PIPING FOR BREAKER) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
(723-41-08500)
VALVE ASS'Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1669-01A0 TO Y1669-03A0
☆
. BODY SUB ASS'Y
1
DBB0001~
723-46-48100
.. VALVE ASS'Y
2
DBB0001~
1
☆
... SLEEVE
1
DBB0001~
2
☆
... VALVE
1
DBB0001~
3
☆
... SEAT
1
DBB0001~
4
☆
... POPPET
1
DBB0001~
5
☆
... PLUG
1
DBB0001~
6
☆
... SCREW
1
DBB0001~
7
☆
... NUT
1
DBB0001~
8
☆
... NUT
1
DBB0001~
9
☆
... SPRING
1
DBB0001~
10
☆
... SPRING
1
DBB0001~
11
☆
... PLATE
1
DBB0001~
12
☆
... CAP
1
DBB0001~
13
☆
... SEAL
2
DBB0001~
14
☆
... SEAL
1
DBB0001~
15
700-93-11320
... O-RING
1
DBB0001~
16
723-46-41950
... RING
2
DBB0001~
17
07002-13634
... O-RING
1
DBB0001~
18
☆
... O-RING
2
DBB0001~
Detail A
19
☆
... RING
3
DBB0001~
20
☆
... O-RING
1
DBB0001~
21
☆
... RING, BACK-UP
1
DBB0001~
22
01252-60845
.. BOLT
4
DBB0001~
23
01643-50823
.. WASHER
4
DBB0001~
PW5H792
YO- 150
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 151
