Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 41
FIG NO. ：Y0260-01A0

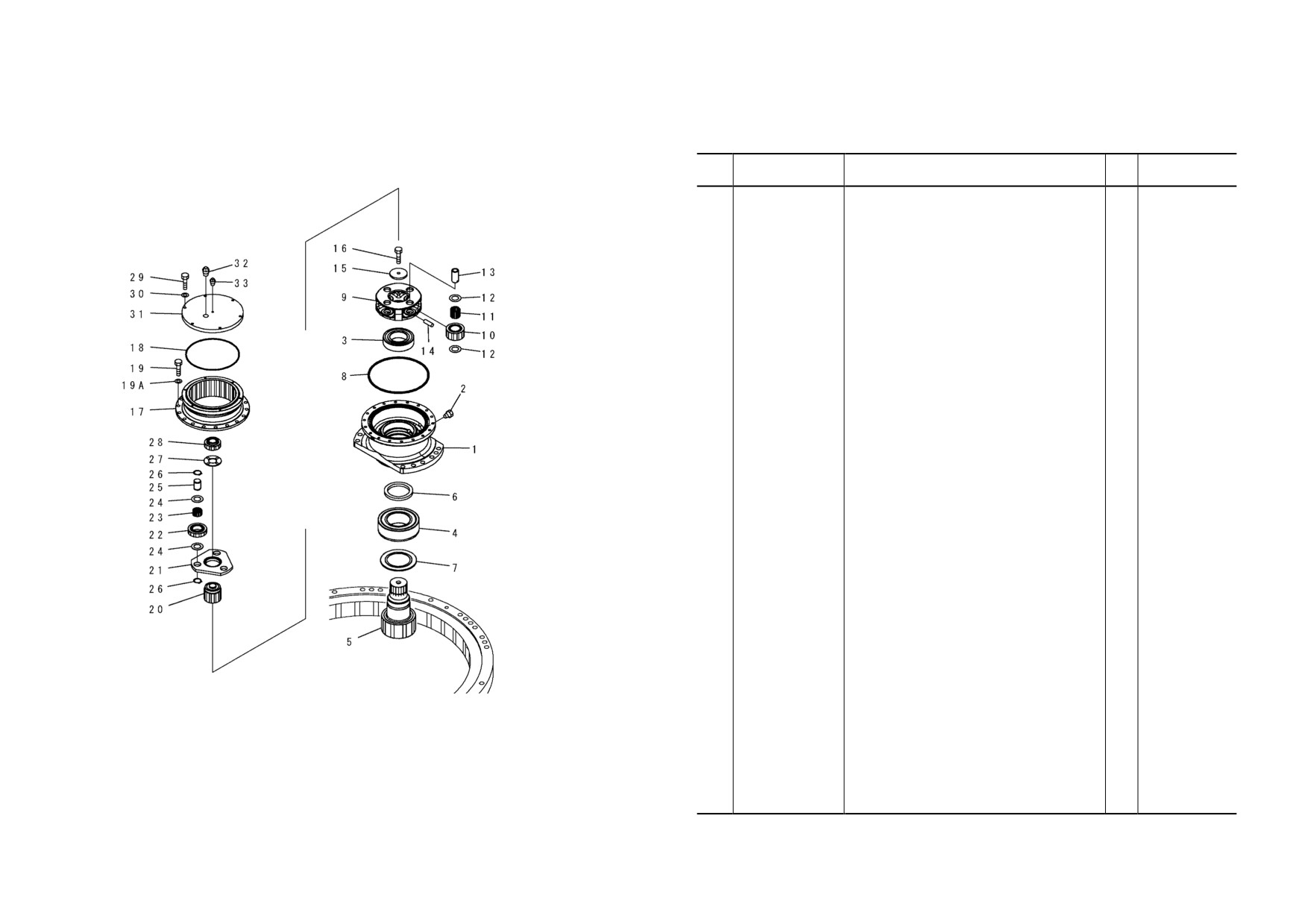

FIG. Y0260-01A0 SWING MACHINERY (SUPPLY ONLY)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
X210703740
SWING MACHINERY A
1
DBB0001~
1
22U-26-21190
. CASE
1
DBB0001~
2
07029-00000
. VALVE
1
DBB0001~
3
20Y-26-22330
. BEARING
1
DBB0001~
4
22U-26-21340
. BEARING
1
DBB0001~
5
22U-26-21560
. SHAFT, 15 TEETH
1
DBB0001~
6
07012-00115
. SEAL
1
DBB0001~
7
22U-26-21270
. SPACER
1
DBB0001~
8
07000-15310
. O-RING
1
DBB0001~
9
22U-26-21580
. CARRIER
1
DBB0001~
10
22U-26-21540
. GEAR
4
DBB0001~
11
20G-26-11240
. BEARING
4
DBB0001~DBB4708
20G-26-11241
. BEARING
4
DBB4709~
12
20Y-27-21240
. WASHER
8
DBB0001~
13
20Y-26-22250
. PIN
4
DBB0001~
14
20Y-27-21280
. PIN
4
DBB0001~
15
20Y-26-21240
. PLATE
1
DBB0001~
16
112-32-11211
. BOLT, SHOE
1
DBB0001~
17
22U-26-21550
. GEAR
1
DBB0001~
18
20K-22-11190
. O-RING
1
DBB0001~
19
01010-81440
. BOLT
18
DBB0001~
19A
01643-31445
. WASHER
18
DBB0001~
20
22U-26-21530
. GEAR
1
DBB0001~
21
22U-26-21570
. CARRIER
1
DBB0001~
22
22U-26-21520
. GEAR
3
DBB0001~
23
20Y-26-21281
. BEARING
3
DBB0001~
24
22U-26-21230
. WASHER, THRUST
6
DBB0001~
25
22U-26-21210
. PIN
3
DBB0001~
Swing Sircle
26
04064-03515
. RING
6
DBB0001~
27
22U-26-21250
. WASHER, THRUST
1
DBB0001~
28
22U-26-21510
. GEAR
1
DBB0001~
29
01010-81035
. BOLT
6
DBB0001~
PW1A071
30
01643-51032
. WASHER
6
DBB0001~
31
20Y-26-31510
. COVER
1
DBB0001~
32
07042-30617
. PLUG
1
DBB0001~
33
07042-30108
. PLUG
1
DBB0001~
YO- 2
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 3
FIG NO. ：Y0270-01A0

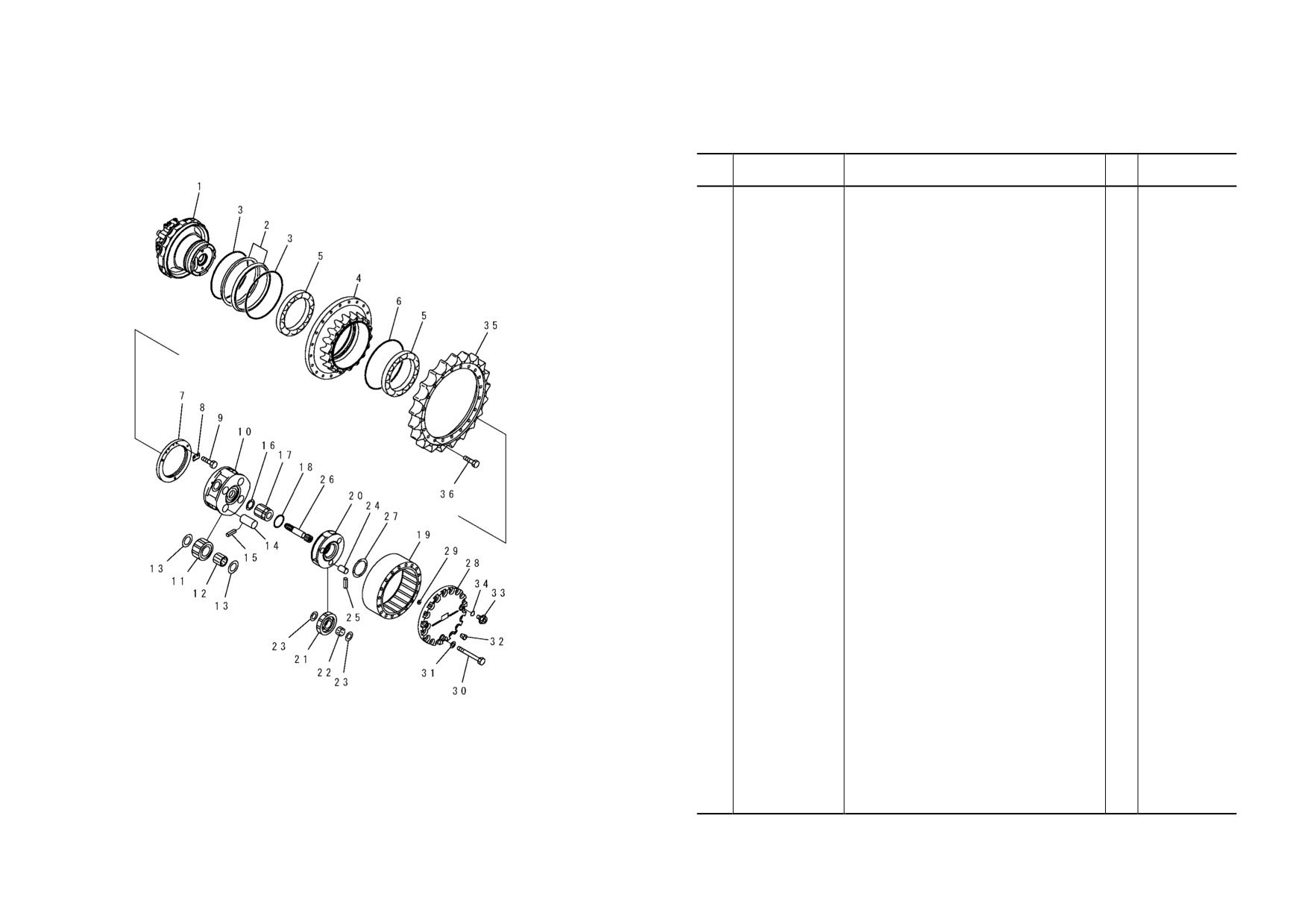

FIG. Y0270-01A0 FINAL DRIVE (SUPPLY ONLY)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-27-00432
FINAL DRIVE ASS' Y
2
DBB0001~
1
（708-8F-00171）
. MOTOR ASS' Y
1
DBB0001~
150-27-00410
. FLOATING SEAL ASS' Y
1
DBB0001~
2
150-27-00264
..SEAL RING ASS' Y
1
DBB0001~
☆
... RING
2
DBB0001~
3
14S-27-00110
..O-RING ASS' Y
1
DBB0001~
☆
... O-RING
2
DBB0001~
4
20Y-27-31220
. HUB
1
DBB0001~
5
20Y-27-22230
. BEARING
2
DBB0001~
6
20Y-27-22280
. O-RING
1
DBB0001~
7
20Y-27-22261
. LOCK
1
DBB0001~
8
20Y-27-22270
. LOCK
1
DBB0001~
9
01010-81020
. BOLT
2
DBB0001~
10
20Y-27-22170
. CARRIER
1
DBB0001~
11
20Y-27-22140
. GEAR
4
DBB0001~
12
20Y-27-22220
. BEARING
4
DBB0001~
13
20Y-27-21250
. WASHER
8
DBB0001~
14
20Y-27-21230
. PIN
4
DBB0001~
15
20Y-27-21290
. PIN
4
DBB0001~
16
20Y-27-13310
. WASHER
1
DBB0001~
17
20Y-27-22130
. GEAR
1
DBB0001~
18
20Y-27-22240
. WASHER
1
DBB0001~
19
20Y-27-22151
. GEAR
1
DBB0001~
20
20Y-27-22160
. CARRIER
1
DBB0001~
21
20Y-27-22120
. GEAR
3
DBB0001~
22
20Y-27-22210
. BEARING
3
DBB0001~
23
20Y-27-21240
. WASHER
6
DBB0001~
24
20Y-27-21220
. PIN
3
DBB0001~
25
20Y-27-21280
. PIN
3
DBB0001~
26
20Y-27-31210
. SHAFT
1
DBB0001~
27
20Y-27-21310
. WASHER
1
DBB0001~
28
20Y-27-31230
. COVER
1
DBB0001~
29
20Y-27-22250
. BUTTON
1
DBB0001~
30
20Y-27-13281
. BOLT
18
DBB0001~
31
01643-31645
. WASHER
18
DBB0001~
32
07049-01012
. PLUG
2
DBB0001~
PW1B946
33
07044-12412
. PLUG
3
DBB0001~
34
07002-12434
. O-RING
3
DBB0001~
35
20Y-27-11582
. SPROCKET
1
DBB0001~
36
20Y-27-11561
. BOLT
20
DBB0001~
YO- 6
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 7
FIG NO. ：Y0320-01A0
FIG. Y0320-01A0 SHOE BOLT AND NUT SERVICE KIT
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
K01
20Y-32-05070
SHOE BOLT AND NUT K
1
DBB0001~
20Y-32-31210
. BOLT, SHOE
50
DBB0001~
134-32-61221
. NUT
50
DBB0001~
K02
20Y-32-05041
SHOE BOLT AND NUT K
1
DBB0001~
Kit: For details, Please refer to the following page
20Y-32-11230
. BOLT
50
DBB0001~
134-32-61221
. NUT
50
DBB0001~
K01
20Y-32-05070 Shoe bolt and nut repair kit
K03
20Y-32-05051
SHOE BOLT AND NUT K
1
DBB0001~
K02
20Y-32-05041 Shoe bolt and nut repair kit (for wetland)
20Y-32-11220
. BOLT, SHOE
50
DBB0001~
K03
20Y-32-05051 Shoe bolt and nut repair kit (for flat plate)
134-32-61221
. NUT
50
DBB0001~
K04
20Y-32-05080 Shoe bolt and nut repair kit (for road liner installation)
K04
20Y-32-05080
SHOE BOLT AND NUT K
1
DBB0001~
20Y-32-31231
. BOLT, SHOE
50
DBB0001~
134-32-61221
. NUT
50
DBB0001~
PW1B856
YO- 8
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 9
FIG NO. ：Y0321-01A0
FIG.
Y0321-01A0

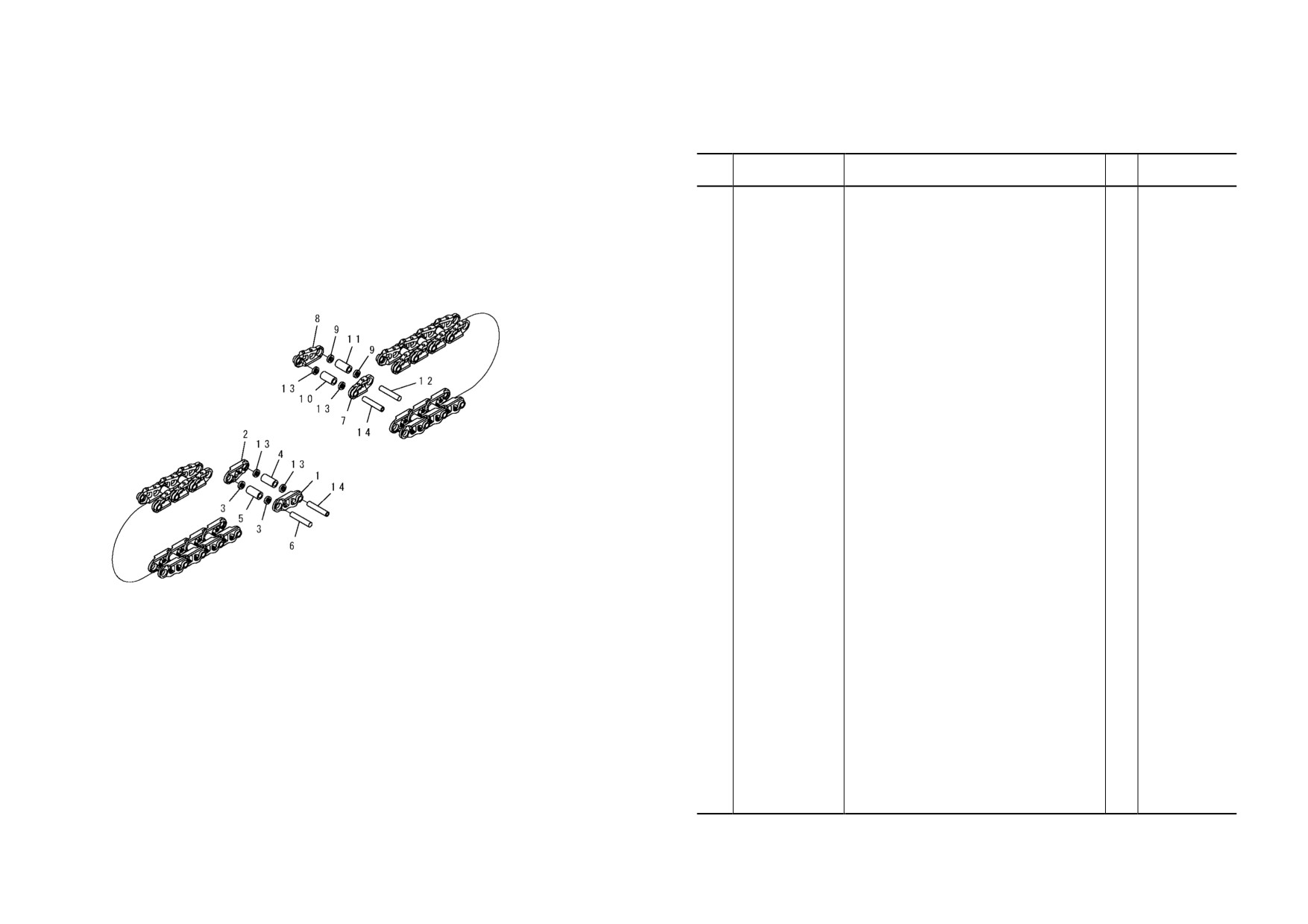

TRACK LINK ASS'Y (90 SET) (SUPPLY PARTS)
（PC200, 210-7）
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-32-00300
TRACK LINK ASS' Y
1
DBB0001~
1
20Y-32-31120
. LINK, TRACK, L. H
44
DBB0001~
2
20Y-32-31130
. LINK, TRACK, R. H
44
DBB0001~
3
20Y-32-11240
. SEAL
84
DBB0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
5
20Y-32-11141
. BUSHING, REGULAR
42
DBB0001~
6
20Y-32-31150
. PIN
42
DBB0001~
7
20Y-32-31120
. LINK, TRACK, L. H
46
DBB0001~
8
20Y-32-31130
. LINK, TRACK, R. H
46
DBB0001~
9
20Y-32-11240
. SEAL
88
DBB0001~
10
20Y-32-11171
. BUSHING, MASTER
2
DBB0001~
11
20Y-32-11141
. BUSHING, REGULAR
44
DBB0001~
12
20Y-32-31150
. PIN
44
DBB0001~
13
20Y-32-11260
. SEAL
8
DBB0001~
14
20Y-32-31190
. PIN
4
DBB0001~
PW1A010
YO- 10
PC200, 210-7
PC200, 210-7
YO- 11
FIG NO. ：Y0321-01A1
FIG.
Y0321-01A1
TRACK LINK ASS'Y (98 SET) (SUPPLY PARTS) (PC200LC, 210LC-7)
（PC200LC, 210LC-7）
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
20Y-32-00310
TRACK LINK ASS' Y
1
DBE0001~
1
20Y-32-31120
. LINK, TRACK, L. H
48
DBE0001~
2
20Y-32-31130
. LINK, TRACK, R. H
48
DBE0001~
3
20Y-32-11240
. SEAL
92
DBE0001~
4
20Y-32-11171
. BUSHING, MASTER
2
DBE0001~
5
20Y-32-11141
. BUSHING, REGULAR
46
DBE0001~
6
20Y-32-31150
. PIN
46
DBE0001~
7
20Y-32-31120
. LINK, TRACK, L. H
50
DBE0001~
8
20Y-32-31130
. LINK, TRACK, R. H
50
DBE0001~
9
20Y-32-11240
. SEAL
96
DBE0001~
10
20Y-32-11171
. BUSHING, MASTER
2
DBE0001~
11
20Y-32-11141
. BUSHING, REGULAR
48
DBE0001~
12
20Y-32-31150
. PIN
48
DBE0001~
13
20Y-32-11260
. SEAL
8
DBE0001~
14
20Y-32-31190
. PIN
4
DBE0001~
PW1A010
YO- 12
PC200LC, 210LC-7
PC200LC, 210LC-7
YO- 13
FIG NO. ：Y1011-01A0

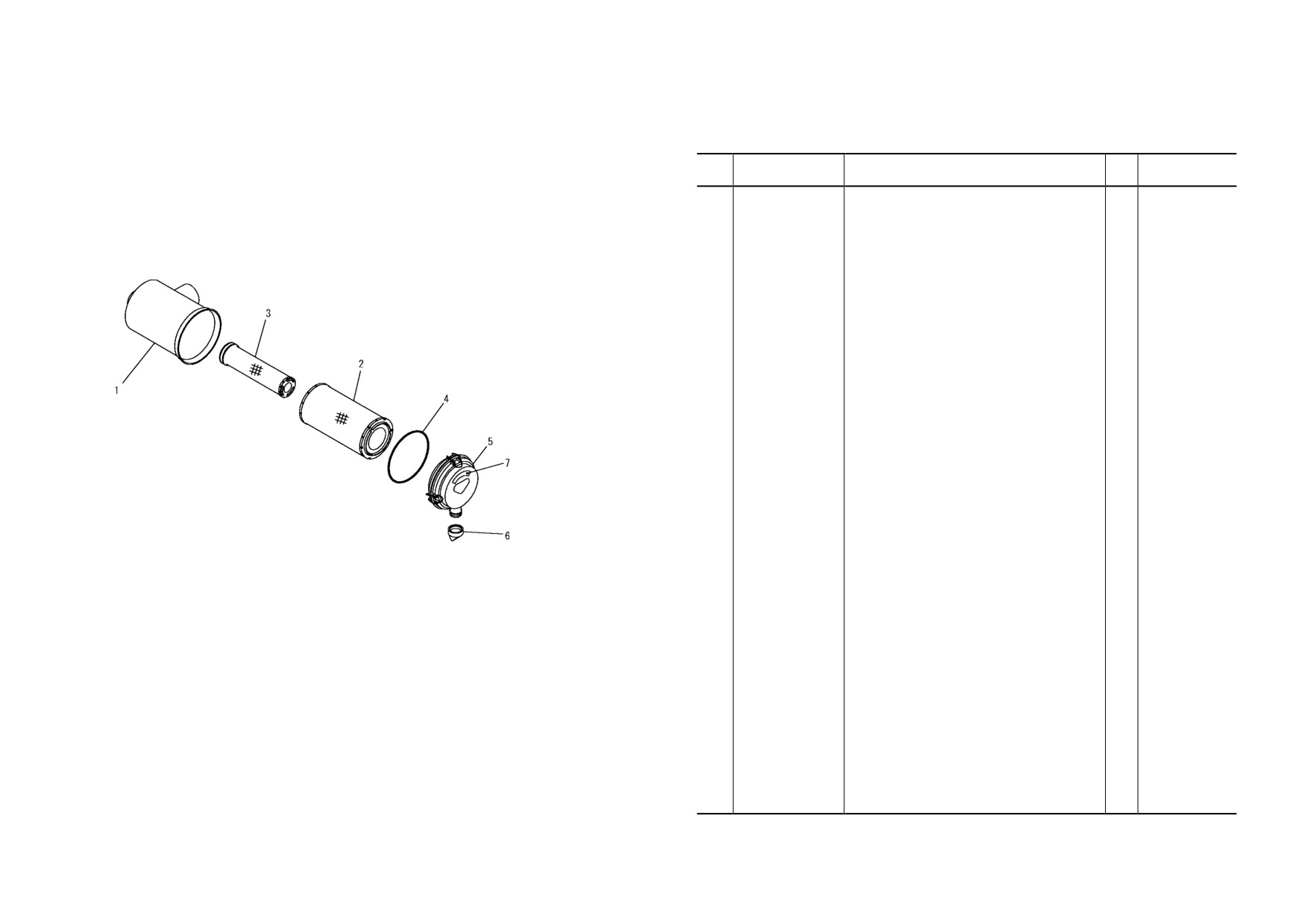

FIG. Y1011-01A0 AIR CLEANER (INNER PART)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
6738-81-7300
AIR CLEANER
1
DBB0001~
1
6738-81-7310
. BODY
1
DBB0001~
600-185-3100
. ELEMENT ASS' Y
1
DBB0001~
2
600-185-3110
.. ELEMENT
1
DBB0001~
3
600-185-3120
.. ELEMENT
1
DBB0001~
4
600-184-1370
.. O-RING
1
DBB0001~
5
600-184-1310
. COVER ASS' Y
1
DBB0001~
600-184-2810
.. PLATE
1
DBB0001~
6
600-184-1350
. VALVE
1
DBB0001~
7
600-181-1930
. PLATE, INSTRUCTION
1
DBB0001~
PJ1D888
YO- 14
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 15
FIG NO. ：Y1061-01A0

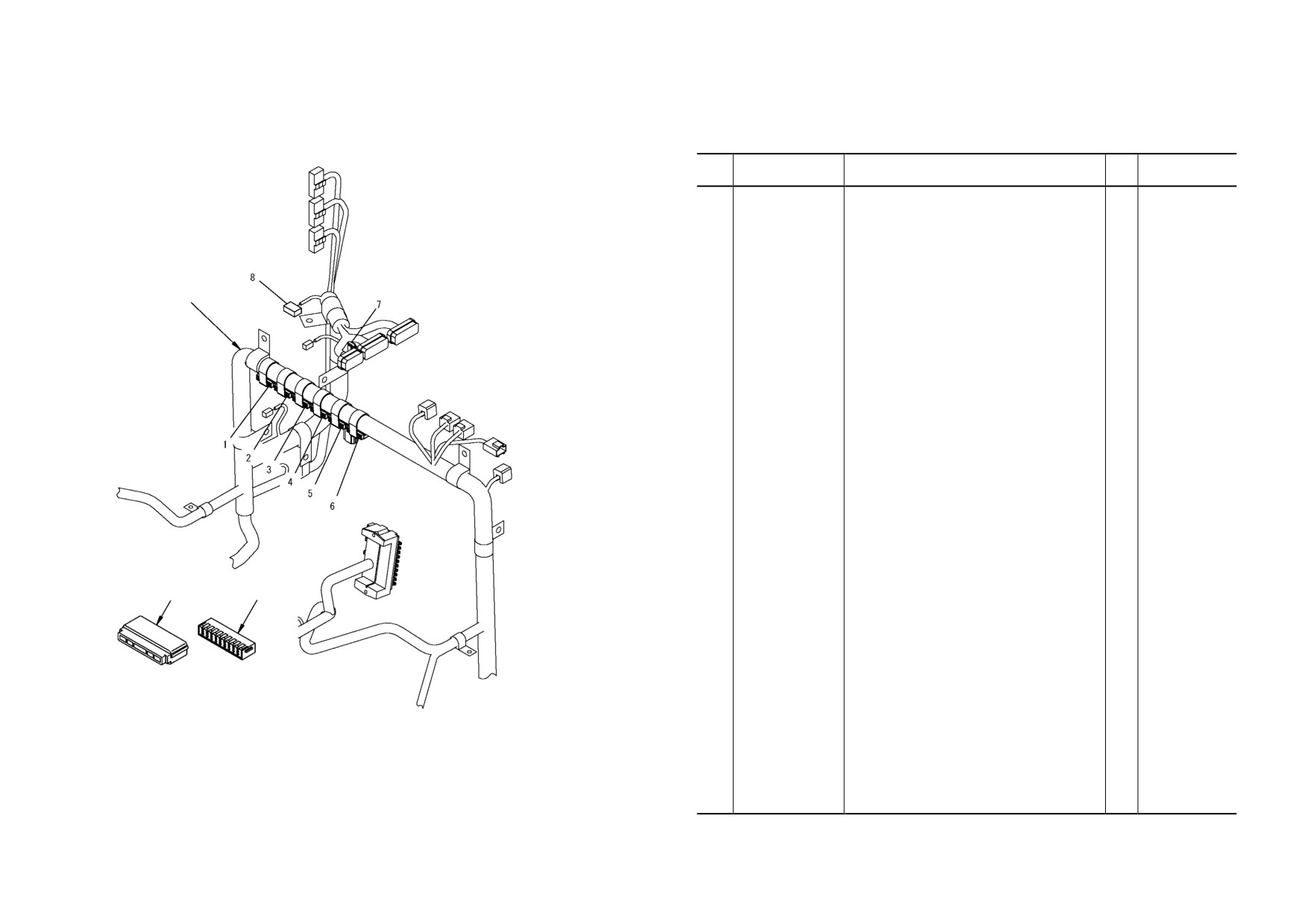

FIG. Y1061-01A0 WIRING HARNESS (JUNCTION CONNECTOR) (FOR SUPPLY)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
（20Y-06-31110）
WIRING HARNESS
1
DBB0001~
1
☆
JUNCTION CONNECTOR, BLACK (CN-J01
1
DBB0001~
HM6400-0012
.. F-CONNECTOR, BLACK (CN-J02)
1
DBB0001~
HM6409-0071
.. M-CONNECTOR, BLACK
1
DBB0001~
2
☆
. JUNCTION CONNECTOR, BLACK (CN-J02)
1
DBB0001~
See Fig. K1110-06A0
HM6400-0012
.. F-CONNECTOR, BLACK
1
DBB0001~
HM6409-0071
.. M-CONNECTOR, BLACK
1
DBB0001~
3
☆
. JUNCTION CONNECTOR, ORANGE (CN-J03)
1
DBB0001~
HM6400-0013
.. F-CONNECTOR, GREEN
1
DBB0001~
HM6409-0072
.. M-CONNECTOR, GREEN
1
DBB0001~
4
☆
. JUNCTION CONNECTOR, GREEN (CN-J04)
1
DBB0001~
HM6400-0013
.. F-CONNECTOR, GREEN
1
DBB0001~
HM6409-0072
.. M-CONNECTOR, GREEN
1
DBB0001~
5
☆
. JUNCTION CONNECTOR, PINK (CN-J05)
1
DBB0001~
HM6440-0129
.. F-CONNECTOR, PINK
1
DBB0001~
HM6440-0128
.. M-CONNECTOR, PINK
1
DBB0001~
6
☆
. JUNCTION CONNECTOR, ORANGE (CN-J06)
1
DBB0001~
HM6400-0016
.. F-CONNECTOR, ORANGE
1
DBB0001~
HM6409-0075
.. M-CONNECTOR, ORANGE
1
DBB0001~
7
☆
. JUNCTION CONNECTOR, ORANGE (CN-J07)
1
DBB0001~
HM6400-0016
.. F-CONNECTOR, ORANGE
1
DBB0001~
F-Connector
M-Connector
HM6409-0075
.. M-CONNECTOR, ORANGE
1
DBB0001~
8
☆
. JUNCTION CONNECTOR, PINK (CN-J08)
1
DBB0001~
HM6440-0129
.. F-CONNECTOR, PINK
1
DBB0001~
HM6440-0128
.. M-CONNECTOR, PINK
1
DBB0001~
Detail of Junction Connector
PW1C915
YO- 16
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 17
FIG NO. ：Y1600-01A0

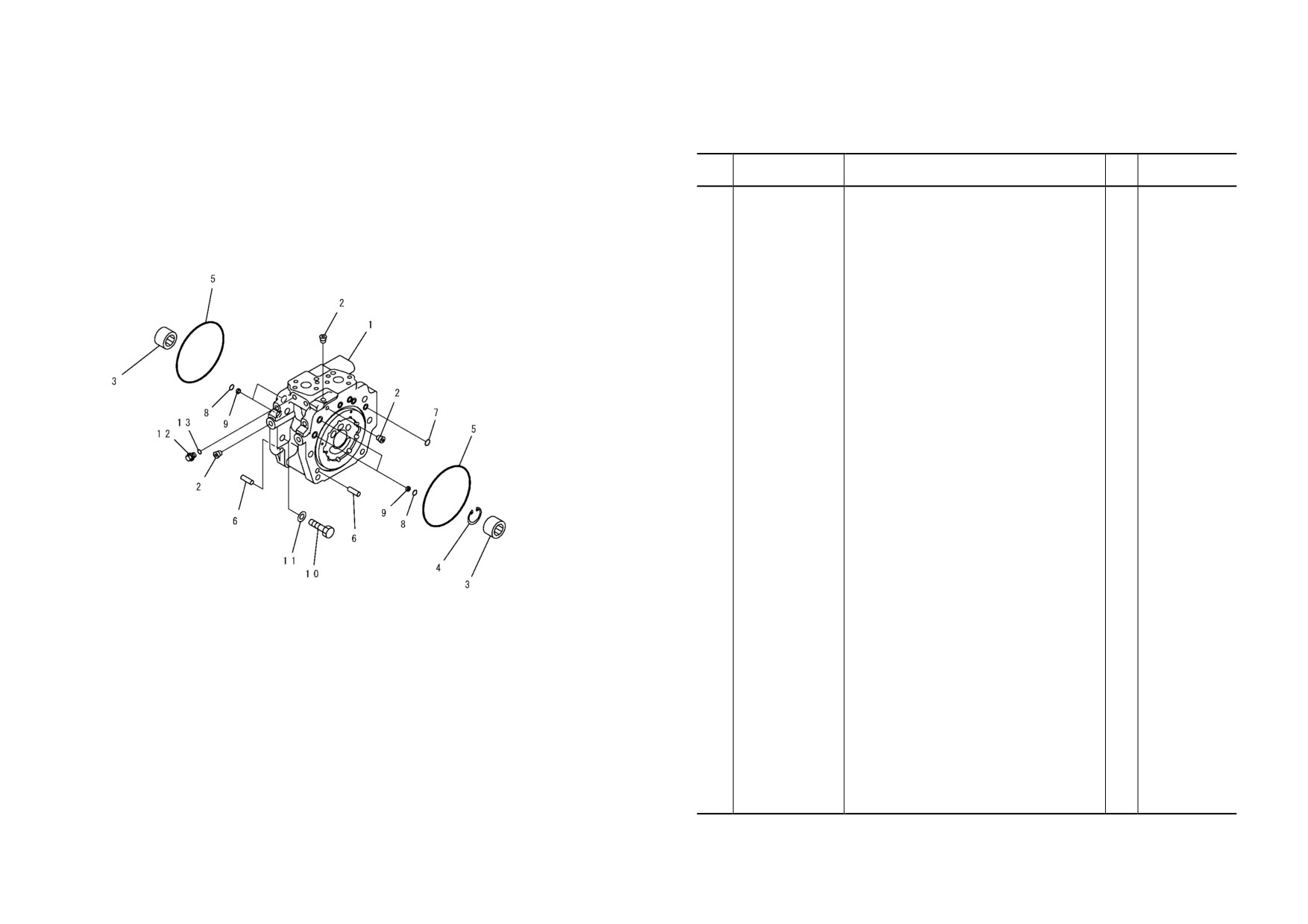

FIG. Y1600-01A0 MAIN PUMP (1/11)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
708-2L-00300
PUMP ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1600-01A0 TO Y1600-11A0
708-2L-01301
. PUMP SUB ASS' Y
1
DBB0001~
（★708-2L-06111）
.. CASE ASS' Y, FRONT
1
DBB0001~
1
☆
... CASE, FRONT
1
DBB0001~
2
☆
... PLUG
32
DBB0001~
3
07040-12414
.. PLUG
1
DBB0001~
4
708-1W-28910
.. O-RING
1
DBB0001~
5
（★07000-B1009）
.. O-RING
1
DBB0001~
6
07044-12412
.. PLUG
1
DBB0001~
7
708-1W-28910
.. O-RING
1
DBB0001~
8
04530-01222
.. BOLT, EYE
1
DBB0001~
9
708-8E-16150
.. PLUG
2
DBB0001~
10
708-2L-23920
.. O-RING
2
DBB0001~
PW5A025
YO- 18
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 19

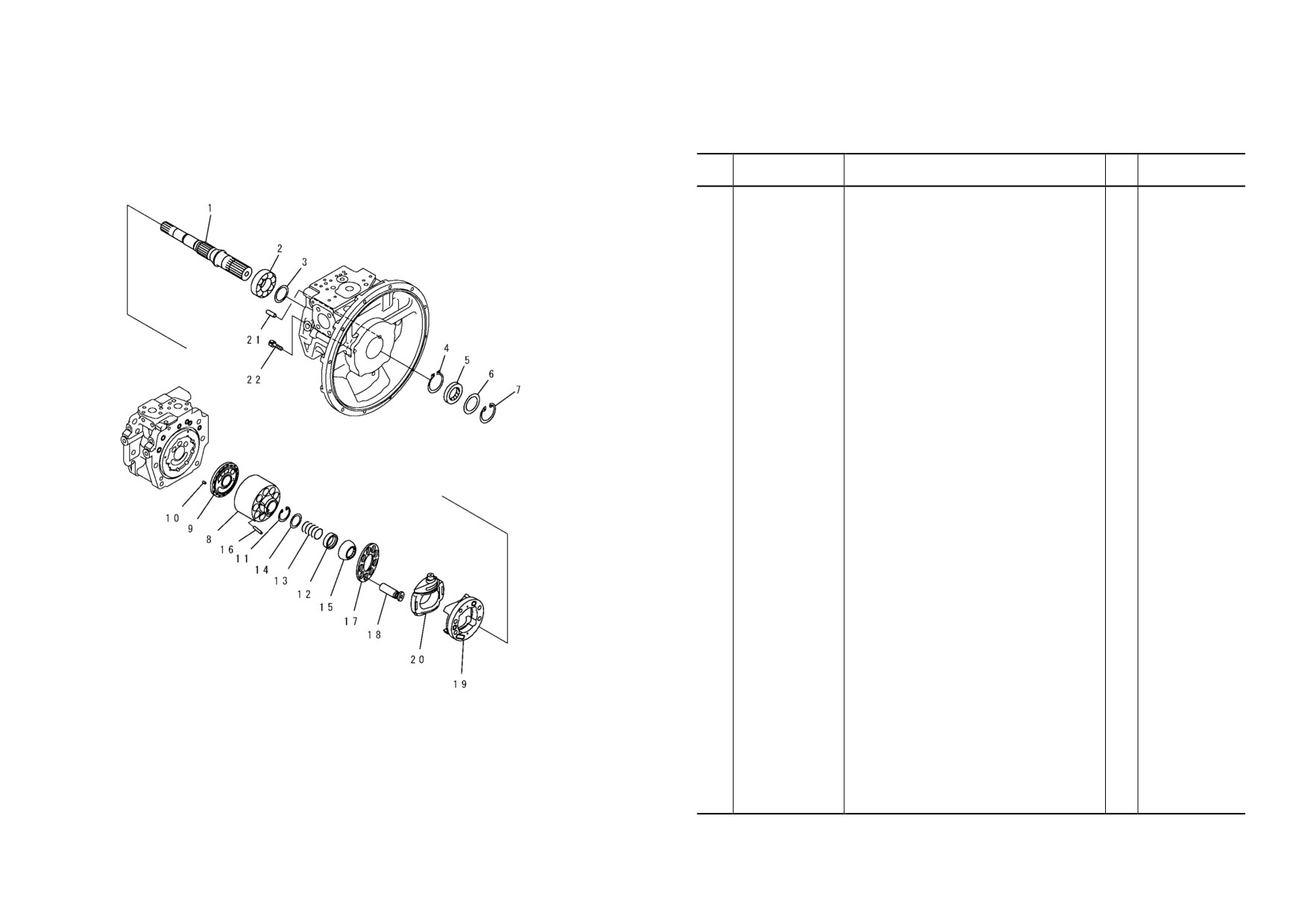

FIG NO. ：Y1600-02A0

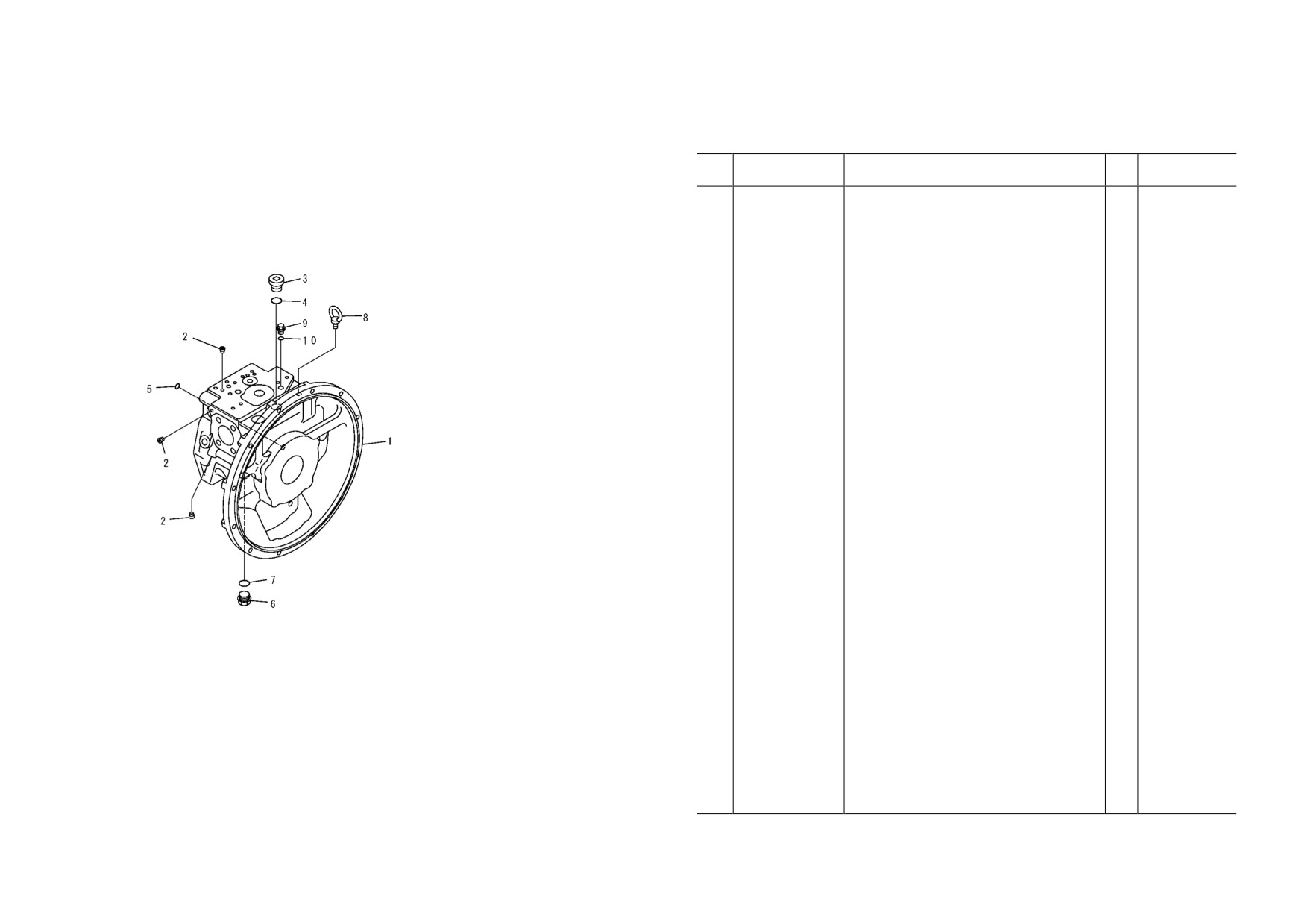

FIG. Y1600-02A0 MAIN PUMP (2/11)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
（708-2L-00300）
PUMP
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1600-01A0 TO Y1600-11A0
（708-2L-01301）
. PUMP SUB ASS' Y
1
DBB0001~
（★708-2L-06121）
.. CAP ASS' Y, END
1
DBB0001~
1
☆
... CAP, END
1
DBB0001~
2
☆
... PLUG
15
DBB0001~
3
（★708-2L-32260）
.. BEARING
2
DBB0001~
4
（★708-2L-22271）
.. PING, SNAP
1
DBB0001~
5
（★07000-A5165）
.. O-RING
2
DBB0001~
6
（★04020-01228）
.. PIN
2
DBB0001~
7
（★07000-B2012）
.. O-RING
7
DBB0001~
8
（★07000-B2014）
.. O-RING
4
DBB0001~
9
（★708-2L-25480）
.. FILTER
4
DBB0001~
10
（★01010-61450）
.. BOLT
12
DBB0001~
11
（★01643-31445）
.. WASHER
12
DBB0001~
12
708-8E-16150
.. PLUG
3
DBB0001~
13
708-2L-23920
.. O-RING
3
DBB0001~
PW5A026
YO- 20
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 21
FIG NO. ：Y1600-03A0
FIG. Y1600-03A0 MAIN PUMP (3/11)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
（708-2L-00300）
PUMP ASS' Y
1
DBB0001~
THIS ASSEMBLY CONSISTS OF ALL PARTS
SHOWN IN FIGS. Y1600-01A0 TO Y1600-11A0
（708-2L-01301）
. PUMP SUB ASS' Y
1
DBB0001~
1
（★708-2L-32110）
.. SHAFT, FRONT
1
DBB0001~
2
（★708-2L-32150）
.. BEARING
1
DBB0001~
3
（★708-2E-05040）
.. WASHER KIT
1
DBB0001~
4
（★708-25-12790）
.. RING, SNAP
1
DBB0001~
5
708-25-52861
.. SEAL, OIL
1
DBB0001~
6
708-2L-22160
.. SPACER
1
DBB0001~
7
04065-06825
.. RING, SNAP
1
DBB0001~
（★708-2L-06170）
.. BLOCK ASS' Y, FRONT
1
DBB0001~
8
☆
... BLOCK, CYLINDER
1
DBB0001~
9
☆
... PLATE, VALVE
1
DBB0001~
10
（★720-68-19610）
.. PIN
1
DBB0001~
11
（★04065-04818）
.. RING, SNAP
1
DBB0001~
12
（★708-2L-23131）
.. SEAT
1
DBB0001~
13
（★708-2L-33160）
.. SPRING
1
DBB0001~
14
（★708-7L-13140）
.. SEAT
1
DBB0001~
15
（★708-2L-23351）
.. GUIDE, RETAINER
1
DBB0001~
16
（★708-2L-23360）
.. PIN
3
DBB0001~
17
（★708-2L-33350）
.. RETAINER, SHOE
1
DBB0001~
18
（★708-2L-33310）
.. PISTON SUB ASS' Y
9
DBB0001~
（★708-2L-06190）
.. CRADLE ASS'Y
1
DBB0001~
19
☆
... CRADLE
1
DBB0001~
20
☆
... CAM, ROCKER
1
DBB0001~
21
（★04020-01228）
.. PIN
1
DBB0001~
22
（★01252-61230）
.. BOLT
4
DBB0001~
PW5A027
YO- 22
PC200, 210(LC)-7
PC200, 210(LC)-7
YO- 23
