Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 38
FIG NO. ：U0100-01A3

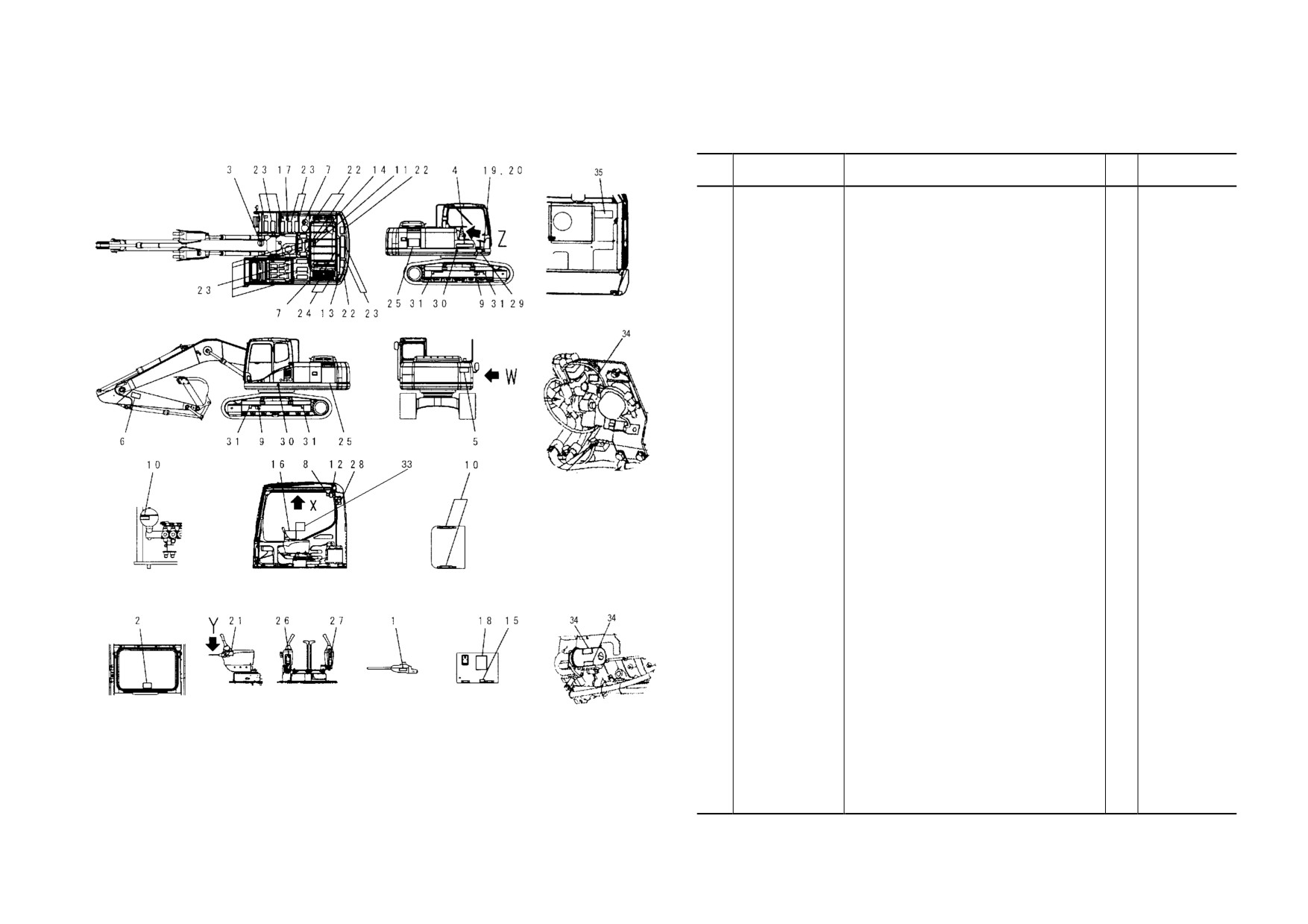

FIG. U0100-01A3 DECAL AND PLATE (CHINESE)
(PC200LC-7)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
09685-00002
PLATE, OPERATING
1
DBE0001~
2
20Y-00-D1240
PLATE
1
DBE0001~
3
09690-M0063
PLATE, MARK
1
DBE0001~
4
09690-P0630
PLATE, MARK
1
DBE0001~
5
09133-A3281
PLATE, SAFETY
1
DBE0001~
6
09134-A1681
PLATE, CAUTION
2
DBE0001~
View V
7
09653-A0481
PLATE, SAFETY
2
DBE0001~
View W
9
09657-A0881
PLATE, SAFETY
2
DBE0001~
10
09659-A057B
PLATE, SAFETY
3
DBE0001~
11
09667-A0481
PLATE, SAFETY, SAFETY
1
DBE0001~
12
09803-A0481
PLATE, SAFETY
1
DBE0001~
13
09805-A0881
PLATE, SAFETY
1
DBE0001~
14
09805-C0481
PLATE, SAFETY, SAFETY
1
DBE0001~
15
09808-A0881
PLATE, SAFETY, SAFETY
1
DBE0001~
16
20Y-00-31890
PLATE
1
DBE0001~
17
09669-0000E
PLATE, CAUTION
1
DBE0001~
Relay
18
20Y-00-31130
PLATE
1
DBE0001~
19
09601-200C1
PLATE, NAME
1
DBE0001~
20
04418-13060
SCREW
4
DBE0001~
21
09963-A1640
TAG
1
DBE0001~
22
203-00-51170
SEAT
4
DBE0001~
23
154-54-23260
SEAT
12
DBE0001~
Accumulator
R. H. Window Inside
View X
24
20Y-00-31110
SHEET
2
DBE0001~
25
20Y-00-31220
PLATE
2
DBE0001~
26
20Y-00-31860
PLATE
1
DBE0001~
27
20Y-00-31870
PLATE
1
DBE0001~
28
20Y-00-31880
PLATE
1
DBE0001~
29
20Y-00-31840
PLATE
1
DBE0001~
View Y
30
21U-98-D1160
PLATE, MARK
2
DBE0001~
Control Stand L. H.
View Z
Rear Window Inside
31
21U-98-D1150
PLATE, MARK
4
DBE0001~
Starting Motor
32
20Y-00-D1390
PLATE
1
DBE0001~
PW1C949
33
20Y-00-D1400
PLATE
1
DBE0001~
34
09842-A0481
PLATE SAFETY
1
DBE0001~
35
20Y-00-D1460
PLATE
1
DBE0001~
UO- 4
PC200LC-7
PC200LC-7
UO- 5
FIG NO. ：U0100-01A2

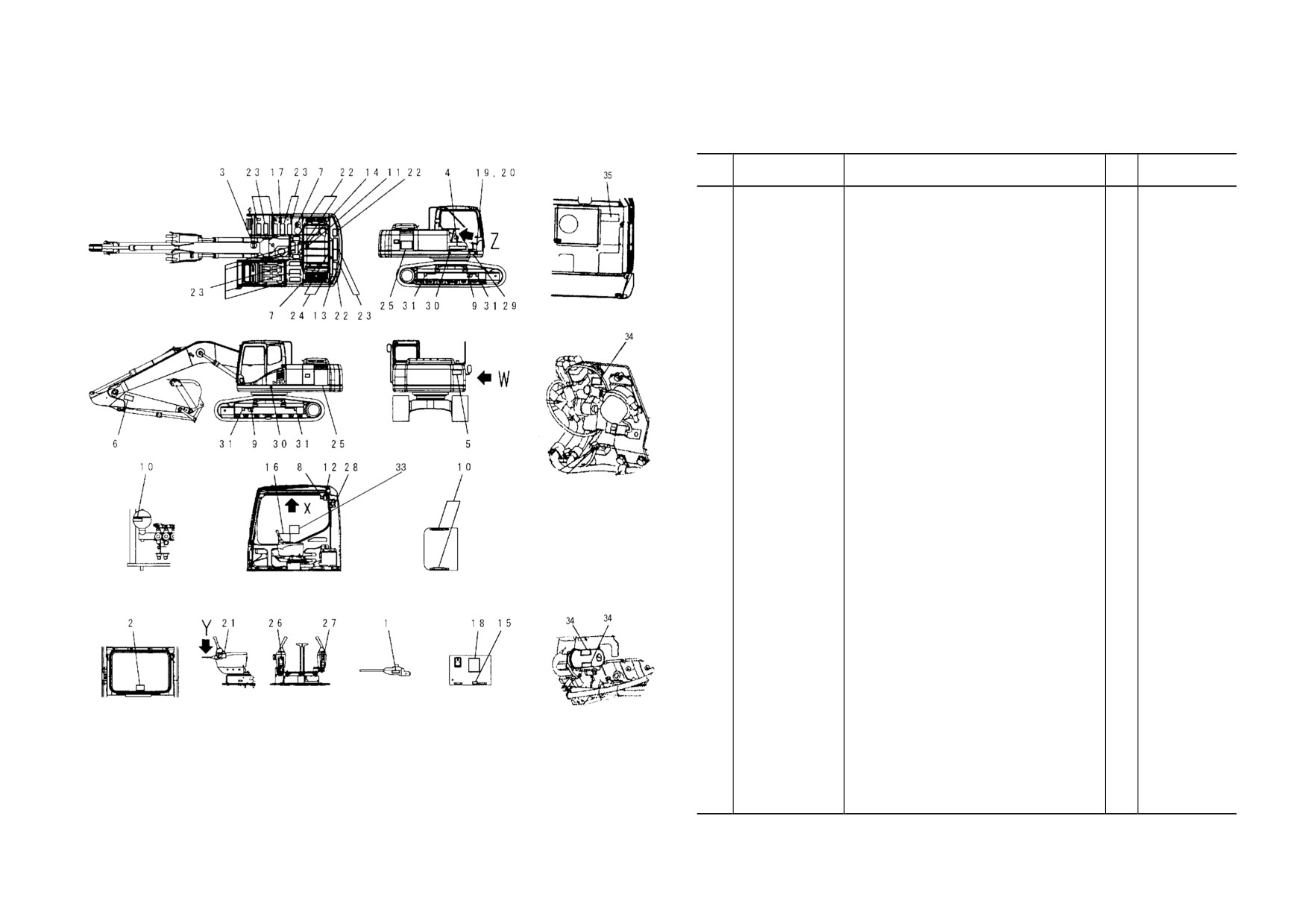

FIG. U0100-01A4 DECAL AND PLATE (CHINESE)
(PC210-7)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
09685-00002
PLATE, OPERATING
1
DBF0001~
2
20Y-00-D1240
PLATE
1
DBF0001~
3
09690-M0063
PLATE, MARK
1
DBF0001~
4
09690-P0630
PLATE, MARK
1
DBF0001~
5
09133-A3281
PLATE, SAFETY
1
DBF0001~
6
09134-A1681
PLATE, CAUTION
2
DBF0001~
View V
7
09653-A0481
PLATE, SAFETY
2
DBF0001~
View W
9
09657-A0881
PLATE, SAFETY
2
DBF0001~
10
09659-A057B
PLATE, SAFETY
3
DBF0001~
11
09667-A0481
PLATE, SAFETY
1
DBF0001~
12
09803-A0481
PLATE, SAFETY
1
DBF0001~
13
09805-A0881
PLATE, SAFETY
1
DBF0001~
14
09805-C0481
PLATE, SAFETY
1
DBF0001~
15
09808-A0881
PLATE, SAFETY
1
DBF0001~
16
20Y-00-31890
PLATE
1
DBF0001~
17
09669-0000E
PLATE, CAUTION
1
DBF0001~
Relay
18
20Y-00-31130
PLATE
1
DBF0001~
19
09601-200C1
PLATE, NAME
1
DBF0001~
20
04418-13060
SCREW
4
DBF0001~
21
09963-A1640
TAG
1
DBF0001~
22
203-00-51170
SEAT
4
DBF0001~
23
154-54-23260
SEAT
12
DBF0001~
Accumulator
R. H. Window Inside
View X
24
20Y-00-31110
SHEET
2
DBF0001~
25
20Y-00-31230
PLATE
2
DBF0001~
26
20Y-00-31860
PLATE
1
DBF0001~
27
20Y-00-31870
PLATE
1
DBF0001~
28
20Y-00-31880
PLATE
1
DBF0001~
29
20Y-00-31840
PLATE
1
DBF0001~
View Y
30
21U-98-D1160
PLATE, MARK
2
DBF0001~
Control Stand L. H.
View Z
Rear Window Inside
31
21U-98-D1150
PLATE, MARK
4
DBF0001~
Starting Motor
32
20Y-00-D1390
PLATE
1
DBF0001~
PW1C949
33
20Y-00-D1400
PLATE
1
DBF0001~
34
09842-A0481
PLATE SAFETY
3
DBF0001~
35
20Y-00-D1460
PLATE
1
DBF0001~
UO- 6
PC210-7
PC210-7
UO- 7
FIG NO. ：U0100-01A2
FIG. U0100-01A5 DECAL AND PLATE (CHINESE)
(PC210LC-7)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
09685-00002
PLATE, OPERATING
1
DBG0001~
2
20Y-00-D1240
PLATE
1
DBG0001~
3
09690-M0063
PLATE, MARK
1
DBG0001~
4
09690-P0630
PLATE, MARK
1
DBG0001~
5
09133-A3281
PLATE, SAFETY
1
DBG0001~
6
09134-A1681
PLATE, CAUTION
2
DBG0001~
View V
7
09653-A0481
PLATE, SAFETY
2
DBG0001~
View W
9
09657-A0881
PLATE, SAFETY
2
DBG0001~
10
09659-A057B
PLATE, SAFETY
3
DBG0001~
11
09667-A0481
PLATE, SAFETY
1
DBG0001~
12
09803-A0481
PLATE, SAFETY
1
DBG0001~
13
09805-A0881
PLATE, SAFETY
1
DBG0001~
14
09805-C0481
PLATE, SAFETY
1
DBG0001~
15
09808-A0881
PLATE, SAFETY
1
DBG0001~
16
20Y-00-31890
PLATE
1
DBG0001~
17
09669-0000E
PLATE, CAUTION
1
DBG0001~
Relay
18
20Y-00-31130
PLATE
1
DBG0001~
19
09601-200C1
PLATE, NAME
1
DBG0001~
20
04418-13060
SCREW
4
DBG0001~
21
09963-A1640
TAG
1
DBG0001~
22
203-00-51170
SEAT
4
DBG0001~
23
154-54-23260
SEAT
12
DBG0001~
Accumulator
R. H. Window Inside
View X
24
20Y-00-31110
SHEET
2
DBG0001~
25
20Y-00-31210
PLATE
2
DBG0001~
26
20Y-00-31860
PLATE
1
DBG0001~
27
20Y-00-31870
PLATE
1
DBG0001~
28
20Y-00-31880
PLATE
1
DBG0001~
29
20Y-00-31840
PLATE
1
DBG0001~
View Y
30
21U-98-D1160
PLATE, MARK
2
DBG0001~
Control Stand L. H.
View Z
Rear Window Inside
31
21U-98-D1150
PLATE, MARK
4
DBG0001~
Starting Motor
32
20Y-00-D1390
PLATE
1
DBG0001~
PW1C949
33
20Y-00-D1400
PLATE
1
DBG0001~
34
09842-A0481
PLATE SAFETY
3
DBG0001~
35
20Y-00-D1460
PLATE
1
DBG0001~
UO- 8
PC210LC-7
PC210LC-7
UO- 9

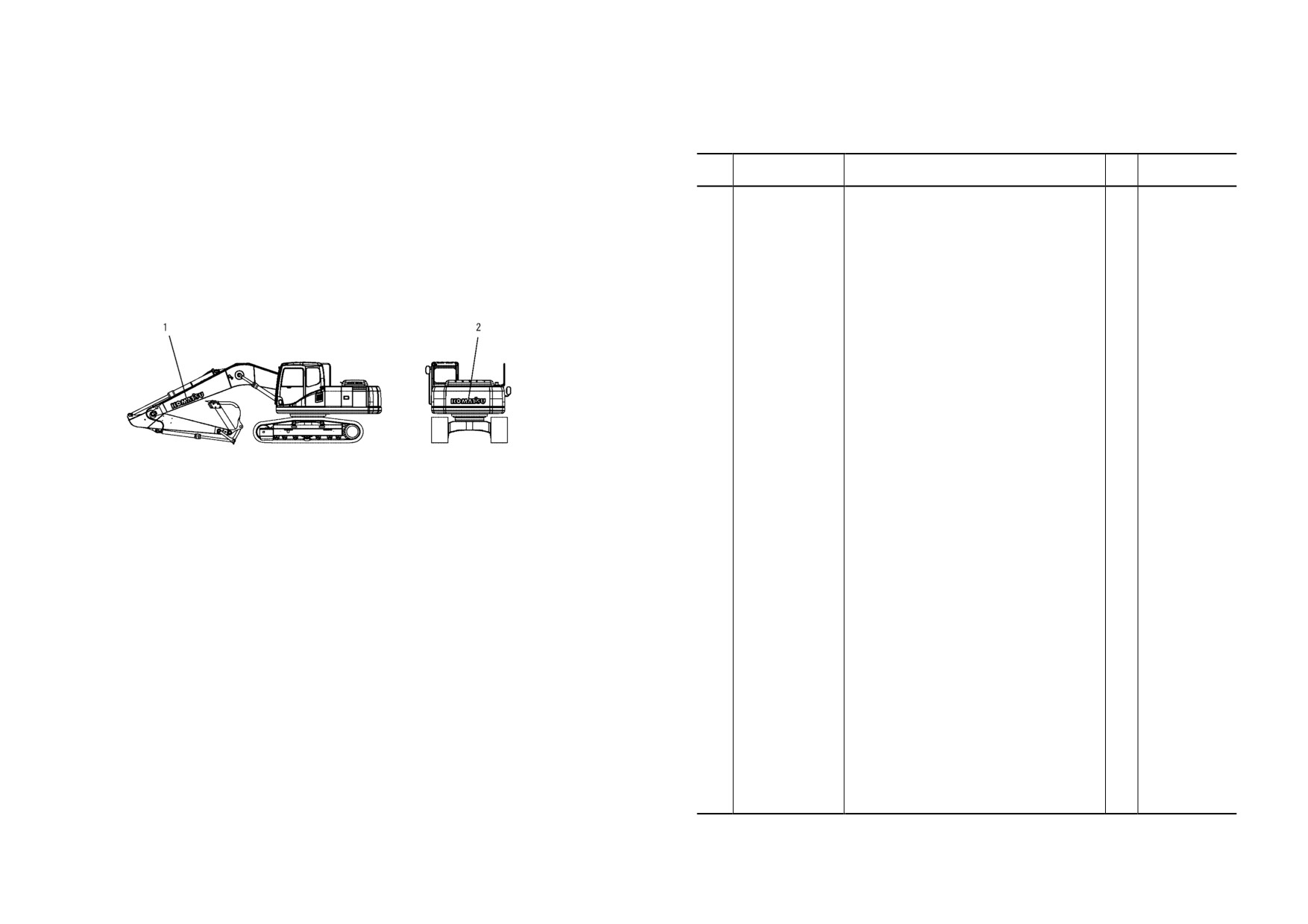

FIG NO. ：U0150-01A0
FIG. U0150-01A0 LOGO (KOMATSU) (SMALL) (GENERAL)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
09690-P1250
PLATE, MARK
2
DBB0001~
2
09690-P1250
PLATE, MARK
1
DBB0001~
PW1B927
UO- 10
PC200, 210(LC)-7
PC200, 210(LC)-7
UO- 11

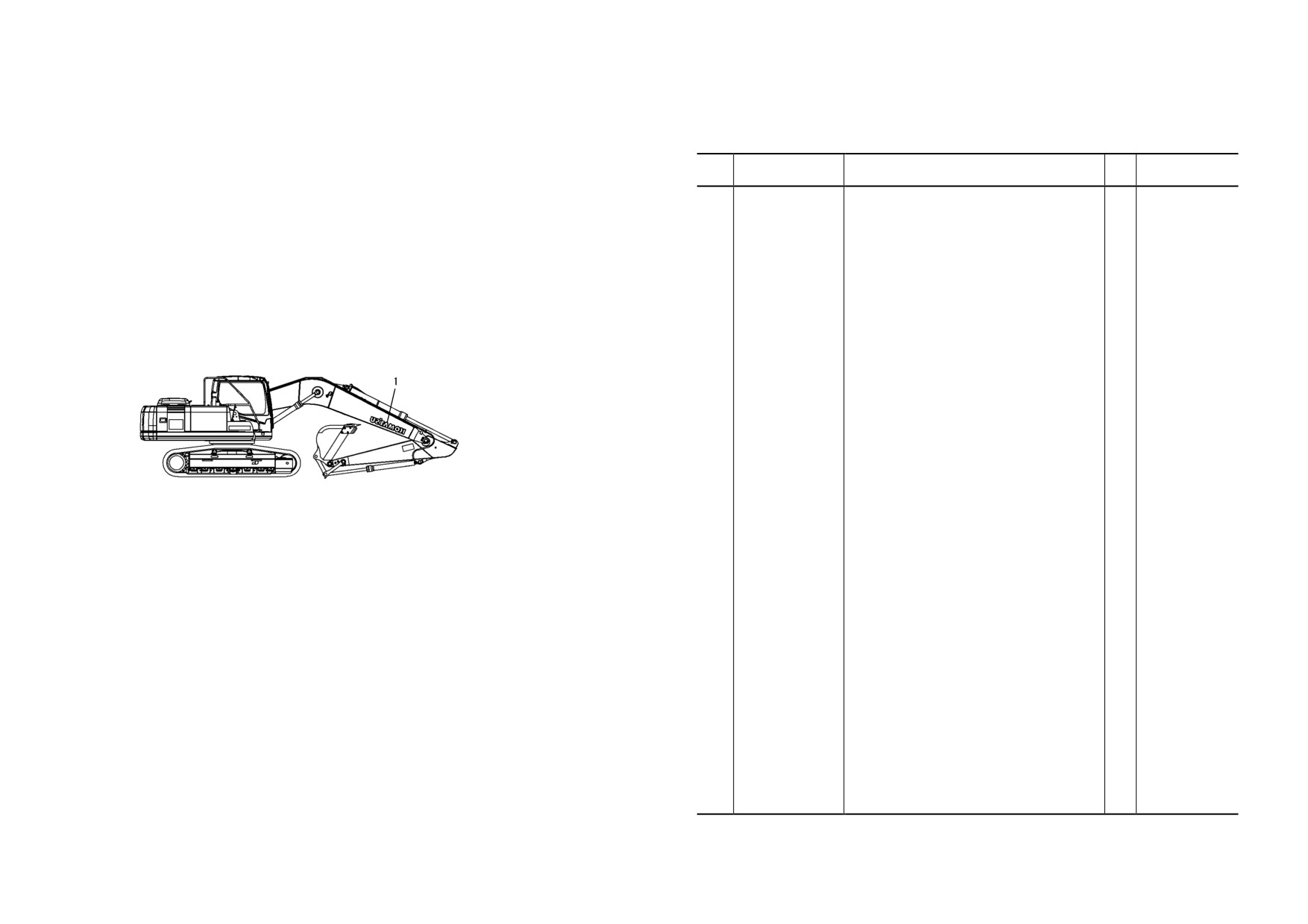

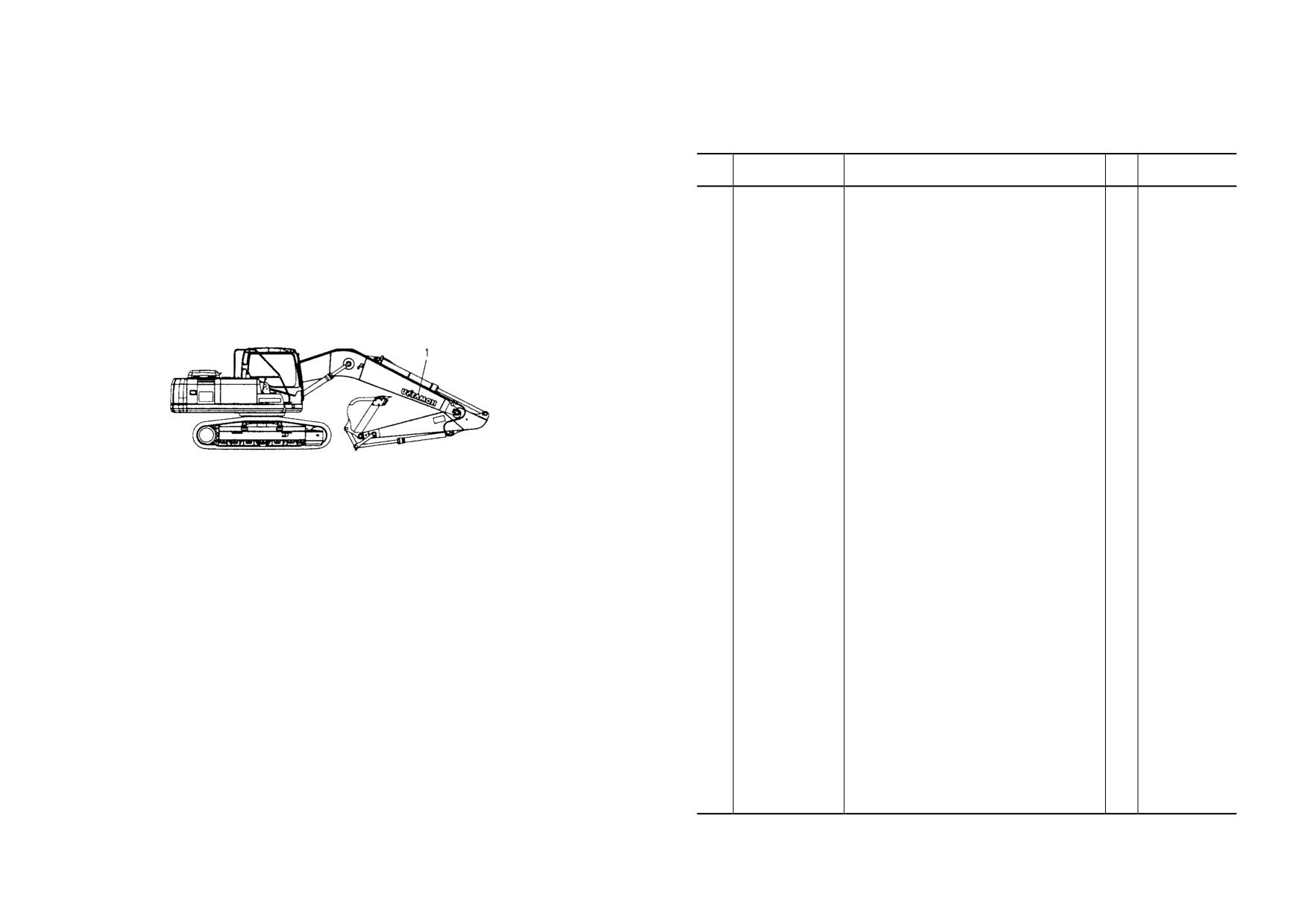

FIG NO. ：U0510-01A0
FIG. U0510-01A0 PLATE (BOOM SIDE、R.H.) (LOGO MARK)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
09690-P1250
PLATE, MARK
1
DBB0001~
PW1C956
UO- 12
PC200, 210(LC)-7
PC200, 210(LC)-7
UO- 13

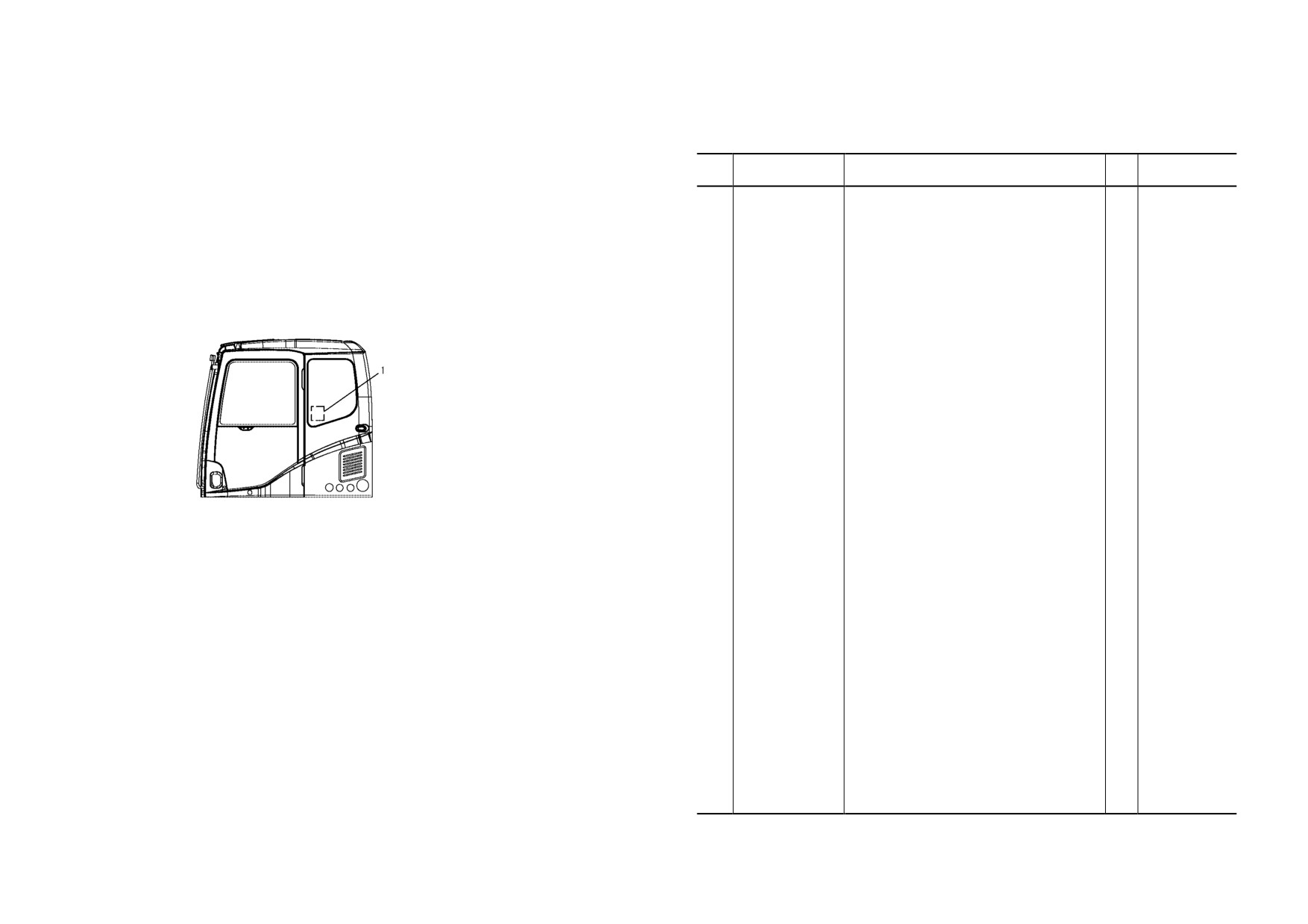

FIG NO. ：U0200-01A1
FIG. U0200-01A1 PLATE (LIFTING CAPACITY) (ENGLISH) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-00-31390
PLATE
1
DBB0001~
Cab L. H.
PW1C951
UO- 14
PC200, 210(LC)-7
PC200, 210(LC)-7
UO- 15
FIG NO. ：U0200-01A2
FIG. U0200-01A2 PLATE (LIFTING CAPACITY) (ENGLISH) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-00-31410
PLATE
1
DBE0001~
Cab L. H.
PW1C951
UO- 16
PC200LC-7
PC200LC-7
UO- 17
FIG NO. ：U0510-01A0
FIG. U0510-01A0 PLATE (BOOM SIDE、R. H.) (LOGO MARK)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
09690-P1250
PLATE, MARK
1
DBB0001~
PW1C956
UO- 18
PC200, 210LC-7
PC200, 210LC-7
UO- 19

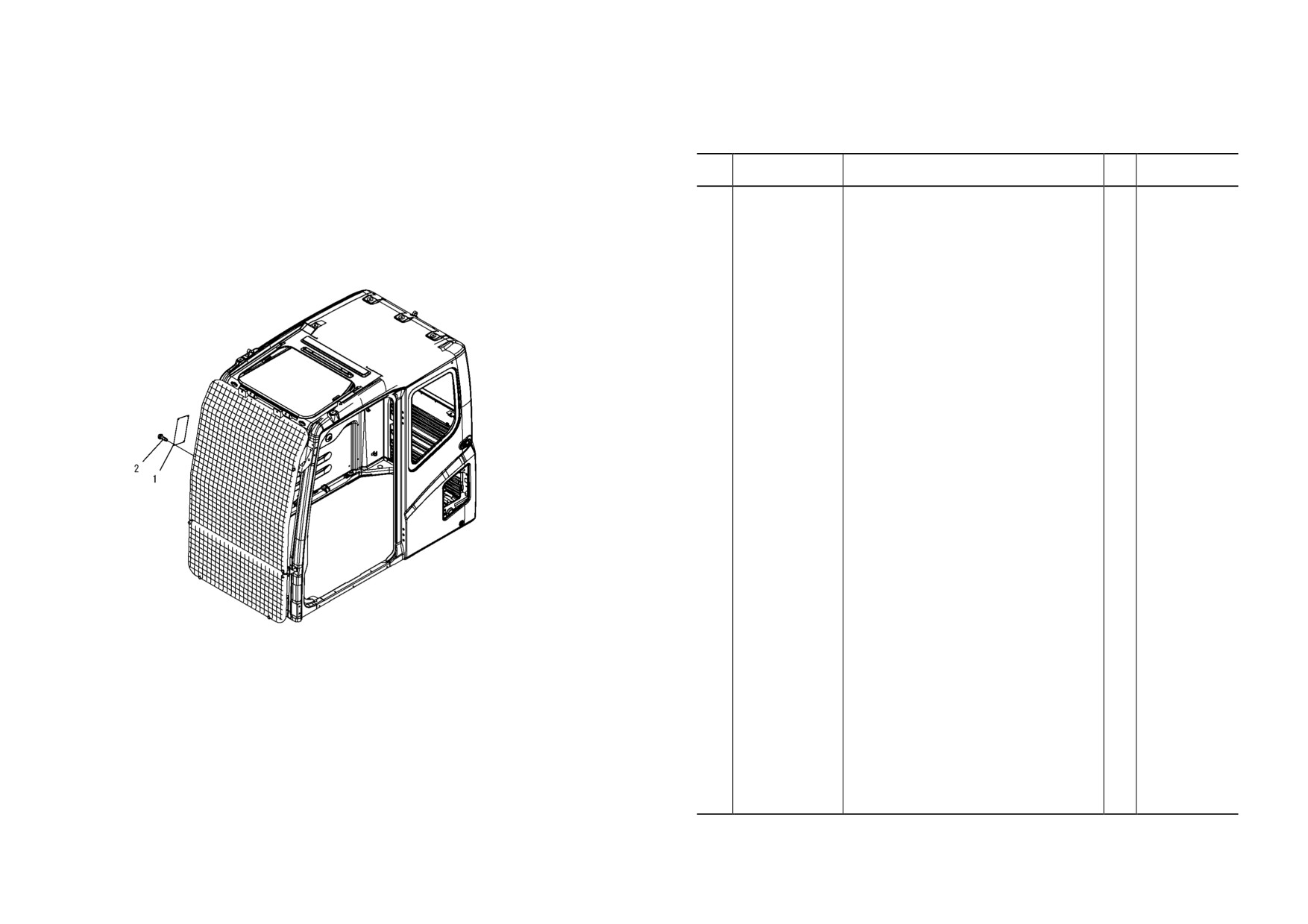

FIG NO. ：U0520-01A0

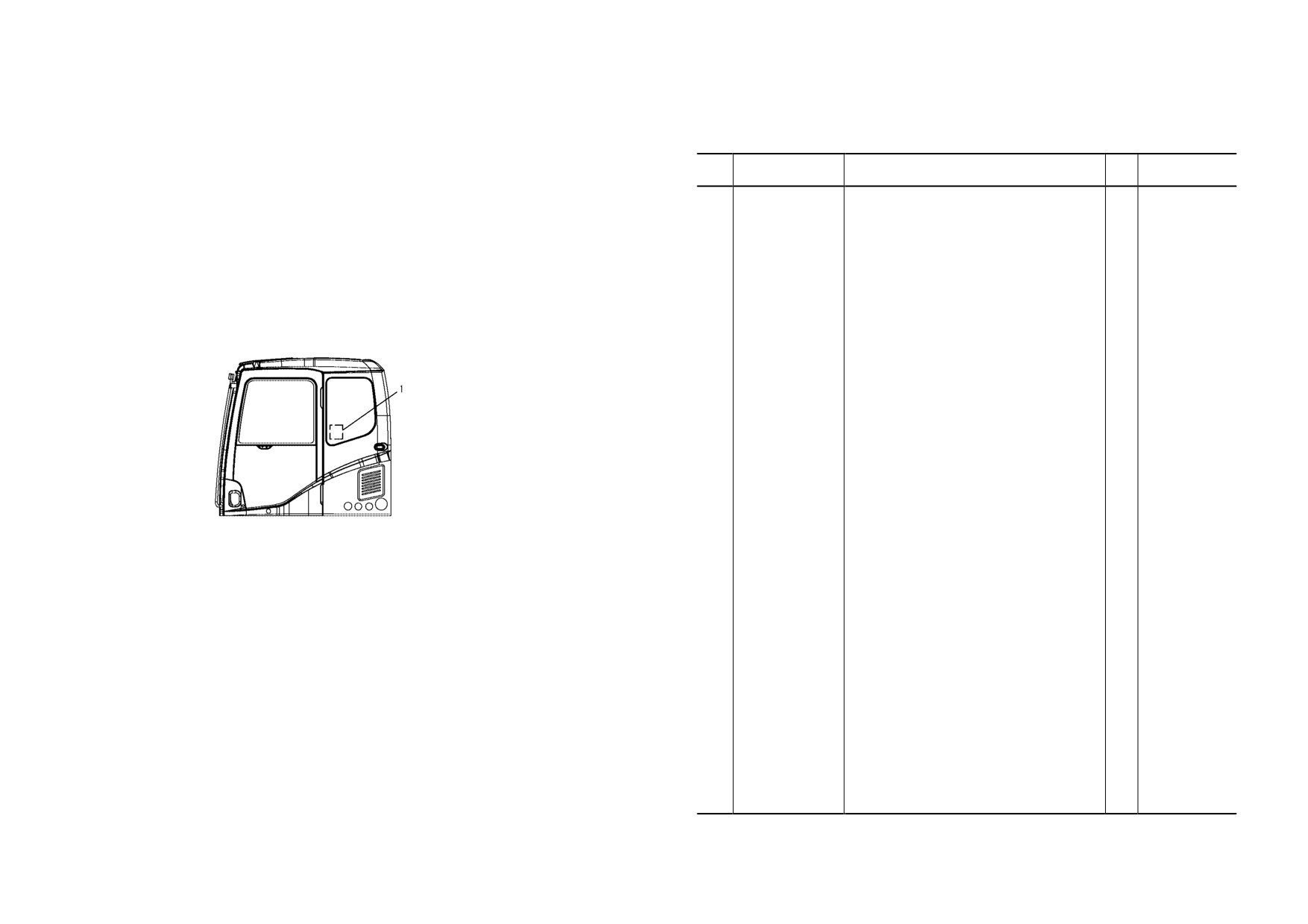

FIG. U0520-01A0 CAUTION PLATE (FOR LV1 GUARD) (FOR EXCEPT JAPAN) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-00-31610
PLATE
1
DBB0001~
2
04418-13060
SCREW
4
DBB0001~
Cab
Front Guard
PW1D235
UO- 20
PC200, 210LC-7
PC200, 210LC-7
UO- 21

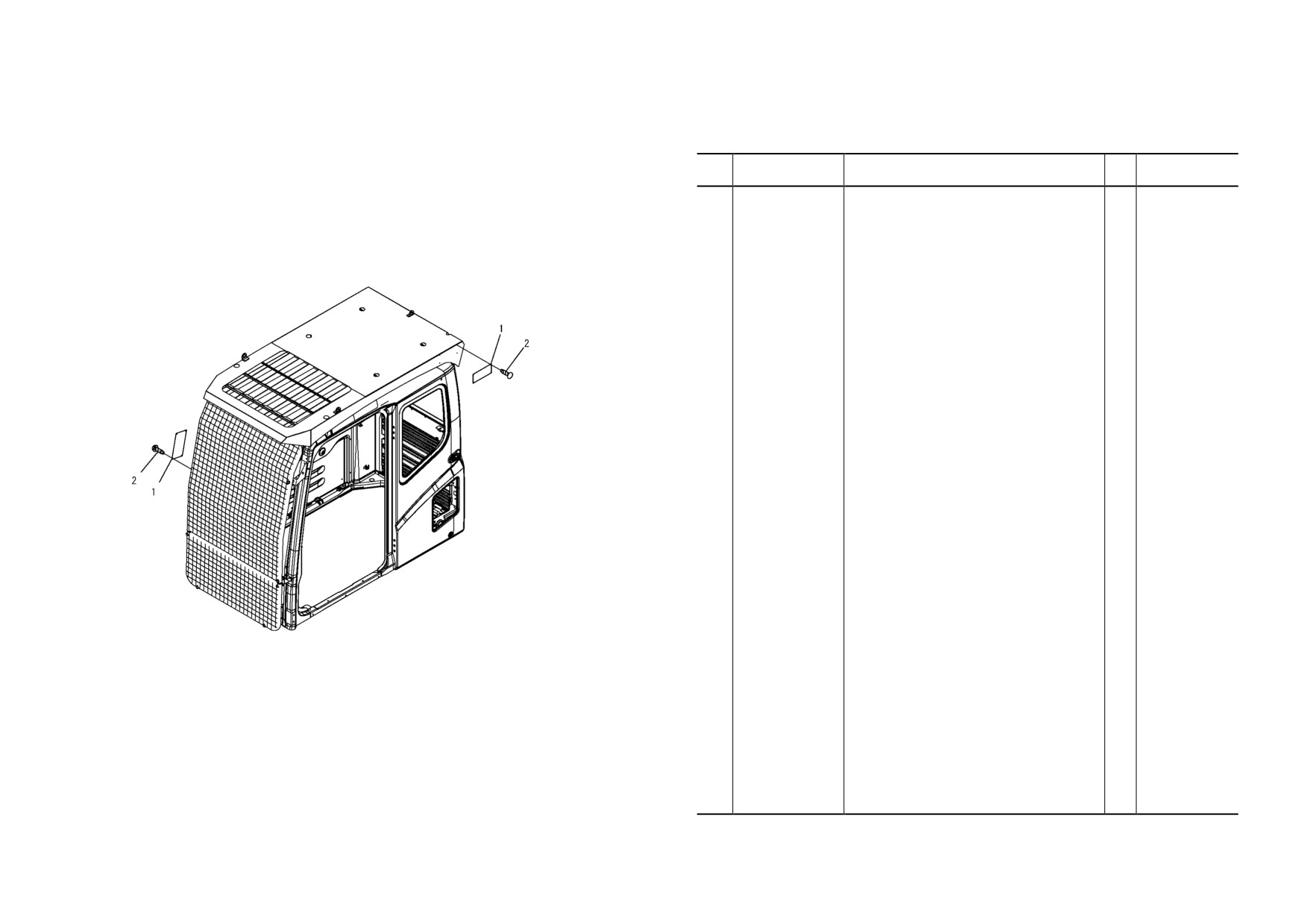

FIG NO. ：U0520-01A1
FIG. U0520-01A1 CAUTION PLATE (FOR LV2 GUARD) (FOR EXCEPT JAPAN) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-00-31610
PLATE
2
DBB0001~
2
04418-13060
SCREW
8
DBB0001~
Cab
Front Guard
PW1D241
UO- 22
PC200, 210LC-7
PC200, 210LC-7
UO- 23
