Komatsu PC200, 200LC-7 GALEO, PC210, 210LC-7 GALEO. Parts book - page 36
FIG NO. ：T1510-01B9

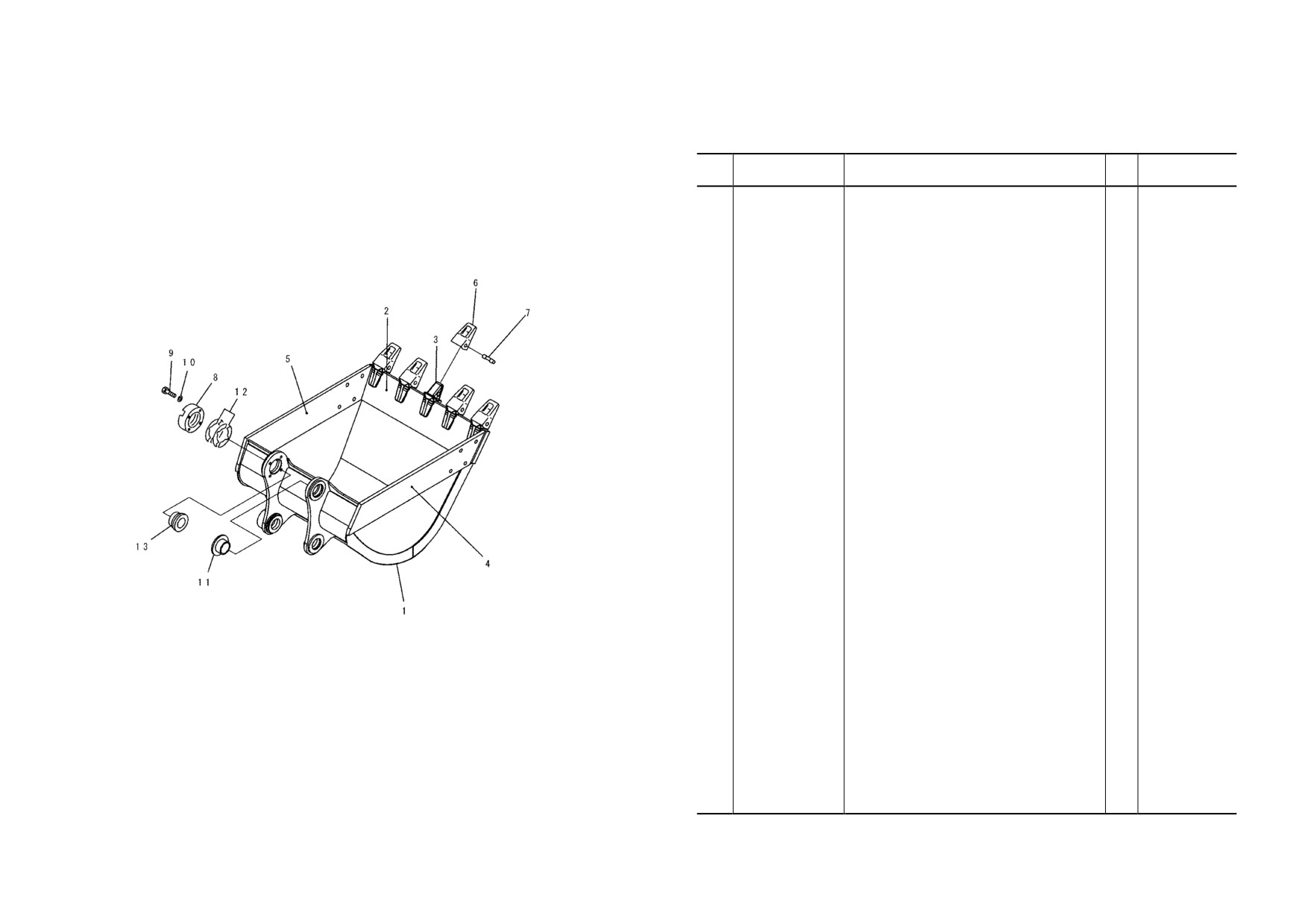

FIG. T1510-01B9 NARROW BUCKET (990 mm), 1.0M3 (HORIZONTAL PIN TYPE) (WITH ADJUSTER)（OPT）
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-70-D8500
BUCKET
1
DBB0001~
2
20Y-70-D8480
. PLATE
1
DBB)0001~
3
20Y-70-14520
. ADAPTER
5
DBB0001~
4
20Y-70-D8470
. PLATE
1
DBB0001~
5
20Y-70-D8460
. PLATE
1
DBB0001~
6
205-70-19570
TOOTH
5
DBB0001~
7
09244-02496
PIN
5
DBB0001~
8
205-70-74391
PLATE
1
DBB0001~
9
01010-62055
BOLT
4
DBB0001~
10
01643-32060
WASHER
4
DBB0001~
11
20Y-70-34221
BUSHING
1
DBB0001~
12
205-70-00100
SHIM ASS' Y
1
DBB0001~
13
20Y-70-34211
BUSHING
1
DBB0001~
X990001970
BUCKET UNIT
1
DBB0001~
1
20Y-70-D8500
. BUCKET
1
DBB0001~
13
20Y-70-34211
. BUSHING
1
DBB0001~
PW1B972
TO- 98
PC200LC-7/PC210LC-7
PC200LC-7/PC210LC-7
TO- 99
FIG NO. ：T1510-01B9

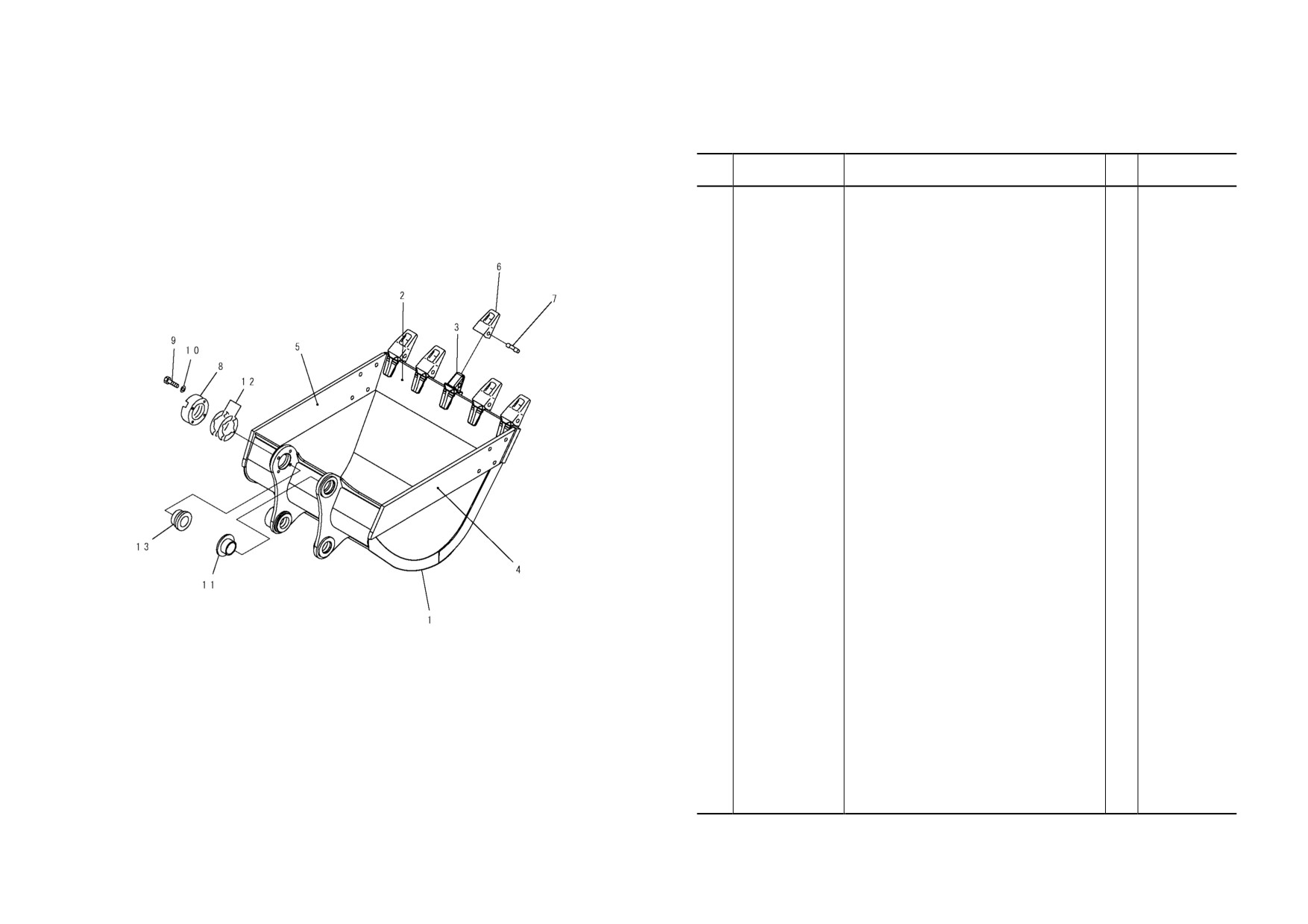

FIG. T1510-01B9 BUCKET, 0.9M3 (HORIZONTAL PIN TYPE) (WITH ADJUSTER) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-920-3510
BUCKET
1
DBB0001~
2
20Y-920-3520
. PLATE
1
DBB0001~
3
20Y-70-14520
. ADAPTER
5
DBB0001~
4
20Y-70-34320
. PLATE
1
DBB0001~
5
20Y-70-34330
. PLATE
1
DBB(0001~
6
205-70-19570
TOOTH
5
DBB0001~
7
09244-02496
PIN
5
DBB0001~
8
205-70-74391
PLATE
1
DBB0001~
9
01010-62055
BOLT
4
DBB0001~
10
01643-32060
WASHER
4
DBB0001~
11
20Y-70-34221
BUSHING
1
DBB0001~
12
205-70-00100
SHIM ASS' Y
1
DBB0001~
13
20Y-70-34211
BUSHING
1
DBB0001~
X990001900
BUCKET UNIT
1
DBB0001~
1
20Y-920-3510
. BUCKET
1
DBB0001~
13
20Y-70-34211
. BUSHING
1
DBB0001~
PW1B972
TO- 100
PC200/210(LC)-7
PC200/210(LC)-7
TO- 101
FIG NO. ：T1510-02A1

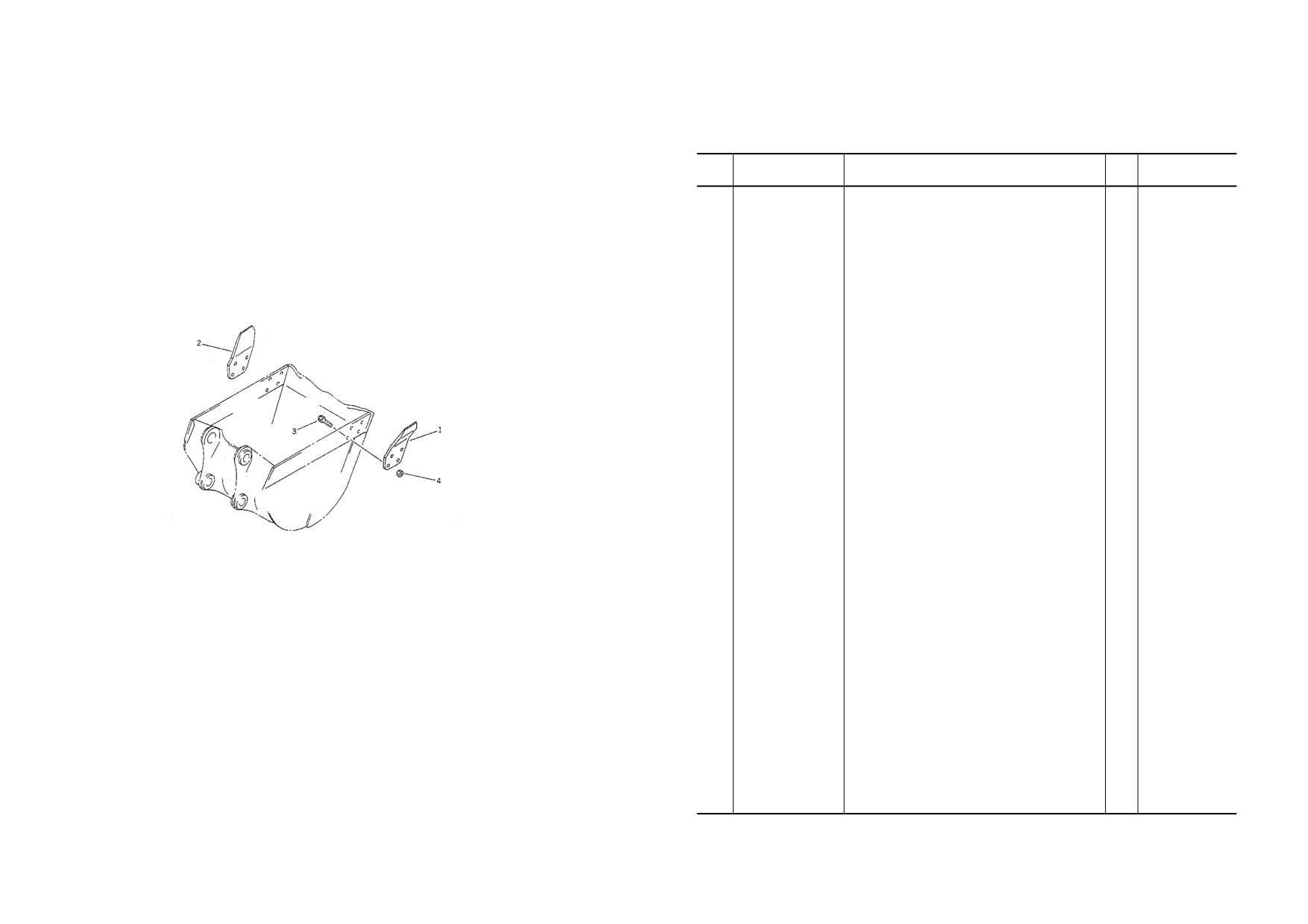

FIG. T1510-02A1 SIDE CUTTER (FOR BUCKET)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-70-D1310
CUTTER, L. H
1
DBB0001~
2
20Y-70-D1320
CUTTER, R. H
1
DBB0001~
3
176-32-11210
BOLT, SHOE
8
DBB0001~
4
01803-02430
NUT
8
DBB0001~
TO- 102
PC200/210(LC)-7
PC200/210(LC)-7
TO- 103
FIG NO. ：T1920-01A0

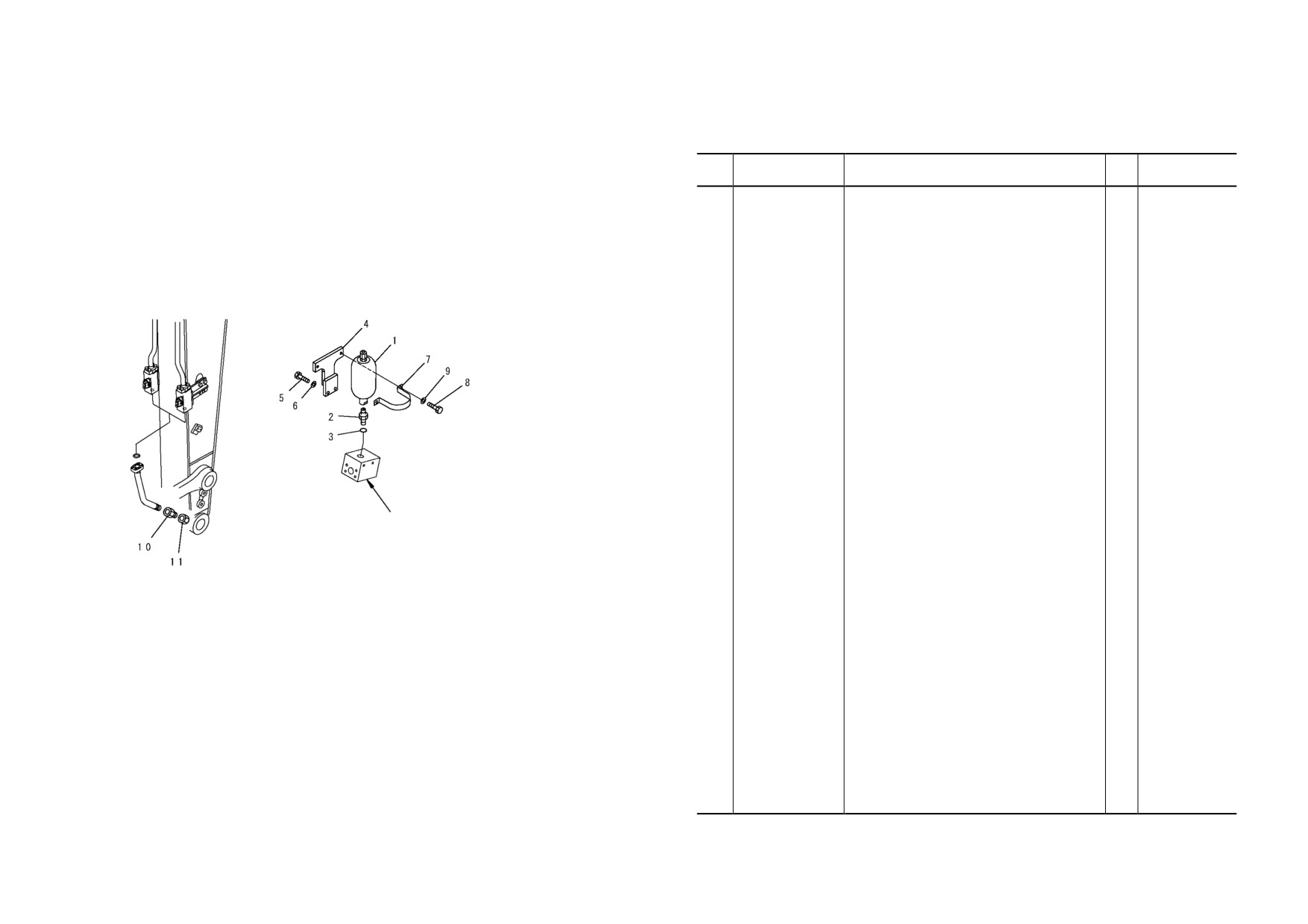

FIG. T1920-01A0 BREAKER ADAPTER (FOR KRUPP) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-970-6440
ACCUMULATOR
1
DBB0001~
205-970-5560
. O-RING
1
DBB0001~
2
205-970-5550
NIPPLE
1
DBB0001~
3
07002-12434
O-RING
1
DBB0001~
4
20Y-62-43250
BRACKET
1
DBB0001~
5
01010-81235
BOLT
2
DBB0001~
6
01643-31232
WASHER
2
DBB0001~
Arm
7
175-61-51750
PLATE
1
DBB0001~
8
01010-81225
BOLT
2
DBB0001~
9
01643-31232
WASHER
2
DBB0001~
10
20Y-970-7130
ADAPTER
2
DBB0001~
11
205-970-7680
PLUG
2
DBB0001~
See Fig. H1270-01A0
PW1C931
TO- 104
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 105
FIG NO. ：T1920-01A1

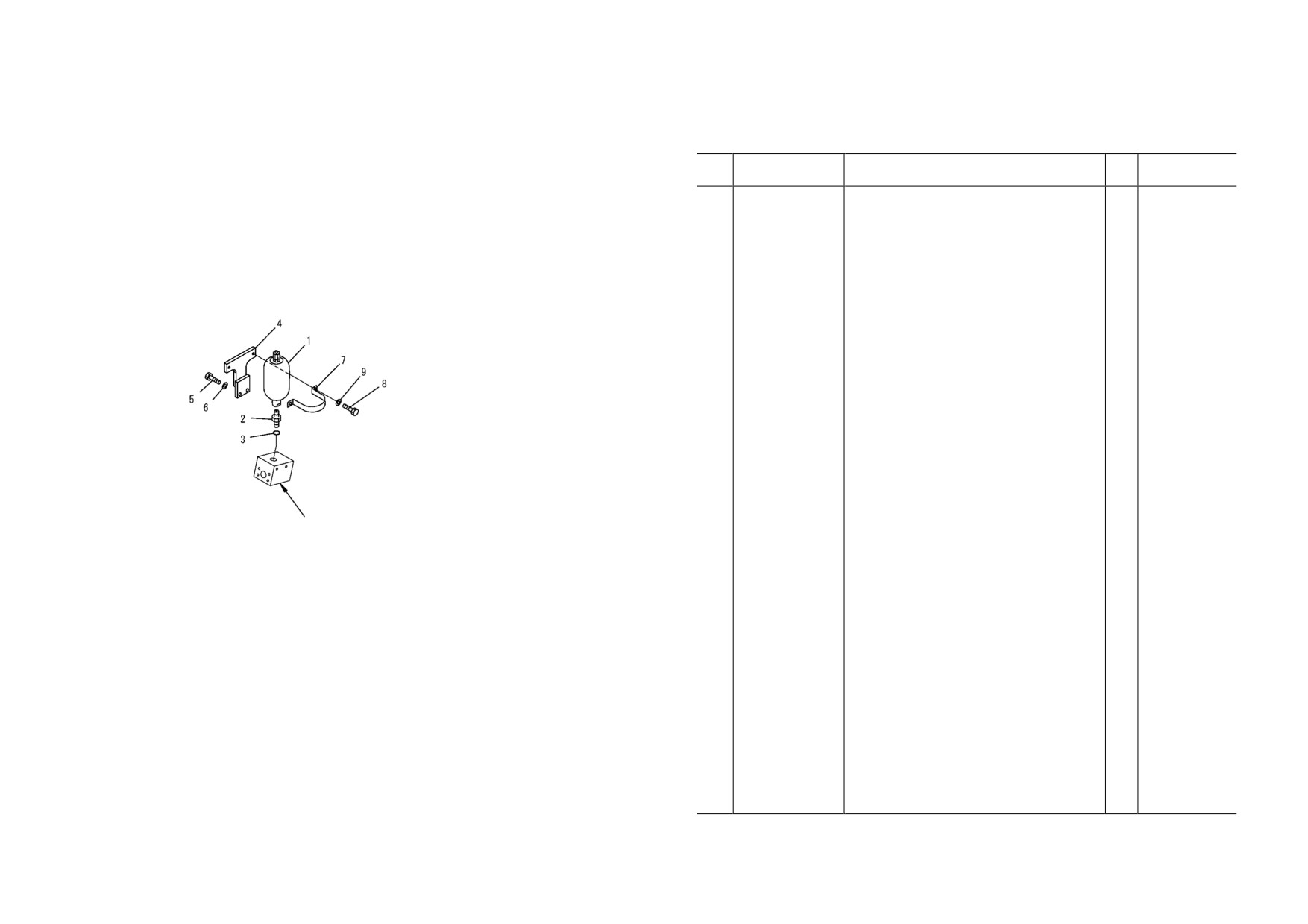

FIG. T1920-01A1 BREAKER ADAPTER (FOR NIPPON PNEUMATIC) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-970-6440
ACCUMULATOR
1
DBB0001~
205-970-5560
. O-RING
1
DBB0001~
2
205-970-5550
NIPPLE
1
DBB0001~
3
07002-12434
O-RING
1
DBB0001~
4
20Y-62-43250
BRACKET
1
DBB0001~
5
01010-81235
BOLT
2
DBB0001~
6
01643-31232
WASHER
2
DBB0001~
7
175-61-51750
PLATE
1
DBB0001~
8
01010-81225
BOLT
2
DBB0001~
9
01643-31232
WASHER
2
DBB0001~
See Fig. H1270-01A0
PW1C932
TO- 106
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 107
FIG NO. ：T1920-01A2

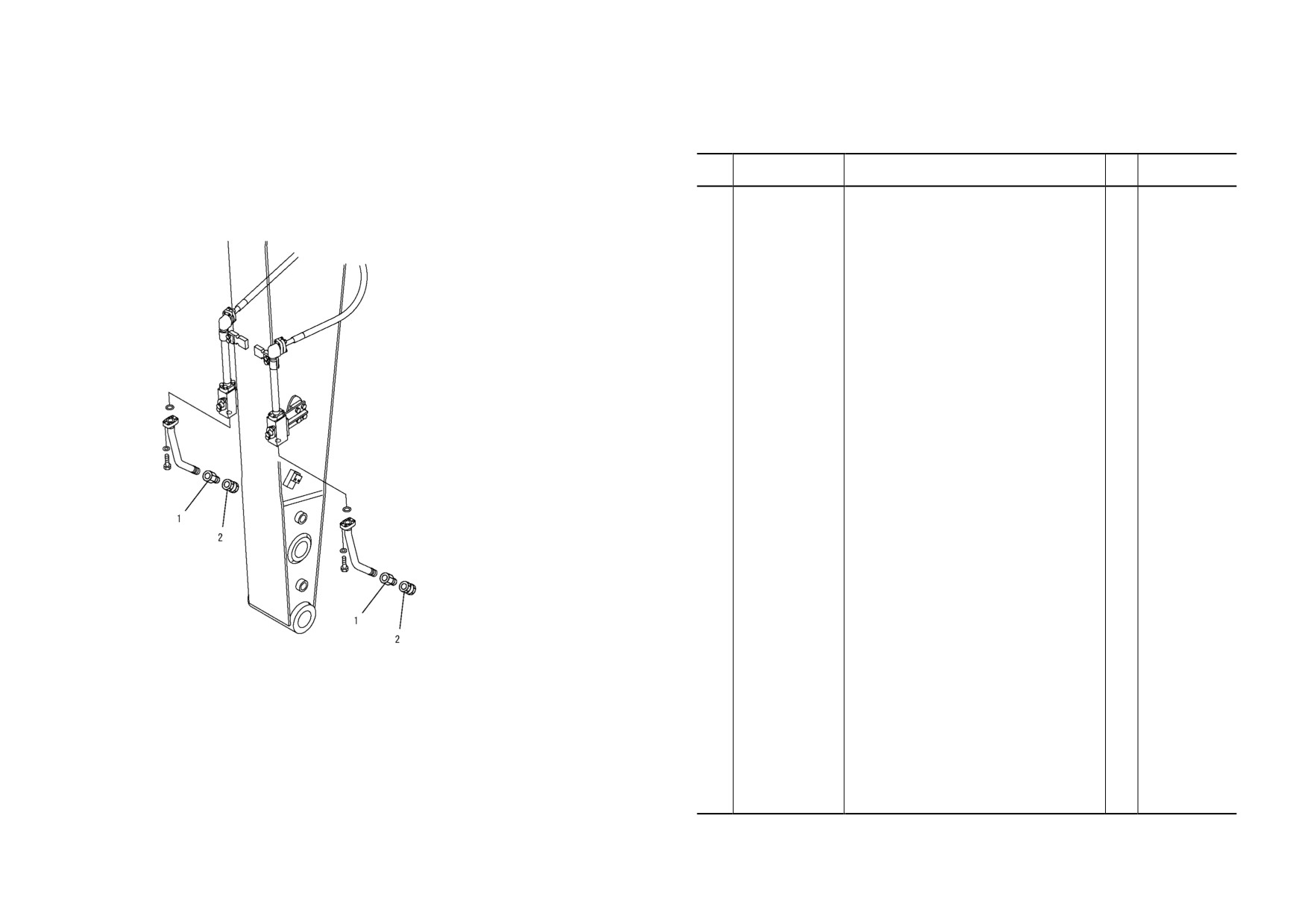

FIG. T1920-01A2 BREAKER ADAPTER (FOR FUPUKAWA AND ATLAS) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-970-7130
ADAPTER
2
DBB0001~
2
205-970-7680
PLUG
2
DBB0001~
Arm
PWB7347
TO- 108
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 109
FIG NO. ：T1920-01A3
FIG. T1920-01A3 BREAKER ADAPTER (FOR MATUDA) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-970-7140
ADAPTER
2
DBB0001~
2
20Y-970-6550
PLUG
2
DBB0001~
Arm
PWB7347
TO- 110
PC200, 210(LC)-7
PC200, 210(LC)-7
TO- 111
FIG NO. ：T1110-03A1

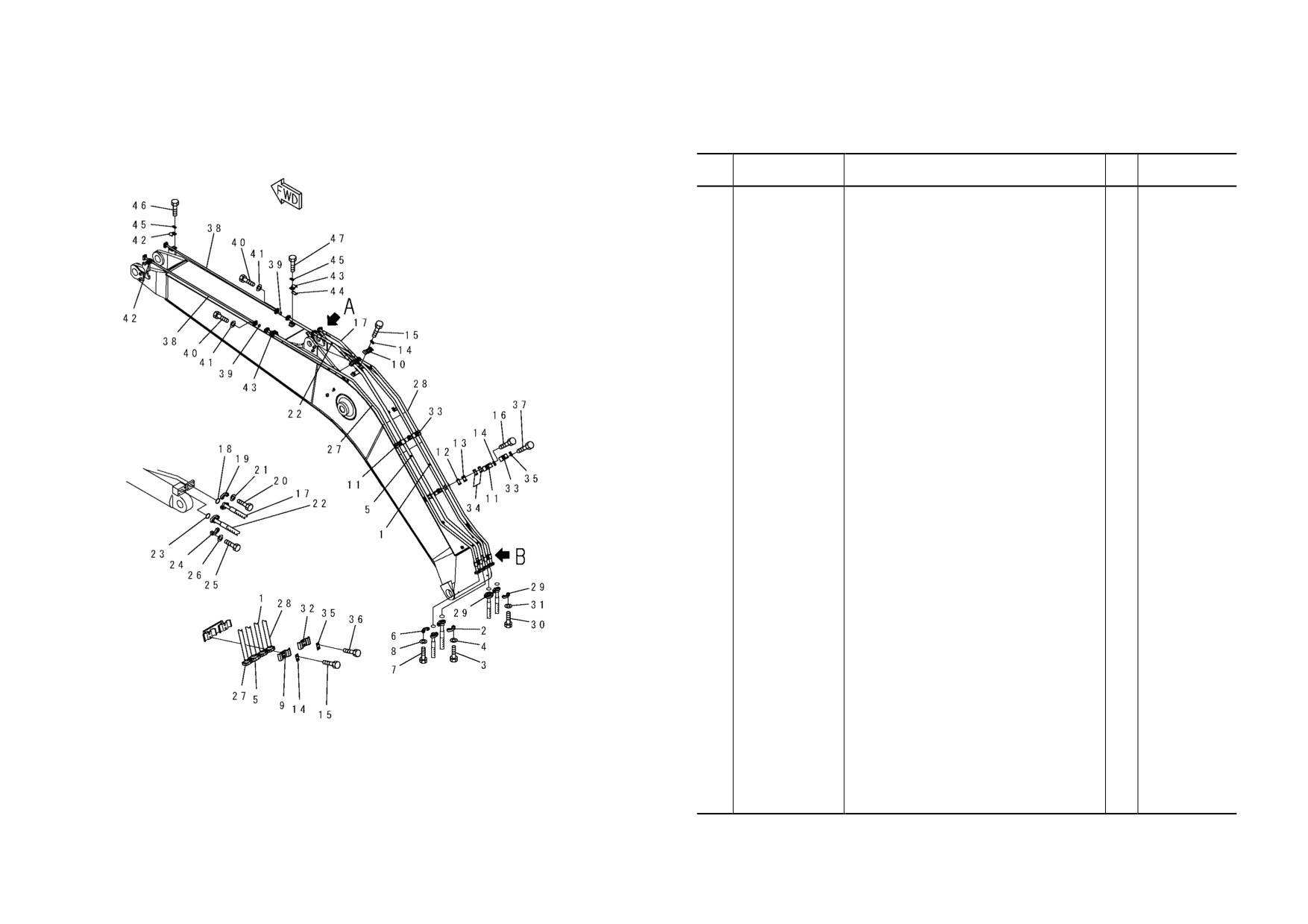

FIG. T1110-03A1 BOOM (FOR ADDITIONAL PIPING) (ARM CYLINDER LINE AND BUCKET CYLINDER LINE) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-45120
TUBE
1
DBB0001~
2
07371-30640
FLANGE
2
DBB0001~
3
07372-21035
BOLT
4
DBB0001~
4
01643-51032
WASHER
4
DBB0001~
5
20Y-62-45110
TUBE
1
DBB0001~
6
07371-31049
FLANGE
2
DBB0001~
7
07372-21035
BOLT
4
DBB0001~
8
01643-51032
WASHER
4
DBB0001~
9
20Y-62-13690
CLAMP
1
DBB0001~
10
20Y-62-13720
CLAMP
1
DBB0001~
11
20Y-62-13740
CLAMP
2
DBB0001~
12
20Y-62-13760
. SEAT
1
DBB0001~
13
205-62-73430
. SEAT
1
DBB0001~
14
20Y-62-13450
PLATE
4
DBB0001~
15
01010-81230
BOLT
4
DBB0001~
16
01010-81285
BOLT
4
DBB0001~
17
07074-00607
HOSE
1
DBB0001~
Arm Cylinder
18
07000-13025
O-RING
2
DBB0001~
19
07371-30640
FLANGE
4
DBB0001~
20
07372-21035
BOLT
8
DBB0001~
21
01643-51032
WASHER
8
DBB0001~
22
07074-01007
HOSE
1
DBB0001~
Detail A
23
07000-13032
O-RING
2
DBB0001~
24
07371-31049
FLANGE
4
DBB0001~
25
07372-21035
BOLT
8
DBB0001~
26
01643-51032
WASHER
8
DBB0001~
27
20Y-62-45130
TUBE
1
DBB0001~
28
20Y-62-45140
TUBE
1
DBB0001~
29
07371-30640
FLANGE
4
DBB0001~
30
07372-21035
BOLT
8
DBB0001~
31
01643-51032
WASHER
8
DBB0001~
32
20Y-62-13710
CLAMP
1
DBB0001~
Detail B
33
20Y-62-13230
CLAMP
2
DBB0001~
34
20Y-62-13760
. SEAT
1
DBB0001~
35
20Y-62-13450
PLATE
3
DBB0001~
PW1B985
36
01010-81230
BOLT
2
DBB0001~
37
01010-81285
BOLT
4
DBB0001~
38
20Y-62-13580
TUBE
2
DBB0001~
39
07000-13030
O-RING
2
DBB0001~
40
07372-21035
BOLT
8
DBB0001~
41
01643-51032
WASHER
8
DBB0001~
42
20Y-62-13650
CLAMP
2
DBB0001~
T1- 14
PC200, 210(LC)-7
PC200, 210(LC)-7
T1- 15
FIG NO. ：T1110-03A1
FIG. T1110-03A1 BOOM (FOR ADDITIONAL PIPING) (ARM CYLINDER LINE AND BUCKET CYLINDER LINE) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
43
20Y-62-13220
CLAMP
2
DBB0001~
44
20Y-62-13760
. SEAT
1
DBB0001~
45
20Y-62-13450
PLATE
4
DBB0001~
46
01010-81230
BOLT
4
DBB0001~
47
01010-81285
BOLT
4
DBB0001~
Arm Cylinder
Detail A
Detail B
PW1B985
T1- 16
PC200, 210(LC)-7
PC200, 210(LC)-7
T1- 17
FIG NO. ：T1110-05A1

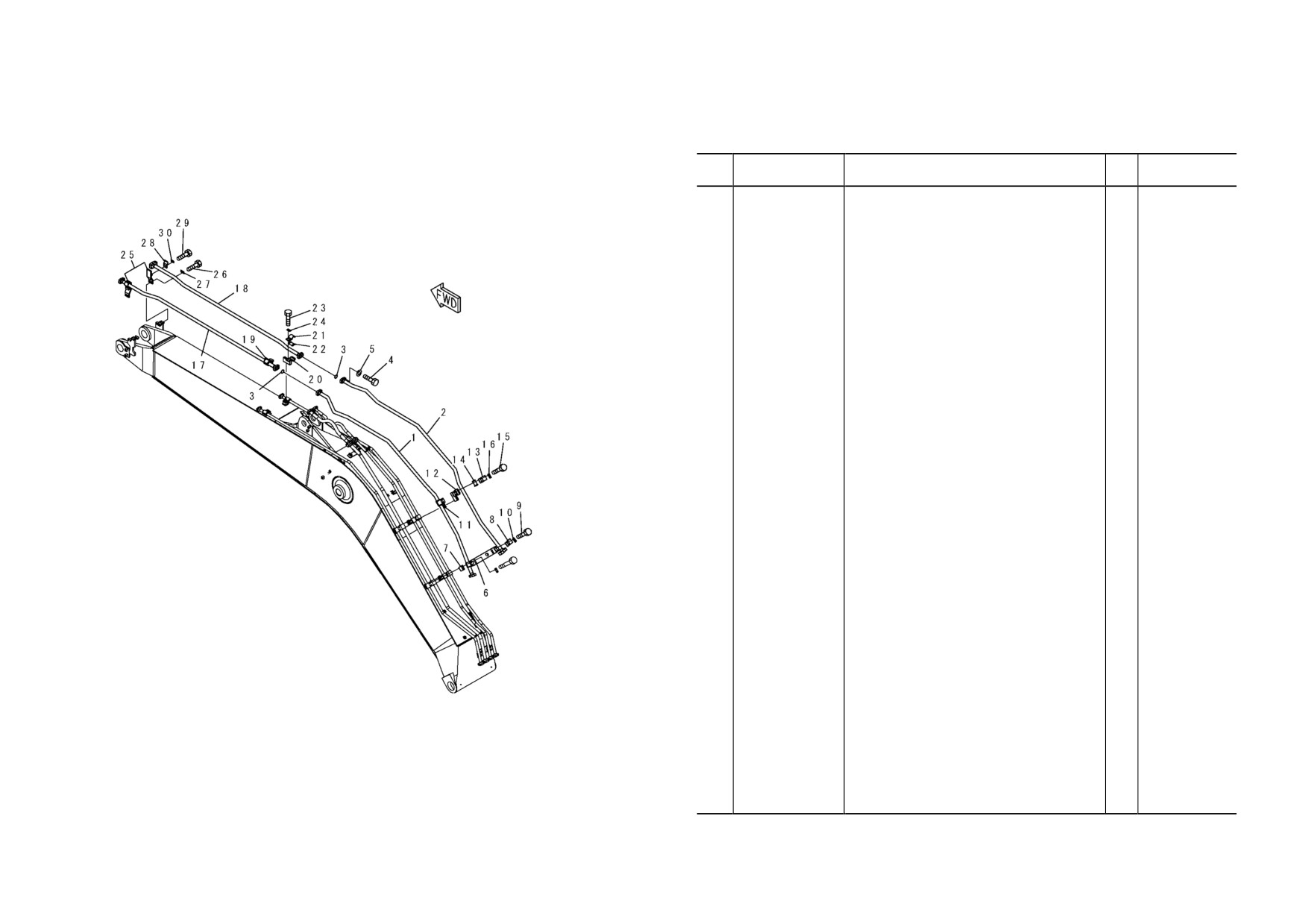

FIG. T1110-05A1 BOOM (ADDITIONAL LINE) (FOR ADDITIONAL PIPING) (OPT)
INDEX
PART NO.
DESCRIPTION
Q’TY
SERIAL NO.
1
20Y-62-45221
TUBE
1
DBB0001~
2
20Y-62-45231
TUBE
1
DBB0001~
3
07000-13035
O-RING
2
DBB0001~
4
07372-21040
BOLT
8
DBB0001~
5
01643-51032
WASHER
8
DBB0001~
6
20Y-62-45270
BRACKET
1
DBB0001~
7
20Y-62-45280
PLATE
2
DBB0001~
8
207-62-31330
CLAMP
2
DBB0001~
9
01010-81250
BOLT
4
DBB0001~
10
20Y-62-13450
PLATE
2
DBB0001~
11
20Y-62-45250
BRACKET
1
DBB0001~
12
20Y-62-45260
BRACKET
1
DBB0001~
13
207-62-52430
CLAMP
2
DBB0001~
14
205-62-73430
. SEAT
1
DBB0001~
15
01010-81230
BOLT
4
DBB0001~
16
20Y-62-13450
PLATE
2
DBB0001~
17
20Y-62-45290
TUBE
1
DBB0001~
18
20Y-62-45310
TUBE
1
DBB0001~
19
20Y-62-45250
BRACKET
1
DBB0001~
20
20Y-62-45260
BRACKET
1
DBB0001~
21
207-62-52430
CLAMP
2
DBB0001~
22
205-62-73430
. SEAT
1
DBB0001~
23
01010-81230
BOLT
4
DBB0001~
24
20Y-62-13450
PLATE
2
DBB0001~
25
20Y-62-45380
BRACKET
2
DBB0001~
26
01010-81230
BOLT
4
DBB0001~
27
20Y-62-13450
PLATE
2
DBB0001~
28
207-62-31330
CLAMP
2
DBB0001~
PW1B986
29
01010-81225
BOLT
4
DBB0001~
30
20Y-62-13450
PLATE
2
DBB0001~
T1- 20
PC200, 210(LC)-7
PC200, 210(LC)-7
T1- 21
