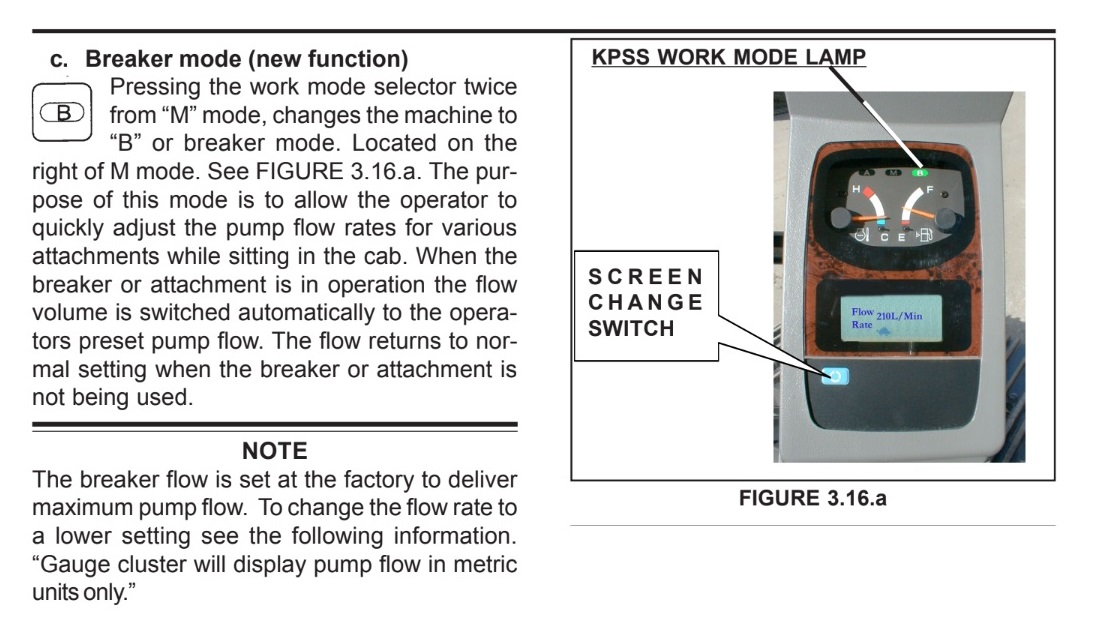

с. Breaker mode (new function)

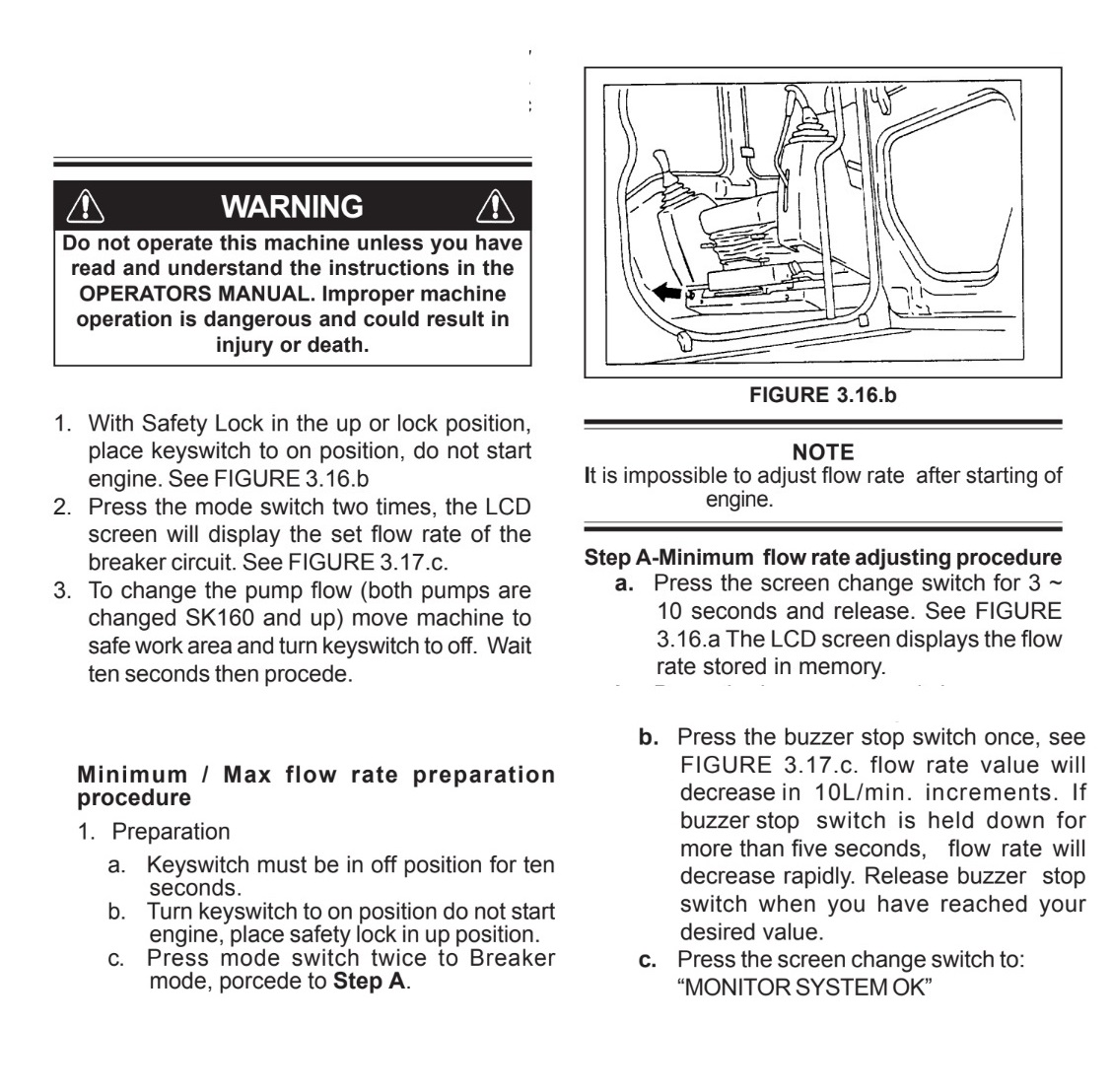

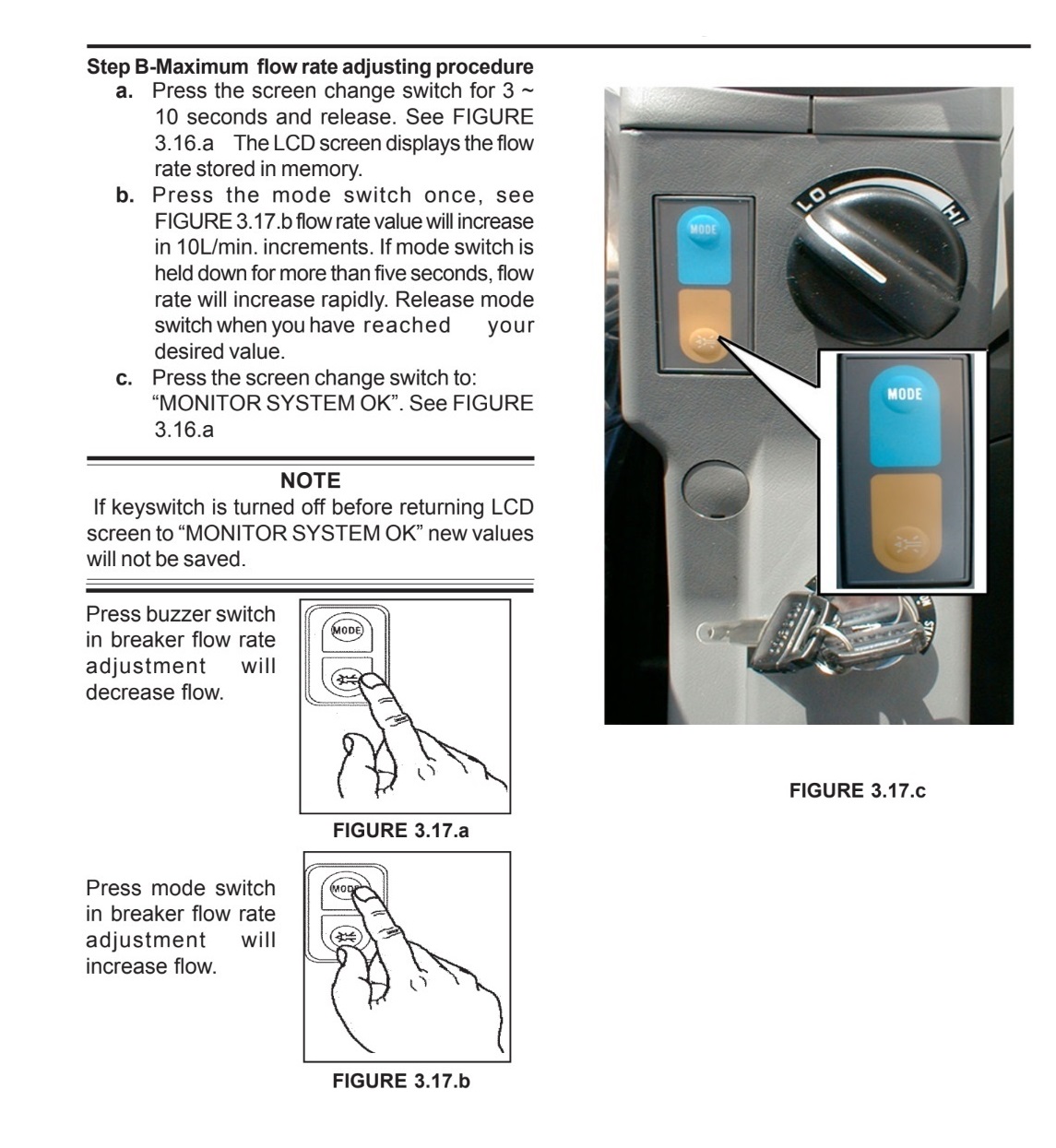

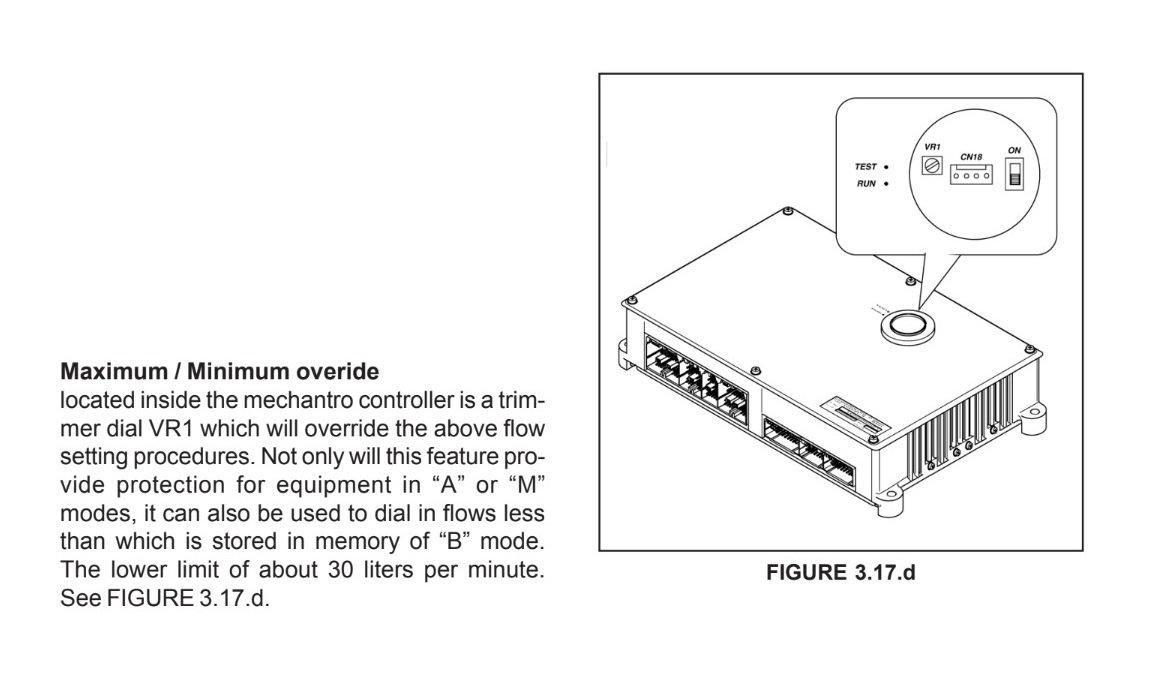

Step В-Maximum flow rate adjusting procedure

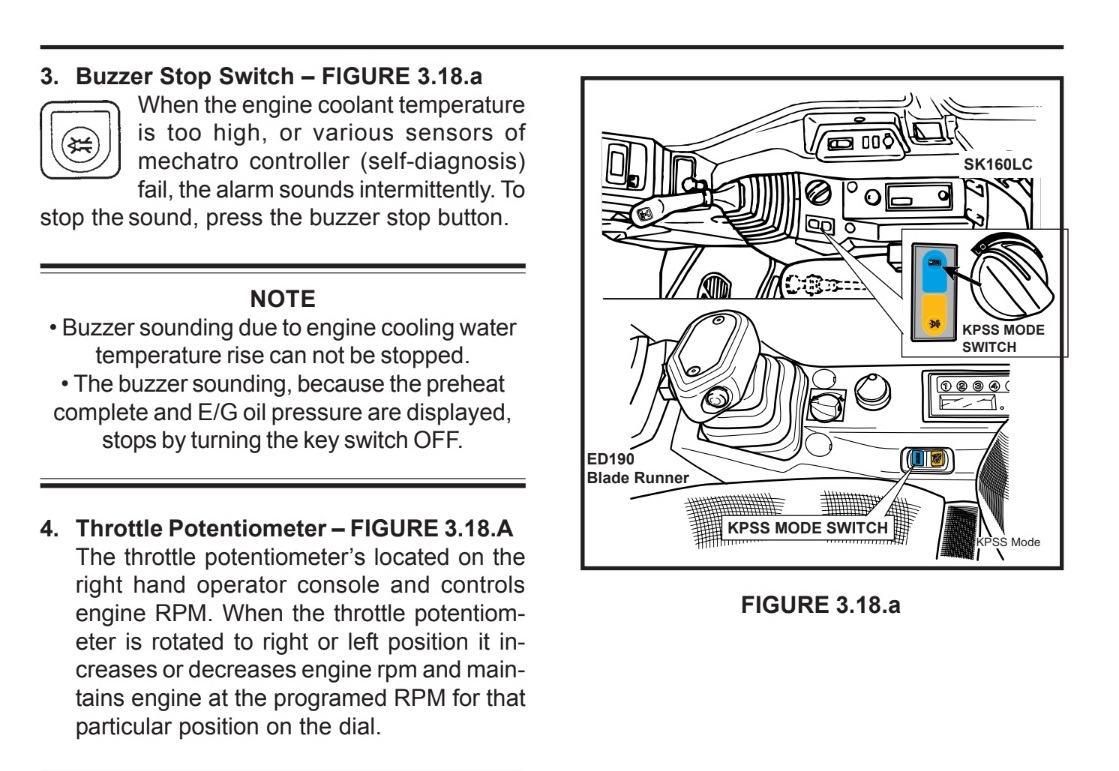

3. Buzzer Stop Switch - FIGURE 3.18.а

NOTE

In operation, when all pilot controls are in the nuetral position for more than three seconds, and the engine RPM is above 1050, the auto excel reduces the engine speed to 1050.

Auto accel release condition

1. Place the safety lever in the up and lock position.

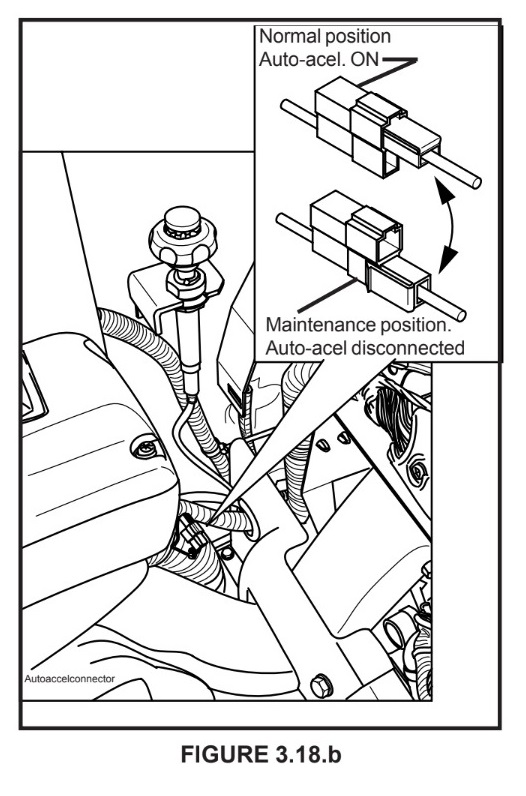

2. Located the one pin connector for the auto acceleration function behind the operators right hand console see FIGURE 3.18.b.

3. Change the position of the connector as in indicated in FIGURE 3.18.b.

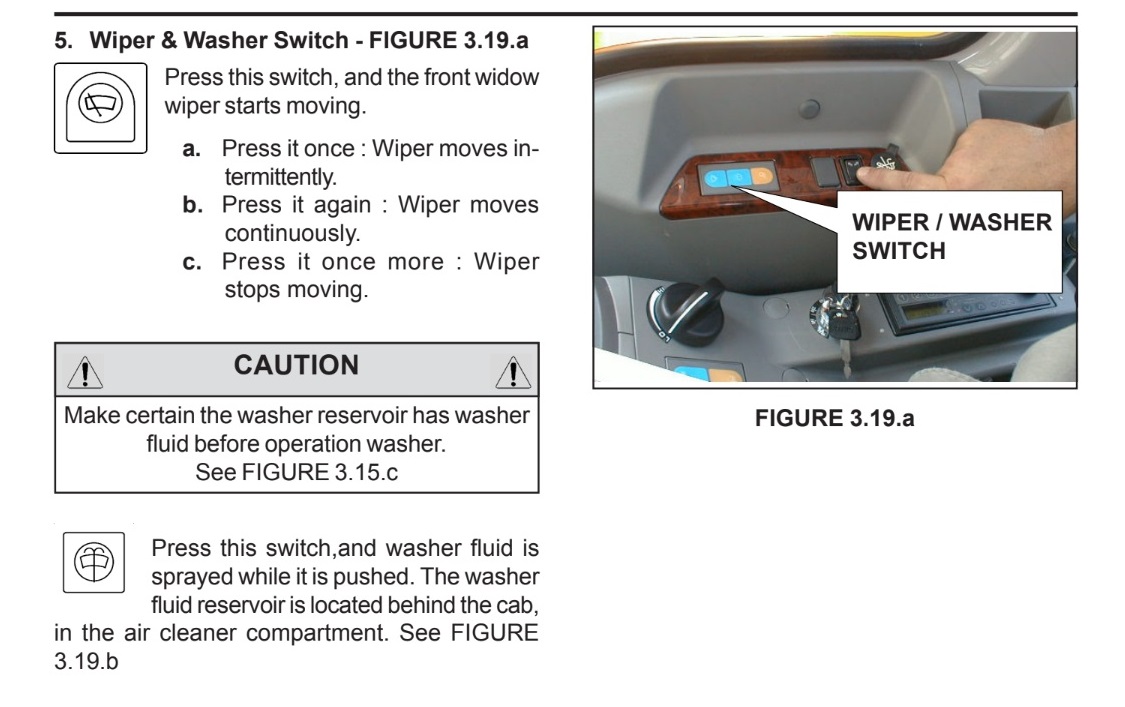

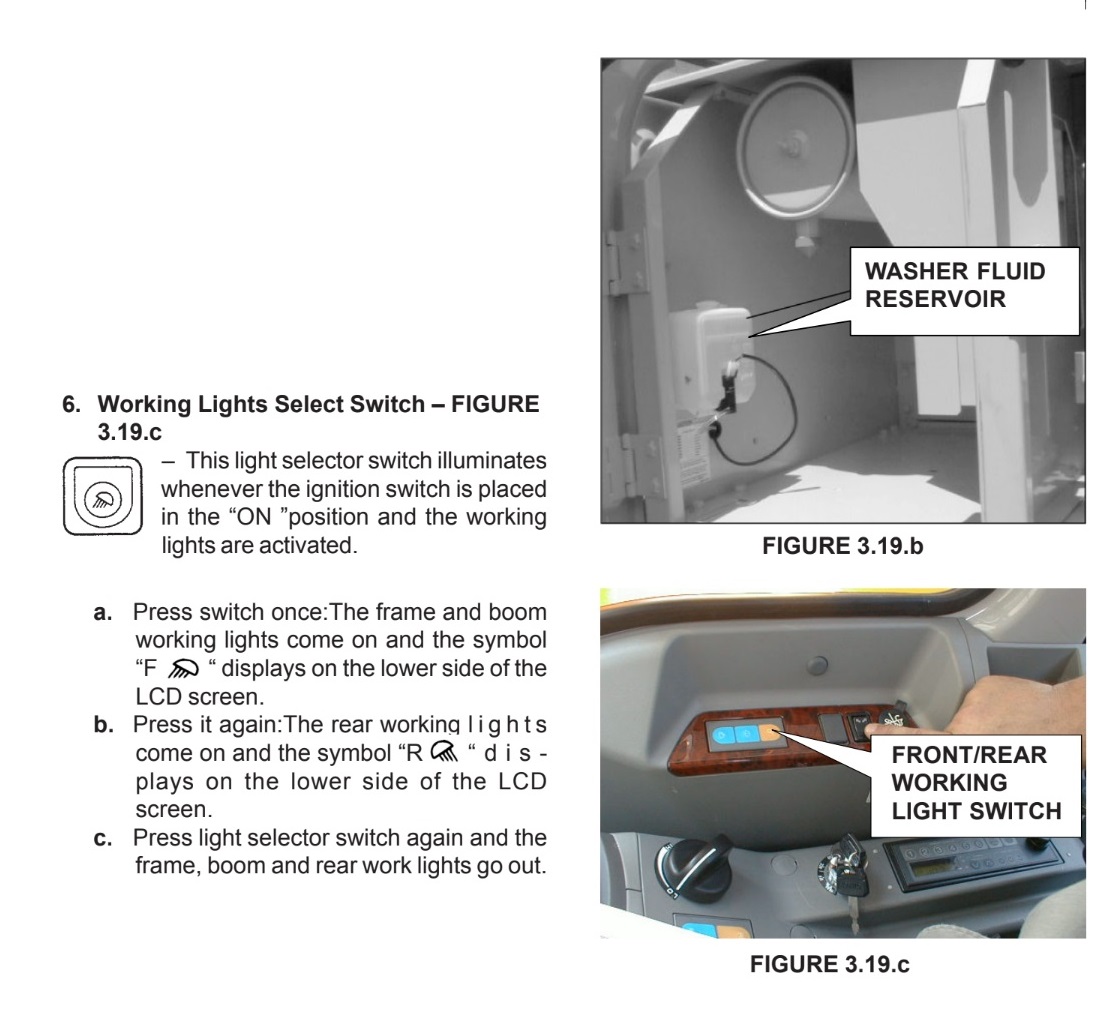

5. Wiper & Washer Switch - FIGURE 3.19.a

D8. Dozer Control Lever (ED190-VI)

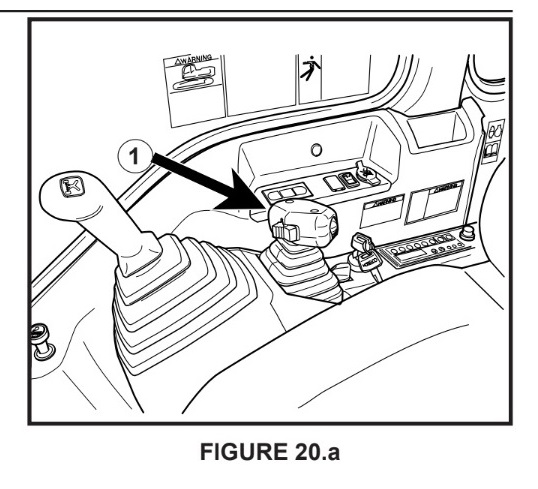

The dozer control lever (1) is located on the operator’s right side console, See Fig. 20.a.

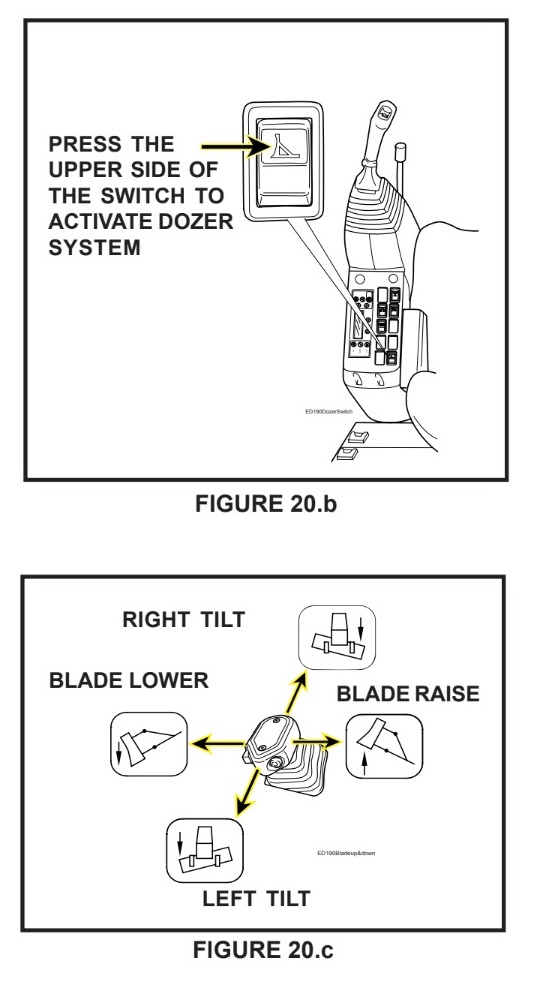

To operate the dozer, it is necessary to activate the dozer circuit by pressing the Dozer Switch located on the operator’s left side console, See Fig. 20.b

The dozer control lever is multifunctional, See Fig. 20.с

a. “FORWARD”-Variable speed for blade

lowering.

b. “BACKWARD”- Variable speed for

blade raising.

c. “CENTER”- Hold position.

d. “LEFT”- Variable speed for blade right tilt.

e. “RIGHT”- Variable speed for blade left tilt.

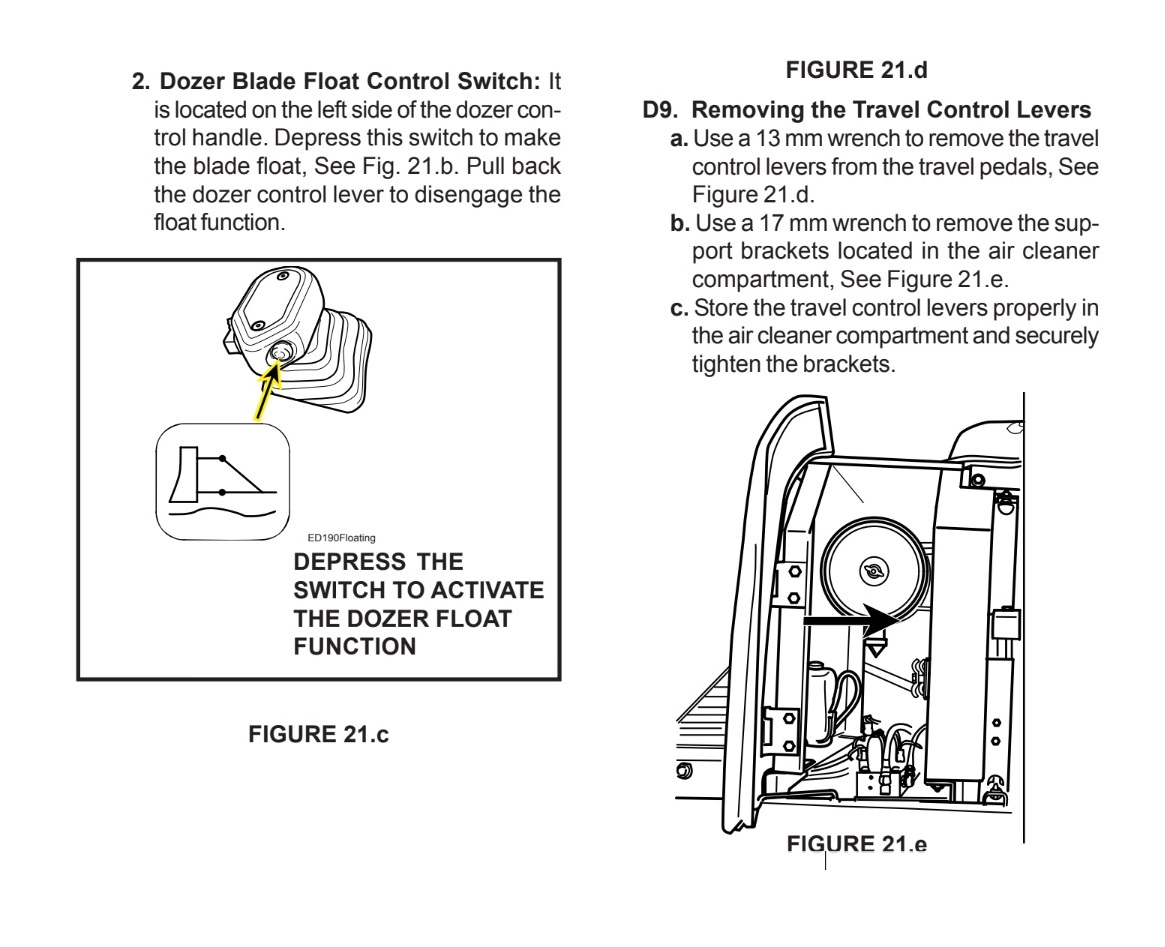

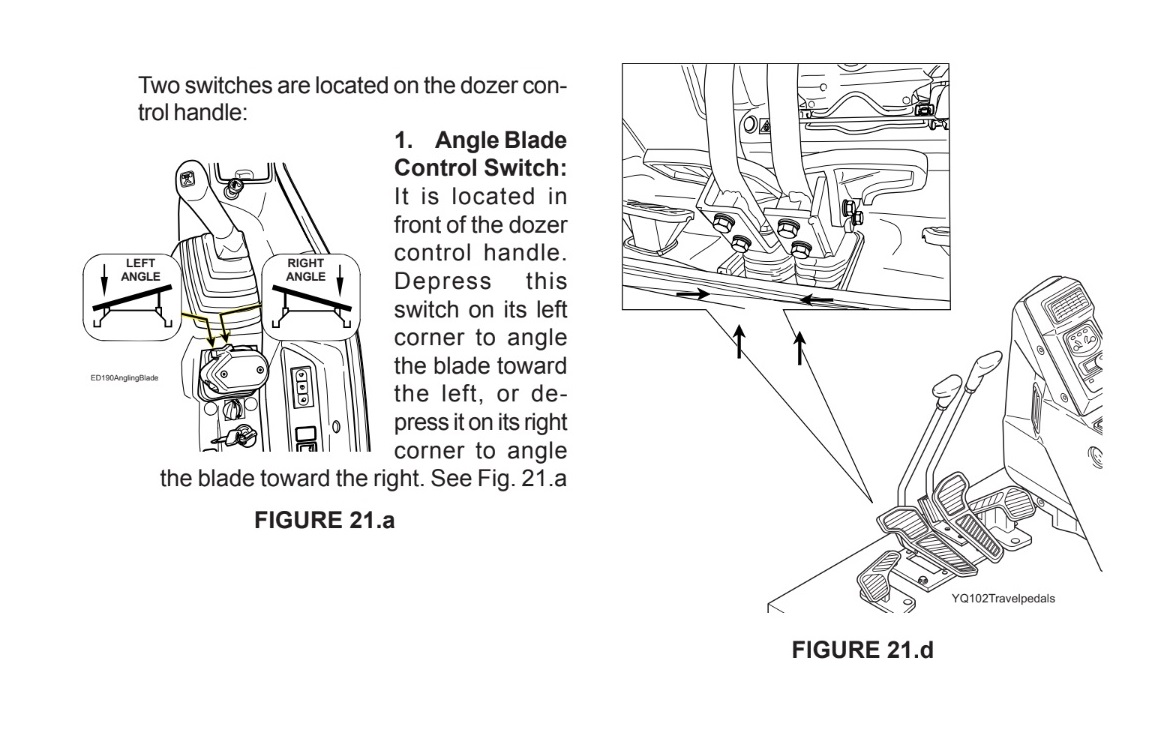

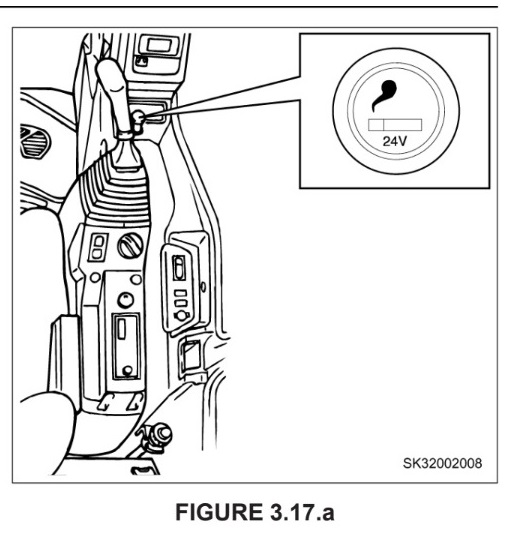

8. 24 Volt Cigarette Lighter-FIGURE 3.17.a

The cigarette lighter is located on the right wall of cab. To use the cigarette lighter the key switch must be in the ON position. Push the lighter in and wait approximately 30 seconds for it to “POP ” out. Pull lighter from the socket to use. Replace lighter back into its socket after use.

Do not use the cigarette lighter as a power source for 12 volt accessories. It is 24 volt outlet. Plugging a 12 volt accessory into a 24 volt connector may result in shorting & or Fire.

Do not use the cigerette lighter as a power source for 12 volt accessories. It is a 24 volt outlet. Plugging a 12 volt accessory into a 24 volt connector may result in shorting or fire.

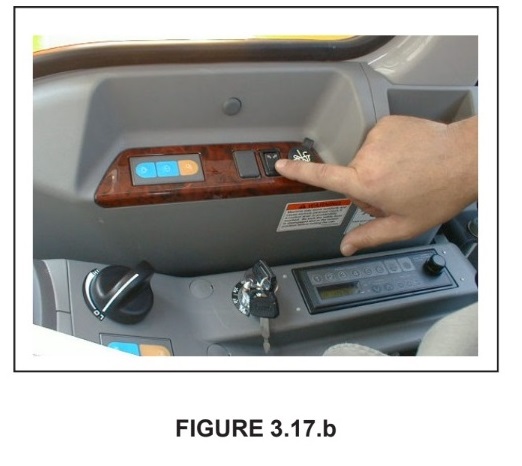

9. Swing Flasher Switch - FIGURE 3.17.b

The swing flasher switch is located on the right hand operator console. The swing flasher is a 2 position rocker switch which is used to turn on the swing flashers.

“ON ” - Push the symbol side of switch down t о turn swing flashers ON.

“OFF ” - Push the empty side of switch down to turn swing flashers OFF.
