Kobelco SK160LC-6E / ED190 / SK210LC-6E / SK250LC-6E / SK290LC-6E / SK330LC-6E. Service Manual - page 2

NOTE

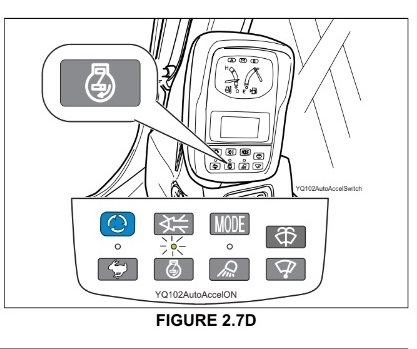

1. In operation, when the pilot pressure from the hand and pedal control levers does not act for 1 sec, if the position of the throttle potentiometer is higher than 1050 rpm, the auto accel actuates automatically and the engine speed returns to 1050 rpm.

2. When the throttle potentiometer is positioned lower than the auto accel speed, the engine speed is maintained to the throttle potentiometer position.

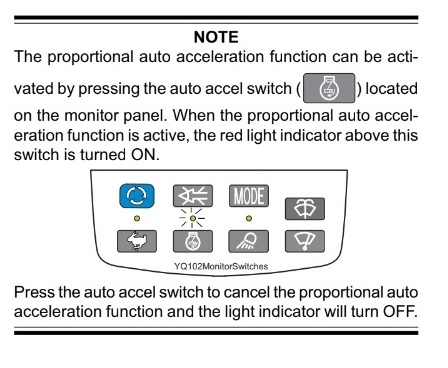

Proportional auto acceleration function:

With the attachment, swing, travel control lever or control pedal operation, the engine speed returns to the accel dial set position gradually according to the respective operating pilot valve movement.

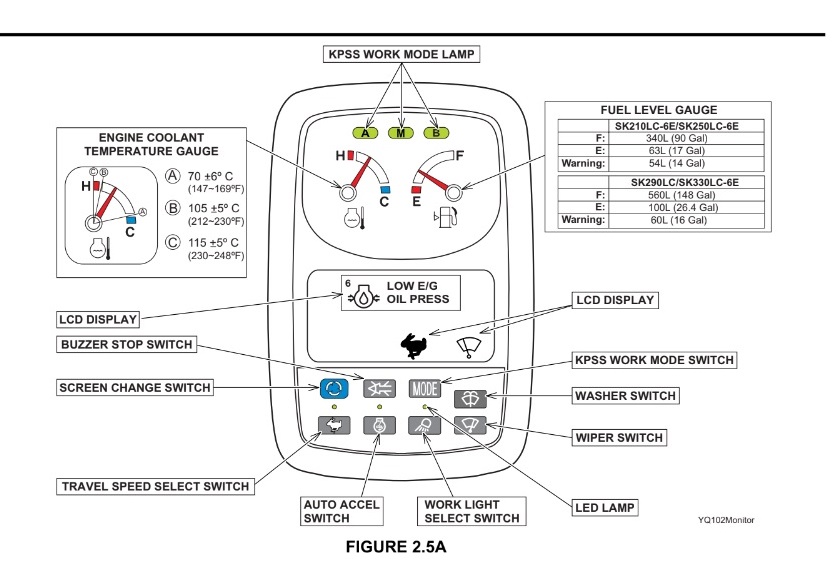

АЗ. Monitor- FIGURE 2.5А

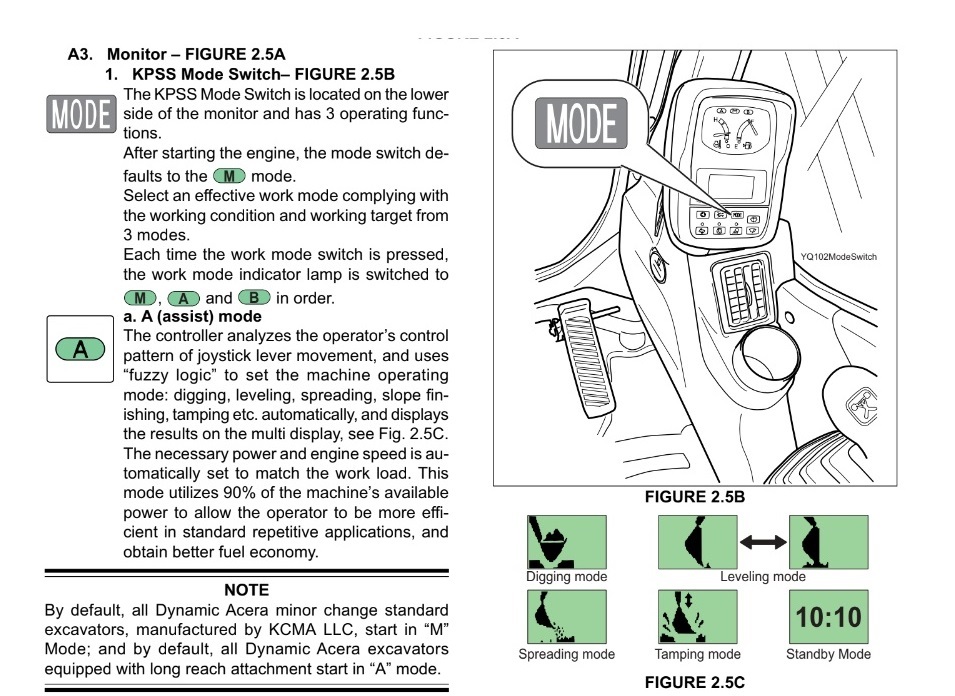

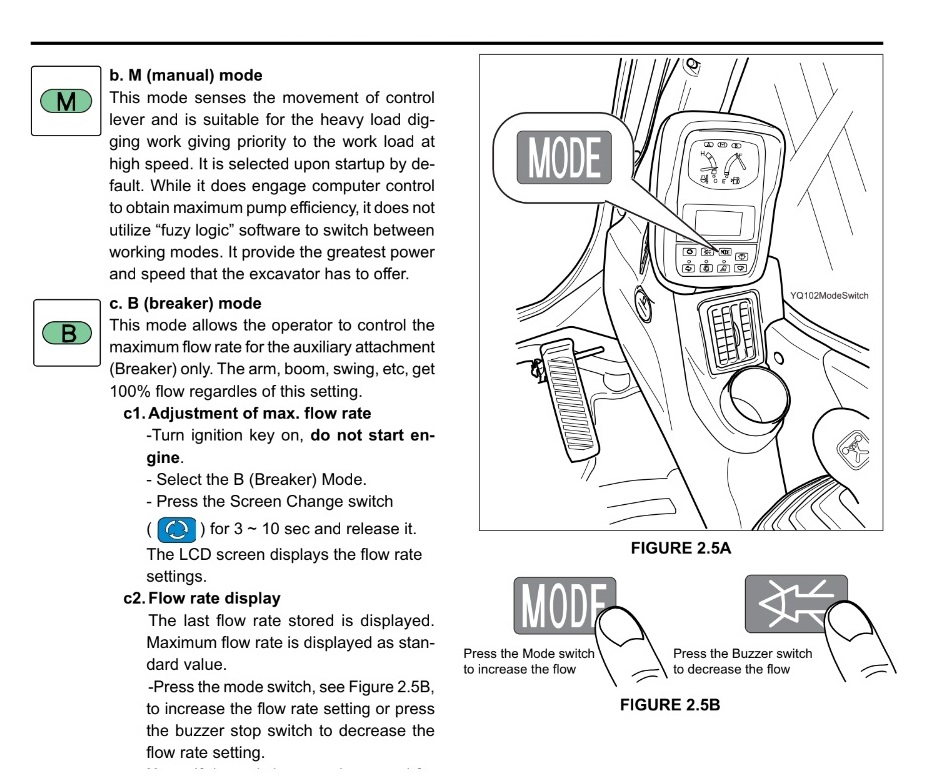

1. KPSS Mode Switch- FIGURE 2.5B

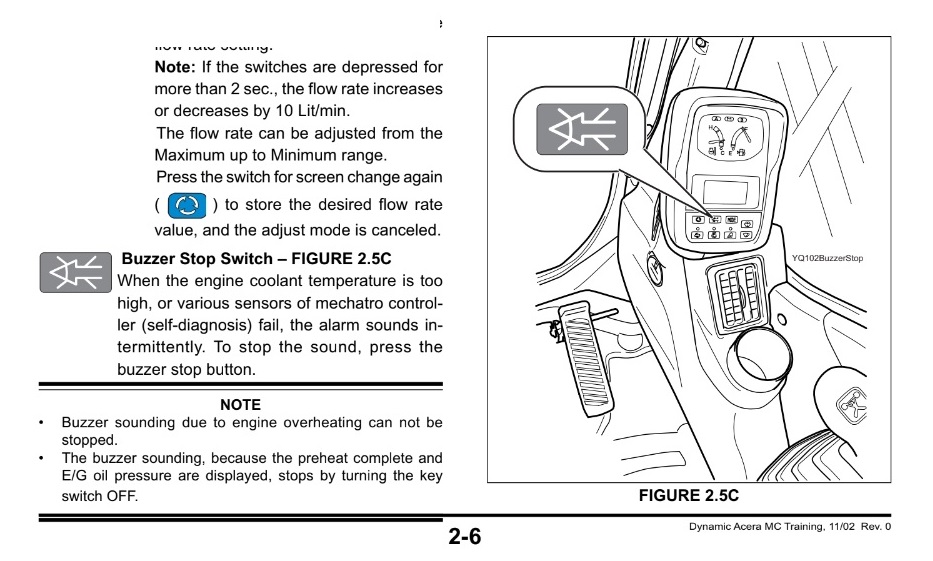

b. М (manual) mode

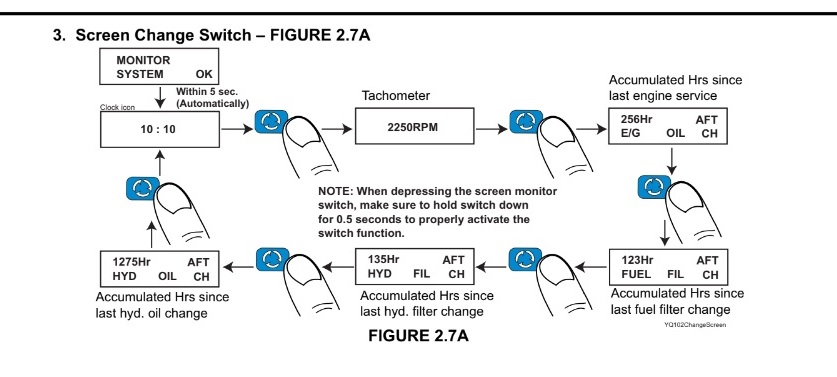

3. Screen Change Switch - FIGURE 2.7A

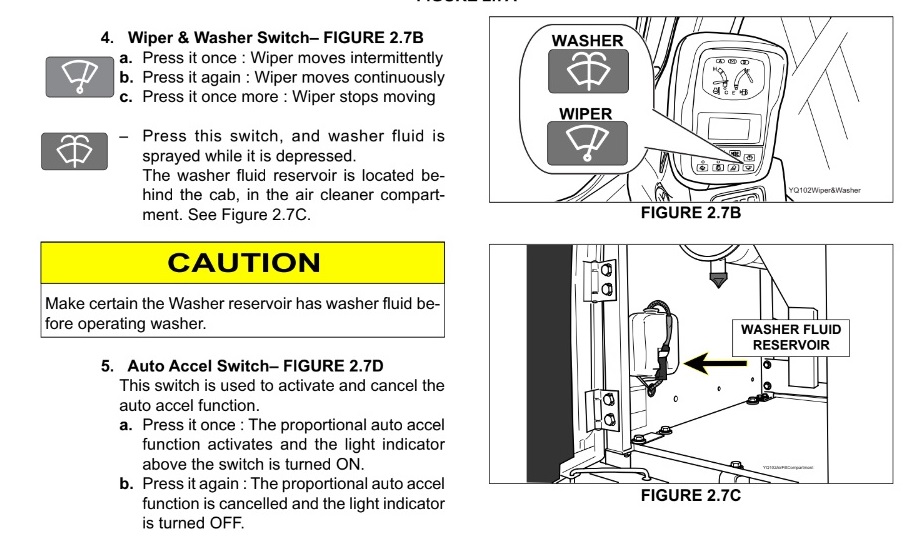

Wiper & Washer Switch- FIGURE 2.7B

NEVER ATTEMPT ТО LOAD OR UNLOAD MACHINE WITH THE AUTO ACCELERATION FUNCTION ACTIVATED. SUDDEN CHANGE OF ENGINE SPEED COULD BE EXPERIENCED CAUSING POSSIBLE DAMAGE, SERIOUS INJURY OR DEATH.
NOTE

All Dynamic Acera minor change excavators will default to the proportional auto acceleration function when the ignition key is turned to the OFF position.

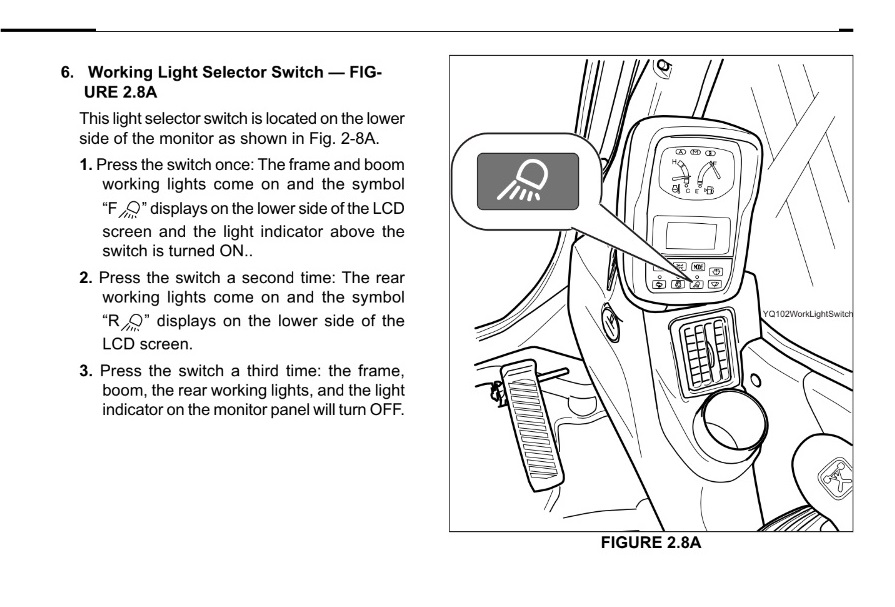

6. Working Light Selector Switch — FIGURE 2.8A

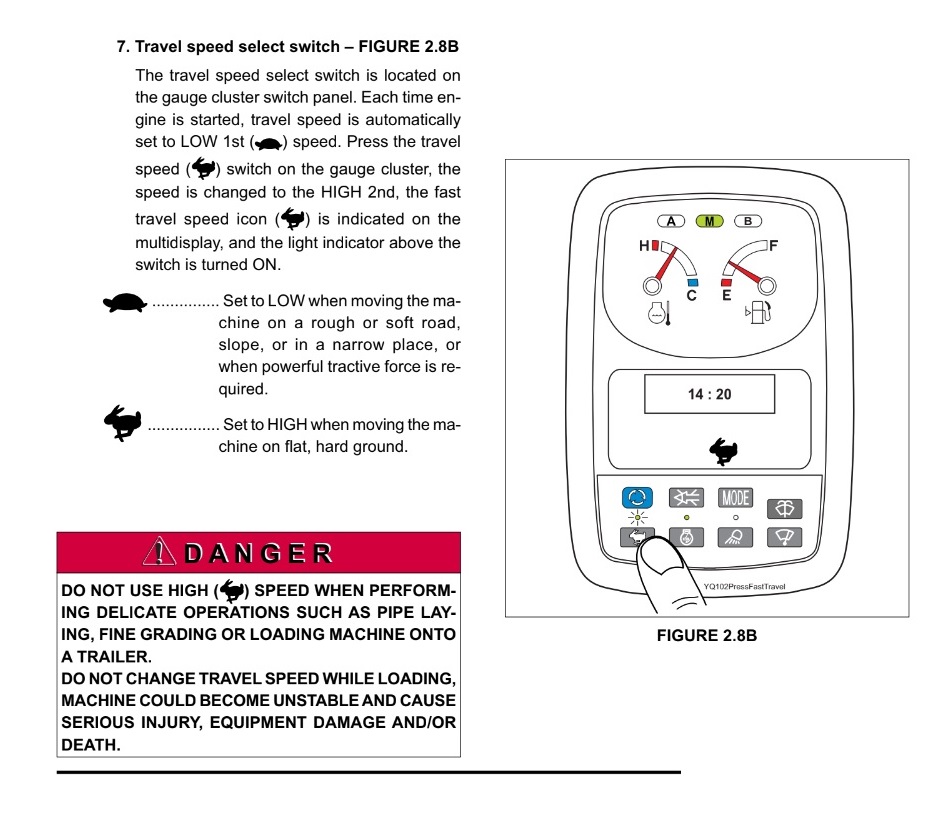

7. Travel speed select switch - FIGURE 2.8B

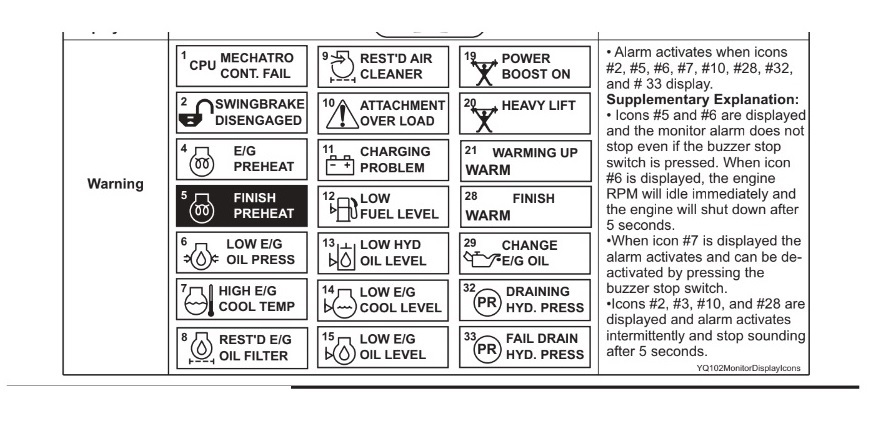

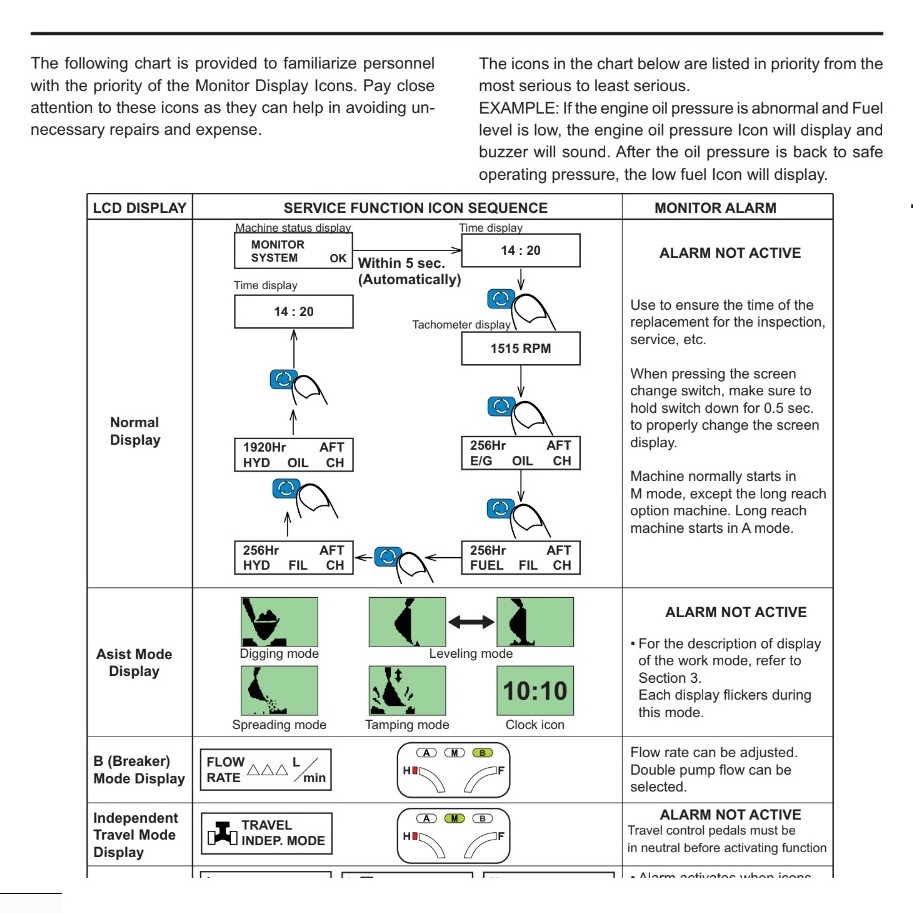

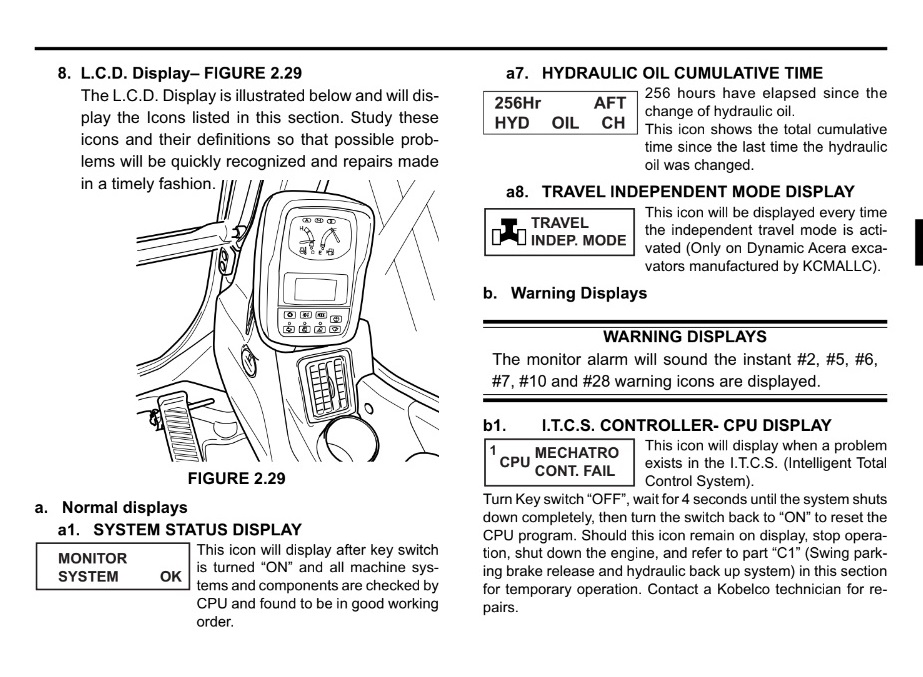

8. L.C.D. Display- FIGURE 2.29

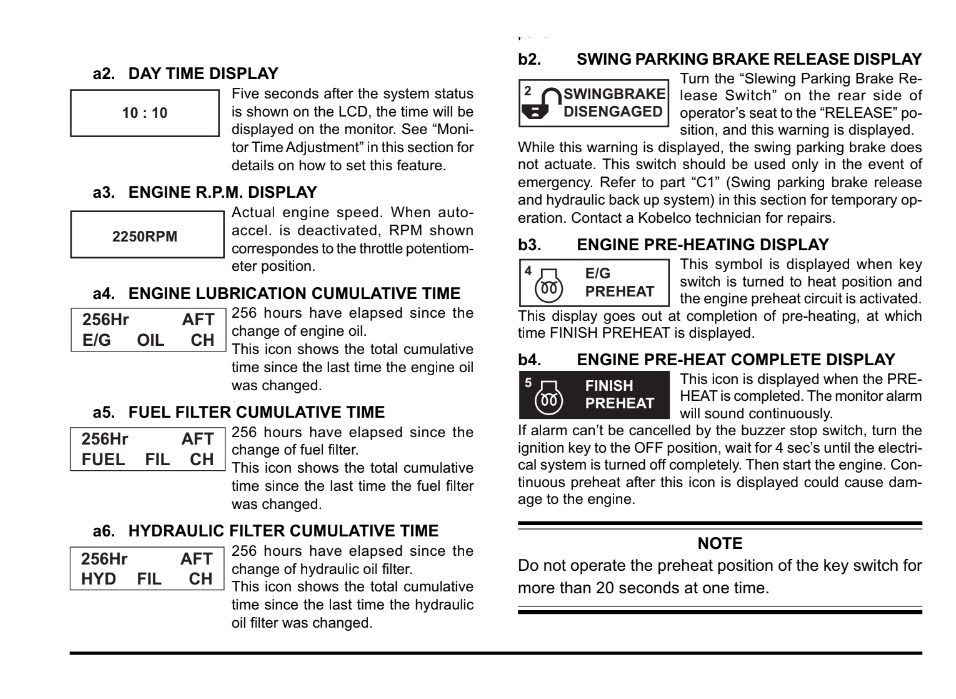

a2. DAY TIME DISPLAY

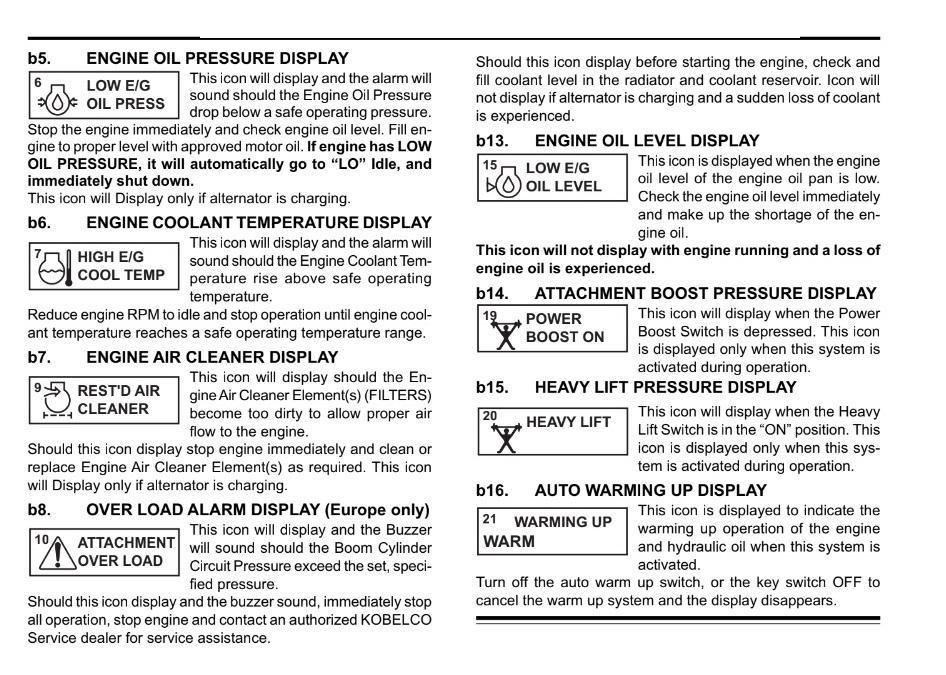

b5. ENGINE OIL PRESSURE DISPLAY

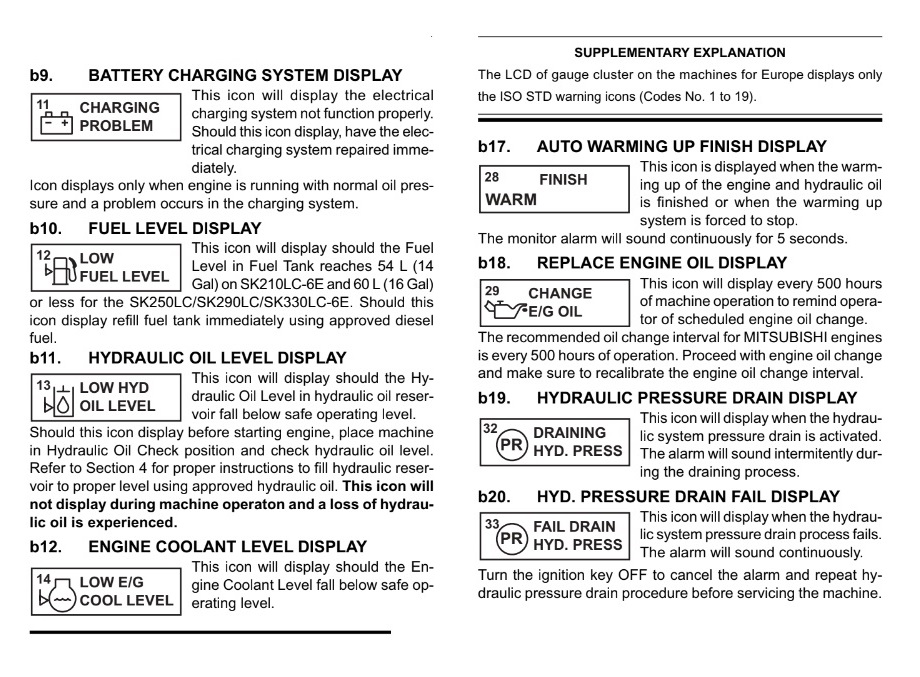

b9. BATTERY CHARGING SYSTEM DISPLAY
