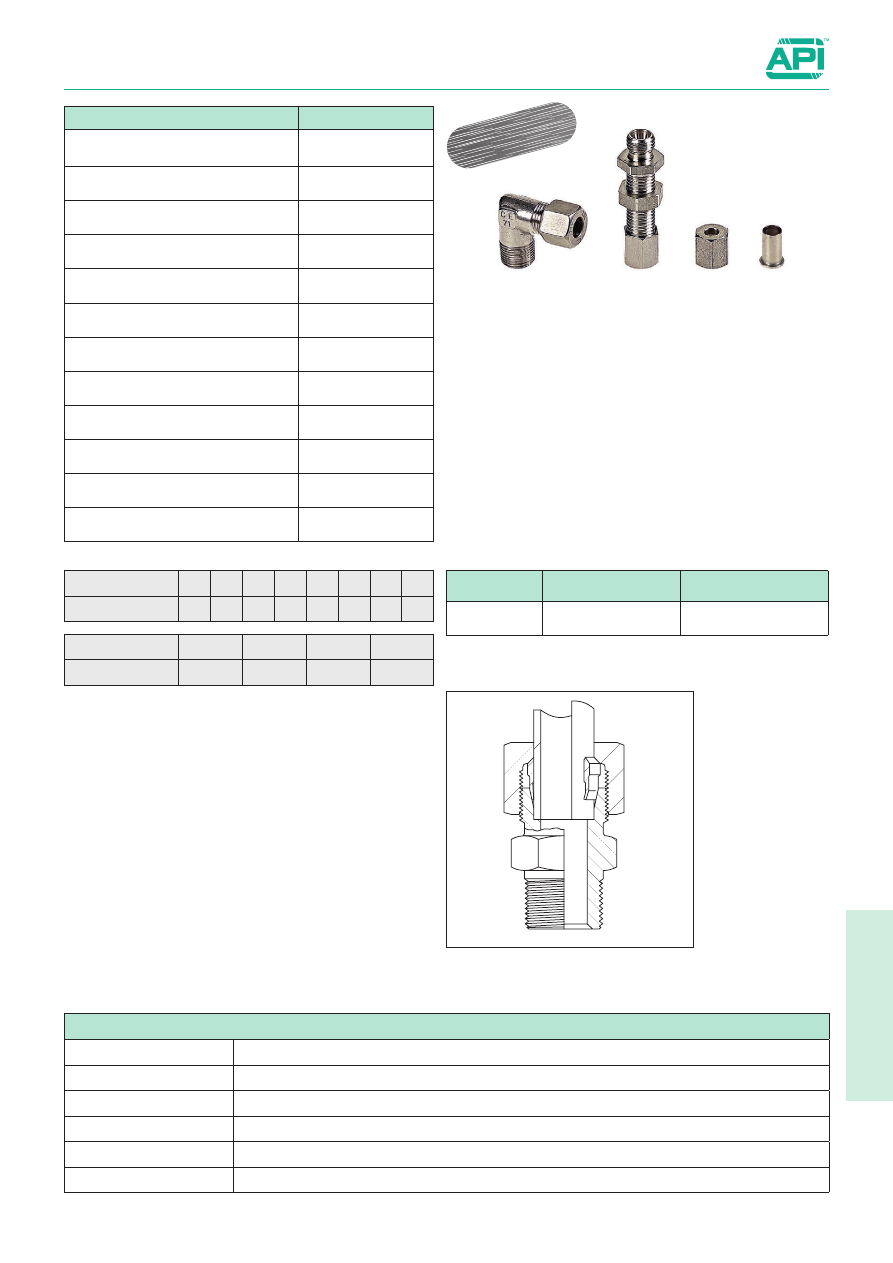

5.160.1

Stainless Steel compression fittings

Series OX, in AISI 316

*  For standard items, codes and dimensions see tables from

page 5.160.2

Series of stainless steel AISI 316 TI compression fittings con-
forming to DIN 2353 standards for metal tubes.
The ogive crushing onto the tube, by screwing down the external
nut, allows to get a safe connection and to work even at high
pressures.
The ogive is single cone.
This series of fittings can also be used for connecting non-stiff
tubes and this by applying a tube insert inside the tube.
Available with threads Gas taper (BSPT) and Gas parallel (BSP).

* How to order: 0X110814

External tube ø (mm)

6

8

10

12

14

15

16

18

Code

06

08

10

12

14

15

16

18

Threads

1/8”

1/4”

3/8”

1/2”

Code

18

14

38

12

Version

Type

BSPT stud

OX11

Female BSPT stud

OX13

Union

OX14

Bulkhead

OX15

BSPT elbow

OX16

Equal elbow

OX17

BSPT - compression tee

OX19

Equal tee

OX18

Equal +

OX28

Nut

OX21

Ogive

OX22

Tube insert

OX23

OX11

08

14

Type

Code ø Tube

Tube or thread code

Technical data

Fluid

Compressed air, aggressive fluids, oil at low pressure

Pressure range

Tube from 6 mm to 15 mm: 250 bar  -  Tube 16 mm and 18 mm: 160 bar

Temperature range

According to the tube used

Taper threads

UNI - ISO 7 / 1    (BSPT)

Connection tubes

Metal or rilsan, nylon, polyurethane, polyethylene (with insert tube)

Materials

Completely in stainless steel AISI 316 TI

Stainless Steel

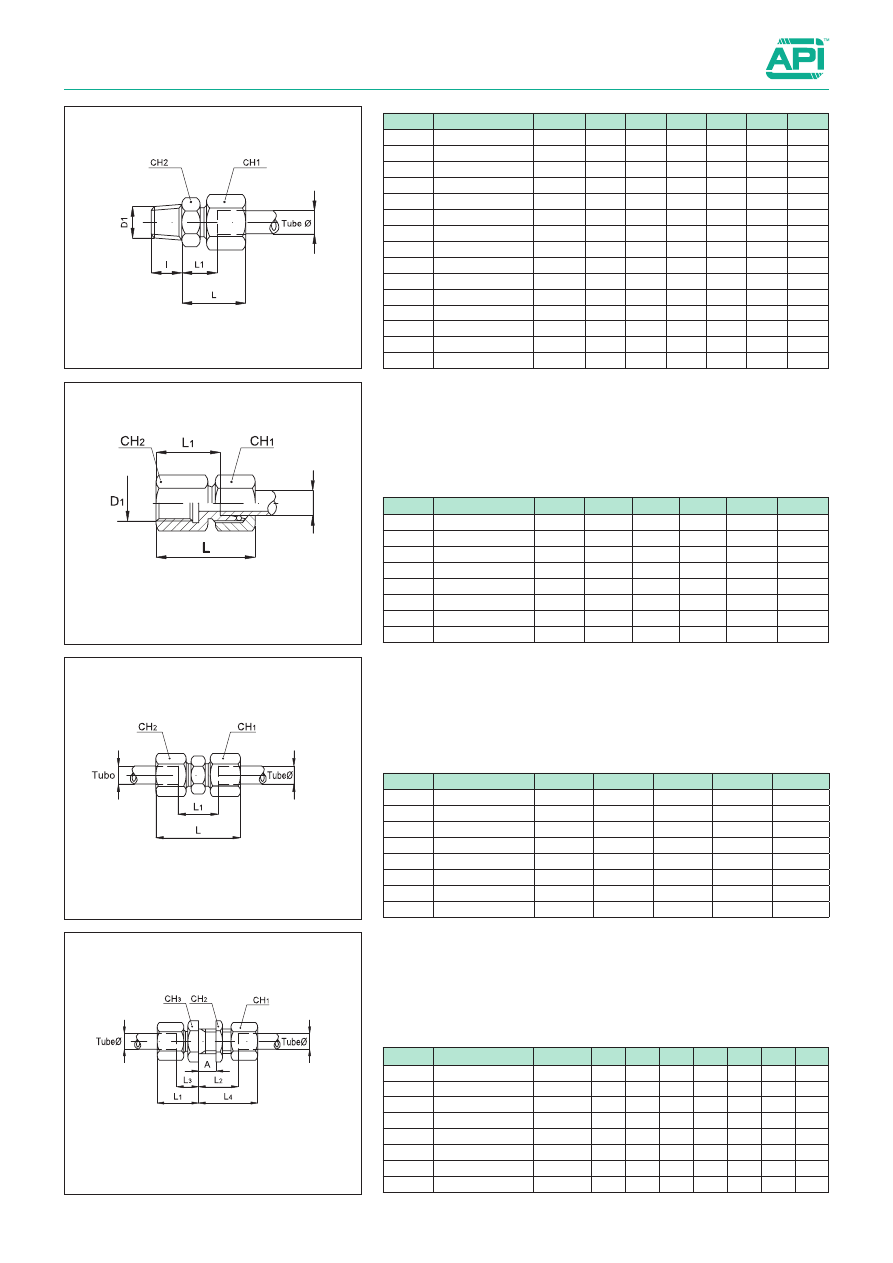

5.160.2

Stainless Steel compression fittings

Series OX, in AISI 316

Tube Ø

BSPT stud

Female BSPT stud

Union

Bulkhead

Code

Item

Tube ø

D

1

I

L

L

1

CH

1

CH

2

027031

OX 11 06 18

6

1/8”

10

23

7

14

12

027053

OX 11 08 18

8

1/8”

10

23

8

17

14

027033

OX 11 08 14

8

1/4”

13

25

8

17

17

027034

OX 11 08 38

8

3/8”

13

23

9

17

19

027035

OX 11 08 12

8

1/2”

16

23

11

17

22

027036

OX 11 10 14

10

1/4”

13

26

9

19

17

027037

OX 11 10 38

10

3/8”

13

24

10

19

19

027038

OX 11 10 12

10

1/2”

16

24

11

19

22

027039

OX 11 12 14

12

1/4”

13

25

10

22

19

027040

OX 11 12 38

12

3/8”

13

27

10

22

19

027041

OX 11 12 12

12

1/2”

16

25

10

22

22

027042

OX 11 14 12

14

1/2”

16

29

11

27

24

027043

OX 11 15 12

15

1/2”

16

29

11

27

24

027044

OX 11 16 12

16

1/2”

16

31

11,5

32

27

027045

OX 11 18 12

18

1/2”

16

31

11,5

32

27

Code

Item

Tube ø

D

1

L

L

1

CH

1

CH

2

027081

OX 13 06 18

6

1/8”

34

19

14

14

027082

OX 13 08 14

8

1/4”

39

24

17

19

027083

OX 13 10 14

10

1/4”

40

25

19

19

027084

OX 13 12 38

12

3/8”

41

26

22

24

027085

OX 13 14 12

14

1/2”

46

31

27

27

027086

OX 13 15 12

15

1/2”

46

31

27

27

027087

OX 13 16 12

16

1/2”

47

30,5

32

27

027088

OX 13 18 12

18

1/2”

47

30,5

32

27

Code

Item

Tube ø

L

L

1

CH

1

CH

2

027001

OX 14 06 06

6

39

10

14

12

027002

OX 14 08 08

8

40

11

17

14

027003

OX 14 10 10

10

42

13

19

17

027004

OX 14 12 12

12

43

14

22

19

027005

OX 14 14 14

14

46

16

27

24

027006

OX 14 15 15

15

46

16

27

24

027007

OX 14 16 16

16

48

16

32

27

027008

OX 14 18 18

18

48

16

32

27

Code

Item

Tube ø

L

1

L

2

L

3

L

4

CH

1

CH

2

CH

3

027137

OX 15 06 06

6

22

27

7

42

14

17

17

027138

OX 15 08 08

8

23

27

8

42

17

19

19

027139

OX 15 10 10

10

25

28

10,5

43

19

22

22

027140

OX 15 12 12

12

25

29

10

44

22

24

24

027141

OX 15 14 14

14

27

31

12

46

27

30

27

027142

OX 15 15 15

15

27

31

12

46

27

30

27

027143

OX 15 16 16

16

30

32,5 13,5

49

32

36

32

027144

OX 15 18 18

18

30

32,5 13,5

49

32

36

32

5

5.160.3

Stainless Steel compression fittings

Series OX, in AISI 316

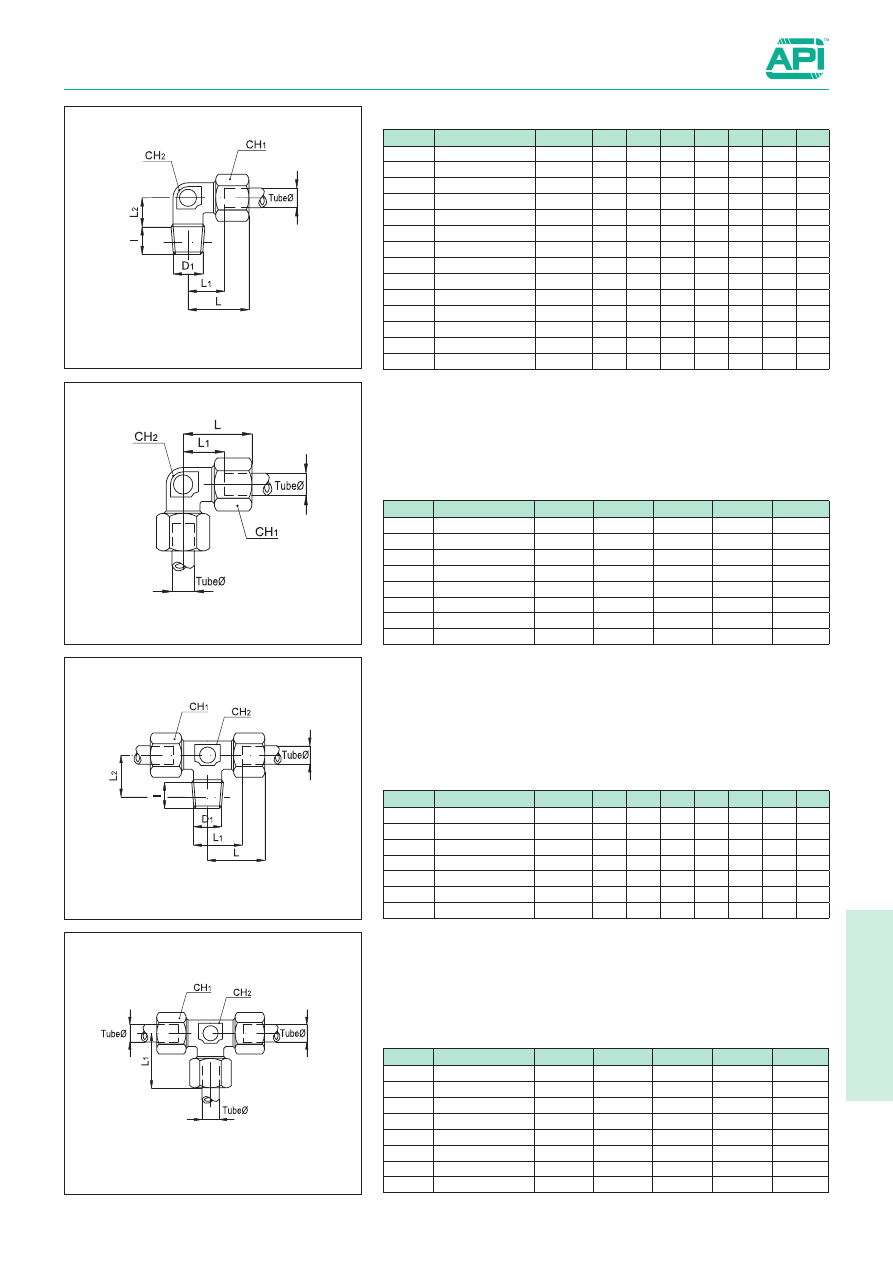

BSPT elbow

Equal elbow

BSPT - compression tee

Equal tee

Code

Item

Tube ø

D

1

I

L

L

1

L

2

CH

1

CH

2

027091

OX 16 06 18

6

1/8”

8

27

12

15

14

12

027092

OX 16 06 14

6

1/4”

12

27

15,5

15

14

12

027093

OX 16 08 18

8

1/8”

12

29

15,5

18

17

12

027094

OX 16 08 14

8

1/4”

12

29

14

18

17

12

027095

OX 16 08 38

8

3/8”

12

29

17,5

18

17

17

027096

OX 16 10 14

10

1/4”

12

30

15

19

19

14

027097

OX 16 10 38

10

3/8”

12

30

17

19

19

17

027099

OX 16 12 14

12

1/4”

12

32

17

20

22

17

027100

OX 16 12 38

12

3/8”

12

32

17

20

22

17

027101

OX 16 12 12

12

1/2”

14

32

20

20

22

19

027102

OX 16 14 12

14

1/2”

14

36

21

24

27

19

027103

OX 16 15 12

15

1/2”

14

36

21

24

27

19

027104

OX 16 16 12

16

1/2”

14

40

23

26

32

24

027105

OX 16 18 12

18

1/2”

14

40

23

26

32

24

Code

Item

Tube ø

L

L

1

CH

1

CH

2

027061

OX 17 06 06

6

27

12

14

12

027062

OX 17 08 08

8

29

14

17

12

027063

OX 17 10 10

10

30

15

19

14

027064

OX 17 12 12

12

32

17

22

17

027065

OX 17 14 14

14

36

21

27

19

027066

OX 17 15 15

15

36

21

27

19

027067

OX 17 16 16

16

40

23,5

32

24

027068

OX 17 18 18

18

40

23,5

32

24

Code

Item

Tube ø

D

1

I

L

L

1

L

2

CH

1

CH

2

027151

OX 19 06 18

6

1/8”

8

27

12

15

14

12

027153

OX 19 08 14

8

1/4”

12

29

14

18

17

12

027156

OX 19 12 38

12

3/8”

12

32

17

20

22

17

027157

OX 19 14 12

14

1/2”

14

36

21

24

27

19

027158

OX 19 15 12

15

1/2”

14

36

21

24

27

19

027159

OX 19 16 12

16

1/2”

14

40

23,5 26,5

32

24

027160

OX 19 18 12

18

1/2”

14

40

23,5 26,5

32

24

Code

Item

Tube ø

L

L

1

CH

1

CH

2

027121

OX 18 06 06

6

27

12

14

12

027122

OX 18 08 08

8

29

14

17

12

027123

OX 18 10 10

10

30

15

19

14

027124

OX 18 12 12

12

32

17

22

17

027125

OX 18 14 14

14

36

21

27

19

027126

OX 18 15 15

15

36

21

27

19

027127

OX 18 16 16

16

40

23,5

32

24

027128

OX 18 18 18

18

40

23,5

32

24

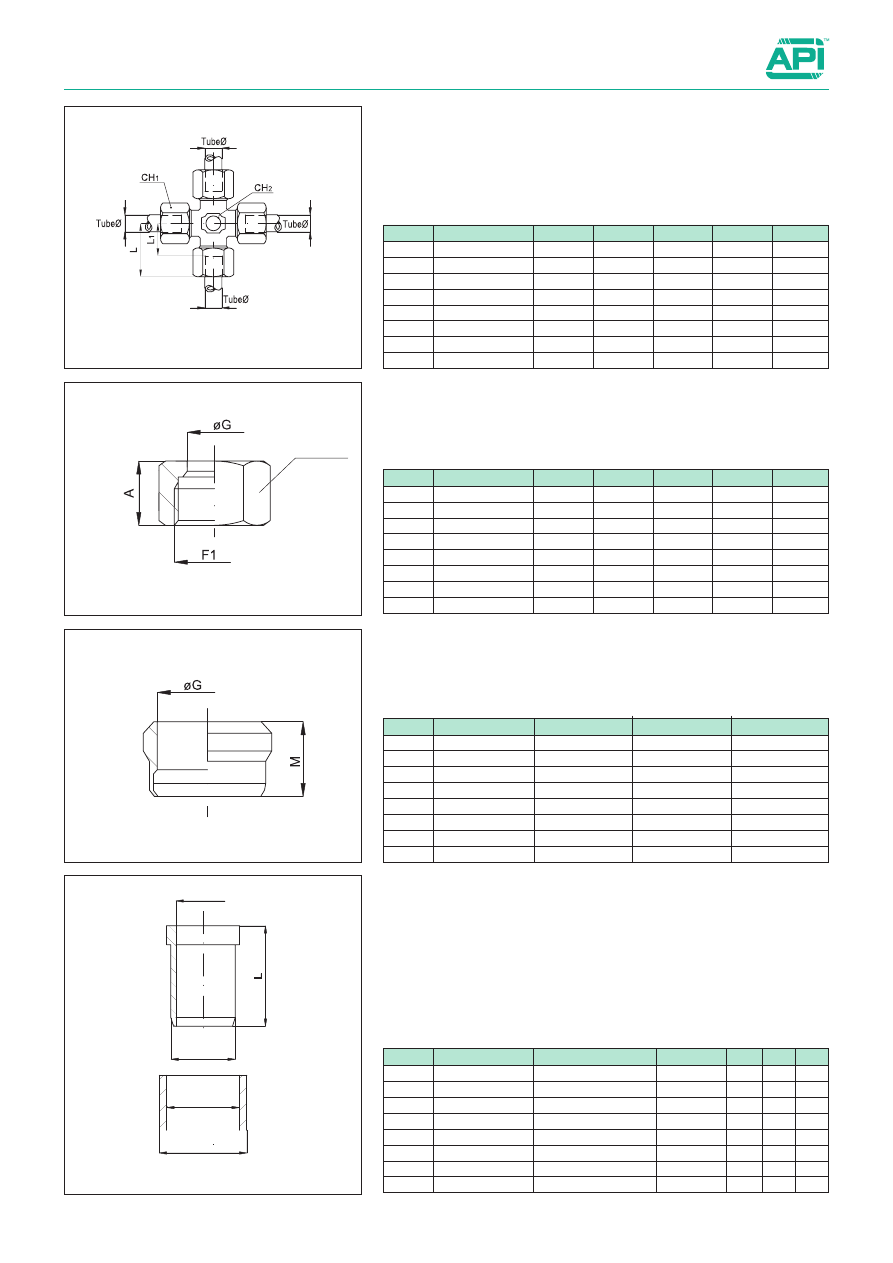

5.160.4

Stainless Steel compression fittings

Series OX, in AISI 316

CH

Tube external ø

Tube internal ø

d1 ø

d ø

Equal +

Nut

Ogive

Tube insert

Code

Item

Tube ø

L

L

1

CH

1

CH

2

027211

OX 28 06 06

6

27

12

14

12

027212

OX 28 08 08

8

29

14

17

12

027213

OX 28 10 10

10

30

15

19

14

027214

OX 28 12 12

12

32

17

22

17

027215

OX 28 14 14

14

36

21

27

19

027216

OX 28 15 15

15

36

21

27

19

027217

OX 28 16 16

16

40

23,5

32

24

027218

OX 28 18 18

18

40

23,5

32

24

Code

Item

Tube ø

F

1

A

CH

ø G

027241

OX 21 06 06

6

12x1,5

14,5

14

6

027242

OX 21 08 08

8

14x1,5

14,5

17

8

027243

OX 21 10 10

10

16x1,5

15,5

19

10

027244

OX 21 12 12

12

18x1,5

15,5

22

12

027245

OX 21 14 14

14

22x1,5

17

27

15

027246

OX 21 15 15

15

22x1,5

17

27

15

027247

OX 21 16 16

16

26x1,5

18

32

18

027248

OX 21 18 18

18

26x1,5

18

32

18

Code

Item

Tube ø

ø G

M

027271

OX 22 06 06

6

6

9,5

027272

OX 22 08 08

8

8

9,5

027273

OX 22 10 10

10

10

10

027274

OX 22 12 12

12

12

10

027275

OX 22 14 14

14

14

10

027276

OX 22 15 15

15

15

10

027277

OX 22 16 16

16

16

9,5

027278

OX 22 18 18

18

18

9,5

Code

Item

Ext. tube ø x tickness Int. tube ø

ø d

ø d

1

L

027293

OX 23 06 06

6x1

4

2,6

3,8 15,5

027290

OX 23 08 08

8x1

6

4,6

5,8 15,5

027291

OX 23 10 10

10x1

8

6,6

7,8 16,5

027292

OX 23 12 12

12x1

10

8,6

9,8 16,5

027294

OX 23 14 14

14x1

13

11,2 12,8

17

027295

OX 23 15 15

15x1,5

12

10,2 11,8

17

027296

OX 23 16 16

16x1

16

14,2 15,8 17,5

027297

OX 23 18 18

18x1,5

15

13,2 14,8 17,5

5

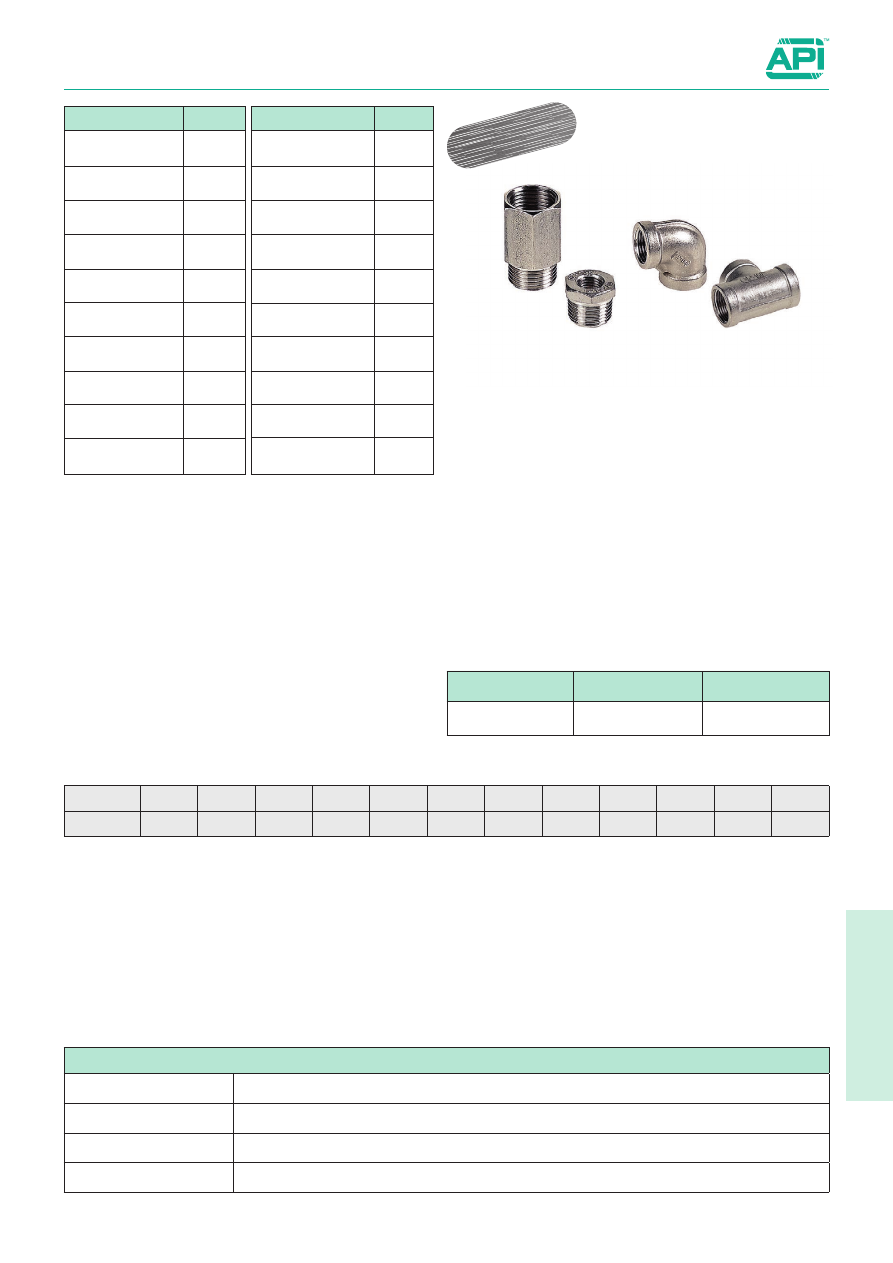

5.165.1

Stainless Steel standard fittings

Series AX, in AISI 316

Series of standard fittings in stainless steel AISI 316 available in
various configurations to adapt the connections of every instal-
lation according to one’s requirements.
Available with Gas taper threads (BSPT) and fit for pneumatic,
hydraulic (low pressure) and hydropneumatic installations, for
alimentary, chemical, medical fields etc..

* How to order: AX0061212

*  For standard items, codes and dimensions see tables from

page 5.165.2

Version

Type

M-F BSPT reducer

AX002

M-F BSPT stem
increaser

AX004

BSPT nipple

AX006

BSPT reducing
nipple

AX027

Threaded nipple

AX028

Solder fittings

AX029

BSPT extended
nipple

AX030

Female socket

AX007

Female reducing
socket

AX031

Male BSPT plug

AX016

Version

Type

Female plug

AX010

Nut

AX013

BSPT - hose adapter

AX015

BSP female union

AX032

M-F BSP union

AX033

BSP 45° female
elbow

AX034

F - F elbow

AX021

M - F elbow

AX022

F - F - F tee

AX023

F - F - F - F  +

AX026

AX006

12

12

Type

Filetto

Filetto

Threads

1/8”

1/4”

3/8”

1/2”

3/4”

1”

1 1/4”

1 1/2”

2”

2 1/2”

3”

4”

Code

18

14

38

12

34

01

41

21

02

22

03

04

Technical data

Fluid

Compressed air, aggressive fluids, oil at low pressure.

Pressure range

60 bar

Taper threads

UNI - ISO 7 / 1    (BSPT)

Materials

Stainless steel AISI 316 TI

Stainless Steel

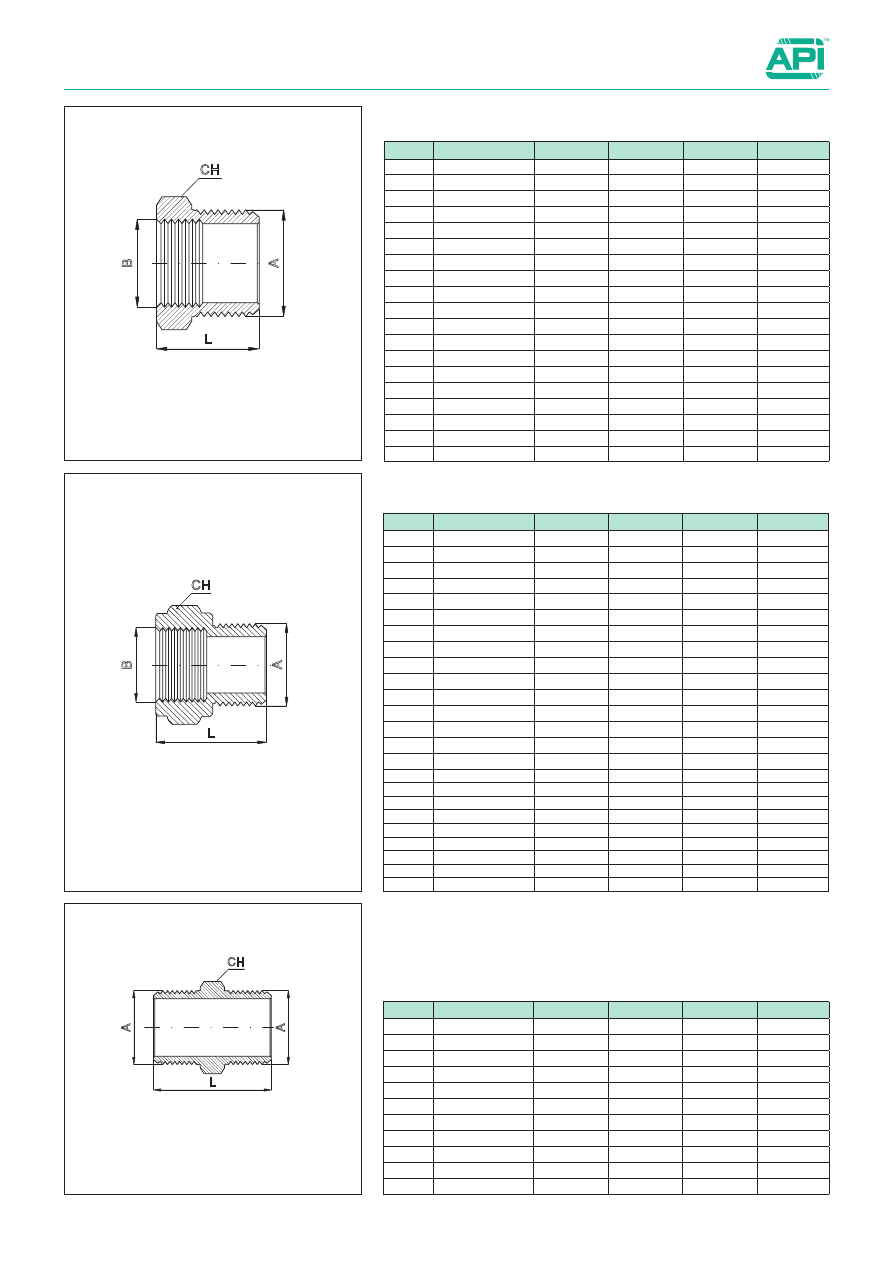

5.165.2

Stainless Steel standard fittings

Series AX, in AISI 316

L

CH

B

A

A

L

A

CH

M - F BSPT stem increaser

BSPT nipple

A

B

L

CH

M-F BSPT reducer

Code

Item

A

B

L

CH

026161

AX002 14 18

1/4”

1/8”

18

14

026163

AX002 38 18

3/8”

1/8”

20

17

026162

AX002 38 14

3/8”

1/4”

20

17

026165

AX002 12 38

1/2”

3/8”

23

22

026164

AX002 12 14

1/2”

1/4”

23

22

026166

AX002 34 38

3/4”

3/8”

27

27

026167

AX002 34 12

3/4”

1/2”

27

27

026168

AX002 01 12

1”

1/2”

30

36

026169

AX002 01 34

1”

3/4”

30

36

026170

AX002 41 34

1 1/4”

3/4”

31

42

026171

AX002 41 01

1 1/4”

1”

31

42

026172

AX002 21 01

1 1/2”

1”

33

50

026173

AX002 21 41

1 1/2”

1 1/4”

33

50

026174

AX002 02 41

2”

1 1/4”

37

60

026175

AX002 02 21

2”

1 1/2”

37

60

026176

AX002 22 21

2 1/2”

1 1/2”

43

77

026177

AX002 22 02

2 1/2”

2”

43

77

026178

AX002 03 02

3”

2”

48

90

026179

AX002 03 22

3”

2 1/2”

48

90

Code

Item

B

A

CH

L

026251

AX004 18 18

1/8”

1/8”

17

21

026252

AX004 14 18

1/4”

1/8”

19

24

026253

AX004 14 14

1/4”

1/4”

19

27

026254

AX004 38 18

3/8”

1/8”

24

25

026255

AX004 38 14

3/8”

1/4”

24

28

026256

AX004 38 38

3/8”

3/8”

24

31

026257

AX004 12 14

1/2”

1/4”

30

30

026258

AX004 12 38

1/2”

3/8”

30

33

026259

AX004 12 12

1/2”

1/2”

24

40

026260

AX004 34 14

3/4”

1/4”

36

31

026261

AX004 34 38

3/4”

3/8”

36

34

026262

AX004 34 12

3/4”

1/2”

36

35

026263

AX004 34 34

3/4”

3/4”

36

37

026264

AX004 01 38

1”

3/8”

41

37

026265

AX004 01 12

1”

1/2”

41

38

026266

AX004 01 34

1”

3/4”

41

40

026267

AX004 01 01

1”

1”

41

41

026268

AX004 41 34

1 1/4”

3/4”

50

40

026269

AX004 41 01

1 1/4”

1”

50

41

026270

AX004 41 41

1 1/4”

1 1/4”

50

44

026271

AX004 21 34

1 1/2”

3/4”

55

43

026272

AX004 21 01

1 1/2”

1”

55

44

026273

AX004 21 41

1 1/2”

1 1/4”

55

47

026274

AX004 21 41

1 1/2”

1 1/2”

55

53

Code

Item

A

A

L

CH

026131

AX006 18 18

1/8”

1/8”

24

12

026132

AX006 14 14

1/4”

1/4”

29

14

026133

AX006 38 38

3/8”

3/8”

32

17

026134

AX006 12 12

1/2”

1/2”

38

22

026135

AX006 34 34

3/4”

3/4”

45

27

026136

AX006 01 01

1”

1”

47

36

026137

AX006 41 41

1 1/4”

1 1/4”

52

42

026138

AX006 21 21

1 1/2”

1 1/2”

55

50

026139

AX006 02 02

2”

2”

62

60

026140

AX006 22 22

2 1/2”

2 1/2”

71

77

026141

AX006 03 03

3”

3”

82

90

5

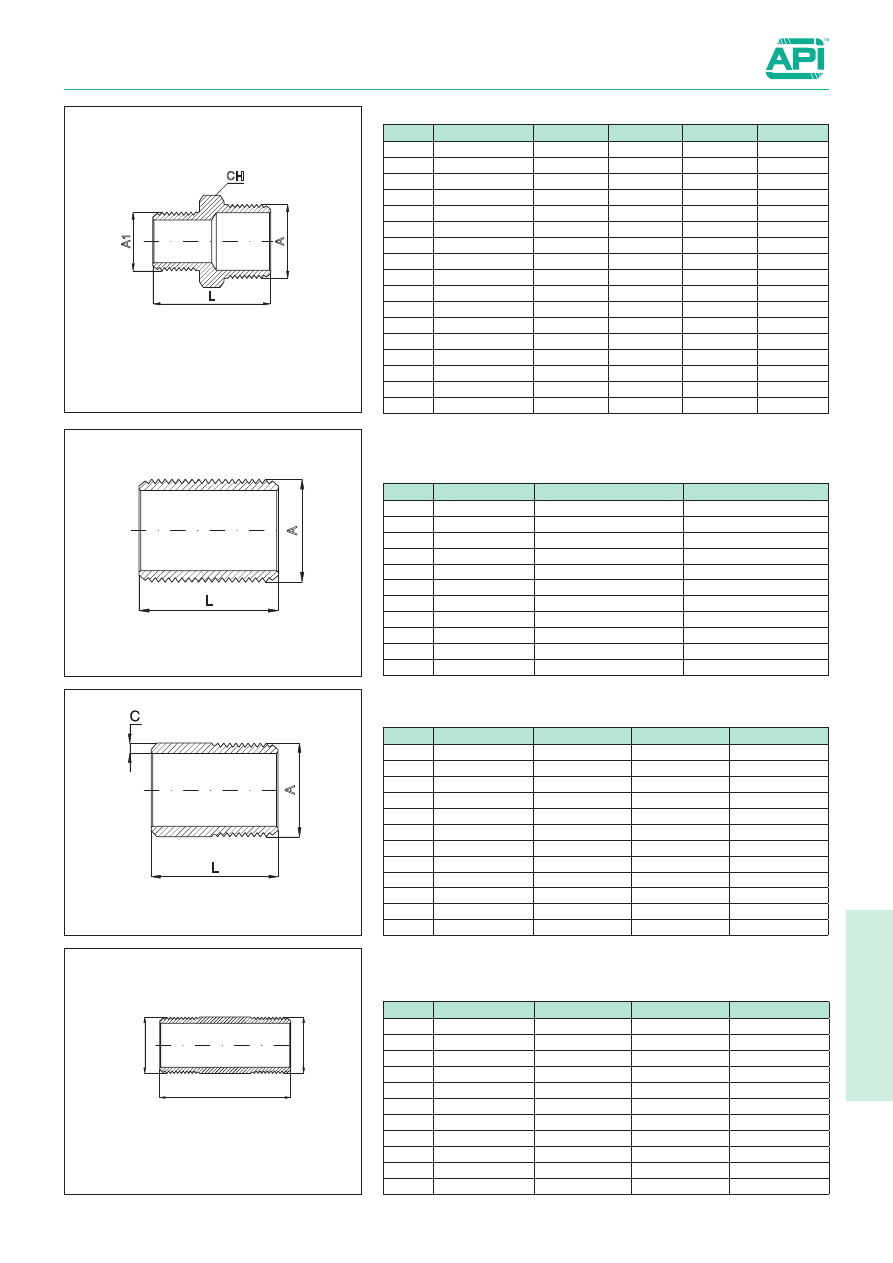

5.165.3

Stainless Steel standard fittings

Series AX, in AISI 316

A

A

L

L

A

L

A

BSPT extended nipple

Threaded nipple

Solder fitting

L

A

A

1

CH

BSPT reducing nipple

Code

Item

A

A

1

L

CH

026091

AX027 14 18

1/4”

1/8”

27

14

026092

AX027 38 14

3/8”

1/4”

31

17

026093

AX027 12 14

1/2”

1/4”

34

22

026094

AX027 12 38

1/2”

3/8”

35

22

026095

AX027 34 38

3/4”

3/8”

38

27

026096

AX027 34 12

3/4”

1/2”

42

27

026097

AX027 01 12

1”

1/2”

45

36

026098

AX027 01 34

1”

3/4”

48

36

026099

AX027 41 34

1 1/4”

3/4”

49

42

026100

AX027 41 01

1 1/4”

1”

51

42

026101

AX027 21 01

1 1/2”

1”

53

50

026102

AX027 21 41

1 1/2”

1 1/4”

54

50

026103

AX027 02 41

2”

1 1/4”

58

60

026104

AX027 02 21

2”

1 1/2”

59

60

026105

AX027 22 21

2 1/2”

1 1/2”

67

77

026106

AX027 22 02

2 1/2”

2”

70

77

026107

AX027 03 22

3”

2 1/2”

78

90

Code

Item

A

L

026001

AX028 18 18

1/8”

16

026002

AX028 14 14

1/4”

18

026003

AX028 38 38

3/8”

22

026004

AX028 12 12

1/2”

25

026005

AX028 34 34

3/4”

30

026006

AX028 01 01

1”

35

026007

AX028 41 41

1 1/4”

38

026008

AX028 21 21

1 1/2”

38

026009

AX028 02 02

2”

45

026010

AX028 22 22

2 1/2”

55

026011

AX028 03 03

3”

60

Code

Item

A

L

C

026031

AX029 18 18

1/8”

20

2,24

026032

AX029 14 14

1/4”

22

2,24

026033

AX029 38 38

3/8”

25

2,31

026034

AX029 12 12

1/2”

28

2,90

026035

AX029 34 34

3/4”

35

2,90

026036

AX029 01 01

1”

35

3,38

026037

AX029 41 41

1 1/4”

45

3,56

026038

AX029 21 21

1 1/2”

45

3,68

026039

AX029 02 02

2”

50

3,91

026040

AX029 22 22

2 1/2”

55

6,30

026041

AX029 03 03

3”

65

4

026042

AX029 04 04

4”

75

4,5

Code

Item

A

A

L

026061

AX030 18 18

1/8”

1/8”

30

026062

AX030 14 14

1/4”

1/4”

36

026063

AX030 38 38

3/8”

3/8”

42

026064

AX030 12 12

1/2”

1/2”

45

026065

AX030 34 34

3/4”

3/4”

53

026066

AX030 01 01

1”

1”

60

026067

AX030 41 41

1 1/4”

1 1/4”

66

026068

AX030 21 21

1 1/2”

1 1/2”

67

026069

AX030 02 02

2”

2”

75

026070

AX030 22 22

2 1/2”

2 1/2”

85

026071

AX030 03 03

3”

3”

90

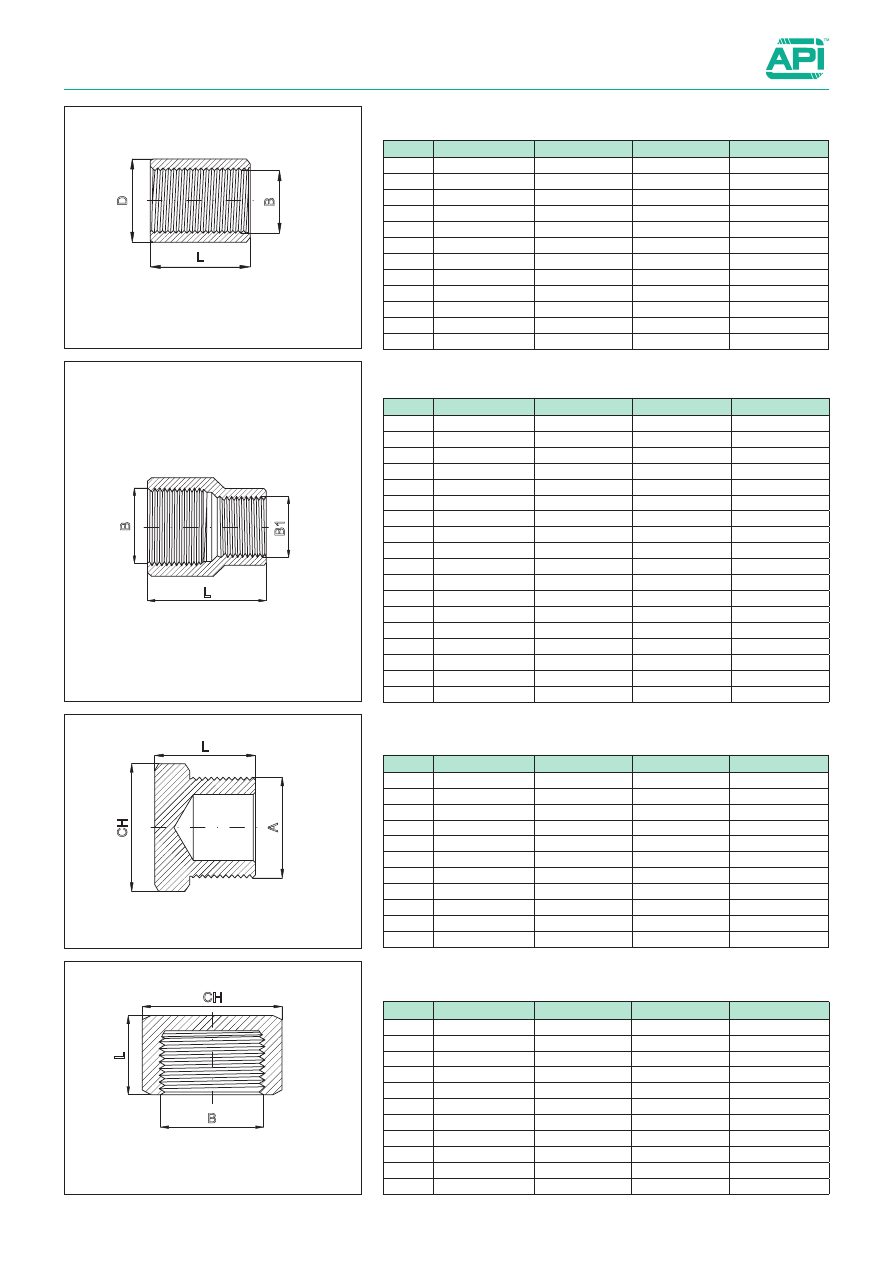

5.165.4

Stainless Steel standard fittings

Series AX, in AISI 316

B

L

CH

L

B1

B

L

CH

A

Female plug

Female reducing socket

Male BSPT plug

L

D

B

Female socket

Code

Item

B

L

D

026511

AX007 18 18

1/8”

20

14

026512

AX007 14 14

1/4”

22

17,2

026513

AX007 38 38

3/8”

25

21,3

026514

AX007 12 12

1/2”

30

26,7

026515

AX007 34 34

3/4”

35

33,4

026516

AX007 01 01

1”

37

40

026517

AX007 41 41

1 1/4”

42

48,3

026518

AX007 21 21

1 1/2”

42

57

026519

AX007 02 02

2”

46

71

026520

AX007 22 22

2 1/2”

65

90

026521

AX007 03 03

3”

70

100

026522

AX007 04 04

4”

70

120

Code

Item

B

B

1

L

026541

AX031 14 18

1/4”

1/8”

27

026542

AX031 38 14

3/8”

1/4”

30

026543

AX031 12 14

1/2”

1/4”

36

026544

AX031 12 38

1/2”

3/8”

36

026545

AX031 34 38

3/4”

3/8”

39

026546

AX031 34 12

3/4”

1/2”

39

026547

AX031 01 12

1”

1/2”

45

026548

AX031 01 34

1”

3/4”

45

026549

AX031 41 34

1 1/4”

3/4”

50

026550

AX031 41 01

1 1/4”

1”

50

026551

AX031 21 01

1 1/2”

1”

55

026552

AX031 21 41

1 1/2”

1 1/4”

55

026553

AX031 02 41

2”

1 1/4”

65

026554

AX031 02 21

2”

1 1/2”

65

026555

AX031 22 21

2 1/2”

1 1/2”

74

026556

AX031 22 02

2 1/2”

2”

74

026557

AX031 03 02

3”

2”

80

026558

AX031 03 22

3”

2 1/2”

80

Code

Item

A

L

CH

026191

AX016 18 18

1/8”

15

12

026192

AX016 14 14

1/4”

17

14

026193

AX016 38 38

3/8”

18

17

026194

AX016 12 12

1/2”

20

22

026195

AX016 34 34

3/4”

25

27

026196

AX016 01 01

1”

28

36

026197

AX016 41 41

1 1/4”

31

42

026198

AX016 21 21

1 1/2”

33

50

026199

AX016 02 02

2”

38

60

026200

AX016 22 22

2 1/2”

43

77

026201

AX016 03 03

3”

48

90

Code

Item

B

L

CH

026671

AX010 18 18

1/8”

13

17

026672

AX010 14 14

1/4”

15

19

026673

AX010 38 38

3/8”

16

24

026674

AX010 12 12

1/2”

18

30

026675

AX010 34 34

3/4”

21

36

026676

AX010 01 01

1”

24

41

026677

AX010 41 41

1 1/4”

24

50

026678

AX010 21 21

1 1/2”

24

55

026679

AX010 02 02

2”

26

68

026680

AX010 22 22

2 1/2”

30

84

026681

AX010 03 03

3”

30

98

5

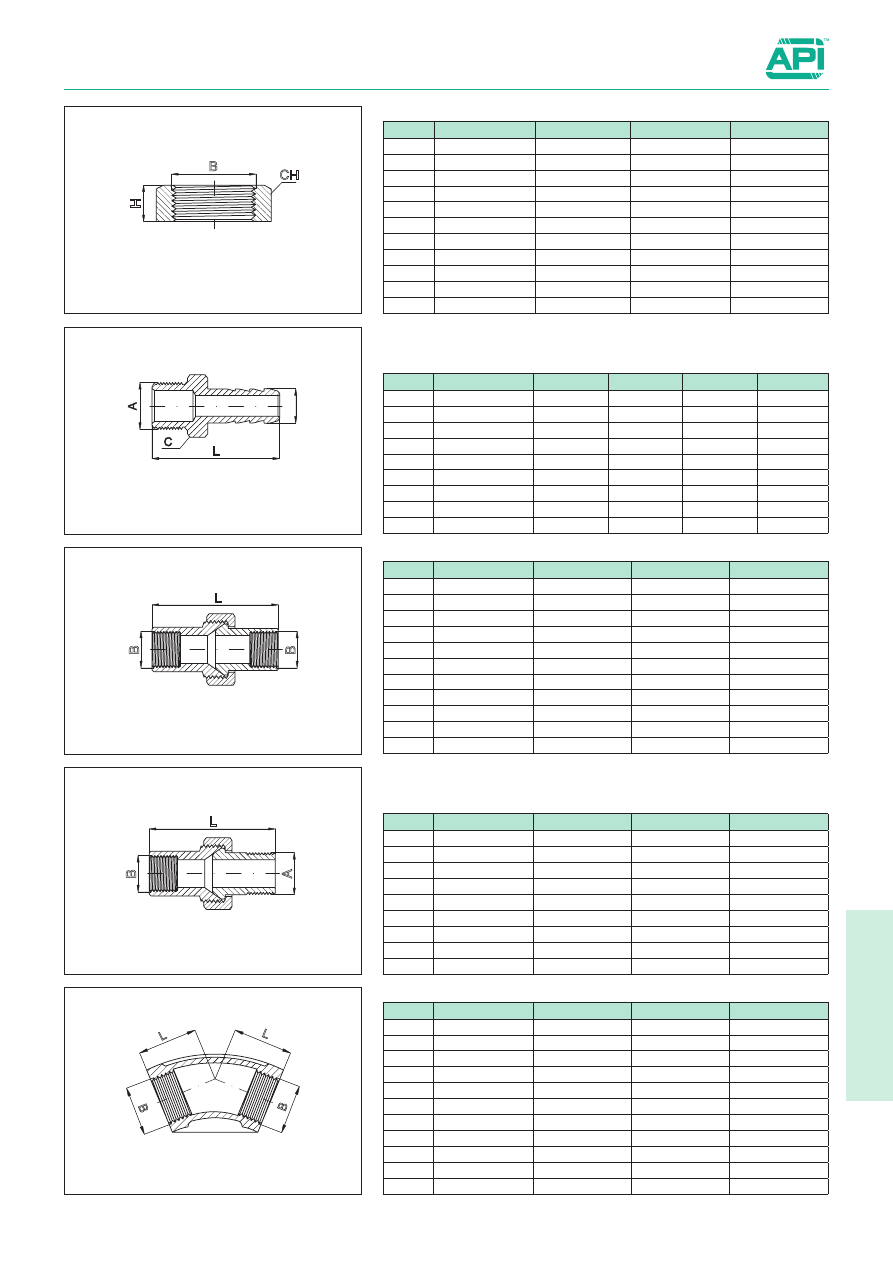

5.165.5

Stainless Steel standard fittings

Series AX, in AISI 316

B

H

CH

Nut

BSPT - hose adapter

L

B

B

BSP female union

B

A

L

M-F BSP union

L

B

L

B

BSP 45°, female elbow

Code

Item

B

H

CH

026641

AX013 18 18

1/8”

6

19

026642

AX013 14 14

1/4”

6

22

026643

AX013 38 38

3/8”

7

27

026644

AX013 12 12

1/2”

8

32

026645

AX013 34 34

3/4”

9

36

026646

AX013 01 01

1”

10

46

026647

AX013 41 41

1 1/4”

11

55

026648

AX013 21 21

1 1/2”

12

60

026649

AX013 02 02

2”

13

75

026650

AX013 22 22

2 1/2”

16

95

026651

AX013 03 03

3”

19

105

Code

Item

Tube Ø

A

L

CH

026711

AX015 07 18

7

1/8”

30

13

026712

AX015 09 14

8

1/4”

44

15

026713

AX015 11 38

10

3/8”

50

19

026714

AX015 15 12

14,5

1/2”

52

24

026715

AX015 21 34

20

3/4”

60

28

026716

AX015 27 01

25

1”

70

35

026717

AX015 34 41

32

1 1/4”

70

45

026718

AX015 40 21

40

1 1/2”

80

50

026719

AX015 52 02

52

2”

88

62

Code

Item

B

B

L

026741

AX032 18 18

1/8”

1/8”

30

026742

AX032 14 14

1/4”

1/4”

34

026743

AX032 38 38

3/8”

3/8”

38

026744

AX032 12 12

1/2”

1/2”

41

026745

AX032 34 34

3/4”

3/4”

48

026746

AX032 01 01

1”

1”

52

026747

AX032 41 41

1 1/4”

1 1/4”

54

026748

AX032 21 21

1 1/2”

1 1/2”

59

026749

AX032 02 02

2”

2”

67

026750

AX032 22 22

2 1/2”

2 1/2”

78

026751

AX032 03 03

3”

3”

94

Code

Item

A

B

L

026801

AX033 18 18

1/8”

1/8”

42

026802

AX033 14 14

1/4”

1/4”

42

026803

AX033 38 38

3/8”

3/8”

49

026804

AX033 12 12

1/2”

1/2”

56

026805

AX033 34 34

3/4”

3/4”

63

026806

AX033 01 01

1”

1”

69

026807

AX033 41 41

1 1/4”

1 1/4”

74

026808

AX033 21 21

1 1/2”

1 1/2”

84

026809

AX033 02 02

2”

2”

102

Code

Item

B

B

L

026311

AX034 18 18

1/8”

1/8”

17

026312

AX034 14 14

1/4”

1/4”

19

026313

AX034 38 38

3/8”

3/8”

20

026314

AX034 12 12

1/2”

1/2”

22

026315

AX034 34 34

3/4”

3/4”

25

026316

AX034 01 01

1”

1”

28

026317

AX034 41 41

1 1/4”

1 1/4”

33

026318

AX034 21 21

1 1/2”

1 1/2”

36

026319

AX034 02 02

2”

2”

43

026320

AX034 22 22

2 1/2”

2 1/2”

50

026321

AX034 03 03

3”

3”

56

Tube



Ø

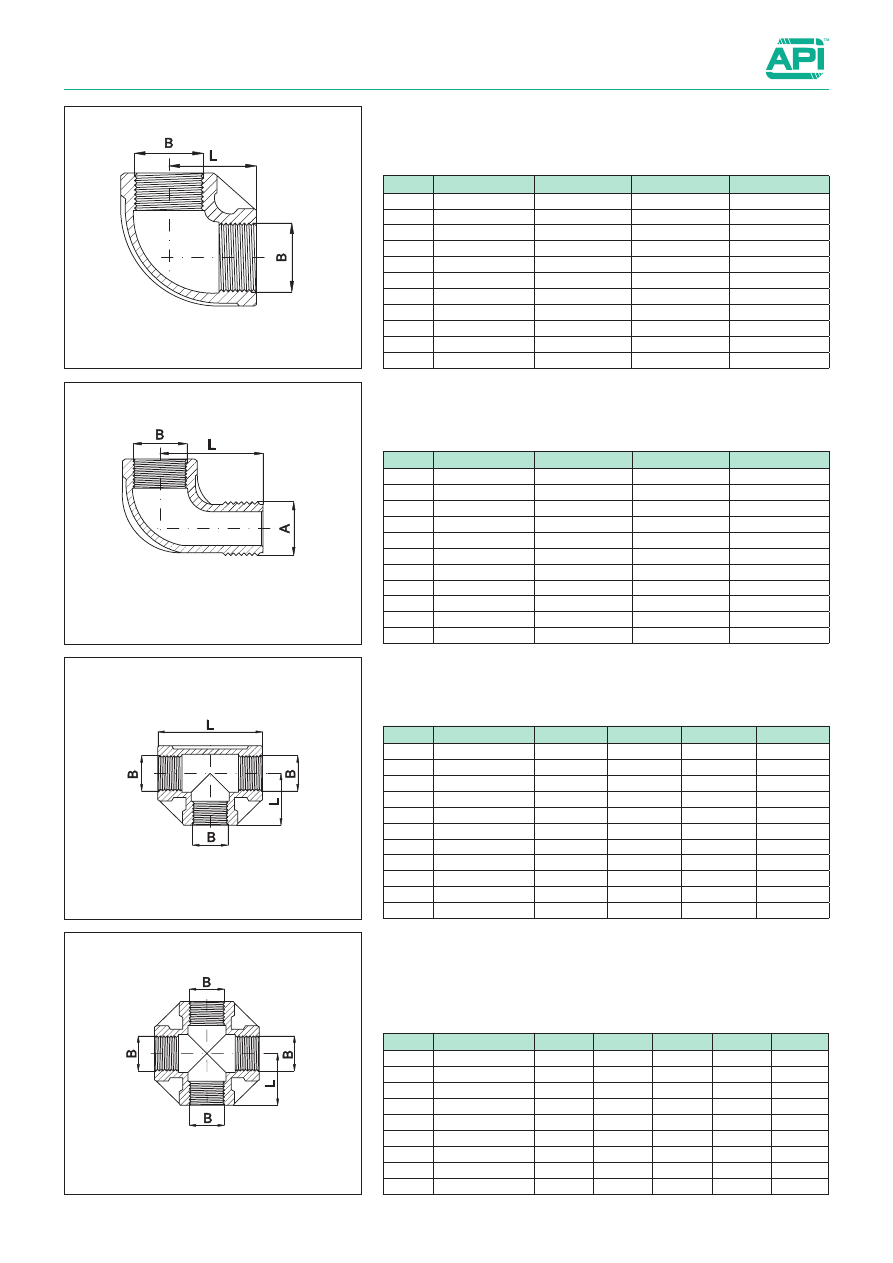

5.165.6

Stainless Steel standard fittings

Series AX, in AISI 316

F - F elbow

M - F elbow

F - F - F tee

F - F - F - F  +

Code

Item

B

B

L

026291

AX021 18 18

1/8”

1/8”

19

026292

AX021 14 14

1/4”

1/4”

21

026293

AX021 38 38

3/8”

3/8”

25

026294

AX021 12 12

1/2”

1/2”

28

026295

AX021 34 34

3/4”

3/4”

33

026296

AX021 01 01

1”

1”

38

026297

AX021 41 41

1 1/4”

1 1/4”

45

026298

AX021 21 21

1 1/2”

1 1/2”

50

026299

AX021 02 02

2”

2”

58

026300

AX021 22 22

2 1/2”

2 1/2”

75

026301

AX021 03 03

3”

3”

85

Code

Item

A

B

L

026391

AX022 18 18

1/8”

1/8”

20

026392

AX022 14 14

1/4”

1/4”

20

026393

AX022 38 38

3/8”

3/8”

24

026394

AX022 12 12

1/2”

1/2”

28

026395

AX022 34 34

3/4”

3/4”

33

026396

AX022 01 01

1”

1”

38

026397

AX022 41 41

1 1/4”

1 1/4”

-

026398

AX022 21 21

1 1/2”

1 1/2”

-

026399

AX022 02 02

2”

2”

-

026400

AX022 22 22

2 1/2”

2 1/2”

-

026401

AX022 03 03

3”

3”

-

Code

Item

B

B

B

L

026421

AX023 18 18

1/8”

1/8”

1/8”

19

026422

AX023 14 14

1/4”

1/4”

1/4”

21

026423

AX023 38 38

3/8”

3/8”

3/8”

25

026424

AX023 12 12

1/2”

1/2”

1/2”

28

026425

AX023 34 34

3/4”

3/4”

3/4”

33

026426

AX023 01 01

1”

1”

1”

38

026427

AX023 41 41

1 1/4”

1 1/4”

1 1/4”

45

026428

AX023 21 21

1 1/2”

1 1/2”

1 1/2”

50

026429

AX023 02 02

2”

2”

2”

58

026430

AX023 22 22

2 1/2”

2 1/2”

2 1/2”

75

026431

AX023 03 03

3”

3”

3”

85

Code

Item

B

B

B

B

L

026481

AX026 18 18

1/8”

1/8”

1/8”

1/8”

20

026482

AX026 14 14

1/4”

1/4”

1/4”

1/4”

24

026483

AX026 38 38

3/8”

3/8”

3/8”

3/8”

24

026484

AX026 12 12

1/2”

1/2”

1/2”

1/2”

28

026485

AX026 34 34

3/4”

3/4”

3/4”

3/4”

33

026486

AX026 01 01

1”

1”

1”

1”

38

026487

AX026 41 41

1 1/4”

1 1/4”

1 1/4”

1 1/4”

45

026488

AX026 21 21

1 1/2”

1 1/2”

1 1/2”

1 1/2”

49

026489

AX026 02 02

2”

2”

2”

2”

57

5

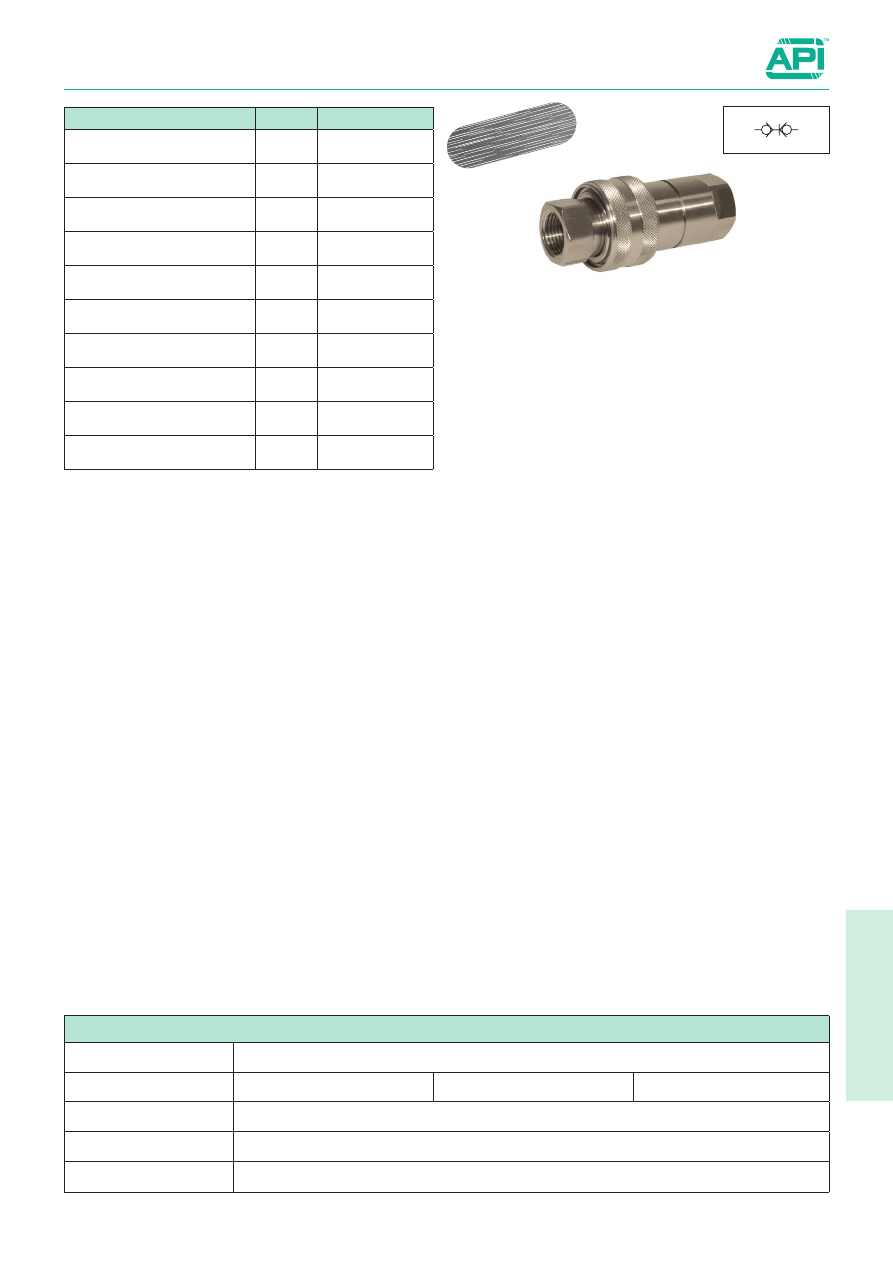

5.170.1

Stainless Steel quick-lock couplings

Series GXA, from DN 6 to DN 25

Series of stainless steel AISI 316 quick-lock couplings, double
shut off.
Conforming to ISO 7241-1 “A” suitable for use in aggressive
environments like the chemical field and the food industry.
The connection tightness between the coupling and the plug is
guaranteed by a series of spheres and this allows a longer life
time even when the connections and the disconnections are
frequent.
For standard items, codes and dimensions see tables from page
5.170.2.

Version

Code

Item

Coupling 1/4” F, DN 6

570836

GXA1014F

Plug 1/4” F, DN 6

570837

GXA2014F

Coupling 3/8” F, DN 9

570838

GXA1038F

Plug 3/8” F, DN 9

570839

GXA2038F

Coupling 1/2” F, DN 13

570840

GXA1012F

Plug 1/2” F, DN 13

570841

GXA2012F

Coupling 3/4” F, DN 19

570842

GXA1034F

Plug 3/4” F, DN 19

570843

GXA2034F

Coupling 1” F, DN 25

570844

GXA1100F

Plug 1” F, DN 25

570845

GXA2100F

Technical data

Fluid

Compressed air, gas, acids, fluids

Pressure

1/4” = 300 bar

3/8”-1/2”-3/4” = 250 bar

1” = 200 bar

Temperature range

-20 °C ÷ +150 °C

Parallel threads

UNI - ISO 228

Materials

Coupler body and internal parts, all in stainless steel AISI 316

Seal:  FKM

Stainless Steel

Coupling GXA1

Plug GXA2

Group coupling-plug

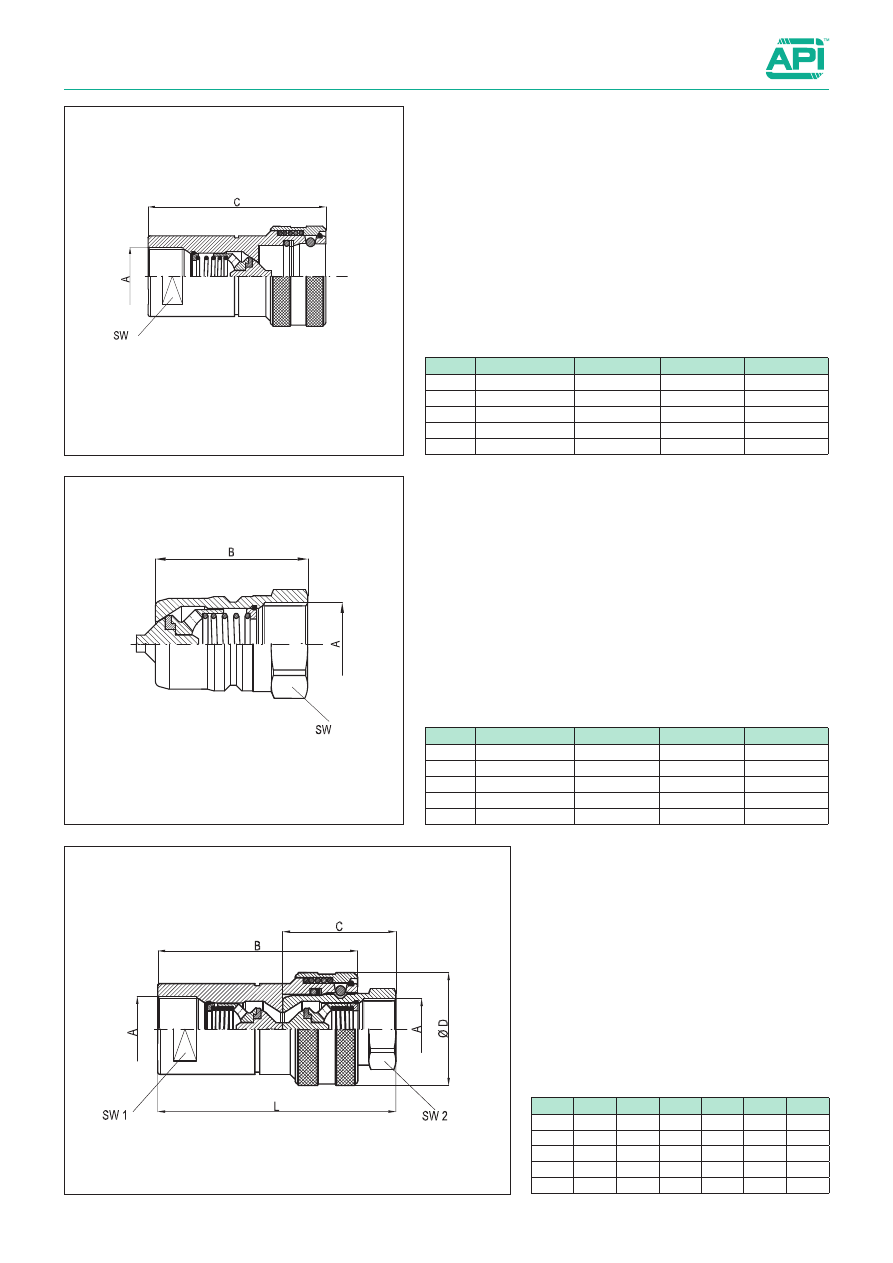

5.170.2

Stainless Steel quick-lock couplings

Series GXA, from DN 6 to DN 25

Code

Item

A

C

SW

570836

GXA1014F

1/4”

-

-

570838

GXA1038F

3/8”

-

-

570840

GXA1012F

1/2”

-

-

570842

GXA1034F

3/4”

-

-

570844

GXA1100F

1”

-

-

Code

Item

A

B

SW

570837

GXA2014F

1/4”

-

-

570839

GXA2038F

3/8”

-

-

570841

GXA2012F

1/2”

-

-

570843

GXA2034F

3/4”

-

-

570845

GXA2100F

1”

-

-

A

B

C

D

L

SW

1

SW

2

1/4”

50

34

26

70

19

19

3/8”

57

40

30

80

22

22

1/2”

70

46

38

95

27

27

3/4”

81

53,5

48

108

34

32

1”

96

63

54

126

38

41

5

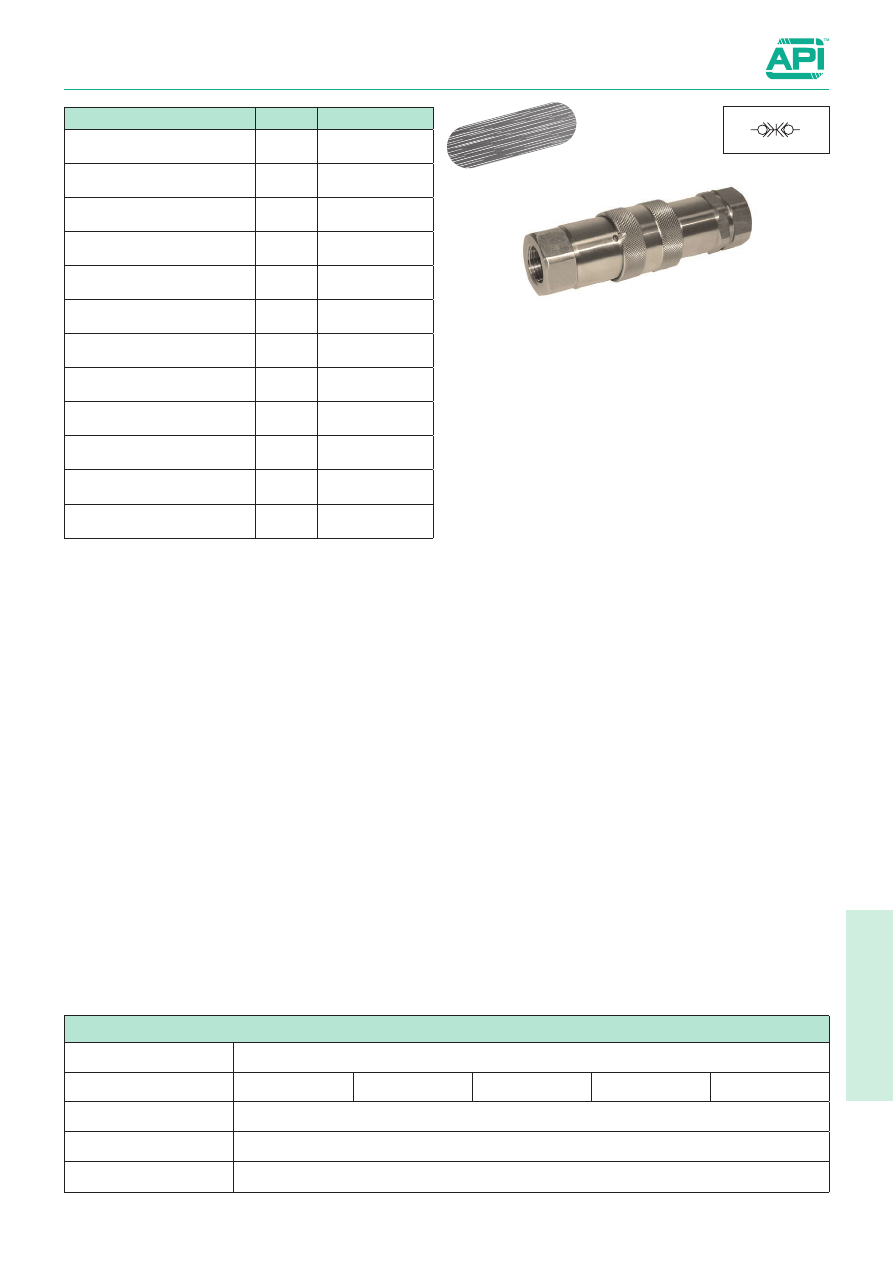

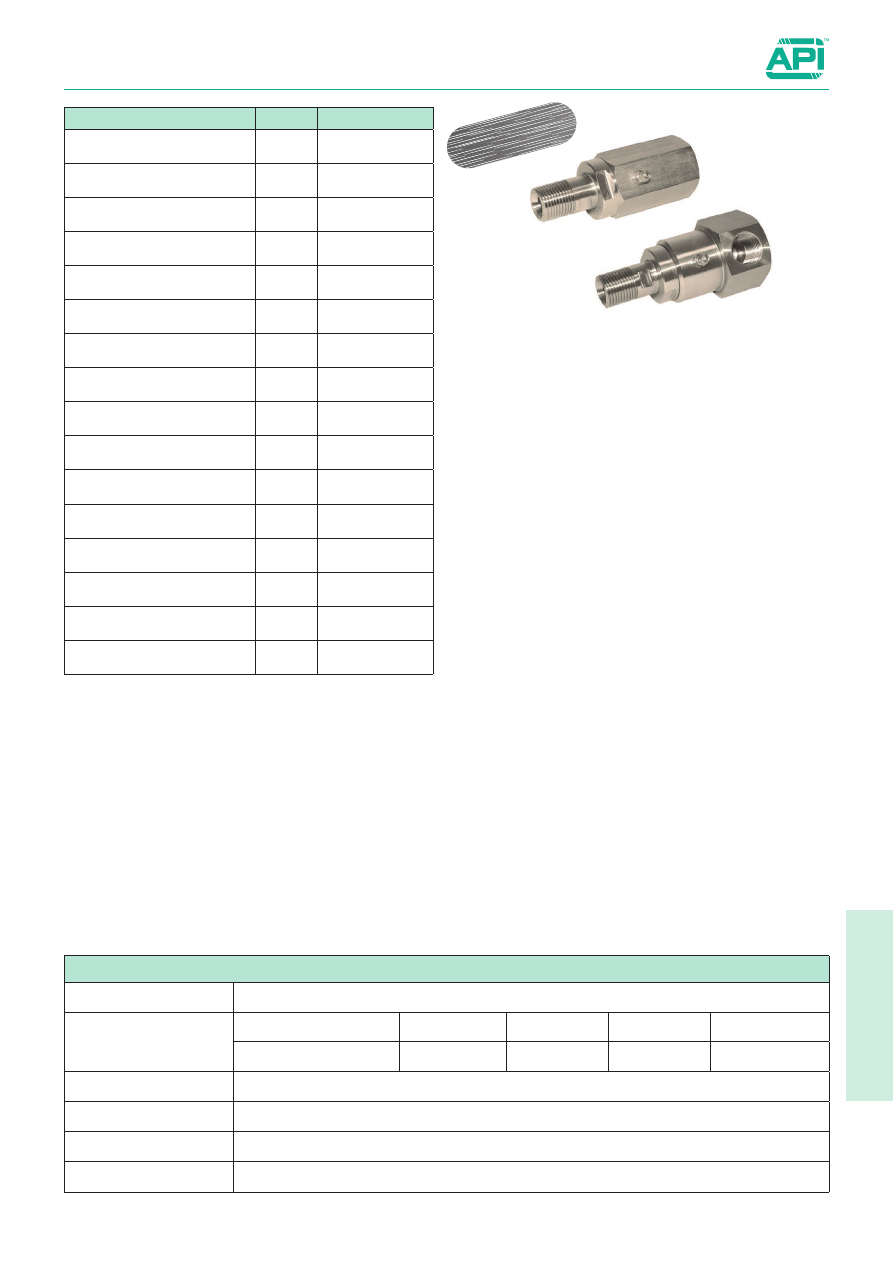

5.172.1

Stainless Steel quick-lock couplings

Series GXF, from DN 6 to DN 30

Series of stainless steel AISI 316 quick-lock couplings, “flat face”
double shut off without exit of fluid at the moment of disconnec-
tion.
Conforming to ISO 16028 for use in aggressive environments
like the chemical field and the food industry and on those use
where it is important that there is not exit of fluid.
The connection tightness between the coupling and the plug is
guaranteed by a series of spheres and this allows a longer life
time even when the connections and the disconnections are
frequent.
For standard items, codes and dimensions see tables from page
5.172.2.

Version

Code

Item

Coupling 1/4” F, DN 6

570846

GXF1014F

Plug 1/4” F, DN 6

570847

GXF2014F

Coupling 3/8” F, DN 9

570848

GXF1038F

Plug 3/8” F, DN 9

570849

GXF2038F

Coupling 1/2” F, DN 13

570850

GXF1012F

Plug 1/2” F, DN 13

570851

GXF2012F

Coupling 3/4” F, DN 19

570852

GXF1034F

Plug 3/4” F, DN 19

570853

GXF2034F

Coupling 1” F, DN 25

570854

GXF1100F

Plug 1” F, DN 25

570855

GXF2100F

Coupling 1-1/4” F, DN 30

570856

GXF1114F

Plug 1-1/4” F, DN 30

570857

GXF2114F

Technical data

Fluid

Compressed air, gas, acids, fluids

Pressure

1/4” = 300 bar

3/8”-1/2” = 250 bar

3/4” = 200 bar

1” = 150 bar

11/4” = 100 bar

Temperature range

-20 °C ÷ +150 °C

Parallel threads

UNI - ISO 228

Materials

Coupler body and internal parts, all in stainless steel AISI 316

Seal:  FKM

Stainless Steel

Coupling GXF1

Plug GXF2

Group coupling-plug

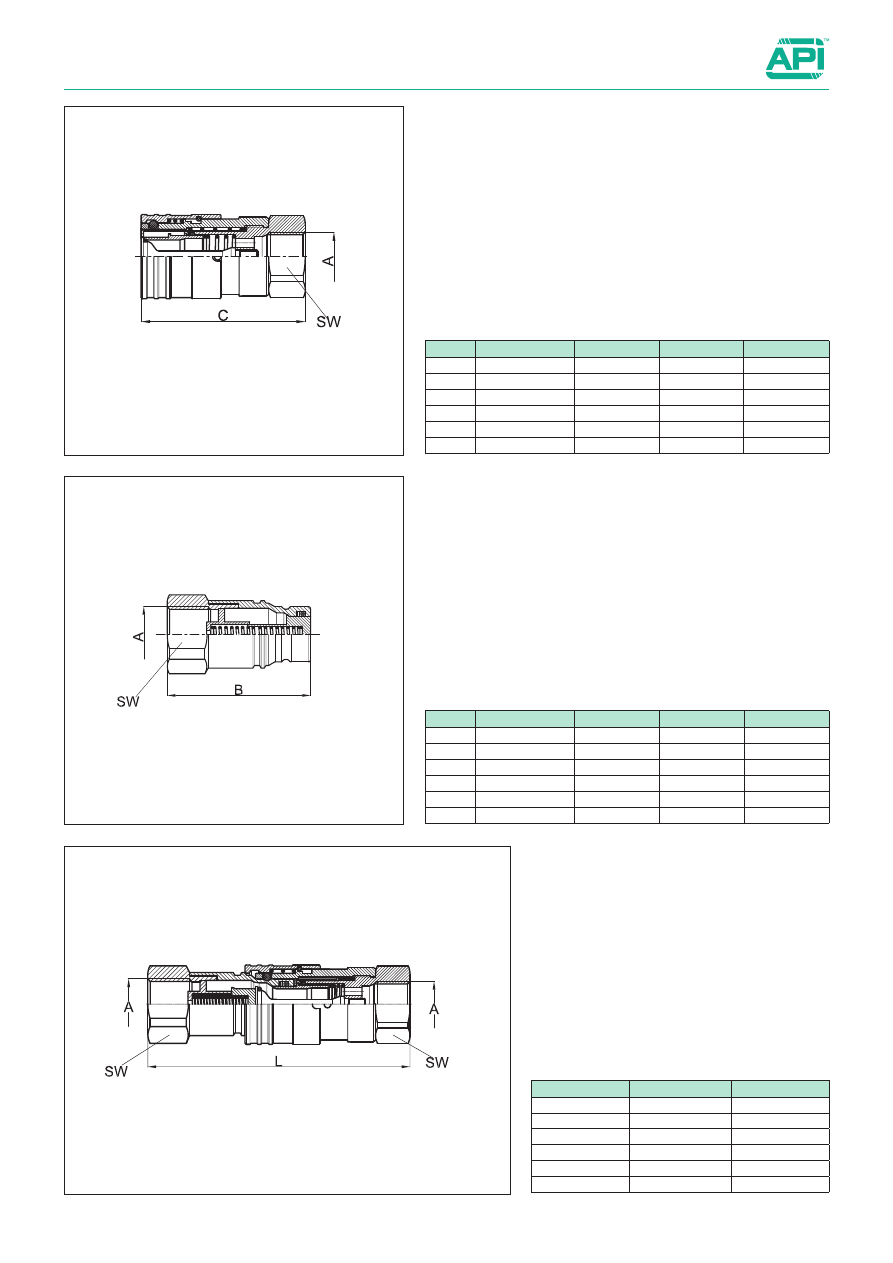

5.172.2

Stainless Steel quick-lock couplings

Series GXF, from DN 6 to DN 30

Code

Item

A

C

SW

570846

GXF1014F

1/4”

48

22

570848

GXF1038F

3/8”

68

27

570850

GXF1012F

1/2”

74

32

570852

GXF1034F

3/4”

79

36

570854

GXF1100F

1”

93

45

570856

GXF1114F

1 1/4”

106

55

Code

Item

A

B

SW

570847

GXF2014F

1/4”

48

22

570849

GXF2038F

3/8”

67

27

570851

GXF2012F

1/2”

68

32

570853

GXF2034F

3/4”

70

36

570855

GXF2100F

1”

82

45

570857

GXF2114F

1 1/4”

90

55

A

L

SW

1/4”

86

22

3/8”

118

27

1/2”

125

32

3/4”

130

36

1”

153

45

1 1/4”

172,5

55

5

5.175.1

Stainless Steel swivel joints, in line and 90°

Series GGLX - GGAX, from DN 6 to DN 50

Series of stainless steel swivel joints in line and 90°.
They are used to connect two rotating elements, avoiding twists.
For standard items, codes and dimensions see tables from page
5.175.2.

Version

Code

Item

In-line 1/4” MF, DN 6

570858

GGLX014

In-line 3/8” MF, DN 9

570859

GGLX038

In-line 1/2” MF, DN 13

570860

GGLX012

In-line 3/4” MF, DN 19

570861

GGLX034

In-line 1” MF, DN 25

570862

GGLX100

In-line 1 1/4” MF, DN 30

570863

GGLX114

In-line 1 1/2” MF, DN 40

570864

GGLX112

In-line 2” MF, DN 50

570865

GGLX200

90° 1/4” MF, DN 6

570866

GGAX014

90° 3/8” MF, DN 9

570867

GGAX038

90° 1/2” MF, DN 13

570868

GGAX012

90° 3/4” MF, DN 19

570869

GGAX034

90° 1” MF, DN 25

570870

GGAX100

90° 1 1/4” MF, DN 30

570871

GGAX114

90° 1 1/2” MF, DN 40

570872

GGAX112

90° 2” MF, DN 50

570873

GGAX200

Technical data

Fluid

Compressed air, gas, acids, fluids

Pressure

GGLX: 1/4”- 3/8” = 300 bar

1/2” = 300 bar

3/4”-1” = 250 bar

1 1/4” = 180 bar

1 1/2”-2” = 150 bar

GGAX: 1/4” = 350 bar

3/8-1/2” = 300 bar 3/4”-1” = 250 bar

1 1/4” = 180 bar

1 1/2”-2” = 150 bar

Temperature range

-20 °C ÷ +150 °C

Parallel threads

UNI - ISO 228

Max speed of rotation

10 turns / minute

Materials

Coupler body and internal parts, all in stainless steel AISI 316

Seal:  FKM

Stainless Steel

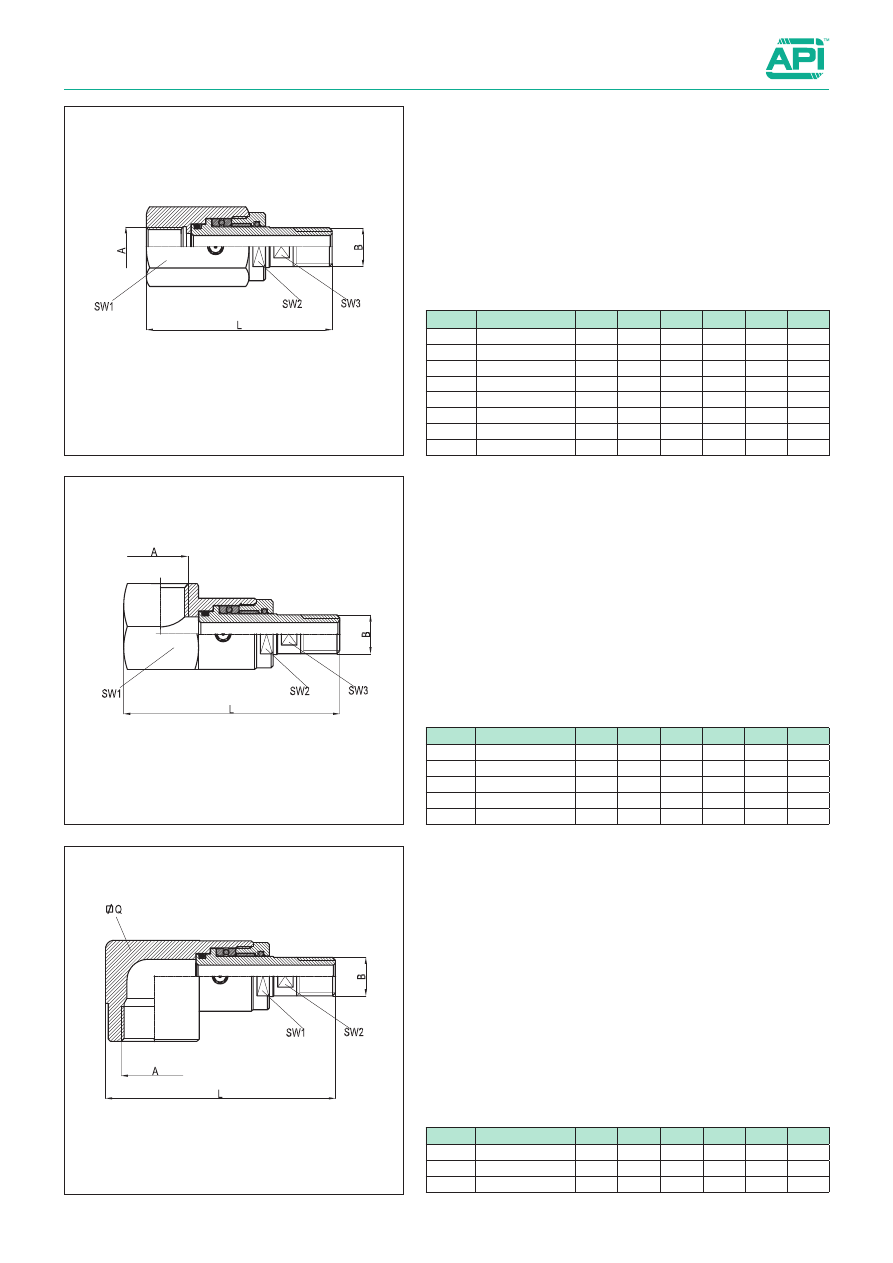

5.175.2

Stainless Steel swivel joints, in line and 90°

Series GGLX - GGAX, from DN 6 to DN 50

In line swivel joint GGLX

90° swivel joint GGAX 1/4” ÷ 1”

90° swivel joint GGAX 1 1/4” ÷ 2”

Code

Item

A

B

L

SW

1

SW

2

SW

3

570858

GGLX014

1/4”

1/4”

75

27

24

11

570859

GGLX038

3/8”

3/8”

88

34

30

14

570860

GGLX012

1/2”

1/2”

101

36

32

18

570861

GGLX034

3/4”

3/4”

110

46

40

24

570862

GGLX100

1”

1”

124

55

50

30

570863

GGLX114

1 1/4” 1 1/4”

129

60

55

38

570864

GGLX112

1 1/2” 1 1/2”

138

75

69

41

570865

GGLX200

2”

2”

149

85

80

55

Code

Item

A

B

L

SW

1

SW

2

SW

3

570866

GGAX014

1/4”

1/4”

78

32

21

11

570867

GGAX038

3/8”

3/8”

98

36

27

14

570868

GGAX012

1/2”

1/2”

106

46

32

18

570869

GGAX034

3/4”

3/4”

118

50

37

24

570870

GGAX100

1”

1”

142

60

46

30

Code

Item

A

B

L

Q

SW

1

SW

2

570871

GGAX114

1 1/4” 1 1/4”

155

60

55

38

570872

GGAX112

1 1/2” 1 1/2”

170

75

70

41

570873

GGAX200

2”

2”

190

85

80

55
