Sany Truck Crane / Dump Truck. Specifications - page 2

Quality Changes the World

SPC250 TruCk Crane

ICON

SPC250 TruCk Crane

SEllINg POINTS

content

SANY TRUCK CRANe

Highly efficient, stable, energy-saving, and

adjustable hydraulic system

Hydraulic system load feedback and constant power control
is applied to provide strong lifting capacity and good micro-
mobility. Unique steering buffer design is adopted to ensure
stable braking operation.

Ultra long, super strong and highly sensitive

load lifting capacity

Four-section boom of high strength steel structure and optimized
U-shaped cross section reduces weight significantly with higher
safety rates. Jib mounting angles are 0°, 15°, and 30° which
ensures fast and convenient change-over between different
operating conditions so as to improving working efficiency of the
machine.

Safe, stable, advanced, and intelligent

electric control system

Self-developed controller SYMC specially for engineering
machinery is configured. The adoption of CAN-bus full-digital
network control technology ensures stable control signal, simple
harness, and high reliability. Timely feedback of data information
can achieve the monitoring of the overall working status in real-
time; the load moment limiter equipped with the comprehensive
intelligent protection system is used with accuracy within 3%
to provide a comprehensive logic and interlock control, thus
ensuring more safe and reliable operation.

04 Icon
05 Selling Points
06 Introduction
08 Dimension
09 Technical Parameter
10 Operation Condition
11 Load Chart
14 Wheel Crane Family Map

Tyres

Brakes system

Electrical system

Carrier frame

Outriggers

Transmission system

Drive/Steer

Axles

Engine

Counterweight

Safety system

Hoist system

Cab

Hydraulic system

Telescopic system

Luffing system

Slewing

Control system

Suspension system

Telescopic boom

Superlift devices

Luffing lattice jib

winch mechanism:

Lattice jibs

SPC250 TruCk Crane

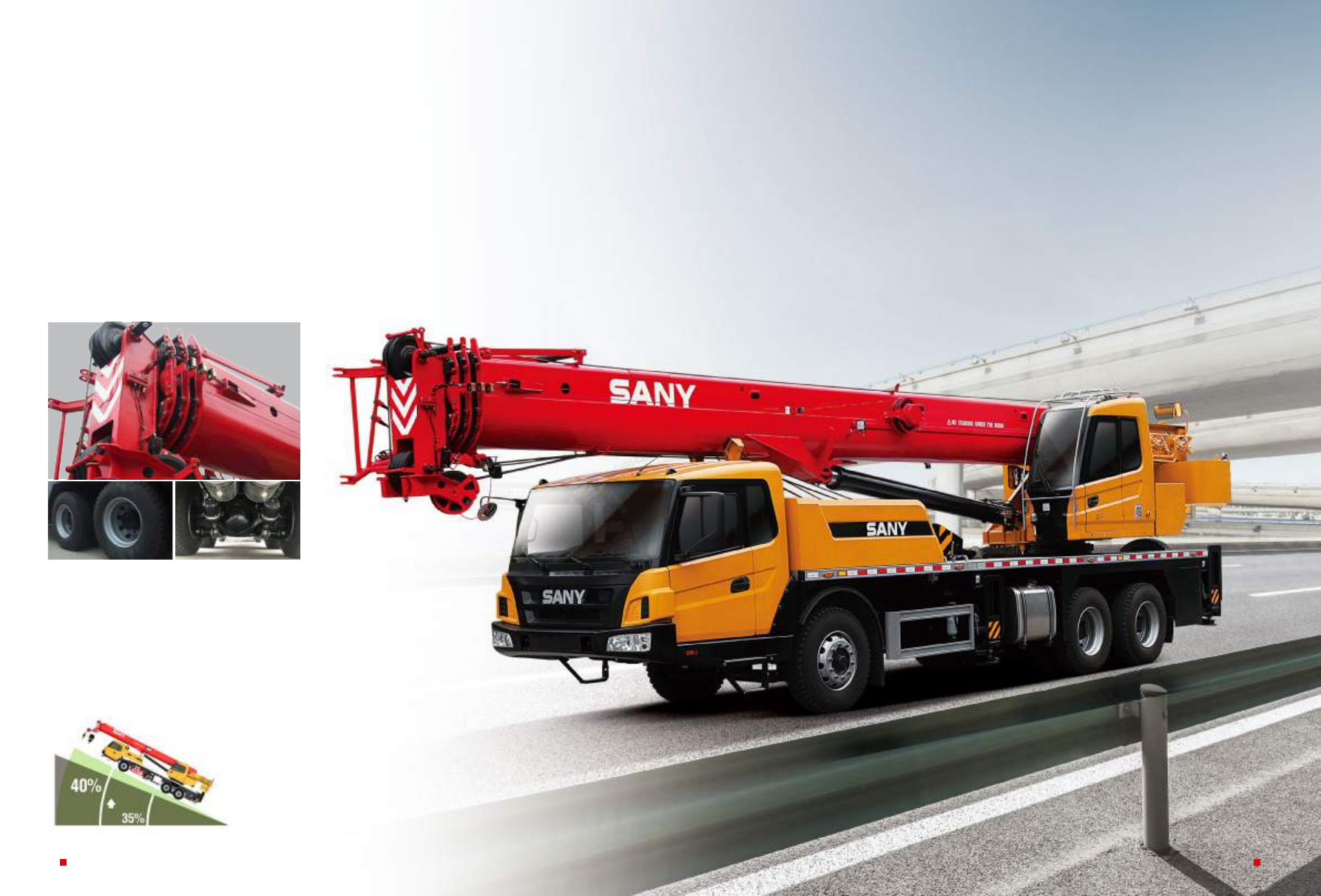

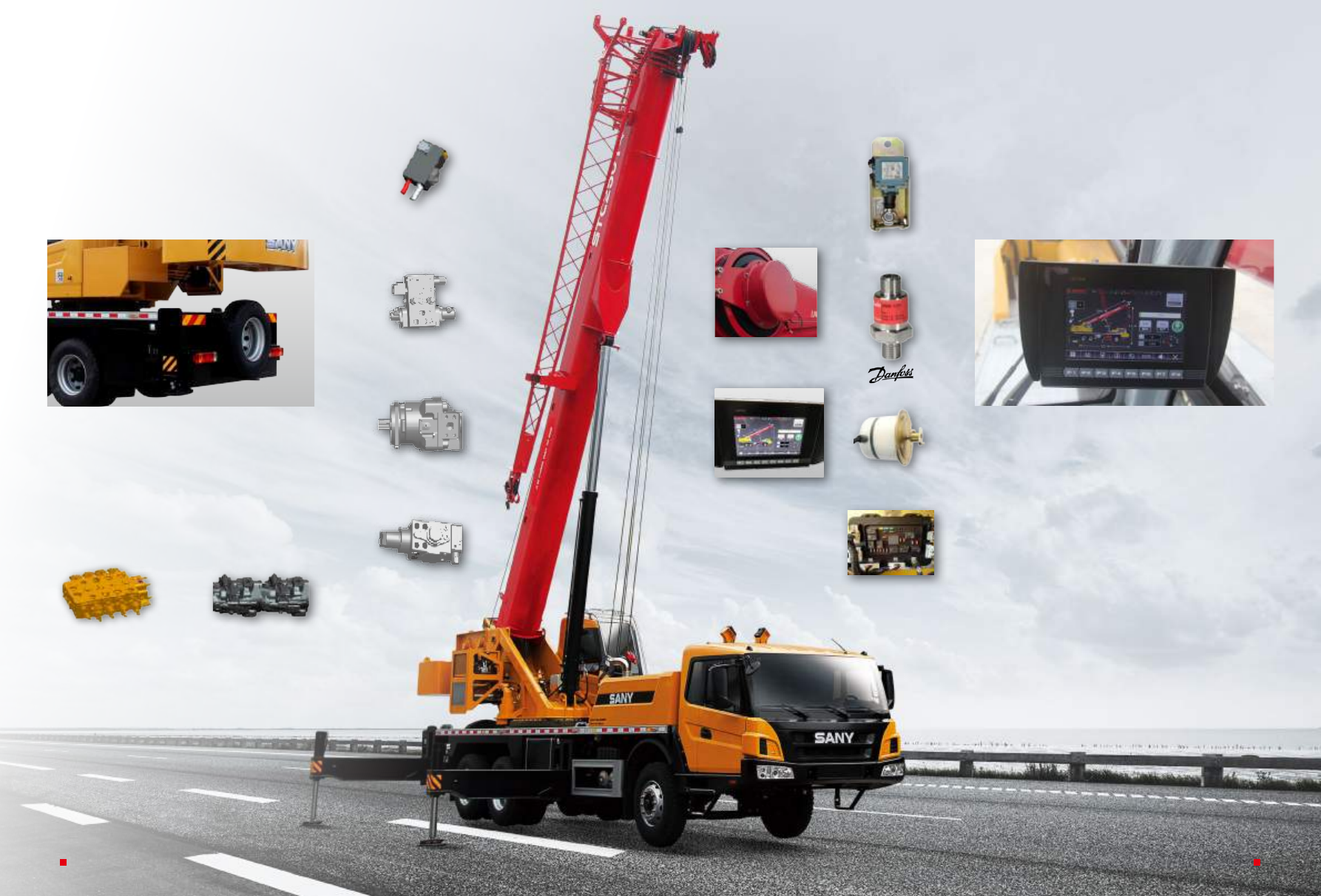

INTRODUCTION

SPC250 TruCk Crane

INTRODUCTION

Quality Changes the World

Cab

■

It is made of anti-corrosion steel plate with ergonomic design such as full-coverage soften

interior, panoramic sunroof and, adjustable seats etc., and humanized design providing

more comfortable and relaxing operation experience. The display of load moment limiter

integrates main console and operation display system, which clearly show the data of all

operating superstructure conditions for lifting operation.

Hydraulic system

■

High-quality key hydraulic components such as main oil pump, rotary pump, main valve,

winch motor, and balancing parts etc. are adopted to achieve stable and reliable operation

of the hydraulic system. Superior operation performance is guaranteed by accurate

parameter matching.

■

Through the adoption of load sensitive variable displacement piston pump, pump

displacement can be adjusted in real-time, achieving high-precision ﬂ ow control with no

energy loss during operation.

■

Main valve has flow compensation and load feedback control function, enabling stable

and convenient control of single action and combined action under different operation

conditions

■

Winch adopts the electronically controlled variable motor to ensure high operation

efﬁ ciency. Max. single line speeds of winches is up to 130m/min.

■

Slewing system is equipped with the integrated slewing buffer valve to ensure more stable

starting and control of the slewing operation and excellent micro-mobility.

Control system

■

With fully security protection system, winches are equipped with over-roll out limiter and

height limiters to prevent over-rolling out and over-hoisting of steel rope, including tip-over

and limit angle protection.

■

Load moment limiter: The adoption of high intelligent load moment limiter system can

comprehensively protect lifting operation, ensuring accurate, stable and comfort operation.

Luffi ng system

■

Dead-weight lufﬁ ng provides more stable lufﬁ ng operation at low energy loss.

■

Lufﬁ ng angle: -2°~ 80°.

Telescopic system

■

Five-section boom is applied with basic boom length of 10.2m, full-extended boom length

of 31m,jib length of 8m and lifting height of fully extended boom length of 32m respectively.

Max. lifting height is 40m including jib. It is made of fine grain high-strength steel with

U-shaped cross section and with telescopic operation controlled independent by ylinder

rope.

Slewing system

■

360° rotation can be achieved with Max. slewing speed of 2.5r/min. Hydraulic controlled

proportional speed adjustment is applied to provide stable and reliable operation of the

system. Unique rotary buffer design ensures more stable braking.

Superstructure

Hoisting system

■

The adoption of pump and motor double variable speed control ensures high efﬁ ciency

and excellent energy saving functionality. With perfect combination of winch balance valve

and unique anti-slip technology, heavy load can lift and lower smoothly. Closed winch

brake and winch balance valve effectively prevent imbalance of the hook.

■

One main hook: 320Kg, one auxiliary hook: 90Kg, and the Max. lifting height are 25t and 5t.

Wire rope of winch: left-handed wire rope 16-35W×7-1960USZ 200m.

Safety system

■

Load moment limiter: Load moment limiter calculation system based on lifting load

mechanical model is established using an analytical mechanics method with rated lifting

accuracy up to ±3% through on-line non-load calibration, providing full protection to lifting

operation. In case of overload operation, system will automatically issue an alarm to provide

safety protection for manipulation.

■

Hydraulic system is configured with the balance valve, overflow valve and two-way

hydraulic lock etc. components, thus achieving stable and reliable operation of the

hydraulic system.

■

Winch is equipped with over roll-out limiter to prevent over rolling-out of wire rope.

■

Boom is equipped with height limiters respectively to prevent over-hoisting of wire rope.

■

Boom head is equipped with anemometer and press sensor to indicate the working

condition of whole crane in real-time, giving an alarm and cutting off the dangerous action

automatically.

Counterweight

■

Counterweight is 1800kg, no ﬂ exible counterweight.

The vice carrier frame

■

Designed and manufactured by SANY, anti-torsion box structure is welded by ﬁ ne-grain

high-strength steel plate, to provide strong load bearing capacity.

Outriggers

■

Four-point supporting of the H-shaped outriggers ensures easy operation and strong

stability with max. span up to 5.45m×6.2m. They are made of ﬁ ne-grain high-strength steel

sheet with horizontal single-cylinder rope line telescoping for outrigger. Vertical cylinder of

outrigger adopts bi- directional hydraulic locks to improve safety.

Superstructure

SPC250 TruCk Crane

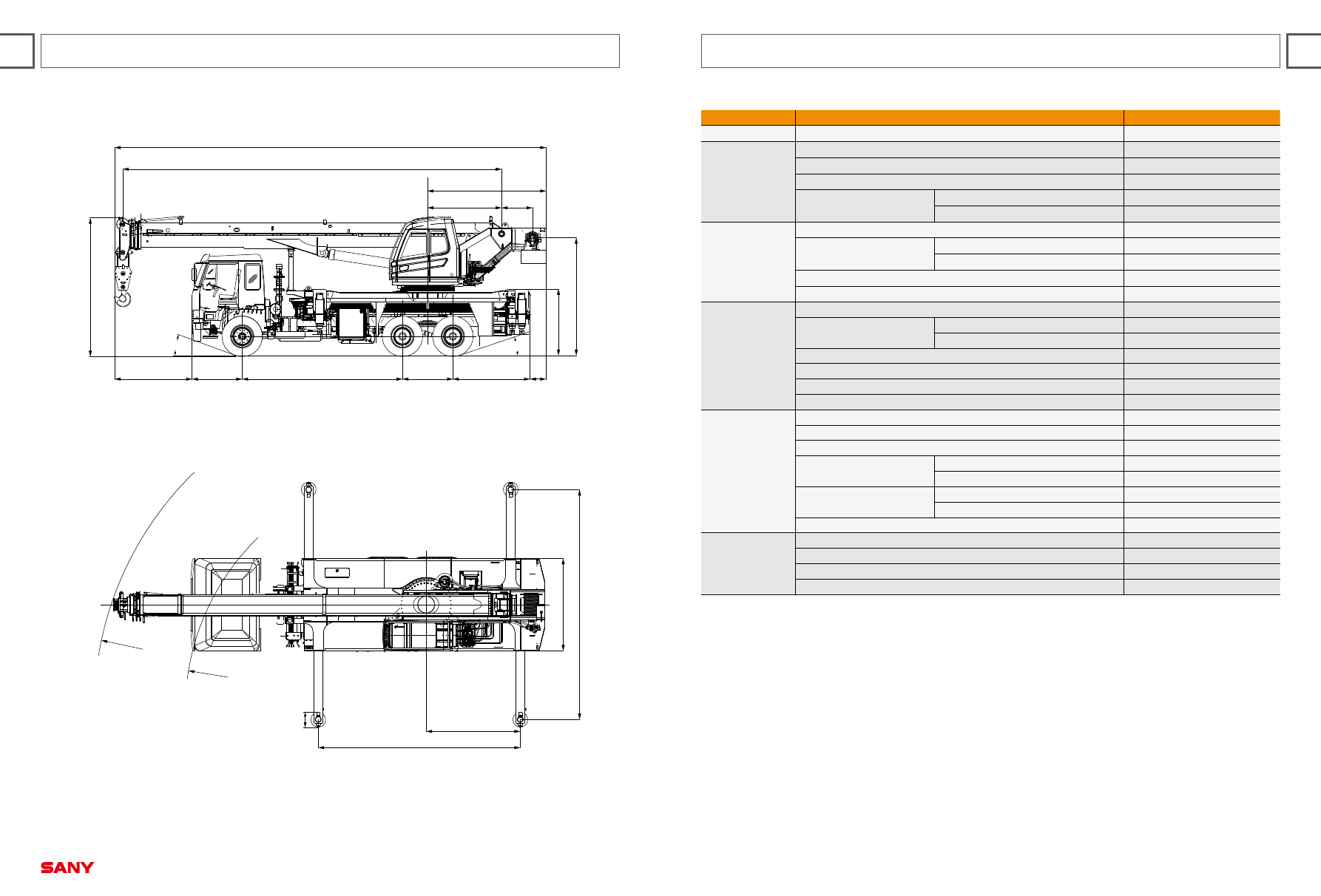

DIMENSION

SPC250 TruCk Crane

TECHNICAl PARAMETER

Quality Changes the World

Type

Item

Parameter

Capacity

Max. lifting capacity

25t

Dimensions

Overall length

11630mm

Overall width

2490mm

Overall height

3745mm

Axle distance

Axle-1

4320mm

Axle-2

1360mm

Weight

Overall weight

25000kg

Axle load

Front axle

6000kg

Rear Axle

19000kg

Rated power

132kW/2500rpm

Rated torque

675N.m/1500rpm

Traveling

Max.traveling speed

75km/h

Turning radius

Min.turning radius

9.9m

Min.turning radius of boom head

11.5m

Wheel formula

6×4

Approach angle

34°

Departure angle

19°

Max.gradeability

26%

Main Performance

Data

Min.rated range

Boom section

Boom shape

U-shaped

Max.lifting moment

Base boom

885kN·m

Full-extend boom

490kN·m

Boom length

Base boom

10.22m

Full-extend boom

31.5m

Outrigger span (Longitudinal×Transversal)

5.45×6.2m

Working speed

Max.single rope lifting speed of winch (no load)

115m/min

Full extension/retraction time of boom

60/50s

Full lifting/descending time of boom

55/55s

Slewing speed

2.5r/min

2490

6200

5450

2540

（

11630

）

2090

2080

1360

4320

1350

10220

～

31500

3745

19°

1790

3175

2000

3200

830

R9900

R11500

430

400

Quality Changes the World

SPC250 TruCk Crane

OPERATION CONDITION

SPC250 TruCk Crane

lOAD CHART

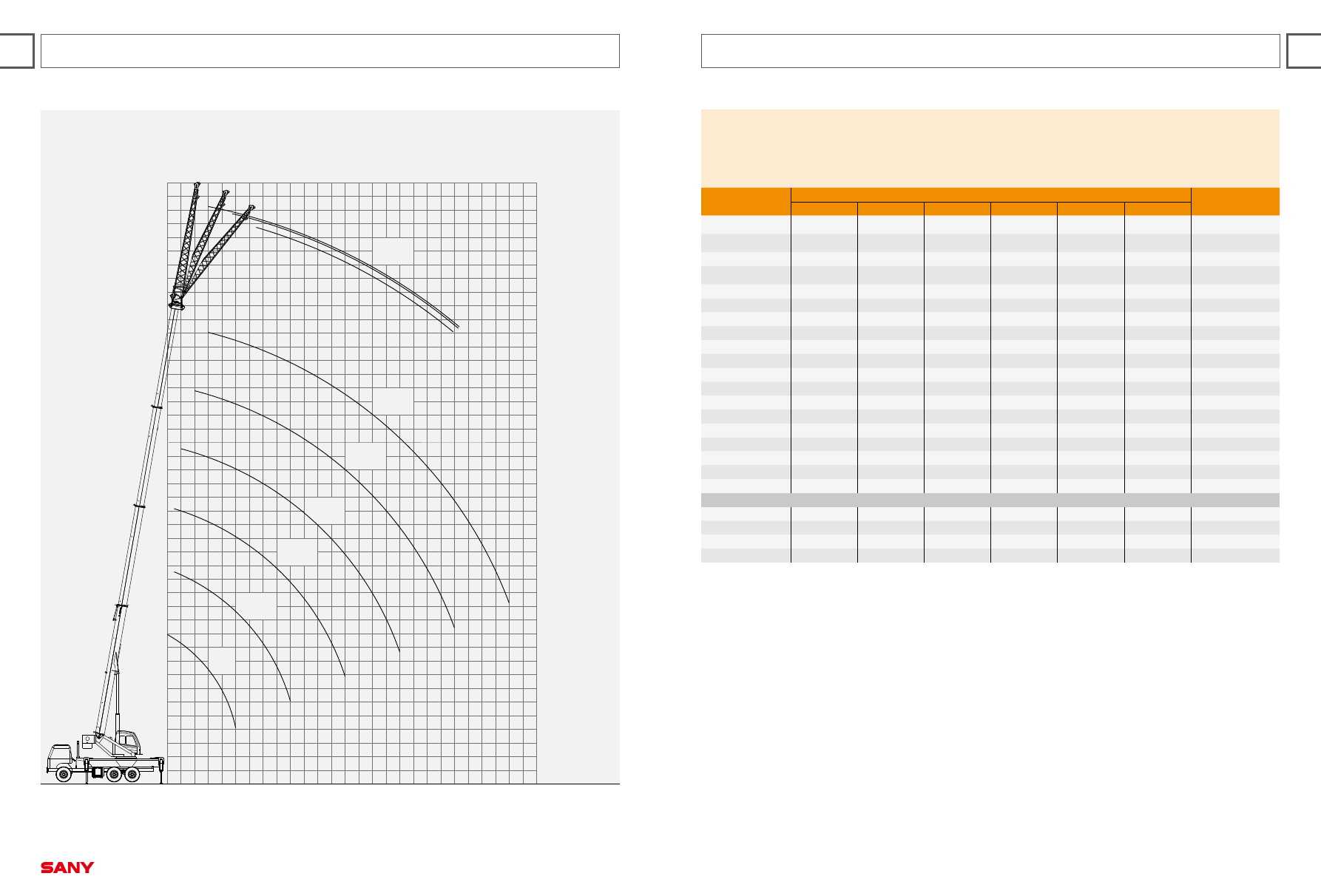

SPC250 Working radius-lifting height curve

0°

15°

30°

31.5+8m

31.5m

27.24m

22.99m

18.73m

14.48m

10.22m

3.0 4.0 5.0 6.0 7.0 8.0 9.0 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

Radius (m)

Lifting height (m)

Prerequisites:

①

Boom operating condition(fully extended boom length),min.length is 10.22 and.max.length is 31.5m

②

The span of outrigger is 5.45×6.2m

③

240°rotation is applied

④

Counterweight is 1.6T

Working range(m)

Main boom

Working range(m)

10.22

14.48

18.73

22.99

27.24

31.5

25000

16000

3.5

23000

16000

13700

3.5

21000

15500

13500

4.5

19000

15500

13300

10500

4.5

17000

15000

13100

10000

8500

5.5

15000

14000

12500

10000

8500

5.5

13200

13000

11600

9400

8000

6500

6.5

11500

11800

11000

8800

8000

6400

6.5

10000

8200

7500

6300

7500

7800

8000

7500

7000

5900

6200

6400

6300

6200

5400

5700

5200

5300

5100

4900

4200

3800

3700

3000

2900

2200

2400

2300

1800

1700

1800

1500

1200

Number of lines

Telescoping condition(%)

Ⅰ

100%

Ⅰ

Ⅱ

20%

40%

60%

80%

100%

Ⅱ

Ⅲ

20%

40%

60%

80%

100%

Ⅲ

Ⅳ

20%

40%

60%

80%

100%

Ⅳ

Unit:Kg

Values listed in the table refer to rated lifting capacity measured at flat and solid gound under the lever state of the crane.

2. Value above heavy line shall be determined by strength of the crane and under this line shall be determined by stability of the crane.
3. Rated load values determined by stability shall comply with ISO 4305.
4. Rated lifting capacity listed in the table included weights of lifting hooks (320kg of hook )and hangers.
5.

If actual boom length and range are between two values specified in the table, larger value will determine the lifting capacity.

Quality Changes the World

Prerequisites:

①

Boom operating condition(fully extended boom length),min.length is 10.22 and.max.length is 31.5m

②

The span of outrigger is 5.45×6.2m

③

360°rotation is applied

④

Counterweight is 1.6T

Working range(m)

Main boom

Working range(m)

10.22

14.48

18.73

22.99

27.24

31.5

25000

16000

3.5

22000

16000

13500

3.5

19000

15500

13000

4.5

17500

15500

13000

10500

4.5

15500

14500

12600

10000

8500

5.5

14000

13500

12000

10000

8300

5.5

12500

11400

9400

7900

6300

6.5

10800

11000

10600

8700

7600

6100

6.5

9000

9800

9600

8000

7100

6000

7000

7500

7700

7200

6800

5600

6000

5900

5200

5300

5000

4900

4700

3700

3500

3400

2500

2600

2500

1900

1800

1900

1400

1300

1400

1000

700

Number of lines

Telescoping condition(%)

Ⅰ

100%

Ⅰ

Ⅱ

20%

40%

60%

80%

100%

Ⅱ

Ⅲ

20%

40%

60%

80%

100%

Ⅲ

Ⅳ

20%

40%

60%

80%

100%

Ⅳ

SPC250 TruCk Crane

lOAD CHART

SPC250 TruCk Crane

lOAD CHART

Unit:Kg

Values listed in the table refer to rated lifting capacity measured at flat and solid gound under the lever state of the crane.

If actual boom length and range are between two values specified in the table, larger value will determine the lifting capacity.

Unit:Kg

Prerequisites:

①

Boom operating condition( fully extended boom length + jib length),max. length is 31.5m+8m

②

The span of outriggers is 5.45×6.2m

③

240°rotation is applied

④

Counterweight is 1.6T

Main boom angle

Main boom+Jib

Main boom angle

Compensation angle0°

Compensation angle 15°

Compensation angle 30°

78°

2700

2400

1800

78°

75°

2510

2220

1750

75°

72°

2140

1830

1520

72°

70°

1910

1570

1350

70°

65°

1450

1240

1000

65°

60°

1080

1020

750

60°

55°

800

720

560

55°

50°

580

210

400

50°

Unit:Kg

SANY TRUCK CRANE

TON LIFTING CAPACITY

STC250T4

Max. Lifting Capacity: 25 t
Max. Boom Length: 35 m
Max. Lifting Moment: 1078 kN·m

PRODUCT

SPECIFICATION

QUALITY CHANGES THE WORLD

Quality Changes the World

Strong boom

■

35m telescopic boom, Reach a new height of 35.5m.

■

Larger cross-section boom, achieving a load moment

of 1078KN·m.

■

Boom section overlap increased, resulting in higher

torsion resistance and bending resistance.

■

8m lattice jib, triangular structure for stable operation.

Powerful chassis

■

DF Cummins ISLe290 30 engine, FAST 9-speed

synchronizing gearbox, rubber suspension, 12R22.5

wire tire.

■

Frame torsion resistance verified by 20k times of

reliability and safety cycling test.

■

Outrigger span expanded to 5.18m×6.4m (largest

among this tonnage in the industry), stable base.

■

Low deck carrier for drive stability.

Model

STC250T4

| SERIES

SANY TRUCK CRANE

STC250T4 / 25 TON LIFTING CAPACITY

Tougher

Than Ever

Precise hydraulics

■

Load sensing hydraulic system: higher efficiency with

less consumption.

■

Constant-pressure powered luffing: smoothly luffing

down, free from impact of load fluctuation.

■

Big-flow piston slewing motor: slower slewing with larger

torque.

■

Power control: Engine speed reduced by 12% in

operation, less fuel needed, less noise generated.

Smart control

■

CAN-BUS system: instant transfer of information, as fast as

20ms.

■

Fault diagnosis: BCM controller for fault detection and easy

maintenance.

■

7’color display & smart panel & IO power distribution: user

friendly.

■

Safety guarantee: SANY, Load Moment Indicator monitoring load

and wire rope conditions.

Luffing balance valve

Height limit switch

Pressure sensor

Winch protector

Smart I/O power

distribution

7’ color display

Length &

angle indicator

Winch motor

Winch balance valve

Slewing proportional

valve

Bivariate piston pump

Mass-flow main valve

Quality Changes the World

Model

STC250T4

| SERIES

SANY TRUCK CRANE

STC250T4 / 25 TON LIFTING CAPACITY

Content .. 1 2 3 ..
