HV480 Series Frequency Inverter. User Manual (Jun 2021 V0.2 version) - page 1

Chapter I Purchase inspection

Chapter I Purchase inspection

Danger

z

Do not install the frequency inverter if it is damaged, water intake, parts missing or

damaged

Caution

z

Handle with care and avoid falling shock.

z

Do not use your hands to pull or touch any components of the machine to avoid

short-circuit accidents or electrostatic damage

1.1 Inspection items

Although the Company's products have been strictly inspected before leaving the factory, due to transportation

or unforeseen circumstances, please carefully inspect the products after purchase.

The items and methods that must be checked and confirmed are as follows:

Confirmation content

Confirmation method

Is it consistent with the goods ordered

Please confirm the nameplate on the side of the machine

Check the overall appearance and check for damage

Are there any parts broken or damaged

during transportation

Are there any loose fastening parts such as screws

If necessary, use a screwdriver to check it

Instructions, certificates of conformity and other

Operating instructions and corresponding accessories

accessories

If there is any bad situation or abnormality, please contact the agent or the Company's customer service center.

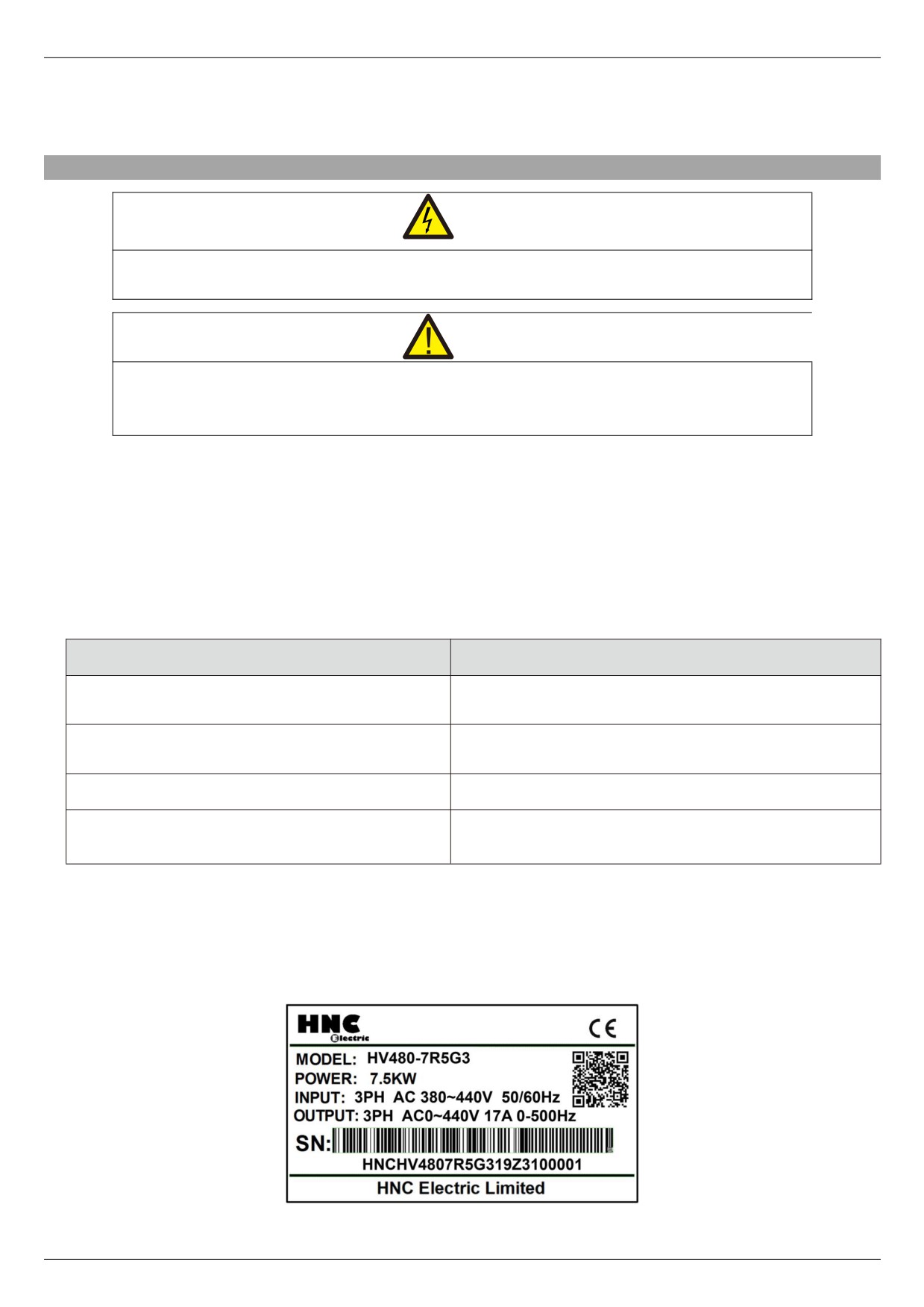

1.2 Nameplate description

z

Nameplate data

-5-

Chapter I Purchase inspection

z

Description of frequency inverter model

HV480-

7R5 G

3

Inverter Series

No.

Voltage

1

Single-phase220

No.

Adaptati

2

Three-phase220

R75

0.75kW

3

Three-phase380

7R5

7.5kW

4

Three-phase480

011

11kW

018

18.5kW

No.

Inverter Type

110

110kW

G

General type

200

200kW

P

Fan pump type

Note:

G1 input voltage range: Single-phase AC220V±15%

G2 input voltage range: Three-phase AC220V±15%

G3 input voltage range: Three-phase AC 380~440 (-15%~+10%)

G4 input voltage range: Three-phase AC 460~480 (-15%~+10%)

Note of DC reactor:

G1: No DC reactor interface

G2: 30kw and below, no DC reactor interface;

37kw and above, DC reactor interface is optional.

G3: 55kw and below, no DC reactor interface;

75kw and above, DC reactor interface is optional.

G4: 55kw and below, no DC reactor interface;

75kw and above, DC reactor interface is optional.

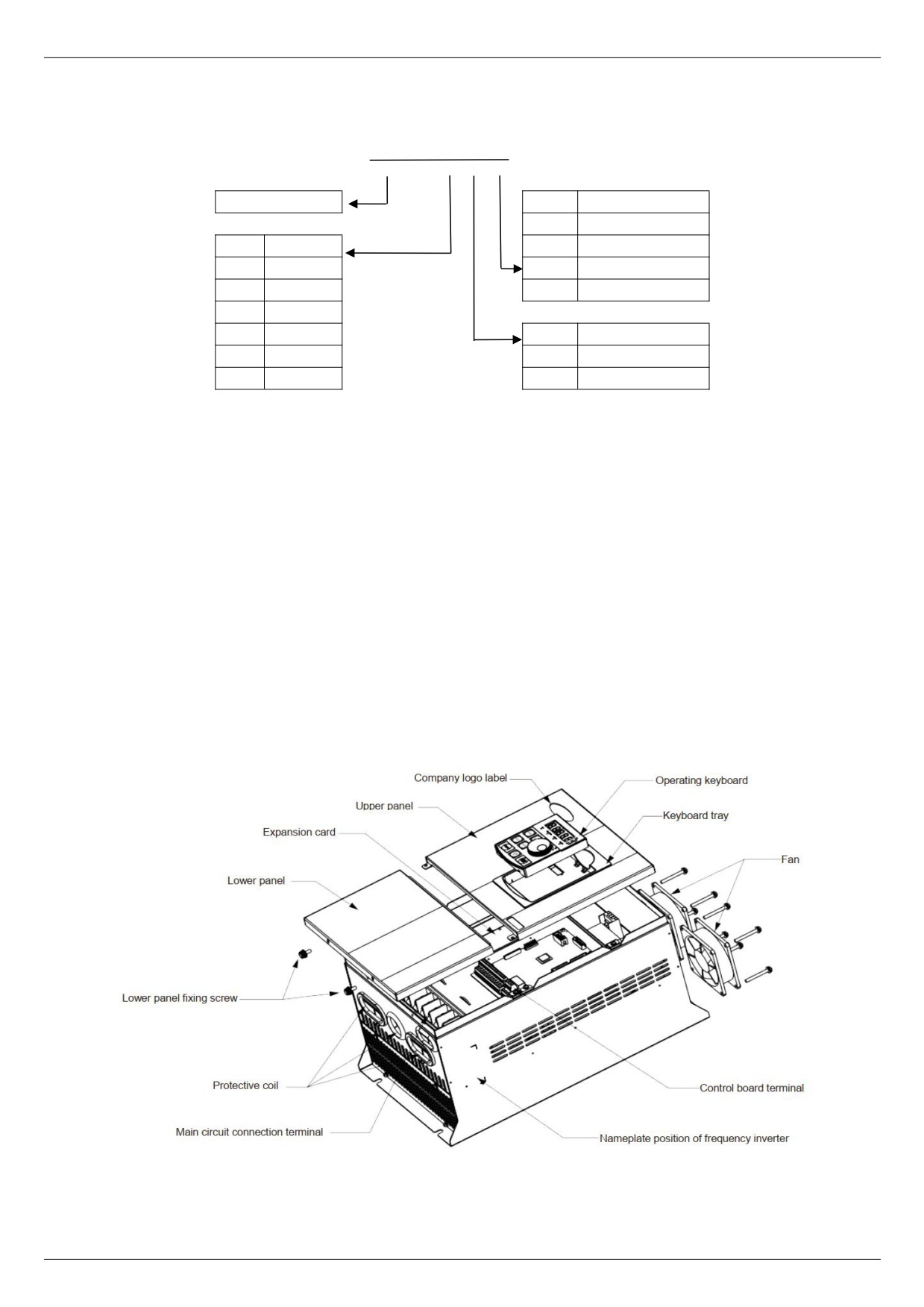

1.3 Description of components of frequency inverter

Take HV480-022G3 as an example

-6-

Chapter II Installation wiring

Chapter II Installation wiring

2.1 Mechanical installation

Danger

z

Please install it on the refractory material board such as metal.

z

Installed on flammable materials, there is a risk of fire.

z

When two or more frequency inverters are installed in the same control cabinet please set

up a cooling fan and keeps the air temperature at the air inlet below 40 °C.

z

Due to overheating, fire and other accidents will occur.

Caution

z

Please support the bottom of the machine body when carrying. Please use the machine

with lifting rings. For machines that do not have rings, do not only take panels to prevent

injury.

Please install the frequency inverter in the following application places and maintain the appropriate conditions.

2.1.1 Installation Conditions

1) It is the best to have a well ventilated room.

2) Ambient temperature - 30 °C ~ + 40 °C, bare machine with - 30 °C ~ 50 °C.

3) The humidity is less than 90 % RH, and there is no water splashing or dripping.

4) The installation foundation is firm and not easy to be vibrated, and its vibration is not more than 0.5g.

5) Avoid direct sunlight.

6) Avoid installing in places with corrosive and combustible gases in the air.

7) Avoid installing in places with dust, oil stain and polymetallic dust in the air.

8) Avoid installing in places with electromagnetic interference sources.

9) Below 1000 meters above sea level. High altitude areas should be reduced in use, or the ambient

temperature should be reduced by 0.5 °C for every 100 meters above sea level.

-7-

Chapter II Installation wiring

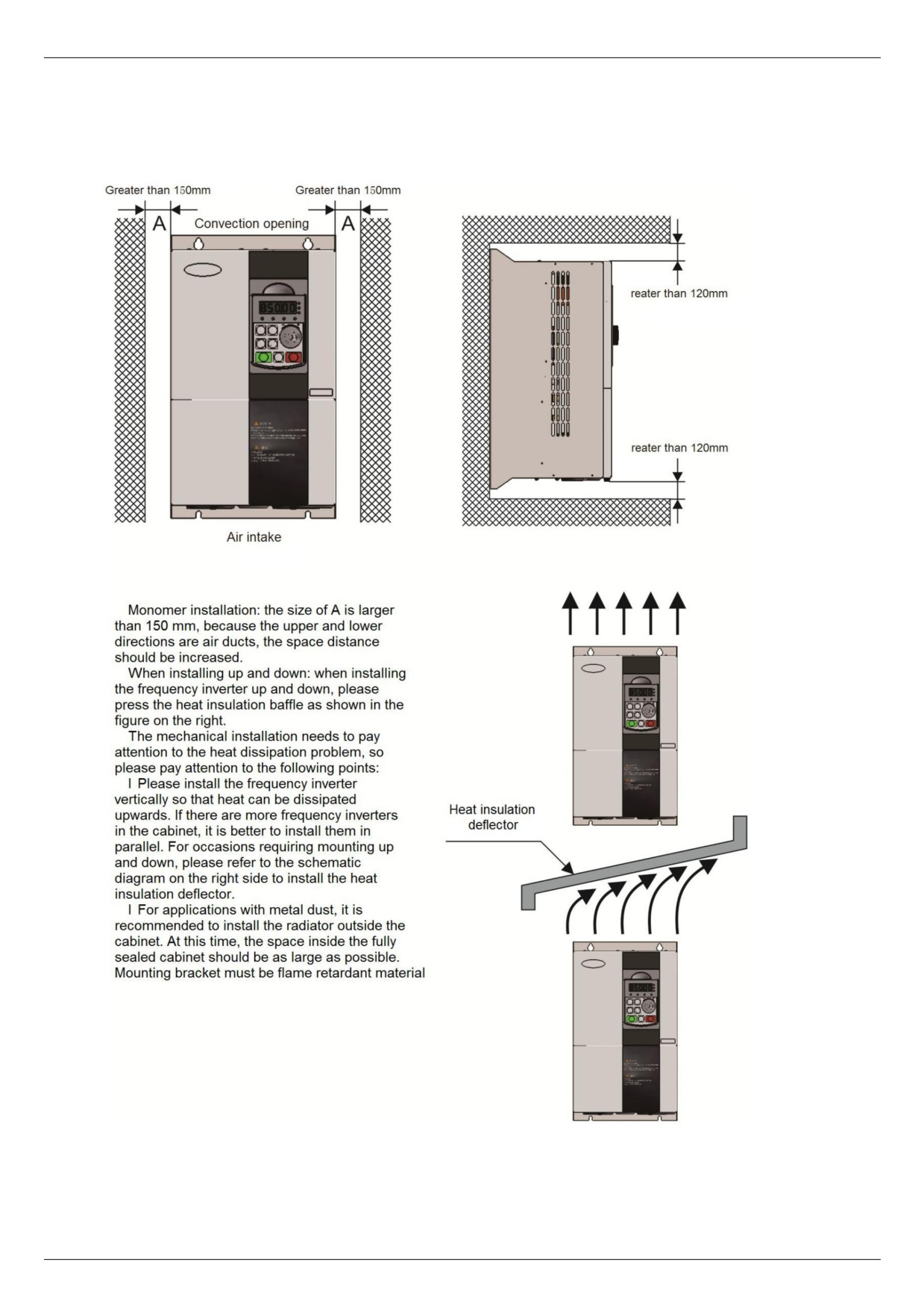

2.1.2 Installation Space

The installation diagram of the frequency inverter is as follows:

-8-

Chapter II Installation wiring

2.2 Electrical Installation

Danger

z

Before wiring, please make sure that the input power supply is cut OFF to avoid electric

shock and fire.

z

To ensure safety, grounding terminals must be reliably grounded according to the

specification requirements.

z

Do not connect the input power supply to the U, V, and W terminals of the output by

mistake.

Caution

z

Please confirm whether the AC power supply is consistent with the rated input voltage of

the frequency inverter

z

Do not connect the electromagnetic switch and contactor to the frequency inverter input

circuit.

z

Before peripheral equipment is connected to the frequency inverter, it must be confirmed

that its insulation to ground is in good condition.

z

Do not conduct insulation withstand voltage test on the frequency inverter so as not to

damage the devices inside the machine.

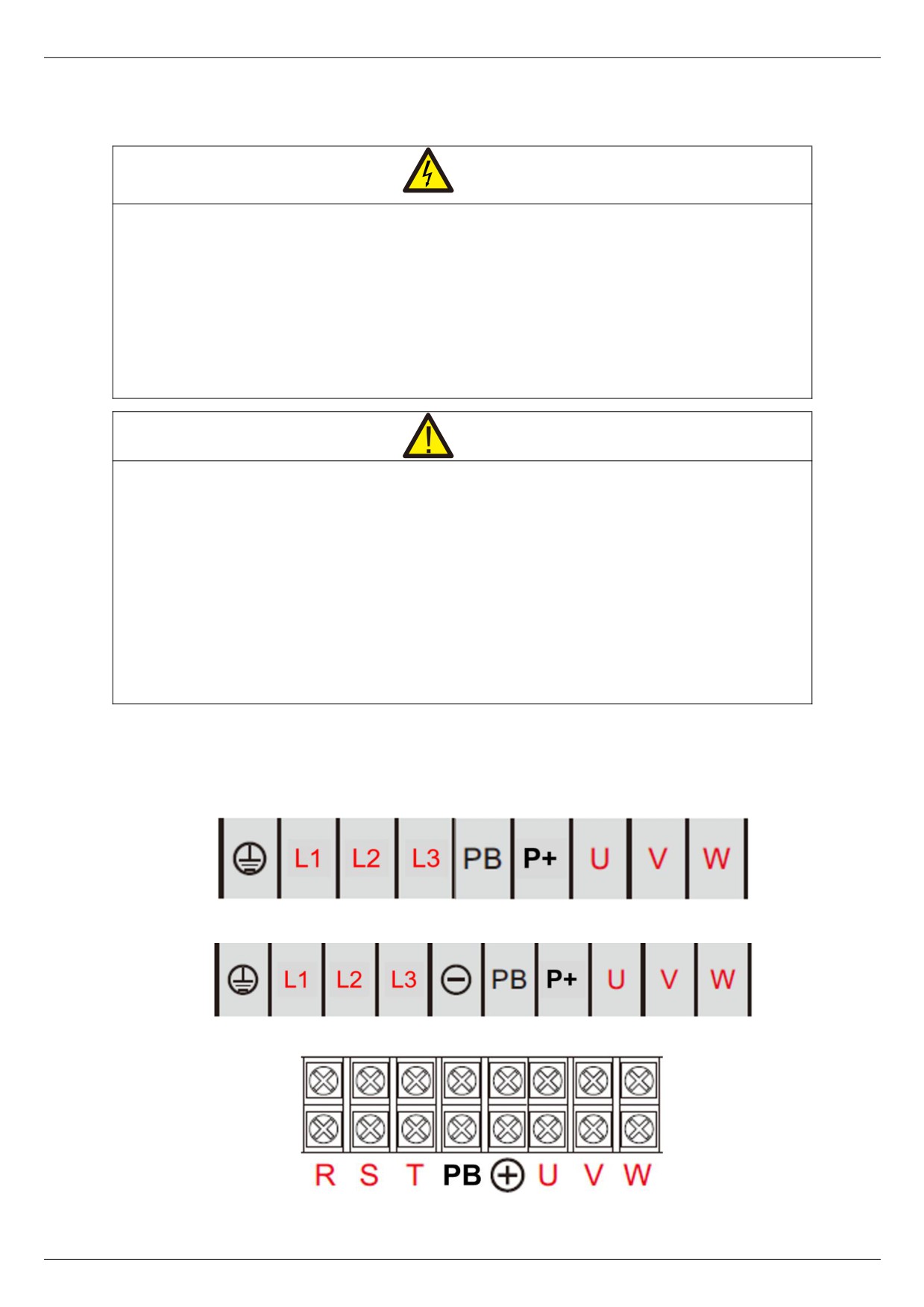

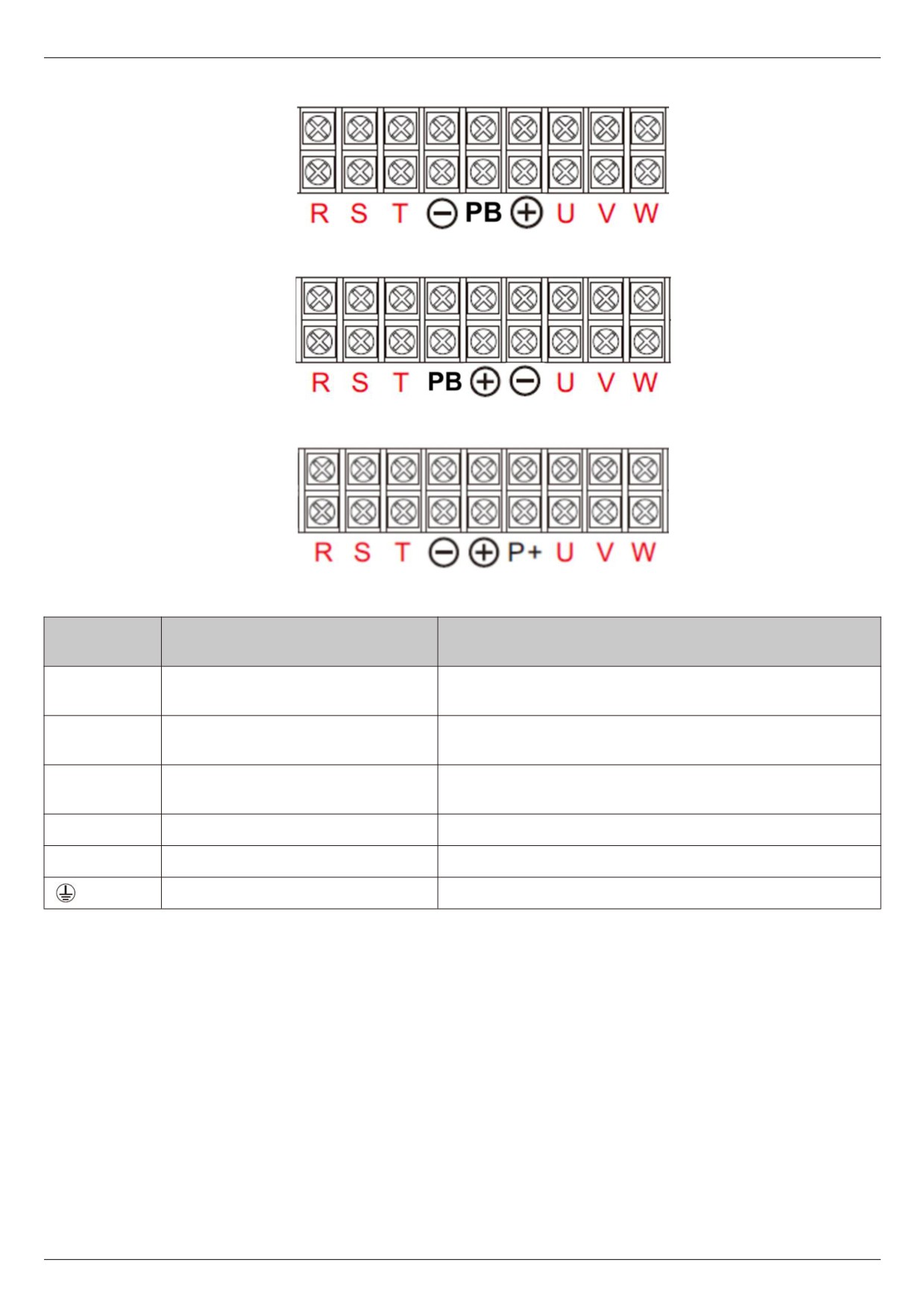

2.2.1 Frequency inverter main circuit terminal description

1) Main loop terminals of 2.2kw and below:

2) Main loop terminals of 4kw to 7.5kw:

3) Main loop terminals of 11kw to 15kw:

-9-

Chapter II Installation wiring

4) Main loop terminals of 18.5kw to 37kw:

5) Main loop terminals of 45kw to 55kw:

6) Main loop terminals of 75kw and above:

Description of main circuit terminal of three-phase frequency inverter

Terminal

Name

Description

marking

Three-phase power supply input

R,S,T

Connection point for AC input three-phase power supply

terminal

Negative and positive terminals of

Common DC bus input point, connection point of 37kw G

㊀,㊉

DC bus

machine and external brake unit of above specifications

30kw G machine and the following specifications, brake

㊉,PB

Brake resistor connection terminal

resistance connection point

㊉,P+

DC reactor connection terminal

U,V,W

frequency inverter output terminal

Connecting three-phase motor

Earth terminal

Earth terminal

2.2.2 Main circuit wiring method and wiring matters needing attention:

z

Input power supply R, S, T: input side wiring of frequency inverter, no phase sequence requirements.

z

Terminals ⊕ and Θ DC bus: please note that there is still a high residual voltage in the DC bus just after the

power failure, so it must wait at least 15 minutes later, or confirm that the voltage is less than 36 V before

touching, otherwise there is danger of electric shock.

z

When selecting an external brake unit, pay attention to the positive and negative polarity, which cannot be

reversed, otherwise, the frequency inverter will be damaged or even damaged by fire. In order to prevent stray

inductance from affecting the braking effect, the wiring length of the braking unit should not exceed 5m.

Twisted pair or tight double wire should be used for parallel preparation, and non-inductive resistance should

also be used for braking resistance.

z

Brake resistance connection terminals ⊕, PB ： 30kW G type machines and the following specifications are

- 10 -

Chapter II Installation wiring

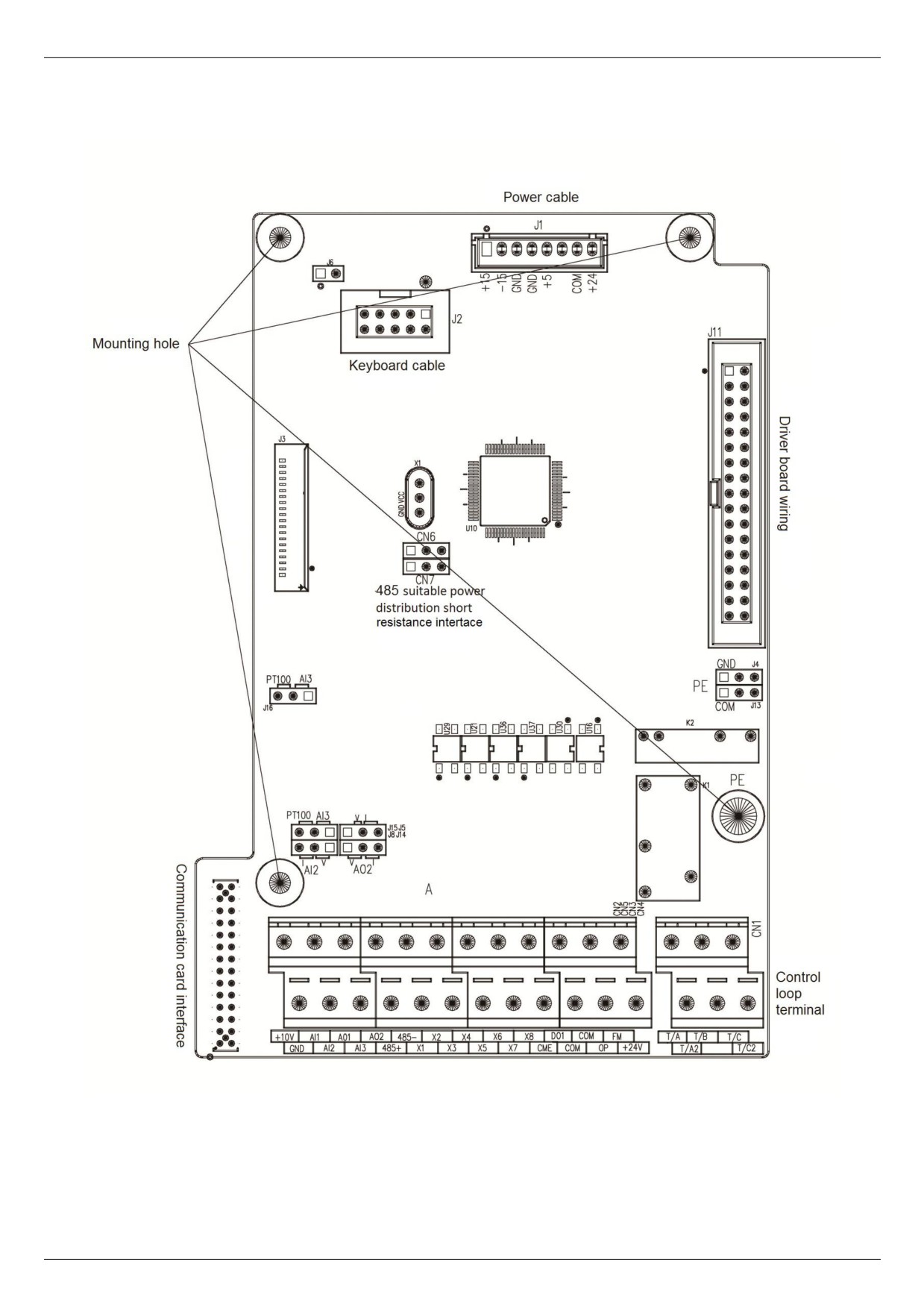

2.2.3 Frequency inverter control loop terminal description

Note:

For all G1 models, G2 4.0kw and below models, G3 and G4 7.5kw and below models, there are no AI2/AI3/AO2,

no X6/X7, no FM output, and no OP and CME, no +10V. The terminal “+24V” works as “OP” function as above

diagram.

- 12 -

Chapter II Installation wiring

Terminal

Category

Terminal name

Functional Description

symbol

External provide

+ 10v power supply the maximum output

External

current is 10mA, which is generally used as the working power

+10V-GND

connection + 10v

supply for external potentiometer and the resistance value of

power supply

potentiometer ranges will be from 2.5k ~ 5kΩ

External

External provide + 24v power supply, generally used as working

Power supply

+24V-COM

connection + 24v

power supply for digital input and output terminals and maximum

power supply

output current for external sensor power supply: 200mA

Select + 24V or OP connection through the short connector 1 on

External power

the control panel, and the factory defaults to + 24v connection.

OP

input terminal

When X1 ~ X7 are driven by external signals, OP needs to be

connected to external power supply.

Analog

input

1. Input voltage range: DC 0V ~ 10V

AI1-GND

terminal 1

2. Input impedance: 22kΩ

1. Input range ： DC 0V~10V/4mA~20mA ， determined by the

Analog

input

selection of AI2 jumper on the control panel.

AI2-GND

terminal 2

2. Input impedance: 22kΩ for voltage input and 500Ω for current

Analog input

input.

1. Opt coupler isolation input can accept differential voltage

Analog input

AI3-GND

input, current input, temperature detection resistance input

terminal 3

2. Input range：DC ±10V or ±(4~20mA)

1. Optical coupling isolation is compatible with bipolar input

X1~X8

Digital input

2. Input impedance: 2.4kΩ

3. Voltage range during level input: 9V~30V

Digital input

Besides the features of X1~X8, it can also be used as a

High-speed pulse

X5

high-speed pulse input channel. Highest input frequency:

input terminal

100kHz; Voltage range: 9V~30V

The AO1 jumper on the control board determines the voltage or

AO1-GND

Analog output 1

current output. Output voltage range: 0V ~ 10V output current

range: 0mA ~ 20mA

Analog output

The AO2 jumper on the control board determines the voltage or

AO2-GND

Analog output 2

current output. Output voltage range: 0V ~ 10V output current

range: 0mA ~ 20mA

Optical coupling isolation, bipolar open collector output voltage

range: 0V ~ 24V output current range: 0mA ~ 20mA

Note: CME of digital output location is internally isolated from

com of digital input location, but at the factory it is shorted to

DO-CME

Digital output 1

COM via short connector 2CME on the control board (DO1 is

driven by + 24v by default at this time). When DO1 is driven by

Digital output

an external power supply, the short connector

2

must be

unplugged.

Constrained by function code F4 - 00 " FM terminal output mode

High speed pulse

selection" as high-speed pulse output, the highest frequency is

FM- COM

output

100 kHz; When it is exported as open collector, it is the same as

DO1 specification.

Rs485

Communication

Input and output signal terminals of Modbus - RTU protocol

485+ 485-

communication

interface

communication

interface terminal

Normally closed

T/A-T/B

Contact drive capability:

terminal

Relay output

AC250V, 3A, COSø=0.4.

Normally open

DC 30V, 1A

T/A-T/C

terminal

- 13 -

Chapter II Installation wiring

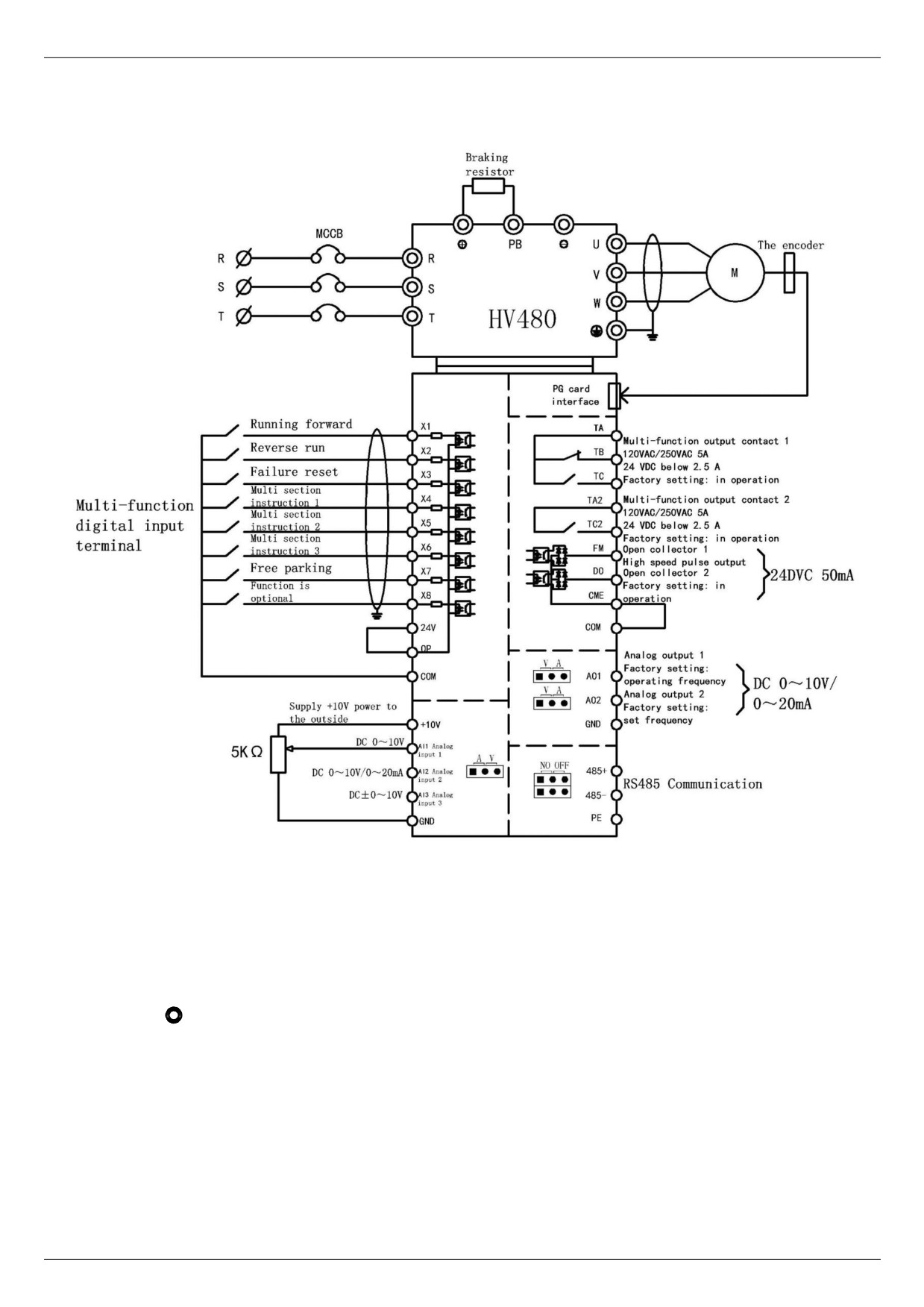

2.2.4 Standard wiring diagram of frequency inverter

Note:

For all G1 models, G2 4.0kw and below models, G3 and G4 7.5kw and below models, there are no AI2/AI3/AO2,

no X6/X7/X8, no FM output, and no OP and CME, no +10V. The terminal “+24V” works as “OP” function as above

diagram.

Precautions:

1) Terminal

means main circuit terminal and O means control circuit terminal.

2) The 30kW G machine and the following specifications have built-in regenerative braking function, the 37kW G

machine and the above specifications do not have PB terminals. When regenerative braking function is required, an

additional energy consumption braking unit shall be installed.

- 14 -

Chapter II Installation wiring

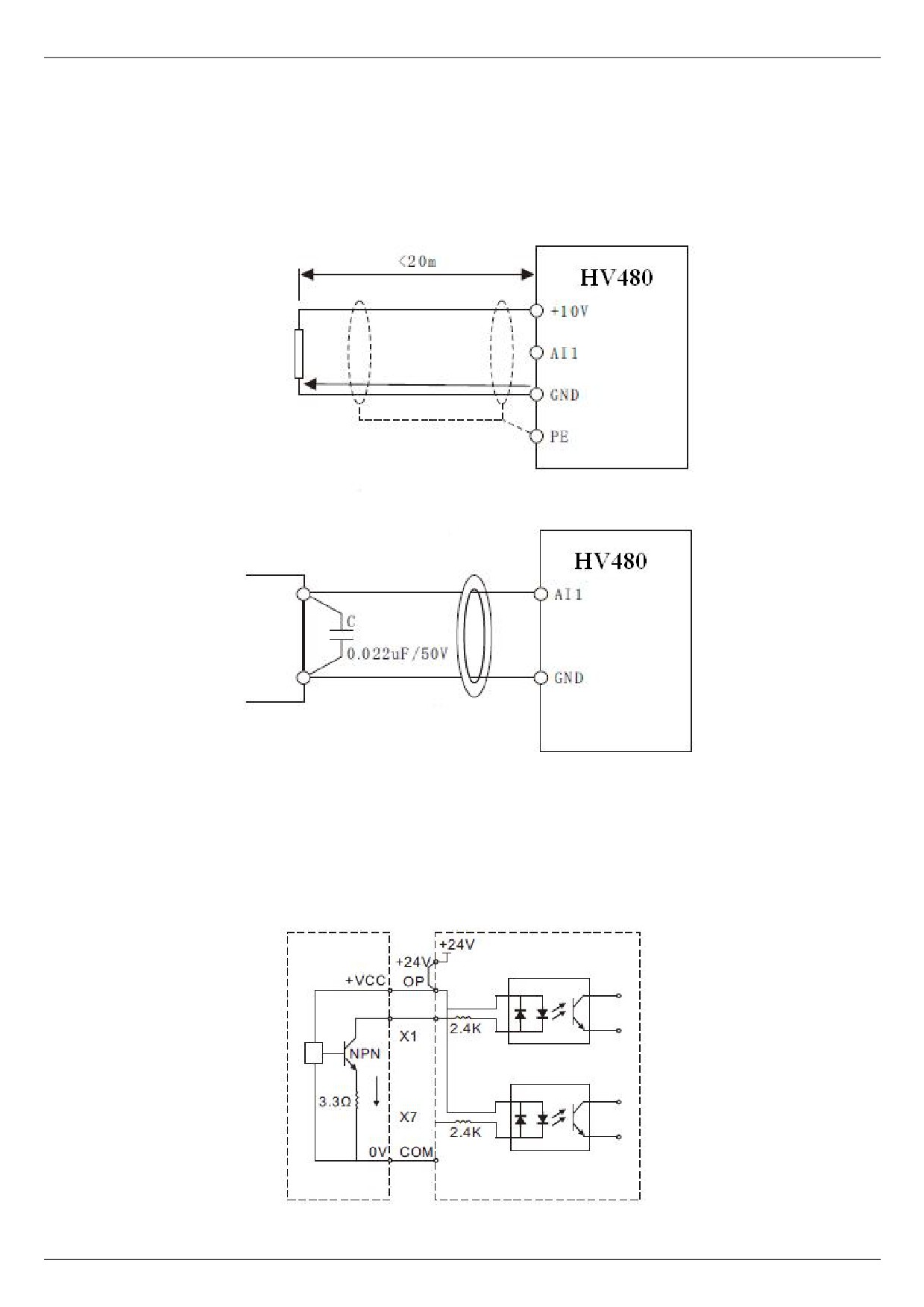

2.2.5 Control circuit wiring mode

a) Analog input terminal because weak analog voltage signals are particularly susceptible to external

interference, shielded cables are generally required, and the wiring distance should be as short as possible, not

exceeding 20m. As shown in the figure, when some analog signals are seriously disturbed, filter capacitors or ferrite

cores need to be added to the analog signal source side:

Potentiometer

Wiring diagram of analog input terminal

Pass through or in the same

direction 2 - 3 turn in the

same direction

Ferrite magnetic ring

Schematic diagram of processing and wiring for analog input terminals

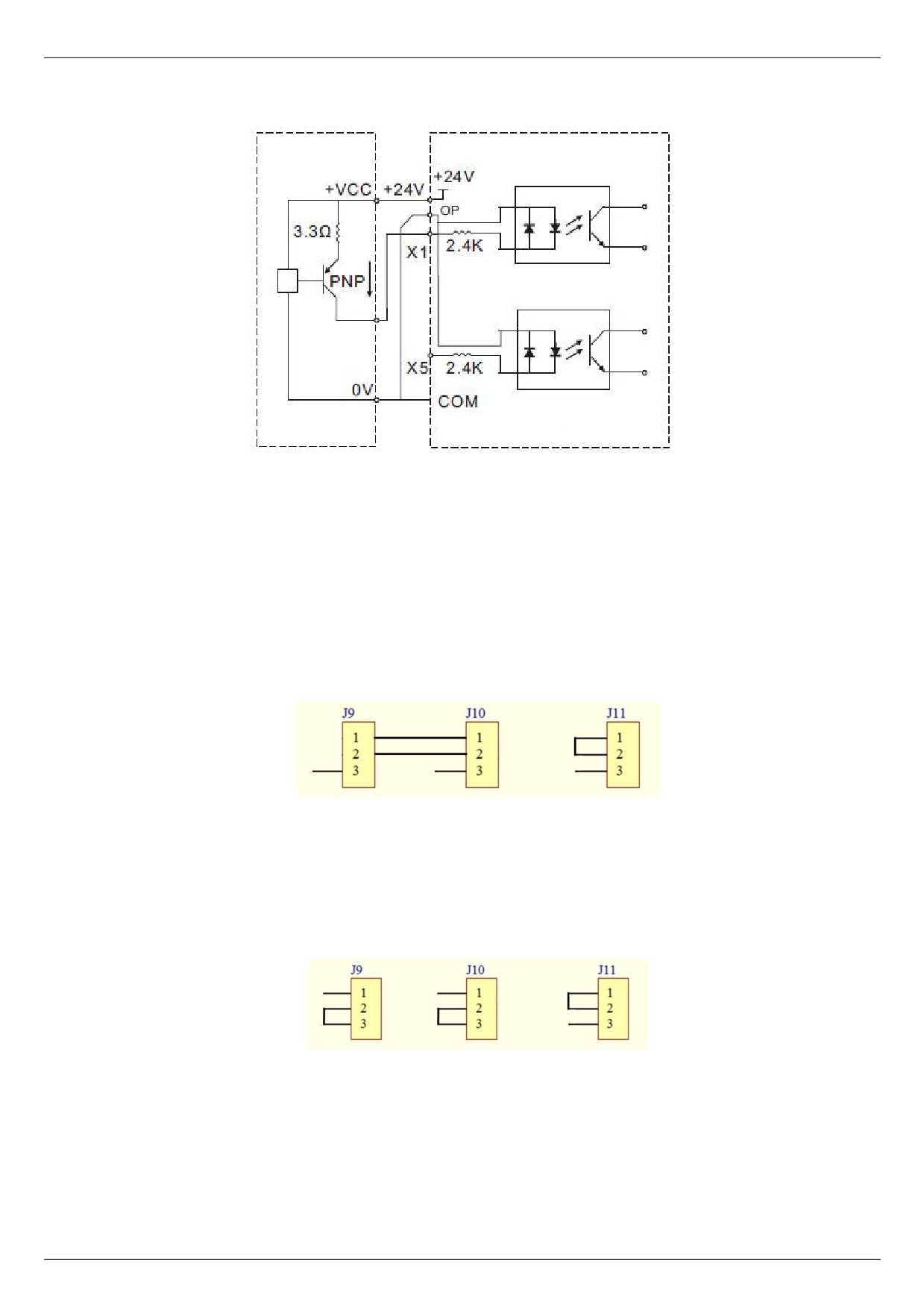

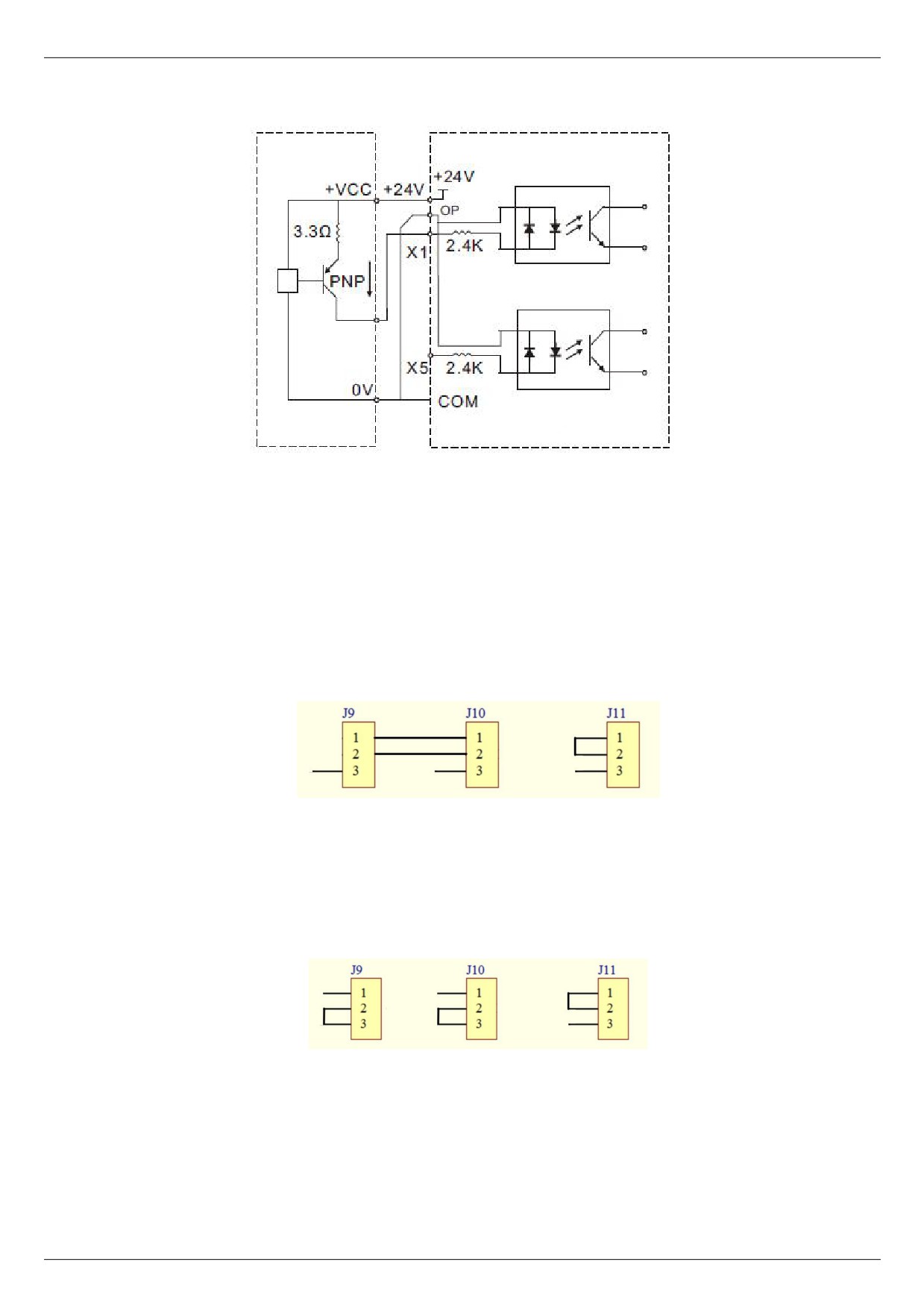

b) Digital input terminal: Shielded cables are generally required, and the wiring distance should be as short as

possible, not exceeding 20m. When active driving mode is selected, necessary filtering measures should be taken

for crosstalk of power supply. It is recommended to use contact control square.

z

Leakage wiring

Signal

External controller

Frequency inverter control panel

Leakage (NPN) connection method of 011G3 and above with internal power supply

- 15 -

Chapter II Installation wiring

This is one of the most common wiring methods which use internal DC24V.

If use an external DC24V power supply, NPN type wiring method as below.

z

For 011G3 and above models, the short connector between “+ 24V” and “OP” and the short connector between

“COM” and “CME” must be removed. The positive electrode of the external power supply is connected to “OP”

and the negative electrode of the external power supply is connected to “CME”.

z

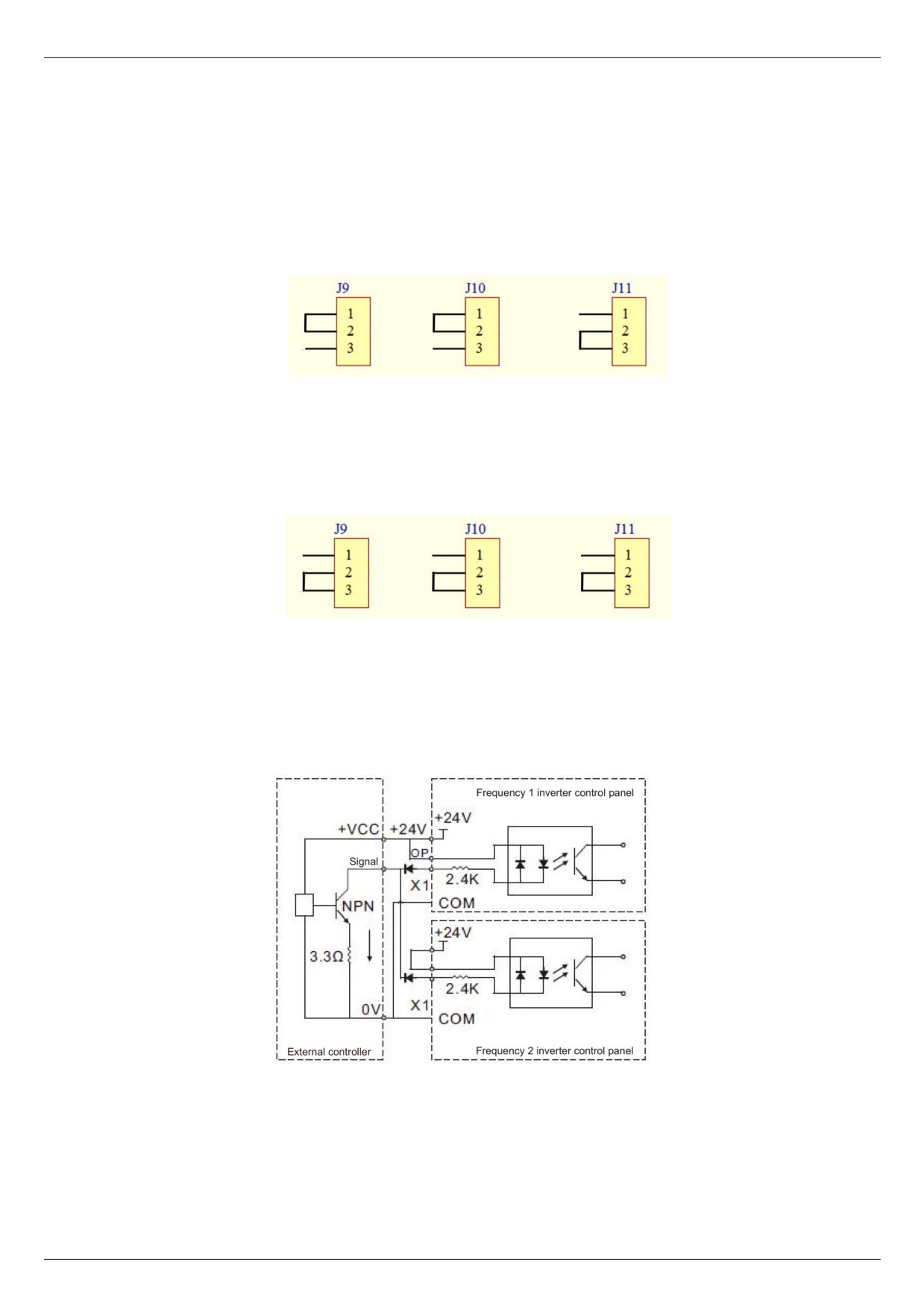

For all G1 models, G2 4.0kw and below models, G3 and G4 7.5kw and below models, ,there’re three jumpers

J9&J10&J11 on control board, their default position is as below, and the default is for NPN type which use

internal DC24V as power supply.

Use internal DC24V, NPN type

In this method, the voltage on terminal “+24V” is 24V, the voltage on terminal “COM” is 0V, and when output

terminal “DO” is effected, the “DO” is short to terminal “COM”.

So if you need “DO” to active an relay, please connect the relay between “DO” and “+24V” .

* If use an external DC24V power supply, jumper position as below:

Use external DC24V, NPN type

The positive electrode of the external power supply is connected to “+24V” and the negative electrode of the

external power supply is connected to “COM”.

In this method, the voltage on terminal “+24V” is 24V, the voltage on terminal “COM” is 0V, and when output

terminal “DO” is effected, the “DO” is short to terminal “COM”.

So if you need “DO” to active an relay, please connect the relay between “DO” and “+24V” .

Signal

Multiple frequency inverters digital input and connection leakage type connection mode

Multiple frequency inverters digital input terminals cannot be connected and used, otherwise it may cause

incorrect operation of the input terminals. If it is needed that the input terminals of different frequency inverters are

connected in parallel, the diode is connected in series at the X terminal and the wiring is as shown above and the

diode needs to meet IF＞10mA，UF＜1V

- 16 -

Chapter II Installation wiring

z

Source wiring

Signal

External controller

Frequency inverter control panel

Source type (PNP) wiring method of 011G3 and above which use internal DC24V

This is one of the most common wiring methods which use internal DC24V for 011G3 and above.

If use an external DC24V power supply for 011G3 and above, PNP type wiring method as below.

z

It must remove the short connector of 24V and OP, and connect COM and OP together, and also remove the

short-circuit connector between COM and CME, and the external trigger signal is connected to the

corresponding DI.

z

For all G1 models, G2 4.0kw and below, G3 and G4 7.5kw and below.

PNP type wiring method as below.

* If you use internal DC24V as power supply, jumpers position as below:

Use internal DC24V, PNP type

In this method, the voltage on terminal “+24V” is 0V, the voltage on terminal “COM” is 24V, so you need short the

corresponding DI terminals and "COM" together.

When output terminal “DO” is effected, the “DO” is short to terminal “+24V”.

So if you need “DO” to active an relay, please connect the relay between “DO” and “COM” .

* If use an external DC24V power supply, jumper position as below:

Use external DC24V, PNP type

The positive electrode of the external power supply is connected to “COM” and the negative electrode of the

external power supply is connected to “+24V”. and the external trigger signal is connected to the corresponding DI.

In this method, the voltage on terminal “+24V” is 0V, the voltage on terminal “COM” is 24V, and when output

terminal “DO” is effected, the “DO” is short to terminal “+24V”.

So if you need “DO” to active an relay, please connect the relay between “DO” and “COM” .

- 17 -

Chapter II Installation wiring

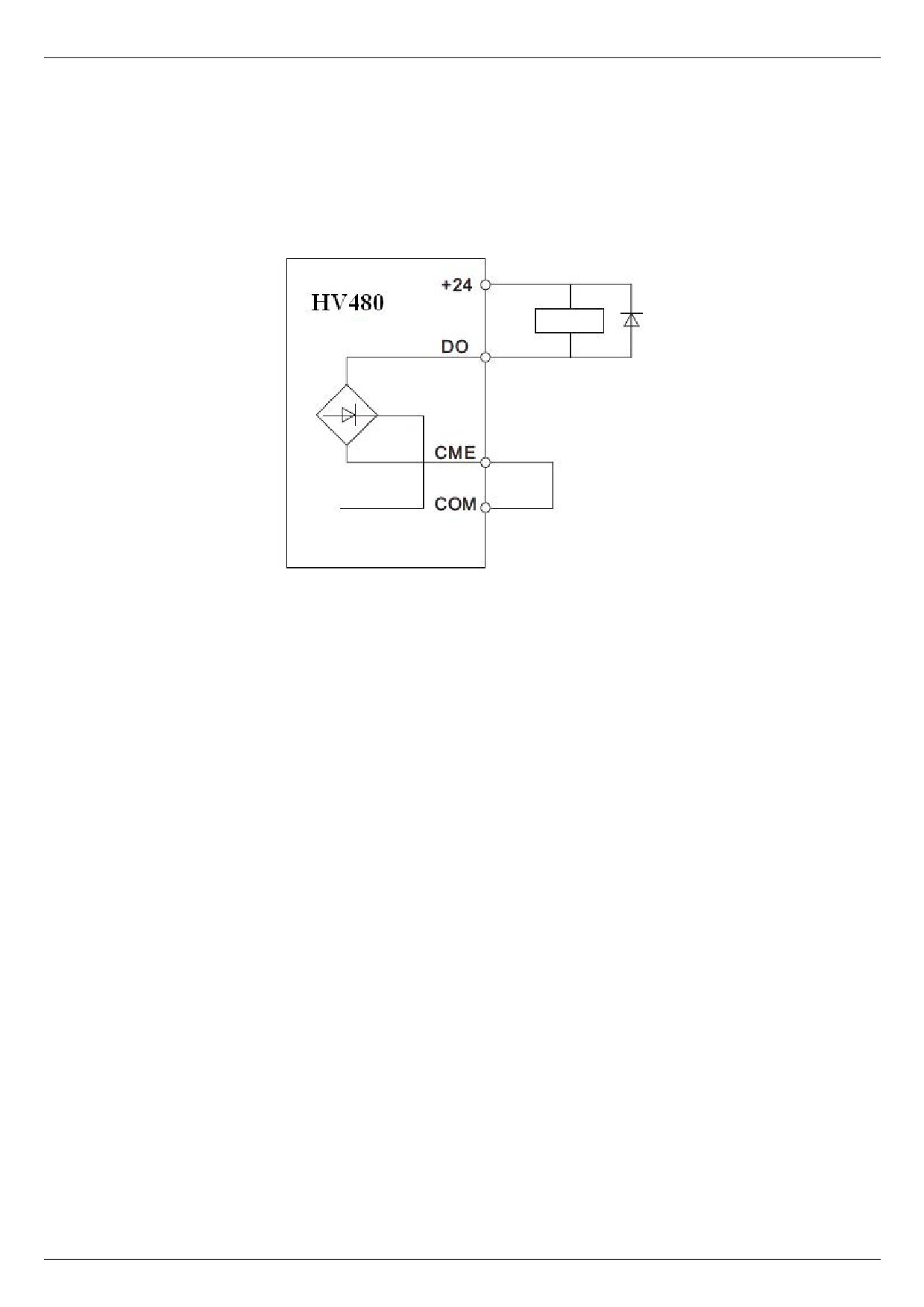

C) Digital output terminal: When the digital output terminal needs to drive the relay, absorption diodes should be

installed on both sides of the relay coil. Otherwise, it is easy to cause damage to the DC 24V power supply and the

driving capacity is not more than 50mA.

Note: as shown in the figure, the polarity of the absorption diode must be installed correctly. Otherwise,

when the digital output terminal has output, the DC 24V power supply will be burnt out immediately.

Relay

Diode

DO schematic of 011G3 and above models

- 18 -

Chapter III Process operation

Chapter III Process operation

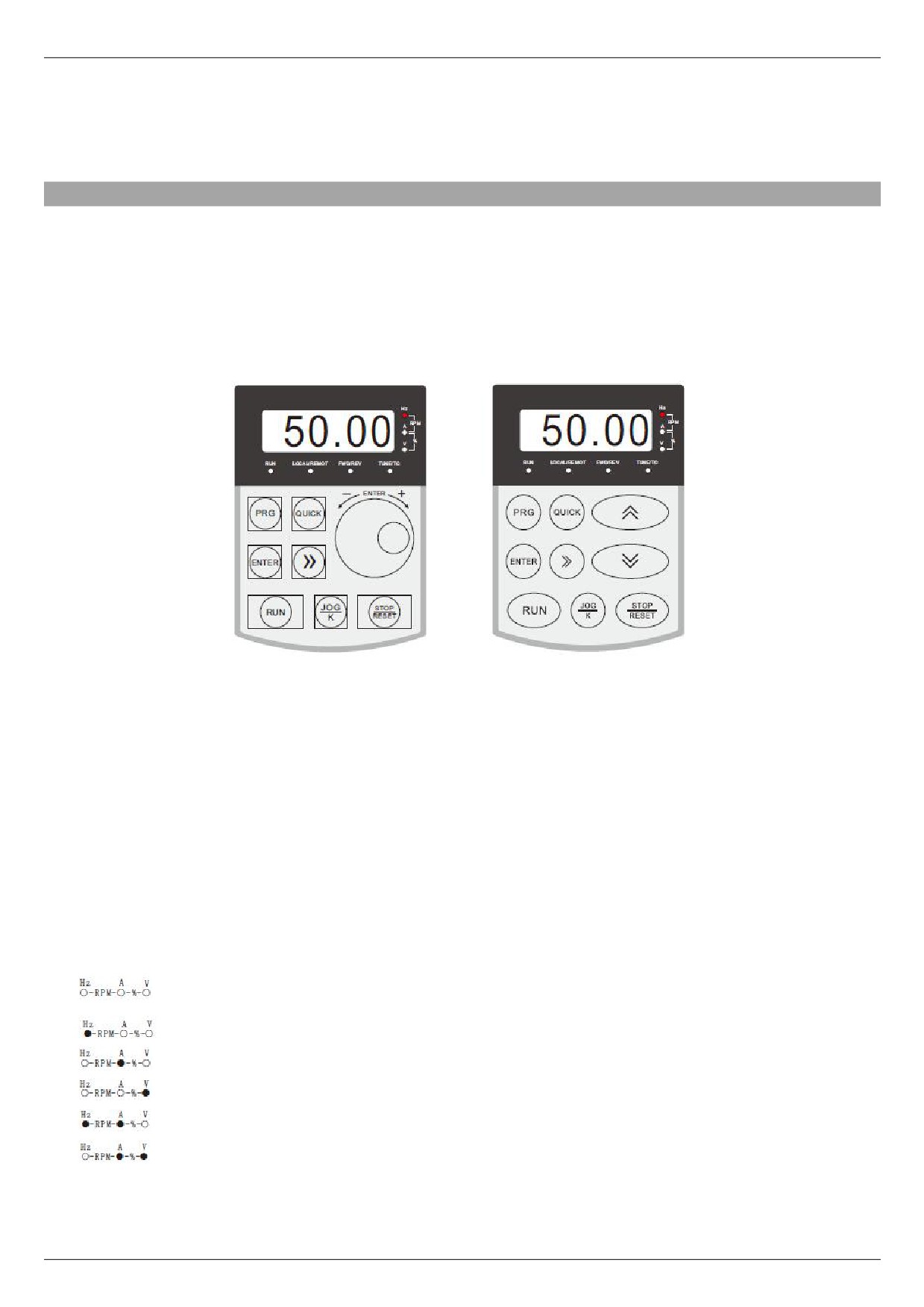

3.1 Operation keyboard and display interface

The operating keyboard of the series of frequency inverters can modify the functional parameters of the

frequency inverter, monitor the working state of the frequency inverter, and control the operation of the frequency

inverter (starting and stopping). Its appearance and functional area are shown in the following figure:

3.2

Indicator light indicates run

RUN: When the light is on, it indicates that the frequency inverter is in operation, and when the light is off, it

indicates that the frequency inverter is in shutdown state

LOCAL/REMOT: Keyboard operation, terminal operation and remote operation

(communication control)

indicator light

FWD/REV: Positive and negative rotation indicator light, which indicates that it is in reverse rotation when the

light is on

TUNE/TC: Tuning / torque control / fault indicator light, light on indicates torque control mode, light slow flashing

indicates tuning state, and light flash indicates fault state.

The unit indicator lamp is used to indicate the unit of the current display data (○ marks off, ●

marks on). There are the following units:

Hz frequency unit

A current unit

V voltage unit

RMP rotational speed unit

% percentage

Total of 5 - bit LED displays can display the set frequency, output frequency, various monitoring data and alarm

codes, etc.

- 19 -

Chapter III Process operation

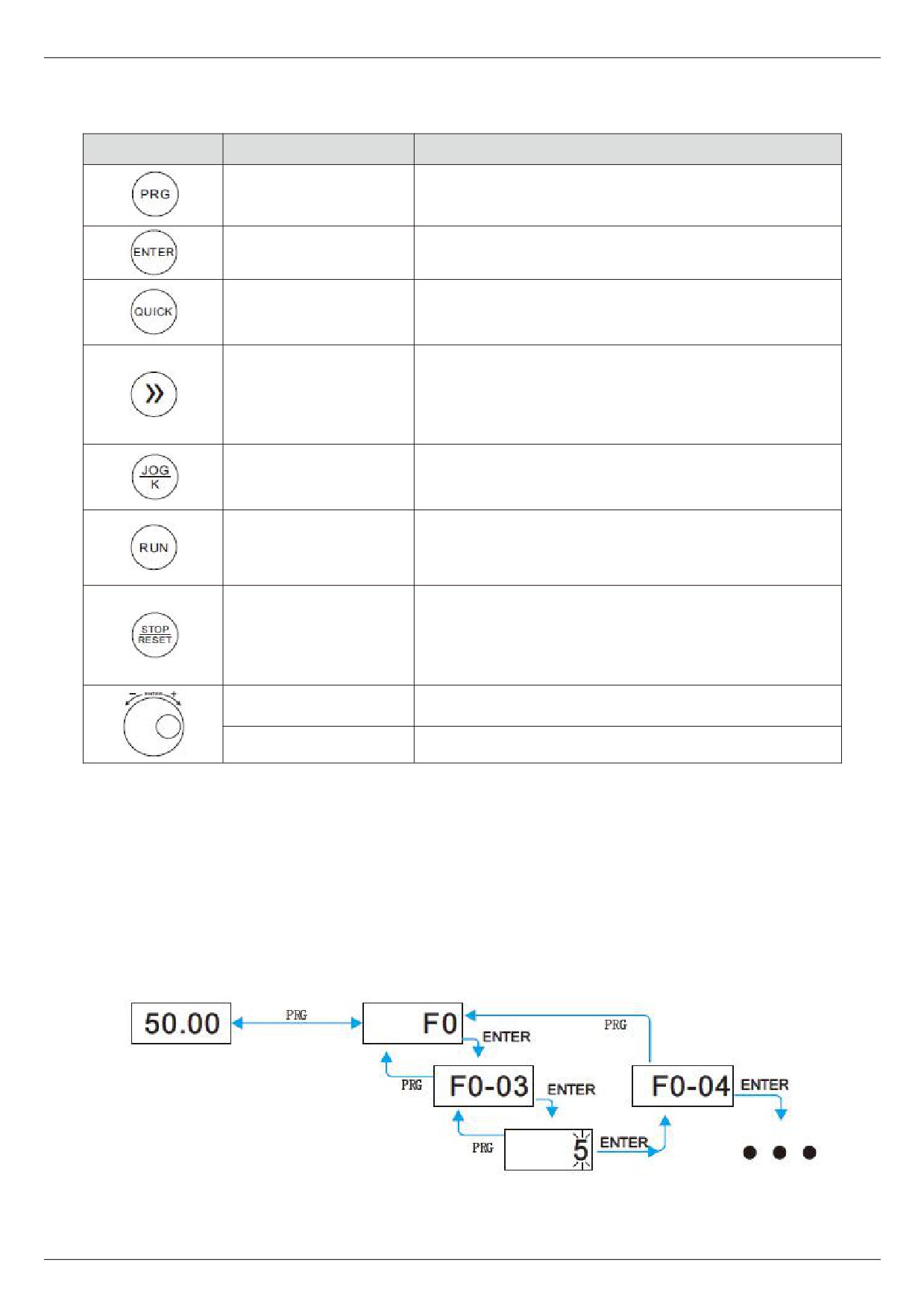

3.3

key function description

Key

Key name

Functionalities

Enter or exit the first-level menu and view the function

Menu key

sequence code

Enter the menu screen step by step and set parameters

Set key

for confirmation

Switch different menu modes according to F0 - 43

Menu mode select key

median value ( the default is a menu mode )

Under the shutdown display interface and the operation

display interface, the display parameters can be selected

Shift key

according to the loop. When modifying a parameter, you

can select the modification bit of the parameter.

Multifunction selection

According to F0 - 07, function switching can be defined

key

as command source or fast direction switching.

When it is set to keyboard control, forward rotation

Run key

operation instruction will be issued to start the frequency

inverter operation.

When running, pressing this key can be used to stop the

running operation. When the fault alarm is on, it can be

Stop / reset key

used to reset the operation. And the characteristics of the

key are restricted by the function code F0 - 08.

Increment key

Increment of data or function code

Descending key

Decrement of data or function code

3.4 Methods of checking and modifying function codes indicate that

The operation panel of this series of frequency inverters uses a three-level menu structure to set parameters

and other operations.

The three-level menus are: function parameter group (I - level menu) → function code (II - level menu) →

function code setting value (level III menu).

State parameter

Level I menu

When flashing, press // to modify

(Default screen)

(Function code group

number selection)

Toggle

Return

Enter

Level II menu

(Function code serial

Enter

number selection)

Return

Enter

Next function code

Level III menu

serial number

(Function code parameter

Give up

Save

value setting)

- 20 -

Chapter III Process operation

Description: press PRG key or enter key to return to the level II menu when operating the level II menu. The

difference between the two is: press enter to save the setting parameters and return to the secondary menu, and

automatically transfer to the next function code; while pressing PRG key is to abandon the current parameter

modification and directly return to the secondary menu of the current function code serial number.

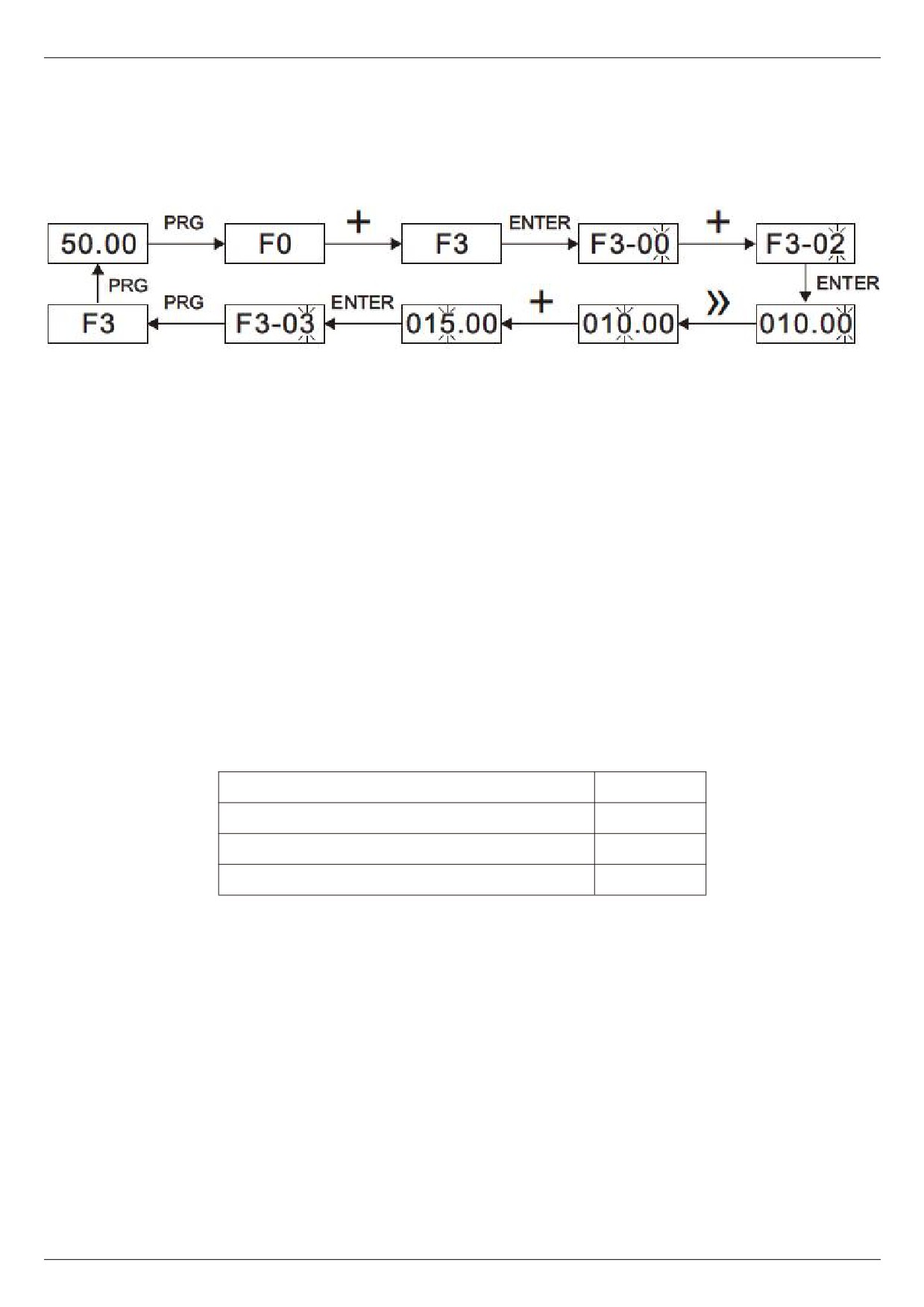

Example: example of setting function code F3 - 02 to 15.00 Hz from 10.00 Hz

In the level III menu state, if the parameter does not flash, it indicates that the function code cannot be modified.

Possible reasons are:

This function code is an unmodifiable parameter, such as frequency inverter type, actual detection parameter,

operation record parameter, etc.

This function code cannot be modified in the running state. It can only be modified after shutdown.

3.5 Two quick search modes for function code parameters there

Are many function codes in this series. In order to facilitate quick search by users, the frequency inverter also

provides two quick search methods for function codes:

1) Selecting and customizing common function codes and users, up to 30 of which can be customized, to form a

user-defined code function code set; the user determines the function parameters to be displayed through the FE

group

2) Automatically arranges the function codes different from the factory values and the frequency inverters for

quick selection by the user;

This provides three function code lookup methods, the display code of each parameter display method is:

Parameter display mode

Display

Function parameter mode

--F--

User - customized parameter method

--U-

The method for changing parameters by the users

--C-

The display modes of the three function codes are switched by the quick key on the panel ( F0 - 43 is set to 11 ),

and the search or modification method after entering the function codes of each group is the same as that of the

previous keyboard operation:

3.6 Commissioning

The series of frequency inverters has three operation control modes, which including keyboard control, terminal

control and RS - 485 control. Its control can be selected by setting the function code F0 - 02.

Through keyboard operation, the function code F0 - 02 = 0, i.e. the panel start-stop control mode, presses the

run key on the keyboard, and the frequency inverter starts to run ( the run indicator lights up ); When the frequency

inverter is running, press the stop key on the keyboard to stop the frequency inverter ( the run indicator goes out )

- 21 -

Chapter III Process operation

3.7 Motor characteristic parameter setting and self - learning

When the frequency inverter operates in the “vector control" (F0 - 01 = 0 or 1) mode, it is highly dependent on

accurate motor parameters. This is one of the important differences from the “VF control" (F0 - 01 = 2) mode. In order

for the frequency inverter to have good driving performance and operating efficiency, the frequency inverter must

obtain the preparation parameters of the controlled motor.

Motor 1 parameter

Parameter description

Description

Rated power / voltage / current / frequency / speed of

Model parameters, manual

F1-01 F1-05

motor

input

Equivalent stator resistance, inductance, rotor inductance,

F1-06 F1-20

Tuning parameter

etc. inside the motor

Methods for obtaining the internal electrical parameters of the controlled motor by the frequency inverter include

dynamic identification, static identification, manual input of motor parameters, etc.

Identification method

Application

Identification effect

Suitable for asynchronous motors. Occasions where the

No

- load dynamic

motor and the application system are conveniently

Best

identification

separated

On

- load dynamic

Suitable for asynchronous motors. Where the motor is

May

identification

not easily separated from the application system

It is only suitable for asynchronous motors, where it is

Static identification

difficult to separate the motor from the load and dynamic

Poor

identification of operation is not allowed

It is only suitable for asynchronous motors. When the

motor is difficult to separate from the application system,

Manually

enter

the parameters of the same type of electric machine

May

parameters

successfully identified by the frequency inverter are

copied and input into the corresponding function codes

of F1-00～F1-10

Automatic tuning of motor parameters (motor self - learning) steps are as follows:

The following explains the parameter identification method of the default motor

1 as an example. The

identification method of the motor 2 is the same as that of the default motor 1, except that the function code number

needs to be changed in a targeted way:

z

If the motor can be completely disconnected from the load, under the condition of power failure, the motor

can be mechanically separated from the load so that the motor can rotate freely without load.

z

After power on, first select the frequency inverter command source (F0 - 02) as the operation panel

command channel.

z

Accurately input the nameplate parameters of the motor (for example, F1-00 ～ F1-05). Please input the

parameters of the lower surface according to the actual parameters of the motor (according to the current

motor selection)

z

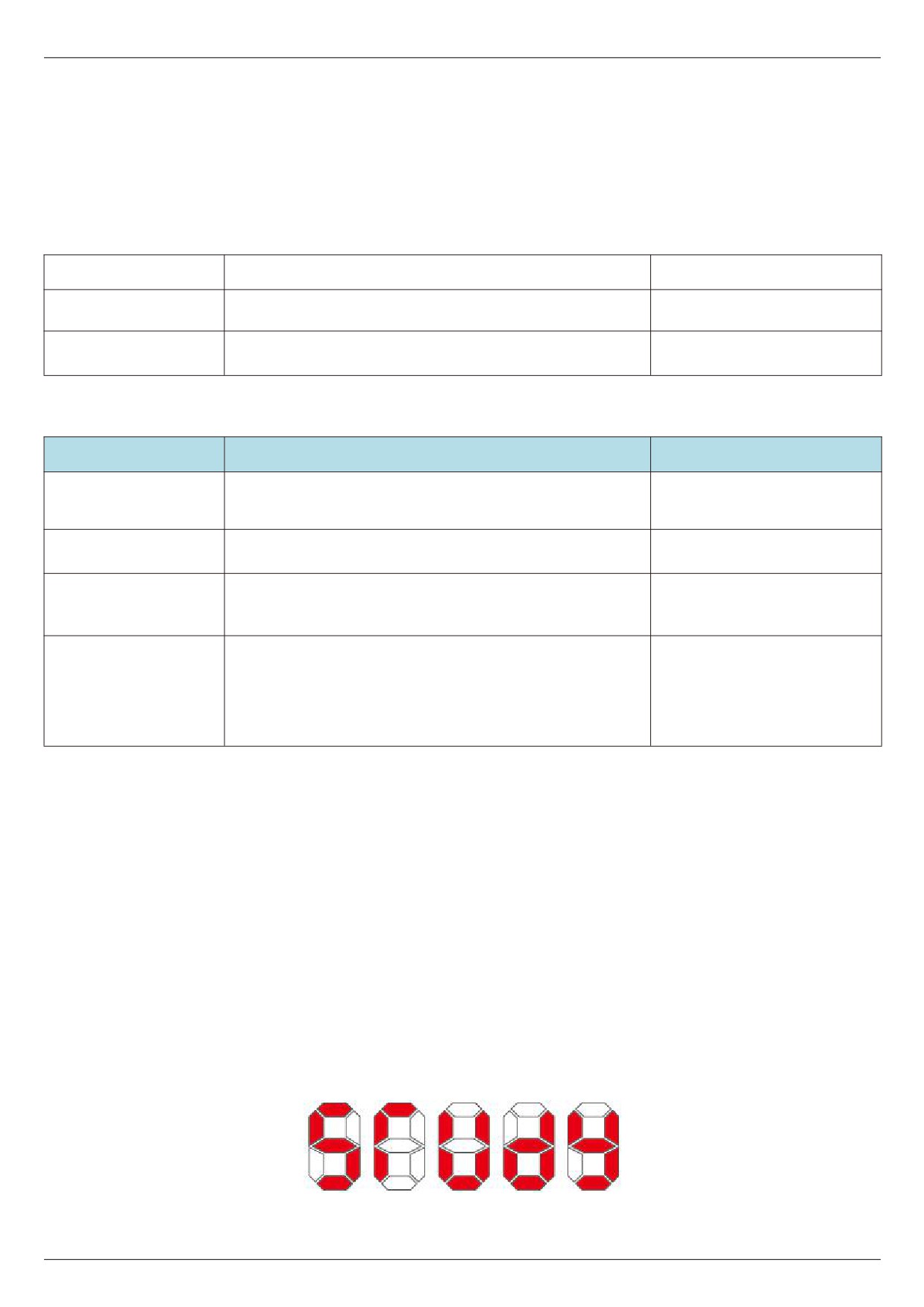

If it is an asynchronous motor, then F1 - 29 (tuning selection, for motor 2, it should be FB- 29 function code)

please select 2 (asynchronous motor fully tuned), press enter to confirm, at this point, the keyboard shows

STUDY, as shown in the following figure:

Then press the run key on the panel, the frequency inverter will drive the motor to accelerate and decelerate,

- 22 -

Chapter IV Functional parameters

Chapter IV Functional parameters

F0 - 46 is set to a value other than 0, i.e. the parameter protection password is set. In the function parameter mode

and the user change parameter mode, the parameter menu cannot be entered until the password is correctly entered.

To cancel the password, F0 - 46 needs to be set to 0.

Group F and group P are basic functional parameters, and group U is monitoring functional parameters.

4.1 Summary of basic functional parameters

Function

Factory

Communica

Name

Setting range

code

value

tion address

F0 group basic functions

Bit: monitoring group U0

0: not displayed

1: display

F0-00

Menu mode selection

11

F000H

Ten digits: special parameter group P

0: not displayed

1: display

0: no PG open loop vector control 1

F0-01

Control operation mode

1: no PG open loop vector control 2

2

F001H

2: V/F control

0: operation panel

Run command channel

F0-02

1: terminals

0

F002H

selection

2: communication

0: Number setting 1

1: Number setting 2

2: AI1

3: AI2

Main frequency source X

4: AI3

F0-03

1

F003H

selection

5: X5 pulse given

6: multi-segment instruction

7: simple PLC

8: PID

9: communication given

0: allowed

F0-04

Anti - reverse selection

1: forbidden (0 frequency operation when

0

F004H

reverse command is applied)

0: standard

Phase sequence

F0-05

1: carry out phase sequence exchange. (rotation

0

F005H

selection

direction changes)

0: allowed (when the power supply is turned on

and there is an operation command, the

Operation selection when

operation will start.)

F0-06

0

F006H

power is on

1: prohibit (even if there is an operation

command while the power supply is on, the

motor selection is also prohibited.)

0: JOG.K is invalid

1: operation panel command channel and

remote command channel ( terminal command

JOG.K key function

channel or communication command channel )

F0-07

0

F007H

selection

switch

2: forward and reverse switching

3: JOG forward

4: reverse JOG

- 24 -

Chapter IV Functional parameters

Function

Factory

Communica

Name

Setting range

code

value

tion address

0: STOP / RES key stop function is valid only in

STOP/RESET key

keyboard operation mode

F0-08

1

F008H

function

1: STOP / RES key stop function is valid in any

operation mode

F0-09

Preset frequency

0.00Hz ~ maximum frequency ( F0

-

16

)

50.00Hz

F009H

0.00s～650.00s(F0-12=2)

Model

F0-10

Acceleration time 1

0.0s～6500.0s(F0-12=1)

determina

F00AH

0s～65000s(F0-12=0)

tion

0.00s～650.00s(F0-12=2)

Model

F0-11

Deceleration time 1

0.0s～6500.0s(F0-12=1)

determina

F00BH

0s～65000s(F0-12=0)

tion

0: 1 second

Acceleration /

F0-12

1: 0.1 second

1

F00CH

deceleration time unit

2: 0.01 second

Acceleration and

0: maximum frequency ( F0 - 12 )

F0-13

deceleration time

1: set frequency

0

F00DH

reference frequency

2: 100Hz

0: slow down and stop

F0-14

Shutdown mode

0

F00EH

1: free parking

F0-15

Droop control

0.00Hz～10.00Hz

0.00Hz

F00FH

50.00Hz～500.00Hz(F0-25=2)

F0-16

Maximum frequency

50.00Hz

F010H

50.0Hz～3200.0Hz(F0-25=1)

0: F0 - 18 settings

1: AI1

2: AI2

F0-17

Upper frequency source

0

F011H

3: AI3

4: X5 pulse setting

5: communication given

Lower frequency F0 - 20 ~ maximum frequency

F0-18

Upper limiting frequency

50.00Hz

F012H

F0 - 16

F0-19

Upper frequency offset

0.00Hz ~ maximum frequency F0 - 16

0.00Hz

F013H

F0-20

Lower limit frequency

0.00Hz ~ upper frequency F0 - 18

0.00Hz

F014H

Operating mode with set

0: the following limited frequency operation

F0-21

frequency lower than

1: shutdown

0

F015H

lower limit frequency

2: zero speed operation

Model

F0-22

Carrier frequency

0.5kHz～16.0kHz

determina

F016H

tion

Carrier frequency adjusts

0: no

F0-23

1

F017H

with load

1: yes

LED shutdown operation

0: shutdown operation display separated

F0-24

0

F018H

display selection

1: stop operation display does not separate

1: one decimal point

F0-25

Frequency decimal point

2

F019H

2: two decimal points

Digital setting frequency

0: no memory

F0-26

shutdown memory

1

F01AH

1: memory

selection

- 25 -

Chapter IV Functional parameters

Function

Factory

Communica

Name

Setting range

code

value

tion address

Runtime frequency

0: operating frequency

F0-27

command UP / DOWN

1

F01BH

1: set frequency

reference

0: motor 1

F0-28

Motor selection

0

F01CH

1: motor 2

Auxiliary frequency

F0-29

Same as F0 - 03 ( main frequency source X )

0

F01DH

source Y

Base value of auxiliary

0: relative to maximum frequency

F0-30

frequency Y range during

0

F01EH

1: relative to frequency source x

superposition

Auxiliary frequency Y

F0-31

range during

0% - 150%

100%

F01FH

superposition

Bit: frequency selection

0: main frequency x

1: main and auxiliary operation results ( the

operation relationship is defined by ten - digit

confirmation )

2: switch between main frequency X and

auxiliary frequency Y.

3: switching between main frequency X and

main and auxiliary operation results

F0-32

Frequency superposition

00

F020H

4. the auxiliary frequency Y is cut OFF from the

result of the main and auxiliary operations

change

10 bits: frequency primary and secondary

operation relation

0: primary + secondary

1: primary and secondary

2: maximum value of both

3: minimum of both

Auxiliary frequency

F0-33

source offset frequency

0.00Hz ~ maximum frequency F0 - 16

0.00Hz

F021H

during superposition

Bit: operation panel command binding

frequency source selection

0: unbound

1: number setting

2: AI1

3: AI2

4: AI3

Command source

5: X5 pulse quantity setting

F0-34

bundling frequency

0000

F022H

6: multi-segment instruction

source

7: simple PLC

8: PID

9: communication given

10 bits: terminal command binding frequency

source selection

100 bits: communication command binding

frequency source selection

0: fan running when running

F0-35

Cooling fan control

0

F023H

1: the fan is running all the time

Forward and reverse

F0-36

0.0s～3000.0s

0.0s

F024H

dead time

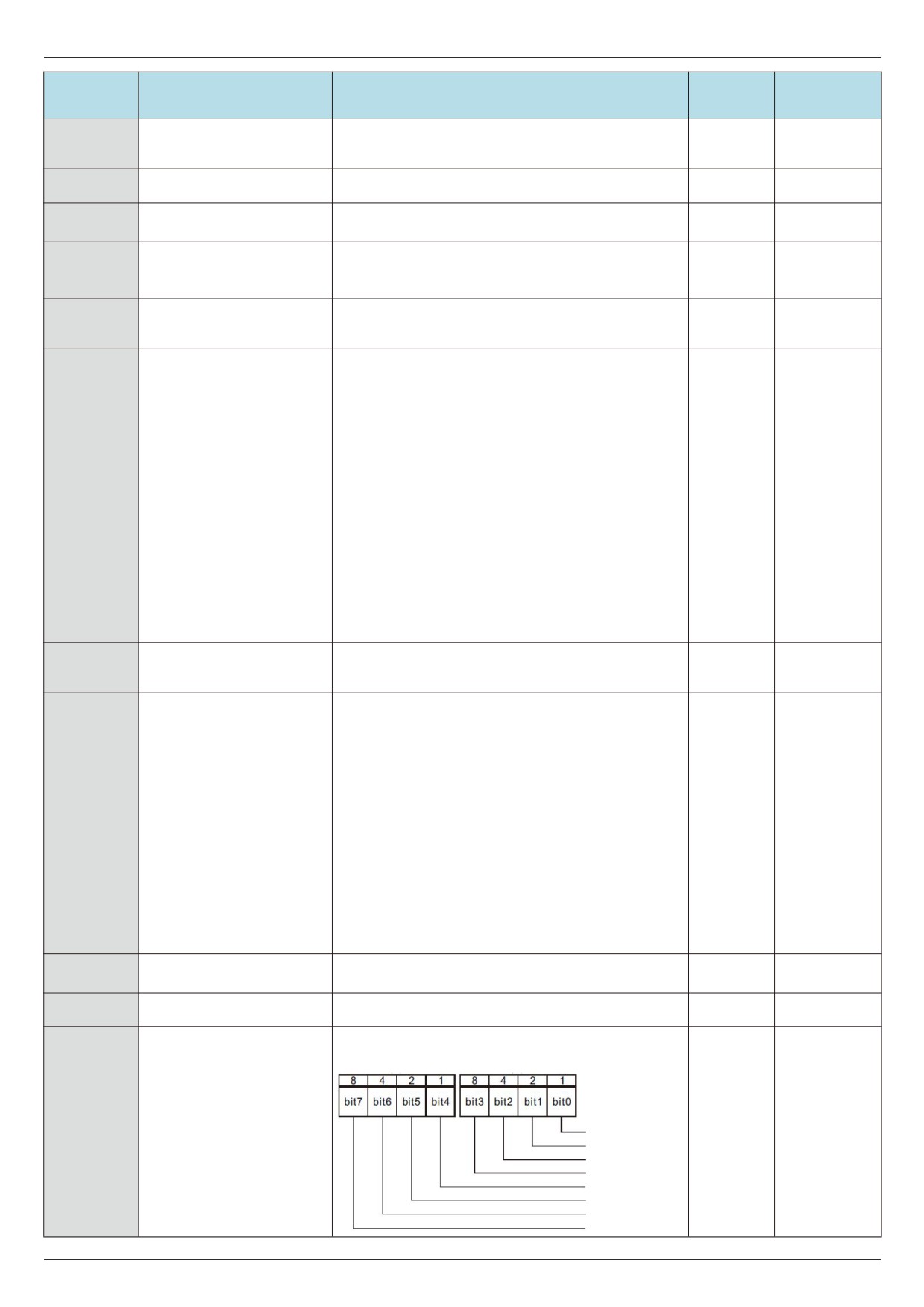

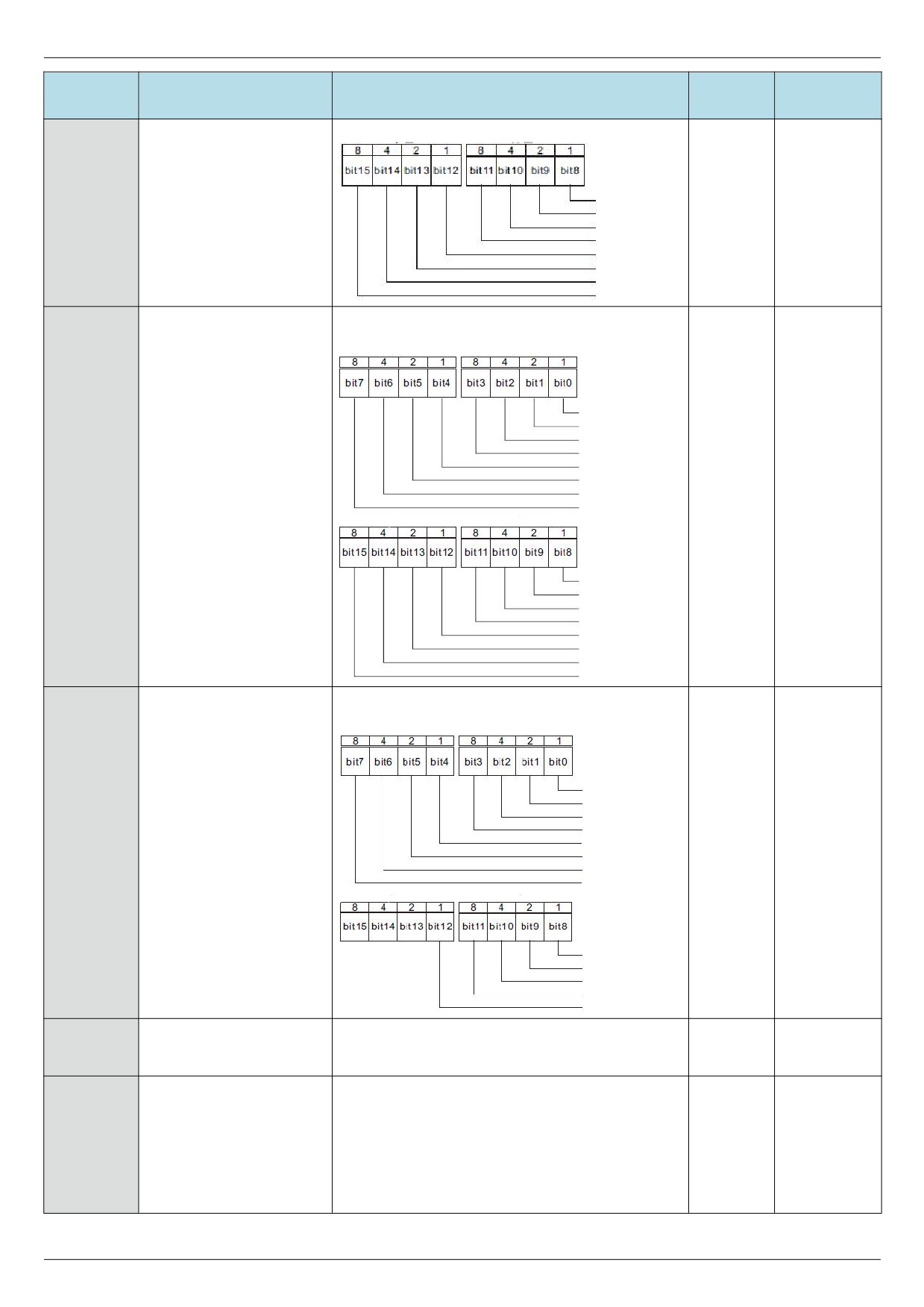

0000～FFFF

Tens

Ones

Parameter 1 displayed at

Operating frequency

F0-37

H401F

F025H

run time

Setting frequency

Bus bar voltage

Output voltage

Output current

Output power

Output torque

X output state

- 26 -

Chapter IV Functional parameters

Function

Factory

Communica

Name

Setting range

code

value

tion address

Kilobit

Hundreds

DO output state

AI1 voltage

A12 voltage

AI3 voltage

Count value

Length value

Load speed

PID setting

0000～FFFF

Tens

Ones

PID feedback

PLC stage

PLUSE input pulse frequency

Sync frequency

Remaining run time

AI1 pre-calibration voltage

Parameter 2 displayed at

AI2 pre-calibration voltage

F0-38

0

F026H

run time

AI3 pre-calibration voltage

Kilobit

Hundreds

Linear speed

Current power-on time

Current operating time

Input pulse frequency Hz

Communication set point

Encoder feedback speed

Main frequency X

Secondary frequency Y

0000～FFFF

Tens

Ones

Set frequency

Bus voltage

X terminal input state

DO output state

Parameter displayed at

AI1 voltage

F0-39

AI2 voltage

33

F027H

stop

AI3 voltage

Count value

Kilobit

Hundreds

Length value

PLC stage

Load speed

PID sets

X5 input frequency

F0-40

speed display coefficient

0.0001 ~ 6.5000

3.0000

F028H

Bit: U0 - 14 decimal places

0: 0 decimal places

1: 1 decimal place

speed display decimal

2: 2 decimal places

F0-41

21

F029H

point setting

3: 3 decimal places

10 bits: U0 - 19 / U0 - 29 decimal places

1: 1 decimal places

2: 2 decimal places

- 27 -

Chapter IV Functional parameters

Function

Factory

Communica

Name

Setting range

code

value

tion address

Bit: user customized parameter group display

selection

0: not displayed

1: display

F0-43

Special menu selection

00

F02BH

10 bits: user changes parameter group display

selection

0: not displayed

1:Display

0: modifiable, monitor able

F0-44

Parameter access level

0

F02CH

1: all cannot be modified and only monitored

F0-45

Keyboard knob sensitivity

0～3

2

F02DH

F0-46

User password

0～65535

0

F02EH

0: no operation

1001: restore factory parameters, excluding

F0-47

Parameter initialization

0

F02FH

electrical machine parameters

1002: resetting recording information

F1 first motor parameter

Model

Rated power of

F1-01

0.1kW～1000.0kW

determina

F101H

asynchronous motor

tion

Model

Rated voltage of

F1-02

1V～2000V

determina

F102H

asynchronous motor

tion

0.01A～655.35A (inverter power <=55kW）

Model

Rated current of

F1-03

0.1A ~ 6553.5A (frequency inverter power >55

determina

F103H

asynchronous motor

kW)

tion

Model

Rated frequency of

F1-04

0.01 Hz ~ maximum frequency

determina

F104H

asynchronous motor

tion

Model

Rated speed of

F1-05

1rpm～65535rpm

determina

F105H

asynchronous motor

tion

0.001Ω~ 65.535Ω (frequency inverter power

<=55kW）

Tuning

F1-06

Stator resistance R1

F106H

0.0001 ~ 6.5535 (frequency inverter

parameter

power >55kW)

0.001Ω~ 65.535Ω (frequency inverter power

<=55kW)

Tuning

F1-07

Rotor resistance R2

F107H

0.0001 ~ 6.5535 (frequency inverter

parameter

power >55kW)

0.01 mH ~ 655.35 mH (frequency inverter power

<=55kW)

Tuning

F1-08

Leakage reactance L1

F108H

0.001 ~ 65.535 mH ( frequency inverter work

parameter

rate > 55 kW)

0.1 mH ~ 6553.5 mH (frequency inverter power

Mutual inductance

<=55kW)

Tuning

F1-09

F109H

resistance L2

0.01 mH ~ 655.35 mH (frequency inverter

parameter

power >55kW)

0.01A ~ F1 - 03 ( frequency inverter power

<=55kW)

Tuning

F1-10

No-load current I0

F10AH

0.1A ~ F1 - 03 ( frequency inverter

parameter

power >55kW)

- 28 -

Content      ..      1       2         ..

//////////////////////
