Oras catalogue (2019) - page 10
Garden valves
Oras garden valve is designed to empty even if a hose is attached to
it. When the valve is closed, any water left inside can get out through
a drain valve from below the gray ring. This avoids problems result-
ing from the freezing of the water.
The garden valve is easy to install. With a durable structure, the
valve cannot be over-tightened when closing it. All maintenance
can be done from the outside.
See the garden valves from page 192.
Washing machine valves
Oras has a wide range of washing machine valves for different plac-
es and use. The collection includes smart valve for dishwasher or
washing machine and manual washing machine valves for hot and
cold water.
See the washing machine valves from page 195.
Green building faucets
Green building faucets is a selection of products that fulfill the gen-
eral requirements for efficient use of water in green building. The
collection includes single lever faucets and kitchen faucets, ther-
mostatic shower faucets with or without shower sets and touchless
smart faucets.
Ask more about Green building faucets from our customer service.
188
Special products
7467 Shower faucet
Thermostatic shower faucet with
Colour: Chrome
assist handles. Assist handles to ease
150±3
temperature adjustment and flow
Pressure loss with flow (0.2 l/s): 150 kPa
control. The temperature control handle
Working pressure: 100 - 1000 kPa
incorporates a limiter. The limiter can be
Flow-rate at 300 kPa: 0.28 l/s
bypassed for hotter water. Flow control
Hot water supply: max. +80°C
by a ceramic disc headpart (open-close
90°). Litter filters and non-return valves
Noise class: I (ISO 3822)
G 3/4
44
are included.
.4ADA50-agafea.
6 414150 060540
324 Hand shower set
ø 60
Disinfection resistant shower set with
Colour: White
hand shower, shower hose (1.5 m),
bracket and quick-release coupling.
Oras Apollo handshower 242068-11,
disinfection resistant
G 1/2
.4ADA50-agehai.
6 414150 064708
325 Bidetta shower set
ø 32
Disinfection resistant Bidetta shower
Colour: White
set with Bidetta hand shower, shower
hose (1.5 m), bracket and quick-release
coupling.
Bidetta hand shower 242069-11,
disinfection resistant
G 1/2
.4ADA50-agfcff.
6 414150 065255
189
Special products
242068-11 Hand shower
Disinfection resistant hand shower
Colour: White
.4ADA50-agfhbc.
6 414150 065712
242069-11 Bidetta hand shower
Disinfection resistant Bidetta hand shower
Colour: White
.4ADA50-aefdih.
6 414150 045387
200400 Safety thermostat
Oras Minimat set with connection
Colour: Chrome
accessories for temperature adjustable
faucets consisting of Oras Minimat
Pressure loss with flow (0.1 l/s): 65 kPa
thermostatic premixer, T-part with swivel
Working pressure: 100 - 1000 kPa
nut 3/8” and two water outlets with 3/8”
Flow-rate at 300 kPa: 0.21 l/s
113
external thread, flexible connection
G 3/8
G 3/8
G 3/8
Noise class: I (ISO 3822)
hose on both sides with swivel nut 3/8”,
300 mm long, one side with curved
connector, 2 gaskets 3/8”.
G 3/8
G 3/8
32
max. 200
.4ADA50-ahddbb.
6 414150 073311
190
Special products
200410 Safety thermostat
Oras Minimat set with connection
Colour: Chrome
accessories for cold or premixed faucets
consisting of Oras Minimat thermostatic
Pressure loss with flow (0.1 l/s): 65 kPa
premixer, flexible connection hose on
Working pressure: 100 - 1000 kPa
both sides with swivel nut 3/8”, 300 mm
Flow-rate at 300 kPa: 0.21 l/s
113
long, 2 gaskets 3/8”.
G 3/8
G 3/8
Noise class: I (ISO 3822)
G 3/8
G 3/8
32
max. 180
.4ADA50-ahdede.
6 414150 073434
101025AC Cold water faucet
Cold water faucet with swivel spout and
Colour: Chrome
aerator
Pressure loss with flow (0.2 l/s): 165 kpa
Working pressure: 50 - 1000 kPa
Flow-rate at 300 kPa: 0.27 l/s
Noise class: II (ISO 3822) Oras lab.
250
ø 45
G 1/2
ø22 - 24
.4ADA50-agache.
6 414150 060274
101026AC Drink dispenser
Drinking water fountain
Colour: Chrome
Working pressure: 50 - 1000 kPa
Flow-rate at 300 kPa (with flow controller):
0.05 l/s
Protection class: IP 40
ø 45
Noise class: I (ISO 3822) Oras lab.
G 1/2
ø22 - 24
.4ADA50-agacib.
6 414150 060281
191
Special products
101027AC Cold water faucet
Cold water faucet with swivel spout
Colour: Chrome
Pressure loss with flow (0.1 l/s): 60 kPa
Working pressure: 50 - 1000 kPa
Flow-rate at 300 kPa: 0.23 l/s
Protection class: IP 00
Noise class: I (ISO 3822) Oras lab.
200
.4ADA50-agacgh.
6 414150 060267
431015 Garden valve, DN15
Garden valve DN 15 ø Cu 15
Recommendation for dimensioning 0.2
l/s/160 kPa
.4ADA50-acdjba.
6 414150 023910
431415 Garden valve, DN15
Garden valve, non-freezing
L = 250 - 450 mm
DN 15 ø Cu 15
Recommendation for dimensioning 0.2
l/s/160 kPa
ø 15
.4ADA50-afbbae.
6 414150 051104
192
Special products
431420 Garden valve, DN20
Garden valve, non-freezing
L = 250 - 450 mm
DN 20 G 3/4
Recommendation for dimensioning 0.4
l/s/160 kPa
G 3/4
.4ADA50-afbjjj.
6 414150 051999
431515 Garden valve, DN15
Garden valve, non-freezing
DN 15 ø Cu 15
Recommendation for dimensioning 0.2
l/s/160 kPa
ø 15
.4ADA50-afbbbb.
6 414150 051111
431520 Garden valve, DN20
Garden valve, non-freezing
DN 20 G 3/4
Recommendation for dimensioning 0.4
l/s/160 kPa
G 3/4
.4ADA50-afcaac.
6 414150 052002
193
Special products
272100 Remote valve, 3 V
Oras remote valve for dishwasher or
Colour: Chrome
ø 52
washing machine. The product consists
of Smart Press Pad, control unit and
Pressure loss with flow (0.2 l/s): 160 kPa
electronic valve. Valve’s open duration is
Working pressure: 100 - 1000 kPa
preset to 4h. Battery operated (3 V).
Flow-rate at 300 kPa: 0.27 l/s
Hot water supply: max. +70°C
G 3/8
l=400
Dishwasher valve open period: 4 h / 12 h
EMC Directive: 2004/108/EY
Protection class: IP 54
Noise class: I (ISO 3822)
29
65
G 3/8
Battery: AA 1.5 V Lithium x 2, CR 2450 3 V
.4ADA50-ahcehf.
6 414150 072475
272101 Remote valve, 230/5 V
Oras remote valve for dishwasher or
Colour: Chrome
ø 52
washing machine. The product consists
of Smart Press Pad, control unit and
Electrical Connection: 230 / 5 V
electronic valve. Valve’s open duration is
Pressure loss with flow (0.2 l/s): 160 kPa
preset to 4h. Mains operated (230/5 V).
Working pressure: 100 - 1000 kPa
G 3/8
l=400
Flow-rate at 300 kPa: 0.27 l/s
Hot water supply: max. +70°C
230 V/5 V
Dishwasher valve open period: 4 h / 12 h
29
65
EMC Directive: 2004/108/EY
G 3/8
l=2 m
Protection class: IP 54 / transformer IP 40
Noise class: I (ISO 3822)
.4ADA50-ahceic.
6 414150 072482
194
Special products
Oras No. 182
Oras No. 105001
Washing machine valve
Washing machine valve
ø 33 - 35
ø 10
30
.4ADA50-aaiebc.
.4ADA50-aaagdi.
6 414150 008412
6 414150 000638
Oras No. 185
Oras No. 105385
Washing machine valve
Drain connection
with parallel piece, for wall-
Not suitable for use with a pop-up
mounted faucet.
waste.
.4ADA50-aaifae.
.4ADA50-aaahjj.
6 414150 008504
6 414150 000799
Oras No. 190
Oras No. 173
Urinal flush valve
Drain connection
Straight connector and cover plate,
45
flush pipe G 3/4.
160
.4ADA50-aaihhb.
.4ADA50-aahhfa.
6 414150 008771
6 414150 007750
Oras No. 2170
Oras No. 158897
Washing machine valve
Handle for Oras Safira
G 3/4 x G 1/2
Straight connector and cover plate.
30
.4ADA50-abbbdj.
.4ADA50-aagaaf.
6 414150 011139
6 414150 006005
Oras No. 107170
Oras No. 201043
Washing machine valve, upright
Oras Oramix long lever handle for
installation
flow control
52
38
.4ADA50-ahgbfc.
.4ADA50-ahcfhe.
6 414150 076152
6 414150 072574
Oras No. 101201
Oras No. 201044
Cold water faucet
Oras Oramix assist handle for
temperature control
55
.4ADA50-aaafeg.
.4ADA50-ahcfib.
6 414150 000546
6 414150 072581
195

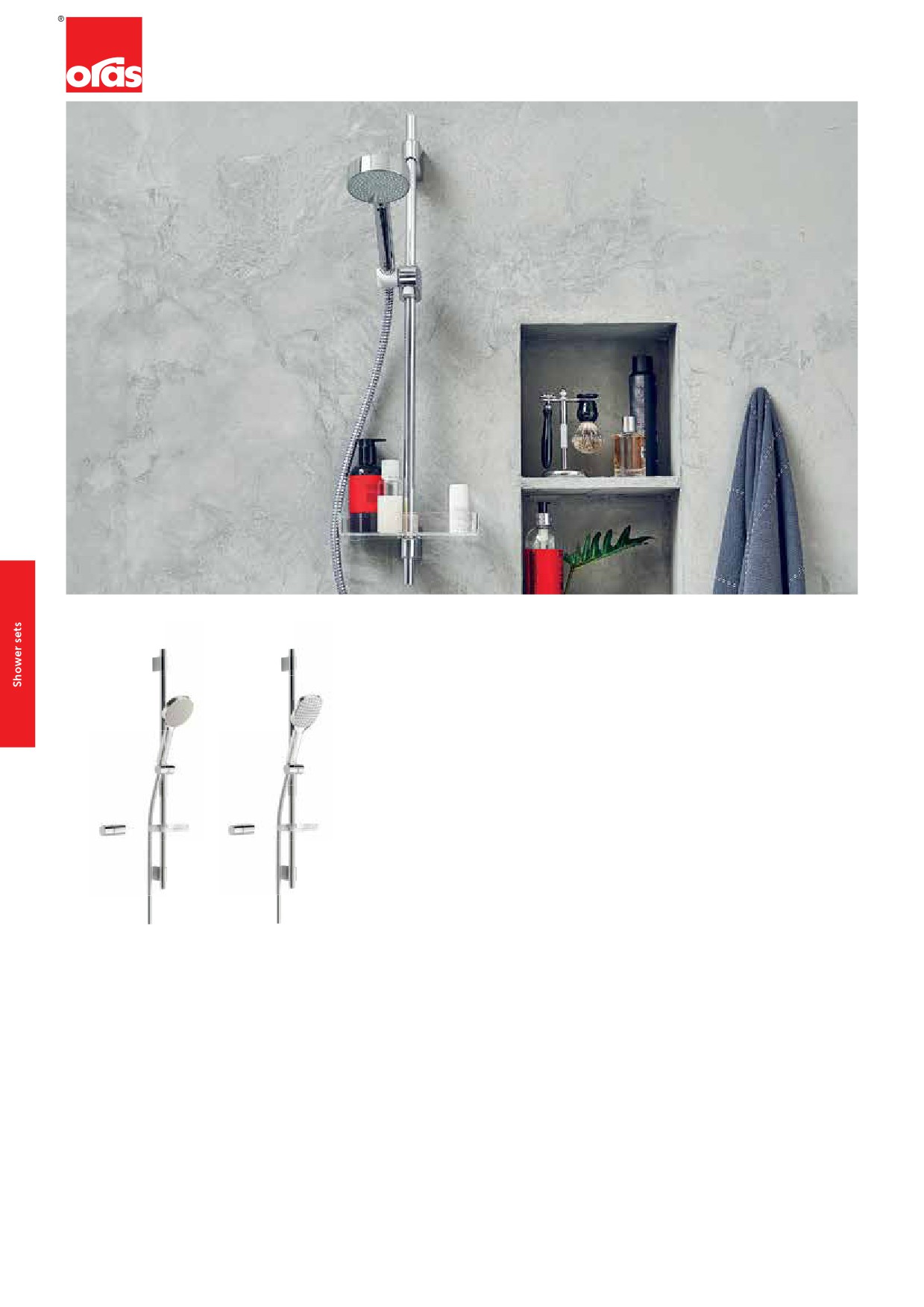

Shower sets
We understand that showering is not merely a practical, daily task, but an
essential and enjoyable experience - one that adds to the quality of your
daily life. Oras is dedicated to perfecting your shower moment by offering
a wide range of high-quality, stylish and eco-friendly solutions with your
well-being at the core, including the enjoyable Oras Hydra, massaging Oras
Sensiva, water-saving Oras Natura, the renewed but still timeless Oras Apol-
lo, the smart Oras Optima and the completely new and stimulating Oras
Hydractiva.
Oras Hydractiva
New Oras Hydractiva product line offers hand showers for personal show-
er experience that smartly adapt to your individual needs and moods. It is
available in two designs: contemporary (round and geometric in light grey)
and style (soft-cube in stylish white) which makes it fit into different shower
architectures and modern bathrooms.
Oras Hydractiva has three sprays to stimulate your body and mind, bringing
your personal shower moment to a whole new level:
- Sensitive: Soft and large relaxing spray to pamper your whole body
- Intense: spray for daily use
- Pulse: Clustered pulsating spray for massage and focused treatment of
specific zones of the body.
196
Shower sets
391 Overhead shower set
Oras Hydra rain shower set
Colour: Chrome
ø 238
Rain shower with lime-free strainer
450
(Ø 238 mm, angle can be adjusted),
shower rail with flexible installation clips,
diverter with spout, soap and shampoo
holder.
200
175
G 1/2
50
92
.4ADA50-agahhj.
6 414150 060779
392 Overhead shower set
Oras Hydra rain and hand shower set
Colour: Chrome
ø 238
Rain shower with lime-free strainer
450
(Ø 238 mm, angle can be adjusted),
shower rail with flexible installation clips,
hand shower with normal and hydra
function, lime-free strainer, 1500 mm
200
shower hose, diverter, shower bracket,
soap and shampoo holder.
175
G 1/2
50
G 1/2
92
.4ADA50-agahig.
6 414150 060786
197
Shower sets
390 Shower set
Oras Hydra shower set
Colour: Chrome
Hand shower with normal and hydra
function, lime-free strainer (ø 105 mm),
1500 mm twist-free shower hose, shower
200
rail with flexible installation clips, shower
bracket, soap and shampoo holder.
175
.4ADA50-agahgc.
6 414150 060762
500 Shower set
Oras Natura shower set
Colour: Chrome
Shower set that fits to Oras thermostatic
ø 82
and pressostatic faucets. Eco button in
the shower head can save up to 50 %
water. Shower set consists of shower
rail with flexible installation clips, hand
shower with normal and eco function,
shower bracket, shower hose 1500 mm,
spacious soap tray and a hook.
ø 22
.4ADA50-agccfe.
6 414150 062254
198
Shower sets
421 Shower set
Oras Hydractiva shower set
Colour: Chrome
including 1-spray hand shower, adjustable
max 740 mm shower rail, soap tray, wall
bracket and 1750 mm shower hose.
Hand shower with Sensitive spray (large
& gently). With limescale protection
tecnology. Max. flow rate 15 l/min (3 bar),
light grey spray face, shower head size
120 mm.
.4ADA50-aiaeha.
6 414150 080470
423 Shower set
Oras Hydractiva shower set
Colour: Chrome
including hand shower, adjustable max
740 mm shower rail, soap tray, wall
bracket and 1750 mm shower hose. Hand
shower with 3 spray modes: Sensitive
(large & gently), Intense (powerful)
and Pulse (massage). With limescale
protection tecnology. Max. flow rate 15 l/
min (3 bar). Light grey spray face, shower
head size 120 mm.
.4ADA50-aiaeih.
6 414150 080487
199
Shower sets
431 Shower set
Oras Hydractiva Style shower set
Colour: Chrome
including 1-spray hand shower, adjustable
max 740 mm shower rail, soap tray, wall
bracket and a 1750 mm shower hose.
Hand shower with Sensitive spray (large
& gently). With limescale protection
tecnology. Max. flow rate 15 l/min (3 bar),
white spray face, shower head size 110
mm x 120 mm.
.4ADA50-aiaeje.
6 414150 080494
433 Shower set
Oras Hydractiva Style shower set
Colour: Chrome
including hand shower, adjustable max
740 mm shower rail, soap tray, wall
bracket and 1750 mm shower hose. Hand
shower with 3 spray modes: Sensitive
(large & gently), Intense (powerful)
and Pulse (massage). With limescale
protection tecnology. Max. flow rate 15l/
min (3 bar). white spray face, shower head
size 110 mm x 120 mm.
.4ADA50-aiafaa.
6 414150 080500
200
Shower sets
2790 Shower set
Oras Optima shower set
Colour: Chrome
including hand shower with multi jet
adjustment for more comfortable shower
ø 22
experience and limescale protection
technology. EcoFlow control. Adjustable
max 720 mm shower rail, wall bracket and
a 1750 mm shower hose
.4ADA50-ahabdg.
6 414150 070136
2796 Shower set
Oras Optima shower set
Colour: Chrome
including hand shower with limescale
protection technology, adjustable max
ø 22
720 mm shower rail, wall bracket and a
1750 mm shower hose.
.4ADA50-ahgcjj.
6 414150 076299
201
Shower sets
2792 Shower set
Oras Optima shower set
Colour: Chrome
including hand shower with multi jet
ø 22
adjustment for more comfortable shower
experience and limescale protection
technology. EcoFlow control. Adjustable
max 740 mm shower rail, firm grip bar,
wall bracket and a 1750 mm shower hose.
390
438
.4ADA50-ahabed.
6 414150 070143
520 Shower set
Oras Apollo shower set
Colour: Chrome
including hand shower with limescale
ø 18
protection technology, 650 mm shower
rail, soap tray and 1500 mm shower hose.
ø 70
.4ADA50-aiagda.
6 414150 080630
202
Shower sets
520-11 Shower set
Oras Apollo shower set
Colour: White
including hand shower with limescale
ø 18
protection technology, 650 mm shower
rail, soap tray and 1500 mm shower hose.
ø 70
.4ADA50-aiageh.
6 414150 080647
530 Shower set
Oras Apollo shower set ECO
Colour: Chrome
including hand shower with limescale
ø 18
protection technology, 650 mm shower
rail, soap tray and 1500 mm shower hose.
ø 70
Water consumption limited to 7 l/min.
.4ADA50-aiagfe.
6 414150 080654
203
Shower sets
530-11 Shower set
Oras Apollo shower set ECO
Colour: White
including hand shower with limescale
ø 18
protection technology, 650 mm shower
rail, soap tray and 1500 mm shower hose.
ø 70
Water consumption limited to 7 l/min.
.4ADA50-aiaggb.
6 414150 080661
540 Shower set
Oras Apollo shower set
Colour: Chrome
including hand shower, adjustable max.
ø 18
720 mm shower rail, 1500 mm shower
hose and a soap tray
ø 70
.4ADA50-ahgbid.
6 414150 076183
204
Shower sets
542 Shower set
Oras Apollo shower set
Colour: Chrome
including hand shower, adjustable max.
ø 18
720 mm shower rail, 1750 mm shower
hose and a soap tray
ø 95
.4ADA50-ahgcag.
6 414150 076206
544 Shower set
Oras Apollo shower set
Colour: Chrome
including hand shower with three spray
ø 18
options including EcoFlow control,
adjustable max. 720 mm shower rail, 1750
ø 95
mm shower hose and a soap tray
.4ADA50-ahgcca.
6 414150 076220
205
Shower sets
546 Shower set
Oras Apollo shower set
Colour: Chrome
including hand shower with three spray
ø 18
options including EcoFlow control,
adjustable max. 720 mm shower rail and a
ø 95
1750 mm shower hose
.4ADA50-ahhfhj.
6 414150 077579
547 Shower set
Oras Apollo shower set
Colour: Chrome
including hand shower, 650 mm shower
ø 18
rail and a 1750 mm shower hose
ø 95
.4ADA50-ahhfgc.
6 414150 077562
206
Shower sets
424 Hand shower set
Oras Hydractiva hand shower set
Colour: Chrome
ø
including 1-spray hand shower, wall
bracket and 1500 mm shower hose.
Hand shower with Sensitive spray (large
& gently). With limescale protection
tecnology. Max. flow rate 15 l/min (3 bar).
Light grey spray face, shower head size
120 mm.
.4ADA50-aiafbh.
6 414150 080517
427 Hand shower set
Oras Hydractiva hand shower set
Colour: Chrome
ø
including hand shower, wall bracket and
1500 mm shower hose. Hand shower with
3 spray modes: Sensitive (large & gently),
Intense (powerful) and Pulse (massage).
With limescale protection tecnology. Max.
flow rate 15l/min (3 bar). Light grey spray
face, shower head size 120 mm.
.4ADA50-aiafce.
6 414150 080524
434 Hand shower set
Oras Hydractiva Style hand shower set
Colour: Chrome
including 1-spray hand shower, wall
bracket and 1500 mm shower hose.
Hand shower with Sensitive spray (large
& gently). With limescale protection
tecnology. Max. flow rate 15l/min (3 bar).
White spray face, shower head size 110
mm x 120 mm.
.4ADA50-aiafdb.
6 414150 080531
207
