Oras Saga
3911F Washbasin faucet
144
Washbasin faucet XL with fixed spout and
Colour: Chrome
aerator. There are also in-built limitation
options for water temperature and
Pressure loss with flow (0.1 l/s): 200 kPa
maximum flow-rate. Flow controller 6.0 l/
Working pressure: 50 - 1000 kPa
min. F= with flexible pipes
Flow-rate at 300 kPa (with flow controller):
110
0.1 l/s
ø33.5
Hot water supply: max. +80°C
Noise class: I (ISO 3822) Oras lab.
G3/8
.4ADA50-ahhidi.
6 414150 077838
3912F Washbasin faucet
137
Washbasin faucet and Bidetta hand
Colour: Chrome
shower. Fixed spout, aerator, shower
hose 1.5 m and wall bracket. There are
Pressure loss with flow (0.1 l/s): 200 kPa
also in-built limitation options for water
Working pressure: 50 - 1000 kPa
103
temperature and maximum flow-rate.
Flow-rate at 300 kPa (with flow controller):
ø 33.5
Flow controller 6.0 l/min.
0.1 l/s
F= with flexible pipes
Hot water supply: max. +80°C
Noise class: I (ISO 3811) Oras lab.
G3/8
.4ADA50-ahhjdh.
6 414150 077937
3915Y Washbasin faucet
Wall-mounted faucet with swivel spout
Colour: Chrome
(150 mm) and eccentric unions and cover
plates are included. There are also in-built
Pressure loss with flow (0.2 l/s): 230 kPa
150±15
192
limitation options for water temperature
Working pressure: 50 - 1000 kPa
and maximum flow-rate.
Flow-rate at 300 kPa: 0.23 l/s
Hot water supply: max. +80°C
Noise class: I (ISO 3822) Oras lab.
84
150
.4ADA50-ahibje.
6 414150 078194
168
Oras Saga
3941 Washbasin faucet
Widespread two handle washbasin faucet.
Colour: Chrome
With fixed spout and pop-up waste, incl.
rough in set.
Working pressure: 50 - 1000 kPa
Flow-rate at 300 kPa (with flow controller):
0.1 l/s
Hot water supply: max. +80°C
.4ADA50-aibaii.
6 414150 081088
3918F Bidet faucet
131
Bidet faucet with ball-jointed aerator.
Colour: Chrome
There are also in-built limitation options
for water temperature and maximum
Pressure loss with flow (0.1 l/s): 200 kPa
flow-rate. Flow controller 6.0 l/min.
Working pressure: 50 - 1000 kPa
106
F= with flexible pipes
Flow-rate at 300 kPa (with flow controller):
ø33.5
ø63
0.1 l/s
Hot water supply: max. +80°C
Noise class: I (ISO 3822) Oras lab.
G1 1/4
G3/8
.4ADA50-ahhjgi.
6 414150 077968
3963Y Shower faucet
Shower faucet with eccentric unions 150
Colour: Chrome
cc and cover plates. There are also in-built
limitation options for water temperature
Pressure loss with flow (0.2 l/s): 165 kPa
150 ± 15
145
and maximum flow-rate.
Working pressure: 50 - 1000 kPa
Flow-rate at 300 kPa: 0.27 l/s
Hot water supply: max. +80°C
G1/2
56
.4ADA50-aiajic.
6 414150 080982
169
Oras Saga
3946F Bath faucet
201
Bath faucet with diverter. There are
Colour: Chrome
also in-built limitation options for water
temperature and maximum flow-rate. F=
Working pressure: 50 - 1000 kPa
with flexible pipes
G1/2
Flow-rate at 300 kPa: 0.33 l/s
ø33.5
Hot water supply: max. +80°C
117
164
G3/8
.4ADA50-ahicgc.
6 414150 078262
3960 Shower faucet
Shower faucet with eccentric unions 150
Colour: Chrome
cc. Shower hose connection G1/2. There
are also in-built limitation options for
Pressure loss with flow (0.2 l/s): 165 kPa
150 ± 3
166
water temperature and maximum flow-
Working pressure: 50 - 1000 kPa
rate.
Flow-rate at 300 kPa: 0.27 l/s
Hot water supply: max. +80°C
Noise class: I(ISO 3822) Oras lab.
G1/2
51
.4ADA50-ahiajf.
6 414150 078095
3970 Shower faucet
Shower faucet with eccentric unions,
Colour: Chrome
shower hose connection G3/4, 150cc.
There are also in-built limitation options
Pressure loss with flow (0.2 l/s): 165 kPa
150 ± 3
166
for water temperature and maximum
Working pressure: 50 - 1000 kPa
flow-rate.
Flow-rate at 300 kPa: 0.27 l/s
Hot water supply: max. +80°C
Noise class: I (ISO 3822) Oras lab.
G3/4
51
.4ADA50-ahibbi.
6 414150 078118
170
Oras Saga
3943 Bath faucet
Bath faucet (4 holes) with fixed diverter
Colour: Chrome
spout, aerator and separate control
handles for hot and cold water. Rough in
Working pressure: 50 - 1000 kPa
set, hand shower and shower hose are
Flow-rate at 300 kPa: 0.33 / 0.25 l/s
included.
Hot water supply: max. +80°C
.4ADA50-aibbab.
6 414150 081101
3944 Bath faucet
Bath faucet (3 holes) with fixed spout,
Colour: Chrome
aerator and separate control handles for
hot and cold water. Incl. rough in set.
Working pressure: 50 - 1000 kPa
Flow-rate at 300 kPa: 0.33 l/s
Hot water supply: max. +80°C
.4ADA50-aibajf.
6 414150 081095
3940 Bath and shower faucet
Bath and shower faucet with fixed
Colour: Chrome
spout, diverter and aerator. There are
150±3
154
also in-built limitation options for water
Pressure loss with flow (0.3 l/s): 300 kPa
temperature and maximum flow-rate.
Pressure loss with flow (0.2 l/s): 165 kPa
Working pressure: 50 - 1000 kPa
Flow-rate at 300 kPa: 0.33 l/s
Hot water supply: max. +80°C
Noise class: II (ISO 3822) Oras lab.
G1/2
82
42
.4ADA50-ahibej.
6 414150 078149
171
Oras Saga
3942 Bath and shower faucet
Bath and shower faucet with swivel
Colour: Chrome
spout (300 mm). There are also in-built
limitation options for water temperature
Pressure loss with flow (0.2 l/s): 230 kPa
150
±
3
373
and maximum flow-rate.
Working pressure: 50 - 1000 kpa
Flow-rate at 300 kPa: 0.23 l/s
Hot water supply: max. +80°C
Noise class: I (ISO 3822) Oras lab.
G1/2
52
300
.4ADA50-ahicce.
6 414150 078224
3972Y Bath and shower faucet
Bath and shower faucet. Eccentric unions
Colour: Chrome
and cover plates are included. There are
150 ± 15
192
also in-built limitation options for water
Pressure loss with flow (0.2 l/s): 230 kPa
temperature and maximum flow-rate.
Working pressure: 50 - 1000 kPa
Flow-rate at 300 kPa: 0.23 l/s
Hot water supply: max. +80°C
Noise class: I (ISO 3822) Oras lab.
115
42
.4ADA50-ahicff.
6 414150 078255
3987 Cover part for shower faucet
150
14
Concealed shower faucet, cover part
Colour: Chrome
including function unit for Oras Bluebox
2080/2081. There are also in-built
Working pressure: 50 - 1000 kPa
limitation options for water temperature
Hot water supply: max. +80°C
and maximum flow-rate.
63 - 93
96 - 126
.4ADA50-ahjcid.
6 414150 079283
172
Oras Saga
3988 Cover part for bath and shower faucet
32
Concealed bath and shower faucet,
Colour: Chrome
150
14
cover part including function unit for
Oras Bluebox 2080/2081. There are
Working pressure: 50 - 1000 kPa
also in-built limitation options for water
Hot water supply: max. +80°C
temperature and maximum flow-rate.
63 - 93
96 - 126
.4ADA50-ahjcja.
6 414150 079290
3989 Cover part for shower faucet
ø 90
Concealed shower faucet, cover part for
Colour: Chrome
installation unit 1486, round Ø 90mm.
There are also in-built limitation options
Working pressure: 50 - 1000 kPa
for water temperature and maximum
Hot water supply: max. +80°C
flow-rate.
EN standard: EN 817
3 - 40
94
.4ADA50-ahjdca.
6 414150 079320
1486 Body for shower faucet
Concealed shower faucet body for No.
44 min.
1487. Solid DR-brass.
Working pressure: 100 - 1000 kPa
14 min.
Flow-rate at 300 kPa: 0.32 l/s
Hot water supply: max. +90°C
G1/2
.4ADA50-ahhbfj.
6 414150 077159
173
Oras Saga
3951Y Bath and shower faucet with shower set
Bath and shower faucet with shower set.
Colour: Chrome
Bath and shower with fixed spout, diverter
and aerator. Cover plates are included.
Pressure loss with flow (0.3 l/s): 300 kPa
150 ± 15
180
There are also in-built limitation options
Pressure loss with flow (0.2 l/s): 165 kPa
for water temperature and maximum
Working pressure: 50 - 1000 kPa
flow-rate.
Flow-rate at 300 kPa: 0.27 l/s
Hot water supply: max. +80°C
Noise class: II (ISO 3822) Oras lab,
42
.4ADA50-ahibih.
6 414150 078187
174
Oras Bluebox

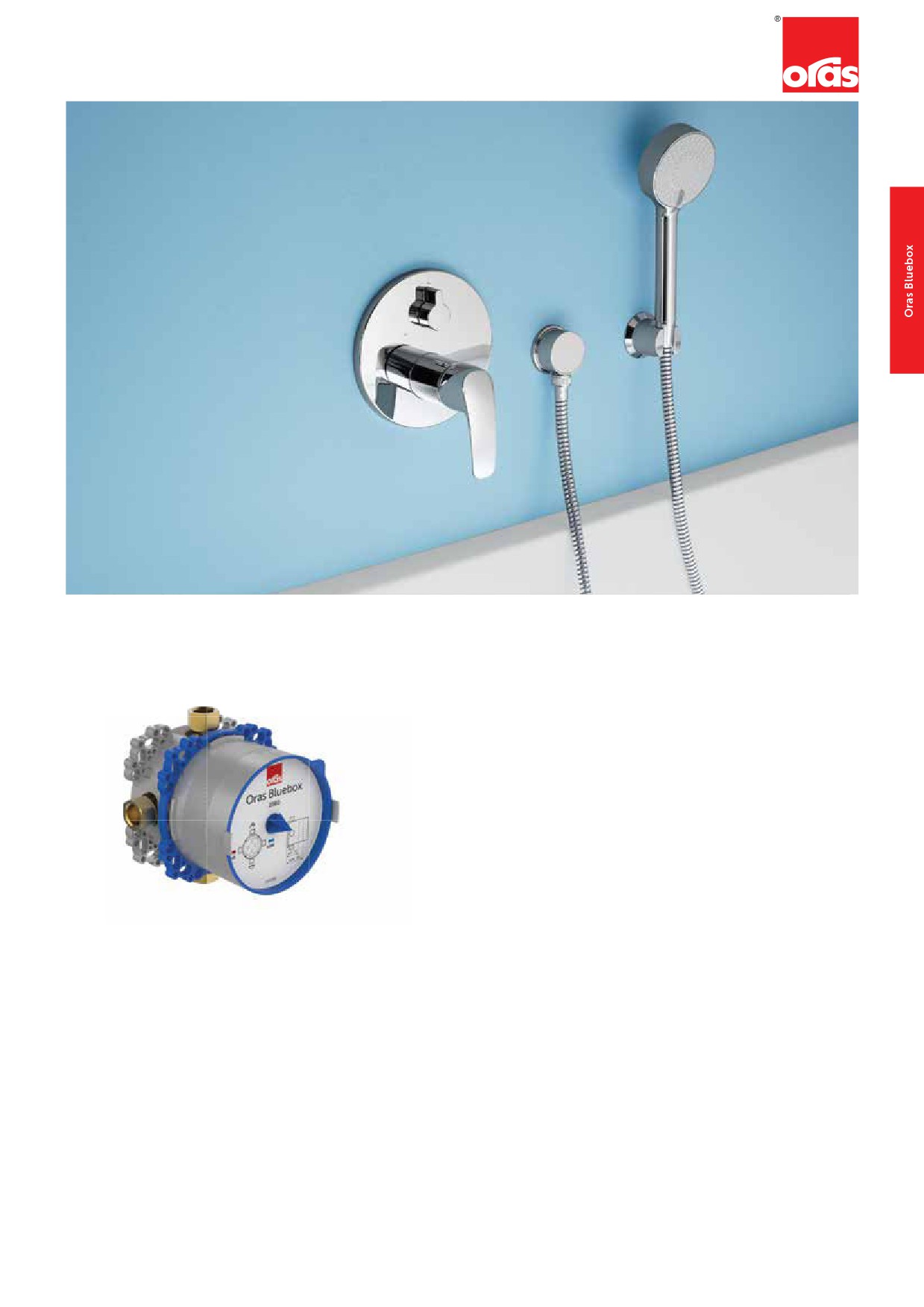

Oras Bluebox - concealed competence
Oras Bluebox is the new completely re-developed standard system for con-
cealed installations, suited for all installation systems. Across all series, the
system offers exemplary functions and features that affect and optimize the
entire installation process: from the installation set to the function units and
all the way to the trim kits.
In Oras Bluebox you can find best technology as standard. This includes fea-
tures like the ceramic Blueswitch diverter, which means greater convenience
for the customer in the form of pressure-independent functionality, clear
position, and lasting ease of operation. Details such as the telescope connec-
tor enables equalization of the installation depth and functionally sage con-
nection of trim kit diverter with the function unit. The new Bluebox system
enables also enhanced flexibility in planning: If a customer has installed the
Bluebox body, the decision over the line of function (whether to be installed
with a single-lever or thermostatic mixer) can be made later on. This gives
plumbers and bathroom renovators more time and flexibility to choose the
perfect equipment for the bathroom. The flexibility of installation is further
increased with Bluefix-function, which makes it possible to easily mount
Oras Bluebox in every wall installation.
These and other features of Oras Bluebox together with the perfect harmoni-
zation of all components gives you as the installer maximum assurance dur-
ing the installation - not to forget economic savings. Safe and flexible instal-
lation, reliable functionality, lasting ease of use and - just in case - minimum
maintenance and changing costs: Oras Bluebox is a complete package that
gets everything right, giving you more time to enjoy other important things
in life.
175
Oras Bluebox
2080 Body for bath and shower faucet, G1/2
164
G 1/2
Oras Bluebox body part, DN 15 concealed
unit
Working pressure: 50 - 1000 kPa
Hot water supply: max. +80°C
7
57
31
75
31
78
75
108110
105
122
125
10
5
135
5
5
5
.4ADA50-ahjcgj.
6 414150 079269
2081 Body for bath and shower faucet, G3/4
168
G 3/4
Oras Bluebox body part, DN 20 concealed
unit, with shut-off valves
Working pressure: 50 - 1000 kPa
Hot water supply: max. +80°C
7
31
57
75
31
78
75
108
110
105
122
125
10
5
135
5
5
5
.4ADA50-ahjchg.
6 414150 079276
2077 Cover part for shower faucet
ø170
40
Oras Bluebox cover part for thermostatic
Colour: Chrome
shower faucet with volume and
temperatur control handles. Included
Working pressure: 100 - 1000 kPa
function unit and cover plate. Suitable for
Flow-rate at 300 kPa: 0.38 l/s
body parts Oras nr 2080 and 2081.
Hot water supply: max. +80°C
Noise class: I (ISO 3822)
14
ø56
64-94
.4ADA50-aibibb.
6 414150 081811
176
Oras Bluebox
2078 Cover part for bath and shower faucet
ø170
40
Oras Bluebox cover part for thermostatic
Colour: Chrome
bath and shower faucet with volume
and temperatur control handle. Included
Working pressure: 100 - 1000 kPa
function unit and cover plate. Suitable for
Flow-rate at 300 kPa: 0.37 l/s
body parts Oras nr 2080 and 2081.
Hot water supply: max. +80°C
Noise class: I (ISO 3822)
14
ø56
64-94
.4ADA50-aibici.
6 414150 081828
2087 Cover part for shower faucet
ø170
41
Oras Bluebox cover part for thermostatic
Colour: Chrome
shower faucet with volume and
temperatur control handles. Round plate.
Working pressure: 100 - 1000 kPa
Included function unit and cover plate.
Flow-rate at 300 kPa: 0.37 l/s
Suitable for body parts Oras nr 2080 and
Hot water supply: max. +80°C
2081.
Noise class: I (ISO 3822)
14
ø56
64-94
.4ADA50-aibifj.
6 414150 081859
2088 Cover part for bath and shower faucet
ø170
41
Oras Bluebox cover part for thermostatic
Colour: Chrome
bath and shower faucet with volume and
temperatur control handle. Round plate.
Working pressure: 100 - 1000 kPa
Included function unit and cover plate.
Flow-rate at 300 kPa: 0.37 l/s
Suitable for body parts Oras nr 2080 and
Hot water supply: max. +80°C
2081.
Noise class: I (ISO 3822)
14
ø56
64-94
.4ADA50-aibihd.
6 414150 081873
177
Oras Bluebox
2097 Cover part for shower faucet
41
Oras Bluebox cover part for thermostatic
Colour: Chrome
150
shower faucet with volume and
temperatur control handles. Square plate.
Working pressure: 100 - 1000 kPa
Included function unit and cover plate.
Flow-rate at 300 kPa: 0.38 l/s
Suitable for body parts Oras nr 2080 and
Hot water supply: max. +80°C
2081.
Noise class: I (ISO 3822)
ø56
14
64-94
.4ADA50-aibigg.
6 414150 081866
2098 Cover part for bath and shower faucet
41
Oras Bluebox cover part for thermostatic
Colour: Chrome
150
bath and shower faucet with volume and
temperatur control handle. Square plate.
Working pressure: 100 - 1000 kPa
Included function unit and cover plate.
Flow-rate at 300 kPa: 0.37 l/s
Suitable for body parts Oras nr 2080 and
Hot water supply: max. +80°C
2081.
Noise class: I (ISO 3822)
ø56
14
64-94
.4ADA50-aibiia.
6 414150 081880
178
Medipro
Oras aims to provide the best Health and Care portfolio on the market based
on our core expertise and long-time knowledge of healthcare solutions.
Touchless faucets substantially improve hand hygiene. User-friendliness,
safety, and ease of cleaning add value to these products. The electronic
function also ensures that water flows only when needed.
Oras Medipro is a product family specially designed for hospitals, medical
clinics and nursery homes, which have special demands for water fittings
due to strict hygiene guidelines and ergonomics. Our aim is to meet cus-
tomer needs with reliable products and advanced performance.
Oras introduced electronic faucets almost 30 years ago. The world is be-
coming increasingly digital and electronics can be used in new ways, such
as monitoring and adjusting electronic faucets using an app and Blue-
tooth® connection.
The Oras Medipro product family has also been extended to Bluetooth®-
compatible touchless variants that can be easily monitored and adjusted
using the Oras App. Oras meets high demands for hygiene by providing
specially manufactured shower equipment for health and care facilities that
are made for disinfection washer use.
The modern design of Oras Medipro also ensures the wellbeing of users.
Thanks to the rounded edges and closed lever shape, Oras Medipro prod-
ucts are hygienic, easy to use and easy to keep clean.
179
Oras Medipro
5520F Washbasin faucet, 9/12 V
159
Touchless washbasin faucet to pre-mixed
Colour: Chrome
or cold water developed especially to
healthcare use. Autofocus sensor with
Electrical Connection: 9 / 12 VDC
Bluetooth connection enables easy
Pressure loss with flow (0.1 l/s): 200 kPa
117
monitoring and adjustments. Laminar
ø55
Working pressure: 100 - 1000 kPa
ø33.5
flow (6 l/min). The faucet is equipped
Flow-rate at 300 kPa (with flow controller):
with a litter filter and a special flexible
0.1 l/s
connection hose with a integrated non-
return valve.
Max. flow period: 2 min
Mains operated 9 V or 12 V. Electrical
Hot water supply: max. +70°C
connection 9 V with plugtransformer or
Intelligent afterflow period: 2 s ± 1 s
12 V via a separate transformer. Power
EMC Directive: 2014/30/EU
G3/8
alternatives are not included to product.
Recognition range: optimally preset
Protection class: IP 55
Noise class: I (ISO 3822) Oras lab.
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-aiabdf.
6 414150 080135
5521F Washbasin faucet, 9/12 V
159
Touchless washbasin faucet developed
Colour: Chrome
especially to healthcare use with
a temperature adjustment handle.
Electrical Connection: 9 / 12 VDC
Autofocus sensor with Bluetooth
Pressure loss with flow (0.1 l/s): 200 kPa
117
connection enables easy monitoring and
ø55
Working pressure: 100 - 1000 kPa
ø33.5
adjustments. Laminar flow (6 l/min). The
Flow-rate at 300 kPa (with flow controller):
faucet is equipped with litter filters and
0.1 l/s
special flexible connection hoses with
integrated non-return valves.
Max. flow period: 2 min
Mains operated 9 V or 12 V. Electrical
Hot water supply: max. +70°C
connection 9 V with plugtransformer or
Intelligent afterflow period: 2 s ± 1 s
G3/8
12 V via a separate transformer. Power
EMC Directive: 2014/30/EU
alternatives are not included to product.
Recognition range: optimally preset
Protection class: IP 55
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-aiabfj.
6 414150 080159
5522F High washbasin faucet, 9/12 V
178
XL touchless washbasin faucet to pre-
Colour: Chrome
mixed or cold water developed especially
to healthcare use. Autofocus sensor
Electrical Connection: 9 / 12 VDC
with Bluetooth connection enables easy
Pressure loss with flow (0.1 l/s): 200 kPa
monitoring and adjustments. Laminar
136
Working pressure: 100 - 1000 kPa
ø55
flow (6 l/min). The faucet is equipped
ø33.5
with a litter filter and a special flexible
Flow-rate at 300 kPa (with flow controller):
0.1 l/s
connection hose with a integrated non-
return valve.
Max. flow period: 2 min
Mains operated 9 V or 12 V. Electrical
Hot water supply: max. +70°C
connection 9 V with plugtransformer or
Intelligent afterflow period: 2 s ± 1 s
12 V via a separate transformer. Power
EMC Directive: 2014/30/EU
G3/8
alternatives are not included to product.
Recognition range: optimally preset
Protection class: IP 55
Noise class: I (ISO 3822) Oras lab.
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-aiabec.
6 414150 080142
The Bluetooth® trademark and logos are property of Bluetooth SIG, Inc.,
and their usage is licensend for Orasgroup. Other brands and trade names
are property of the respective owners.
180
Oras Medipro
5523F High washbasin faucet, 9/12 V
178
XL touchless washbasin faucet developed
Colour: Chrome
especially to healthcare use with
a temperature adjustment handle.
Electrical Connection: 9 / 12 VDC
Autofocus sensor with Bluetooth
Pressure loss with flow (0.1 l/s): 200 kPa
136
connection enables easy monitoring and
Working pressure: 100 - 1000 kPa
ø55
adjustments. Laminar flow (6 l/min). The
ø33.5
Flow-rate at 300 kPa (with flow controller):
faucet is equipped with litter filters and
0.1 l/s
special flexible connection hoses with
integrated non-return valves.
Max. flow period: 2 min
Mains operated 9 V or 12 V. Electrical
Hot water supply: max. +70°C
connection 9 V with plugtransformer or
Intelligent afterflow period: 2 s ± 1 s
G3/8
12 V via a separate transformer. Power
EMC Directive: 2014/30/EU
alternatives are not included to product.
Recognition range: optimally preset
Protection class: IP 55
Noise class: I (ISO 3822) Oras lab.
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-aiabgg.
6 414150 080166
199275 Transformer, 230/12 VDC 1A
The power supply is designed for use with
products (12 V). A maximum 5 of these
Electrical Connection: 230 VAC
items can be connected to the power
Output current: 1 A
supply at a time (please check the amount
EMC Directive: 2004/108/EY
of items from the products installation
230 V
Protection class: IP 00
guide, because it could be limited
INPUT: 230V 50Hz 150mA
OUTPUT: 12V
1A 12 W
smaller). The total length of the cable
12 V
between the power supply and the faucet
may not exceed 100 m. Low-voltage
cable 2 x > = 0.5 mm². The transformer
is installed in a 70 mm appliance box
50
32
equipped with a cover.
Power supply installation must be carried
out by a qualified electrician.
.4ADA50-afihhg.
6 414150 058776
199510 Connection cable, L=10000
Connection cable
L=10000 mm
.4ADA50-aigfcg.
6 414150 086526
The Bluetooth® trademark and logos are property of Bluetooth SIG, Inc.,
and their usage is licensend for Orasgroup. Other brands and trade names
are property of the respective owners.
181
Oras Medipro
199550 Power supply, 230/9 V, 550 mA
Power supply
230/9 V, 550 mA
Electrical Connection: 230 VAC
L=1500 mm
EMC Directive: 2014/30/EU
Protection class: IP 40
.4ADA50-aifjdc.
6 414150 085932
5550F Washbasin faucet, 6 V
159
Touchless washbasin faucet to pre-mixed
Colour: Chrome
or cold water developed especially to
healthcare use. Autofocus sensor with
Pressure loss with flow (0.1 l/s): 200 kPa
Bluetooth connection enables easy
Working pressure: 100 - 1000 kPa
117
monitoring and adjustments. Laminar
ø55
Flow-rate at 300 kPa (with flow controller):
flow (6 l/min). The faucet is equipped
ø33.5
0.1 l/s
with a litter filter and a special flexible
Max. flow period: 2 min
connection hose with a integrated non-
return valve.
Hot water supply: max. +70°C
Battery operated 6 V.
Intelligent afterflow period: 2 s ± 1 s
EMC Directive: 2014/30/EU
Recognition range: optimally preset
G3/8
Protection class: IP 55
Noise class: I (ISO 3822) Oras lab.
Battery: Lithium 2CR5 6 V
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-aiabjh.
6 414150 080197
5551F Washbasin faucet, 6 V
159
Touchless washbasin faucet developed
Colour: Chrome
especially to healthcare use with
a temperature adjustment handle.
Pressure loss with flow (0.1 l/s): 200 kPa
Autofocus sensor with Bluetooth
Working pressure: 100 - 1000 kPa
117
connection enables easy monitoring and
ø55
Flow-rate at 300 kPa (with flow controller):
adjustments. Laminar flow (6 l/min). The
ø33.5
0.1 l/s
faucet is equipped with litter filters and
Max. flow period: 2 min
special flexible connection hoses with
integrated non-return valves.
Hot water supply: max. +70°C
Battery operated 6 V.
Intelligent afterflow period: 2 s ± 1 s
EMC Directive: 2014/30/EU
Recognition range: optimally preset
G3/8
Protection class: IP 55
Noise class: I (ISO 3822) Oras lab.
Battery: Lithium 2CR5 6 V
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-aiacad.
6 414150 080203
The Bluetooth® trademark and logos are property of Bluetooth SIG, Inc.,
and their usage is licensend for Orasgroup. Other brands and trade names
are property of the respective owners.
182
Oras Medipro
5552F High washbasin faucet, 6 V
178
XL touchless washbasin faucet to pre-
Colour: Chrome
mixed or cold water developed especially
to healthcare use. Autofocus sensor
Pressure loss with flow (0.1 l/s): 200 kPa
with Bluetooth connection enables easy
Working pressure: 100 - 1000 kPa
136
monitoring and adjustments. Laminar
Flow-rate at 300 kPa (with flow controller):
ø55
flow (6 l/min). The faucet is equipped
ø33.5
0.1 l/s
with a litter filter and a special flexible
Max. flow period: 2 min
connection hose with a integrated non-
return valve.
Hot water supply: max. +70°C
Battery operated 6 V.
Intelligent afterflow period: 2 s ± 1 s
EMC Directive: 2014/30/EU
Recognition range: optimally preset
G3/8
Protection class: IP 55
Noise class: I (ISO 3822) Oras lab.
Battery: Lithium 2CR5 6 V
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-aiabhd.
6 414150 080173
5553F High washbasin faucet, 6 V
178
XL touchless washbasin faucet developed
Colour: Chrome
especially to healthcare use with
a temperature adjustment handle.
Pressure loss with flow (0.1 l/s): 200 kPa
Autofocus sensor with Bluetooth
Working pressure: 100 - 1000 kPa
connection enables easy monitoring and
136
Flow-rate at 300 kPa (with flow controller):
ø55
adjustments. Laminar flow (6 l/min). The
0.1 l/s
ø33.5
faucet is equipped with litter filters and
Max. flow period: 2 min
special flexible connection hoses with
integrated non-return valves.
Hot water supply: max. +70°C
Battery operated 6 V.
Intelligent afterflow period: 2 s ± 1 s
EMC Directive: 2014/30/EU
Recognition range: optimally preset
G3/8
Protection class: IP 55
Noise class: I (ISO 3822) Oras lab.
Battery: Lithium 2CR5 6 V
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-aiabia.
6 414150 080180
5510A Washbasin faucet
143
Oras Medipro washbasin faucet. Firm long
Colour: Chrome
120
lever offers good usability to all users and
situations. Fixed spout and laminar flow.
Pressure loss with flow (0.1 l/s): 80 kPa
Ø 10 mm Cu inlet pipes.
Working pressure: 50 - 1000 kPa
32°
Flow-rate at 300 kPa: 0.2 l/s
Hot water supply: max. +80°C
Noise class: I (ISO 3822)
33.5
55
10
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-ahejaf.
6 414150 074905
The Bluetooth® trademark and logos are property of Bluetooth SIG, Inc.,
and their usage is licensend for Orasgroup. Other brands and trade names
are property of the respective owners.
183
Oras Medipro
5510B Washbasin faucet
149
Oras Medipro washbasin faucet. Firm
Colour: Chrome
120
loop-lever offers good usability to all
users and situations. Fixed spout and
Pressure loss with flow (0.1 l/s): 80 kPa
laminar flow. Ø 10 mm Cu inlet pipes.
Working pressure: 50 - 1000 kPa
32°
Flow-rate at 300 kPa: 0.2 l/s
Hot water supply: max. +80°C
Noise class: I (ISO 3822)
33.5
55
10
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-aheijj.
6 414150 074899
5512AF Washbasin faucet
Oras Medipro washbasin faucet with
Colour: Chrome
disinfection wash proof Bidetta shower
set. Firm long lever offers good usability
Working pressure: 50-1000 kPa
to all users and situations. Fixed spout
Flow-rate at 300 kPa: 0.11 l/s
and laminar flow. Shower hose 1.5 m,
Hot water supply: max. +80°C
wall bracket, two pairs of quick-release
Noise class: I (ISO 3822)
couplings. Special flexible connection
pipes with G3/8” nut.
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-aijiaa.
6 414150 089800
5512BF Washbasin faucet
Oras Medipro washbasin faucet with
Colour: Chrome
disinfection wash proof Bidetta shower
set. Firm loop-lever offers good usability
Working pressure: 50 - 1000kPa
to all users and situations. Fixed spout
Flow-rate at 300 kPa: 0.11 l/s
and laminar flow. Shower hose 1.5 m,
Hot water supply: max. +80°C
wall bracket, two pairs of quick-release
Noise class: I (ISO 3822)
couplings. Special flexible connection
pipes with G3/8” nut.
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-aijibh.
6 414150 089817
184
Oras Medipro
5526B Washbasin faucet
Oras Medipro wall-mounted washbasin
Colour: Chrome
265
faucet. Firm loop-lever offers good
usability to all users and situations. A
Pressure loss with flow (0.1 l/s): 80 kPa
161 mm swivel spout and laminar flow.
Working pressure: 50 - 1000 kPa
Includes three-time sealed cover plates.
Flow-rate at 300 kPa: 0.2 l/s
Hot water supply: max. +80°C
Noise class: I (ISO 3822)
161
150
10
246
3°
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-ahejhe.
6 414150 074974
5536A Washbasin faucet
Oras Medipro wall-mounted washbasin
Colour: Chrome
255
faucet with long lever, a 226 mm swivel
spout and laminar flow. Includes three-
Pressure loss with flow (0.1 l/s): 80 kPa
time sealed cover plates.
Working pressure: 50 - 1000 kPa
Flow-rate at 300 kPa: 0.2 l/s
Hot water supply: max. +80°C
Noise class: I (ISO 3822)
226
150
10
311
3°
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-ahfabi.
6 414150 075018
5536B Washbasin faucet
Oras Medipro wall-mounted washbasin
Colour: Chrome
265
faucet with firm loop-lever offers good
usability to all users and situations. A 226
Pressure loss with flow (0.1 l/s): 80 kPa
mm swivel spout 120°. Includes three-
Working pressure: 50 - 1000 kPa
time sealed cover plates.
Flow-rate at 300 kPa: 0.2 l/s
Hot water supply: max. +80°C
Noise class: I (ISO 3822)
226
150
10
311
3°
ORAS PROTEC
WATER HYGIENE
T
.4ADA50-ahfaab.
6 414150 075001
185
Oras Medipro
242055 Hand shower
Oras Medipro Flex innovative handshower
Colour: Chrome
with ergonomic handle.
ø 100
G 1/2
.4ADA50-ahfadc.
6 414150 075032
242067-11 Hand shower
Oras Medipro Flex innovative disinfection
Colour: White
wash proof handshower with ergonomic
handle.
ø 100
G 1/2
.4ADA50-ahfbjd.
6 414150 075193
323 Hand shower set
Oras Medipro Flex showerset, disinfection
Colour: White
ø 100
wash proof handshower, shower hoese
1.5 m.
G 1/2
.4ADA50-aiajee.
6 414150 080944
186
Oras Medipro
Oras No. 211008
Oras No. 241220
Spout
Shower hose
L=86 mm
L=2000 mm
.4ADA50-ahfiba.
.4ADA50-ahfiad.
6 414150 075810
6 414150 075803
Oras No. 211016
Spout
L=161 mm
.4ADA50-ahfich.
6 414150 075827
Oras No. 211022
Spout
L=226 mm
.4ADA50-ahfide.
6 414150 075834
Oras No. 241212
Shower hose
L=1250 mm
.4ADA50-ahfhhd.
6 414150 075773
Oras No. 241216
Shower hose
L=1600 mm
.4ADA50-ahfhia.
6 414150 075780
Oras No. 241217
Shower hose
L=1750 mm
.4ADA50-ahfhjh.
6 414150 075797
187
