Takeuchi Hydraulic excavator TB1160W (Serial No. 514500002~). Operator's Manual (2016) - page 8
SPECIFICATIONS
LIFTING CAPACITIES
LIFTING CAPACITIES
Rated lift capacity chart
• Do not attempt to lift or hold any load
• The loads in the charts do not exceed 87%
that is greater than these rated values at
of hydraulic lift capacity or 75% of tipping
their specified load radii and height.
load.
• The rated lift capacities are based on
• Figures marked with an asterisk (*) are
the machine being level and situated on
hydraulically-limited capacities.
a firm supporting surface. For safe
• The mass of slings and any other lifting
lifting, the operator is expected to make
devices shall be deducted from the rated
due allowance for the particular job
load to determine the net load that may be
conditions such as soft or uneven
lifted.
ground, non-level condition, load to the
• The load point is the bucket hinge pin, and
machine sides, hazardous conditions,
the bucket posture is with the standard
experience of personnel, etc. The
bucket completely retracted under the arm.
operator and other personnel should
• Unit: daN (lbs)
fully acquaint themselves with the
operator’s manual furnished by the
Load hooking system
manufacturer before operating this
A load hooking system must be provided
machine. When operating the machine,
with the following capabilities.
the safety rules of the equipment must
1. A system which can withstand twice the
also be followed.
rated lift capacity no matter at what
• Do not travel while lifting a load; It is
position the load is applied.
very dangerous.
2. A system that poses no risk of the lifted
load falling from the hooking device. For
example, equipped with a hook slippage
prevention device.
3. A system that poses no risk of the hooking
system slipping from the hoe attachment.
7-9
SPECIFICATIONS
LIFTING CAPACITIES

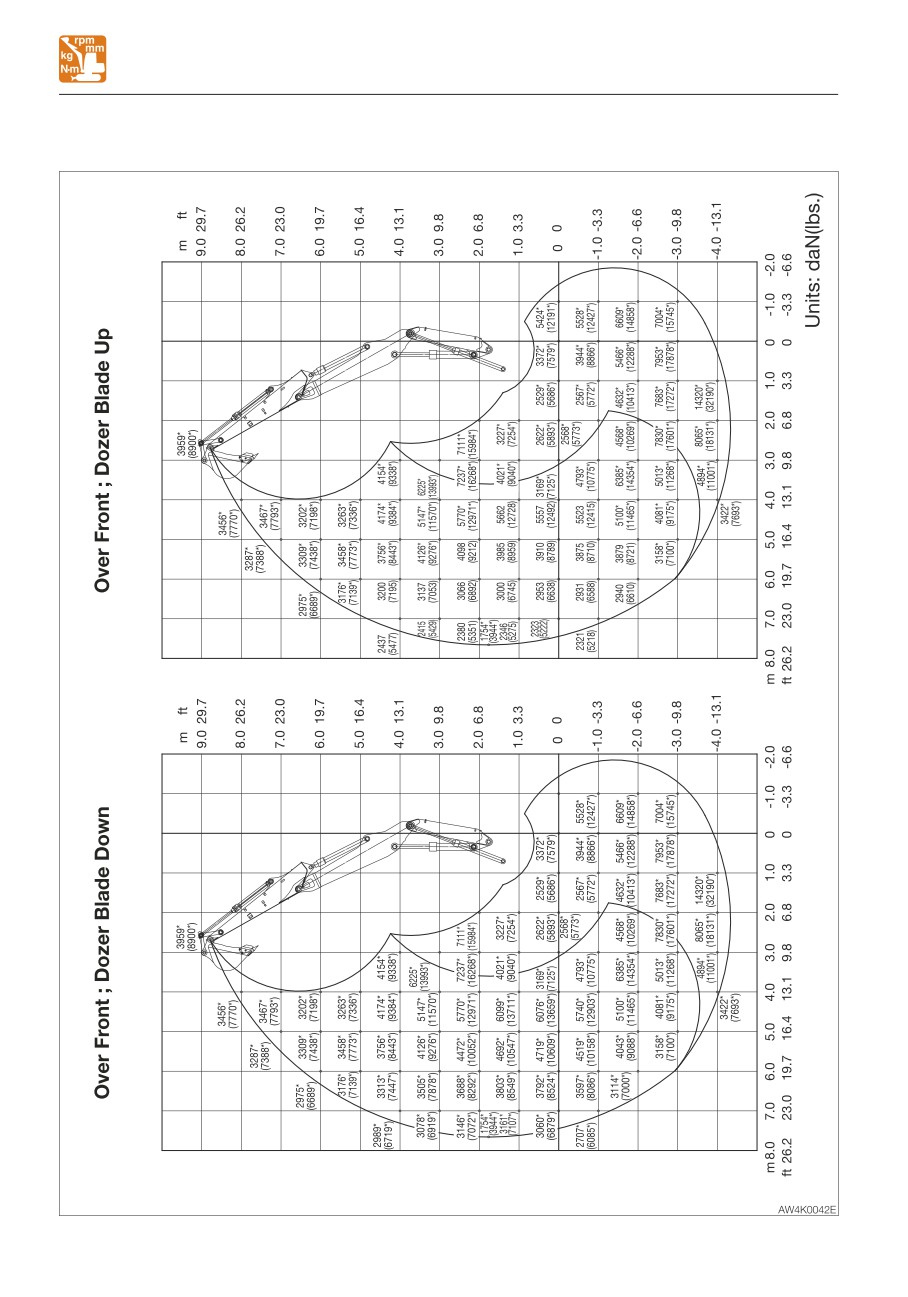

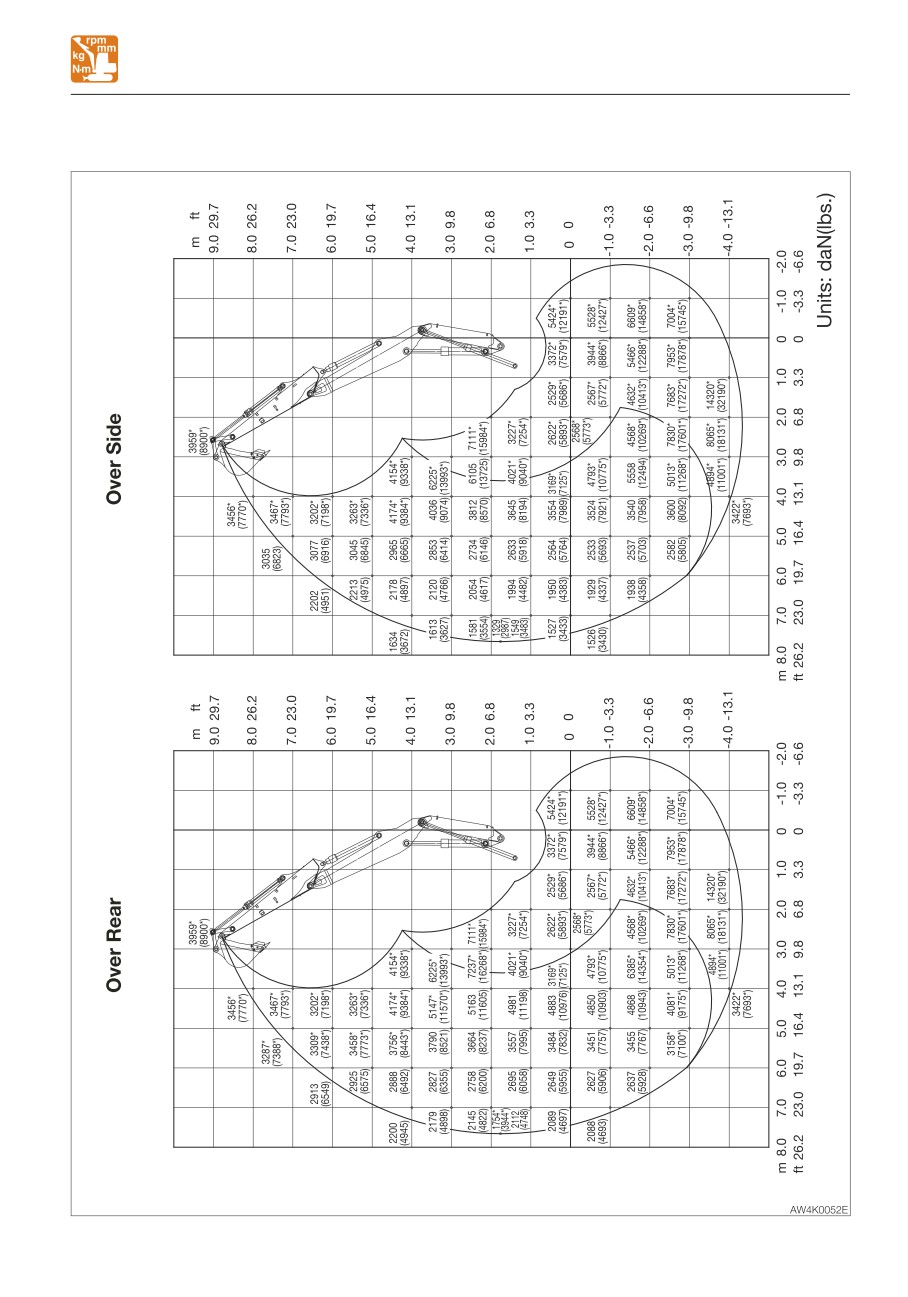

2-Piece boom, 2570 mm (101.2 in.) arm
7-10
SPECIFICATIONS
LIFTING CAPACITIES
2-Piece boom, 2570 mm (101.2 in.) arm
7-11
7-12
OPTIONS
8-1
OPTIONS
GENERAL PRECAUTIONS
• Use the proper procedure when
GENERAL PRECAUTIONS
mounting a boom or arm; otherwise
SAFETY PRECAUTIONS
serious damage could result. Consult
your sales or service dealer for help.
When removing or installing an
attachment or optional part, take the
PRECAUTIONS WHEN INSTALLING
following precautions.
ATTACHMENTS
• Consult with your sales or service
dealer before installing an optional
Be sure to perform a test operation after an
attachment.
optional or other special attachment has
• Do not use any attachments not
been replaced. Inspect the hydraulic oil level
approved by Takeuchi. Doing so may
and recharge it as necessary. Consult your
cause safety problems. Or, it may
sales or service dealer for detailed
adversely affect the machine’s operation
procedures on installing/removing
or service live.
attachments.
• We will not be held responsible for any
injuries, accidents or damage to its
products caused by the use by a non-
approved attachment.
• Select a firm, level work area. Also, be
sure to park in a well ventilated place.
• Clear obstacles and dangerous objects,
and clean up spilled fuel immediately.
• When hoisting, be sure to designate a
person to act as a signalman.
Follow the instructions of the signalman
regarding the procedure and measures.
• When it is necessary to temporally
place a heavy object or an attachment
on the ground during removal or
installation, be sure to place it in a
stable position.
• Keep everyone out of the area when
hoisting. There is a hazard of objects
falling or contacting with people in the
area.
• Use a crane to move heavy objects (25
kg (55 lb.) or greater).
• Before removing a heavy object, be sure
to put a support to it. When lifting with a
crane, pay attention to the center of
gravity of the load to keep the machine
in balance.
• Do not operate the machine while the
load is lifted by a crane stand.
8-2
OPTIONS
GENERAL PRECAUTIONS
PRECAUTIONS WHEN OPERATING
• Slewing on slopes
ATTACHMENTS
• If there is a heavy attachment is
installed, the machine takes longer
distance than usual to come to a
complete stop when the stopping
Long attachments reduce stability of the
operation is performed. Carefully judge
machine. The machine may tip over if it
the distance so as not to bump into an
loses the balance when traveling or
object around the machine. Keep a safe
slewing on slopes.
distance from surrounding obstacles.
Never perform the operations listed below
When a heavy attachment is installed,
as they are extremely dangerous.
natural drop (the gradual dropping of
the attachment under its own weight
when it is stopped in midair) increases.
• The machine can tip over more easily in
the lateral direction than in the
longitudinal direction.
· Do not slew sideways with a heavy
load at the how attachment. In
particular, do not slew sideways on
slopes.
· The attachment is heavier for
machines equipped with breakers or
crushers than for machines equipped
• Traveling down the slopes with the
with the standard bucket. Do not
attachment raised
operate such machines sideways,
especially digging downhill.
• When a long arm is installed, the
operating range increases. Carefully
judge the distance so as not to bump
into an object around the machine.
Keep a safe distance from surrounding
obstacles.
• Traveling across slopes
8-3
OPTIONS
HYDRAULIC BREAKER
HYDRAULIC BREAKER
For handling of the breaker, read the
hydraulic breaker’s manual, provided
separately.
IMPORTANT: When installing an
attachment, make sure that it is
appropriate for the machine being used.
Contact your sales or service dealer for
advice on selecting attachments.
• Do not pry with the chisel or do not pry
CAUTIONS ON OPERATING
while pounding.
• Do not move the chisel while pounding.
• Do not pound continuously for over 30
seconds on the same surface.
• Start the engine and run it at 75% of the
maximum speed.
• Do not pound with the cylinder fully
extended or retracted (at the stroke end).
Leave a margin of at least 50mm (2 in).
• Pound with the chisel pressed
perpendicular to the surface to be
pounded.
• When pounding, press the chisel properly
against the object to be broken so as to
• Do not pound with the arm placed
avoid pounding the air.
perpendicular to the ground surface.
8-4
OPTIONS
HYDRAULIC BREAKER
REPLACING THE HYDRAULIC OIL
REGULARLY
When a hydraulic breaker is used, the oil
deteriorates more quickly than that used for
a usual operation. Be sure to replace the
hydraulic oil and the return filter elements.
• Failure to replace these in time can lead to
damage to the machine and the breaker
hydraulic system. To improve the service
life of the hydraulic systems, be sure to
• Do not drop the breaker itself on the object
replace the hydraulic oil and return filter
to be broken in order to break it.
element after the number of hours shown
• Do not move objects to be broken or rocks
on the diagram below.
with the breaker itself.
• When replacing the hydraulic oil, clean the
• Slew the machine occasionally to cool the
suction strainer.
engine.
• If a hydraulic hose is vibrating abnormally,
Replacement interval (hours)
nitrogen gas may be leaking from the
Item
Hydraulic oil
Filter element
accumulator. Ask for an inspection early.
1st time
—
25
2nd time
—
100
Periodically
1200 (600)
200
When the breaker operating ratio is 100%.
(
): When using conventional antiwear
hydraulic oil.
8-5
OPTIONS
BIODEGRADABLE OIL
4. Bleed the air from the pump and cylinders
BIODEGRADABLE OIL
and pressurize the hydraulic tank.
Biodegradable oil is a new type of hydraulic
5. Operate the hydraulic devices for 30
oil that is decomposed into carbon dioxide
minutes.
and water by microorganisms in the soil and
6. Drain the biodegradable oil from the tank
water. It is highly safe for living organisms
and cylinders.
and offers advantages in term of
7. Replace the hydraulic oil return filter with a
environmental protection.
new filter.
• Recommended biodegradable oil: Mobile
8. Repeat steps 3 and 4.
EAL Envirosyn 46H (an ester synthetic oil).
9. Operate the hydraulic devices for 30
When replacing the hydraulic oil with
minutes.
biodegradable oil, use the above or an
10. Drain the biodegradable oil from the tank
equivalent oil.
and cylinders.
Note that other oils, even other brands of
11. Repeat steps 3 and 4.
ester synthetic oils, may damage O-rings,
12. Operate the hydraulic devices for 1 hour.
packings and seals. Takeuchi products
13. Drain the biodegradable oil from the tank
shipped with the optional biodegradable oil
and cylinders.
are shipped with the above brand of oil.
14. Replace the return filter with a new filter.
• When switching from a mineral oil to a
15. Repeat steps 3 and 4.
biodegradable oil, the parking brake torque
16. Operate the hydraulic devices, then
decreases by about 30%.
check for oil leakage.
There is no need to flush the hydraulic oil
REPLACING THE HYDRAULIC OIL WITH
system when switching from biodegradable
BIODEGRADABLE OIL
to mineral hydraulic oil.
Mixing mineral oil with biodegradable oil will
result in a decrease of the hydraulic oil’s
performance as well as a decrease in
biodegradability and safety. The hydraulic oil
system must be flushed as described below
before supplying the biodegradable oil. This
operation is dangerous and requires
experience. Have it performed by a Takeuchi
sales or service outlet.
Flushing
To be performed by a Takeuchi sales or
service outlet
1. Drain the hydraulic oil (mineral oil) from the
hydraulic tank and clean the inside of the
tank and suction strainer.
Refer to “Replacing the hydraulic oil and
cleaning the suction strainer” on page
5-66.
2. Remove the cylinder hoses and drain the
hydraulic oil (mineral oil) from inside the
cylinders.
3. Supply new biodegradable oil to the
hydraulic tank.
8-6
MEMO
8-7
OPTIONS
OPERATING LEVER SWITCH KIT 1
engine revolutions to low idling whenever the
OPERATING LEVER SWITCH
engine is started.
Cancel the deceleration mode by pressing
KIT 1
the deceleration button as necessary.
HORN BUTTON
Note: This deceleration button is capable of
decreasing the engine speed and reducing
the fuel consumption, with a simple
operation, in a situation such as when little
engine output is required and thus the
operating or the travel levers are in neutral.
Press the button situated on the left
operating lever to blow the horn.
DECELERATION BUTTON
Before operating the deceleration button,
set the operating lever to the neutral
position and take your foot off the pedals.
If the deceleration button is pressed while
driving, the machine’s operating speed
will abruptly change to result in a
dangerous situation.
Press this button on the left operating lever
to lower the engine speed to low idling.
Press the button again to return to the
engine speed set with the throttle controller.
For safety reasons, it is designed that the
deceleration function is activated to set the
8-8
OPTIONS
OPERATING LEVER SWITCH KIT 1
AUXILIARY 1ST SWITCHES
Refer to “Auxiliary hydraulic lines” on pages
2-65 to 2-69.
Auxiliary hydraulic buttons
AUXILIARY 2ND/4TH SWITCH
Slider switch
(Proportional control)
Proportional control allows for slow-to-fast/
fast-to-slow movement of attachment.
Example: If you move the slider switch half
way, the attachment will move at
approximately one-half the speed.
Press those buttons to control the flow of the
oil in the first auxiliary hydraulic lines.
• Proportional control of the auxiliary
hydraulic circuit is not possible.
(A)
Hydraulic oil flows to the left auxiliary
line (a).
(B)
Hydraulic oil flows to the right auxiliary
line (b).
Slider switch
(Proportional control)
Move this switch to control the flow of the oil
Proportional control allows for slow-to-fast/
in the second auxiliary hydraulic lines.
fast-to-slow movement of attachment.
(C):
Hydraulic oil flows to the left auxiliary
Example: If you move the slider switch half
line (c).
way, the attachment will move at
(D):
Hydraulic oil flows to the right auxiliary
approximately one-half the speed.
line (d).
Move this switch to control the flow of the oil
To use the auxiliary 4th hydraulic line, press
in the first auxiliary hydraulic lines.
the auxiliary 2/4 select button to change to
(A)
Hydraulic oil flows to the left auxiliary
the operation of the auxiliary 4th.
line (a).
Refer to “Auxiliary hydraulic lines” on pages
(B)
Hydraulic oil flows to the right auxiliary
2-65 to 2-69.
line (b).
8-9
OPTIONS
OPERATING LEVER SWITCH KIT 1
AUXILIARY 2/4 SELECT BUTTON
This switch is used to change from the
second auxiliary operation to the fourth
auxiliary operation.
Pressing this button displays the second
auxiliary on the Multi-information display to
indicate that the second auxiliary operation is
enabled. Pressing this button again displays
the auxiliary 4th on the Multi-information
display to indicate that the auxiliary 4th
operation is enabled.
The actual operation is performed with the
auxiliary 2nd/4th switch (slider switch).
8-10
OPTIONS
OPERATING LEVER SWITCH KIT 1
Operating
Releasing the residual pressure
Press those buttons to control the flow of the
After the auxiliary hydraulic circuits have
oil in the first/second auxiliary hydraulic lines.
been used, pressure remains in the circuits.
(A)
Hydraulic oil flows to left auxiliary line
This is called the residual pressure. Release
(a).
this residual pressure before disconnecting
(B)
Hydraulic oil flows to right auxiliary line
the lines.
(b).
Perform the residual pressure releasing
(C)
Hydraulic oil flows to left auxiliary line
within 10 minutes after the engine stopping.
(c).
1. Park the machine on a flat, rigid and safe
(D)
Hydraulic oil flows to right auxiliary line
ground.
(d).
2. Stop the engine.
Refer to “Auxiliary hydraulic lines” on pages
3. Lower the safety lock lever to the
2-65 to 2-69.
unlocked position.
4. Turn the starter switch to the ON position.
5. Press the auxiliary hydraulic switches
several times to release the residual
pressure in the auxiliary hydraulic circuitry.
8-11
