Takeuchi Hydraulic excavator TB135 (Serial No.13510004~). Parts Manual - page 13





ARM CYLINDER (13514051-)
Item
Part number
Description
Q'ty Chan. Serial No.
Serv.
Remarks
0
1900091400
CYLINDER ASSY
1
arm
0-1
1900091499
KIT, seal
1
1
X
1900005912
PACKING, rod
1
2
X
1900075133
SEAL, dust
1
3
X
1420110750
O-RING
1
4
X
1900088727
RING, back-up
1
5
X
1420110800
O-RING
1
6
X
1900047231
PACKING, piston
1
7
1900091498
TUBE ASSY
1
8
1900045602
BUSHING
1
9
1900091497
ROD ASSY, piston
1
10
1900045602
BUSHING
1
11
1900091403
COVER, rod
1
12
1333004525
BUSHING
1
13
1900091406
PISTON
1
14
1900090626
RING, slide
2
15
1121050508
SET-SCREW
1
16
1390020350
BALL, steel
1
17
1900091405
CUSHION, rod
1
18
1900047122
STOPPER
2
19
1900076335
SEAL, cushion
1
20
1900047114
RING, snap
1
21
1560001675
FITTING, grease
1
22
1560001900
FITTING, grease
1
23
1900091433
SEAL, dust
4
G4h163
Reference:G4H162
Page:8-26
TB135 Book No. BG4Z010 S/N 13510004-

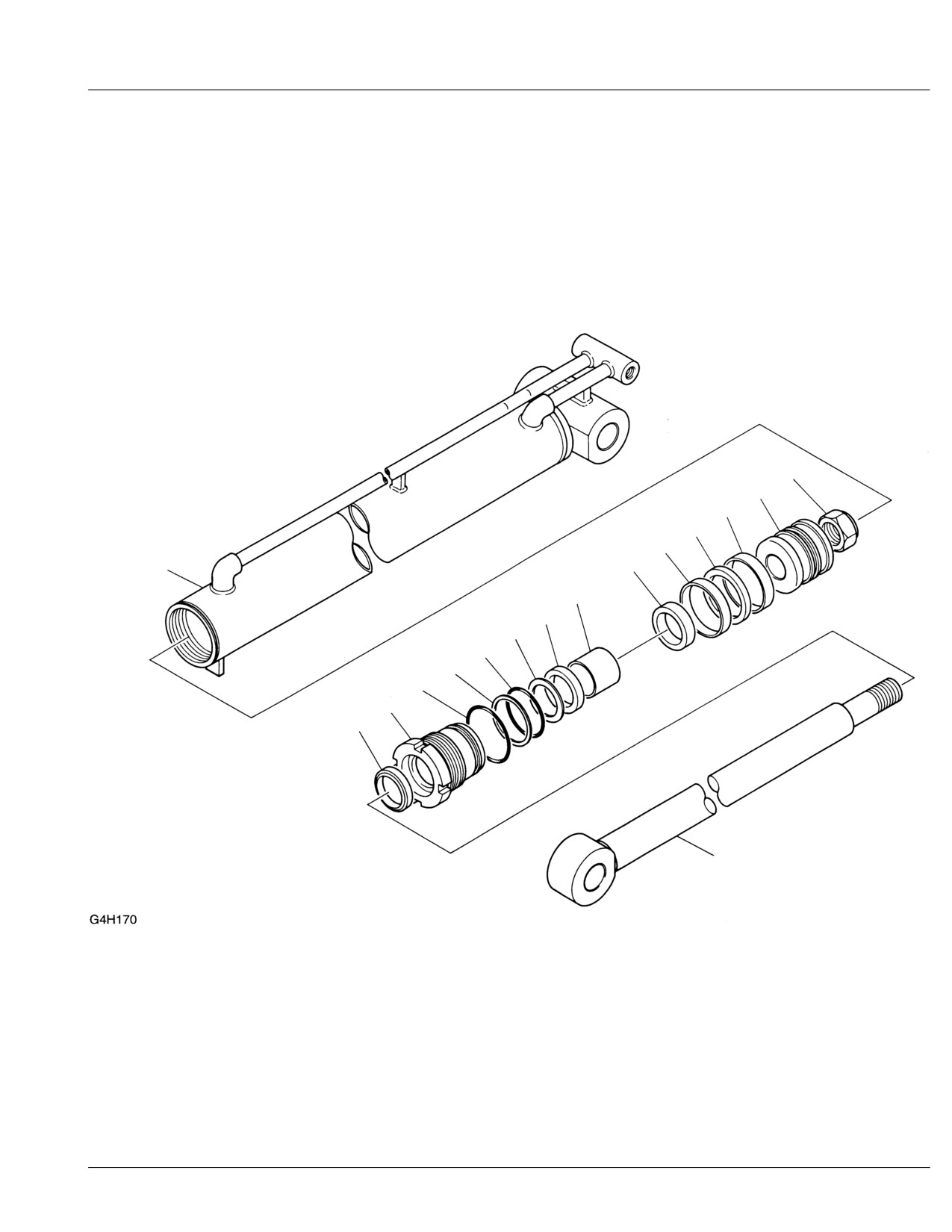

TELESCOPIC CYLINDER
12
10
14
1
14
11
13
15
2
4
6
5
7
9
3
8
Ref G4H170
Page
8-27
TELESCOPIC CYLINDER
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1900062000
CYLINDER ASSY
1
telescopic
0-1
1900062099
KIT, seal
1
1
X
1900048232
PACKING, piston
1
2
X
1410540508
PACKING, rod
1
3
X
1900048431
SEAL, dust
1
4
X
1900062031
RING, back-up
1
5
X
1421130600
RING, back-up
1
6
X
1420110600
O-RING
1
7
X
1420110650
O-RING
1
8
1900062001
ROD, piston
1
9
1900062003
COVER, rod
1
10
1900048206
PISTON
1
11
1900062007
TUBE
1
12
1900005609
NUT
1
13
1900062015
SPACER
1
14
1900048231
RING, wear
2
15
1333004030
BUSHING
1
G4h171
Reference:G4H170
Page:8-27
TB135 Book No. BG4Z010 S/N 13510004-

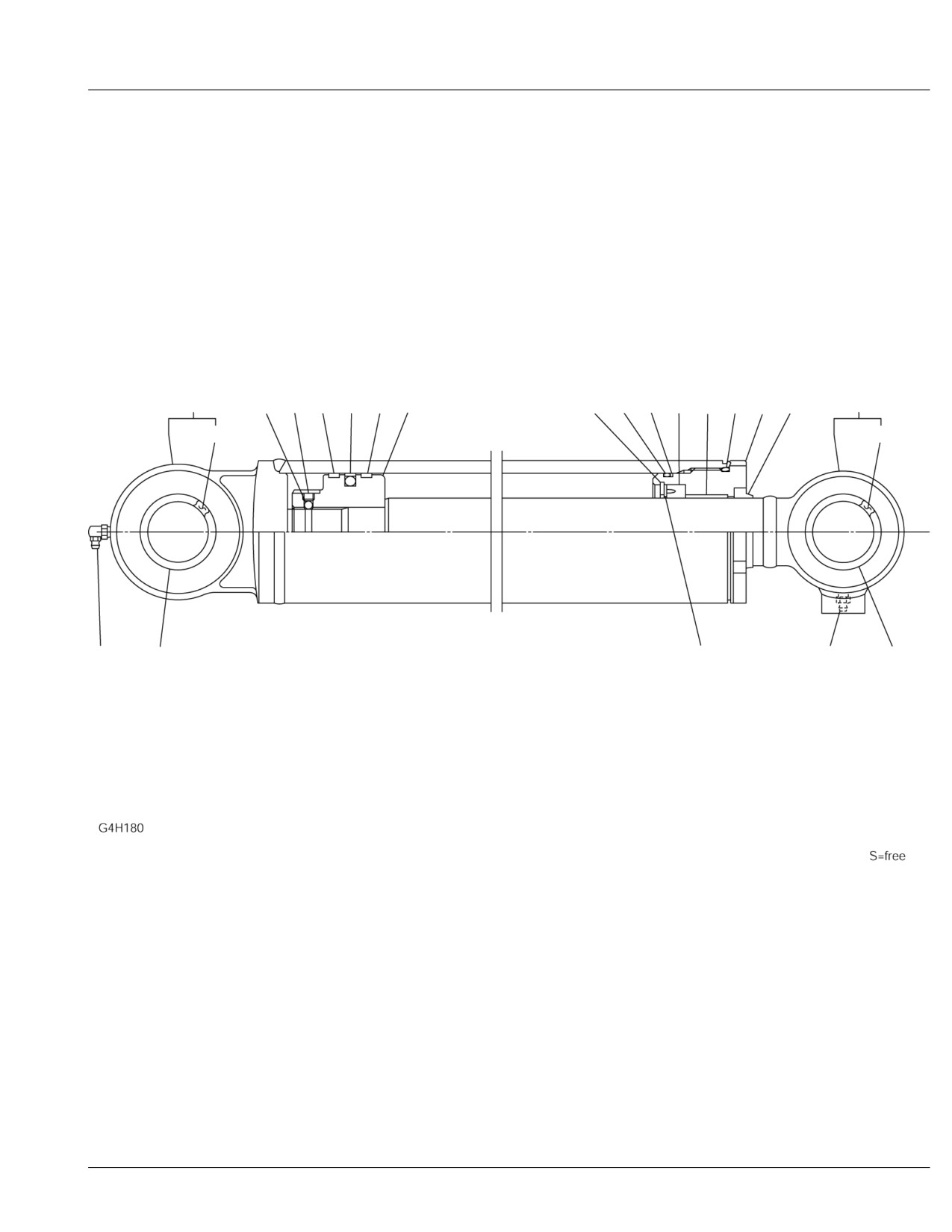

BUCKET CYLINDER (13510004-13514050)
7
17
18
14
6
14
12
16
3
4
1
15
5
11
2
9
8
10
20
19
13
21
19
Ref G4H180
Page
8-28
BUCKET CYLINDER (13510004-13514050)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1900077400
CYLINDER ASSY
1
bucket
0-1
1900077499
KIT, seal
1
1
X
1410540559
PACKING, rod
1
2
X
1900073033
SEAL, dust
1
3
X
1420110650
O-RING
1
4
X
1421130650
RING, back-up
1
5
X
1420110700
O-RING
1
6
X
1900051132
PACKING, piston
1
7
1900077498
TUBE ASSY
1
8
1900015720
BUSHING
1
9
1900077497
ROD ASSY, piston
1
10
1900015720
BUSHING
1
11
1900055003
COVER, rod
1
12
1900055006
PISTON
1
13
1900056308
HOLDER, rod packing
1
14
1900051131
RING, slide
2
15
1333004030
BUSHING
1
16
1221000055
RING, snap
1
17
1390020250
BALL, steel
1
18
1121050608
SET-SCREW
1
19
1432200040
SEAL, dust
4
20
1560001900
FITTING, grease
1
21
1560001000
FITTING, grease
1
G4h181
Reference:G4H180
Page:8-28
TB135 Book No. BG4Z010 S/N 13510004-

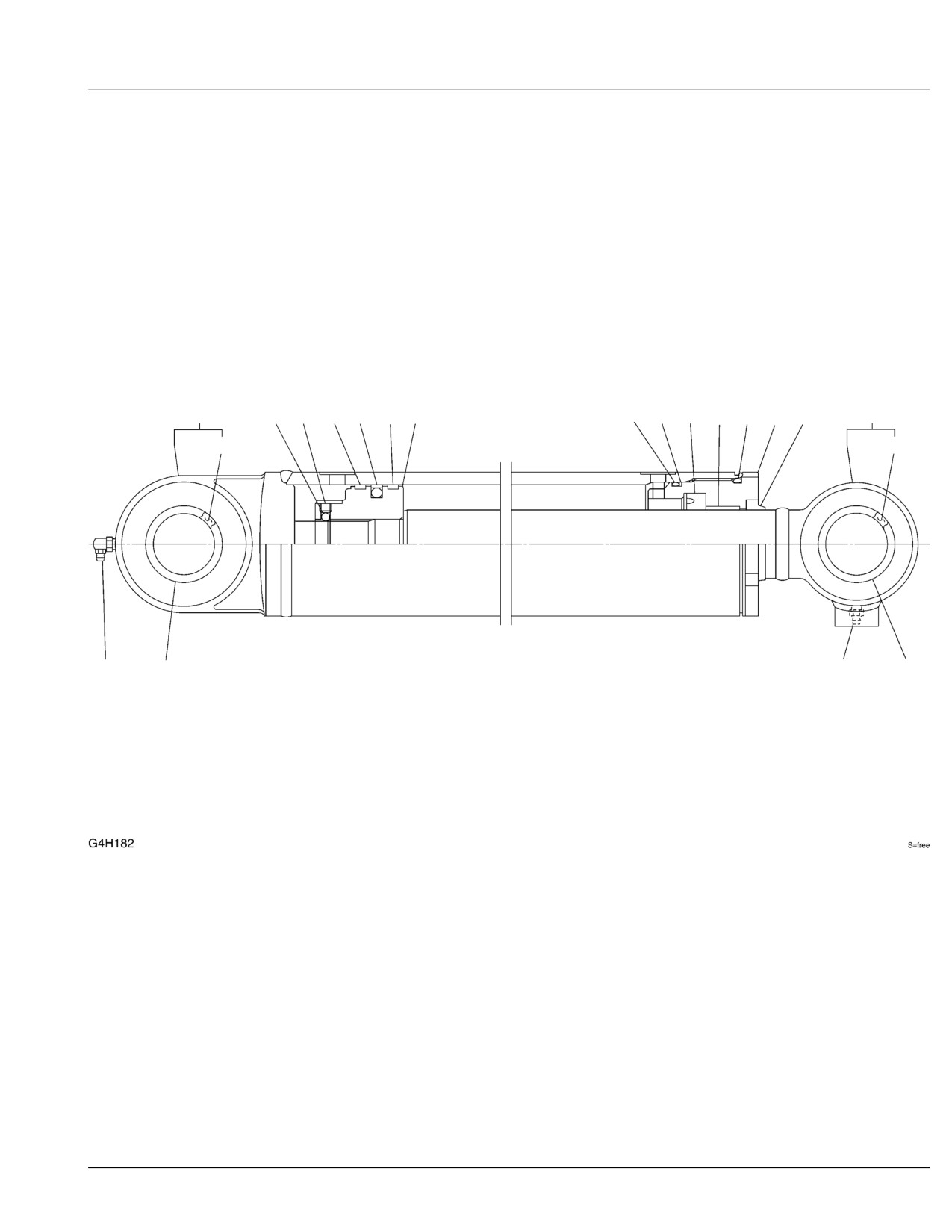

BUCKET CYLINDER (13514051-13516744)
7
16
15
14
6
14
13
3
4
1
12
5
11
2
9
8
10
17
19
18
19
Ref G4H182
Page
8-29
BUCKET CYLINDER (13514051-13516744)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1900091500
CYLINDER ASSY
1
bucket
0-1
1900091599
KIT, seal
1
1
X
1900005612
PACKING, rod
1
2
X
1900073033
SEAL, dust
1
3
X
1420110650
O-RING
1
4
X
1900088627
RING, back-up
1
5
X
1420110700
O-RING
1
6
X
1900051132
PACKING, piston
1
7
1900091598
TUBE ASSY
1
8
1900015720
BUSHING
1
9
1900091597
ROD ASSY, piston
1
10
1900015720
BUSHING
1
11
1900088603
COVER, rod
1
12
1900088620
BUSHING
1
13
1900088606
PISTON
1
14
1900088626
RING, slide
2
15
1121050808
SET-SCREW
1
16
1390020350
BALL, steel
1
17
1560001900
FITTING, grease
1
18
1560001000
FITTING, grease
1
19
1900088633
SEAL, dust
4
G4h182
Reference:G4H182
Page:8-29
TB135 Book No. BG4Z010 S/N 13510004-

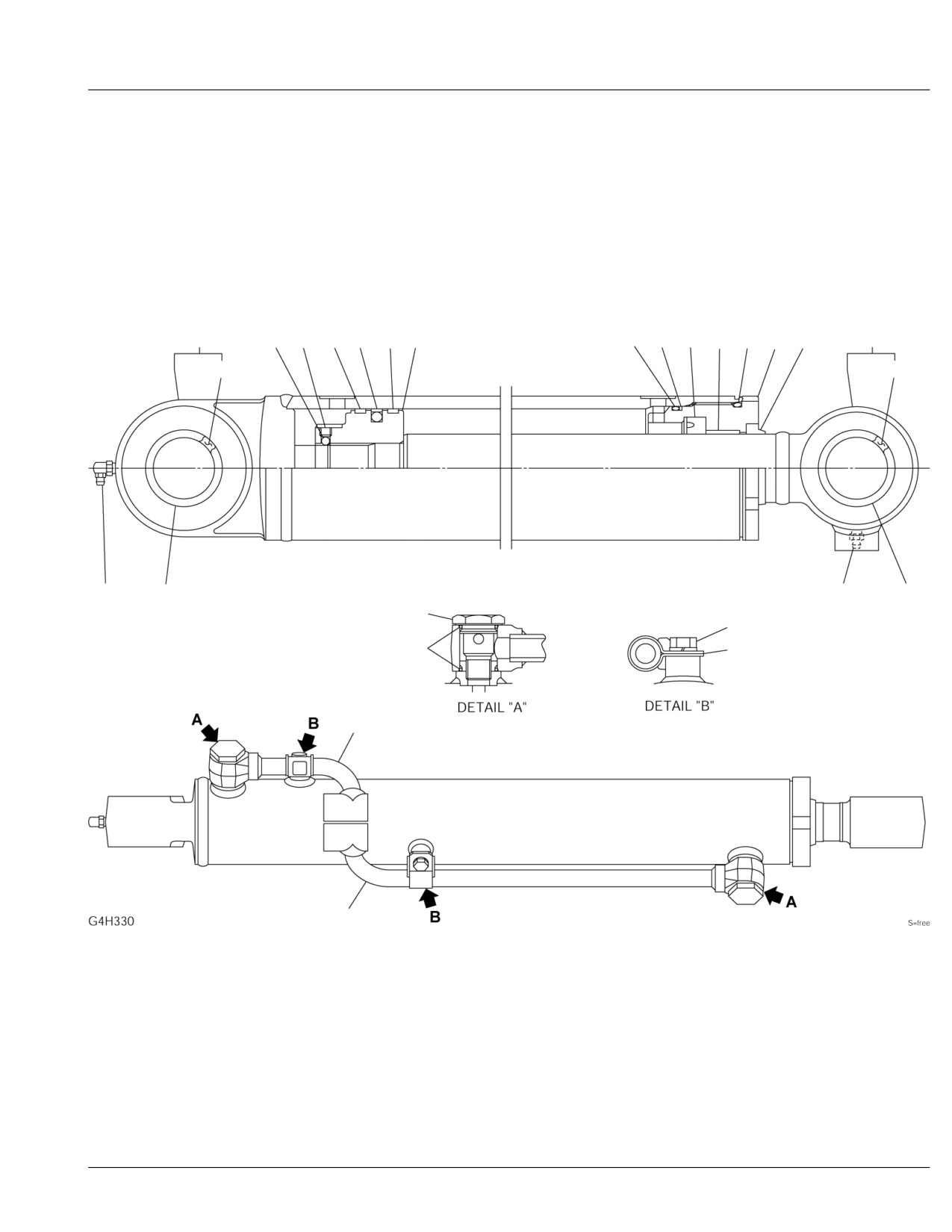

BUCKET CYLINDER (13516745-)
7
16
15
14
6
14
13
3
4
1
12
5
11
2
9
8
10
17
19
18
19
22
24
23
25
20
21
Ref G4H330
Page
8-30
BUCKET CYLINDER (13516745-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1900097100
CYLINDER ASSY
1
bucket
0-1
1900091599
KIT, seal
1
1
X
1900005612
PACKING, rod
1
2
X
1900073033
SEAL, dust
1
3
X
1420110650
O-RING
1
4
X
1900088627
RING, back-up
1
5
X
1420110700
O-RING
1
6
X
1900051132
PACKING, piston
1
7
1900097198
TUBE ASSY
1
8
1900015720
BUSHING
1
9
1900091597
ROD ASSY, piston
1
10
1900015720
BUSHING
1
11
1900088603
COVER, rod
1
12
1900088620
BUSHING
1
13
1900088606
PISTON
1
14
1900097131
RING, slide
2
15
1121050808
SET-SCREW
1
16
1390020350
BALL, steel
1
17
1560001900
FITTING, grease
1
18
1560001000
FITTING, grease
1
19
1900088633
SEAL, dust
4
20
1900097110
PIPE ASSY
1
21
1900097128
PIPE ASSY
1
22
1900093327
PLUG
2
23
1900093328
O-RING
4
24
1900008162
BOLT
2
25
1900090017
HOLDER
2
G4h330
Reference:G4H330
Page:8-30
TB135 Book No. BG4Z010 S/N 13510004-

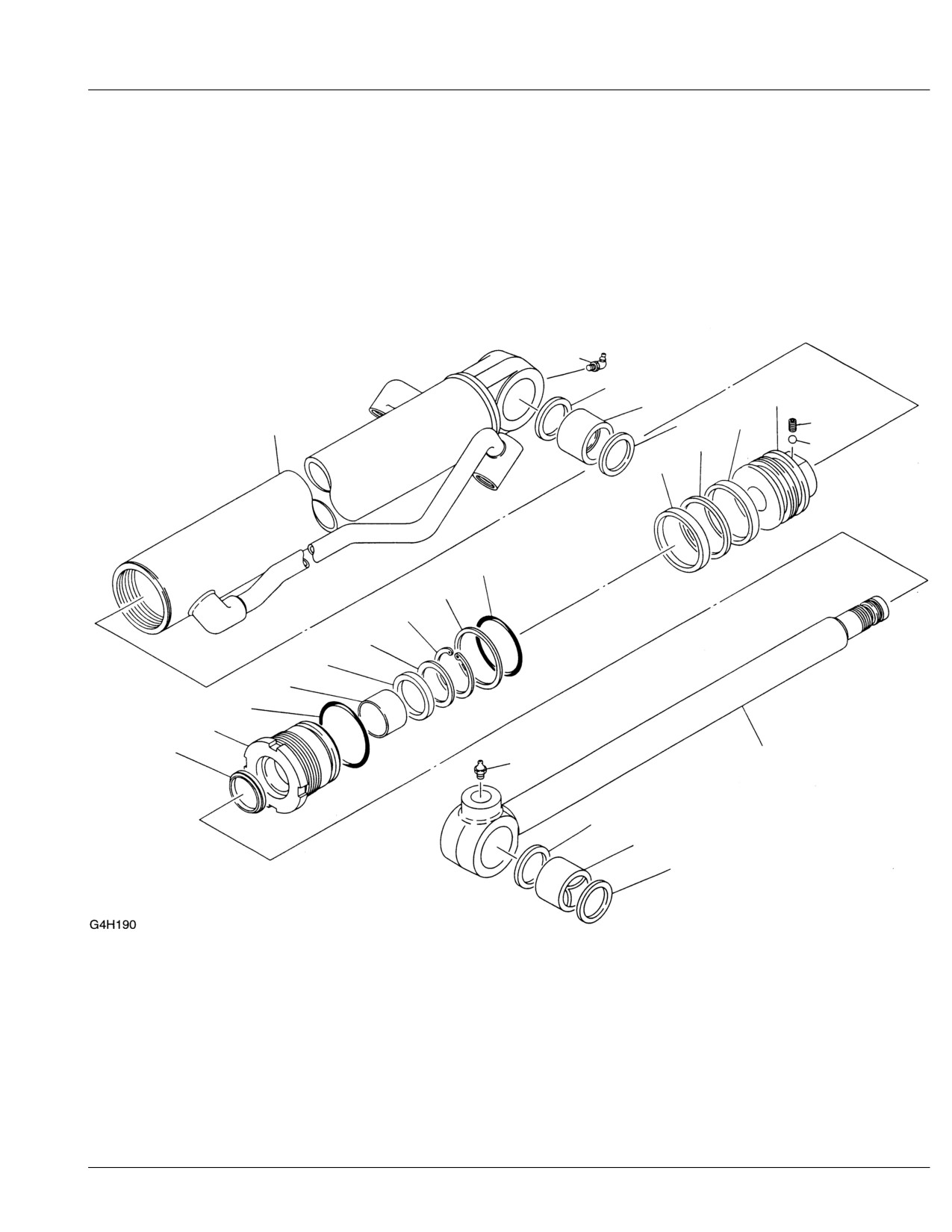

BUCKET CYLINDER (telescopic)
20
19
11
8
14
18
19
12
6
17
14
4
3
16
13
1
15
5
10
2
7
21
19
9
19
Ref G4H190
Page
8-31
BUCKET CYLINDER (telescopic)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1900056300
CYLINDER ASSY
1
bucket
0-1
1900055099
KIT, seal
1
1
X
1410540559
PACKING, rod
1
2
X
1900048431
SEAL, dust
1
3
X
1421130650
RING, back-up
1
4
X
1420110650
O-RING
1
5
X
1420110700
O-RING
1
6
X
1900051132
PACKING, piston
1
7
1900055001
ROD, piston
1
8
1900045802
BUSHING
1
9
1900045820
BUSHING
1
10
1900055003
COVER, rod
1
11
1900055006
PISTON
1
12
1900056307
TUBE
1
13
1900056308
HOLDER, rod packing
1
14
1900051131
RING, wear
2
15
1333004030
BUSHING
1
16
1221000055
RING, snap
1
17
1390010250
BALL, steel
1
18
1121040608
SET-SCREW
1
19
1432200040
SEAL, dust
4
20
1560001900
FITTING, grease
1
21
1560001000
FITTING, grease
1
G4h191
Reference:G4H190
Page:8-31
TB135 Book No. BG4Z010 S/N 13510004-

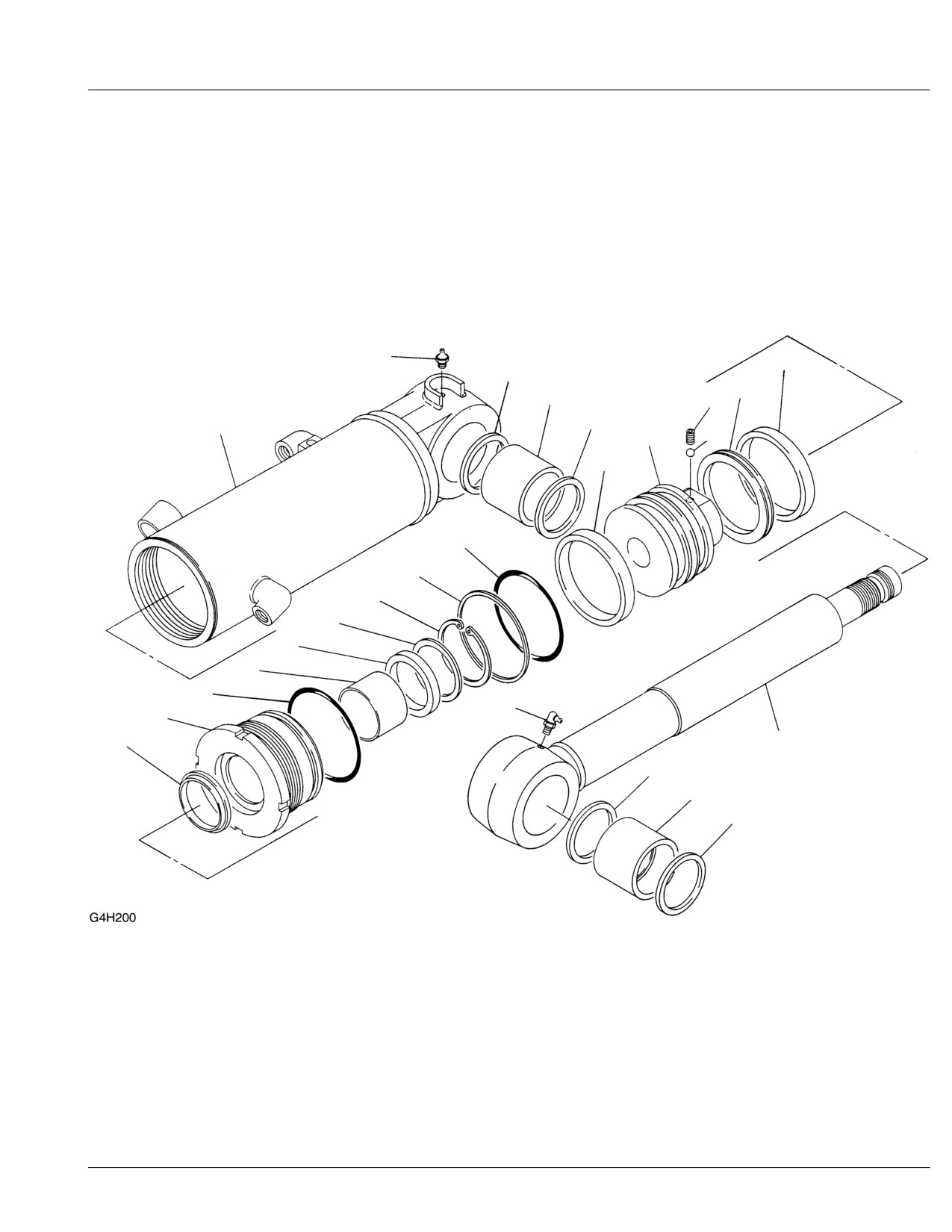

DOZER BLADE CYLINDER (13510004-13514050)
15
7
16
1
12
17
16
9
10
18
7
3
4
19
8
6
20
2
14
11
5
13
16
12
16
Ref G4H200
Page
8-32
DOZER BLADE CYLINDER (13510004-13514050)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1900055100
CYLINDER ASSY
1
blade
0-1
1900055199
KIT, seal
1
1
X
1900047031
PACKING, piston
1
2
X
1420111000
O-RING
1
3
X
1420110950
O-RING
1
4
X
1421130950
RING, back-up
1
5
X
1900047034
SEAL, dust
1
6
X
1900047033
PACKING, rod
1
7
1900047032
RING, wear
2
8
1900016408
HOLDER, rod packing
1
9
1900055107
TUBE
1
10
1900055106
PISTON
1
11
1900055103
COVER, rod
1
12
1900046002
BUSHING
2
13
1900055101
ROD, piston
1
14
1560001900
FITTING, grease
1
15
1560001000
FITTING, grease
1
16
1432200055
SEAL, dust
4
17
1121000810
SET-SCREW
1
18
1390010350
BALL, steel
1
19
1221000075
RING, snap
1
20
1333005530
BUSHING
1
G4h201
Reference:G4H200
Page:8-32
TB135 Book No. BG4Z010 S/N 13510004-

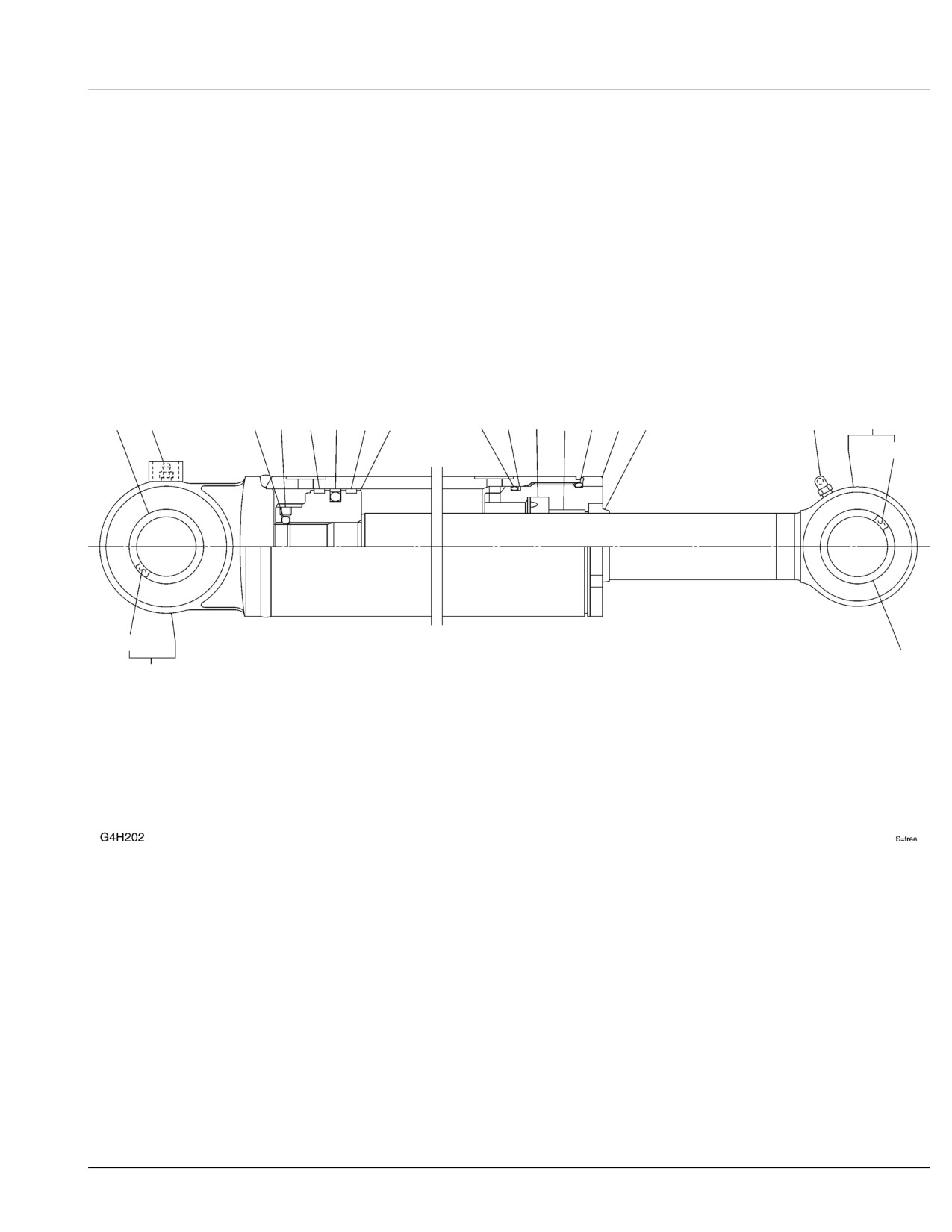

DOZER BLADE CYLINDER (13514051-)
19
17
16
15
14
6
14
13
3
4
1
12
5
11
2
18
9
10
8
19
7
Ref G4H202
Page
8-33
DOZER BLADE CYLINDER (13514051-)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1900091700
CYLINDER ASSY
1
blade
0-1
1900091799
KIT, seal
1
1
X
1900047033
PACKING, rod
1
2
X
1900070831
SEAL, dust
1
3
X
1420110950
O-RING
1
4
X
1900086928
RING, back-up
1
5
X
1420111000
O-RING
1
6
X
1900047031
PACKING, piston
1
7
1900091798
TUBE ASSY
1
8
1900046002
BUSHING
1
9
1900091797
ROD ASSY, piston
1
10
1900046002
BUSHING
1
11
1900091703
COVER, rod
1
12
1900047019
BUSHING
1
13
1900087806
PISTON
1
14
1900086926
RING, slide
2
15
1121051010
SET-SCREW
1
16
1390020400
BALL, steel
1
17
1560001000
FITTING, grease
1
18
1560001900
FITTING, grease
1
19
1900091733
SEAL, dust
4
G4h202
Reference:G4H202
Page:8-33
TB135 Book No. BG4Z010 S/N 13510004-

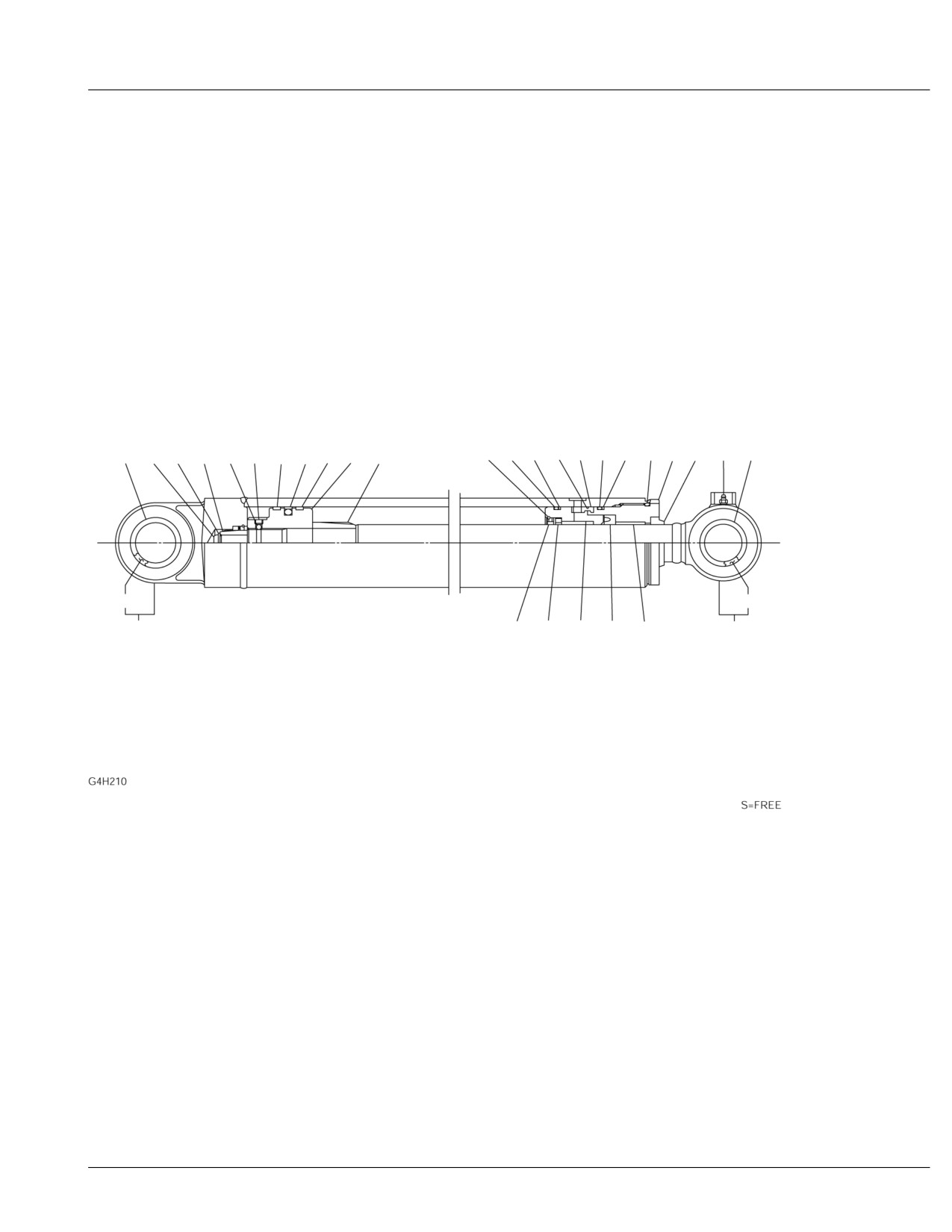

SWING CYLINDER (13510004-13514050)
28
21
27
14
25
26
22
7
22
15
13
18
6
4
19
20
3
4
5
12
2
29
28
9
11
8
16
17
23
1
24
10
13
Ref G4H210
Page
8-34
SWING CYLINDER (13510004-13514050)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1900075500
CYLINDER ASSY
1
swing
0-1
1900075599
KIT, seal
1
1
X
1900005912
PACKING, rod
1
2
X
1900075133
SEAL, dust
1
3
X
1420110750
O-RING
1
4
X
1421130750
RING, back-up
2
5
X
1420110800
O-RING
1
6
X
1420110700
O-RING
1
7
X
1900047231
PACKING, piston
1
8
1900075598
TUBE ASSY
1
9
1900045602
BUSHING
1
10
1900075597
ROD ASSY, piston
1
11
1900045602
BUSHING
1
12
1900054103
COVER, rod
1
13
1900059805
CUSHION, rod
1
14
1900075505
BEARING, cushion
1
15
1900054106
PISTON
1
16
1900049415
SPACER
1
17
1900050216
RING, cushion
1
18
1900049426
STOPPER
1
19
1900054126
STOPPER
1
20
1900054127
CONNECTOR
1
21
1900064429
BOLT
1
22
1900047232
RING, slide
2
23
1900054174
RETAINER
1
24
1333004530
BUSHING
1
25
1390020250
BALL, steel
1
26
1121050608
SET-SCREW
1
27
1141190012
WASHER
1
28
1432200045
SEAL, dust
4
29
1560001000
FITTING, grease
1
G4h211
Reference:G4H210
Page:8-34
TB135 Book No. BG4Z010 S/N 13510004-

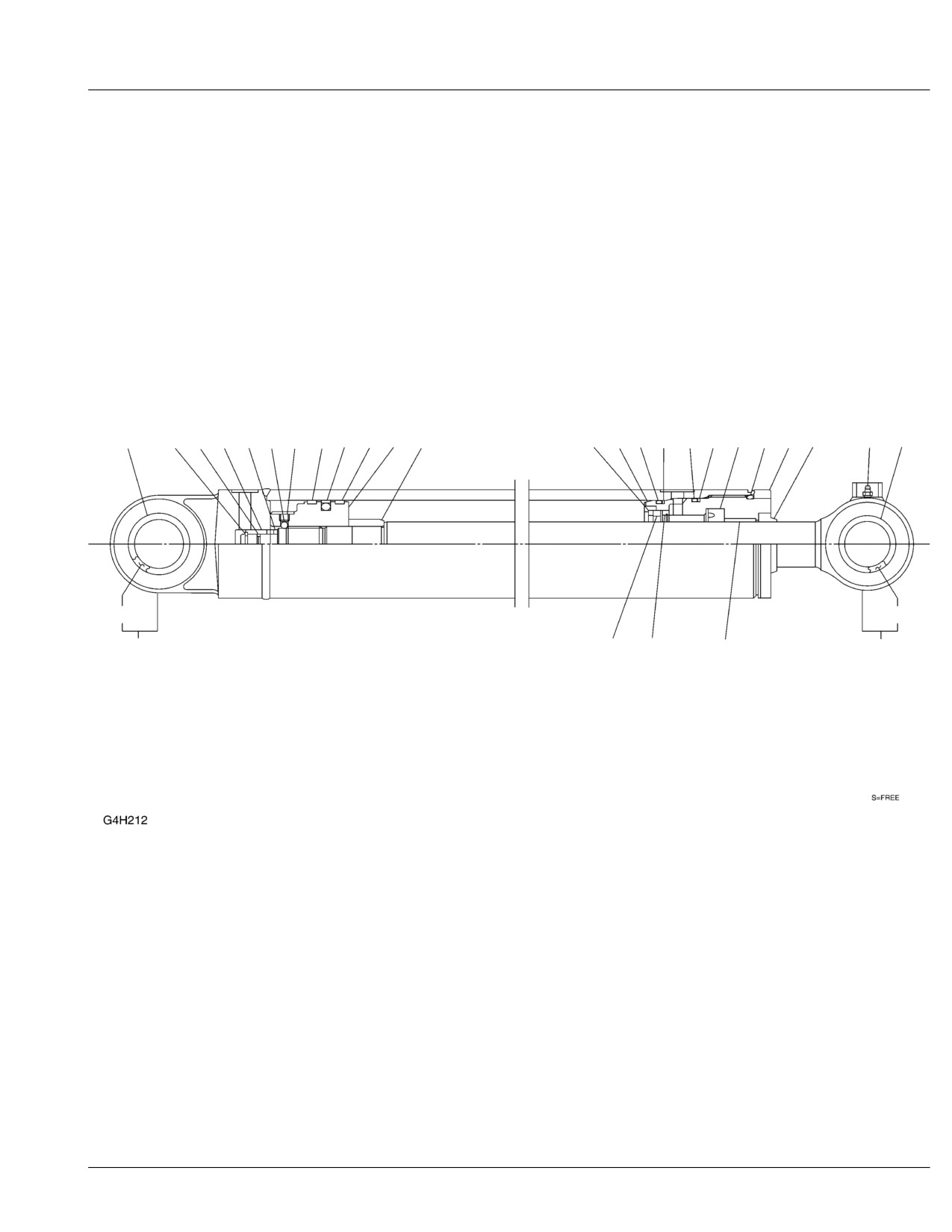

SWING CYLINDER (13514051-)
28
24
25
23
26 21
20
19
7
19
18
22
15
14
3
6
3
4
1
5
12
2
27
28
9
11
8
16
17
13
10
Ref G4H212
Page
8-35
SWING CYLINDER (13514051-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1900091600
CYLINDER ASSY
1
swing
0-1
1900091699
KIT, seal
1
1
X
1900005912
PACKING, rod
1
2
X
1900075133
SEAL, dust
1
3
X
1420110750
O-RING
2
4
X
1900088727
RING, back-up
1
5
X
1420110800
O-RING
1
6
X
1900078927
RING, back-up
1
7
X
1900047231
PACKING, piston
1
8
1900091698
TUBE ASSY
1
9
1900045602
BUSHING
1
10
1900091697
ROD ASSY, piston
1
11
1900045602
BUSHING
1
12
1900091403
COVER, rod
1
13
1333004525
BUSHING
1
14
1900091608
HOLDER
1
15
1900091615
SPACER
1
16
1900091635
SEAL, cushion
1
17
1900091636
COLLAR
1
18
1900091406
PISTON
1
19
1900090626
RING, slide
2
20
1121050808
SET-SCREW
1
21
1390020350
BALL, steel
1
22
1900091605
BEARING, cushion
1
23
1900091625
BEARING, cushion
1
24
1900047122
STOPPER
2
25
1900076335
SEAL, cushion
1
26
1900047114
RING, snap
1
27
1560001000
FITTING, grease
1
28
1900091433
SEAL, dust
4
G4h213
Reference:G4H212
Page:8-35
TB135 Book No. BG4Z010 S/N 13510004-

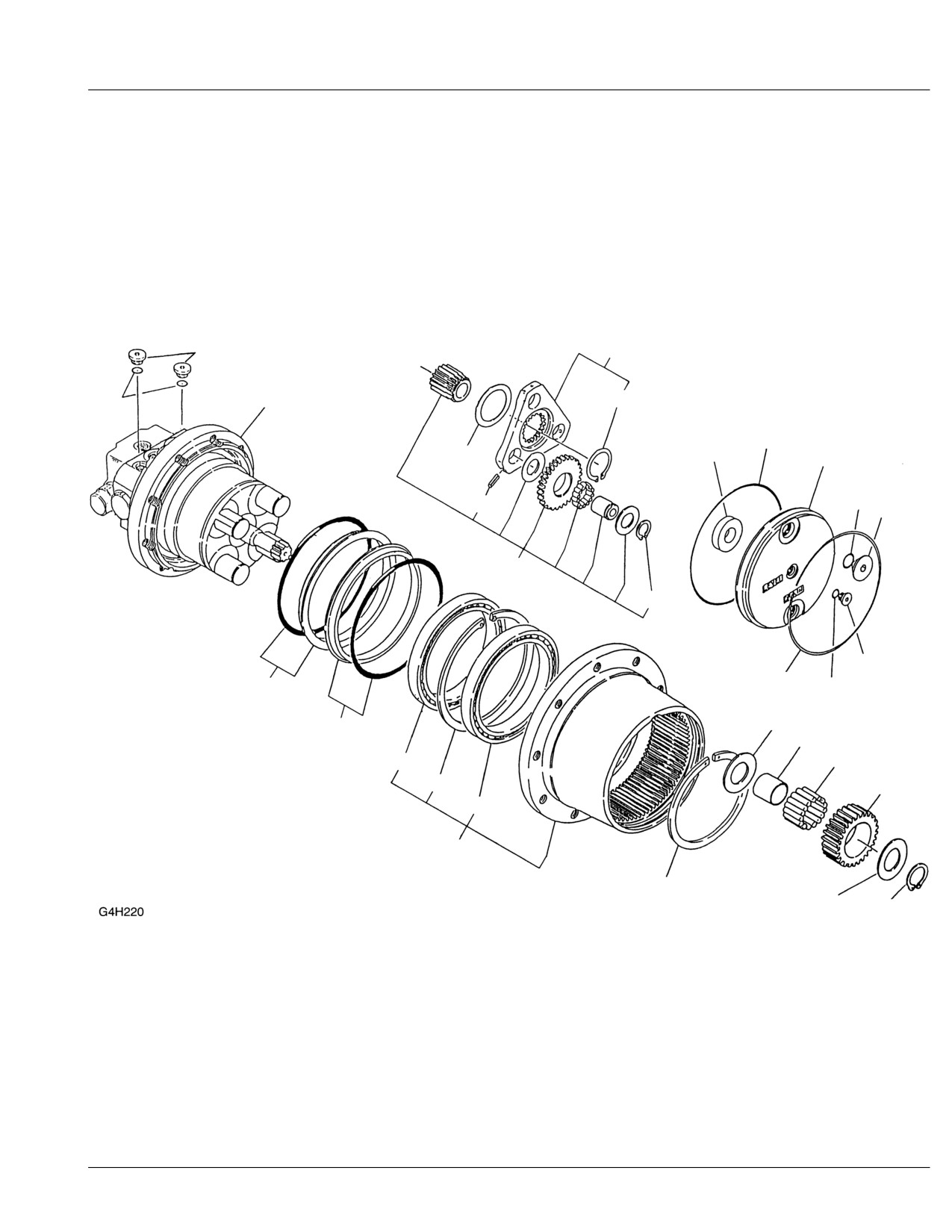

TRAVEL MOTOR (1/3) (reduction sec.; 13510004-13516744)
20
0-2
0-4
5
4
1
14
15
10
7
2
19
0-2
6
23
13
16
3
21
16
12
8
17
9
11
8
0-3
18
22
6
Ref G4H220
Page
8-36
TRAVEL MOTOR (1/3) (reduction sec.; 13510004-13516744)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1903119400
MOTOR ASSY, travel
1
13510004~13510348
1903120700
MOTOR ASSY, travel
1
(H)
13510349~
0-1
1903119499
KIT, seal
1
1
X
1420300263
O-RING
1
2
X
1420010140
O-RING
2
3
X
1420010080
O-RING
1
4
X
1420010110
O-RING
2
0-2
1903119498
KIT, carrier
1
5
1220000035
RING, snap
1
6
1220000030
RING, snap
7
7
1213000420
PIN, spring
3
0-3
1903119497
KIT, body
1
8
1903119419
BEARING
2
9
1903119424
RING, snap
1
10
1903119402
COVER
1
11
1903119406
GEAR
4
12
1903119410
RING
4
13
1903113627
RING, snap
1
14
1903119415
COLLAR, thrust
1
15
1903116216
RING, slide
1
16
1903113617
SEAL, floating
2
17
1903119420
NEEDLE
96
18
1903119423
RING, snap
1
19
1903118932
PLUG
2
20
1903901930
PLUG
2
21
1903919440
WASHER
4
22
1903919441
WASHER
4
0-4
1903904400
MOTOR, hydraulic
1
23
1903118933
PLUG
1
G4h221
Reference:G4H220
Page:8-36
TB135 Book No. BG4Z010 S/N 13510004-

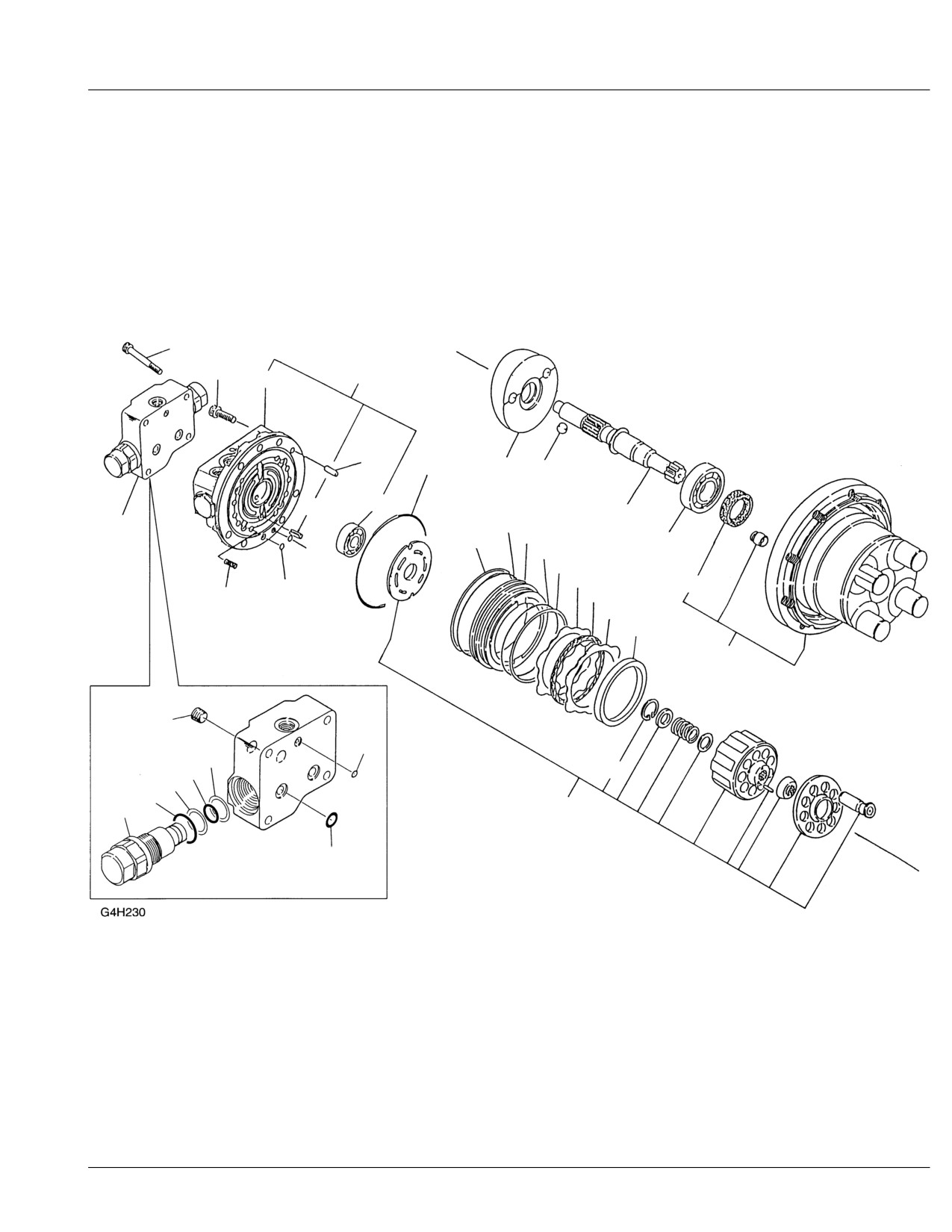

TRAVEL MOTOR (2/3) (motor sec.; 13510004-13516744)
29
15
0-6
0-7
16
1
12
14
9
8
11
0-10
4
6
19
13
2
5
7
18
2
3
21
17
18
20
0-8
27
28
25
23
10
25
24
22
0-9
26
Ref G4H230
Page
8-37
TRAVEL MOTOR (2/3) (motor sec.; 13510004-13516744)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1903119400
MOTOR ASSY, travel
1
13510004~13510348
1903120700
MOTOR ASSY, travel
1
(H)
13510349~
0-4
1903904400
MOTOR, hydraulic
1
0-5
1903904499
KIT, seal
1
1
X
1420111250
O-RING
1
2
X
1420010070
O-RING
2
3
X
1903101819
SEAL, oil
1
4
X
1420111100
O-RING
1
5
X
1420111000
O-RING
1
6
X
1421131100
RING, back-up
1
7
X
1421131000
RING, back-up
1
0-6
1903904495
KIT, body 1
1
0-7
X
**********
BODY ASSY
1
8
1300006201
BEARING
1
9
1213000512
PIN, spring
1
0-8
1903904497
KIT, body 2
1
0-9
1903904498
BARREL KIT, cylinder
1
10
1221000028
RING, snap
1
11
1903904403
SHAFT
1
12
1903904410
PLATE
1
13510004~13510348
1903904430
PLATE
1
(H)
13510349~
FZD-4336-5-10
13
1300006205
BEARING
1
14
1390021000
BALL, steel
2
15
1110021025
SCREW, cap
7
16
1212010815
PIN
1
17
1903904425
PLATE
1
18
1903904426
PLATE
2
19
1903904427
PISTON, brake
1
20
1903904428
SPACER
1
21
1903904429
SPRING
6
13510004~13512466
1903904429
SPRING
10
13512467~
0-10
1901808800
VALVE ASSY, relief
1
22
1901808802
VALVE, relief
2
23
1420010150
O-RING
1
24
1420010280
O-RING
1
25
1421020150
RING, back-up
2
26
1420010120
O-RING
2
27
1901808804
PLUG
2
28
1420010090
O-RING
1
29
1110020845
BOLT
4
G4h232
Reference:G4H230
Page:8-37
TB135 Book No. BG4Z010 S/N 13510004-

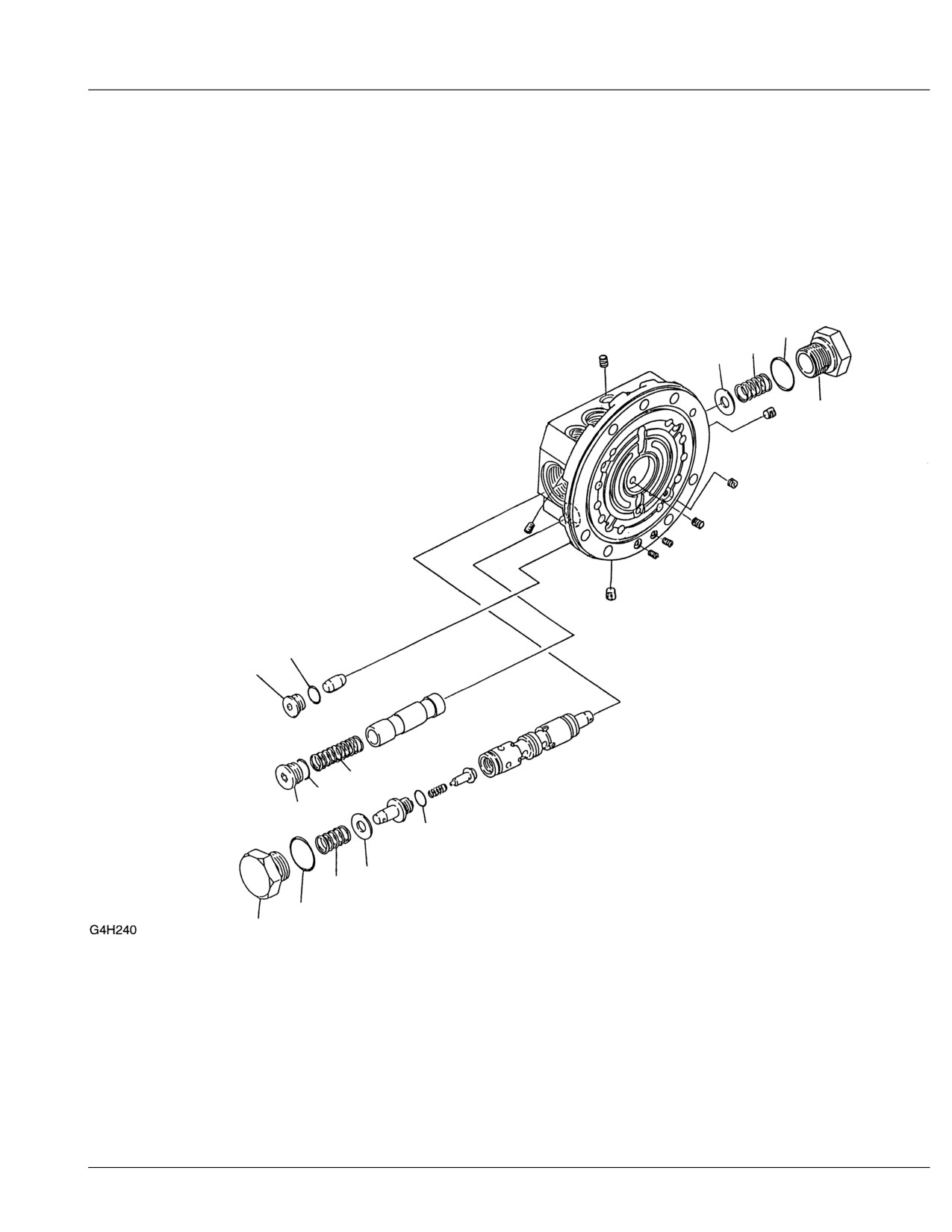

TRAVEL MOTOR (3/3) (valve sec.; 13510004-13516744)
10
1
6
3
7
5
2
9
4
8
6
1
10
3
Ref G4H240
Page
8-38
TRAVEL MOTOR (3/3) (valve sec.; 13510004-13516744)
Item
Part number
Description
Q'ty Chan.
Serial No.
Serv. Remarks
0
1903119400
MOTOR ASSY, travel
1
13510004~13510348
1903120700
MOTOR ASSY, travel
1
(H)
13510349~
0-7
X
**********
BODY ASSY
1
1
1903904138
SPRING
2
2
1903904139
SPRING
1
3
1903904140
PLUG
2
4
1901807011
PLUG
2
5
1903904142
PLUG
2
6
1903904144
WASHER
2
7
1420010080
O-RING
2
8
1420000125
O-RING
2
9
1420010140
O-RING
2
10
1420010250
O-RING
2
G4h241
Reference:G4H240
Page:8-38
TB135 Book No. BG4Z010 S/N 13510004-

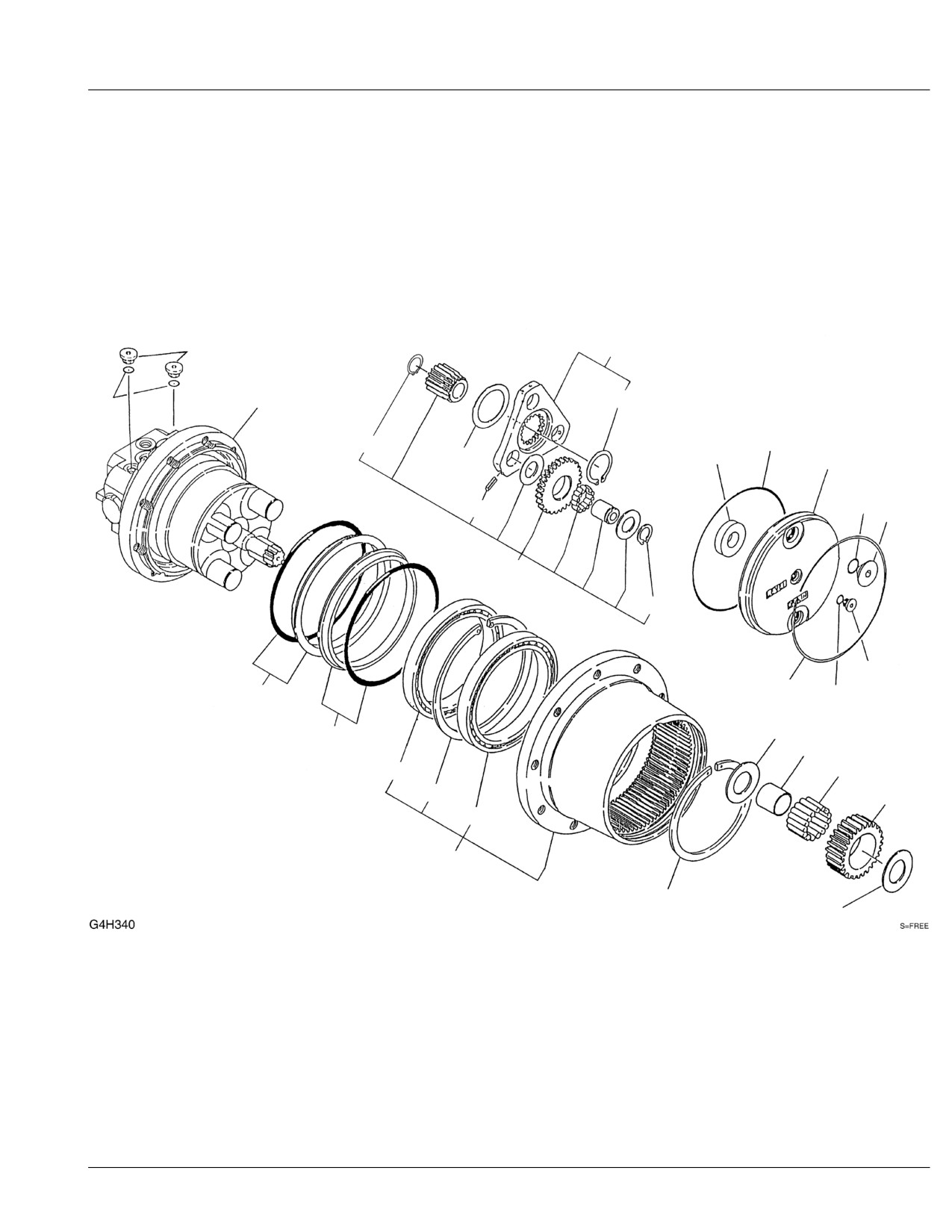

TRAVEL MOTOR (1/3) (reduction sec.; 13516745-)
20
0-2
0-4
5
4
6
1
14
15
10
7
2
19
0-2
6
23
13
16
3
21
16
12
8
17
9
11
8
0-3
18
22
Ref G4H340
Page
8-39
TRAVEL MOTOR (1/3) (reduction sec.; 13516745-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1903125700
MOTOR ASSY, travel
1
13516745~13519426
1903127300
MOTOR ASSY, travel
1
13519427~
0-1
1903119499
KIT, seal
1
1
X
1420300263
O-RING
1
2
X
1420010140
O-RING
2
3
X
1420010080
O-RING
1
4
X
1420010110
O-RING
2
0-2
1903119498
KIT, carrier
1
5
1220000035
RING, snap
1
6
1220000030
RING, snap
7
7
1213000420
PIN, spring
3
0-3
1903119497
KIT, body
1
8
1903119419
BEARING
2
9
1903119424
RING, snap
1
10
1903119402
COVER
1
11
1903119406
GEAR
4
12
1903119410
RING
4
13
1903113627
RING, snap
1
14
1903119415
COLLAR, thrust
1
15
1903118916
RING, slide
1
M
16
1903125711
SEAL, floating
2
17
1903119420
NEEDLE
96
18
1903119423
RING, snap
1
19
1903118932
PLUG
2
20
1501750002
PLUG
2
1420010110
O-RING
1
21
1903919440
WASHER
4
22
1903919441
WASHER
4
0-4
1903907200
MOTOR, hydraulic
1
23
1903118933
PLUG
1
G4h341
Reference:G4H340
Page:8-39
TB135 Book No. BG4Z010 S/N 13510004-

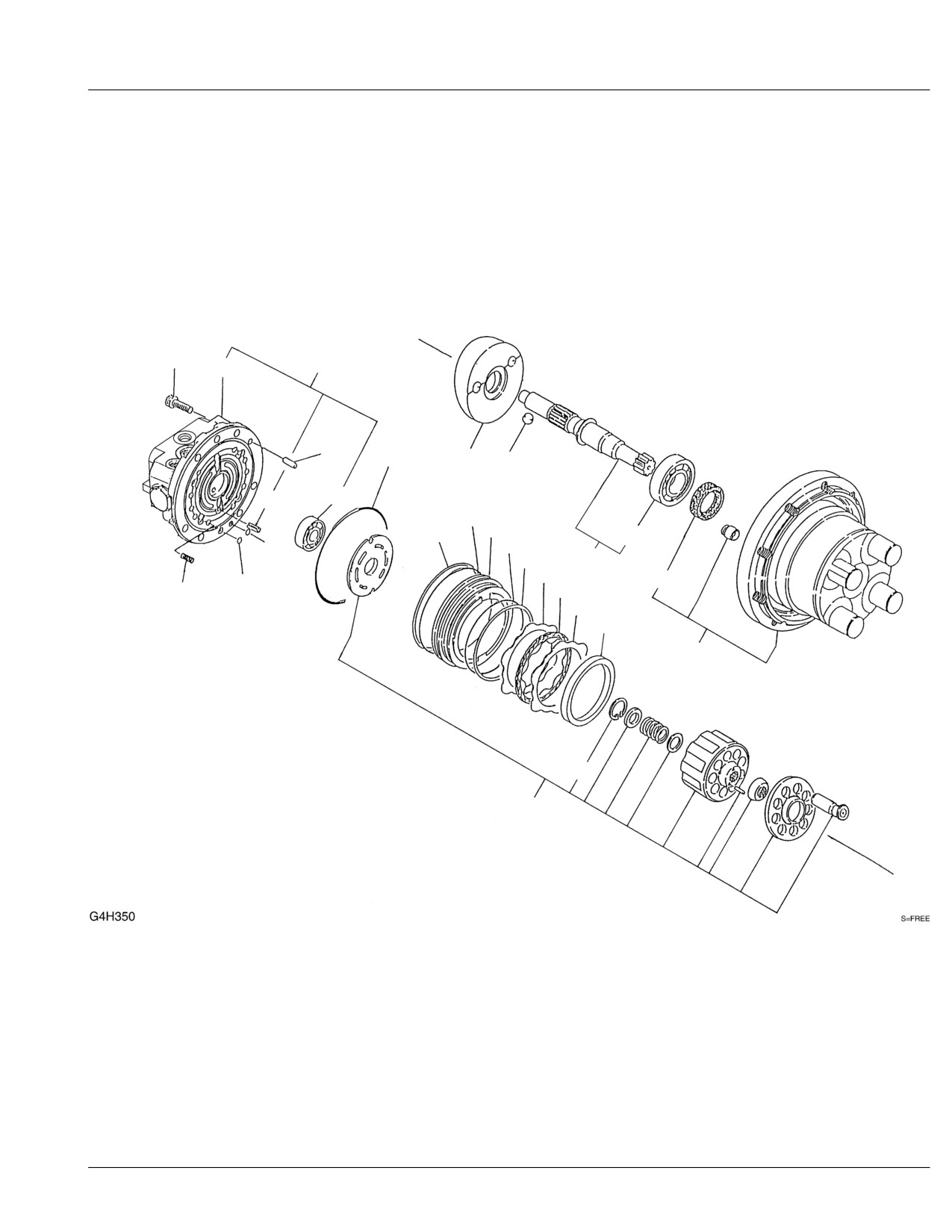

TRAVEL MOTOR (2/3) (motor sec.; 13516745-)
15
0-6
0-7
16
1
13
14
8
9
4
19
6
12
2
5
7
11
18
3
2
21
17
18
20
0-8
10
0-9
Ref G4H350
Page
8-40
TRAVEL MOTOR (2/3) (motor sec.; 13516745-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1903125700
MOTOR ASSY, travel
1
13516745~13519426
1903127300
MOTOR ASSY, travel
1
13519427~
0-4
1903907200
MOTOR, hydraulic
1
0-5
1903907299
KIT, seal
1
1
X
1420111250
O-RING
1
2
X
1420010070
O-RING
2
3
X
1903101819
SEAL, oil
1
4
X
1420111100
O-RING
1
5
X
1420111000
O-RING
1
6
X
1421131100
RING, back-up
1
7
X
1421131000
RING, back-up
1
0-6
1903907298
KIT, body 1
1
0-7
X
**********
BODY ASSY
1
8
1300006201
BEARING
1
9
1213000512
PIN, spring
1
0-8
1903907297
KIT, body 2
1
0-9
1903904498
BARREL KIT,
1
cylinder
10
1221000028
RING, snap
1
11
1903907296
SHAFT ASSY
1
12
1300006205
BEARING
1
13
1903907210
PLATE
1
FZD-4500-11-10-2211
14
1390021000
BALL, steel
2
15
1110021025
SCREW, cap
7
16
1212010815
PIN
1
17
1903904425
PLATE
1
18
1903904426
PLATE
2
19
1903904427
PISTON, brake
1
20
1903904428
SPACER
1
21
1903904429
SPRING
10
G4h351
Reference:G4H350
Page:8-40
TB135 Book No. BG4Z010 S/N 13510004-

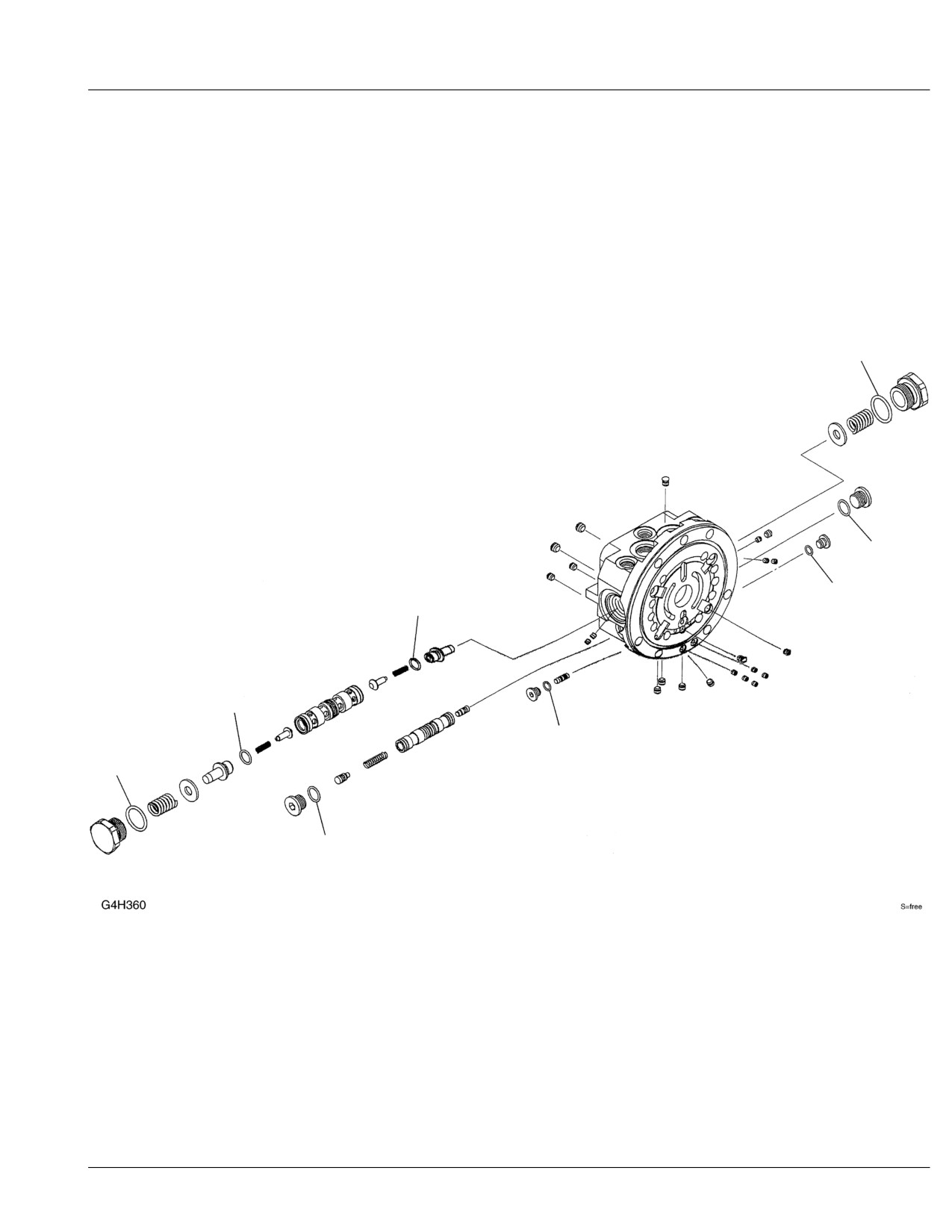

TRAVEL MOTOR (3/3) (valve sec.; 13516745-)
4
3
1
2
2
1
4
3
Ref G4H360
Page
8-41
TRAVEL MOTOR (3/3) (valve sec.; 13516745-)
Item
Part number
Description
Q'ty Chan.
Serial No.
Serv. Remarks
0
1903125700
MOTOR ASSY, travel
1
13516745~13519426
1903127300
MOTOR ASSY, travel
1
13519427~
0-7
X
**********
BODY ASSY
1
0-10
1903907294
KIT, seal
1
1
1420010080
O-RING
2
2
1420000125
O-RING
2
3
1420010140
O-RING
2
4
1420010250
O-RING
2
G4h361
Reference:G4H360
Page:8-41
TB135 Book No. BG4Z010 S/N 13510004-

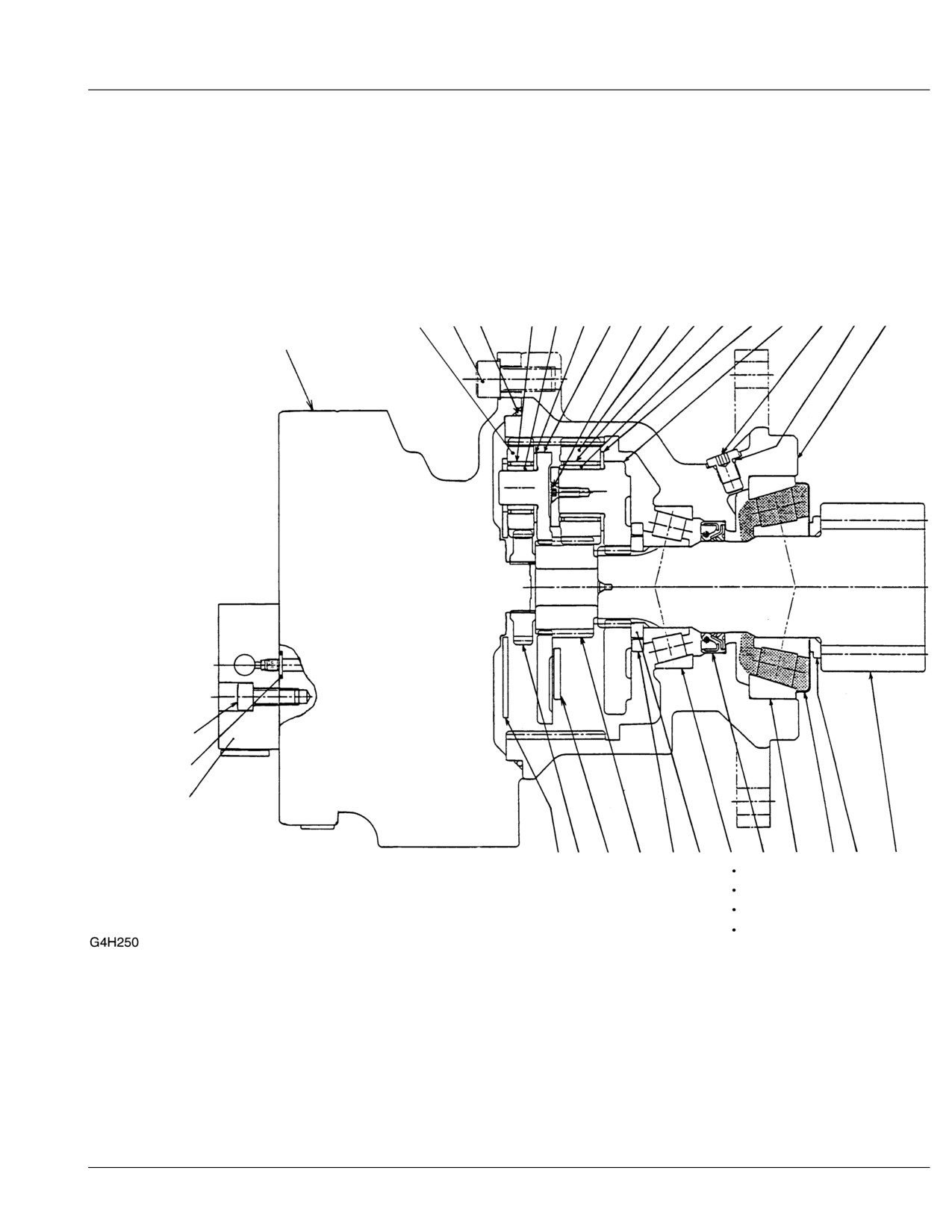

SLEW MOTOR (1/2)
24
32
2
23
22 21
20
18
16
15
14
13
12
27
1
3
0-3
35
34
33
25 26
17
19
11
10
9
8
7
5
6
4
28
29
30
31
Ref G4H250
Page
8-42
SLEW MOTOR (1/2)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1903119900
MOTOR ASSY, slew
1
0-1
X
**********
GEAR, reduction
1
0-2
1912905399
KIT, seal
1
1
X
1420010080
O-RING
1
2
X
1420300260
O-RING
1
3
1912905301
HOUSING
1
4
1912905302
SHAFT
1
5
1912905303
PLATE
1
6
1912905304
COLLAR
1
7
1912905305
BEARING
1
8
1912905306
SEAL, oil
1
9
1912905307
BEARING
1
10
1912905308
PLATE
2
11
1912905309
PLATE
2
12
1912905310
HOLDER
1
13
1912905311
WASHER, thrust
4
14
1912905312
LACE, inner
4
15
1912905313
BEARING, needle
4
16
1912905314
GEAR, planetary
4
17
1912905315
PLATE, thrust
1
18
1912905316
SCREW
4
19
1912905317
GEAR, sun
1
20
1912905318
HOLDER
1
21
1912905319
WASHER, thrust
4
22
1912905320
LACE, inner
4
23
1912905321
BEARING, needle
4
24
1912905322
GEAR, planetary
4
25
1912905323
PLATE SET, thrust
1
26
1912905324
GEAR, drive
1
27
1912905325
PLUG
1
28
1912905337
PLATE
2
29
1912905338
PLATE
2
30
1912905339
PLATE
2
31
1912905340
COLLAR
1
0-3
1903904500
MOTOR, piston
1
32
1110051230
SCREW, cap
2
33
1903119920
VALVE ASSY
1
34
1420010100
O-RING
3
35
1110050820
SCREW, cap
3
G4h251
Reference:G4H250
Page:8-42
TB135 Book No. BG4Z010 S/N 13510004-

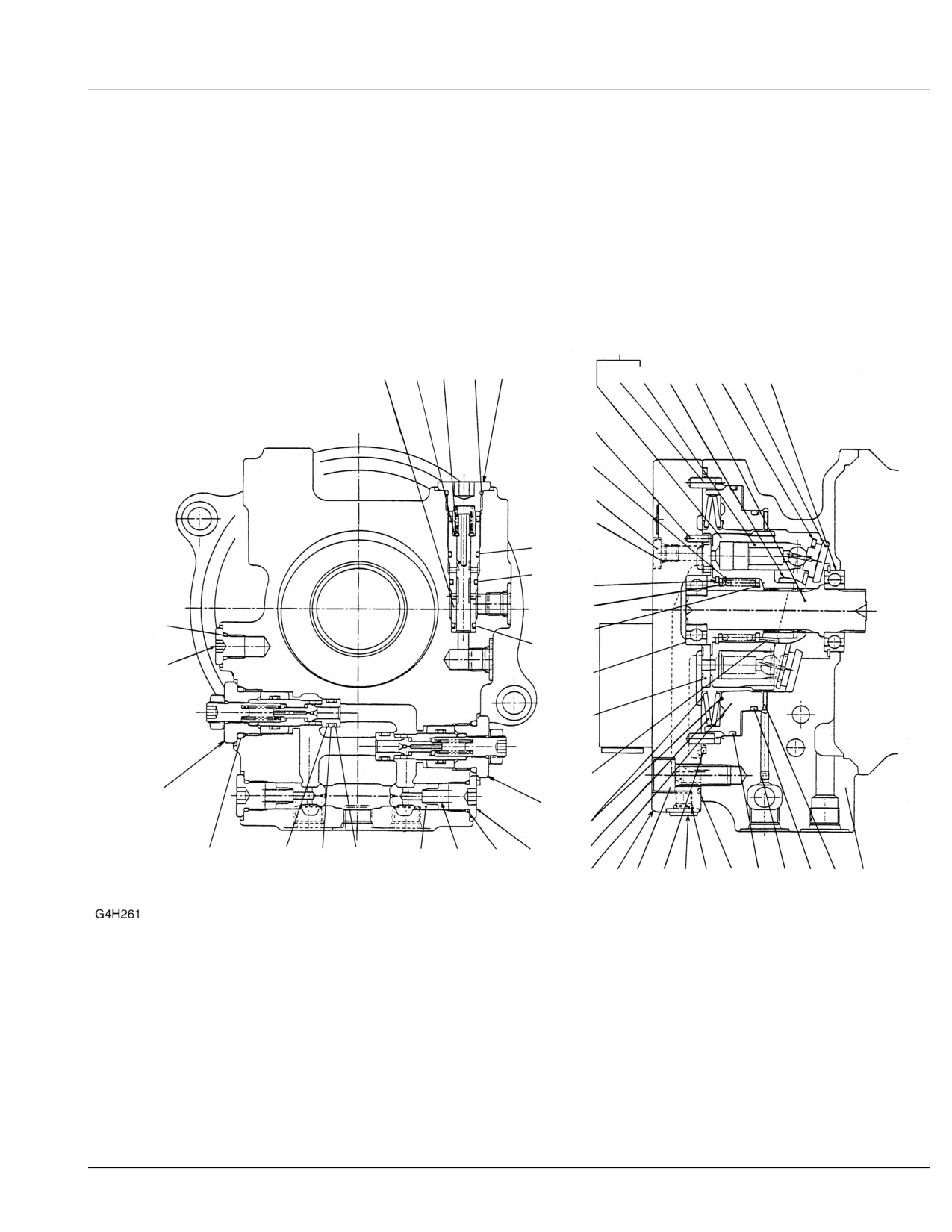

SLEW MOTOR (2/2)
0-5
33
34
35
5
36
30
13
20
11
19 12
10
28
15
41
7
33-3
33-2
17
16
8
14
33-1
42
27
29
18
37
37
24
37-1
37-3
37-2
37-3
38
39
6
40
25
23
26 31
3
41
7
4
2
32
1
22
9
Ref G4H261
Page
8-43
SLEW MOTOR (2/2)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1903119900
MOTOR ASSY, slew
1
0-3
X
**********
MOTOR, piston
1
0-4
1903904599
KIT, seal
1
1
X
1420111100
O-RING
1
2
X
1420111350
O-RING
1
3
X
1903007227
O-RING
1
4
X
1420010210
O-RING
2
5
X
1420010180
O-RING
1
6
X
1420010140
O-RING
2
7
X
1420010080
O-RING
2
8
X
1420010110
O-RING
1
9
1903904501
CASE
1
10
1903904502
BEARING, ball
1
11
1903904503
SHAFT
1
12
1903904504
PLATE, thrust
1
0-5
1903120698
BLOCK, cylinder
1
13
X
**********
PISTON ASSY
9
14
1903106808
COLLAR
1
15
1903904507
SPRING
1
16
1903904508
WASHER
1
17
1221000037
RING, snap
1
18
1903904510
PIN
3
19
1903904511
PLATE
1
20
1903106813
HOLDER
1
22
1903904514
DISK
1
23
1903904515
PISTON
1
24
1903904518
SHEET, spring
2
25
1903904519
SPRING
1
26
1903904521
COVER
1
27
1903107927
BEARING
1
28
1212000412
PIN
1
29
1903904524
PLATE, valve
1
30
1903904525
PIN
2
31
1110021230
SCREW, cap
5
32
1901802713
ORIFICE
1
33
1901809200
VALVE ASSY
1
33-1
1420000100
O-RING
1
33-2
1420010120
O-RING
1
33-3
1420010140
O-RING
1
34
1141100006
WASHER
1
35
1903904535
SPRING
1
36
1903904537
PLUG
1
37
1901800049
VALVE ASSY, relief
2
37-1
1420010240
O-RING
1
37-2
1420010120
O-RING
1
37-3
1421020120
RING, back-up
2
38
1903904539
VALVE, check
2
39
1903904540
SPRING
2
40
1903106843
PLUG
2
41
1912905325
PLUG
2
42
1903108655
PLUG
1
G4h261
Reference:G4H261
Page:8-43
TB135 Book No. BG4Z010 S/N 13510004-

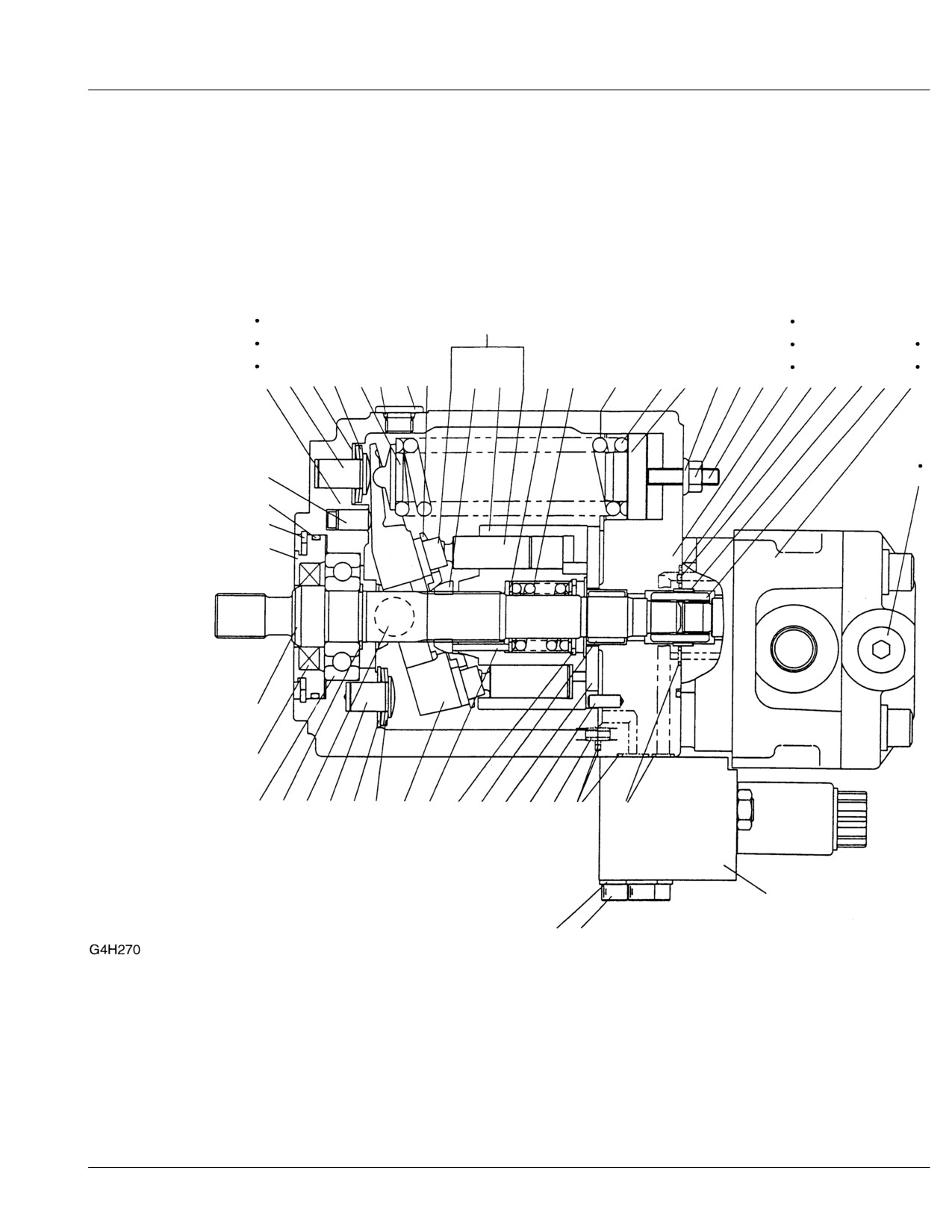

HYDRAULIC PUMP (1/2) (13510004-13512532)
56
57
13
38
42
52
26
40
51
6
29
28
35
24
4
41 14
15 11
18
17
1
23 25
7
45 44
39
8
9
50 49 48
46
27
47
3
36
32
20
2
33
37 22 30
28
35 21 16 19 34 12 43
31
5
10
53
55 54
Ref G4H270
Page
8-44
HYDRAULIC PUMP (1/2) (13510004-13512532)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1902016100
PUMP, hydraulic
1
0-1
1902016199
KIT, seal
1
1
X
1902012013
PACKING
1
2
X
1902016032
SEAL, oil
1
3
X
1420110750
O-RING
1
4
X
1420010110
O-RING
1
5
X
1420010120
O-RING
3
6
X
1420010110
O-RING
1
7
X
1902016062
WASHER, seal
1
8
X
1420010070
O-RING
1
9
X
1420110550
O-RING
1
10
X
1420010080
O-RING
2
0-2
1902906000
BARREL KIT, cylinder
1
11
X
**********
BARREL, cylinder
1
12
X
**********
PLATE
1
13
1902906100
PISTON ASSY
1
14
1902016008
HOLDER
1
15
1902016009
HOLDER
1
16
1902011511
NEEDLE
3
17
1902016014
SPRING
1
18
1903902313
RETAINER
2
19
1221000035
RING, snap
1
20
1902016103
SHAFT
1
21
1902016010
PLATE, swash
1
22
1902016012
PIN
1
23
1902016115
SPRING
1
24
1902016118
HOLDER
1
25
1902016019
GUIDE
1
26
1902011526
PIN
1
27
1902016121
ROD
1
28
1902016023
WASHER
2
29
1902014725
PIN
1
30
1902016126
PIN
1
31
1902016027
PIN
1
32
1902016128
HOLDER
1
33
1300006305
BEARING
1
34
X
**********
BEARING
1
35
1902016033
WASHER
4
36
1221000080
RING, snap
1
37
1220000025
RING, snap
1
38
1902014742
PLUG
1
39
1110021045
SCREW, cap
5
40
1902016049
PLUG
5
41
1902014742
PLUG
1
42
1140010010
WASHER, spring
5
43
1213000616
PIN, spring
1
44
1121050835
SET-SCREW
1
45
1130050008
NUT
1
46
1902016163
PLUG
1
47
1420010140
O-RING
1
48
1902906500
PUMP, gear
1
49
1902016166
COUPLING
1
50
1902916067
COLLAR
1
51
1100050820
BOLT
2
52
1141190008
WASHER
2
53
1902906600
BLOCK ASSY, valve
1
54
1100050875
BOLT
3
55
1140010008
WASHER, spring
3
56
X
**********
BODY(S)
1
57
X
**********
BODY(H)
1
G4h271
Reference:G4H270
Page:8-44
TB135 Book No. BG4Z010 S/N 13510004-

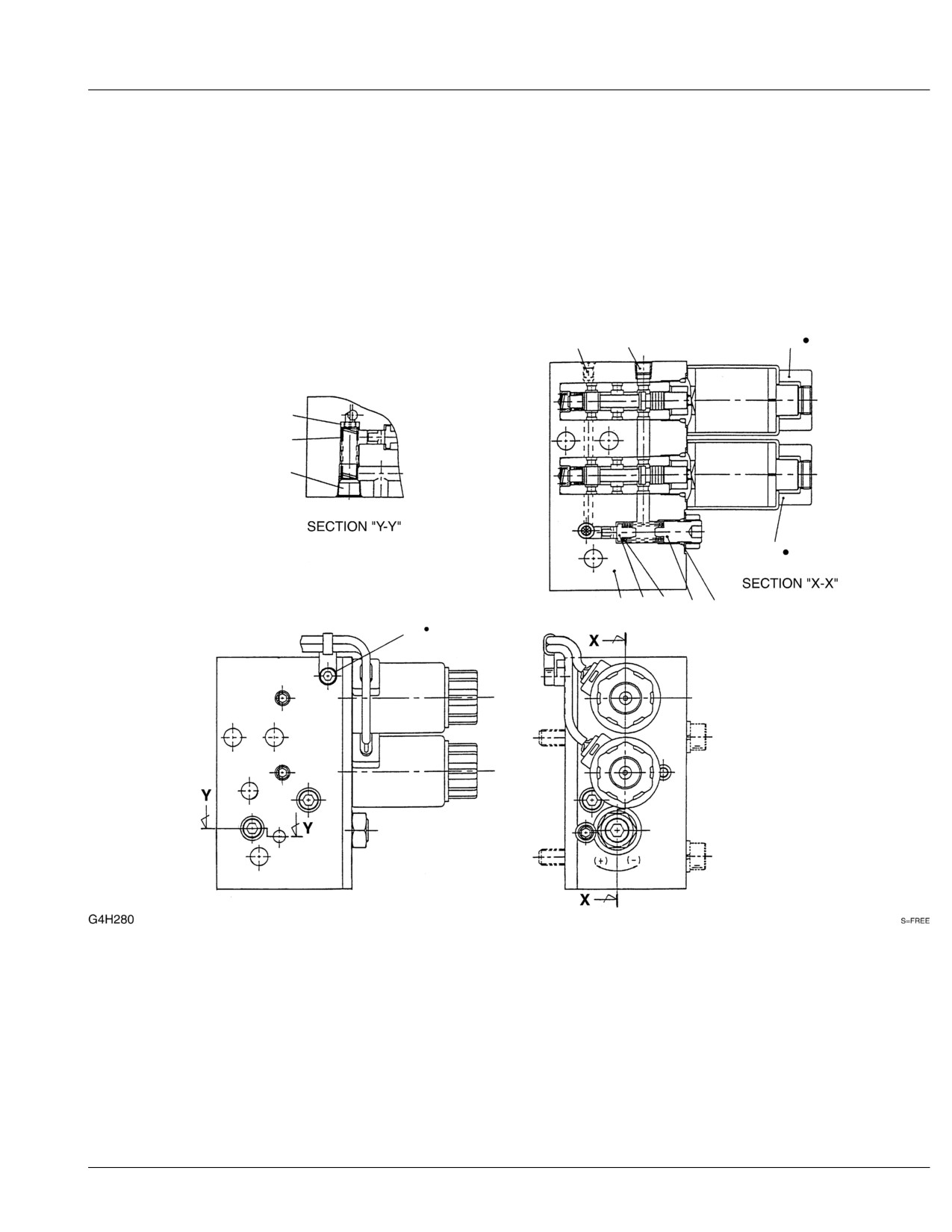

HYDRAULIC PUMP (2/2) (13510004-13512532)
10
8
14
16
5
4
9
13
15
1
2
3
6
7
11
12
Ref G4H280
Page
8-45
HYDRAULIC PUMP (2/2) (13510004-13512532)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1902016100
PUMP, hydraulic
1
0-3
1902906600
BLOCK ASSY, valve
1
1
X
**********
BLOCK
1
2
X
**********
VALVE, relief
1
3
X
**********
SPRING
1
4
1902906604
SPRING
1
5
1902906605
FILTER
1
6
1902906606
KIT, adjuster
1
7
1420010900
O-RING
1
8
1501810000
PLUG
4
9
1501810001
PLUG
3
10
X
**********
PLUG
2
11
1110020510
SCREW, cap
1
12
X
**********
BAND
1
13
1902906615
VALVE, solenoid (without spool)
1
14
1902906616
VALVE, solenoid (without spool)
1
15
1902906625
VALVE, solenoid (with spool)
1
16
1902906626
VALVE, solenoid (with spool)
1
G4h281
Reference:G4H280
Page:8-45
TB135 Book No. BG4Z010 S/N 13510004-

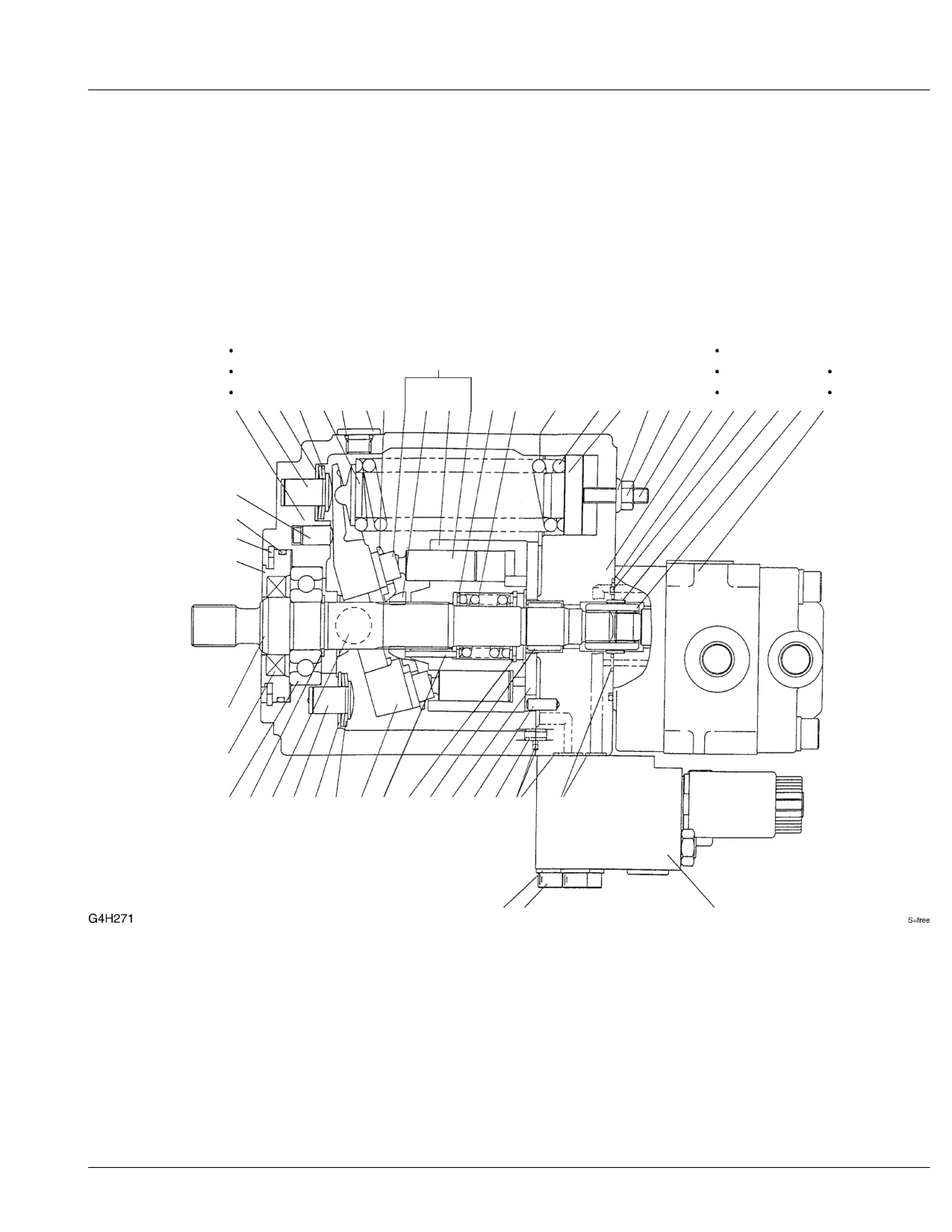

HYDRAULIC PUMP (1/2) (13512533-)
54
55
38
13
42
50
26
40
49
6
29
28
35
24
4
41 14
15 11
18 17
1
23 25
7
45 44 39
8
9
48
47
46
27
3
36
32
20
2
33 37 22 30
28
35
21 16 19 34 12 43 31
5
10
53 52
51
Ref G4H271
Page
8-46















Content      ..     11      12      13      14     ..
