Takeuchi Hydraulic excavator TB135 (Serial No.13510004~). Parts Manual - page 12
BLOCK ASSY; No. 3
Item
Part number
Description
Q'ty Chan.
Serial No.
Serv. Remarks
0
1901036419
BLOCK ASSY, No3
1
auxiliary
1
1901036426
PLUNGER
1
A(L)
13510004~13511440
1901039426
PLUNGER
1
a(H)
13511441~
2
1901036456
SPRING
1
A(L)
13510004~13511440
1901039456
SPRING
1
a(H)
13511441~
3
1901036466
PLUG
1
A(L)
13510004~13511440
1901039471
PLUG
1
a(H)
13511441~
4
1420010110
O-RING
1
5
1420510220
O-RING
2
6
1901036468
CAP
1
7
1901036467
CAP
1
8
1901036491
BOLT, sems
4
<<NOTE>>
SET "A" is interchangeable with SET
"a".
G4h061
Reference:G4H060
Page:8-6
TB135 Book No. BG4Z010 S/N 13510004-

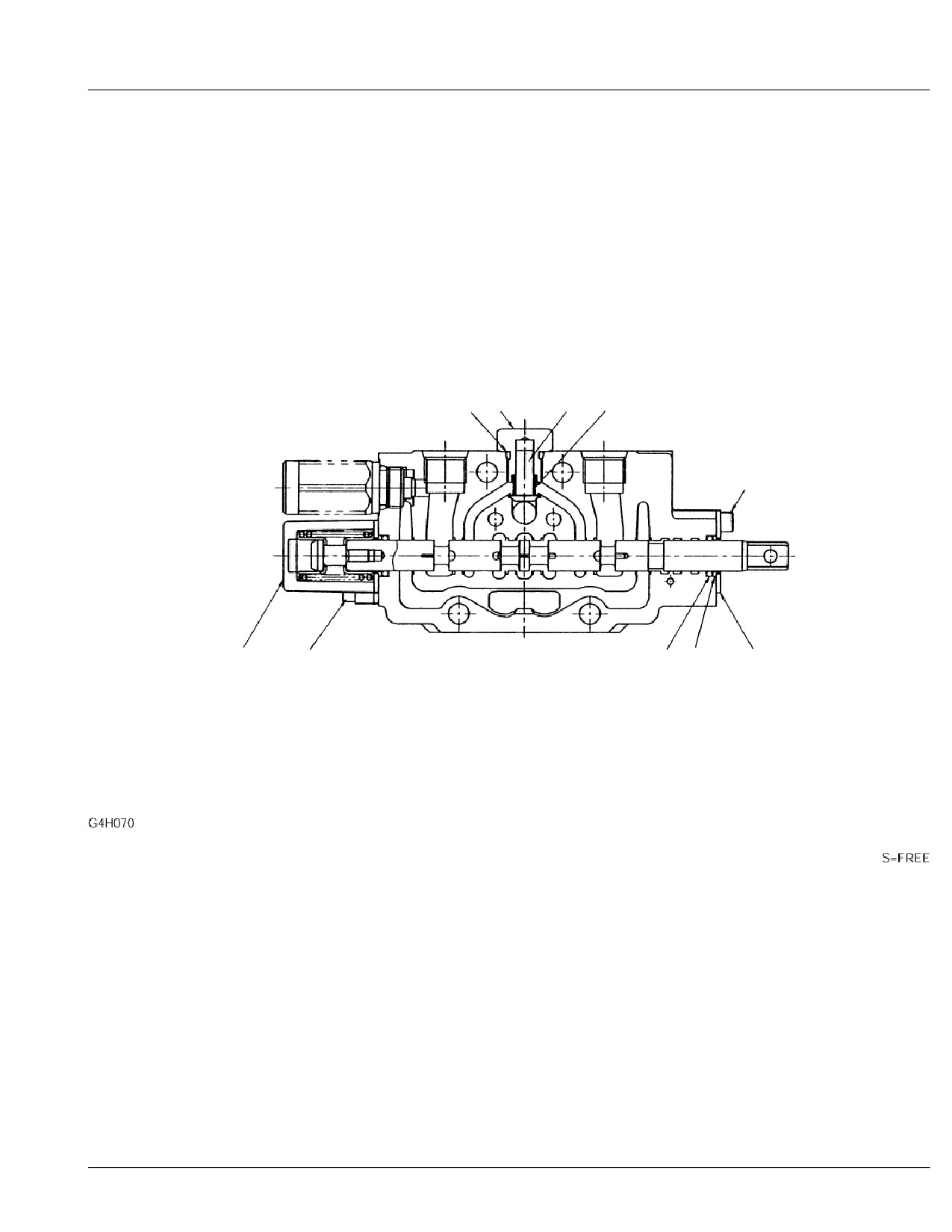

BLOCK ASSY; No. 4
7
6
4
5
8
9
10
2
3
1
Ref G4H070
Page
8-7
BLOCK ASSY; No. 4
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901036418
BLOCK ASSY, No4
1
swing
1
1901036441
PLATE, seal
1
2
1420000120
O-RING
1
3
1901036446
SEAL, dust
1
4
1901036426
PLUNGER
1
5
1901036456
SPRING
1
6
1901036466
PLUG
1
7
1420010110
O-RING
1
8
1110020510
SCREW, cap
2
9
1901036451
CAP
1
10
1110020518
SCREW, cap
2
G4h070
Reference:G4H070
Page:8-7
TB135 Book No. BG4Z010 S/N 13510004-

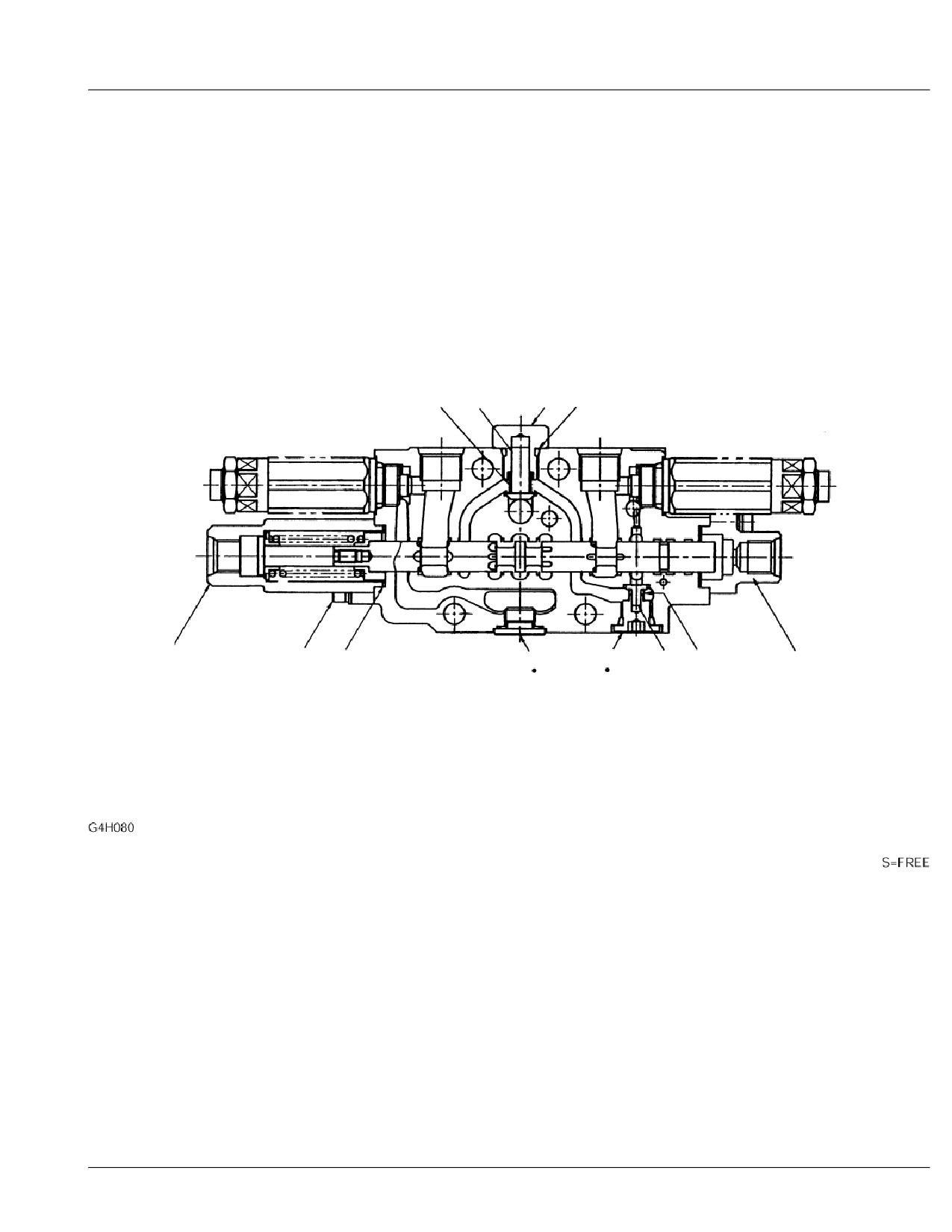

BLOCK ASSY; No. 5
2
1
3
4
12
13
10
5
4
7
8
11
6
9
Ref G4H080
Page
8-8
BLOCK ASSY; No. 5
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901036412
BLOCK ASSY, No5
1
arm
1
1901036426
PLUNGER
1
2
1901036456
SPRING
1
3
1901036466
PLUG
1
4
1420010110
O-RING
2
5
1901036474
PLUG
1
6
1420510160
O-RING
1
7
1901036428
PLUNGER
1
8
1901036473
SPRING
1
9
1901036472
PLUG
1
10
1420510220
O-RING
2
11
1901036468
CAP
1
12
1901036467
CAP
1
13
1901036491
BOLT, sems
4
G4h080
Reference:G4H080
Page:8-8
TB135 Book No. BG4Z010 S/N 13510004-

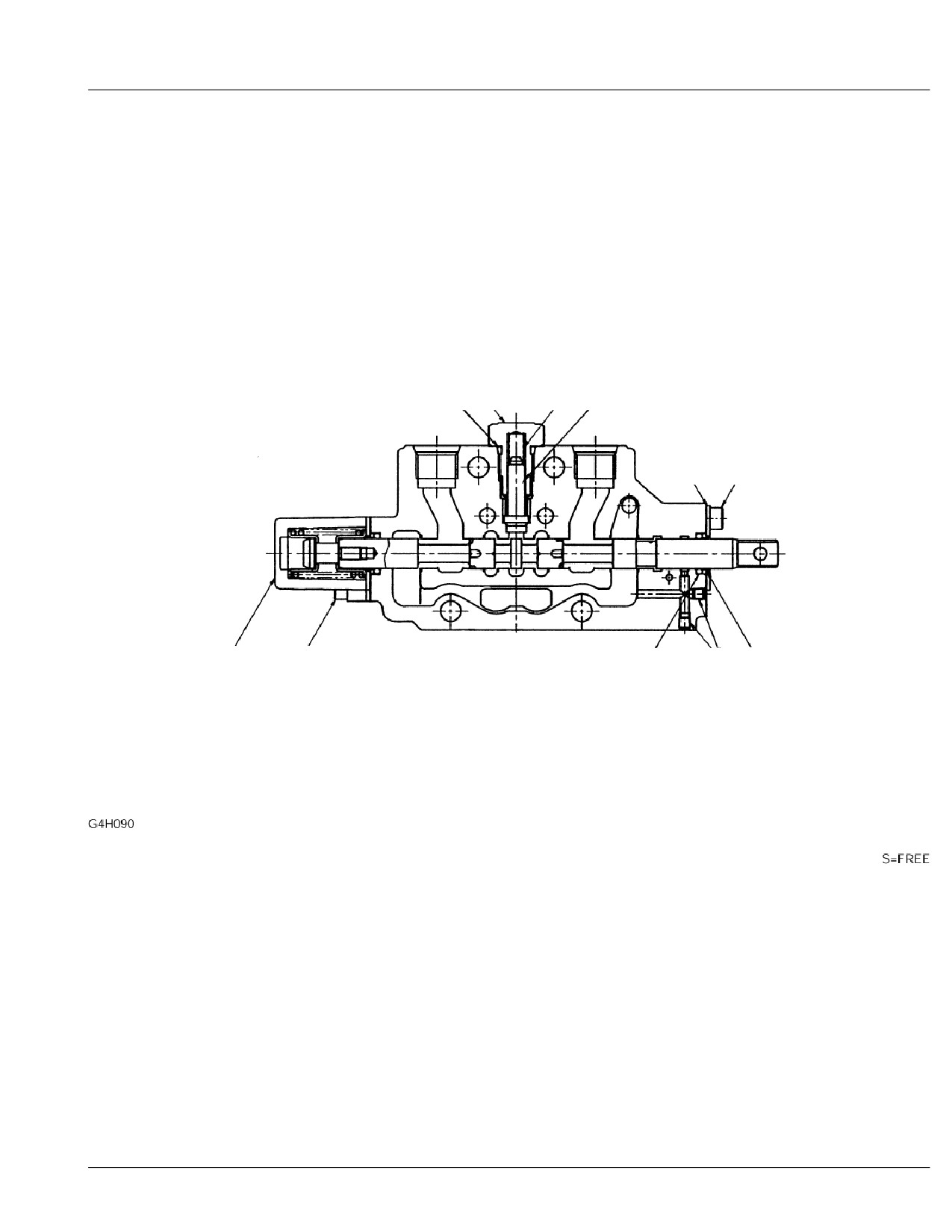

BLOCK ASSY; No. 6
7
6
5
4
1
8
9
10
2
11
3
Ref G4H090
Page
8-9
BLOCK ASSY; No. 6
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901036416
BLOCK ASSY, No6
1
traction L.H.
1
1901036441
PLATE, seal
1
2
1420000120
O-RING
1
3
1901036446
SEAL, dust
1
4
1901036427
PLUNGER
1
5
1901036458
SPRING
1
6
1901036470
PLUG
1
7
1420010110
O-RING
1
8
1110020510
SCREW, cap
2
9
1901036451
CAP
1
10
1110020518
SCREW, cap
2
11
1901036494
PLUG
2
G4h090
Reference:G4H090
Page:8-9
TB135 Book No. BG4Z010 S/N 13510004-

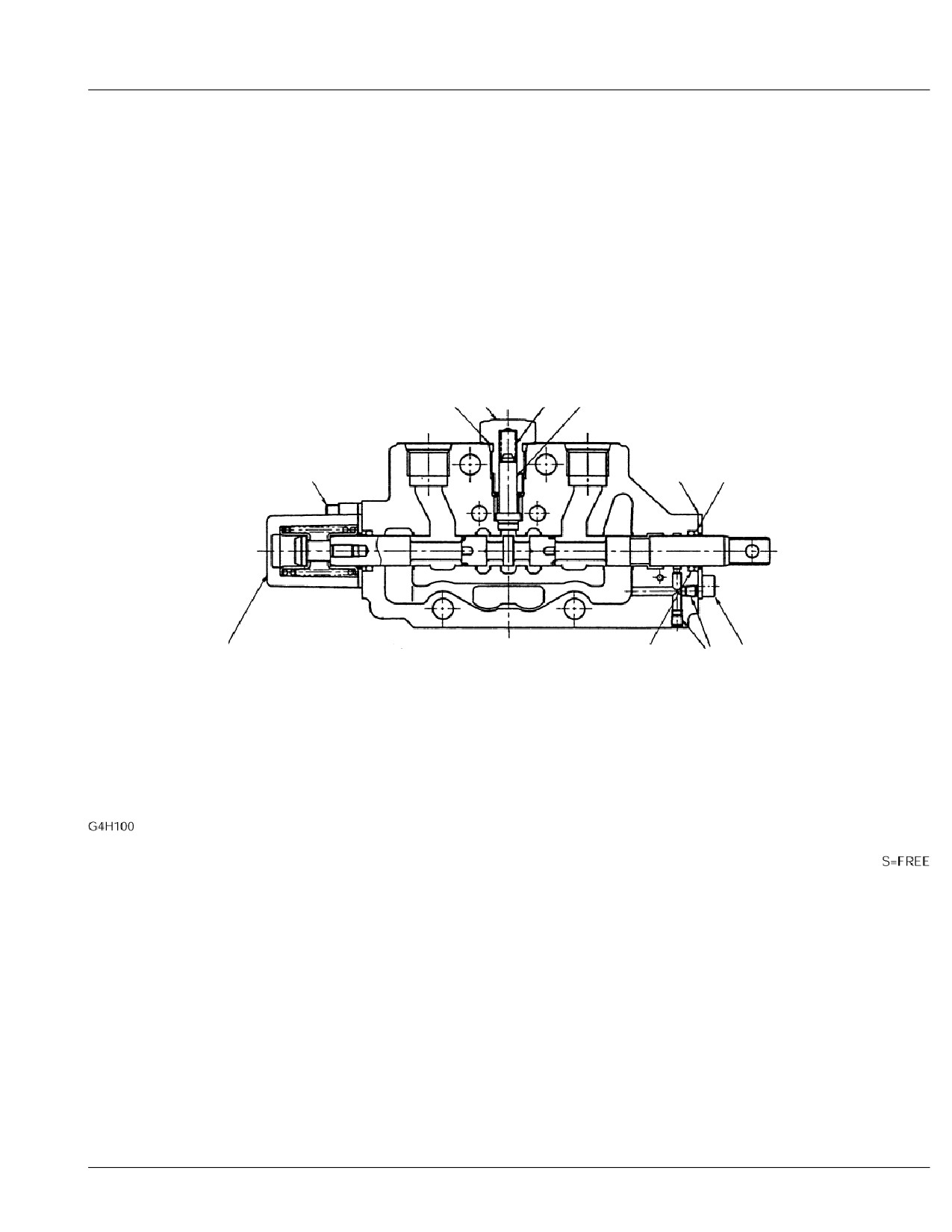

BLOCK ASSY; No. 7
7
6
5
4
10
1
3
9
2
11
8
Ref G4H100
Page
8-10
BLOCK ASSY; No. 7
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
1901036415
BLOCK ASSY, No7
1
traction R.H.
1
1901036441
PLATE, seal
1
2
1420000120
O-RING
1
3
1901036446
SEAL, dust
1
4
1901036427
PLUNGER
1
5
1901036458
SPRING
1
6
1901036470
PLUG
1
7
1420010110
O-RING
1
8
1110020510
SCREW, cap
2
9
1901036451
CAP
1
10
1110020518
SCREW, cap
2
11
1901036494
PLUG
2
G4h100
Reference:G4H100
Page:8-10
TB135 Book No. BG4Z010 S/N 13510004-

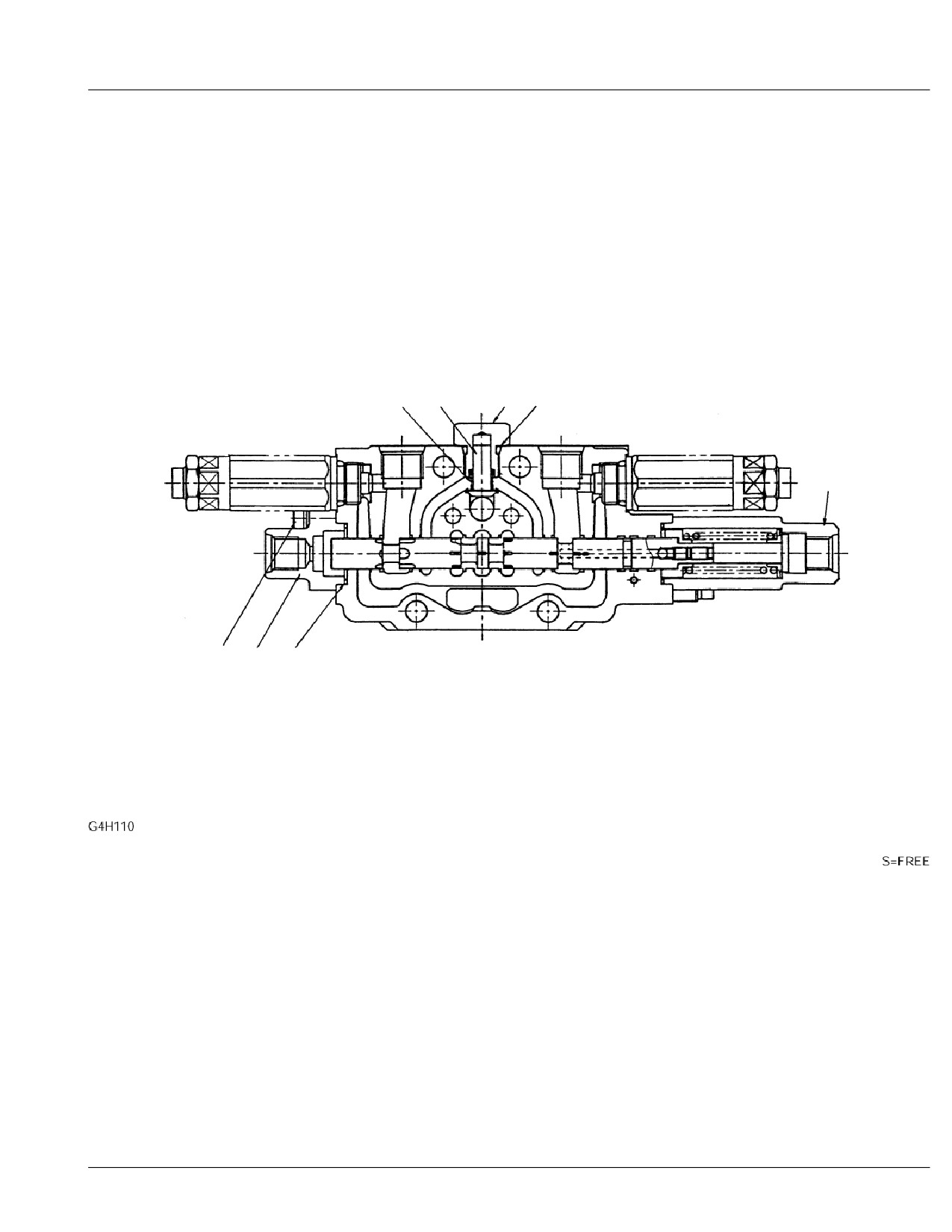

BLOCK ASSY; No. 8
2
1
3
4
7
8
6
5
Ref G4H110
Page
8-11
BLOCK ASSY; No. 8
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901036411
BLOCK ASSY, No8
1
boom
1
1901036426
PLUNGER
1
2
1901036456
SPRING
1
3
1901036466
PLUG
1
4
1420010110
O-RING
1
5
1420510220
O-RING
2
6
1901036468
CAP
1
7
1901036467
CAP
1
8
1901036491
BOLT, sems
4
G4h110
Reference:G4H110
Page:8-11
TB135 Book No. BG4Z010 S/N 13510004-

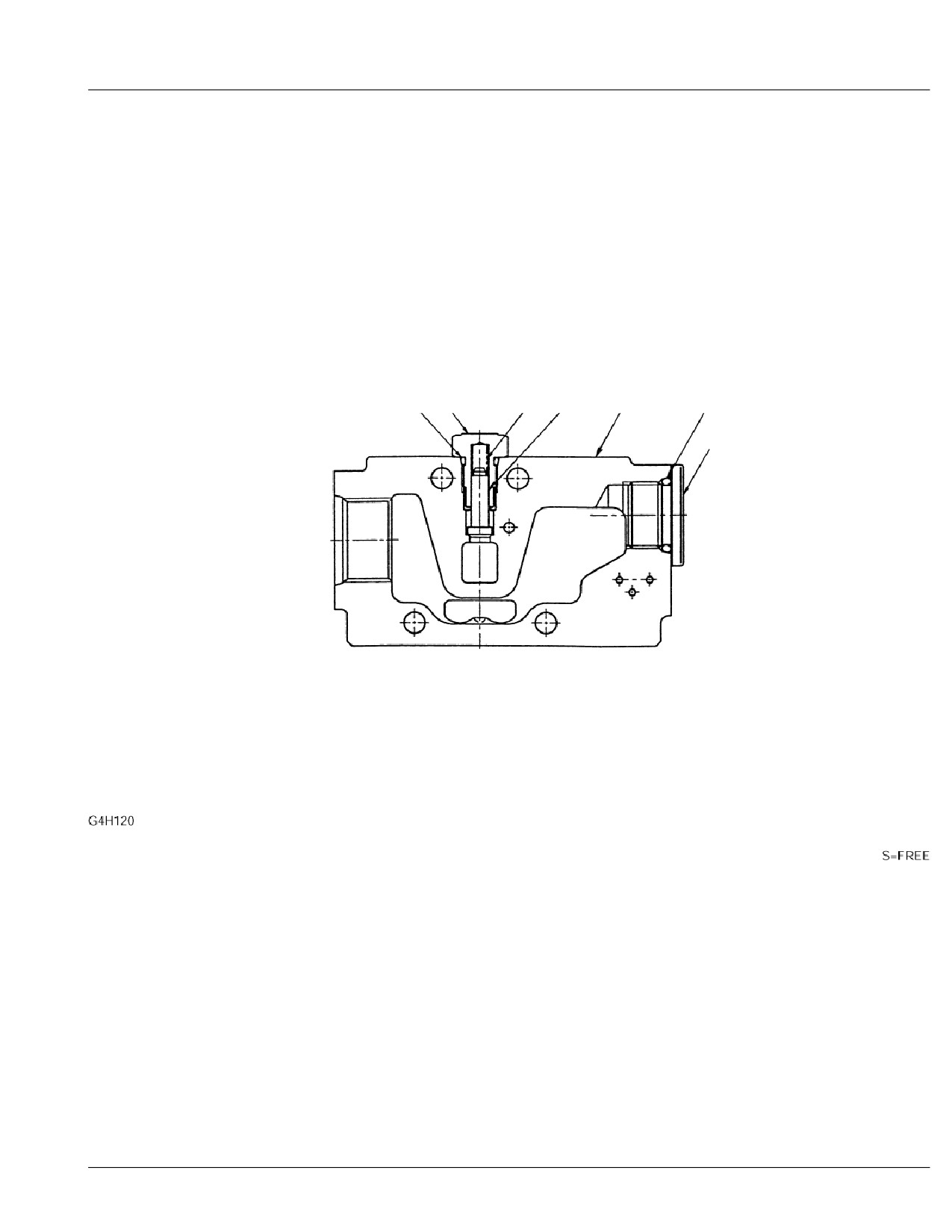

HOUSING ASSY
5
4
3
2
1
7
6
Ref G4H120
Page
8-12
HOUSING ASSY
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901036402
HOUSING ASSY
1
T1
1
1901036460
BODY
1
2
1901036427
PLUNGER
1
3
1901036458
SPRING
1
4
1901036470
PLUG
1
5
1420010110
O-RING
1
6
1501750006
PLUG
1
1420010240
O-RING
1
7
1420010240
O-RING
1
G4h120
Reference:G4H120
Page:8-12
TB135 Book No. BG4Z010 S/N 13510004-

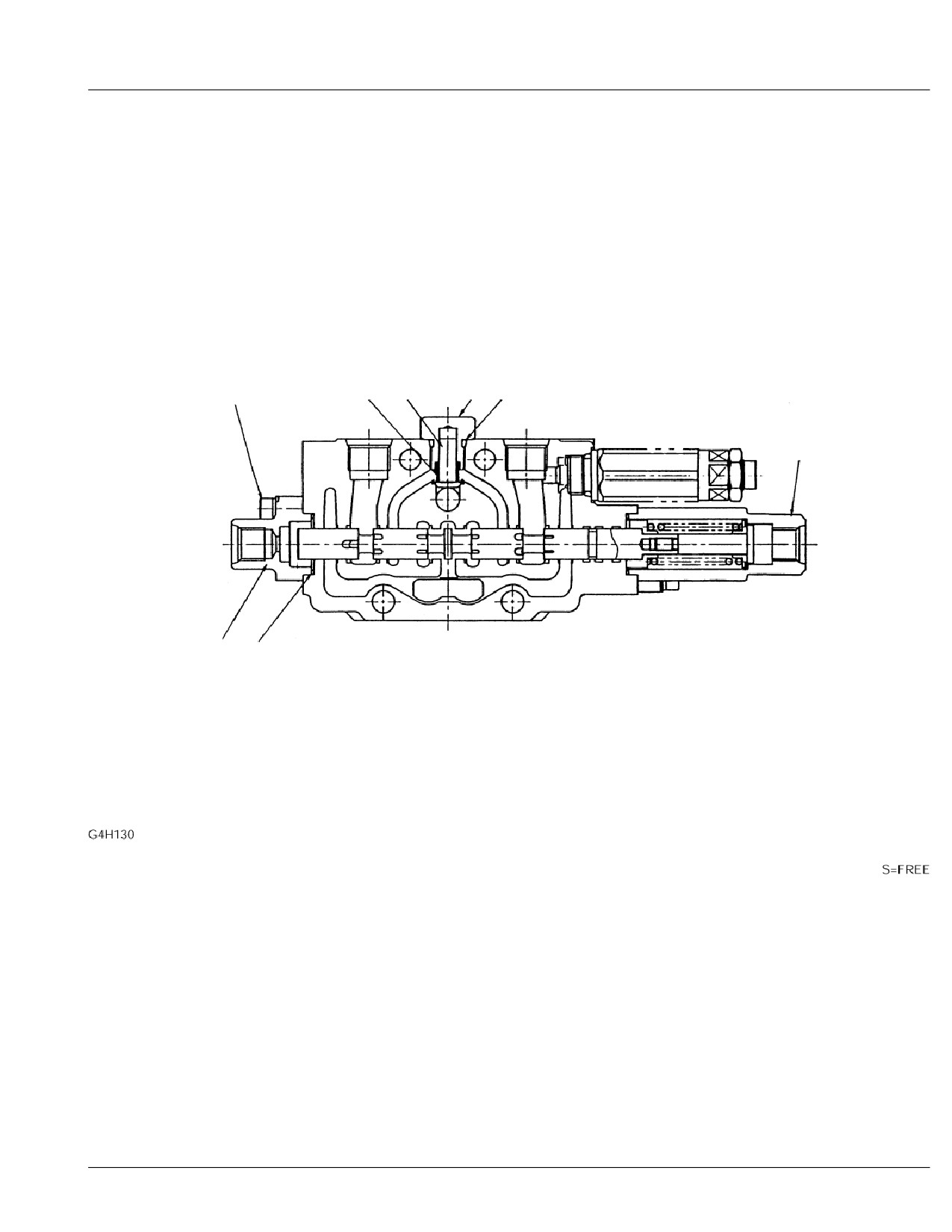

BLOCK ASSY; No. 9
2
1
3
4
8
7
6
5
Ref G4H130
Page
8-13
BLOCK ASSY; No. 9
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901036413
BLOCK ASSY, No9
1
bucket
1
1901036426
PLUNGER
1
2
1901036456
SPRING
1
3
1901036466
PLUG
1
4
1420010110
O-RING
1
5
1420510220
O-RING
2
6
1901036468
CAP
1
7
1901036467
CAP
1
8
1901036491
BOLT, sems
4
G4h130
Reference:G4H130
Page:8-13
TB135 Book No. BG4Z010 S/N 13510004-

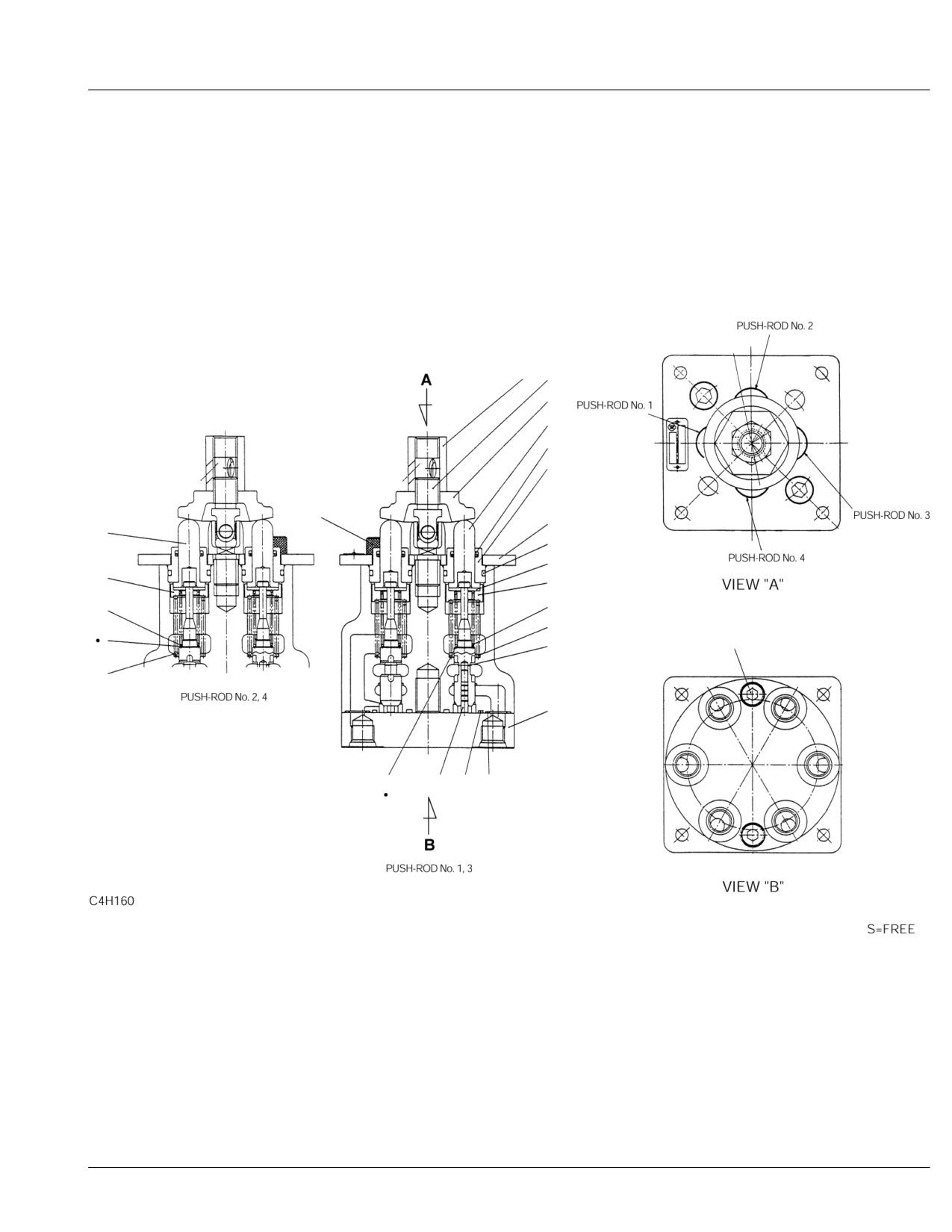

PILOT VALVE (13510004-13514050)
22
8
9
7
1
23
25
10
14
2
5
15
6
19
18
21
11
24
17
12
20
13
11
16
3
4
12
Ref C4H160
Page
8-14
PILOT VALVE (13510004-13514050)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1901730400
VALVE ASSY, pilot
1
0-1
1901730499
KIT, seal
1
1
X
1901728523
PACKING
4
2
X
1420000200
O-RING
4
3
X
1420500600
O-RING
1
4
X
1420500120
O-RING
6
5
1901730401
RETAINER
4
6
1901730402
HOLDER
2
7
1901730403
ROD
2
8
1901728501
JOINT
1
9
1901728502
CAM
1
10
1901730406
PLATE
1
11
1901730407
SHIM t=0.2
4
12
1901730408
SHIM t=0.1
4
13
1901730409
PLATE
1
14
1901730410
ROD
2
15
1901730411
HOLDER
2
16
1901730412
PISTON
4
17
1901730415
RING
4
18
1901730416
SPRING
2
19
1901730417
SPRING
2
20
1901730418
SPRING
2
21
1901730419
SPRING
2
22
1901728513
NUT
1
23
1901730422
SLEEVE
4
24
1110050825
SCREW, cap
2
25
1110051020
SCREW, cap
2
C4h161
Reference:C4H160
Page:8-14
TB135 Book No. BG4Z010 S/N 13510004-

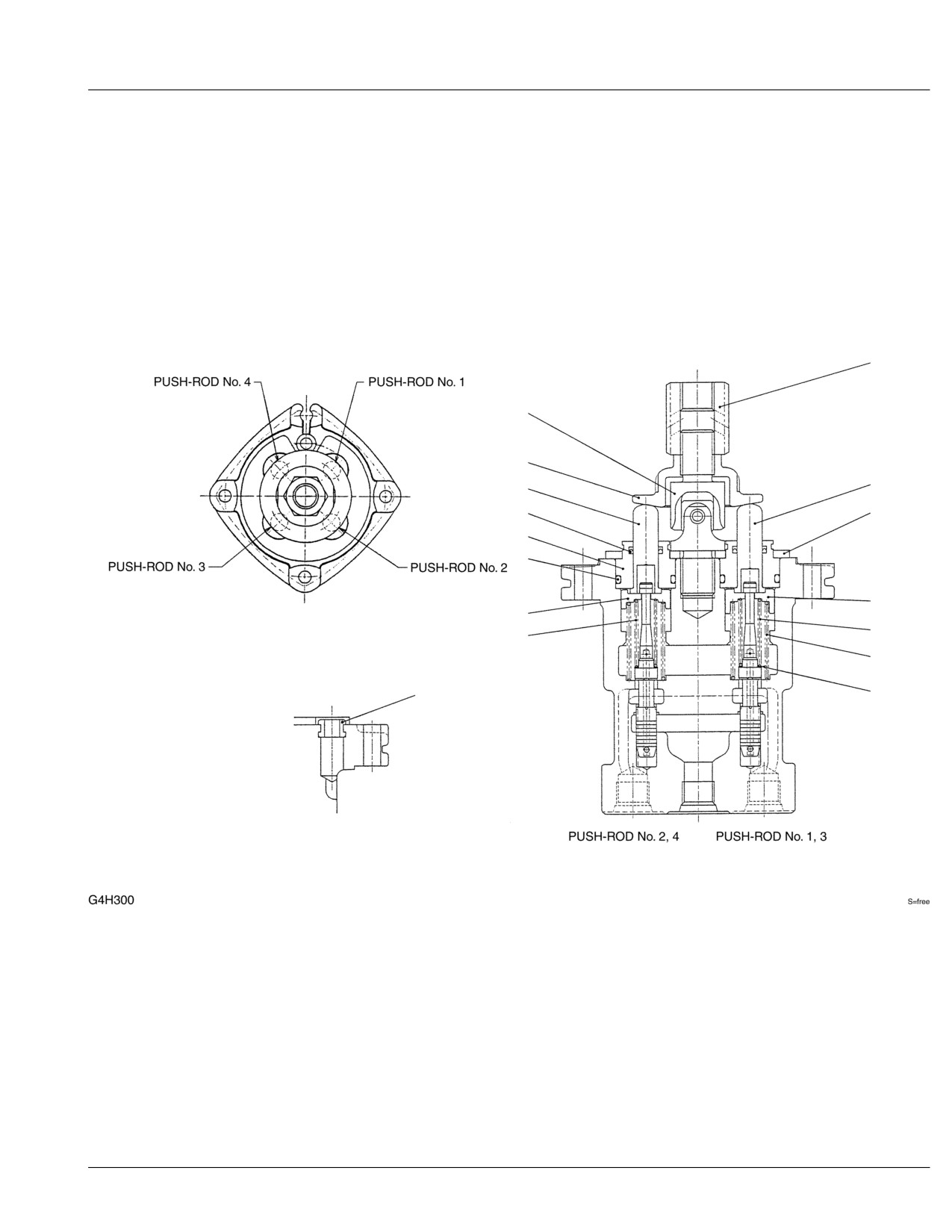

PILOT VALVE (13514051-)
15
13
14
3
4
5
1
2
6
7
8
11
12
10
16
9
Ref G4H300
Page
8-15
PILOT VALVE (13514051-)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901745600
VALVE ASSY, pilot
1
1
1901745702
PLATE
1
2
1901710912
PLUG
4
3
1901710911
ROD
2
4
1901719012
ROD
2
5
1901710914
SEAL
4
6
1420010200
O-RING
4
7
1901745709
HOLDER
2
8
1901745710
HOLDER
2
9
1901710917
ROD
4
10
1901745612
SPRING
4
11
1901742614
SPRING
2
12
1901742615
SPRING
2
13
1901720232
JOINT
1
14
1901743620
PLATE
1
15
1901703222
NUT
1
16
1901735630
BUSHING
1
G4h300
Reference:G4H300
Page:8-15
TB135 Book No. BG4Z010 S/N 13510004-

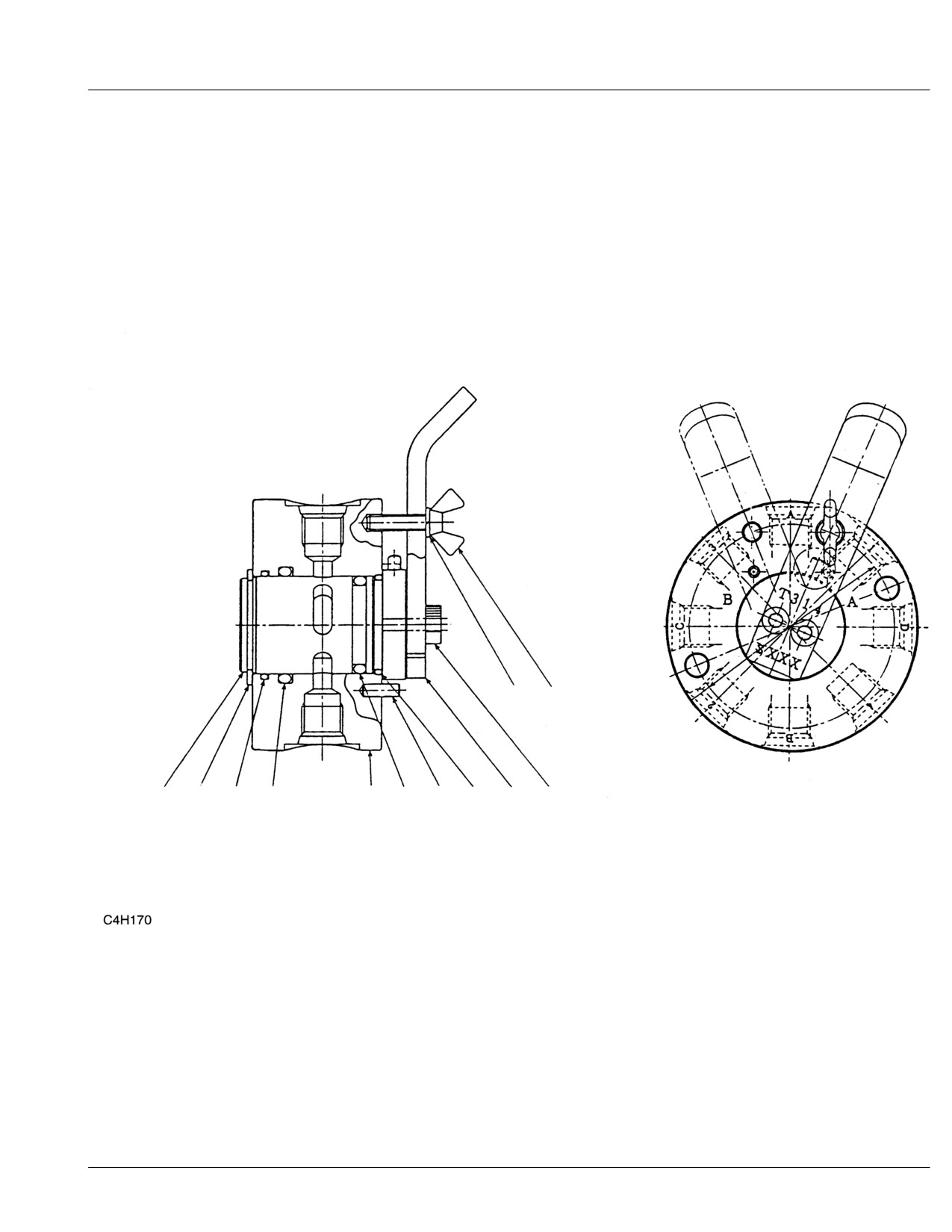

SELECTOR VALVE (A-B pattern)
12
4
2
10
5
6
1
7
9
8
3
11
Ref C4H170
Page
8-16
SELECTOR VALVE (A-B pattern)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901731400
VALVE ASSY, selector
1
1
1901731401
BODY
1
2
1901731402
ROTOR
1
3
1901730503
LEVER
1
4
1901730504
BOLT
1
5
1901730505
O-RING
1
6
1901730506
O-RING
1
7
1901730507
O-RING
1
8
1901730508
O-RING
1
9
1213000412
PIN, spring
3
10
1220000030
RING, snap
1
11
1110050514
SCREW, cap
2
12
1140010005
WASHER, spring
1
C4h170
Reference:C4H170
Page:8-16
TB135 Book No. BG4Z010 S/N 13510004-

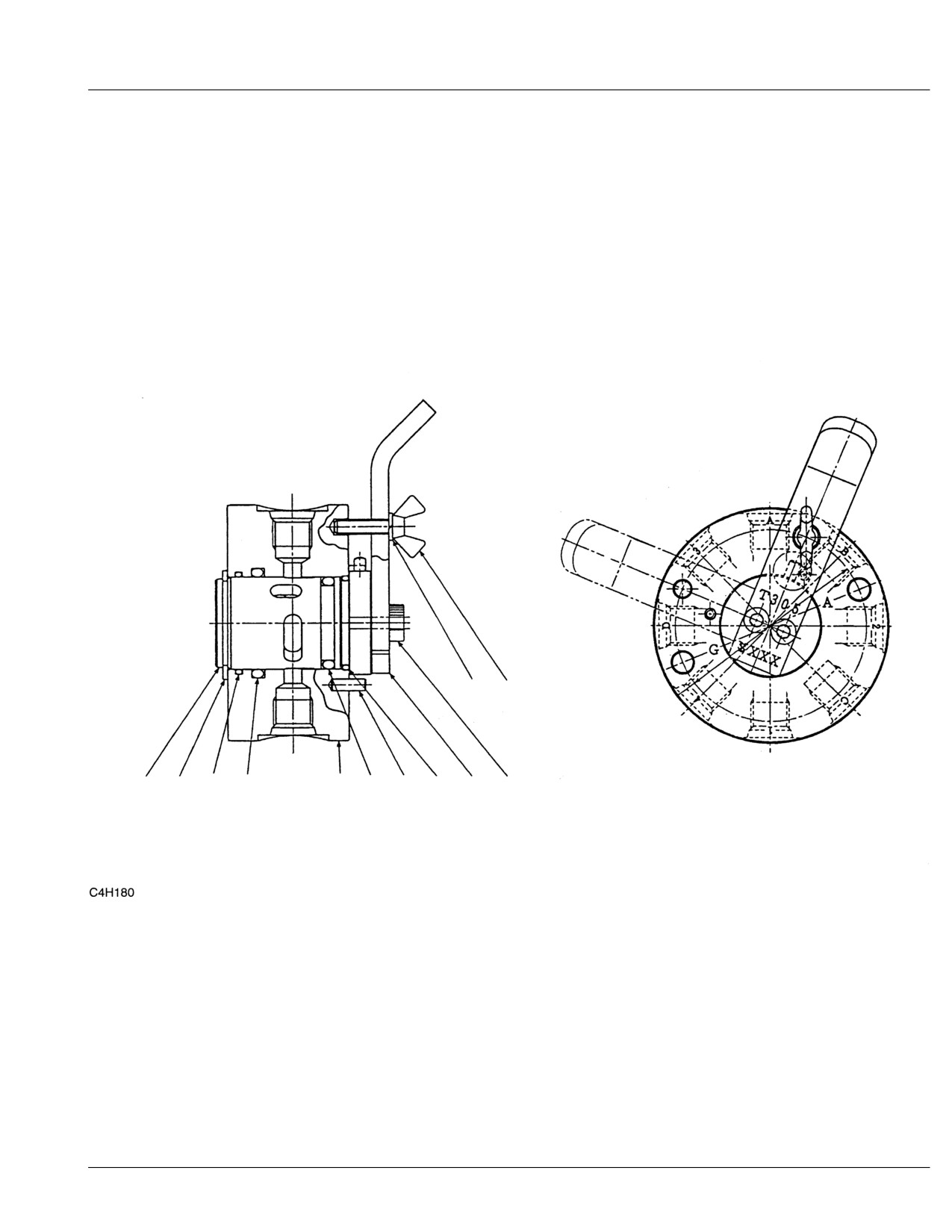

SELECTOR VALVE (ISO-JCB pattern)
12
4
2
10
5
6
1
7
9
8
3
11
Ref C4H180
Page
8-17
SELECTOR VALVE (ISO-JCB pattern)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901730500
VALVE ASSY, selector
1
1
1901730501
BODY
1
2
1901730502
ROTOR
1
3
1901730503
LEVER
1
4
1901730504
BOLT
1
5
1901730505
O-RING
1
6
1901730506
O-RING
1
7
1901730507
O-RING
1
8
1901730508
O-RING
1
9
1213000412
PIN, spring
3
10
1220000030
RING, snap
1
11
1110050514
SCREW, cap
2
12
1140010005
WASHER, spring
1
C4h180
Reference:C4H180
Page:8-17
TB135 Book No. BG4Z010 S/N 13510004-

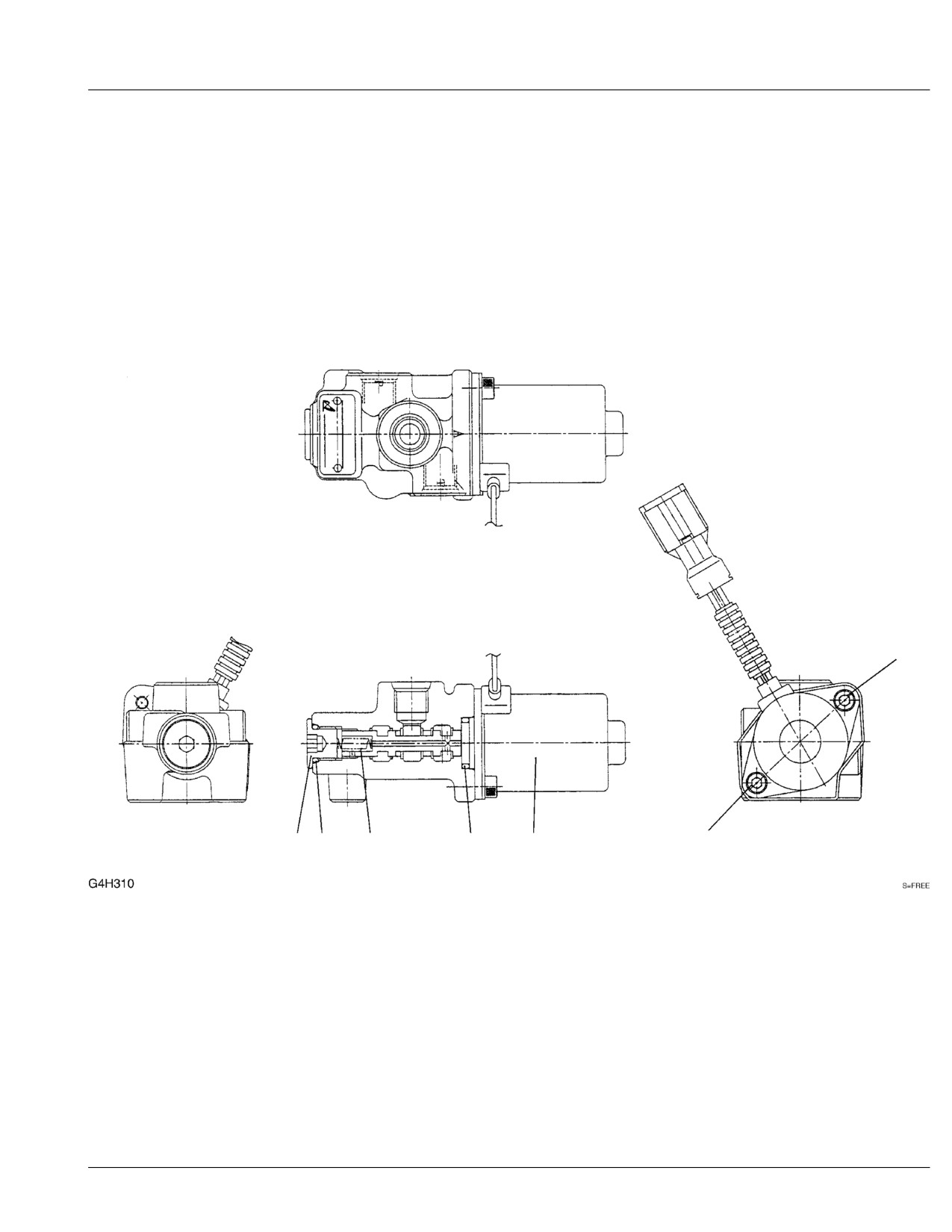

SOLENOID VALVE (1BLOCK)
4
4
3
6
1
5
2
Ref G4H310
Page
8-18
SOLENOID VALVE (1BLOCK)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901746600
VALVE ASSY, solenoid
1
1
1901734404
SPRING
1
2
1901746604
SOLENOID
1
3
1901738312
PLUG
1
4
1110050512
SCREW, cap
2
5
1420000160
O-RING
1
6
1420010110
O-RING
1
G4h310
Reference:G4H310
Page:8-18
TB135 Book No. BG4Z010 S/N 13510004-

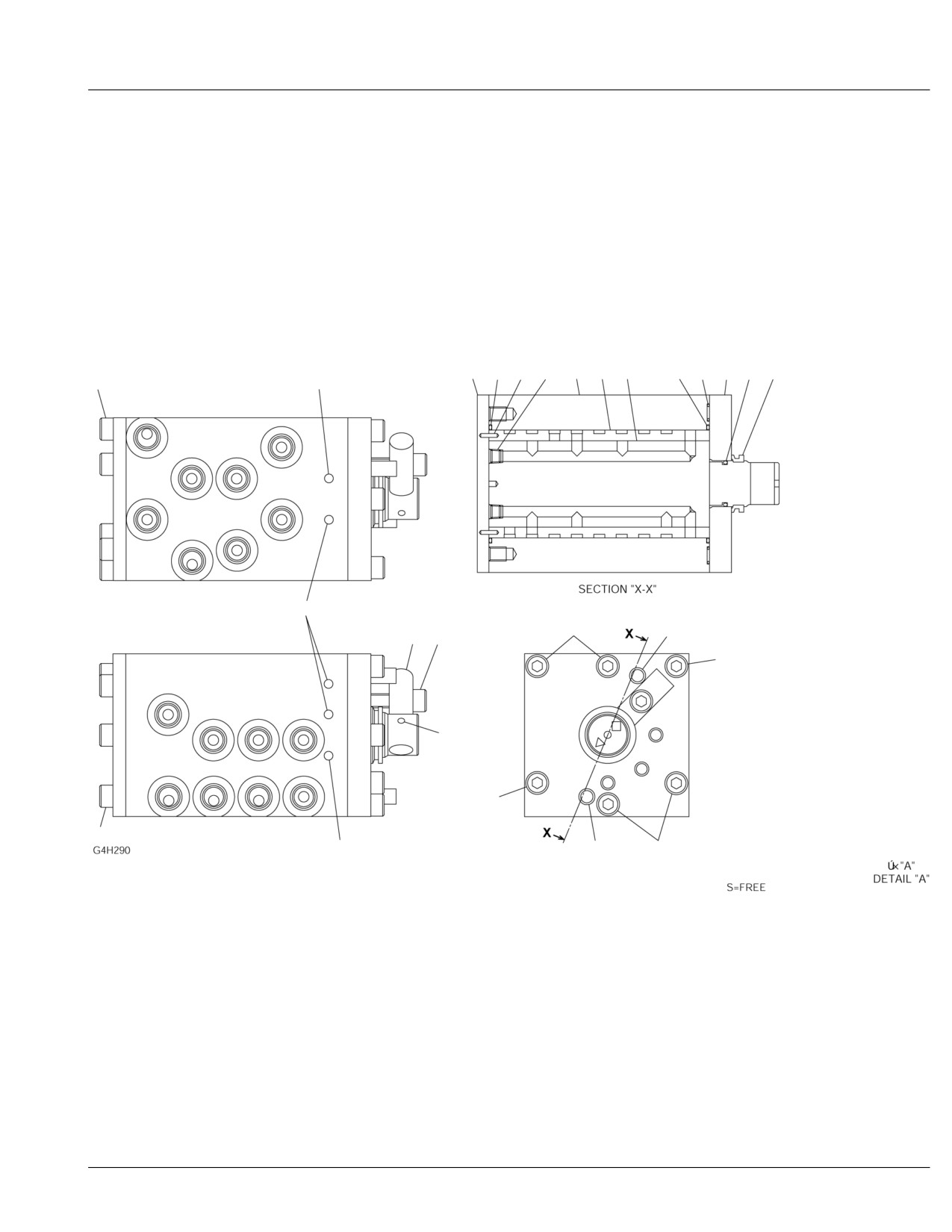

ROTARY VALVE
8
3
17
18
5
6
7
3
4
10
2
1
12
16
16
13
15
9
11
13
14
13
12
16
15
13
Ref G4H290
Page
8-19
ROTARY VALVE
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901733700
VALVE, rotary
1
0-1
1901733799
KIT, seal
1
1
X
1901733717
SEAL, oil
1
2
X
1420010220
O-RING
1
3
X
1420500650
O-RING
2
4
X
1420500080
O-RING
8
5
1901733701
CASE
1
6
1901733702
SLEEVE
1
7
1901733703
SHAFT
1
8
1901733704
COVER
1
9
1901733705
LEVER
1
10
1901733706
COVER
1
11
1110040830
SCREW, cap
1
12
1110040816
SCREW, cap
6
13
1110040825
SCREW, cap
6
14
1213000426
PIN, spring
1
15
1213000824
PIN, spring
2
16
1390010400
BALL, steel
1
17
1901733716
BEARING
4
18
1501810000
PLUG
8
G4h290
Reference:G4H290
Page:8-19
TB135 Book No. BG4Z010 S/N 13510004-

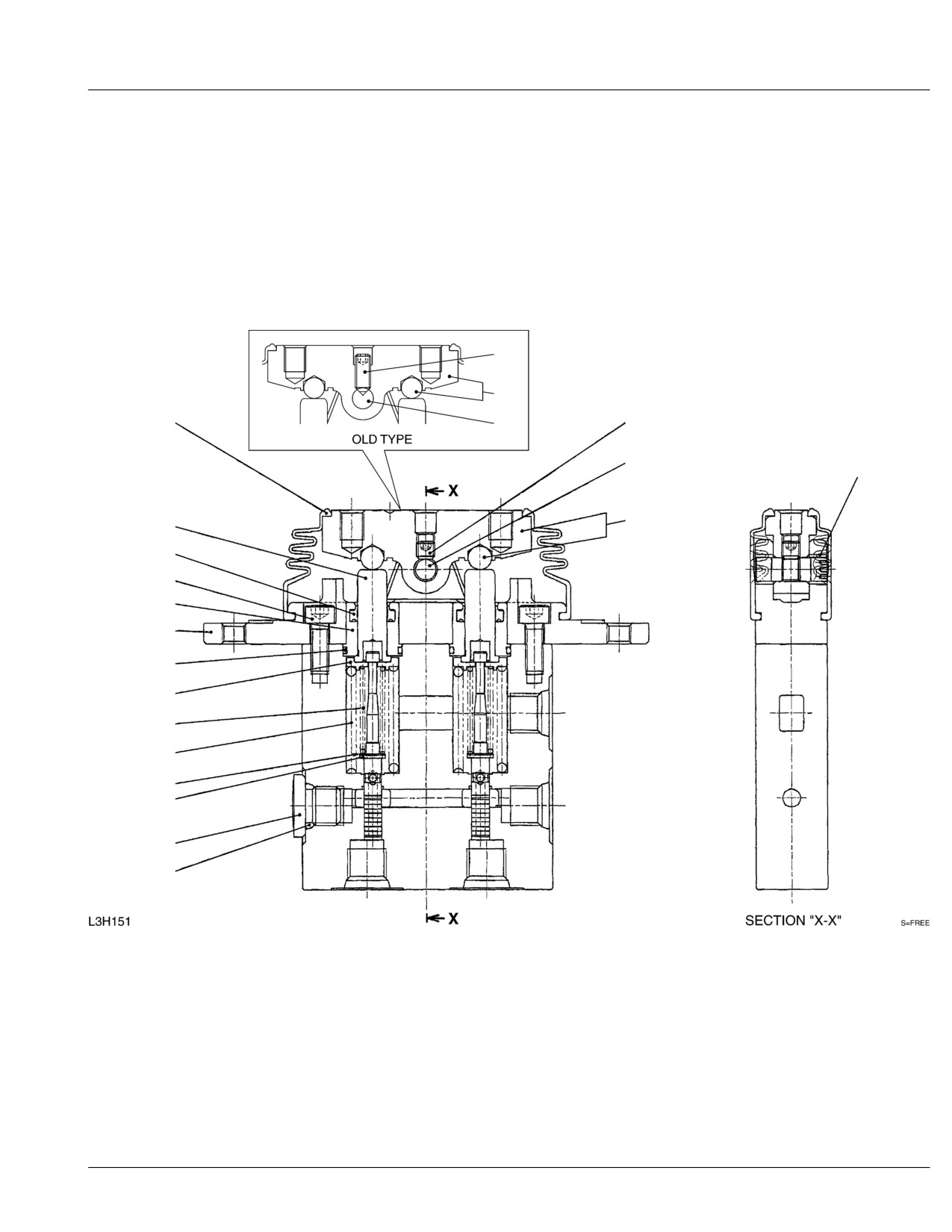

REMOTE CONTROL VALVE
17
16
18
17
14
14
15
16
6
1
9
5
4
2
10
12
13
7
11
8
3
Ref L3H151
Page
8-20
REMOTE CONTROL VALVE
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1901735000
VALVE ASSY, remote-control
1
swing
0-1
1901745499
KIT, seal
1
1
X
1901745404
PACKING
2
2
X
1420300017
O-RING
2
3
X
1420010110
O-RING
1
4
1901745402
COVER
1
5
1901745403
PLUG
2
6
1901745406
ROD
2
7
1901745407
SHIM
2
8
1501750002
PLUG
1
1420010110
O-RING
1
9
1110020616
SCREW, cap
2
10
1901745412
HOLDER
2
11
1901745413
WASHER
2
12
1901745414
SPRING
2
13
1901735015
SPRING
2
14
1901745416
SHAFT
1
A
old type
1901735016
SHAFT
1
a(H)
new type
No. 23759
15
1901745417
BUSHING
2
16
1901745418
CAM ASSY
1
A
old type
1901735018
CAM ASSY
1
a(H)
new type
No. 23759
17
1901745420
SET-SCREW
1
A
old type
1121040606
SET-SCREW
1
a(H)
new type
No. 23759
18
1901735001
BOOT
1
<<NOTE>>
SET "A" is interchangeable with SET "a".
L3h151
Reference:L3H151
Page:8-20
TB135 Book No. BG4Z010 S/N 13510004-

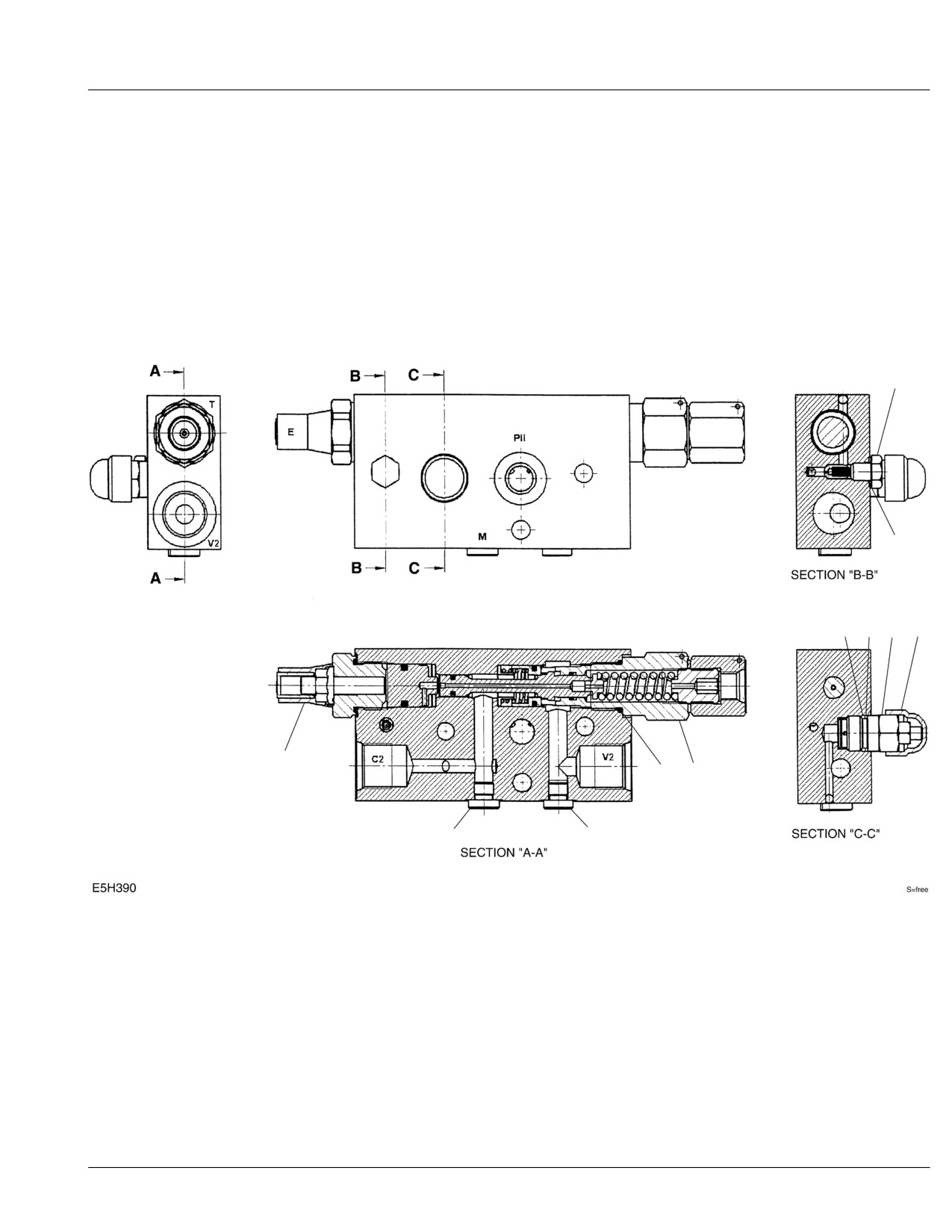

SHUT-OFF VALVE
6
5
9
8
7
10
2
4
3
1
1
Ref E5H390
Page
8-21
SHUT-OFF VALVE
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901745200
VALVE ASSY, load holding
1
1
1901742903
PLUG
2
2
1901742901
CAP
1
3
1901745203
VALVE ASSY
1
4
1901742904
O-RING
1
5
1901742906
SEAL
1
6
1901742907
PLUG
1
7
1901742909
PLUG ASSY
1
8
1901742911
RING, back-up
1
9
1901742708
O-RING
1
10
1901742910
CAP
1
E5h390
Reference:E5H390
Page:8-21
TB135 Book No. BG4Z010 S/N 13510004-

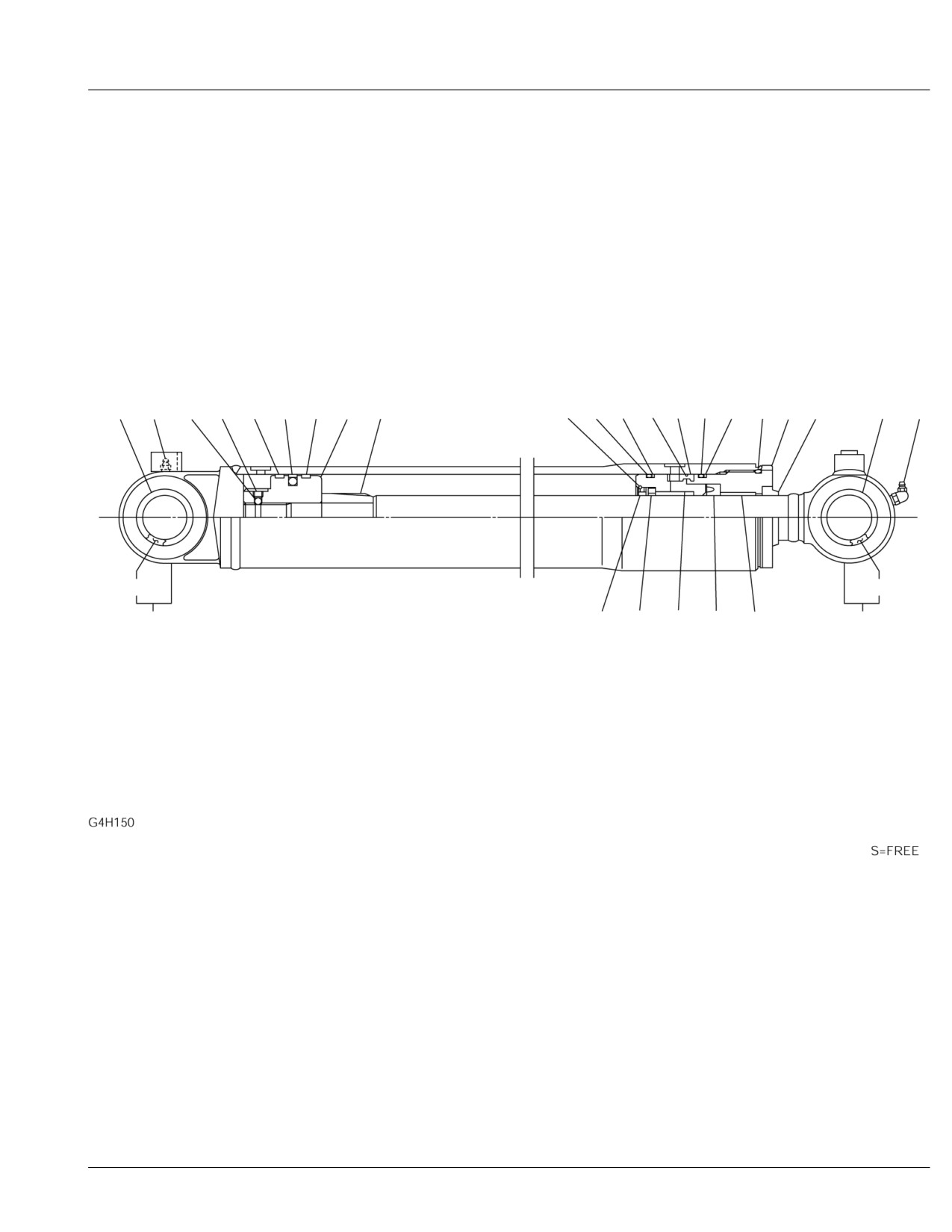

BOOM CYLINDER (13510004-13514050)
25
26
23
24
20
7
20
14
13
17
6
4
18
19
3
4
5
12
2
25
27
9
11
8
15
16
21
1
22
10
Ref G4H150
Page
8-22
BOOM CYLINDER (13510004-13514050)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1900077200
CYLINDER ASSY
1
13510004~13510675
boom
1900080400
CYLINDER ASSY
1
13510676~13511212
boom
1900082700
CYLINDER ASSY
1
(H)
13511213~
boom
0-1
1900077299
KIT, seal
1
1
X
1900005912
PACKING, rod
1
2
X
1900075133
SEAL, dust
1
3
X
1420110800
O-RING
1
4
X
1421130800
RING, back-up
2
5
X
1420110850
O-RING
1
6
X
1420110750
O-RING
1
7
X
1900050932
PACKING, piston
1
8
1900077298
TUBE ASSY
1
13510004~13510675
1900080498
TUBE ASSY
1
13510676~
9
1900018502
BUSHING
1
10
1900077297
ROD ASSY, piston
1
13510004~13510675
1900080497
ROD ASSY, piston
1
13510676~13511212
1900082797
ROD ASSY, piston
1
13511213~
11
1900018502
BUSHING
1
12
1900054703
COVER, rod
1
13
1900060205
CUSHION, rod
1
14
1900054706
PISTON
1
15
1900049415
SPACER
1
16
1900050216
RING, cushion
1
17
1900049426
STOPPER
1
18
1900054726
STOPPER
1
19
1900054727
CONNECTOR
1
20
1900050931
RING, slide
2
21
1900054774
RETAINER
1
22
1333004530
BUSHING
1
23
1390020250
BALL, steel
1
24
1121050608
SET-SCREW
1
25
1432200045
SEAL, dust
4
26
1560001000
FITTING, grease
1
27
1560001675
FITTING, grease
1
G4h151
Reference:G4H150
Page:8-22
TB135 Book No. BG4Z010 S/N 13510004-

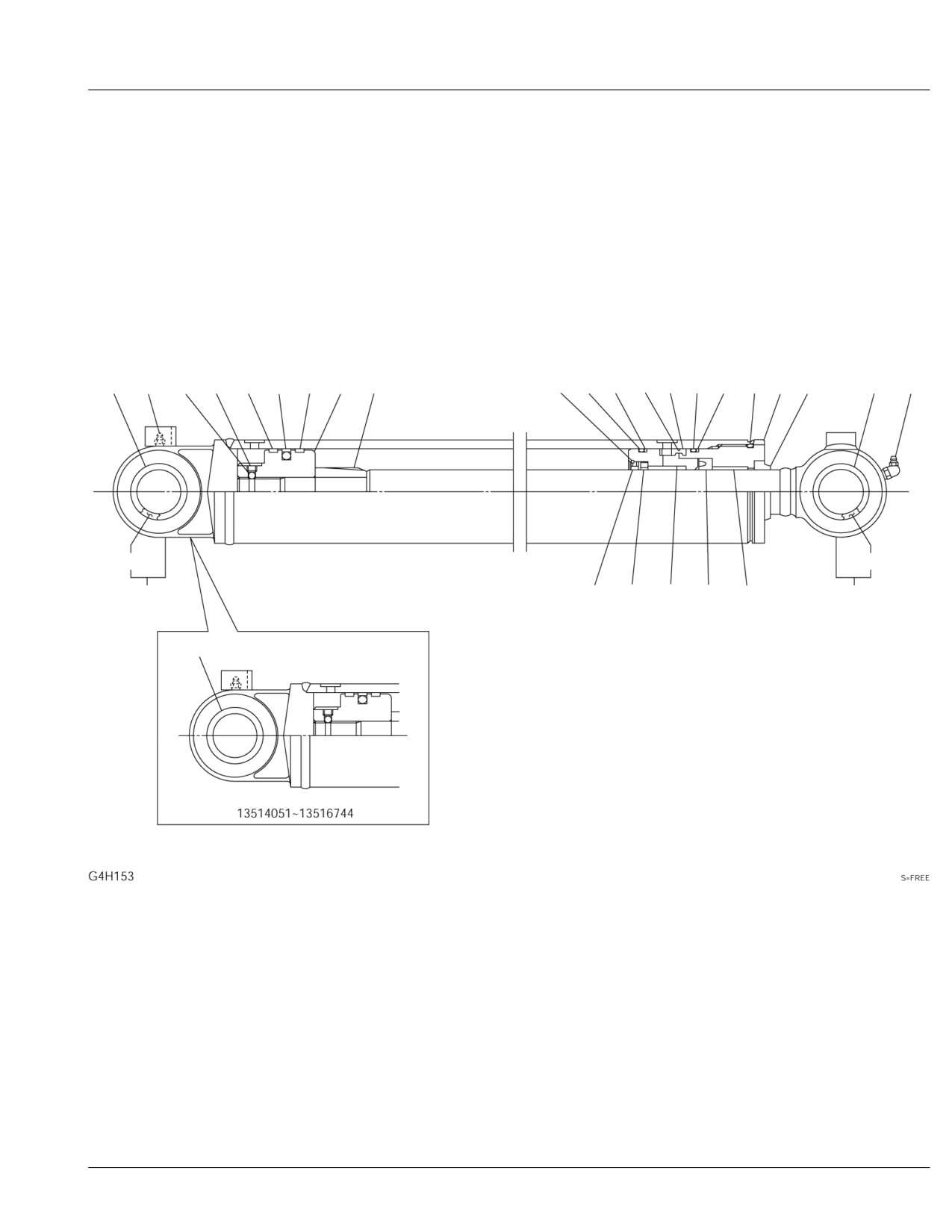

BOOM CYLINDER (13514051-)
28
26
23
24
20
7
20
14
13
17
6
4
18
19
3
4
5
12
2
25
27
9
11
8
15
16
21
1
22
10
25
Ref G4H153
Page
8-23
BOOM CYLINDER (13514051-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1900091300
CYLINDER ASSY
1
13514051~13516744
boom
1900096900
CYLINDER ASSY
1
13516745~
boom
0-1
1900077299
KIT, seal
1
1
X
1900005912
PACKING, rod
1
2
X
1900075133
SEAL, dust
1
3
X
1420110800
O-RING
1
4
X
1421130800
RING, back-up
2
5
X
1420110850
O-RING
1
6
X
1420110750
O-RING
1
7
X
1900050932
PACKING, piston
1
8
1900091398
TUBE ASSY
1
13514051~13516744
1900096998
TUBE ASSY
1
13516745~
9
1900018502
BUSHING
1
13514051~13514470
1900091320
BUSHING
1
(H)
13514471~13516744
1900097820
BUSHING
1
13516745~
10
1900091397
ROD ASSY, piston
1
13514051~13516744
1900096997
ROD ASSY, piston
1
13516745~
11
1900018502
BUSHING
1
12
1900054703
COVER, rod
1
13
1900060205
CUSHION, rod
1
14
1900054706
PISTON
1
15
1900049415
SPACER
1
16
1900050216
RING, cushion
1
17
1900049426
STOPPER
1
18
1900054726
STOPPER
1
19
1900054727
CONNECTOR
1
20
1900050931
RING, slide
2
21
1900054774
RETAINER
1
22
1333004530
BUSHING
1
23
1390020250
BALL, steel
1
24
1121050608
SET-SCREW
1
25
1432200045
SEAL, dust
4
13514051~13516744
1432200045
SEAL, dust
2
13516745~
26
1560001000
FITTING, grease
1
27
1560001675
FITTING, grease
1
28
1432200050
SEAL, dust
2
13516745~
G4h155
Reference:G4H153
Page:8-23
TB135 Book No. BG4Z010 S/N 13510004-
BOOM CYLINDER (for with emergency shut-off valve )
28
26
23
24
20
7
20
14
13
17
6
4
18
19
3
4
5
12
2
25
27
9
11
8
15
16
21
1
22
10
25
Ref G4H153A
Page
8-24
BOOM CYLINDER (for with emergency shut-off valve )
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1900089400
CYLINDER ASSY
1
13510004~13516744
boom
1900097800
CYLINDER ASSY
1
13516745~
boom
0-1
1900077299
KIT, seal
1
1
X
1900005912
PACKING, rod
1
2
X
1900075133
SEAL, dust
1
3
X
1420110800
O-RING
1
4
X
1421130800
RING, back-up
2
5
X
1420110850
O-RING
1
6
X
1420110750
O-RING
1
7
X
1900050932
PACKING, piston
1
8
1900089498
TUBE ASSY
1
13510004~13516744
1900097898
TUBE ASSY
1
13516745~
9
1900091320
BUSHING
1
13510004~13516744
1900097820
BUSHING
1
13516745~
10
1900091397
ROD ASSY, piston
1
13510004~13516744
1900097897
ROD ASSY, piston
1
13516745~
11
1900018502
BUSHING
1
12
1900054703
COVER, rod
1
13
1900060205
CUSHION, rod
1
14
1900054706
PISTON
1
15
1900049415
SPACER
1
16
1900050216
RING, cushion
1
17
1900049426
STOPPER
1
18
1900054726
STOPPER
1
19
1900054727
CONNECTOR
1
20
1900050931
RING, slide
2
21
1900054774
RETAINER
1
22
1333004530
BUSHING
1
23
1390020250
BALL, steel
1
24
1121050608
SET-SCREW
1
25
1432200045
SEAL, dust
4
13510004~13516744
1432200045
SEAL, dust
2
13516745~
26
1560001000
FITTING, grease
1
27
1560001675
FITTING, grease
1
28
1432200050
SEAL, dust
2
13516745~
G4h321
Reference:G4H153A
Page:8-24
TB135 Book No. BG4Z010 S/N 13510004-

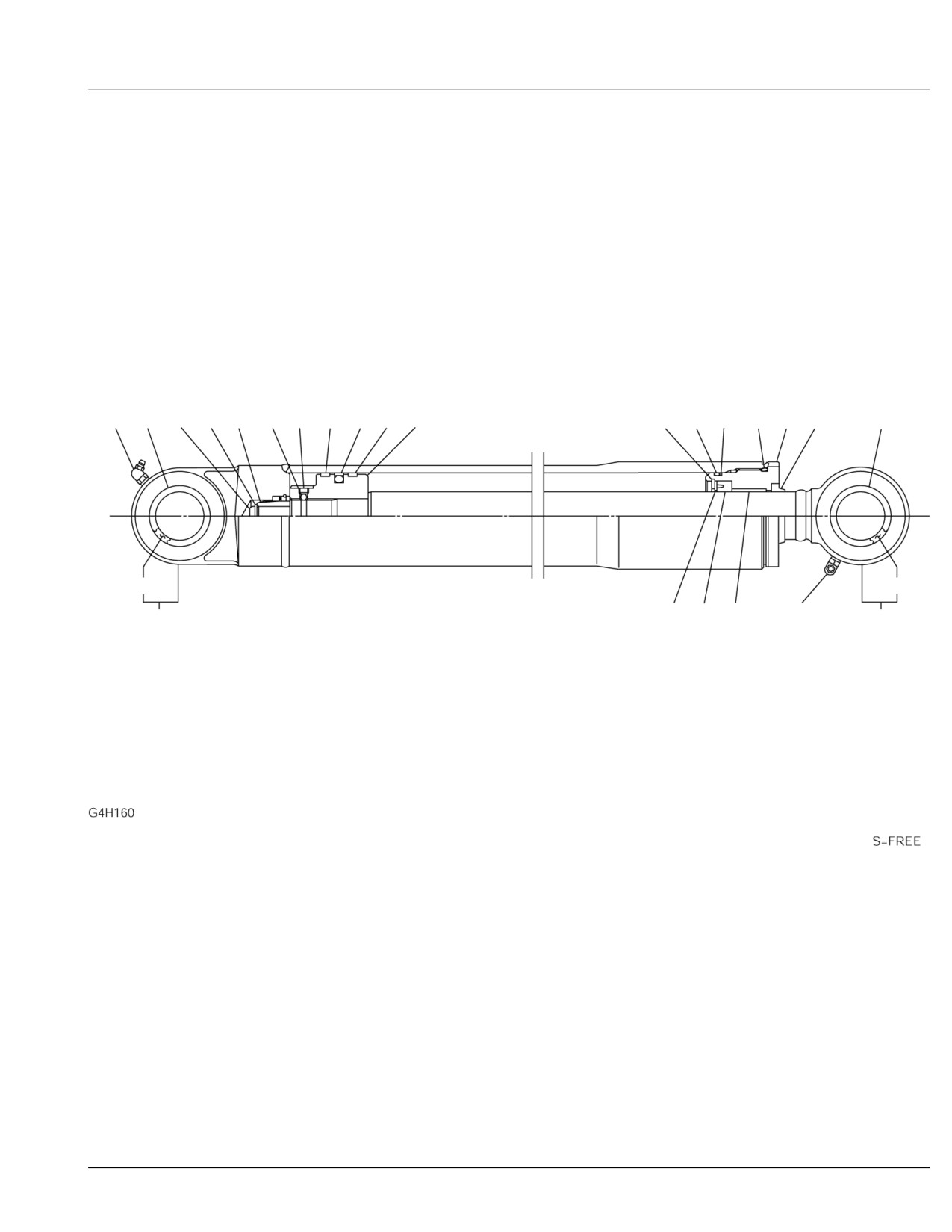

ARM CYLINDER (13510004-13514050)
23
22
15
21
12
19
20
16
6
16
13
18
3
4
5
11
2
22
8
10
14
1
17
24
7
9
Ref G4H160
Page
8-25
ARM CYLINDER (13510004-13514050)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1900077300
CYLINDER ASSY
1
13510004~13510153
arm
1900078500
CYLINDER ASSY
1
(H)
13510154~
arm
0-1
1900077399
KIT, seal
1
1
X
1410545609
PACKING, rod
1
2
X
1900075133
SEAL, dust
1
3
X
1420110750
O-RING
1
4
X
1421130750
RING, back-up
1
5
X
1420110800
O-RING
1
6
X
1900047231
PACKING, piston
1
7
1900077398
TUBE ASSY
1
13510004~13510153
1900078598
TUBE ASSY
1
13510154~
8
1900045602
BUSHING
1
9
1900077397
ROD ASSY, piston
1
13510004~13510153
1900078597
ROD ASSY, piston
1
13510154~
10
1900045602
BUSHING
1
11
1900054903
COVER, rod
1
12
1900077305
CUSHION, rod
1
13
1900054106
PISTON
1
13510004~13510153
1900078506
PISTON
1
13510154~
14
1900013508
HOLDER, rod packing
1
15
1900064429
BOLT
1
16
1900047232
RING, slide
2
17
1333004530
BUSHING
1
18
1221000060
RING, snap
1
19
1390020250
BALL, steel
1
20
1121050608
SET-SCREW
1
21
1141190012
WASHER
1
22
1432200045
SEAL, dust
4
23
1560001675
FITTING, grease
1
24
1560001900
FITTING, grease
1
G4h161
Reference:G4H160
Page:8-25
TB135 Book No. BG4Z010 S/N 13510004-

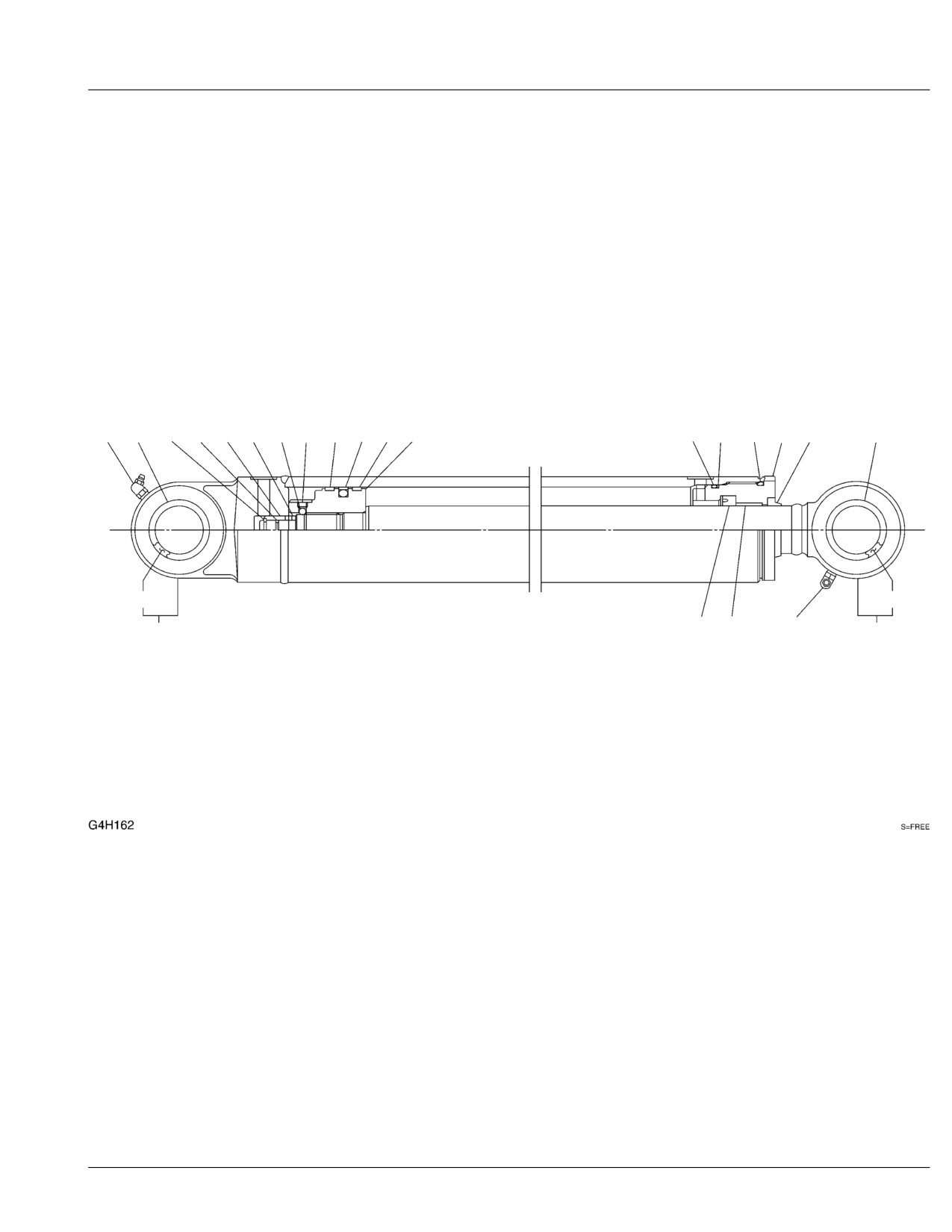

ARM CYLINDER (13514051-)
21
23
18
19
17
20
16
15
14
6
14
13
3
4
5
11
2
23
8
10
1
12
22
7
9
Ref G4H162
Page
8-26
