Takeuchi Hydraulic excavator TB135 (Serial No.13510004~). Parts Manual - page 8





HEATER (canopy; 13510004-13514050)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
HEATER ASSY
X03745-05000-1
3
0354217300
HARNESS, wiring
1
3-1
1730500008
DIODE (3A, yellow)
3
4
0374505400
COVER
1
8
0374504530
SPONGE
1
10
0097210300
GUARD
1
11
1700000011
SWITCH, heater
1
12
1654307023
SPONGE
2
13
1654307014
SPONGE
2
14
1911508100
HEATER
1
15
1911502200
NIPPLE
1
16
1911502100
VALVE
1
17
1911500500
CLAMP
4
18
1911531880
HOSE
2
sold by the meter
21
1652052600
GROMMET
1
22
1652231250
BAND
10
23
1100041020
BOLT
4
24
1110040820
SCREW, cap
2
27
1140020010
WASHER, spring
5
28
1140020008
WASHER, spring
4
29
1531345070
PROTECTOR
1
sold by the meter
31
1141110010
WASHER
4
32
1141110008
WASHER
4
34
1130040008
NUT
2
35
1531345050
PROTECTOR
2
sold by the meter
36
1531345020
PROTECTOR
1
sold by the meter
37
0007300030
CLAMP
3
38
1130040010
NUT
1
39
0007210029
BUSHING
1
40
1100241040
BOLT
1
G4e201
Reference:G4E200
Page:5-32
TB135 Book No. BG4Z010 S/N 13510004-

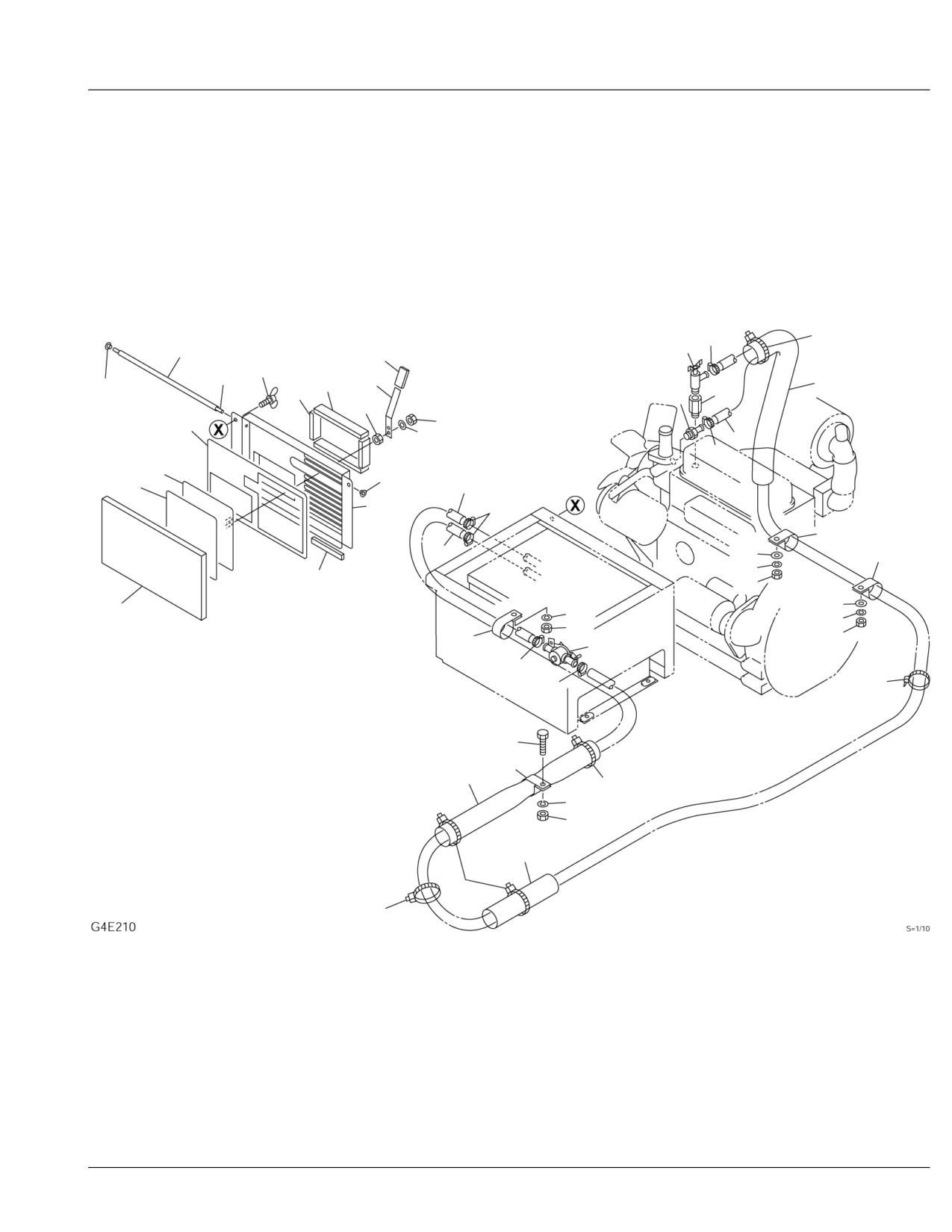

HEATER (with air conditioner; 13510004-13514050)
5
16
1-15
4
1-13
7
1-10
1-3
1-7
20
1-14
1-8
18
6
1-11
1-4
1-11
1-12
9
5
1-2
1-14
1-5
8
1-1
5
23
10
14
23
13
1-9
15
2
14
11
13
12
23
15
3
5
5
16
21
23
20
16
11
12
19
16
16
Ref G4E210
Page
5-33
HEATER (with air conditioner; 13510004-13514050)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
HEATER ASSY
X03745-06100-1
1
X
0374504200
COVER ASSY, suction
1
1-1
0374504270
COVER
1
1-2
0374504220
PLATE
1
1-3
0374504230
LEVER
1
1-4
0374504240
RUBBER
1
1-5
0374504241
RUBBER
1
1-6
0374504246
URETHANE
2
1-7
0374504247
URETHANE
2
1-8
0374504245
SPONGE
2
1-9
0374504250
SHAFT
2
1-10
1130040005
NUT
4
1-11
1140020005
WASHER, spring
2
1-12
1650100415
CAP
1
1-13
1224100007
NUT
4
1-14
0374504260
TUBE
2
2
0374504540
FILTER
1
3
1911506008
VALVE
1
4
1911502100
VALVE
1
5
1911500500
CLAMP
6
6
1911502200
ADAPTOR
1
7
1121530616
BOLT, wing
2
8
1911551800
HOSE
1
sold by the meter
9
1911541800
HOSE
1
sold by the meter
10
1911511800
HOSE
1
sold by the meter
11
1140020010
WASHER, spring
2
12
1130040010
NUT
2
13
1140020008
WASHER, spring
2
14
1141110008
WASHER
2
15
1130040008
NUT
2
16
1652231250
BAND
4
18
0007210029
BUSHING
1
19
1531345020
PROTECTOR
1
sold by the meter
20
1531345050
PROTECTOR
2
sold by the meter
21
1100241040
BOLT
1
23
0007300030
CLAMP
4
G4e210
Reference:G4E210
Page:5-33
TB135 Book No. BG4Z010 S/N 13510004-

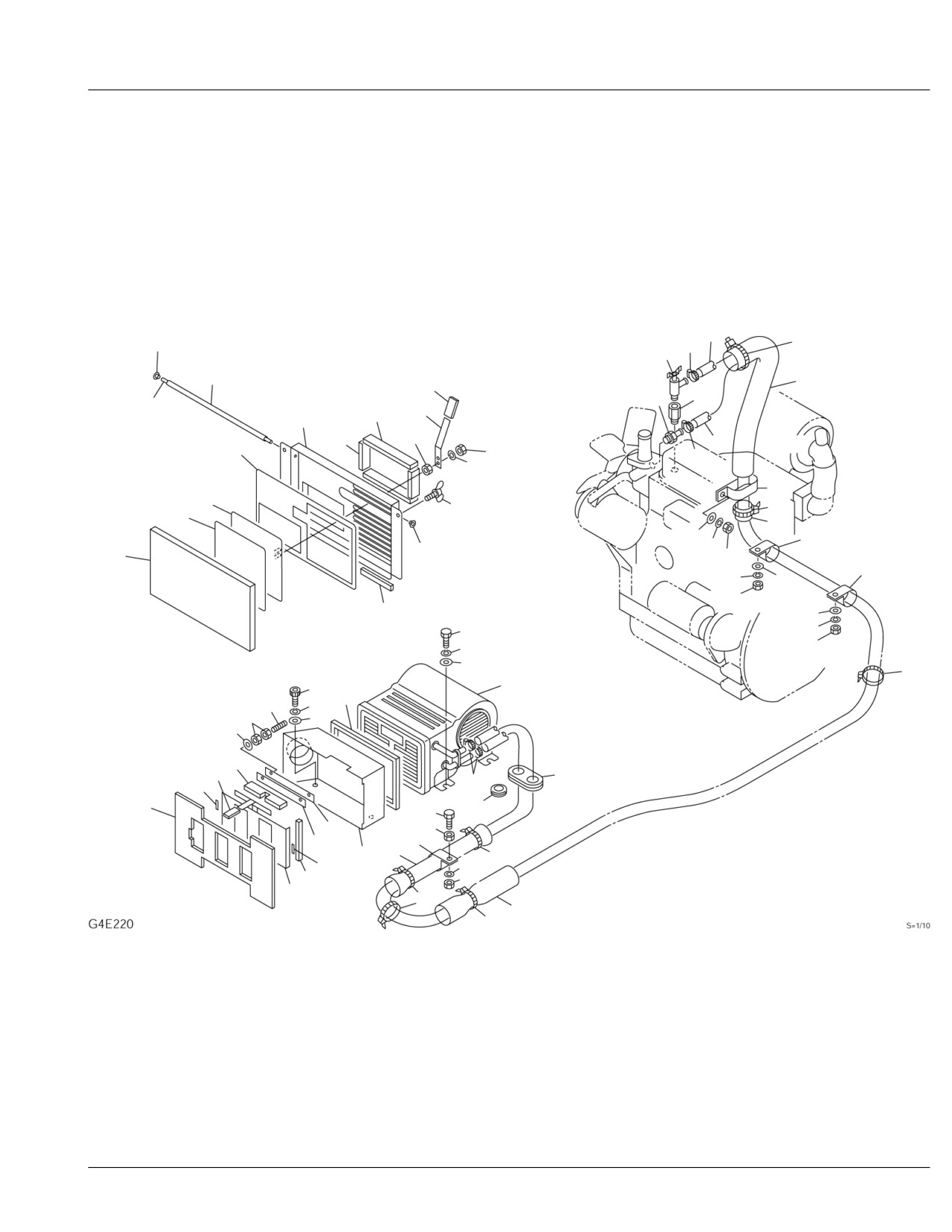

HEATER (cab; 13514051-)
18
22
2-14
17
16
2-15
35
2-13
15
39
2-10
2-3
2-7
2-1
2-8
2-11
2-4
18
2-11
17
2-12
43
2-2
2-5
26
22
42
31
37
27
9
2-14
38
37
28
32
34
2-9
32
23
28
27
34
31
22
24
14
8
25
28
41
32
33
6
20
10
11
17
5
21
40
38
3-1
37
3-2
4
35
22
27
11
7
38
1
22
36
22
Ref G4E220
Page
5-34
HEATER (cab; 13514051-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
HEATER ASSY
X03745-06500-0
1
0374504100
LEVER
1
2
X
0374504200
COVER ASSY, suction
1
2-1
0374504270
COVER
1
2-2
0374504220
PLATE
1
2-3
0374504230
LEVER
1
2-4
0374504240
RUBBER
1
2-5
0374504241
RUBBER
1
2-7
0374504246
URETHANE
2
2-8
0374504247
URETHANE
2
2-9
0374504245
SPONGE
2
2-10
0374504250
BOSS
2
2-11
1130040005
NUT
4
2-12
1140020005
WASHER, spring
2
2-13
1650100415
GRIP
1
2-14
1224100007
NUT
4
2-15
0374504260
TUBE
2
3
X
0374504300
GUIDE ASSY
2
3-1
0374504310
GUIDE
1
3-2
0374504320
RUBBER
1
4
0374504400
COVER
1
5
0374504500
URETHANE
1
6
0374504550
URETHANE
1
7
0374504520
SPONGE
1
8
0374504530
SPONGE
1
9
0374504540
FILTER
1
10
0097210300
GUARD
1
11
0374504570
RUBBER
1
14
1911508100
HEATER
1
15
1911502200
NIPPLE
1
16
1911502100
VALVE
1
17
1911500500
CLAMP
4
18
1911531890
HOSE
2
sold by the meter
20
1650100415
GRIP
1
21
1652052600
GROMMET
1
22
1652231250
BAND
7
23
1100041020
BOLT
4
24
1110040820
SCREW, cap
2
25
1121040625
SET-SCREW
4
26
1121530616
BOLT, wing
2
27
1140020010
WASHER, spring
6
28
1140020008
WASHER, spring
4
31
1141110010
WASHER
5
32
1141110008
WASHER
4
33
1141110006
WASHER
4
34
1130040008
NUT
2
35
1531345050
PROTECTOR
2
sold by the meter
36
1531345020
PROTECTOR
1
sold by the meter
37
0007300030
CLAMP
3
38
1130040010
NUT
2
39
0007210029
BUSHING
1
40
1100241040
BOLT
1
41
1130040006
NUT
8
42
1531419003
PROTECTOR
1
sold by the meter
43
0007300055
CLAMP
1
G4e220
Reference:G4E220
Page:5-34
TB135 Book No. BG4Z010 S/N 13510004-

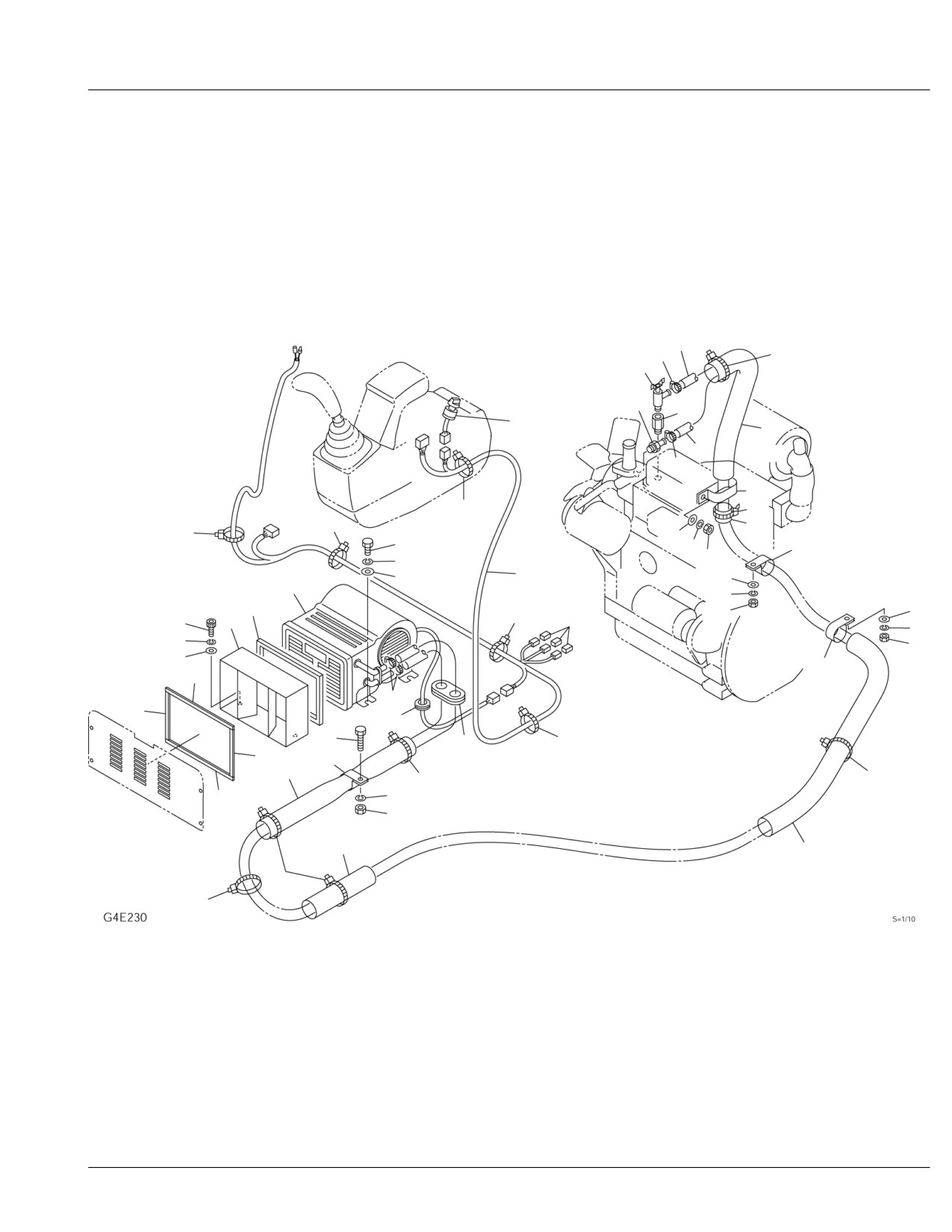

HEATER (canopy; 13514051-)
18
17
22
16
15
39
11
35
18
17
42
22
22
22
41
22
31
23
37
2738
27
31
3
32
14
28
8
32
22
3-1
34
24
4
28
28
34
32
37
12
17
13
21
40
22
10
13
37
35
22
22
12
27
38
36
29
22
22
Ref G4E230
Page
5-35
HEATER (canopy; 13514051-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
HEATER ASSY
X03745-07000-0
3
0374507010
HARNESS, wiring
1
3-1
1730500008
DIODE (3A, yellow)
3
4
0374505400
COVER
1
8
0374504530
SPONGE
1
10
0097210300
GUARD
1
11
1700000011
SWITCH, heater
1
12
1654307023
SPONGE
2
13
1654307014
SPONGE
2
14
1911508100
HEATER
1
15
1911502200
NIPPLE
1
16
1911502100
VALVE
1
17
1911500500
CLAMP
4
18
1911531880
HOSE
2
sold by the meter
21
1652052600
GROMMET
1
22
1652231250
BAND
13
23
1100041020
BOLT
4
24
1110040820
SCREW, cap
2
27
1140020010
WASHER, spring
6
28
1140020008
WASHER, spring
4
29
1531345070
PROTECTOR
1
sold by the meter
31
1141110010
WASHER
5
32
1141110008
WASHER
4
34
1130040008
NUT
2
35
1531345050
PROTECTOR
2
sold by the meter
36
1531345020
PROTECTOR
1
sold by the meter
37
0007300030
CLAMP
3
38
1130040010
NUT
2
39
0007210029
BUSHING
1
40
1100241040
BOLT
1
41
1531419003
PROTECTOR
1
sold by the meter
42
0007300055
CLAMP
1
G4e230
Reference:G4E230
Page:5-35
TB135 Book No. BG4Z010 S/N 13510004-

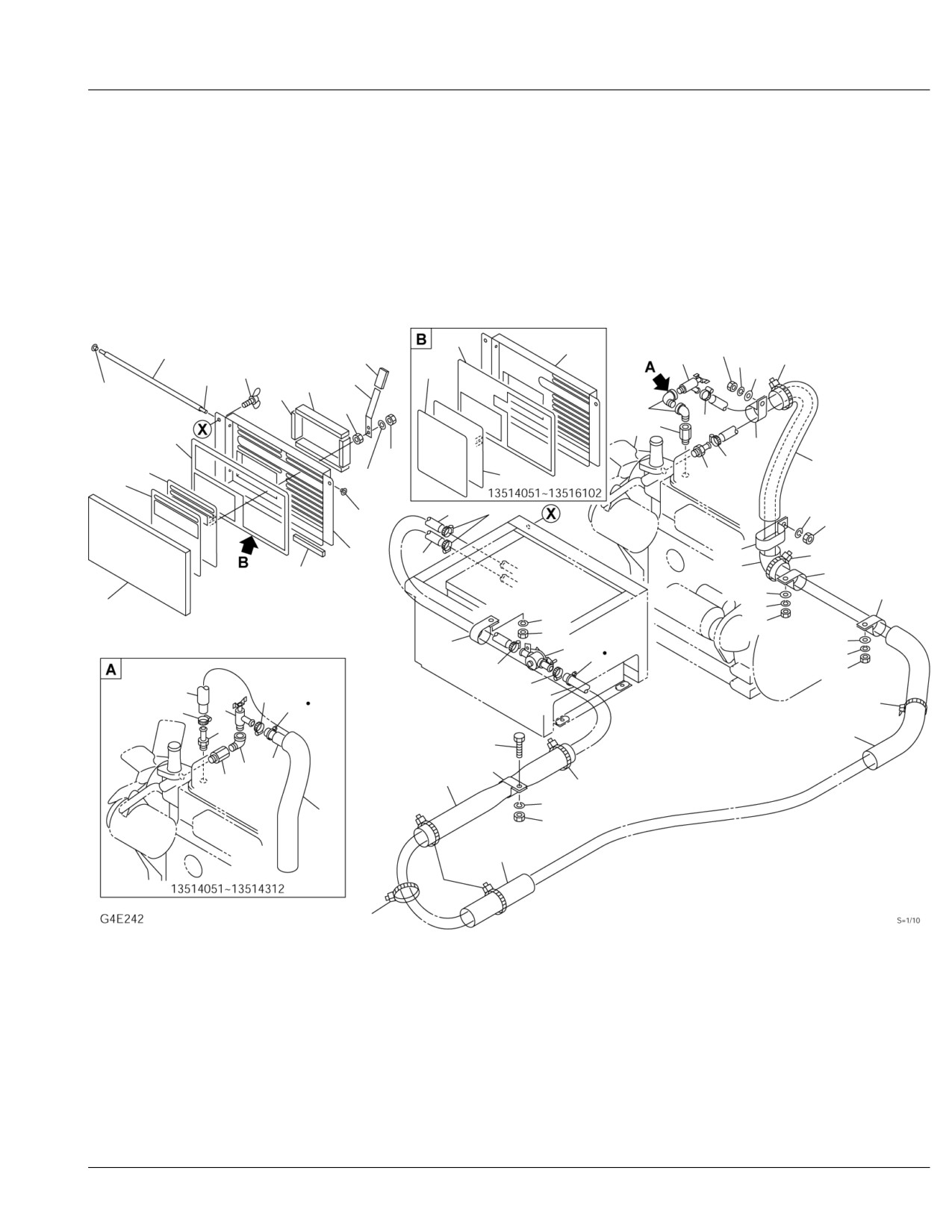

HEATER (with air conditioner; 13514051-)
1-4
1-1
15
1-15
1-13
17
16
13
7
1-5
14
1-10
1-3
1-7
1-14
1-8
1-11
25
18
5
1-4
22
1-11
1-2
5
32
1-2
6
1-5
1-12
8
5
11
1-14
12
24
16
1-1
10
28
1-9
23
14
23
2
13
11
15
12
23
14
3
29
31
13
5
15
5
26
5
9
30
31
16
4
5
6
20
21
26
23
25
18
20
16
11
27
12
19
16
16
Ref G4E242
Page
5-36
HEATER (with air conditioner; 13514051-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
HEATER ASSY
X03745-06600-3
1
X
0374504200
COVER ASSY, suction
1
13514051~13516102
X
0374506610
COVER ASSY, suction
1
(H)
13516103~
1-1
0374504270
COVER
1
13514051~13516102
0374506620
COVER
1
13516103~
1-2
0374504220
PLATE
1
13514051~13516102
0374506630
PLATE
1
13516103~
1-3
0374504230
LEVER
1
1-4
0374504240
RUBBER
1
13514051~13516102
0374506614
RUBBER
1
13516103~
1-5
0374504241
RUBBER
1
13514051~13516102
0374506615
RUBBER
1
13516103~
1-7
0374504246
URETHANE
2
1-8
0374504247
URETHANE
2
1-9
0374504245
SPONGE
2
1-10
0374504250
SHAFT
2
1-11
1130040005
NUT
4
1-12
1140020005
WASHER, spring
2
1-13
1650100415
CAP
1
1-14
1224100007
NUT
4
1-15
0374504260
TUBE
2
2
0374504540
FILTER
1
3
1911506008
VALVE
1
4
1911502100
VALVE
1
13514051~13514312
5
1911500500
CLAMP
6
6
1911502200
ADAPTOR
1
7
1121530616
BOLT, wing
2
8
1911551800
HOSE
1
sold by the meter
9
1911541800
HOSE
1
(L)
13514051~13514848
sold by the meter
1911545100
HOSE
1
(H)
13514849~
10
1911511800
HOSE
1
sold by the meter
11
1140020010
WASHER, spring
3
12
1130040010
NUT
3
13
1140020008
WASHER, spring
3
14
1141110008
WASHER
3
15
1130040008
NUT
3
16
1652231250
BAND
5
17
1911502300
VALVE
1
13514313~
18
0007210029
BUSHING
1
19
1531345020
PROTECTOR
1
sold by the meter
20
1531345050
PROTECTOR
2
sold by the meter
21
1100241040
BOLT
1
22
1711900097
CLAMP
1
13514313~
23
0007300030
CLAMP
4
24
0007300055
CLAMP
1
25
1508310003
ELBOW
2
26
1531325020
PROTECTOR
2
13514051~13514312
sold by the meter
27
1531345070
PROTECTOR
1
13514051~13514312
sold by the meter
28
1531335012
PROTECTOR
1
sold by the meter
29
1720200209
TUBE, mark "1"
1
13514051~13514848
30
1720200215
TUBE, mark "0"
1
13514051~13514848
31
1652201004
BAND
2
13514051~13514848
32
1531345040
PROTECTOR
1
13514313~
sold by the meter
G4e242
Reference:G4E242
Page:5-36
TB135 Book No. BG4Z010 S/N 13510004-

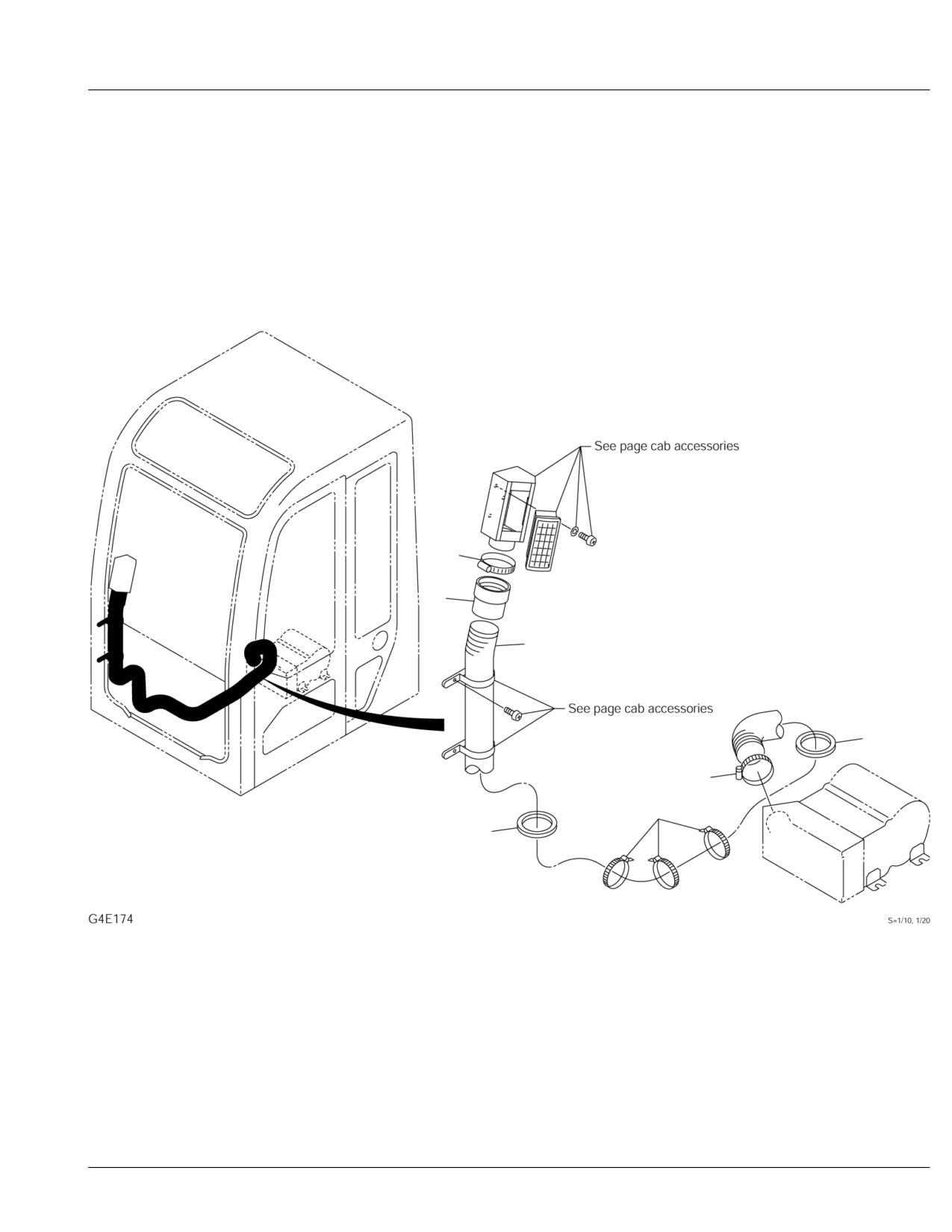

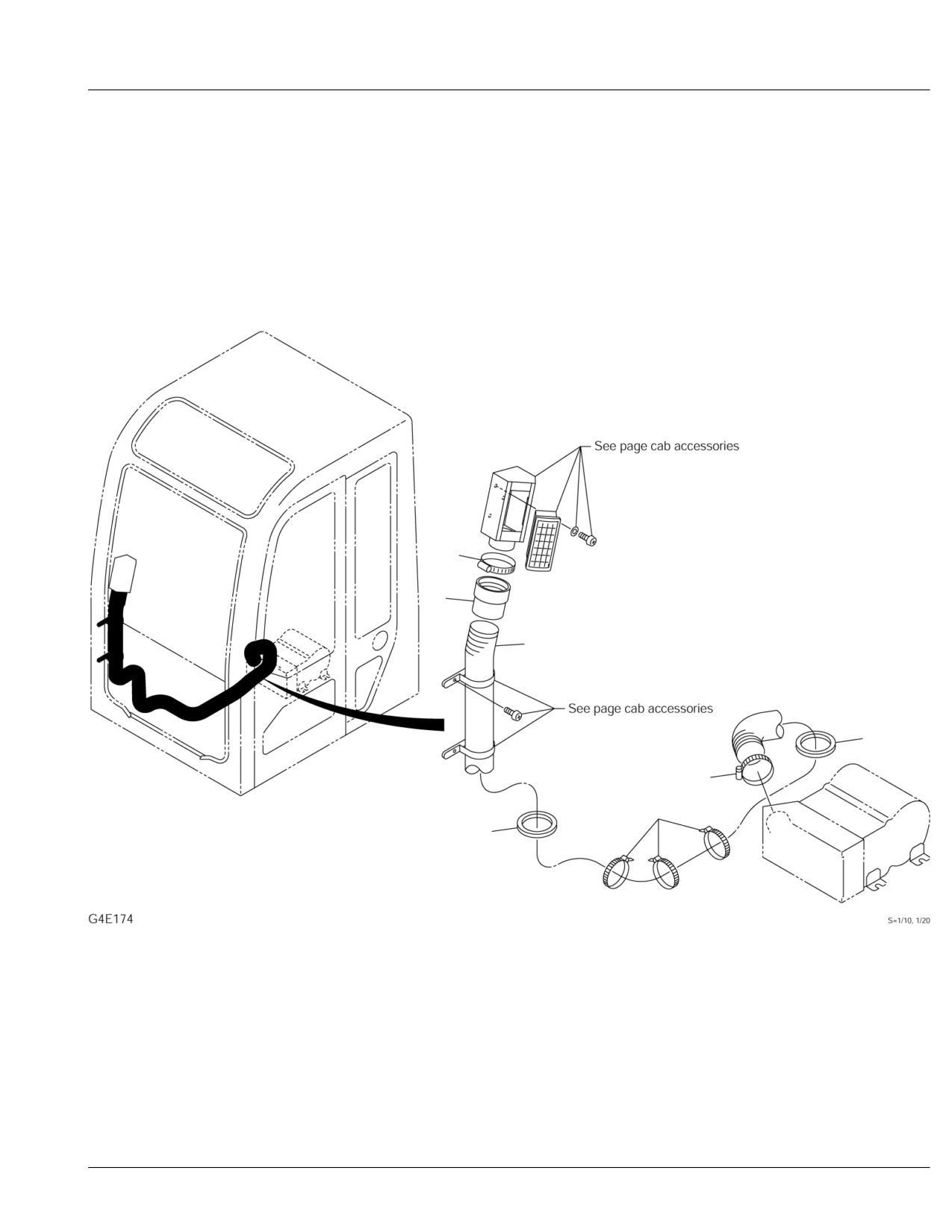

DEFROSTER
4
5
3
16
15
14
16
Ref G4E174
Page
5-37
DEFROSTER
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
DEFROSTER ASSY
X03745-03000-5
3
1567415072
HOSE
1
sold by the meter
4
1533700070
BAND
1
5
1567325000
CUFF
1
14
1652231250
BAND
3
15
1533700061
BAND
1
16
1653916021
TRIM
2
sold by the meter
G4e174
Reference:G4E174
Page:5-37
TB135 Book No. BG4Z010 S/N 13510004-

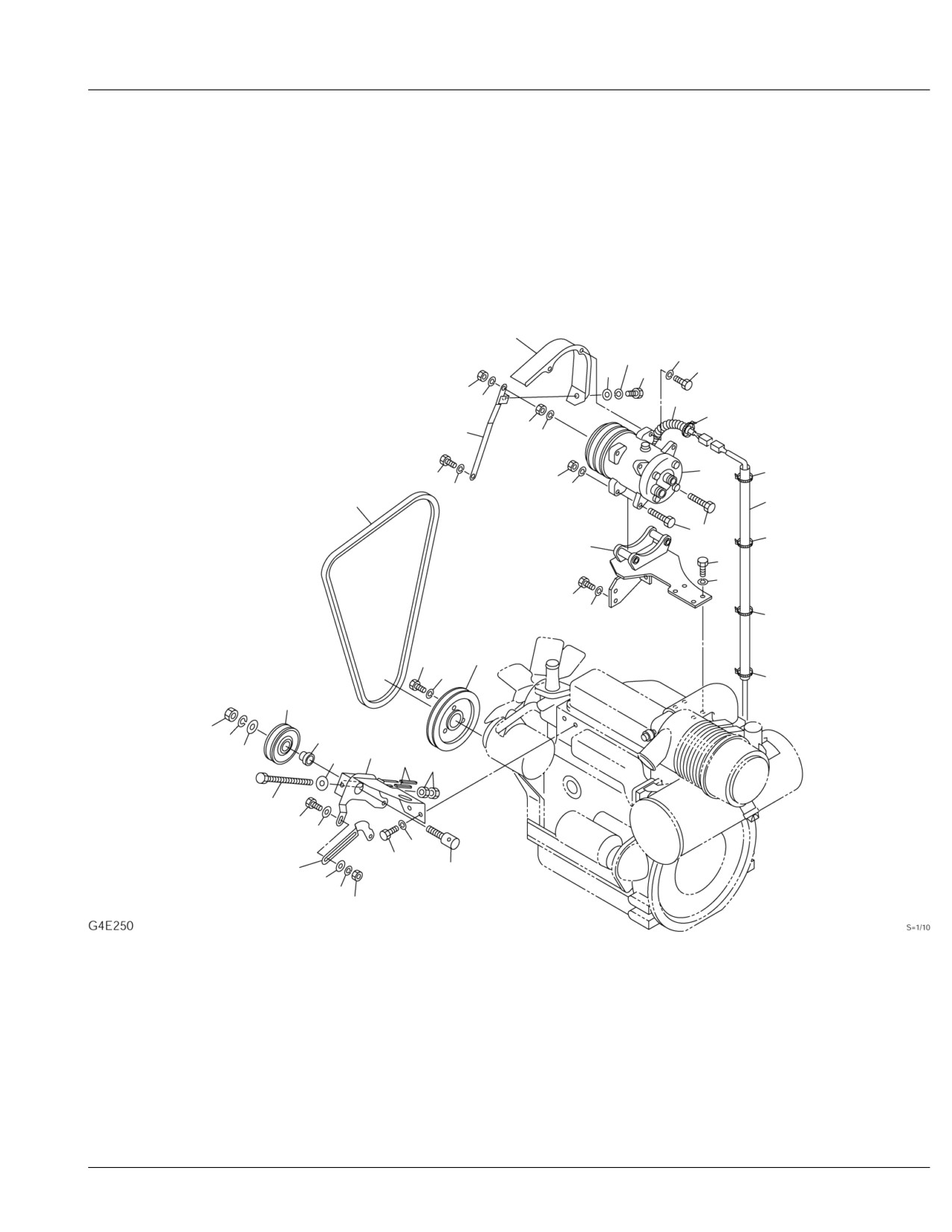

AIR CONDITIONER (1/6) (13510004-13514050)
7
21
20
22
14
15
30
1821
24
2
1821
12
24
14
18
20
21
11
29
16
24
1
14
20
14
20
24
23
5
21
24
10
19
8
25
26
22
6
28
17
27
13 22
20
14
9
4
22
20
17
Ref G4E250
Page
5-38
AIR CONDITIONER (1/6) (13510004-13514050)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
CONDITIONER ASSY, air
X03746-01000-0
0
X
0374601100
COMPRESSOR ASSY
1
X03746-01100-2
1
0374600100
BRACKET
1
2
0374600020
SUPPORT
1
4
0374600250
SHAFT
1
5
0374601101
PULLEY
1
6
0374601120
BRACKET
1
7
0374601240
GUARD
1
8
0564619240
COLLAR
1
9
0374601130
ADJUSTER
1
10
1911505700
PULLEY
1
11
1911506120
V-BELT
1
12
1911506010
COMPRESSOR
1
13
1100040825
BOLT
1
14
1100040816
BOLT
12
15
1100041030
BOLT
2
16
1100141015
BOLT
2
17
1130040008
NUT
3
18
1130040010
NUT
3
19
1130040012
NUT
1
20
1140020008
WASHER, spring
13
21
1140020010
WASHER, spring
8
22
1141110008
WASHER
3
23
1100041020
BOLT
3
24
1652231250
BAND
6
25
1140020010
WASHER, spring
1
26
1141110010
WASHER
1
27
0394602010
BOLT
1
28
0872433150
TUBE
2
29
1531360060
PROTECTOR
1
sold by the meter
30
1703210723
TUBE
1
sold by the meter
G4e251
Reference:G4E250
Page:5-38
TB135 Book No. BG4Z010 S/N 13510004-
AIR CONDITIONER (2/6) (13510004-13514050)
9
10
5
6
12
11
9
2
14
10
1
4
13
3
7
11

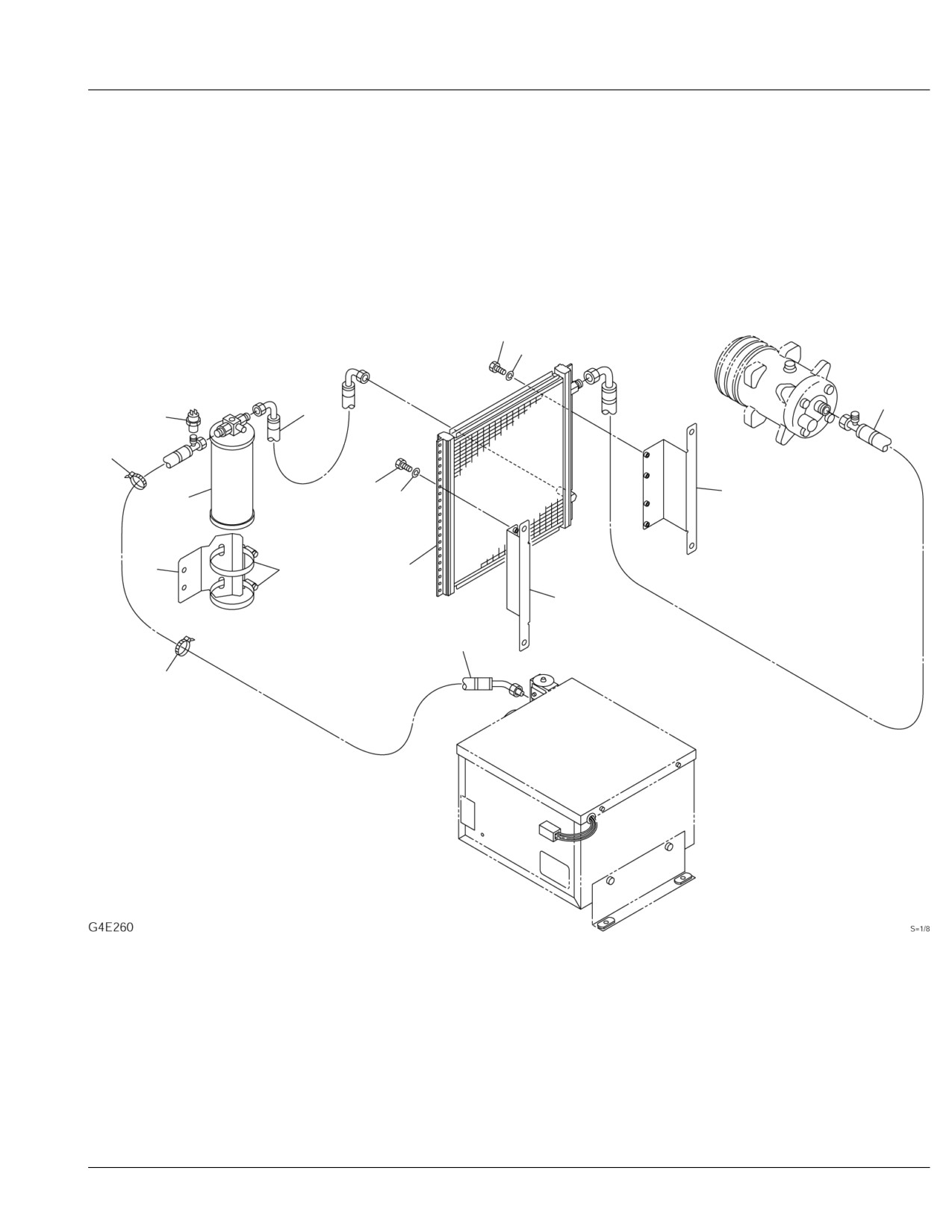

Ref G4E260
Page
5-39
AIR CONDITIONER (2/6) (13510004-13514050)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CONDITIONER ASSY, air
X03746-01000-0
0
X
0374601200
CONDENSER ASSY
1
X03746-01200-0
1
0374601210
BRACKET
1
2
0374601220
BRACKET
1
3
0374601230
BRACKET
1
4
1911506301
BRACKET
1
5
1911506101
HOSE
1
1911505602
O-RING
1
RD-5-4017-013
6
1911506103
HOSE
1
1911505601
O-RING
1
RD-5-4017-011
7
1911506102
HOSE
1
1911505601
O-RING
1
RD-5-4017-011
9
1100040512
BOLT
8
10
1140020005
WASHER, spring
8
11
1652231100
BAND
2
12
1911505514
SWITCH, presser
1
13
1911505503
CONDENSER
1
14
1911505511
DRYER
1
G4e261
Reference:G4E260
Page:5-39
TB135 Book No. BG4Z010 S/N 13510004-
AIR CONDITIONER (3/6) (13510004-13514050)
33
12
15
18
35
34
20
18
15
12
26
27
8
12
15
18
2
5
3

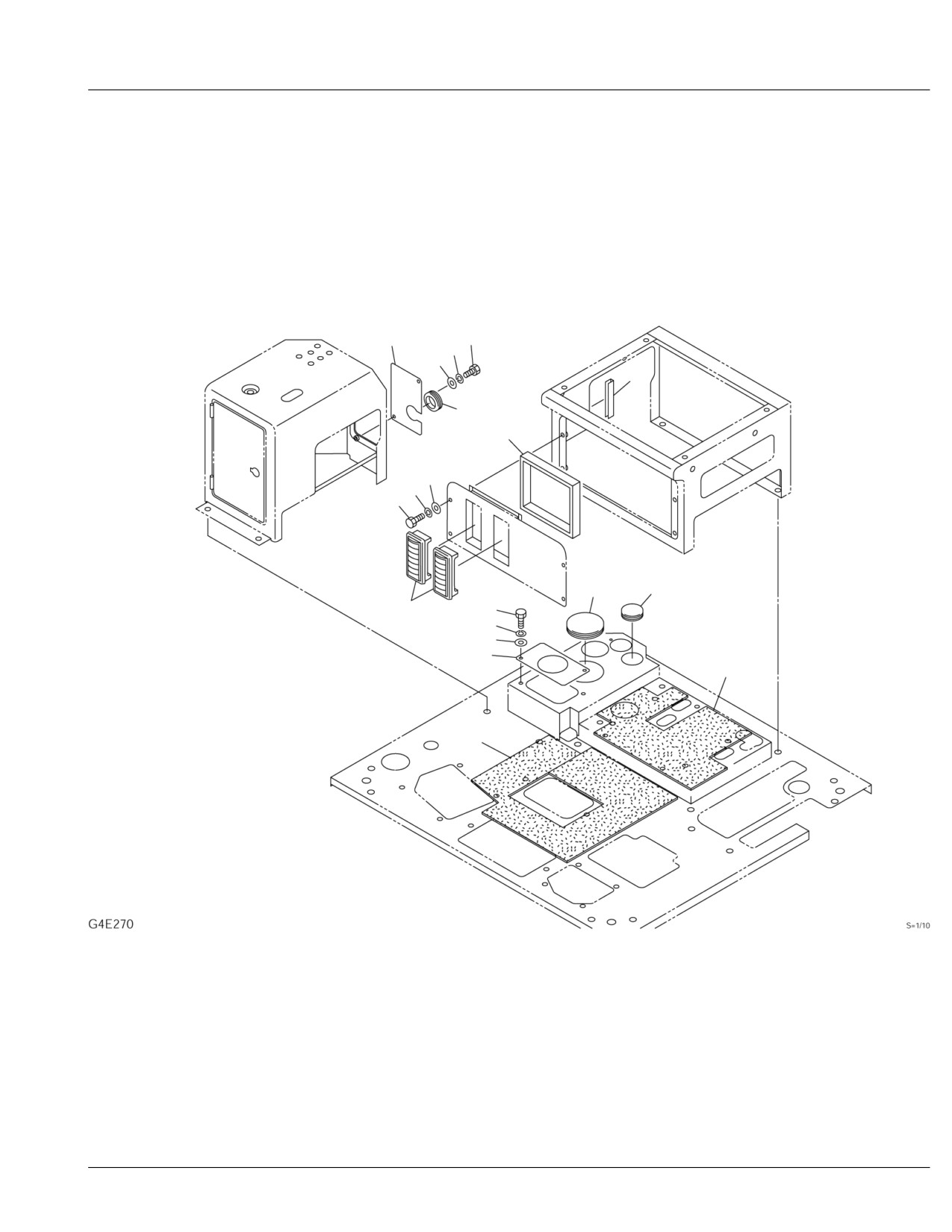

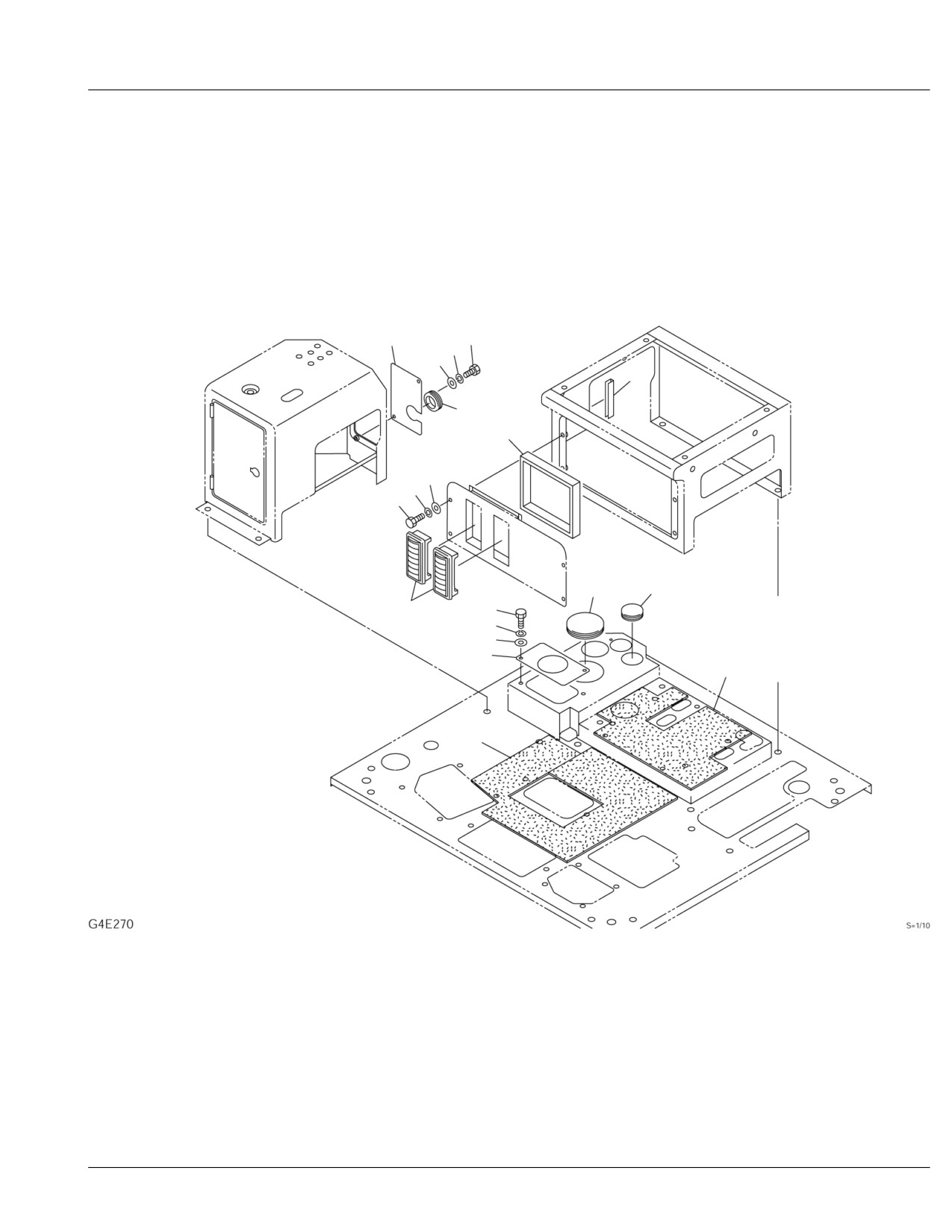

Ref G4E270
Page
5-40
AIR CONDITIONER (3/6) (13510004-13514050)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CONDITIONER ASSY, air
X03746-01000-0
0
X
0374601300
UNIT ASSY, air conditioner
1
X03746-01300-2
2
0374601310
COVER
1
3
0394608013
URETHANE
1
5
0394612422
URETHANE
1
8
1911505723
LOUVER
2
12
1100040616
BOLT
8
15
1140020006
WASHER, spring
8
18
1141110006
WASHER
8
20
1654319015
SPONGE
1
sold by the meter
26
1652060085
BUSHING
1
27
1652060051
BUSHING
1
33
0394612370
COVER
1
34
1652060038
BUSHING
1
35
1654601010
TRIM
1
sold by the meter
G4e270
Reference:G4E270
Page:5-40
TB135 Book No. BG4Z010 S/N 13510004-
AIR CONDITIONER (4/6) (13510004-13514050)
25
32
7
6
24
1523
29
14
19
31
21
29
30
17
29
17
29
16
9
13
10
29

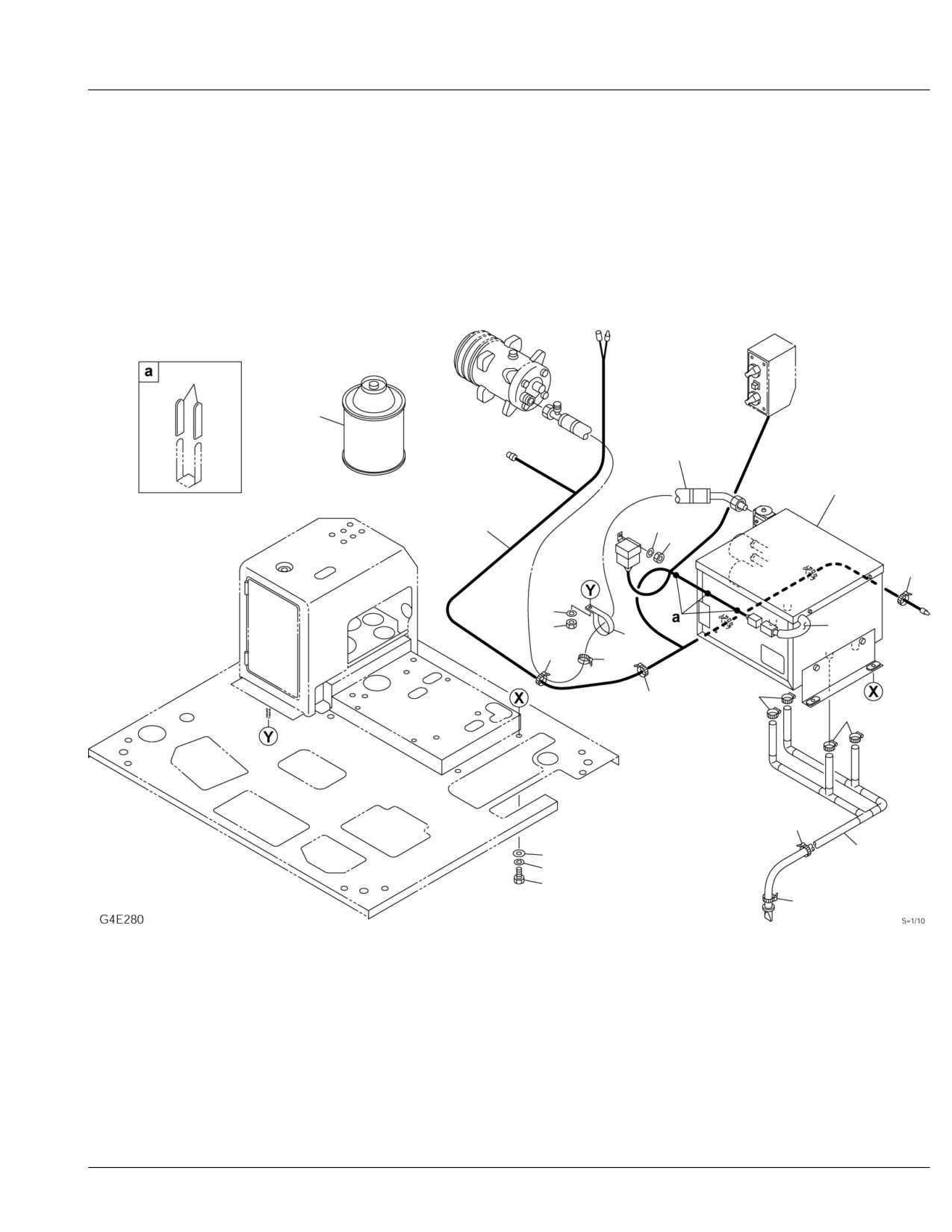

Ref G4E280
Page
5-41
AIR CONDITIONER (4/6) (13510004-13514050)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CONDITIONER ASSY, air
X03746-01000-0
0
X
0374601300
UNIT ASSY, air conditioner
1
X03746-01300-2
6
1911506340
UNIT, air conditioner
1
see page (6/6)
7
1911505630
HOSE
1
1911505603
O-RING
1
RD-5-4017-015
9
1911506320
HOSE
1
10
1100041020
BOLT
4
13
1140020010
WASHER, spring
4
14
1140020008
WASHER, spring
1
15
1140020006
WASHER, spring
1
16
1141110010
WASHER
4
17
1533700019
CLAMP
4
19
1130040008
NUT
1
21
0007300044
CLAMP
1
23
1130040006
NUT
1
24
1911506110
HARNESS, wiring
1
25
0872433150
TUBE
6
29
1652231100
BAND
7
30
1652201005
BAND
1
31
1703211010
PROTECTOR
1
sold by the meter
32
0872463100
GAS
4
G4e281
Reference:G4E280
Page:5-41
TB135 Book No. BG4Z010 S/N 13510004-
AIR CONDITIONER (5/6) (13510004-13514050)
19
10
18
2
20
21
1
11
3
13
16
2
8
5
21
3
2
15
15
3
3
21
4
21
7
9
24
3
3
16
12
15
3
12
22
6
22
23

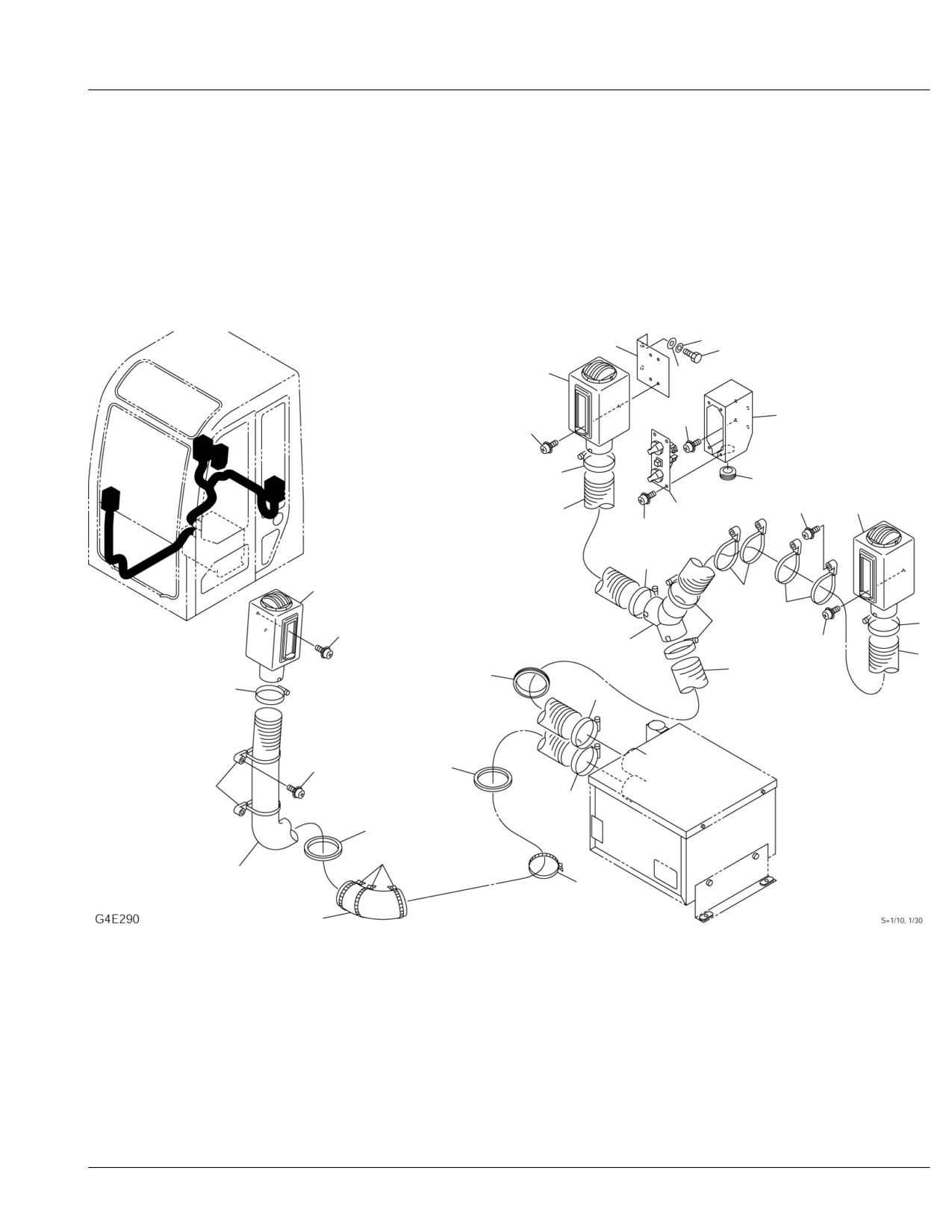

Ref G4E290
Page
5-42
AIR CONDITIONER (5/6) (13510004-13514050)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CONDITIONER ASSY, air
X03746-01000-0
0
X
0374601400
DEFROSTER ASSY
1
X03746-01400-1
1
0394612340
COVER
1
2
1911505720
DUCT ASSY
3
3
1911505670
CLAMP
8
4
1911505680
Y-CONNECTOR
1
5
1911506020
PANEL ASSY, control
1
see page (6/6)
6
1911506306
HOSE
1
sold by the meter
7
1911506307
HOSE
1
sold by the meter
8
1911506308
HOSE
1
sold by the meter
9
1911506309
HOSE
1
sold by the meter
10
1911505730
BRACKET
1
11
1911505810
SCREW
2
12
1653916023
TRIM
1
sold by the meter
13
1652002201
GROMMET
1
15
1652261410
BAND
6
16
1120590514
SCREW
6
18
1100040612
BOLT
2
19
1140020006
WASHER, spring
2
20
1141110006
WASHER
2
21
1150420510
BOLT, sems
12
22
1652201007
BAND
5
23
1531360010
PROTECTOR
1
24
1654606027
SEAL
1
G4e290
Reference:G4E290
Page:5-42
TB135 Book No. BG4Z010 S/N 13510004-

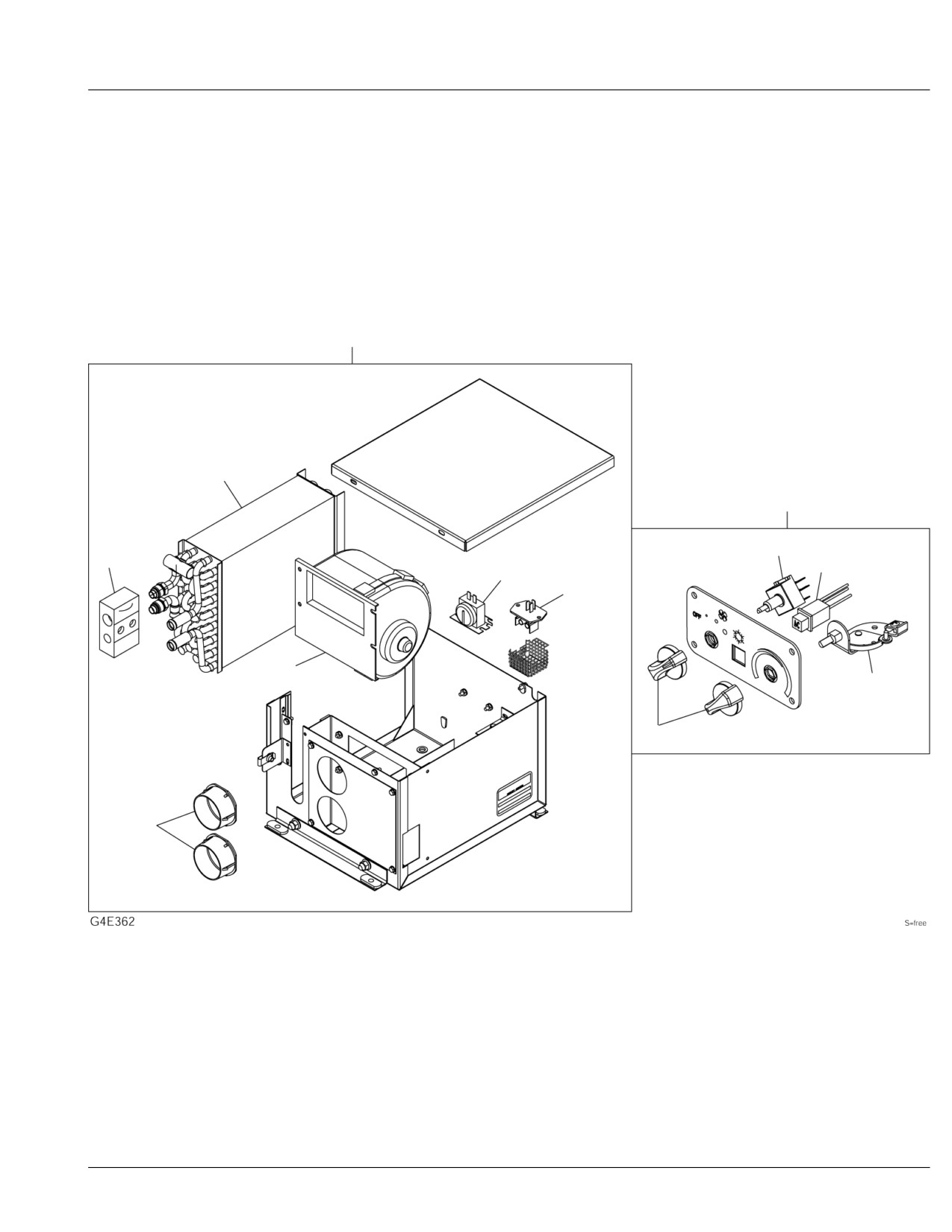

AIR CONDITIONER (6/6) (13510004-13514050)
0-1
4
0-2
10
5
9
2
3
1
11
8
7
Ref G4E362
Page
5-43
AIR CONDITIONER (6/6) (13510004-13514050)
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
CONDITIONER ASSY, air
X03746-01000-0
0-1
1911506340
UNIT, air conditioner
1
1
1911506341
MOTOR, blower
1
2
1911505421
THERMOSTAT
1
3
1911506343
RESISTOR
1
4
1911506344
CORE
1
5
1911505422
VALVE
1
6
1911506346
HARNESS, wiring
1
not shown
7
1911506711
ADAPTER, hose
2
0-2
1911506020
PANEL ASSY, control
1
8
1911505763
KNOB
2
9
1911505767
SWITCH, A/C
1
10
1911506027
SWITCH, rotary
1
11
1911505762
CABLE, control
1
G4e303
Reference:G4E362
Page:5-43
TB135 Book No. BG4Z010 S/N 13510004-

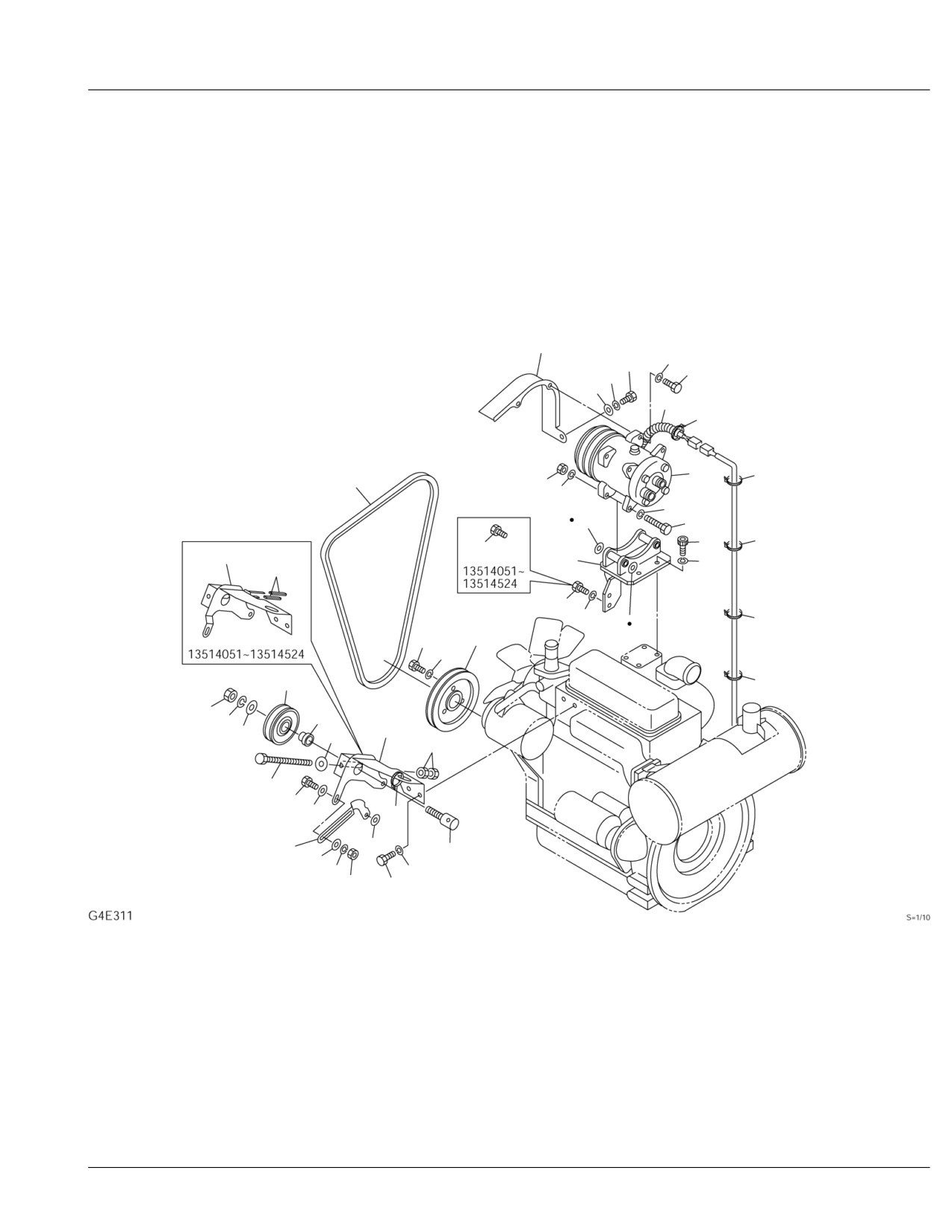

AIR CONDITIONER (1/6) (13514051-)
7
21
14
15
20
22
30
24
12
24
11
1821
21
36
37
16
31
24
14
6
1
20
28
35
20
24
36
37
23
5
21
10
24
19
8
25
6
26
22
17
27
13 22
33
9
34
4
22
20
20
17
14
Ref G4E311
Page
5-44
AIR CONDITIONER (1/6) (13514051-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
CONDITIONER ASSY, air
X03746-02500-1
CONDITIONER ASSY, air
X03746-03500-0
(with boost fan)
0
X
0374602600
COMPRESSOR ASSY
1
X03746-35000-0
1
0374602610
BRACKET
1
4
0374600250
SHAFT
1
5
0374601101
PULLEY
1
13514051~13519036
0374601101
PULLEY
1
13519307~
M
6
0374601120
BRACKET
1
13514051~13514524
0374602630
BRACKET
1
13514525~
7
0374602620
GUARD
1
8
0564619240
COLLAR
1
9
0374601130
ADJUSTER
1
13514051~13514524
10
1911505700
PULLEY
1
11
1911506120
V-BELT
1
12
1911506010
COMPRESSOR
1
13
1100040835
BOLT
1
14
1100040816
BOLT
3
15
1100041030
BOLT
2
16
1100141005
BOLT
2
17
1130040008
NUT
3
18
1130040010
NUT
2
19
1130040012
NUT
1
20
1140020008
WASHER, spring
10
21
1140020010
WASHER, spring
9
22
1141110008
WASHER
3
23
1100041020
BOLT
3
24
1652231250
BAND
5
25
1140020010
WASHER, spring
1
26
1141110010
WASHER
1
27
0394602010
BOLT
1
28
0872433150
TUBE
2
13514051~13514524
30
1703210723
TUBE
1
sold by the meter
31
1110040820
SCREW, cap
4
33
1652201005
BAND
1
34
1141550008
WASHER
1
13514051~13514524
35
1100040820
BOLT
2
13514525~
36
0003600222
SHIM
AR
t=0.2mm
37
0003600223
SHIM
AR
t=0.3mm
G4e316
Reference:G4E311
Page:5-44
TB135 Book No. BG4Z010 S/N 13510004-
AIR CONDITIONER (2/6) (13514051-)
9
10
1719
18
5
6
12
7
11
15
16
2
23
14
10
1
4
13
3
27
21
22
15
1719
16
18
25
20
26
26
25
24

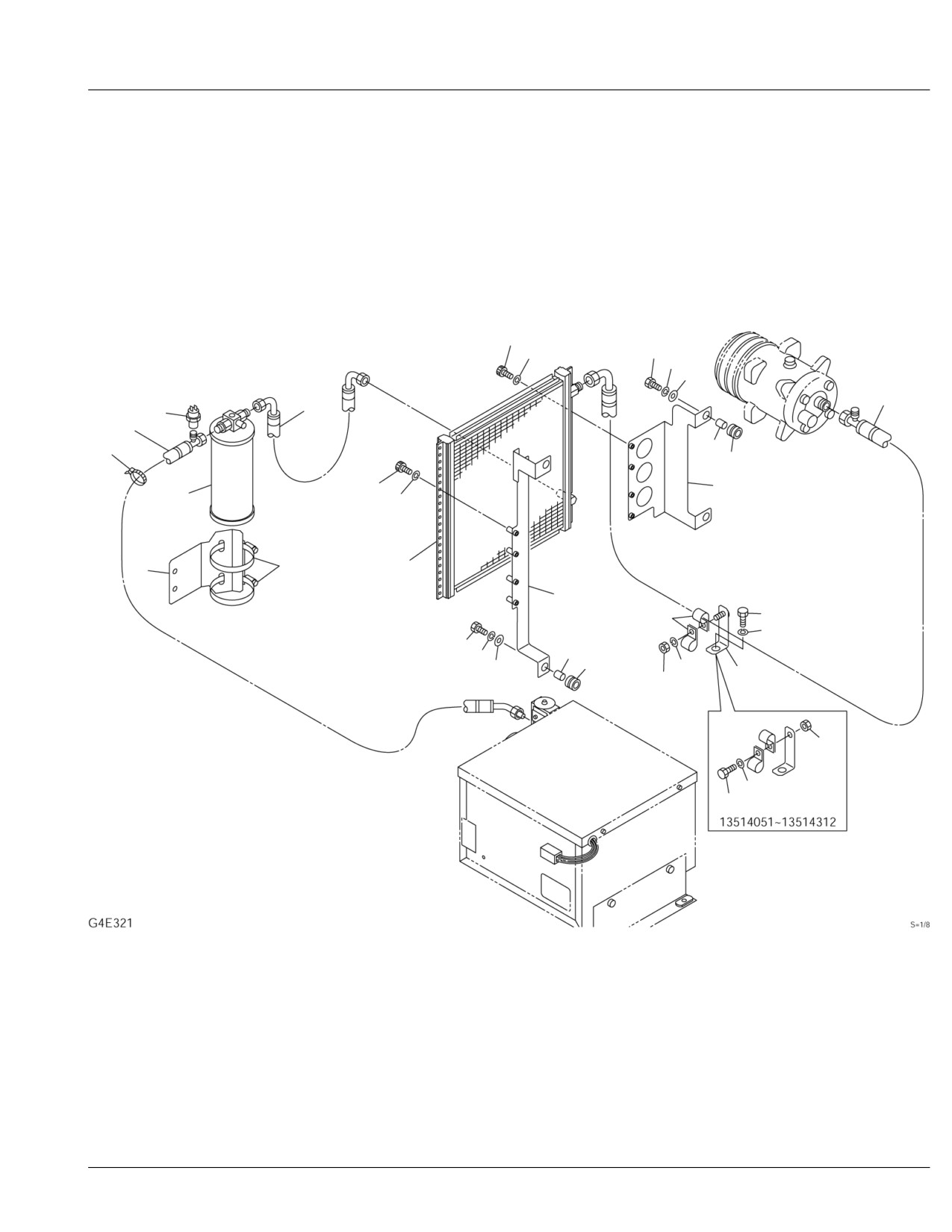

Ref G4E321
Page
5-45
AIR CONDITIONER (2/6) (13514051-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
CONDITIONER ASSY, air
X03746-02500-1
CONDITIONER ASSY, air
X03746-03500-0
(with boost fan)
0
X
0374602700
CONDENSER ASSY
1
X03746-02700-3
1
0374602710
BRACKET
1
2
0374602720
BRACKET
1
3
0374602730
BRACKET
1
4
1911506679
BRACKET
1
5
1911506101
HOSE
1
1911505602
O-RING
1
RD-5-4017-013
6
1911506103
HOSE
1
1911505601
O-RING
1
RD-5-4017-011
7
1911506102
HOSE
1
1911505601
O-RING
1
RD-5-4017-011
9
1110040512
SCREW, cap
4
10
1140020005
WASHER, spring
8
11
1652231100
BAND
1
12
1911505514
SWITCH, presser
1
13
1911505503
CONDENSER
1
14
1911505511
DRYER
1
15
0394015104
PIPE
4
16
1651057014
GROMMET
4
17
1100040835
BOLT
4
18
1141110008
WASHER
4
19
1140020008
WASHER, spring
4
20
0374602740
BRACKET
1
21
1100041425
BOLT
1
22
1140020014
WASHER, spring
1
23
1110040535
SCREW, cap
4
24
1100041016
BOLT
1
13514051~13514312
25
1140020010
WASHER, spring
1
26
1130040010
NUT
1
27
1711900072
CLAMP
2
G4e324
Reference:G4E321
Page:5-45
TB135 Book No. BG4Z010 S/N 13510004-
AIR CONDITIONER (3/6) (13514051-)
33
12
15
18
35
34
20
18
15
12
26
27
8
12
15
18
2
5
3
Ref G4E270A
Page
5-46
AIR CONDITIONER (3/6) (13514051-)
Item
Part number
Description
Q'ty Chan.
Serial No.
Serv.
Remarks
CONDITIONER ASSY, air
X03746-02500-1
CONDITIONER ASSY, air
X03746-03500-0
(with boost fan)
0
X
0374601300
UNIT ASSY, air conditioner
1
13514051~13516102
X03746-01300-4
X
0374602800
UNIT ASSY, air conditioner
1
13516103~
X03746-02800-0
2
0374601310
COVER
1
3
0394608013
URETHANE
1
5
0394612422
URETHANE
1
8
1911505723
LOUVER
2
12
1100040616
BOLT
8
15
1140020006
WASHER, spring
8
18
1141110006
WASHER
8
20
1654319015
SPONGE
1
sold by the meter
26
1652060085
BUSHING
1
27
1652060051
BUSHING
1
33
0394612370
COVER
1
34
1652060038
BUSHING
1
35
1654601010
TRIM
1
sold by the meter
G4e334
Reference:G4E270A
Page:5-46
TB135 Book No. BG4Z010 S/N 13510004-
AIR CONDITIONER (4/6) (13514051-)
25
32
7
6
24
1523
24-1
29
21
31
14
29
19
17
30
29
17
29
16
9
13
10
29

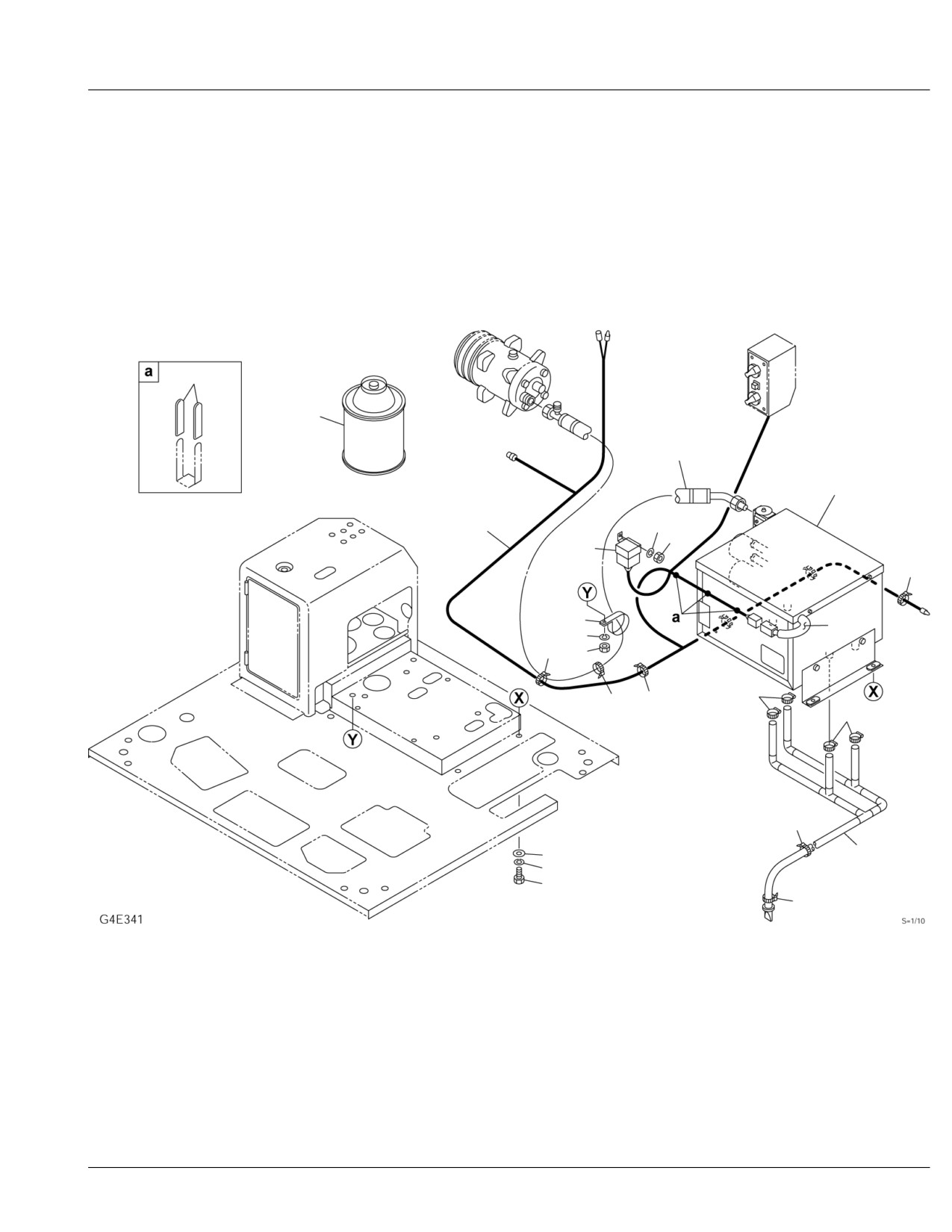

Ref G4E341
Page
5-47
AIR CONDITIONER (4/6) (13514051-)
Item
Part number
Description
Q'ty Chan.
Serial No.
Serv.
Remarks
CONDITIONER ASSY, air
X03746-02500-1
CONDITIONER ASSY, air
X03746-03500-0
(with boost fan)
0
X
0374601300
UNIT ASSY, air conditioner
1
13514051~13516102
X03746-01300-4
X
0374602800
UNIT ASSY, air conditioner
1
13516103~
X03746-02800-0
6
1911506340
UNIT, air conditioner
1
13514051~13516102
see page (6/6)
1911508740
UNIT, air conditioner
1
13516103~
see page (6/6)
7
1911506104
HOSE
1
1911505603
O-RING
1
RD-5-4017-015
9
1911506420
HOSE
1
10
1100041020
BOLT
4
13
1140020010
WASHER, spring
4
14
1140020008
WASHER, spring
1
13514051~13516102
15
1140020006
WASHER, spring
1
16
1141110010
WASHER
4
17
1533700019
CLAMP
4
19
1130040008
NUT
1
13514051~13516102
21
0007300061
CLAMP
1
23
1130040006
NUT
1
24
1911506210
HARNESS, wiring
1
24-1
1911506041
RELAY
1
12V
25
0872433150
TUBE
6
29
1652231100
BAND
7
30
1652201005
BAND
1
31
1703211010
PROTECTOR
1
sold by the meter
32
0872463100
GAS
4
G4e344
Reference:G4E341
Page:5-47
TB135 Book No. BG4Z010 S/N 13510004-
AIR CONDITIONER (5/6) (13514051-13516102)
19
10
18
2
20
2
1
21
11
21
3
13
16
2
8
5
21
3
26
15
25
15
3
3
27
4
21
7
3
9
24
3
30
29
28
16
12
15
3
12
22
6
22
23

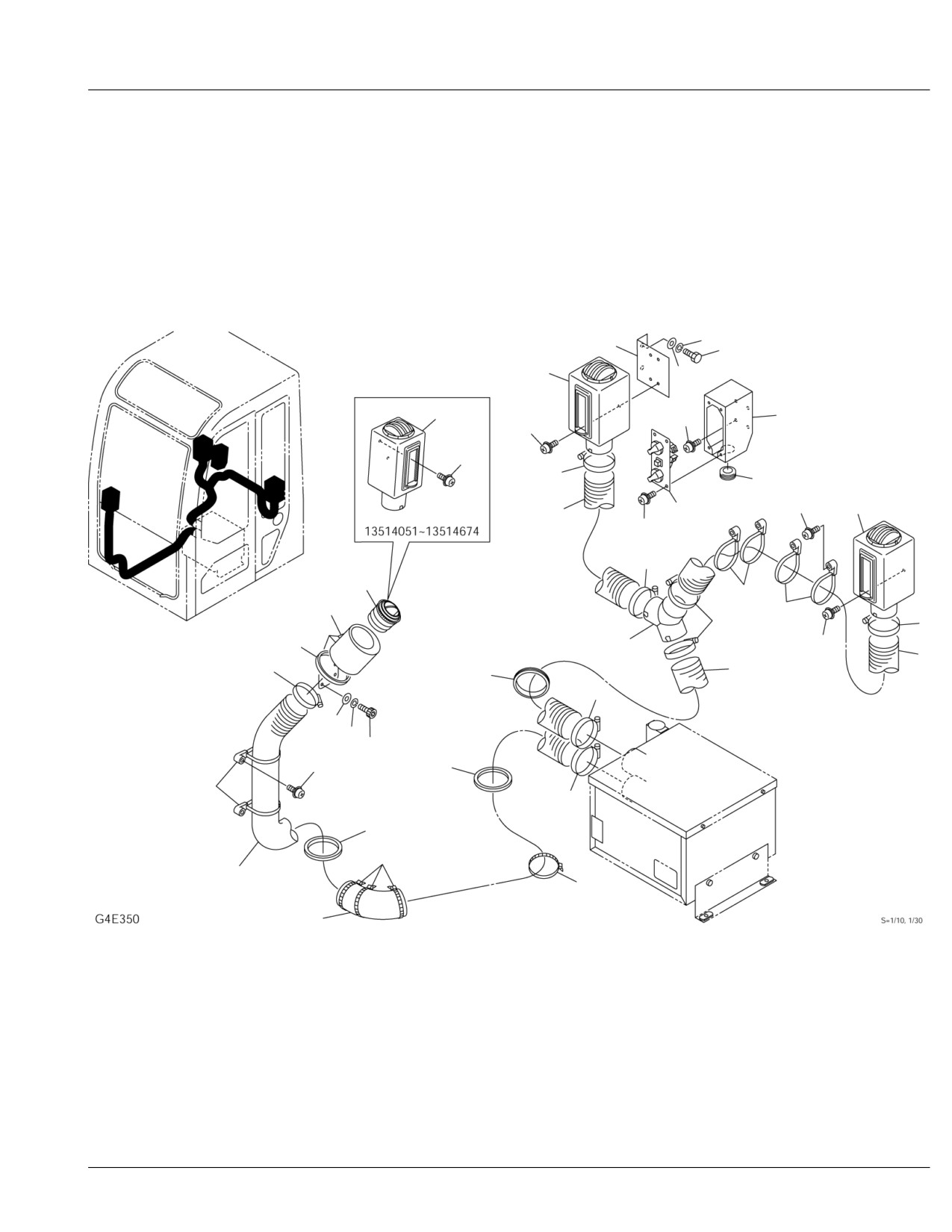

Ref G4E350
Page
5-48
AIR CONDITIONER (5/6) (13514051-13516102)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
CONDITIONER ASSY, air
X03746-02500-0
0
X
0374601400
DEFROSTER ASSY
1
X03746-01400-4
1
0394612340
COVER
1
2
1911505720
DUCT ASSY
3
13514051~13514674
1911505720
DUCT ASSY
2
13514675~
3
1911505670
CLAMP
8
4
1911505680
Y-CONNECTOR
1
5
1911506020
PANEL ASSY, control
1
see page (6/6)
6
1911508591
HOSE
1
7
1911508539
HOSE
1
8
1911508510
HOSE
1
9
1911508528
HOSE
1
10
1911505730
BRACKET
1
11
1911505810
SCREW
2
12
1653916023
TRIM
1
sold by the meter
13
1652002201
GROMMET
1
15
1652261410
BAND
6
16
1120590514
SCREW
6
18
1100040612
BOLT
2
19
1140020006
WASHER, spring
2
20
1141110006
WASHER
2
21
1150420510
BOLT, sems
10
22
1652201007
BAND
5
23
1531360010
PROTECTOR
1
24
1654606027
SEAL
1
25
0394612710
BRACKET
1
13514675~
26
1911506060
LOUVER
1
13514675~
27
1653916026
TRIM
1
13514675~
sold by the meter
28
1110090512
SCREW, cap
4
13514675~
29
1140090005
WASHER, spring
4
13514675~
30
1141190005
WASHER
4
13514675~
G4e352
Reference:G4E350
Page:5-48
TB135 Book No. BG4Z010 S/N 13510004-
AIR CONDITIONER (5/6) (13516103-)
19
10
18
2
20
21
1
11
3
13
16
2
7
5
21
26
25
15
15
3
27
21
3
8
24
3
30
29 28
16
12
15
3
12
6-1
6-3
6-2
6-3
6-3
22
6-3
22
6-4

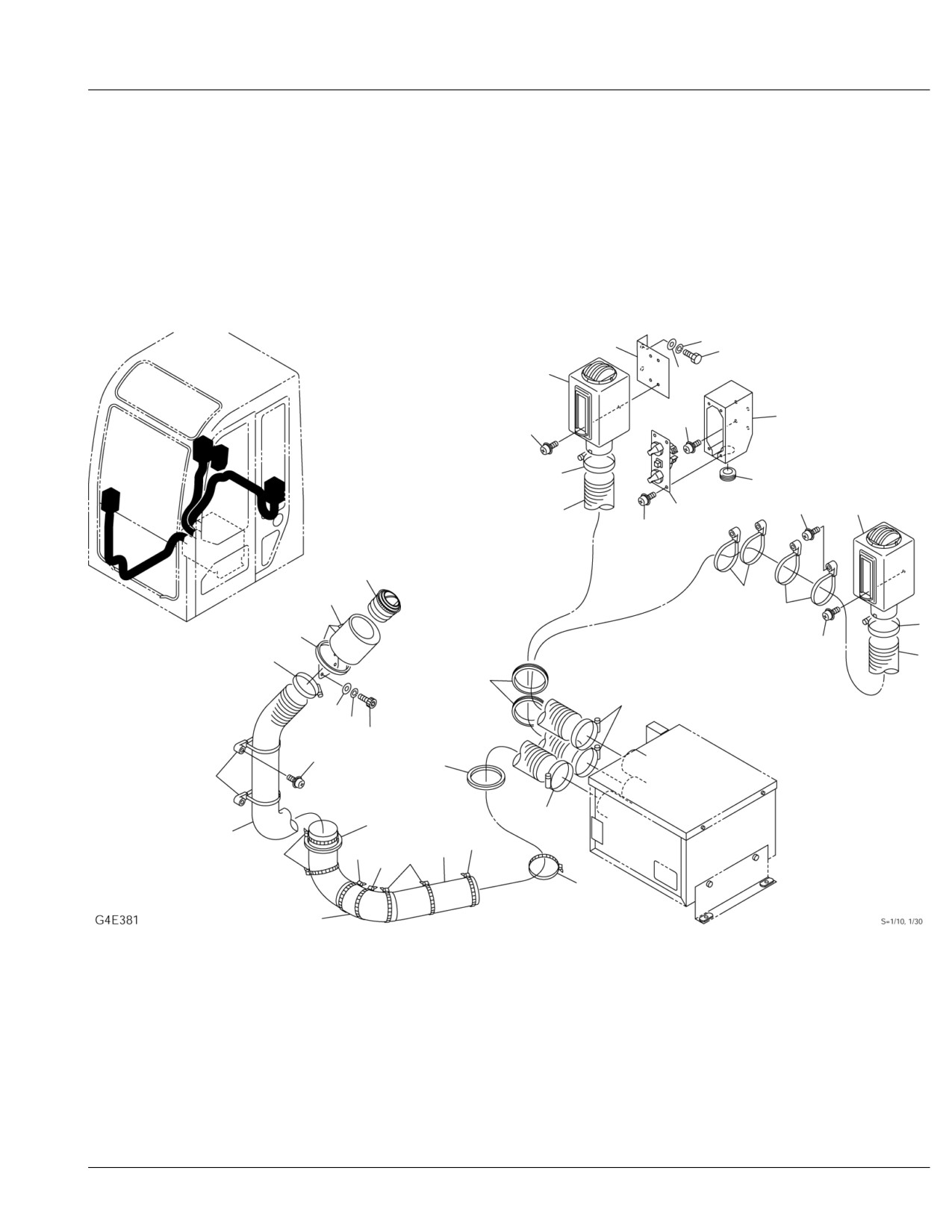

Ref G4E381
Page
5-49
AIR CONDITIONER (5/6) (13516103-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
CONDITIONER ASSY, air
X03746-02500-1
0
X
0374603200
DEFROSTER ASSY
1
X03746-03200-2
1
0394612340
COVER
1
2
1911505720
DUCT ASSY
2
3
1911505670
CLAMP
6
5
1911506020
PANEL ASSY, control
1
see page (6/6)
6
0374603310
HOSE ASSY, duct
1
6-1
1911508591
HOSE
1
6-2
0394615141
INSULATOR
1
6-3
1652201007
BAND
6
6-4
1531360010
PROTECTOR
1
sold by the meter
7
1911508539
HOSE
1
8
1911508567
HOSE
1
10
1911505730
BRACKET
1
11
1911505810
SCREW
2
12
1653916023
TRIM
2
sold by the meter
13
1652002201
GROMMET
1
15
1652261410
BAND
6
16
1150420514
SCREW
6
18
1100040612
BOLT
2
19
1140020006
WASHER, spring
2
20
1141110006
WASHER
2
21
1150420510
BOLT, sems
10
22
1652201007
BAND
2
24
1654606050
SEAL
1
sold by the meter
25
0394612710
BRACKET
1
26
1911506060
LOUVER
1
27
1653916026
TRIM
1
sold by the meter
28
1110090512
SCREW, cap
4
29
1140090005
WASHER, spring
4
30
1141190005
WASHER
4
G4e382
Reference:G4E381
Page:5-49
TB135 Book No. BG4Z010 S/N 13510004-
AIR CONDITIONER (5/6) (for China, with boost fan, 2holes; 13514051-13515089)
34
31-2
42
14
31-1
16
31-5
35
31-3
40
33
36
42
31-4
31-6
3
42
38
41
42
23
37
7
4
42
26
39
3
3
9
1
25
32-2
5
13
3
32-1
21
27
17
3
2
24
16
3
30 29
28
15
16
12
15
15
3
21
3
8
12
6-1
6-3
6-3
6-2
6-3
6-3
22
22
6-4

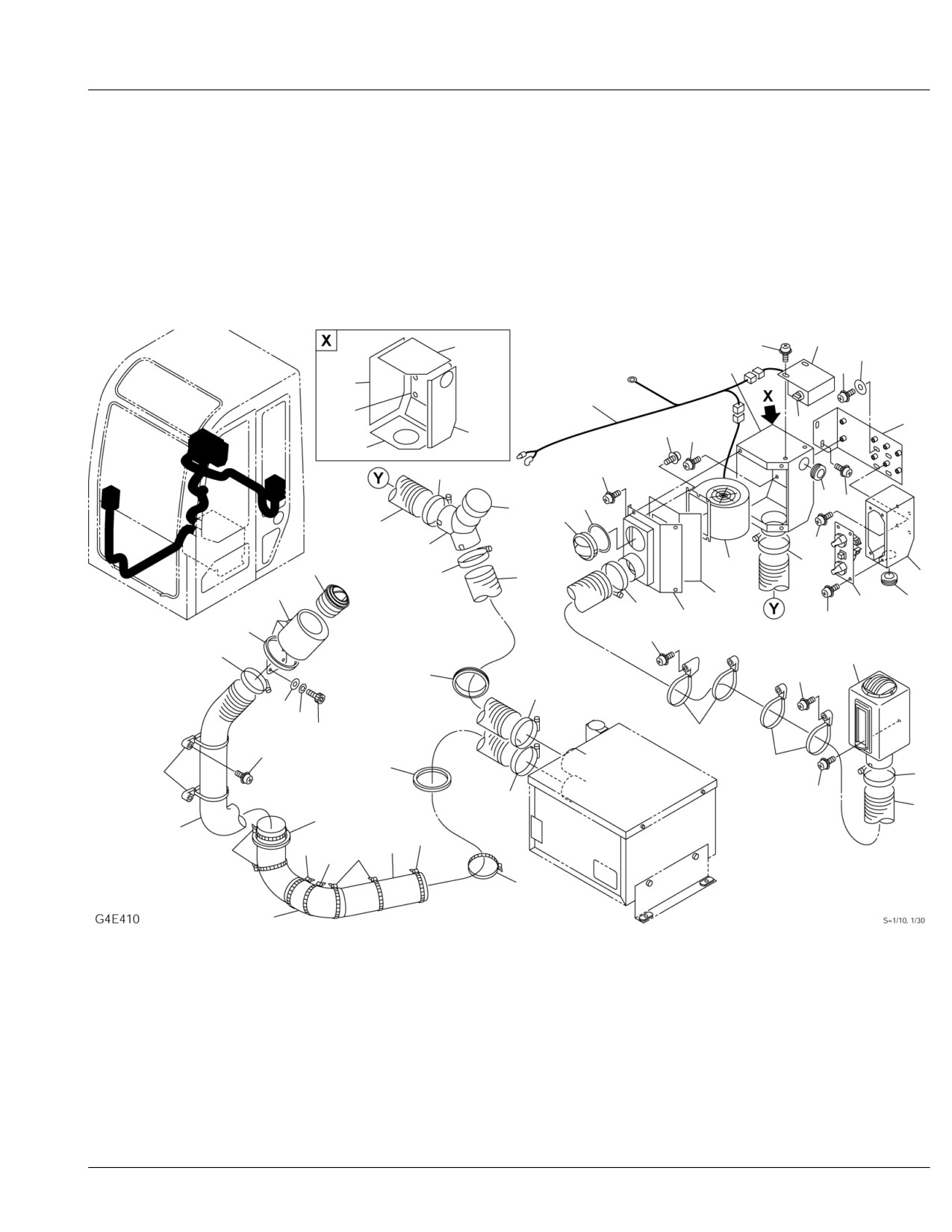

Ref G4E410
Page
5-50
AIR CONDITIONER (5/6) (for China, with boost fan, 2holes; 13514051-13515089)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
CONDITIONER ASSY, air
X03746-02500-1
0
X
0374603300
DEFROSTER ASSY
1
X03746-03300-0
1
0394612340
COVER
1
2
1911505720
DUCT ASSY
1
3
1911505670
CLAMP
8
4
1911505680
CONNECTOR
1
5
1911506020
PANEL ASSY, control
1
see page (6/6)
6
0374603310
HOSE ASSY, duct
1
6-1
1911508591
HOSE
1
6-2
0394615141
INSULATOR
1
6-3
1652201007
BAND
6
6-4
1531360010
PROTECTOR
1
sold by the meter
7
1911508510
HOSE
1
8
1911508567
HOSE
1
9
1911508528
HOSE
1
12
1653916023
TRIM
2
sold by the meter
13
1652002201
GROMMET
1
14
0003606202
WASHER
4
15
1652261410
BAND
6
16
1150420514
SCREW
9
17
1150420516
SCREW
1
21
1150420510
BOLT, sems
5
22
1652201007
BAND
2
23
1911503000
COVER
1
24
1654606050
SEAL
1
sold by the meter
25
0394612710
BRACKET
1
26
1911506060
LOUVER
1
27
1653916026
TRIM
1
sold by the meter
28
1110090512
SCREW, cap
4
29
1140090005
WASHER, spring
4
30
1141190005
WASHER
4
31
0394615110
BOX ASSY
1
31-1
0394614950
BOX
1
31-2
0394614992
INSULATOR
1
31-3
0394614993
INSULATOR
1
31-4
0394614995
INSULATOR
1
31-5
0394614996
INSULATOR
1
31-6
0394614991
INSULATOR
1
32
0394615120
COVER ASSY
1
32-1
0394614960
COVER
1
32-2
0394614994
INSULATOR
1
33
0394614970
BRACKET
1
34
0394614980
BOX
1
35
0394614990
HARNESS ASSY, wiring
1
36
1150420410
SCREW
4
37
1911506012
LOUVER
1
38
1911506063
ADAPTER
1
39
0394615150
FAN ASSY
1
19115-08200
40
1700000031
SWITCH
1
41
1652053200
GROMMET
1
42
1150420614
SCREW
16
G4e410
Reference:G4E410
Page:5-50
TB135 Book No. BG4Z010 S/N 13510004-

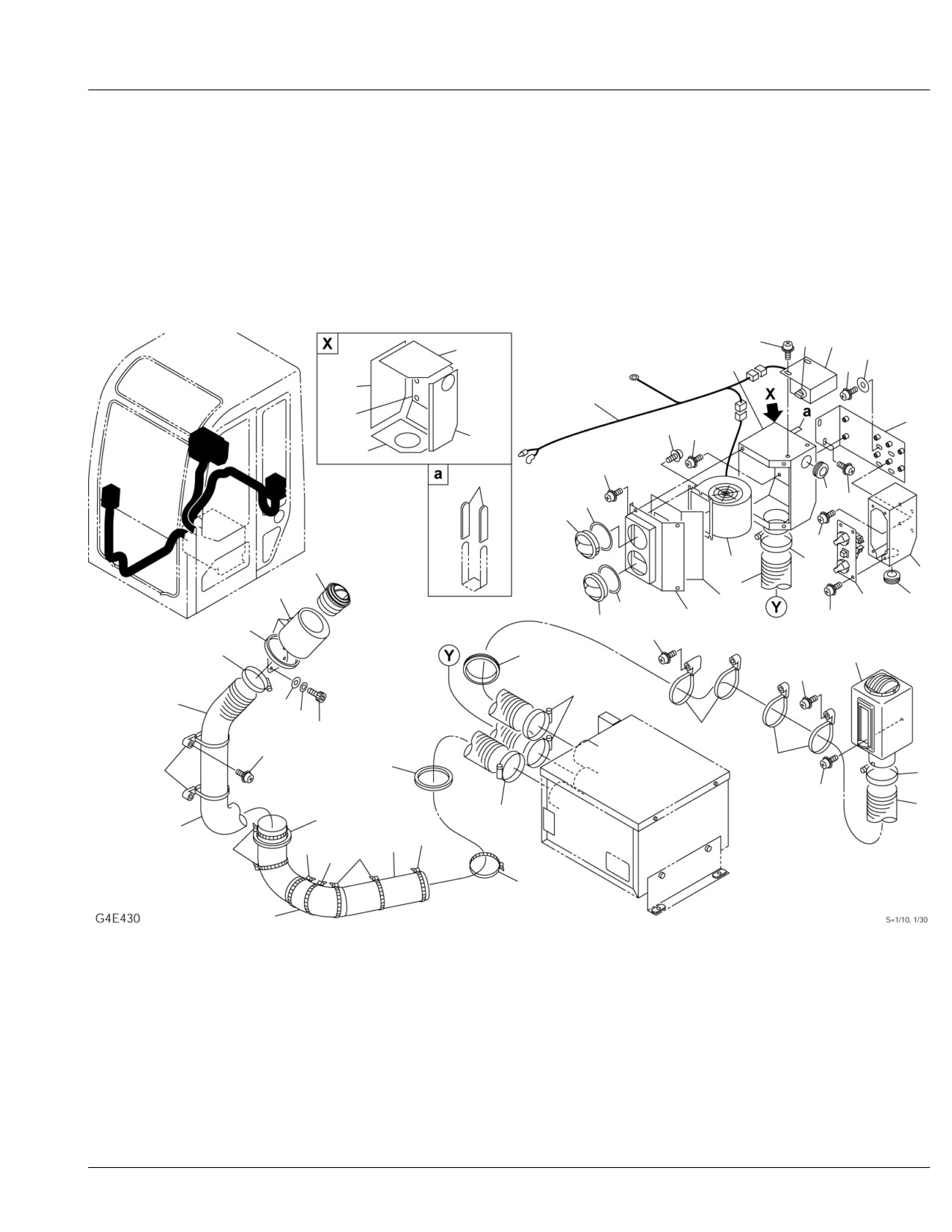

AIR CONDITIONER (5/6) (for China, with boost fan, 3holes; 13515090-)
42
40
34
31-2
14
31-1
16
31-5
35
31-3
33
36
42
31-4
31-6
42
43
38
41
42
37
42
26
39
3
1
7
25
5
13
32-2
38
32-1
21
27
37
17
3
24
2
16
3
6
30 29
28
15
16
12
15
15
3
21
8
12
3
6-1
6-3
6-2
6-3
6-3
6-3
22
22
6-4
Ref G4E430
Page
5-51
AIR CONDITIONER (5/6) (for China, with boost fan, 3holes; 13515090-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
CONDITIONER ASSY, air (with boost
X03746-03500-0
fan)
0
X
0374603600
DEFROSTER ASSY
1
X03746-03600-2
1
0394612340
COVER
1
2
1911505720
DUCT ASSY
1
3
1911505670
CLAMP
8
5
1911506020
PANEL ASSY, control
1
see page (6/6)
6
0374603310
HOSE ASSY, duct
1
6-1
1911508591
HOSE
1
6-2
0394615141
INSULATOR
1
6-3
1652201007
BAND
6
6-4
1531360010
PROTECTOR
1
sold by the meter
7
1911508539
HOSE
1
8
1911508567
HOSE
1
12
1653916023
TRIM
2
sold by the meter
13
1652002201
GROMMET
1
14
0003606202
WASHER
4
15
1652261410
BAND
6
16
1150420514
SCREW
9
17
1150420516
SCREW
1
21
1150420510
BOLT, sems
5
22
1652201007
BAND
2
24
1654606050
SEAL
1
sold by the meter
25
0394612710
BRACKET
1
26
1911506060
LOUVER
1
27
1653916026
TRIM
1
sold by the meter
28
1110090512
SCREW, cap
4
29
1140090005
WASHER, spring
4
30
1141190005
WASHER
4
31
0394615110
BOX ASSY
1
31-1
0394614950
BOX
1
31-2
0394614992
INSULATOR
1
31-3
0394614993
INSULATOR
1
31-4
0394614995
INSULATOR
1
31-5
0394614996
INSULATOR
1
31-6
0394614991
INSULATOR
1
32
0394615160
COVER ASSY
1
32-1
0394615130
COVER
1
32-2
0394614994
INSULATOR
1
33
0394614970
BRACKET
1
34
0394614980
BOX
1
35
0394614990
HARNESS ASSY, wiring
1
36
1150420410
SCREW
4
37
1911506012
LOUVER
2
38
1911506063
ADAPTER
2
39
0394615150
FAN ASSY
1
40
1700000031
SWITCH
1
41
1652053200
GROMMET
1
42
1150420614
SCREW
16
43
0872433150
TUBE
2
G4e430
Reference:G4E430
Page:5-51
TB135 Book No. BG4Z010 S/N 13510004-

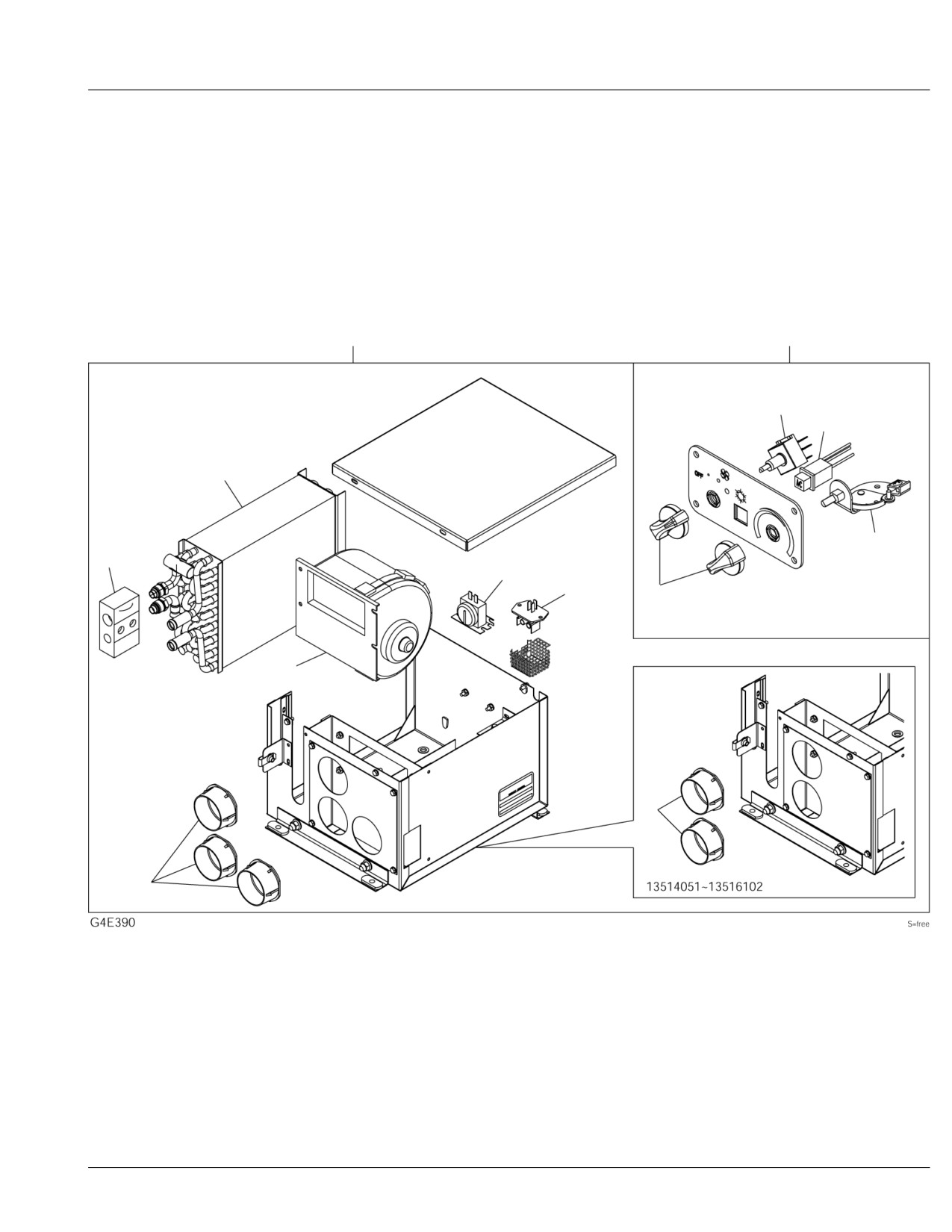

AIR CONDITIONER (6/6) (13514051-)
0-1
0-2
10
9
4
7
5
2
3
8
1
7
7
Ref G4E390
Page
5-52















Content      ..     6      7      8      9     ..
