Takeuchi TB260 Mini Excavator (Serial No.12600002~). Parts Manual - page 23
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

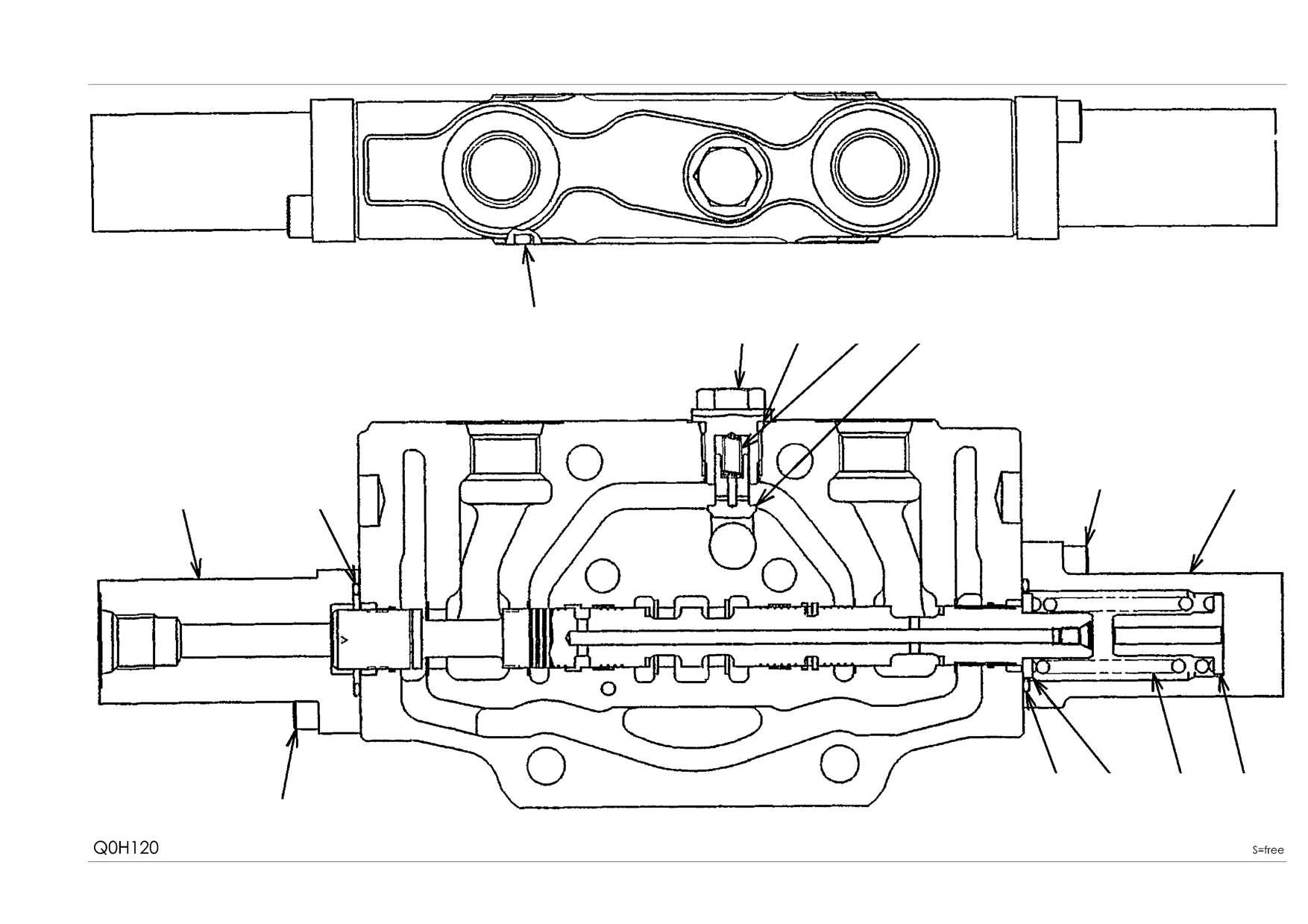

BLOCK ASSY; No. 12
12
8
9
7
6
11
1
2
10
10
3
5
4
11
Reference
Q0H120
ﾍﾟｰｼﾞ
8-13
BLOCK ASSY; No. 12
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
1901051794
BLOCK ASSY; No.12
1
auxiliary 3
1
1901043270
CAP
1
2
1901043267
CAP
1
3
1901029754
HOLDER, spring
1
4
1901043231
HOLDER, spring
1
5
1901043256
SPRING
1
6
1901043226
PLUNGER
1
7
1901043257
SPRING
1
8
1901043271
PLUG
1
9
1901043282
O-RING
1
10
1420500240
O-RING
2
11
1110020618
SCREW, cap
4
12
1420100700
O-RING
1
Q0h120
Reference:Q0H120
Page:8-13
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

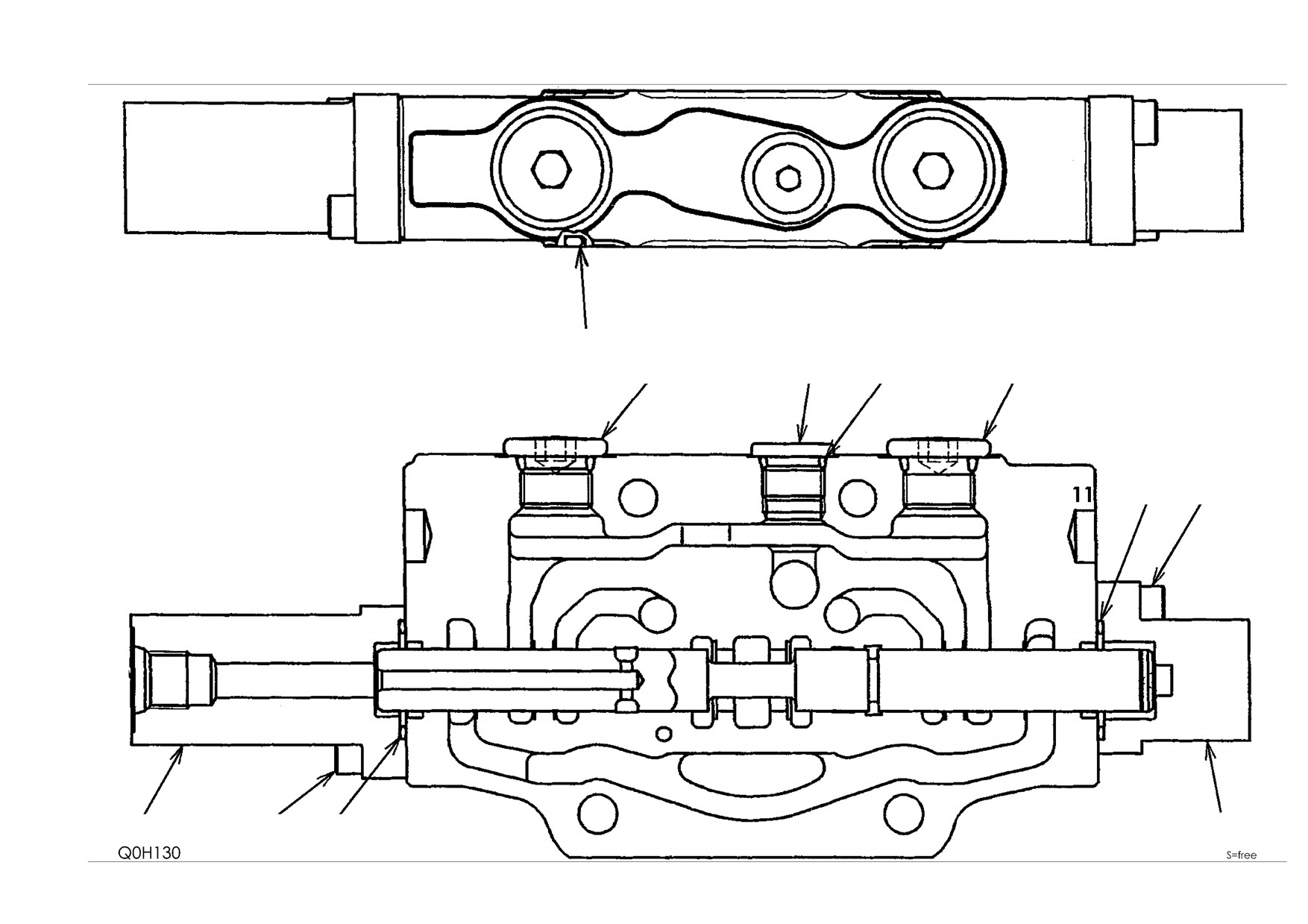

BLOCK ASSY; No. 13
7
8
5
6
8
3
4
2
4
3
1
Reference
Q0H130
ﾍﾟｰｼﾞ
8-14
BLOCK ASSY; No. 13
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
1901051797
BLOCK ASSY; No.13
1
auxiliary 3
1
1901051770
CAP
1
2
1901043267
CAP
1
3
1420500240
O-RING
2
4
1110020618
SCREW, cap
4
5
1901046271
PLUG
1
6
1901043282
O-RING
1
7
1420100700
O-RING
1
8
1901036678
PLUG ASSY
2
8-1
1420010140
O-RING
1
Q0h130
Reference:Q0H130
Page:8-14
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

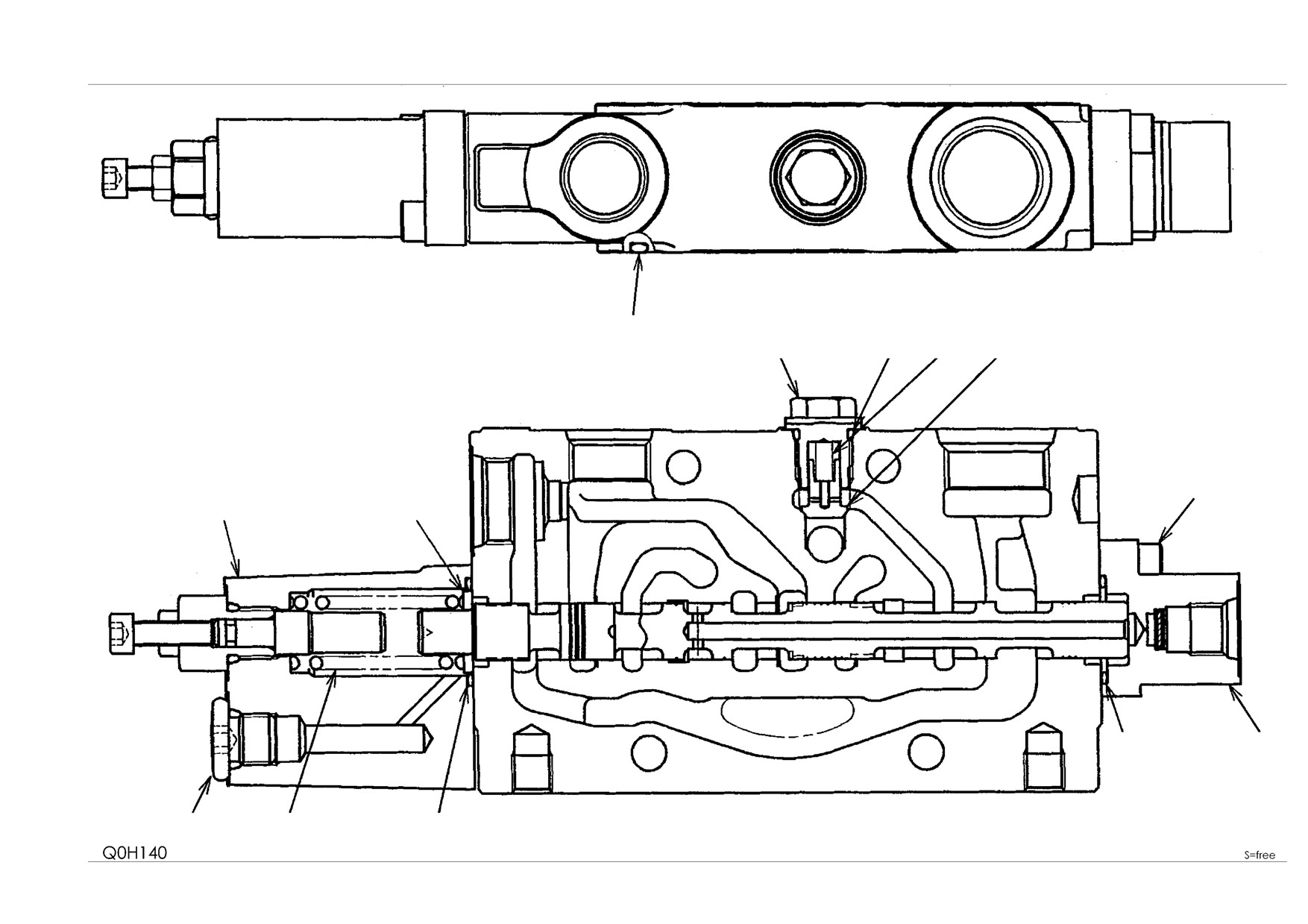

BLOCK ASSY; No. 14
11
8
9
7
6
10
1
2
4
5
12
3
4
Reference
Q0H140
ﾍﾟｰｼﾞ
8-15
BLOCK ASSY; No. 14
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901051796
BLOCK ASSY; No.14
1
T3, P3
1
1901051769
CAP
1
2
1901029754
HOLDER, spring
1
3
1901043259
SPRING
1
4
1420500240
O-RING
2
5
1901051768
CAP
1
6
1901043226
PLUNGER
1
7
1901043257
SPRING
1
8
1901043271
PLUG
1
9
1901043282
O-RING
1
10
1110020618
SCREW, cap
4
11
1420100700
O-RING
1
12
1901036573
PLUG
1
12-1
1420010110
O-RING
1
Q0h140
Reference:Q0H140
Page:8-15
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

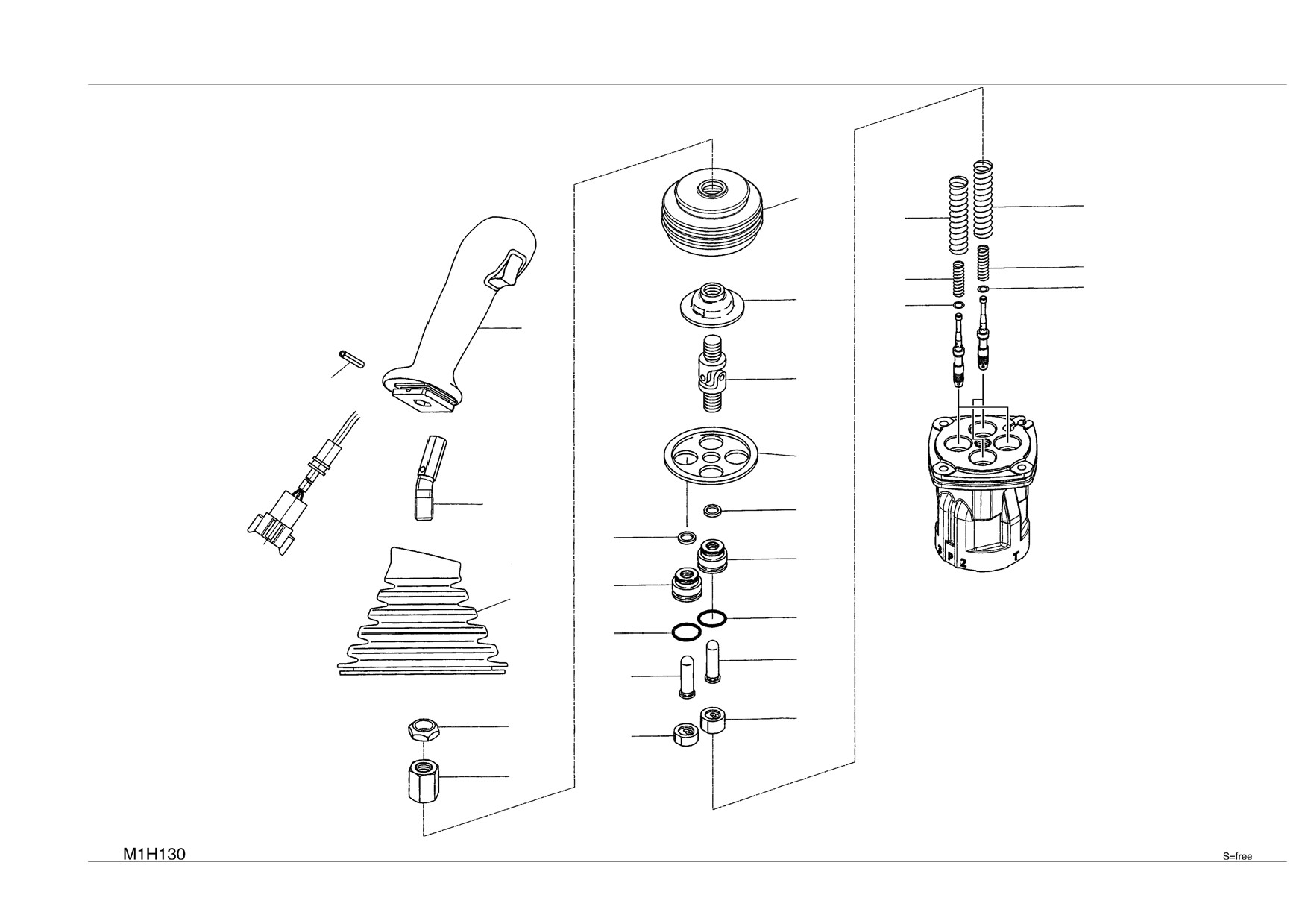

PILOT VALVE (R.H.) (3-switch type)
20
10
10
11
12
9
14
9
18
13
19
1
17
5
5
2
2
21
6
6
3
4
7
16
8
15
Reference
M1H130
ﾍﾟｰｼﾞ
8-16
PILOT VALVE (R.H.) (3-switch type)
Item
Part number
Description
Q'ty
Chan.
Serial No. Serv. Remarks
0
1901758000
VALVE ASSY, pilot (R.H.)
1
1
1901742602
PLATE
1
2
1901710912
PLUG
4
3
1901719011
ROD
2
4
1901719012
ROD
2
5
1901710914
SEAL
4
6
1420010200
O-RING
4
7
1901745709
HOLDER
2
8
1901745710
HOLDER
2
9
1901710917
WASHER
4
10
1901745612
SPRING
4
11
1901742614
SPRING
2
12
1901742615
SPRING
2
13
1901720232
JOINT
1
14
1901743620
PLATE
1
15
1901735625
NUT
1
16
1901735626
NUT
1
17
1901740432
LEVER
1
18
1901758018
HANDLE
1
19
1213000528
PIN, spring
1
20
1901742619
BOOT
1
21
0375109110
BOOT
1
M1h130
Reference:M1H130
Page:8-16
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

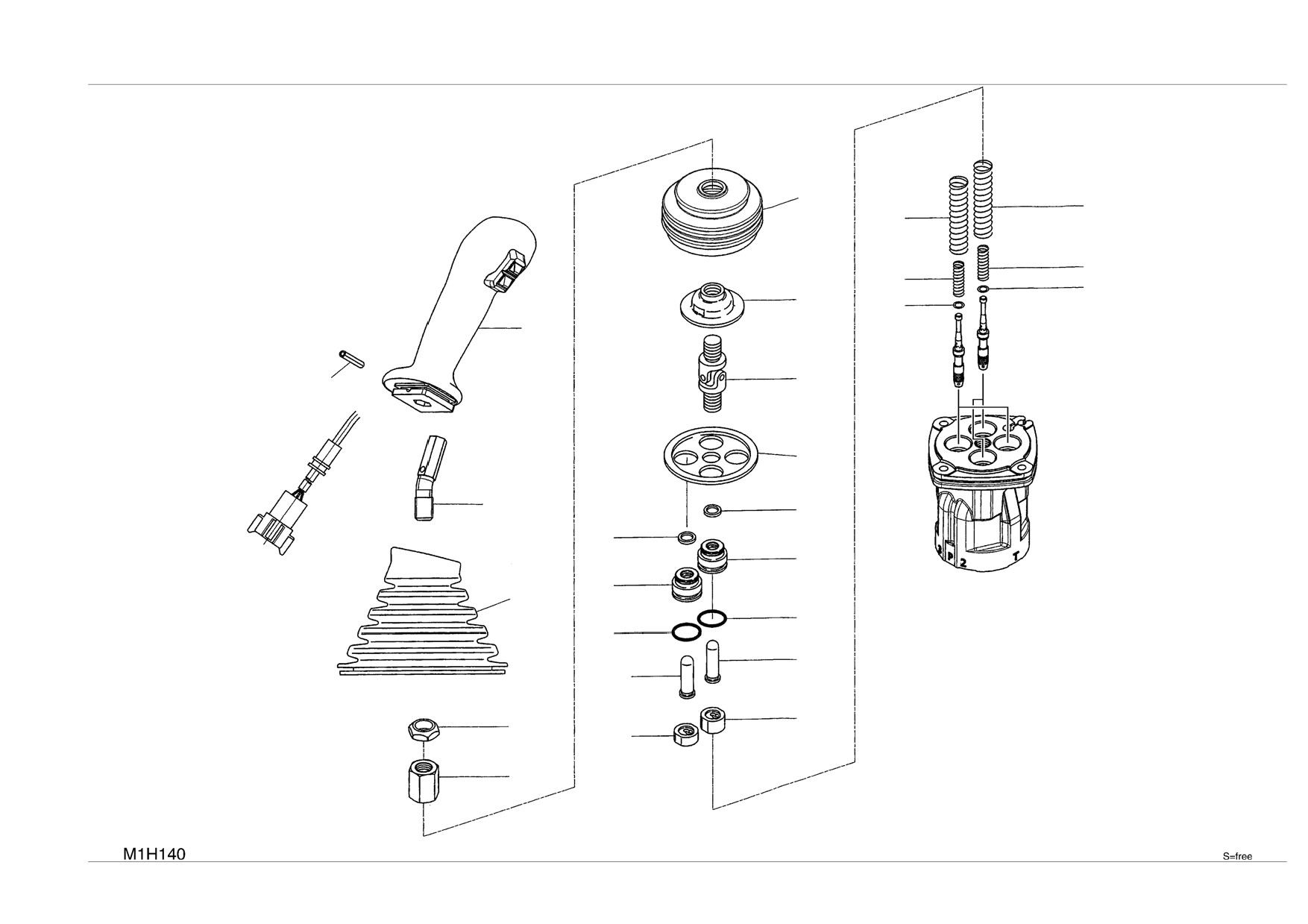

PILOT VALVE (R.H.) (4-switch type)
20
10
10
11
12
9
14
9
18
13
19
1
17
5
5
2
2
21
6
6
3
4
7
16
8
15
Reference
M1H140
ﾍﾟｰｼﾞ
8-17
PILOT VALVE (R.H.) (4-switch type)
Item
Part number
Description
Q'ty
Chan.
Serial No. Serv. Remarks
0
1901759000
VALVE ASSY, pilot (R.H.)
1
1
1901742602
PLATE
1
2
1901710912
PLUG
4
3
1901719011
ROD
2
4
1901719012
ROD
2
5
1901710914
SEAL
4
6
1420010200
O-RING
4
7
1901745709
HOLDER
2
8
1901745710
HOLDER
2
9
1901710917
WASHER
4
10
1901745612
SPRING
4
11
1901742614
SPRING
2
12
1901742615
SPRING
2
13
1901720232
JOINT
1
14
1901743620
PLATE
1
15
1901735625
NUT
1
16
1901735626
NUT
1
17
1901740432
LEVER
1
18
1901759018
HANDLE
1
19
1213000528
PIN, spring
1
20
1901742619
BOOT
1
21
0375109110
BOOT
1
M1h141
Reference:M1H140
Page:8-17
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

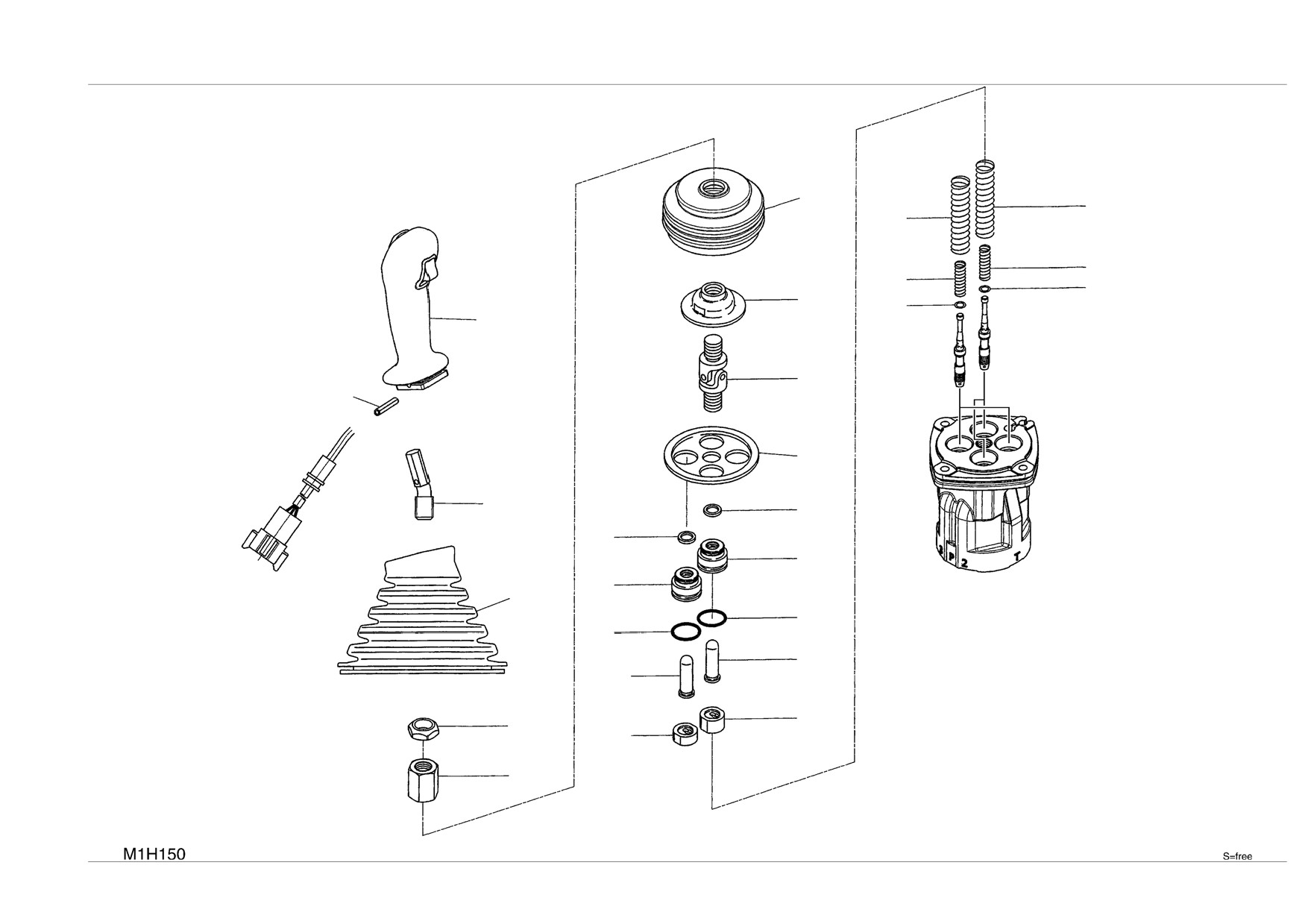

PILOT VALVE (L.H.) (3-switch type)
20
10
10
11
12
9
14
9
18
13
19
1
17
5
5
2
2
21
6
6
3
4
7
16
8
15
Reference
M1H150
ﾍﾟｰｼﾞ
8-18
PILOT VALVE (L.H.) (3-switch type)
Item
Part number
Description
Q'ty
Chan.
Serial No. Serv. Remarks
0
1901758100
VALVE ASSY, pilot (L.H.)
1
1
1901742602
PLATE
1
2
1901710912
PLUG
4
3
1901719011
ROD
2
4
1901719012
ROD
2
5
1901710914
SEAL
4
6
1420010200
O-RING
4
7
1901745709
HOLDER
2
8
1901745710
HOLDER
2
9
1901710917
WASHER
4
10
1901745612
SPRING
4
11
1901742614
SPRING
2
12
1901742615
SPRING
2
13
1901720232
JOINT
1
14
1901743620
PLATE
1
15
1901735625
NUT
1
16
1901735626
NUT
1
17
1901740432
LEVER
1
18
1901758018
HANDLE
1
19
1213000528
PIN, spring
1
20
1901742619
BOOT
1
21
0375109110
BOOT
1
M1h150
Reference:M1H150
Page:8-18
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

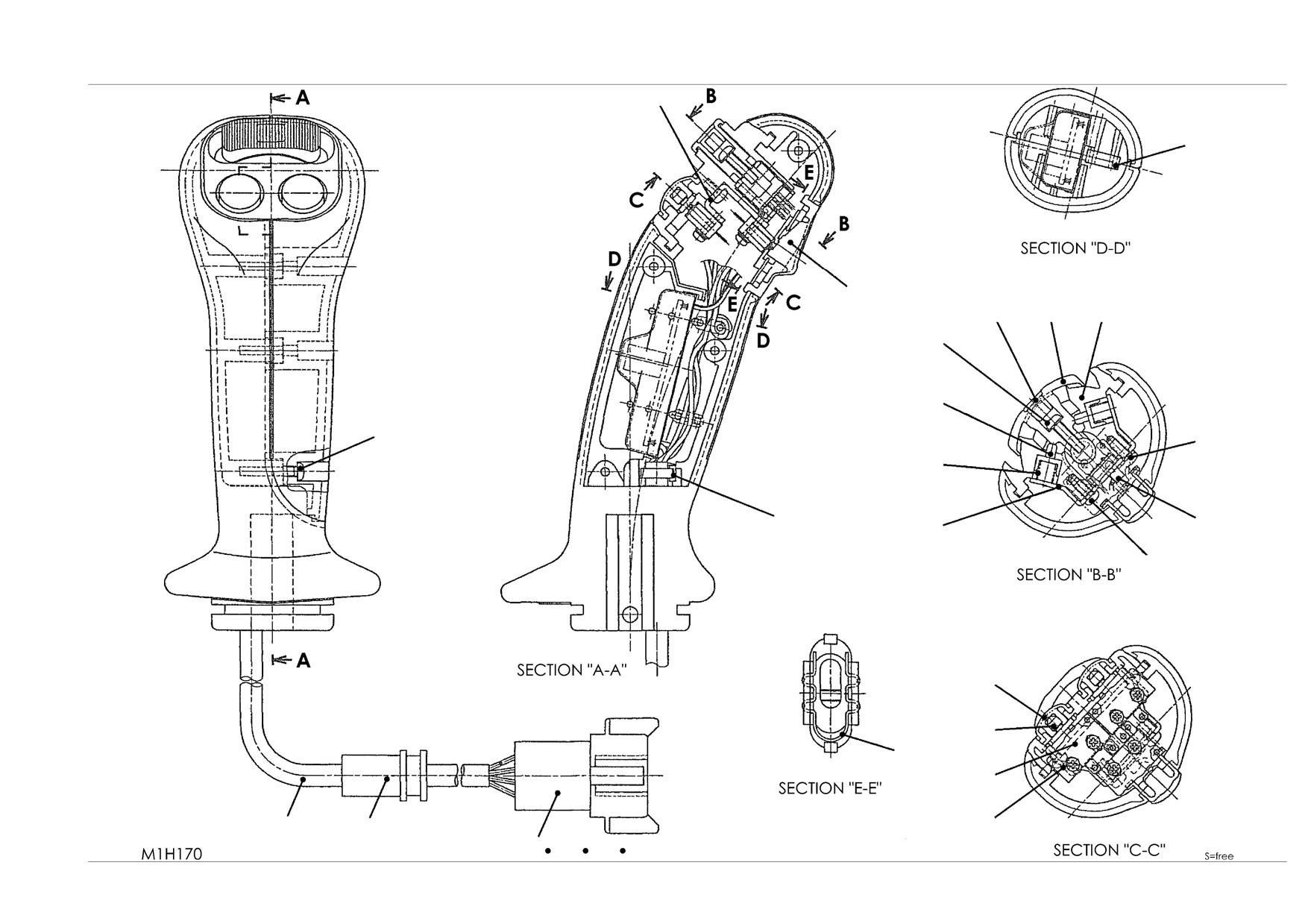

HANDLE (3-switch type)
6
18
5
12
3
2
13
10
1
16
11
25
23
4
15
9
8
7
17
14
24
26
19
20
21
22
Reference
M1H170
ﾍﾟｰｼﾞ
8-19
HANDLE (3-switch type)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1901758018
HANDLE ASSY
1
1
1122400316
SCREW
4
2
1901755402
CASE
1
3
1901755403
CAM
1
4
1901740401
PLATE
1
5
1901740402
BUTTON
1
6
1901751405
BRACKET
1
7
1901740404
CLIP
1
8
1901741312
RETAINER
2
9
1901741216
BUTTON
2
10
1901740405
PISTON
2
11
1901740406
SPRING
2
12
1901740407
CAP
1
13
1150010312
SCREW
1
14
1901751472
SCREW
6
15
1122400306
SCREW
3
16
1122400308
SCREW
1
17
1901740408
SWITCH
3
18
1901740412
CAP
2
19
1901740446
RECEPTACLE
1
20
1901740447
WEDGE
1
21
1901740413
PIN
7
22
1901741263
CAP
1
23
1901751489
TERMINAL
1
24
1901740414
PROTECTOR
1
25
1901751492
BAND
1
26
1901751495
GROMMET
1
M1h170
Reference:M1H170
Page:8-19
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

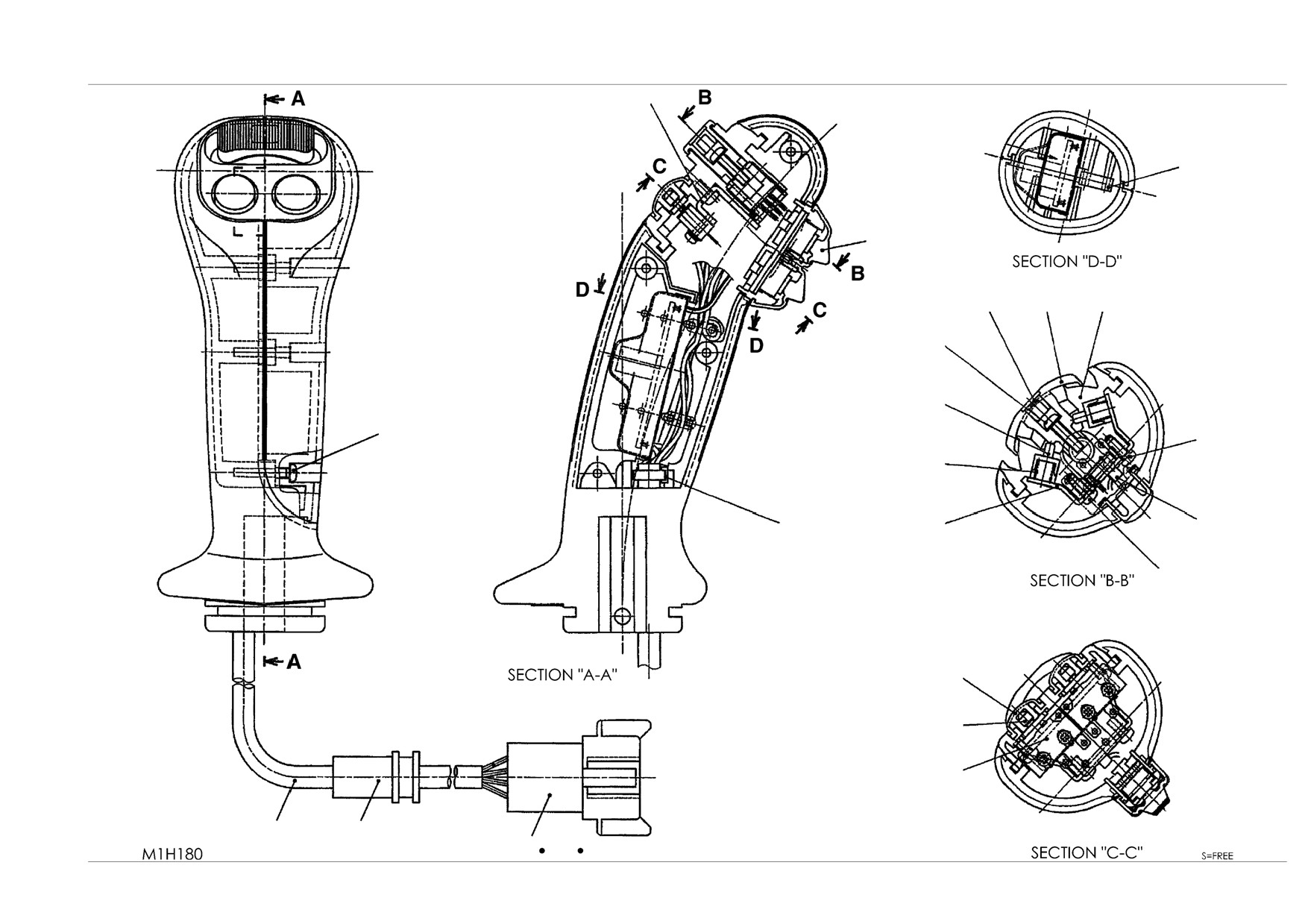

HANDLE (4-switch type)
5
16
15
10
3
2
11
8
1
13
9
22
4
20
12
7
6
14
21
23
17
18
19
Reference
M1H180
ﾍﾟｰｼﾞ
8-20
HANDLE (4-switch type)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1901759018
HANDLE ASSY
1
1
1122400316
SCREW
4
2
1901755402
CASE
1
3
1901755403
CAM
1
4
1901740401
PLATE
1
5
1901751405
BRACKET
1
6
1901741312
RETAINER
2
7
1901741216
BUTTON
2
8
1901740405
PISTON
2
9
1901740406
SPRING
2
10
1901740407
CAP
1
11
1150010312
SCREW
1
12
1122400306
SCREW
3
13
1122400308
SCREW
1
14
1901740408
SWITCH
2
15
1901743915
BUTTON
1
16
1901740412
CAP
2
17
1901740446
RECEPTACLE
1
18
1901740447
WEDGE
1
19
1901740413
PIN
8
20
1901751489
TERMINAL
1
21
1901740414
PROTECTOR
1
22
1901751492
BAND
1
23
1901751495
GROMMET
1
M1h180
Reference:M1H180
Page:8-20
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

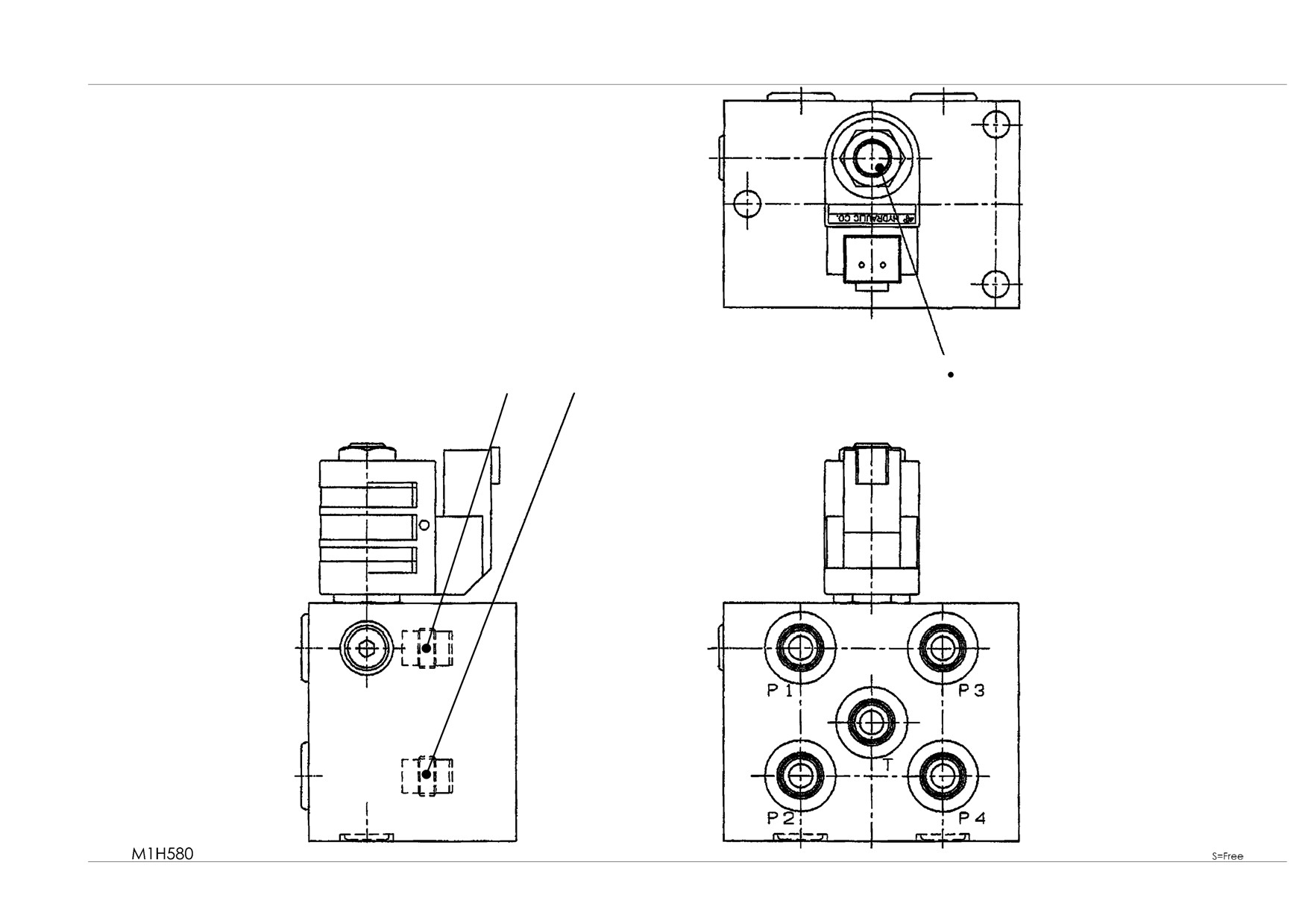

SOLENOID VALVE; 1 BLOCK (with auto pressure release)
3
3
1
2
Reference
M1H580
ﾍﾟｰｼﾞ
8-21
SOLENOID VALVE; 1 BLOCK (with auto pressure release)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901762100
VALVE ASSY, solenoid
1
1
1901762102
VALVE, solenoid
1
2
1901762103
COIL
1
3
1901762104
VALVE, check
4
M1h580
Reference:M1H580
Page:8-21
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

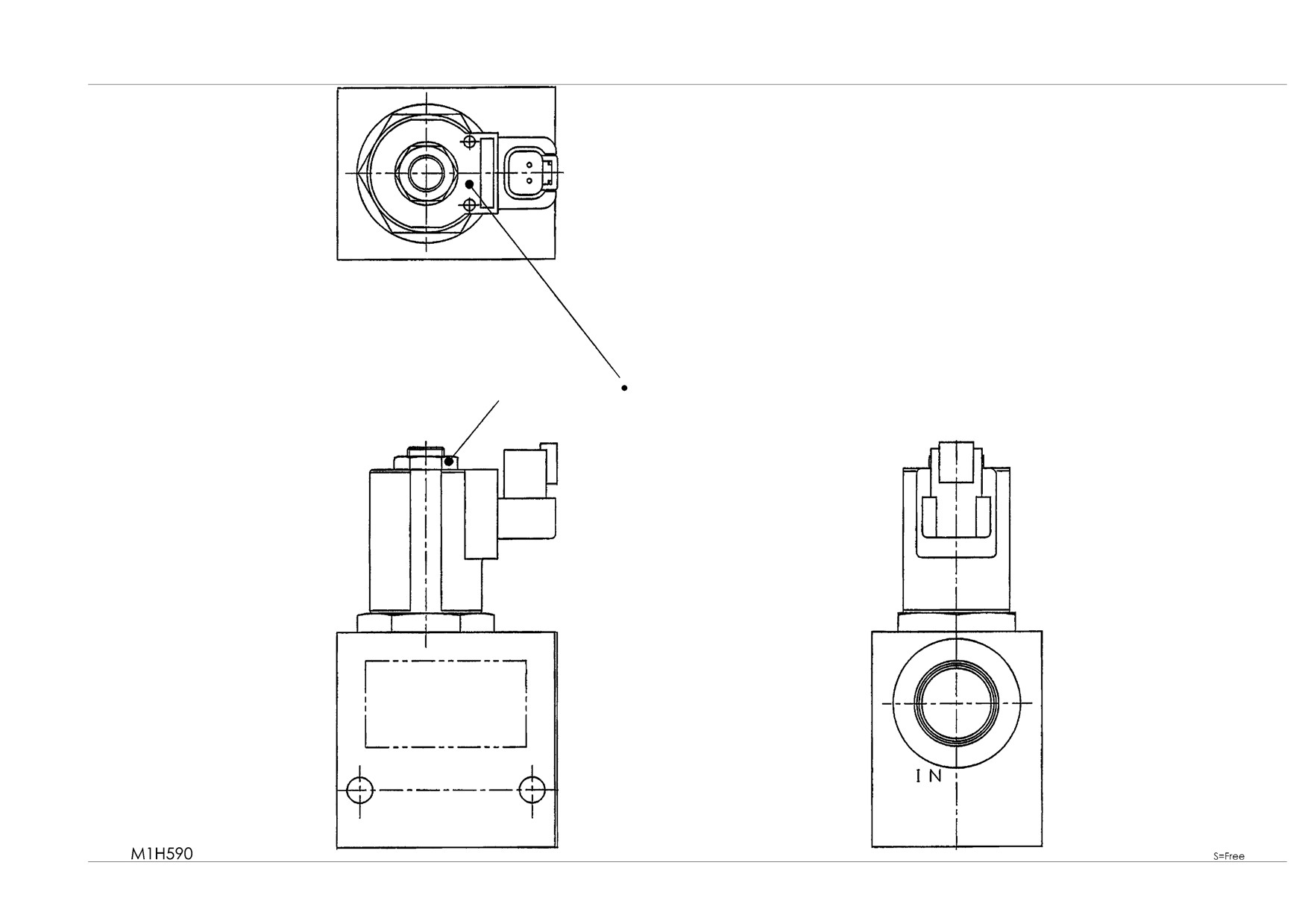

SOLENOID VALVE; 1 BLOCK (with auto tank)
3
1
2
Reference
M1H590
ﾍﾟｰｼﾞ
8-22
SOLENOID VALVE; 1 BLOCK (with auto tank)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1901763700
VALVE ASSY, solenoid
1
1
1901753602
VALVE, solenoid
1
2
1901763702
COIL
1
3
1901763703
NUT
1
M1h590
Reference:M1H590
Page:8-22
