Takeuchi TB260 Mini Excavator (Serial No.12600002~). Parts Manual - page 21

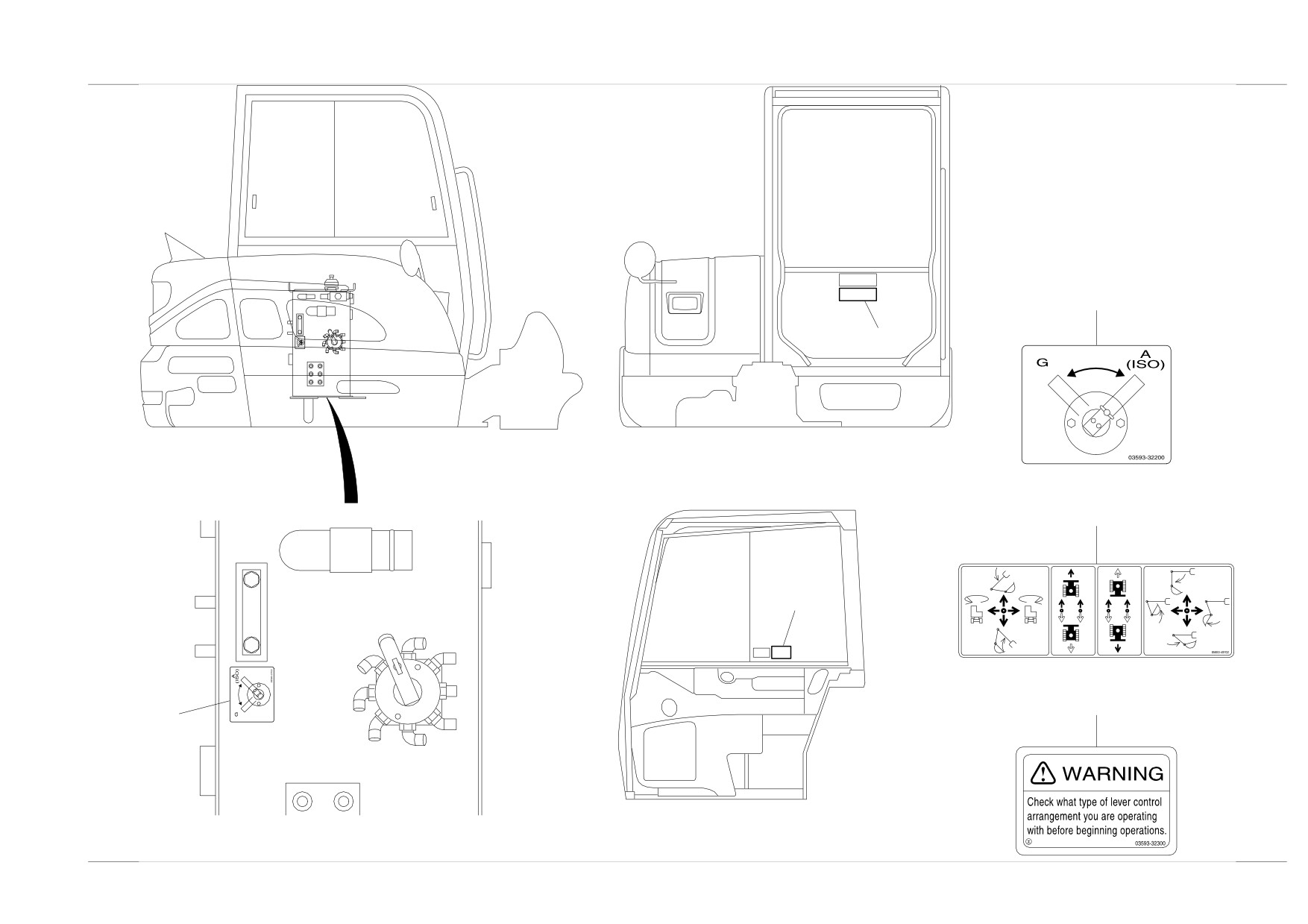

DECAL
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
0559300009
DECAL SET (English)
1
0559300010
DECAL SET (German)
1
0559300011
DECAL SET (Dutch)
1
0559300034
DECAL SET (French)
1
M
0559300041
DECAL SET (Italian)
1
M
0559300038
DECAL SET (U.K. TAKEUCHI)
1
M
0559300049
DECAL SET (for AUSTRALIA)
1
M
1
0008503022
DECAL
2
2
0008503004
DECAL
2
3
0008503005
DECAL
1
4
0008500060
DECAL
3
5
0579300049
DECAL
2
6
0008500332
DECAL
1
M
7
0008505014
DECAL (English)
1
0008505010
DECAL (German)
1
0008500027
DECAL (French)
1
M
0559300042
DECAL (Italian)
1
M
8
0569366501
DECAL
1
9
0189311800
DECAL
1
M
11
0579300011
DECAL
2
12
0379366006
DECAL
1
13
0359306600
DECAL (English)
1
0339375260
DECAL (German)
1
0339375460
DECAL (French)
1
M
0339375660
DECAL (Italian)
1
M
14
0359306700
DECAL
1
15
0579300015
DECAL
1
16
0329360060
DECAL
1
17
0329360100
DECAL
1
18
0359325190
DECAL
1
19
X
**********
DECAL
1
20
X
**********
SCREW
12
21
X
**********
DECAL
1
22
0008505021
DECAL
1
M
24
0579300045
DECAL
1
25
0881031557
DECAL
1
26
0569366526
DECAL
1
28
0579303630
DECAL
1
29
0359313700
DECAL (English)
1
0359314700
DECAL (German)
1
0359315700
DECAL (French)
1
M
0359316700
DECAL (Italian)
1
M
31
0569335060
DECAL (English)
1
0569327800
DECAL (German)
1
0569328800
DECAL (French)
1
M
0569329800
DECAL (Italian)
1
M
32
0359313900
DECAL
1
33
X
**********
DECAL
1
34
0399300400
DECAL
1
35
X
**********
DECAL
1
LWA97
38
0399300500
DECAL
3
39
0881031549
DECAL
4
40
0669300034
DECAL (for AUSTRALIA)
1
M
41
0881031556
DECAL
1
42
0359347010
DECAL (English)
1
except for U.K. TAKEUCHI
0339375210
DECAL (German)
1
Reference:Q0G011a
Page:7-1
DECAL
Item
Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
42
0339375410
DECAL (French)
1
M
0339375610
DECAL (Italian)
1
M
43
0359347020
DECAL (English)
1
0339375220
DECAL (German)
1
0339375420
DECAL (French)
1
M
0339375620
DECAL (Italian)
1
M
44
0339375040
DECAL (English)
1
0339375240
DECAL (German)
1
0339375440
DECAL (French)
1
M
0339375640
DECAL (Italian)
1
M
45
0008503030
DECAL
1
M
46
0008503031
DECAL
1
M
48
0339376240
DECAL (English)
1
0339376340
DECAL (German)
1
0339379440
DECAL (French)
1
M
0339379540
DECAL (Italian)
1
M
49
X
**********
DECAL
1
50
0871086051
DECAL
1
51
X
**********
DECAL
1
Q0g011
Reference:Q0G011a
Page:7-1
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

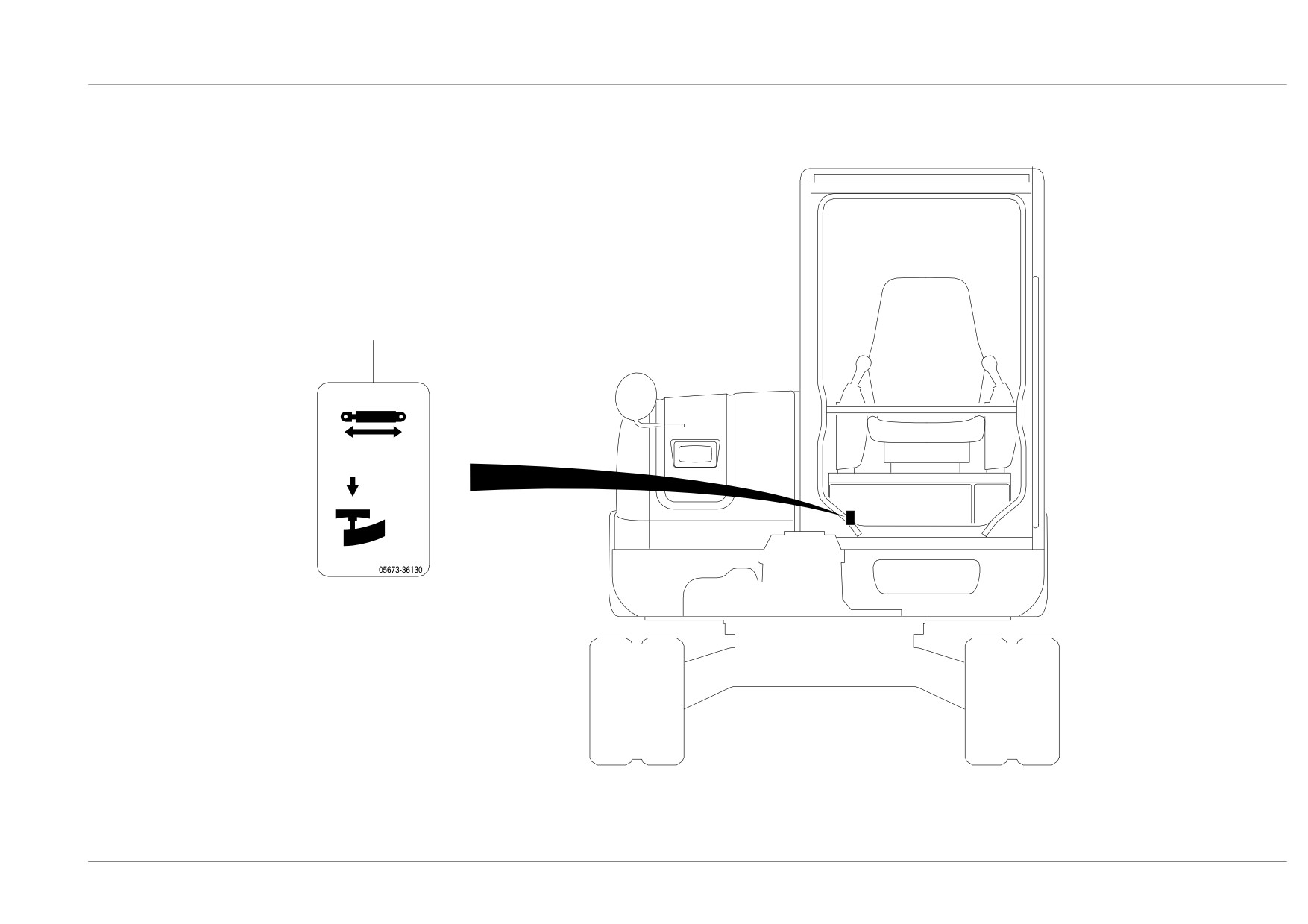

DECAL (foot switch)
1
㪨㪇㪞㪇㪊㪇
㪪㪔㪽㫉㪼㪼
Reference
Q0G030
ﾍﾟｰｼﾞ
7-2
DECAL (foot switch)
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0
0559300025
DECAL SET
1
1
0567336130
DECAL
1
Q0g030
Reference:Q0G030
Page:7-2
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

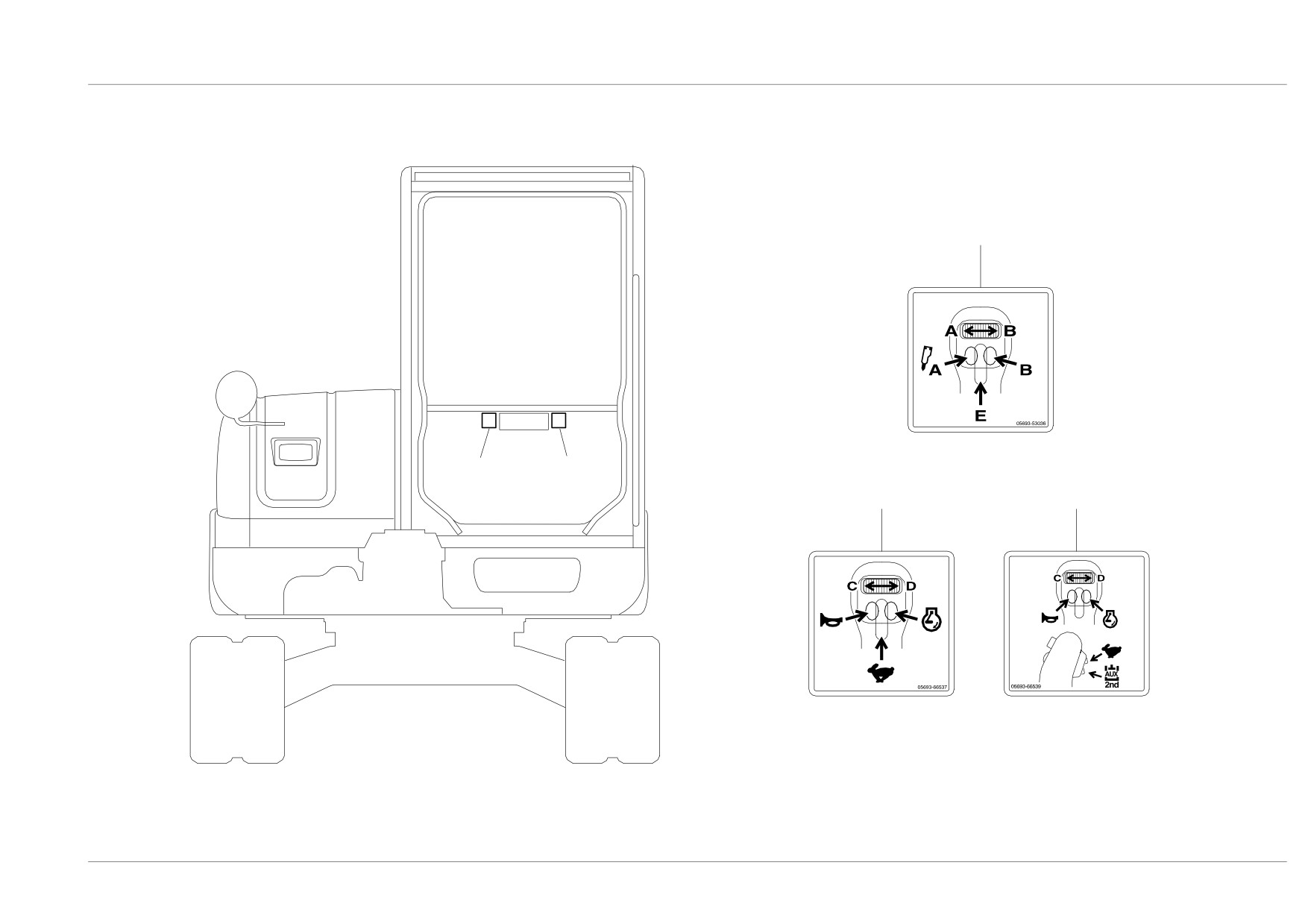

DECAL (grip button)
1
2
1
2
2
㪊㩷㫊㫎㫀㫋㪺㪿
㪋㩷㫊㫎㫀㫋㪺㪿
㪨㪇㪞㪇㪋㪇
㪪㪔㪽㫉㪼㪼
Reference
Q0G040
ﾍﾟｰｼﾞ
7-3
DECAL (grip button)
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
0
0559300027
DECAL SET (3-switch)
1
0559300028
DECAL SET (4-switch)
1
1
0569353036
DECAL
1
2
0569366537
DECAL
1
3-switch
0569366539
DECAL
1
4-switch
Q0g040
Reference:Q0G040
Page:7-3
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
DECAL (selector valve)
1
2
2
3
3
1
㪟㪰㪛㪩㪘㪬㪣㪠㪚㩷㪫㪘㪥㪢
㪨㪈㪞㪇㪊㪇
㪪㪔㪽㫉㪼㪼
Reference
Q1G030
ﾍﾟｰｼﾞ
7-4
DECAL (selector valve)
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0
0559300030
DECAL SET
1
1
0359332200
DECAL
1
2
0569349702
DECAL
1
3
0359332300
DECAL
1
Q1g030
Reference:Q1G030
Page:7-4
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

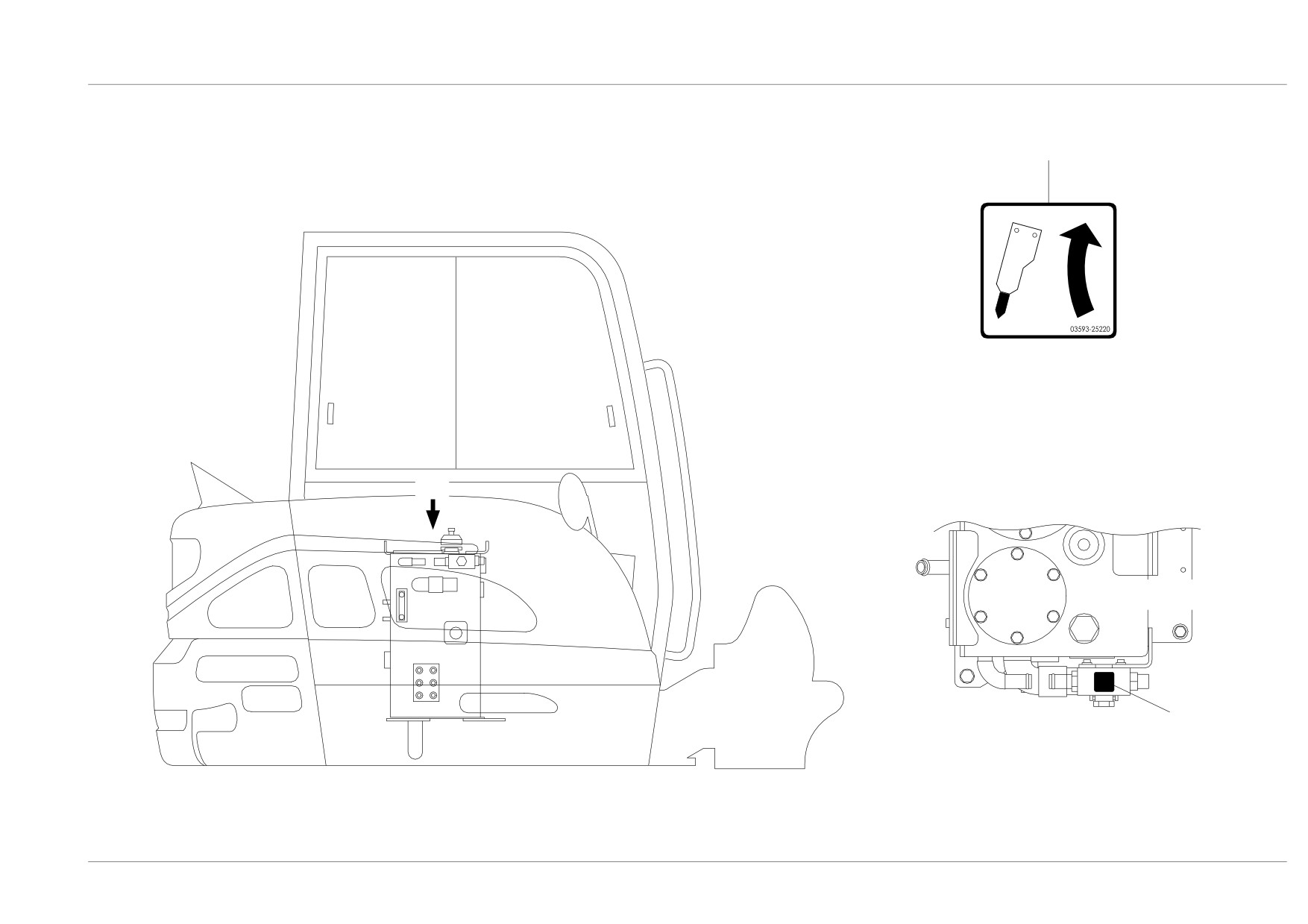

DECAL (breaker)
1
㪘
㪟㪰㪛㪩㪘㪬㪣㪠㪚㩷㪫㪘㪥㪢
1
㪭㪠㪜㪮㩷㩹㪘㩹
㪨㪇㪞㪇㪌㪈
㪪㪔㪽㫉㪼㪼
Reference
Q0G051
ﾍﾟｰｼﾞ
7-5
DECAL (breaker)
Item Part number Description Q'ty Chan. Serial No. Serv. Remarks
0
0559300029
DECAL SET
1
1
0359325220
DECAL
1
M
Q0g051
Reference:Q0G051
Page:7-5
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

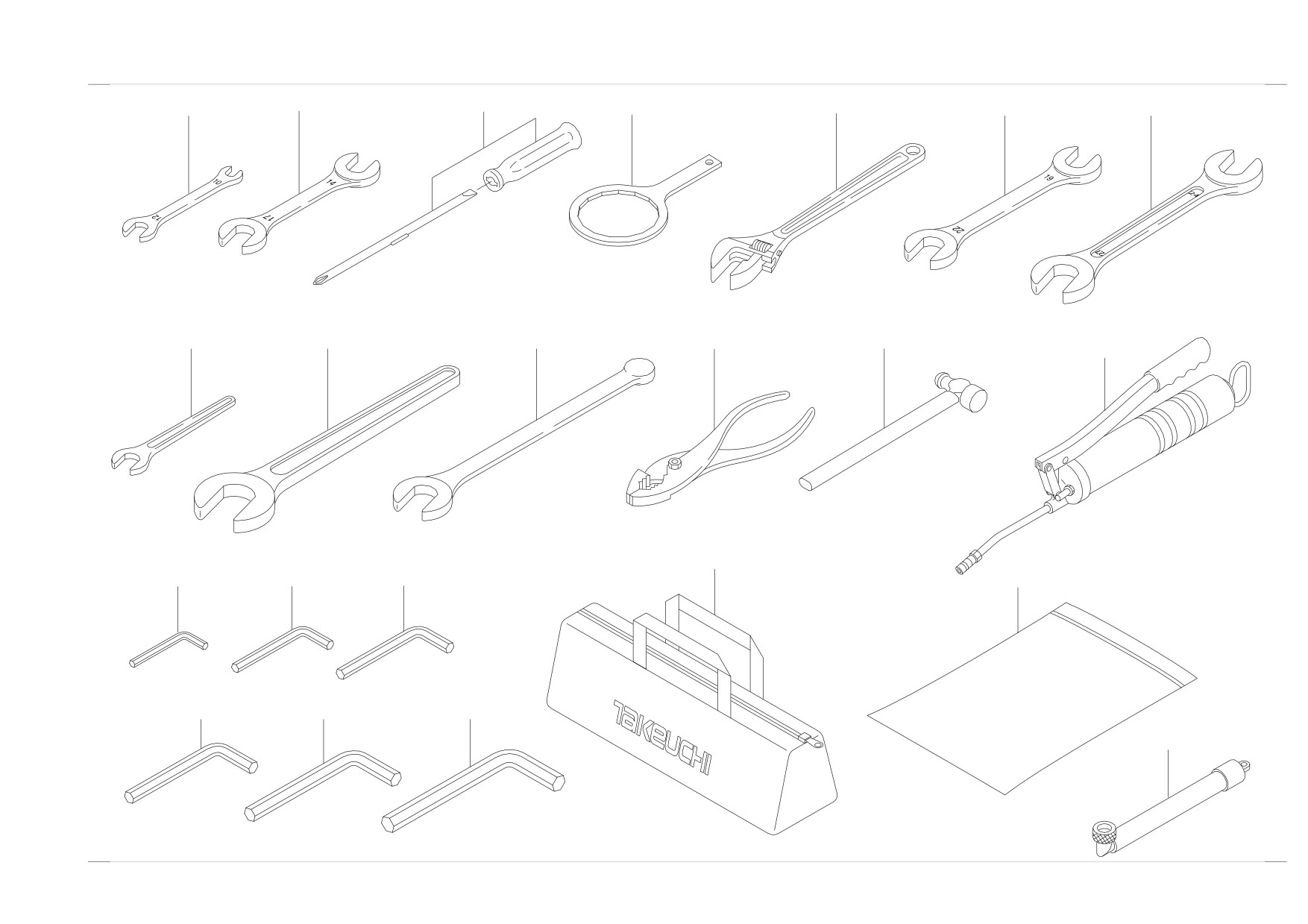

TOOL & ACCESSORIES
1
2
3
4
6
7
8
9
10
11
12
13
22
20
14
15
16
21
17
18
19
23
㪨㪇㪞㪇㪉㪇
㪪㪔㪝㪩㪜㪜
Reference
Q0G020
ﾍﾟｰｼﾞ
7-6
TOOL & ACCESSORIES
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
TOOL SET
0
0379207010
TOOL ASSY
1
1
Y28110-100120
SPANNER
1
2
Y28110-140170
SPANNER
1
3
Y104200-92350
DRIVER, screw
1
4
Y119640-92750
WRENCH, filter
1
6
1690400250
WRENCH, monkey
1
7
1690001922
SPANNER
1
8
1690002427
SPANNER
1
9
1690100013
SPANNER
1
10
1690100041
SPANNER
1
11
1690900026
SPANNER
1
12
1690500200
PLIER
1
13
1690300330
HAMMER
1
14
1690600400
WRENCH, hex
1
15
1690600500
WRENCH, hex
1
16
1690600600
WRENCH, hex
1
17
1690600800
WRENCH, hex
1
18
1690601000
WRENCH, hex
1
19
1690601400
WRENCH, hex
1
20
1691400005
CASE, tool
1
21
1691900001
CASE
1
22
1691060610
GUN ASSY, grease
1
23
1554512601
TUBE
1
for EU
Q0g020
Reference:Q0G020
Page:7-6
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

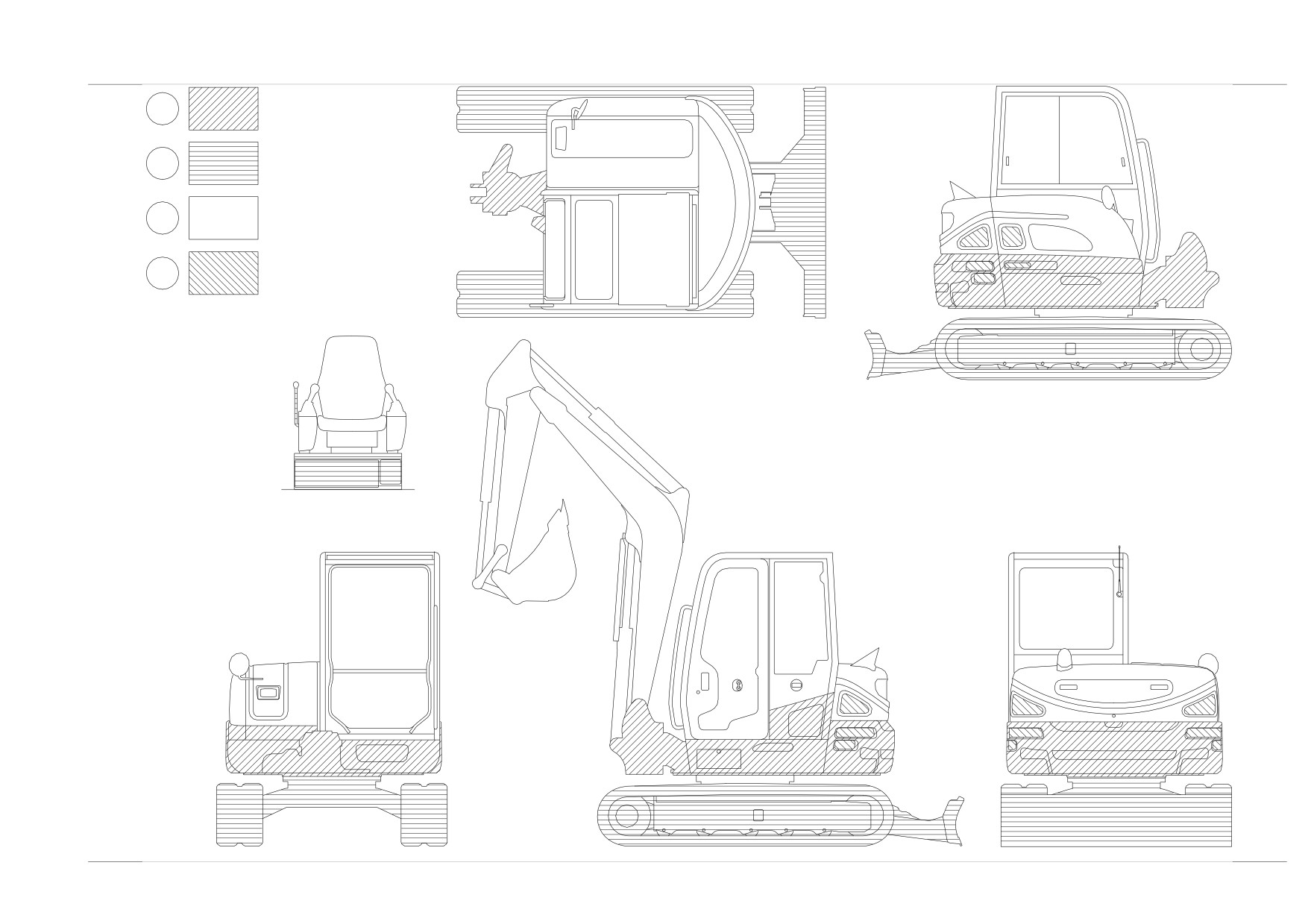

PAINTED COLOR
1
2
3
8
㪨㪇㪞㪇㪍㪇
㪪㪔㪝㪩㪜㪜
Reference
Q0G060
ﾍﾟｰｼﾞ
7-7
PAINTED COLOR
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
PAINTED COLOR (rubber crawler)
PAINTED COLOR (steel crawler)
1
1919060105
RED
1
1919069105
RED
1
spray
2
1919060144
GRAY
1
1919069144
GRAY
1
spray
3
1919060142
LIGHT GRAY
1
1919069142
LIGHT GRAY
1
spray
5
1919060090
ORANGE YELLOW
1
FITTING, grease
8
1919060172
BLACK
1
1919069172
BLACK
1
spray
<<NOTE>>
The part of the steel crawler uses item 2.
Q0g061
Reference:Q0G060
Page:7-7
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

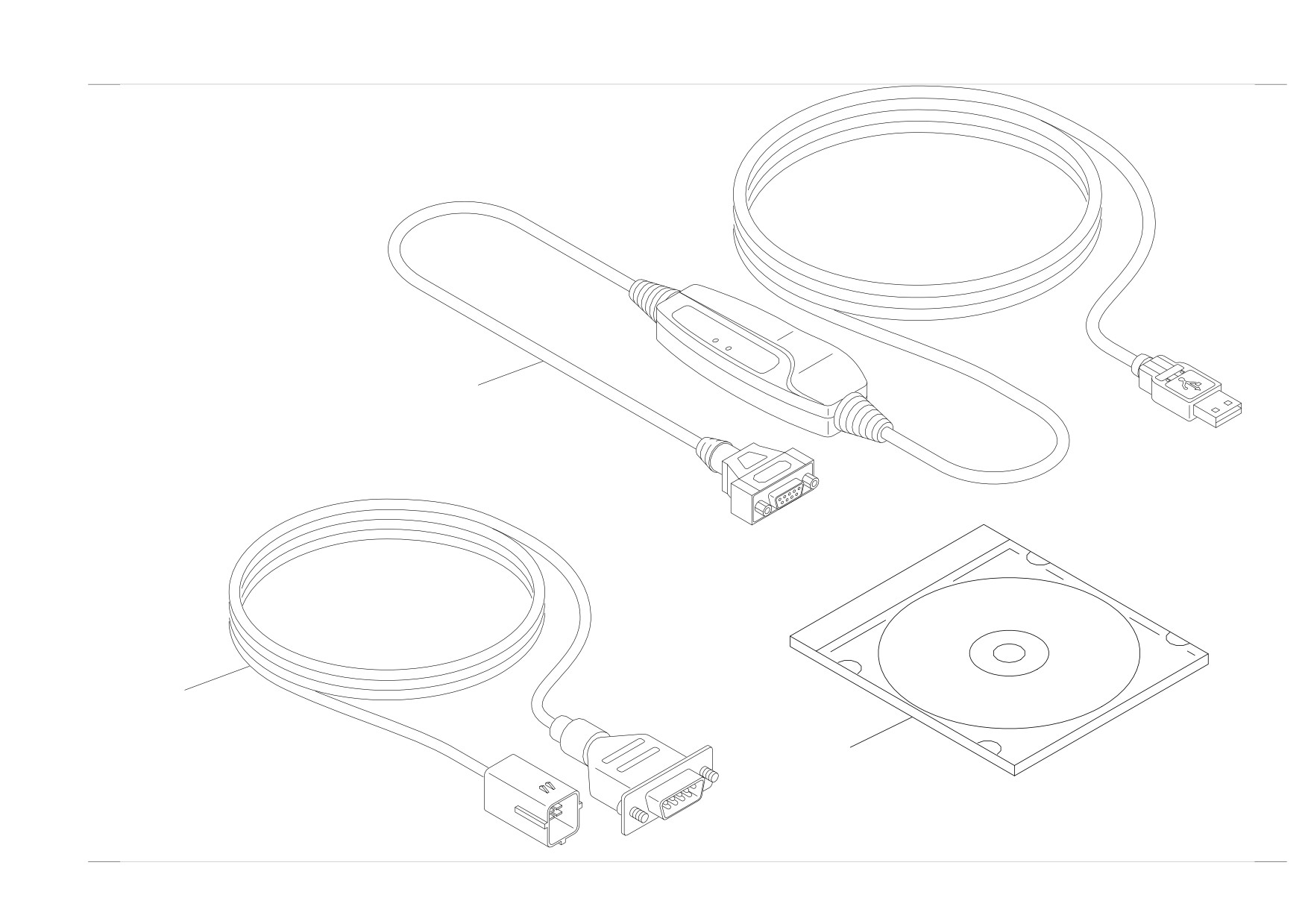

SERVICE TOOL
2
3
1
㪬㪍㪞㪇㪎㪇
㪪㪔㪝㪩㪜㪜
Reference
U6G070
ﾍﾟｰｼﾞ
7-8
SERVICE TOOL
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
0550100005
TOOL ASSY, service
1
M
1
0550100021
CD, maintenance
1
M
2
1730141810
TOOL, maintenance
1
M
3
1730141820
CABLE ASSY
1
M
Q0g070
Reference:U6G070
Page:7-8
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

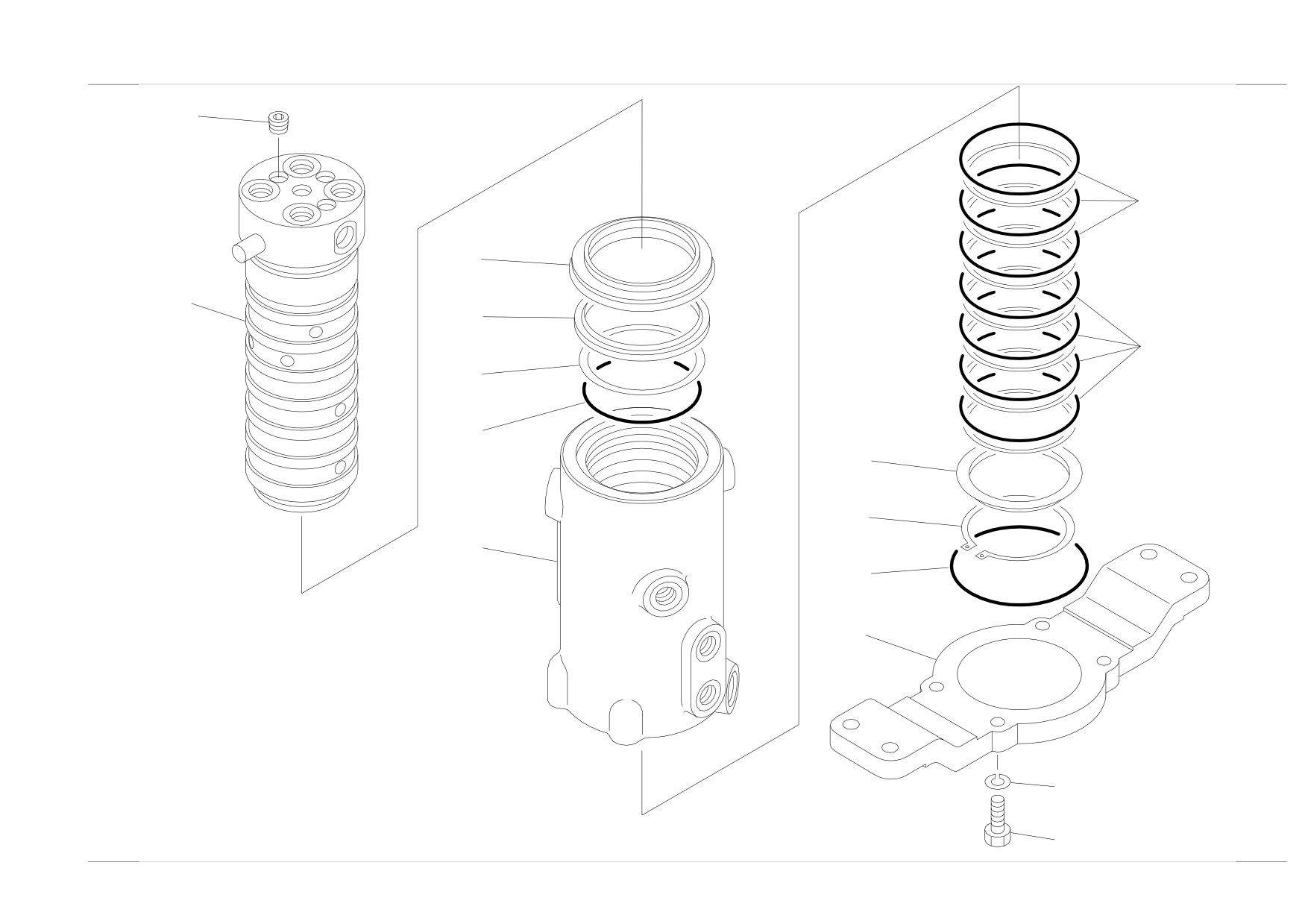

SWIVEL JOINT
14
4
1
8
2
3
6
5
10
12
7
11
9
15
13
K3H011
S=1/4
Reference
K3H011
ﾍﾟｰｼﾞ
8-1
SWIVEL JOINT
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0
1904006300
JOINT, swivel
1
0-1
1904006399
KIT, seal
1
1
X
1904002391
SEAL, dust
1
2
X
1904000494
SEAL, dust
1
3
X
1904006316
SEAL, slipper
4
4
X
1904006317
SEAL, slipper
3
5
X
1420010800
O-RING
1
6
X
1421030800
RING, back-up
1
7
1904006301
HUB
1
8
1904006311
SHAFT
1
9
1904003621
FLANGE
1
10
1904003691
SPACER
1
11
1420110950
O-RING
1
12
1220000072
RING, snap
1
13
1100041030
BOLT
4
14
1501810002
PLUG
3
15
1140010010
WASHER, spring
4
K3h013
Reference:K3H011
Page:8-1
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

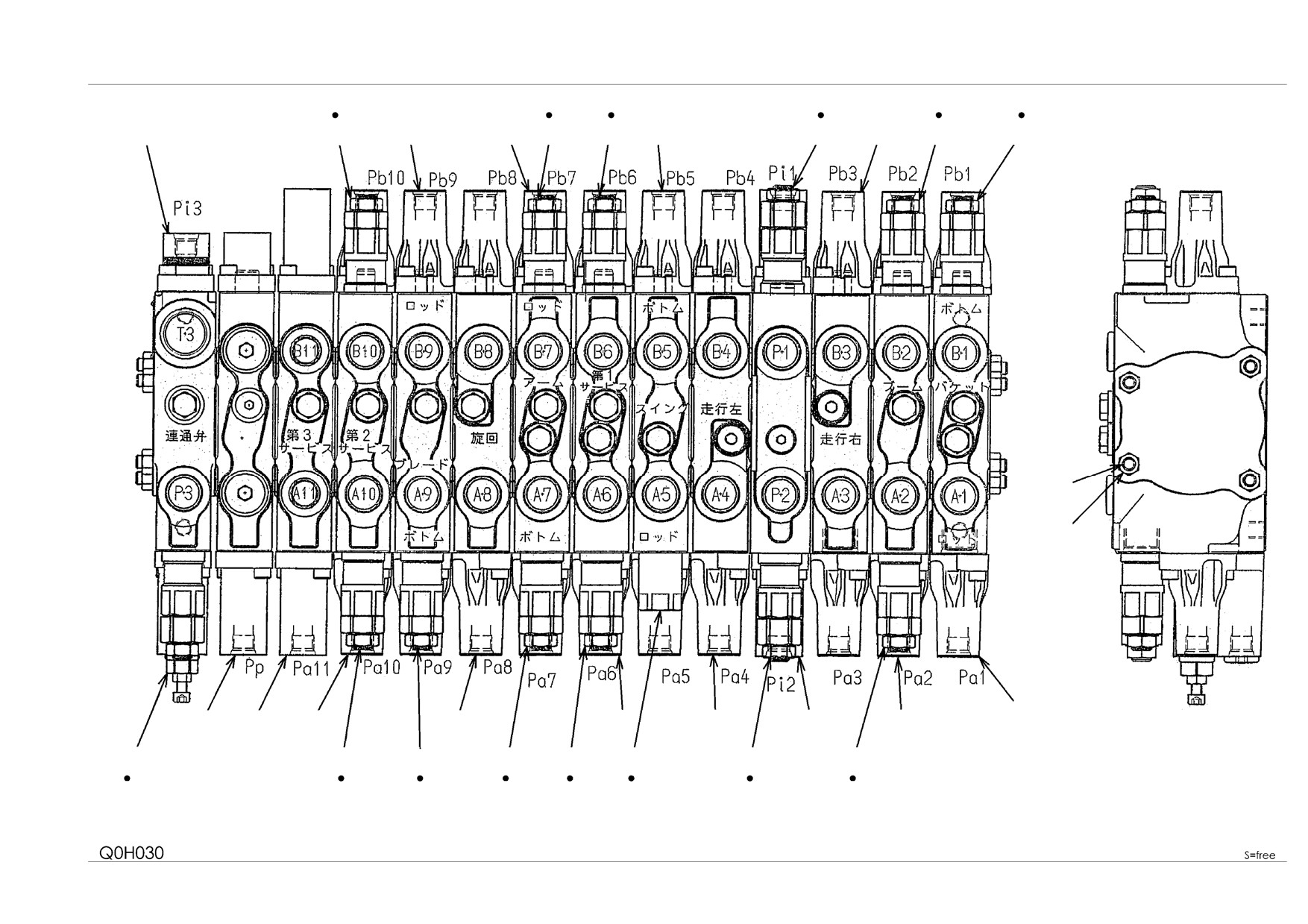

CONTROL VALVE
22-1
19-1
21-1
17-1
20-1
19-1
16
22
12
10
19
21
8
17
5
20
19
2
1
3
15
14
13
11
9
7
6
4
18
22
22
19
21
23
17
19
18-1
22-1
22-1
19-1
21-1
24
17-1
19-1
Reference
Q0H030
ﾍﾟｰｼﾞ
8-2
CONTROL VALVE
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0
1901051700
VALVE ASSY, control
1
1
1130050008
NUT
8
2
1901051707
ROD, tie
4
3
1901051713
BLOCK ASSY, No.1
1
bucket
4
1901048011
BLOCK ASSY, No.2
1
boom
5
1901046215
BLOCK ASSY, No.3
1
traction R.H.
6
1901051703
BLOCK ASSY, No.4
1
P1, P2
7
1901051716
BLOCK ASSY, No.5
1
traction L.H.
8
1901051718
BLOCK ASSY, No.6
1
swing
9
1901046919
BLOCK ASSY, No.7
1
auxiliary
10
1901051712
BLOCK ASSY, No.8
1
arm
11
1901051714
BLOCK ASSY, No.9
1
slew
12
1901051717
BLOCK ASSY, No.10
1
blade
13
1901051719
BLOCK ASSY, No.11
1
auxiliary 2
14
1901051794
BLOCK ASSY, No.12
1
auxiliary 3
15
1901051797
BLOCK ASSY, No.13
1
auxiliary 3
16
1901051796
BLOCK ASSY, No.14
1
T3, P3
17
1901051721
VALVE ASSY
2
relief
17-1
1420310910
O-RING
1
18
1901051722
VALVE ASSY
1
relief
18-1
1420310910
O-RING
1
19
1901051723
VALVE ASSY
4
relief
19-1
1420310910
O-RING
1
20
1901051724
VALVE ASSY
1
relief
20-1
1420310910
O-RING
1
21
1901051725
VALVE ASSY
2
relief
21-1
1420310910
O-RING
1
22
1901051795
VALVE ASSY
3
relief
22-1
1420310910
O-RING
1
23
1901042625
VALVE ASSY
1
anti-void
24
1420310910
O-RING
1
Q0h030
Reference:Q0H030
Page:8-2
