ENGINE & ACCESSORIES (1/3) (126000002-126000122)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ENGINE ASSY
1
1910350001
ENGINE
1
4TNV84T-BPTB
2
0554002010
FOOT, engine (F.R.)
1
3
0554002020
FOOT, engine (F.L.)
1
4
0554000157
FOOT, engine (R.L.)
1
5
0554000155
FOOT, engine (R.R.)
1
6
1651030015
RUBBER, cushion
4
7
1651030016
RUBBER, cushion
4
8
0394021050
STOPPER
2
9
0394021028
WASHER
2
10
1101141200
BOLT
4
11
1140020012
WASHER, spring
10
12
0554000133
RADIATOR ASSY
1
see page (2/3)
13
1911001600
SILENCER
1
16
0394000001
U-BOLT
2
17
0554002300
PIPE
1
18
0554002005
PIPE
1
A
M
19
1910120023
BAND
1
Y121120-13590
20
1910197023
GASKET
1
Y129930-13201
21
1910350022
GASKET
1
Y129508-18090
22
1911260900
CLEANER, air
1
see page (3/3)
23
0554000144
BRACKET
1
24
0664001230
PIPE
1
25
0554002003
HOSE
1
26
0554002004
HOSE
1
27
1100040835
BOLT
2
28
0003608252
WASHER
4
29
1100041030
BOLT
10
30
1702430400
CABLE, earth
1
31
1140330010
WASHER
2
32
1100041016
BOLT
2
33
0554000118
BRACKET
1
34
0554000139
PLATE
1
35
1100041235
BOLT
6
36
1141550012
WASHER
6
37
1100040830
BOLT
4
38
1110040830
SCREW, cap
5
39
1140420008
WASHER, spring
5
40
1533120512
BAND
4
41
1533120010
BAND
2
42
1533700081
BAND
3
43
1533700091
BAND
1
44
1533700045
BAND
2
45
1533700051
BAND
2
46
1533700071
BAND
1
47
1100040820
BOLT
11
48
1141110008
WASHER
22
49
1141110010
WASHER
14
50
1140020010
WASHER, spring
34
51
1100041025
BOLT
13
52
0554000151
BRACKET
1
54
0554002001
HOSE
1
55
0554002002
HOSE
1
56
1910146020
TANK, sub
1
Y129466-44510
57
0554000128
BRACKET
1
58
1531407056
HOSE
1
sold by the meter
Reference:Q0C011a
Page:3-1
ENGINE & ACCESSORIES (1/3) (126000002-126000122)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
59
1910078037
VALVE
1
Y129150-49100
60
0564026340
PLATE
1
61
1120530406
SCREW
2
62
1140020004
WASHER, spring
2
64
1530808027
HOSE
1
sold by the meter
65
1530808063
HOSE
1
sold by the meter
66
0554000099
PLATE ASSY
1
66-1
0554000103
PLATE
1
66-2
1654341016
SPONGE
1
sold by the meter
66-3
1654606066
TRIM
1
sold by the meter
67
0554000107
PLATE ASSY
1
67-1
0554000108
PLATE
1
67-2
1654606194
TRIM
1
sold by the meter
67-3
1654341031
SPONGE
1
sold by the meter
68
0554000104
PLATE ASSY
1
68-1
0554000105
PLATE
1
68-2
1654341027
SPONGE
1
sold by the meter
69
0554000131
PLATE ASSY
1
69-1
0554000136
PLATE
1
69-2
1654606097
TRIM
1
sold by the meter
69-3
1654606024
TRIM
1
sold by the meter
70
1140020008
WASHER, spring
29
71
0554000135
PLATE
1
72
1100040816
BOLT
6
73
1100041020
BOLT
3
74
0003600079
WASHER
10
75
1130040008
NUT
16
76
1130040010
NUT
2
77
0003600020
WASHER
2
79
1554502250
PLUG
1
80
1432122302
WASHER
1
81
1554512601
TUBE
1
82
1531115050
PROTECTOR
1
sold by the meter
83
1531115022
PROTECTOR
1
sold by the meter
84
1531115058
PROTECTOR
1
sold by the meter
85
1100041090
BOLT
4
86
0003600240
SHIM
AR
t=0.2
87
0003600241
SHIM
AR
t=0.5
88
0554000163
BRACKET
1
M
<<NOTE>>
M
*1
0558200094
HOOD ASSY, engine
1
a
M
*2
0554000195
PIPE
1
a
M
"A" is interchangeable with SET "a".
M
Q0c011
Reference:Q0C011a
Page:3-1
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

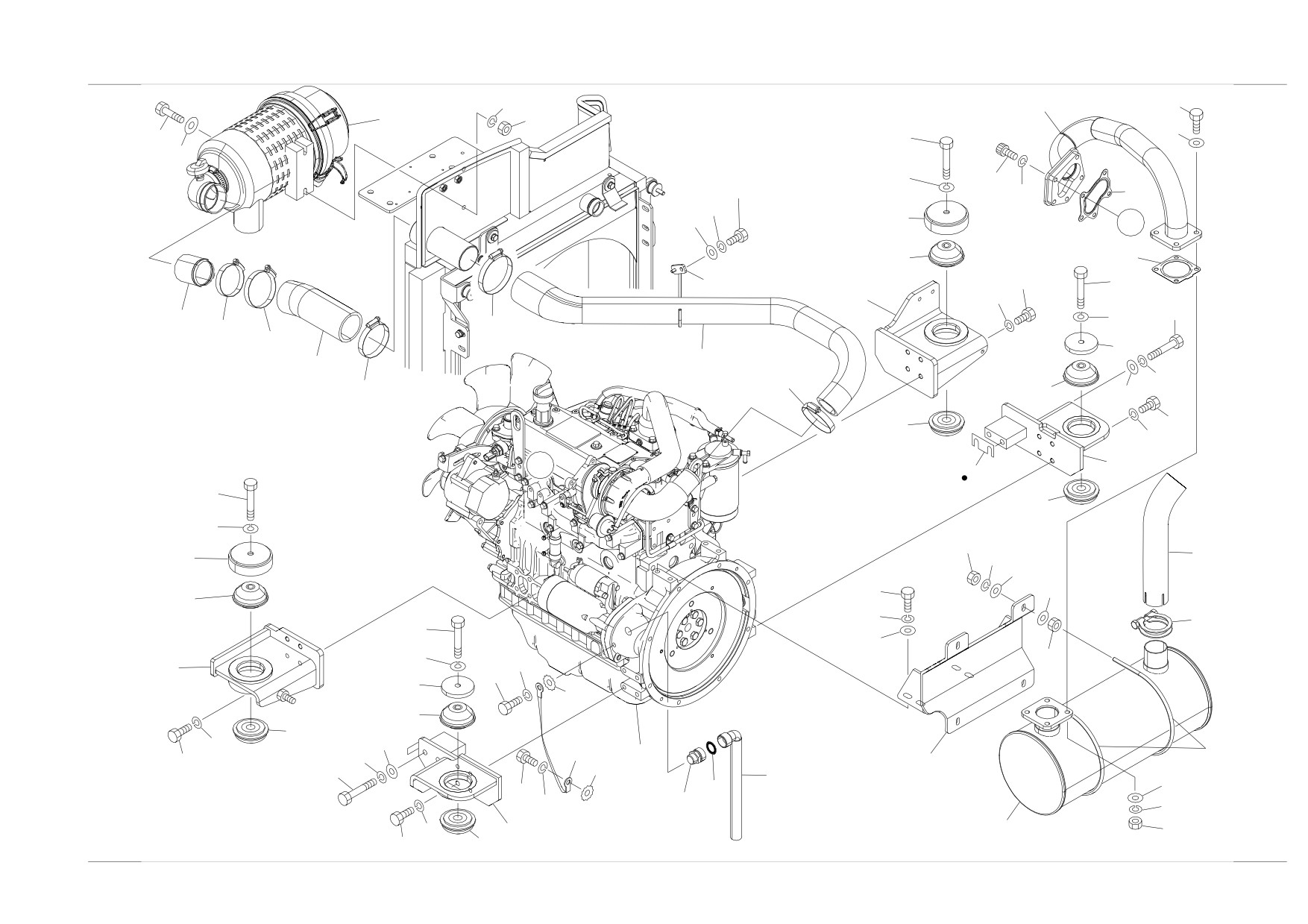

ILLUSTRATION 1/2
48
6
34
81
45
53
42
35
13
50
33
43
52
79
5348
16
㪯
78
73
26
38
42
4
49
40
50
31
69
67
68
15
1
29
68
49
68
72
54
73
39
49
㪯
7
11
12
42
72
50
45
3
16
48
10
10
38
73
49
76
42
54
50
49
45
5
36
15
51
72
73
54
49
74
49
14
2
38
51
82
40
71
53
36
56
49
70
48
8
80
45
49
㪨㪇㪚㪈㪊㪇㪸
39
72
㪪㪔㪈㪆㪈㪉
Reference
Q0C130a
ﾍﾟｰｼﾞ
3-2
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
ILLUSTRATION 2/2
77
62
24
60
63
33
63
48
10 48
45
㪱
㪰
53
1048
45
66
㪯
27
33
25
48
20
53
30
47
44
41
21
㪯
4813
53
33
48
50
33
23
55
65
65
㪱
㪰
4853
9
28
33
49
66
46
64
64
17-3
53
57
64
64
48
61
58
59
75
32
48
17-1
17-2
32
33
19-2
48
22-2
53
22-1
53
37
48
32
49
54
19-1
18-2
22-3
19-3
18-1
㪨㪇㪚㪈㪊㪇㪹
㪪㪔㪈㪆㪈㪉
Reference
Q0C130a
ﾍﾟｰｼﾞ
3-2
ENGINE & ACCESSORIES (1/3) (126000123-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
ENGINE ASSY
1
0554002004
HOSE
1
2
1910350001
ENGINE
1
4TNV84T-BPTB
3
0554000195
PIPE
1
M
4
0554002010
FOOT, engine (F.R.)
1
5
0554002020
FOOT, engine (F.L.)
1
6
0554002300
PIPE
1
7
0554000155
FOOT, engine (R.R.)
1
8
0554000157
FOOT, engine (R.L.)
1
9
0003600020
WASHER
2
10
0003600079
WASHER
10
11
0003600240
SHIM
AR
t=0.2
12
0003600241
SHIM
AR
t=0.5
13
0003608252
WASHER
4
14
0394000001
U-BOLT
2
15
0394021028
WASHER
2
16
0394021050
STOPPER
2
17
0554000099
PLATE ASSY
1
17-1
0554000103
PLATE
1
17-2
0554000223
SPONGE
1
17-3
1654606066
TRIM
1
sold by the meter
18
0554000104
PLATE ASSY
1
18-1
0554000105
PLATE
1
18-2
0554000224
SPONGE
1
19
0554000184
PLATE ASSY
1
M
19-1
0554000185
PLATE
1
M
19-2
1654606196
TRIM
1
M
sold by the meter
19-3
0554000225
SPONGE
1
M
20
0554000118
BRACKET
1
21
0554000128
BRACKET
1
22
0554000131
PLATE ASSY
1
22-1
0554000136
PLATE
1
22-2
1654606097
TRIM
1
sold by the meter
22-3
1654606024
TRIM
1
sold by the meter
23
X
**********
RADIATOR ASSY
1
see page (2/3)
24
0554000135
PLATE
1
25
0554000139
PLATE
1
26
0554000151
BRACKET
1
27
0554002001
HOSE
1
28
0554002002
HOSE
1
29
0554002003
HOSE
1
30
0564026340
PLATE
1
31
0664001230
PIPE
1
32
1100040816
BOLT
6
33
1100040820
BOLT
13
34
1100040830
BOLT
4
35
1100040835
BOLT
2
36
1100041016
BOLT
2
37
1100041020
BOLT
3
38
1100041025
BOLT
12
39
1100041030
BOLT
8
40
1100041090
BOLT
4
41
1100041235
BOLT
6
42
1101141200
BOLT
4
43
1110040830
SCREW, cap
5
44
1120530406
SCREW
2
Reference:Q0C130a
Page:3-2
ENGINE & ACCESSORIES (1/3) (126000123-)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
45
1130040008
NUT
16
46
1130040010
NUT
2
47
1140020004
WASHER, spring
2
48
1140020008
WASHER, spring
31
49
1140020010
WASHER, spring
31
50
1140020012
WASHER, spring
10
51
1140330010
WASHER
2
52
1140420008
WASHER, spring
5
53
1141110008
WASHER
24
54
1141110010
WASHER
11
55
1141550012
WASHER
6
56
1432122302
WASHER
1
57
1530808027
HOSE
1
sold by the meter
58
1530808063
HOSE
1
sold by the meter
59
1531115022
PROTECTOR
1
sold by the meter
60
1531115050
PROTECTOR
1
sold by the meter
61
1531115058
PROTECTOR
1
sold by the meter
62
1531407056
HOSE
1
sold by the meter
63
1533120010
BAND
2
64
1533120512
BAND
4
65
1533700045
BAND
2
66
1533700051
BAND
2
67
1533700071
BAND
1
68
1533700081
BAND
3
69
1533700091
BAND
1
70
1554502250
PLUG
1
71
1554512601
TUBE
1
72
1651030015
RUBBER, cushion
4
73
1651030016
RUBBER, cushion
4
74
1702430400
CABLE, earth
1
75
1910078037
VALVE
1
M
Y129150-49100
76
1910120023
BAND
1
M
Y121120-13590
77
1910146020
TANK, sub
1
M
Y129466-44510
78
1910197023
GASKET
1
M
Y129930-13201
79
1910350022
GASKET
1
M
Y129508-18090
80
1911001600
SILENCER
1
81
1911260900
CLEANER, air
1
see page (3/3)
82
0554000163
BRACKET
1
M
Q0c130
Reference:Q0C130a
Page:3-2
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

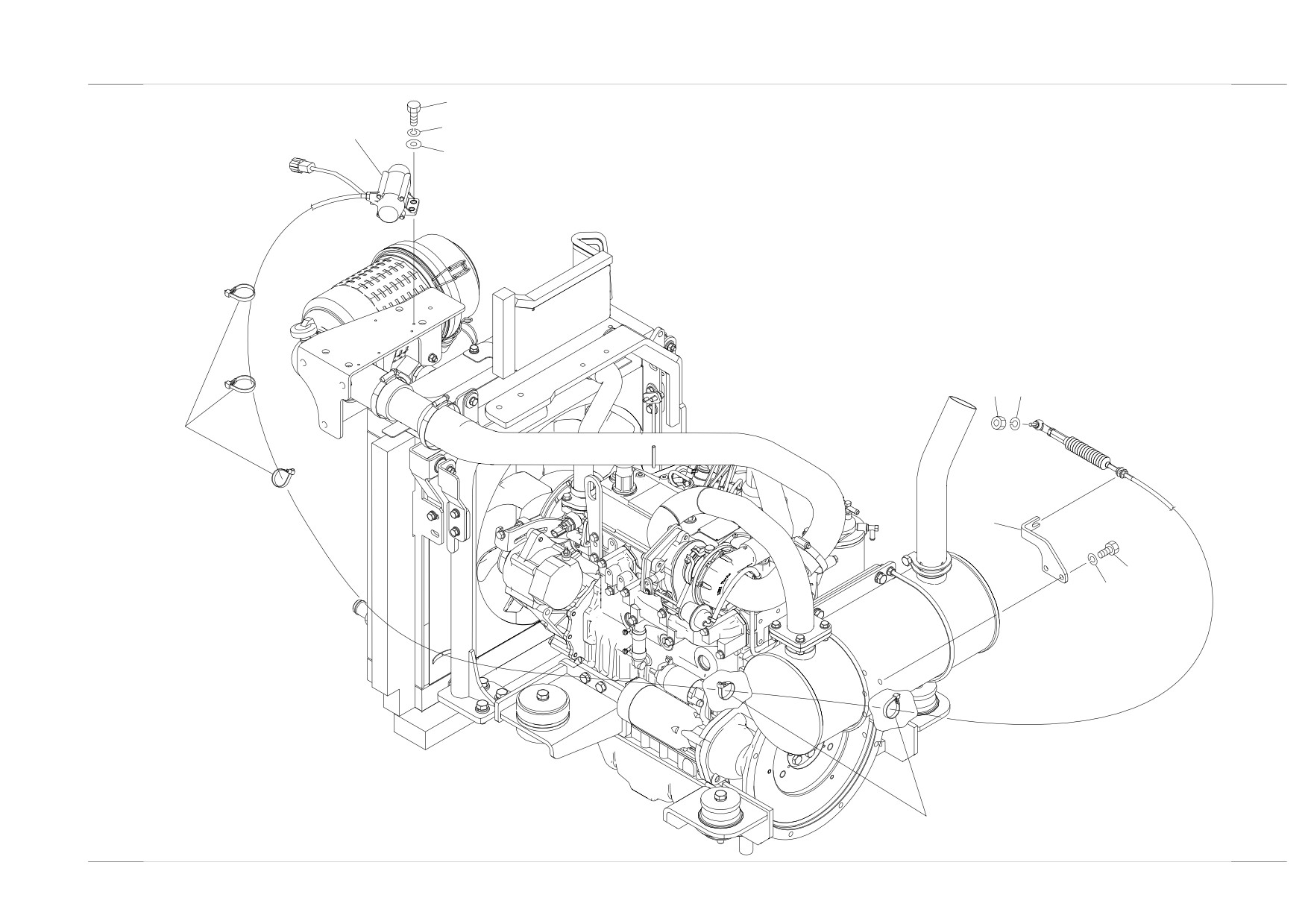

ENGINE & ACCESSORIES (2/3)
25
21
22
24
17
12
28
9
27
23
29
19
28
13
27
29
5
11
11
18
3227
31
29
27
30
㪈㪉㪍㪇㪇㪇㪇㪇㪉㫕㪈㪉㪍㪇㪇㪇㪈㪉㪉
2927
33
28
7
2728
14
6
14
8
9
10
20
3327
28
1
15
3
34
27
16
4
26
27
2
㪨㪇㪚㪇㪉㪈
28
㪪㪔㪈㪆㪈㪇
Reference
Q0C021
ﾍﾟｰｼﾞ
3-3
ENGINE & ACCESSORIES (2/3)
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
0-1
X
**********
RADIATOR ASSY
1
1911300940
RAD/HOC
1
M
2

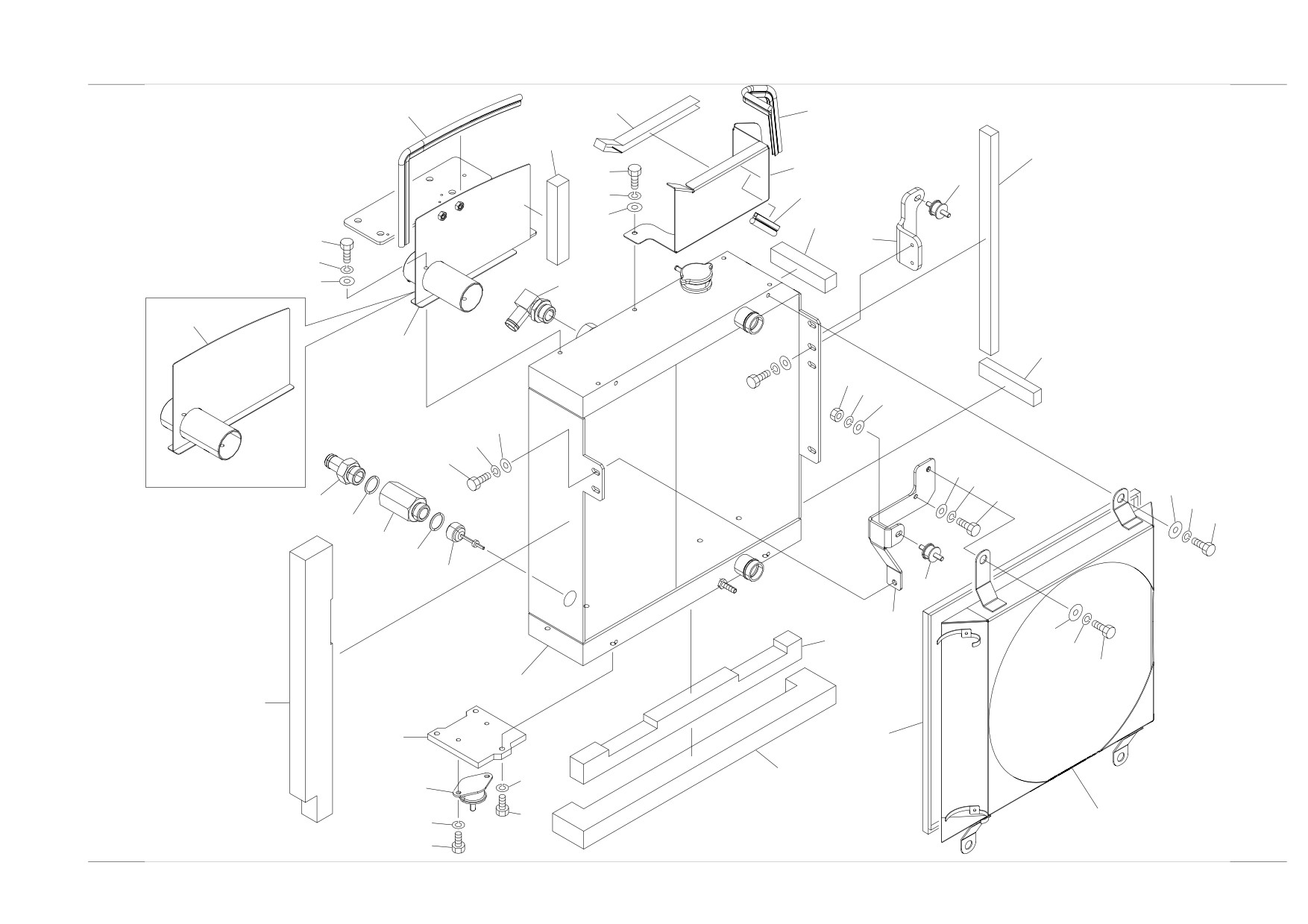

0554000137
SHROUD
1
3
0394026070
PLATE
2
4
1651024007
RUBBER, cushion
2
5
1513350027
ELBOW
1
1420010290
O-RING
1
6
0007213083
BUSHING
1
7
0007224015
ADAPTOR
1
8
1540140815
VALVE, check
1
9
1651014003
RUBBER, cushion
2
10
0554000141
BRACKET
1
11
0554000112
PLATE
1
126000002~126000122
0554000172
PLATE
1
126000123~
M
12
0554000115
PLATE
1
13
0554000134
PLATE
1
14
1420010290
O-RING
2
15
0554002006
SPONGE
1
16
0554003006
SPONGE
1
17
1654342049
SPONGE
1
sold by the meter
18
1654342014
SPONGE
1
sold by the meter
19
1654341014
SPONGE
1
sold by the meter
20
0394032691
SPONGE
1
21
1654343025
SPONGE
1
sold by the meter
22
1654606029
SEAL
1
sold by the meter
23
1654606008
SEAL
1
sold by the meter
24
1654345017
SPONGE
1
sold by the meter
25
1654606048
TRIM
1
sold by the meter
26
1100040825
BOLT
6
27
1140020008
WASHER, spring
22
28
1100040816
BOLT
13
29
1141110008
WASHER
6
30
1100040820
BOLT
1
31
0003600079
WASHER
2
32
1130040008
NUT
2
33
0003609003
WASHER
4
34
1654606195
TRIM
1
M
sold by the meter
Q0c021
Reference:Q0C021
Page:3-3
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

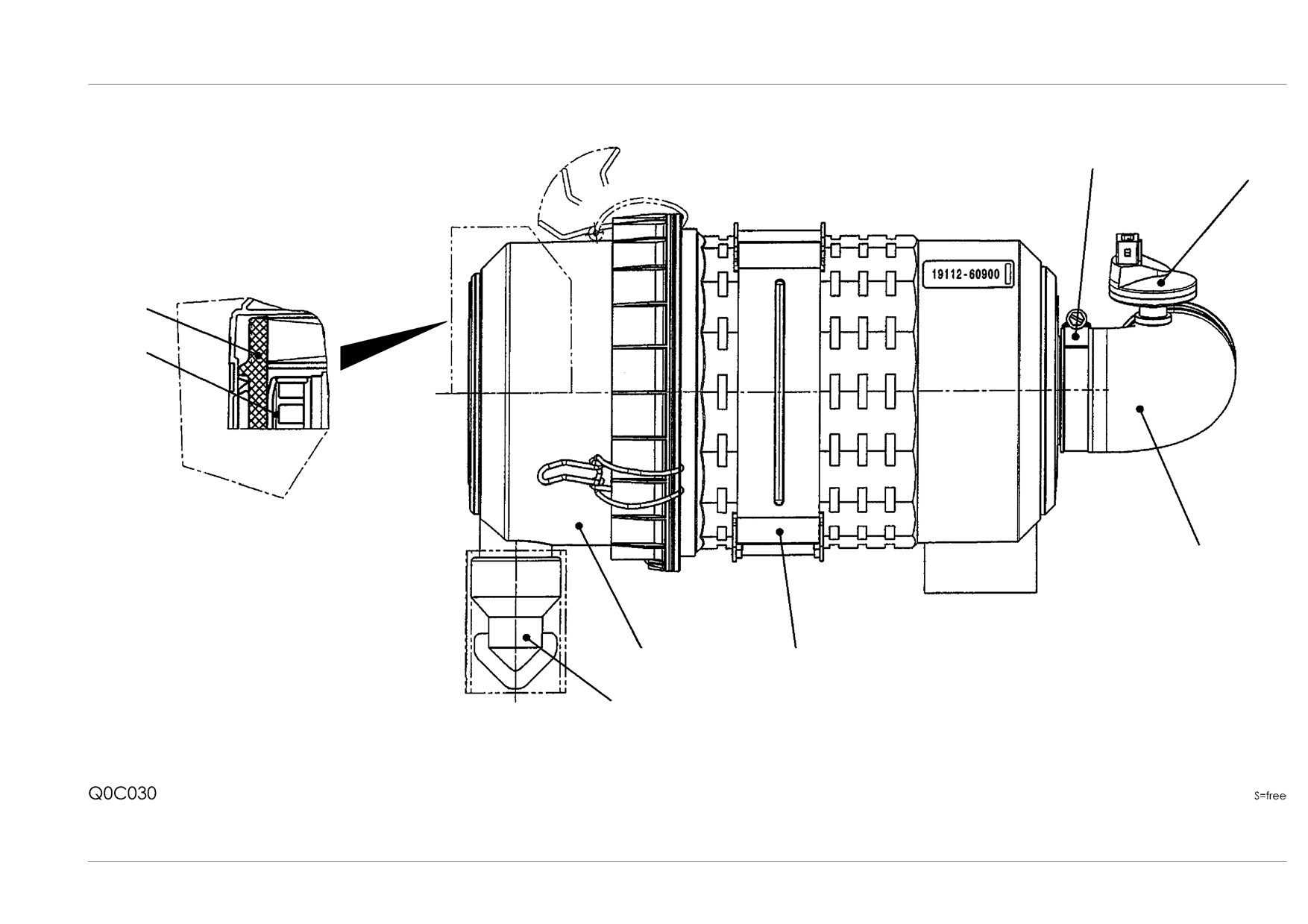

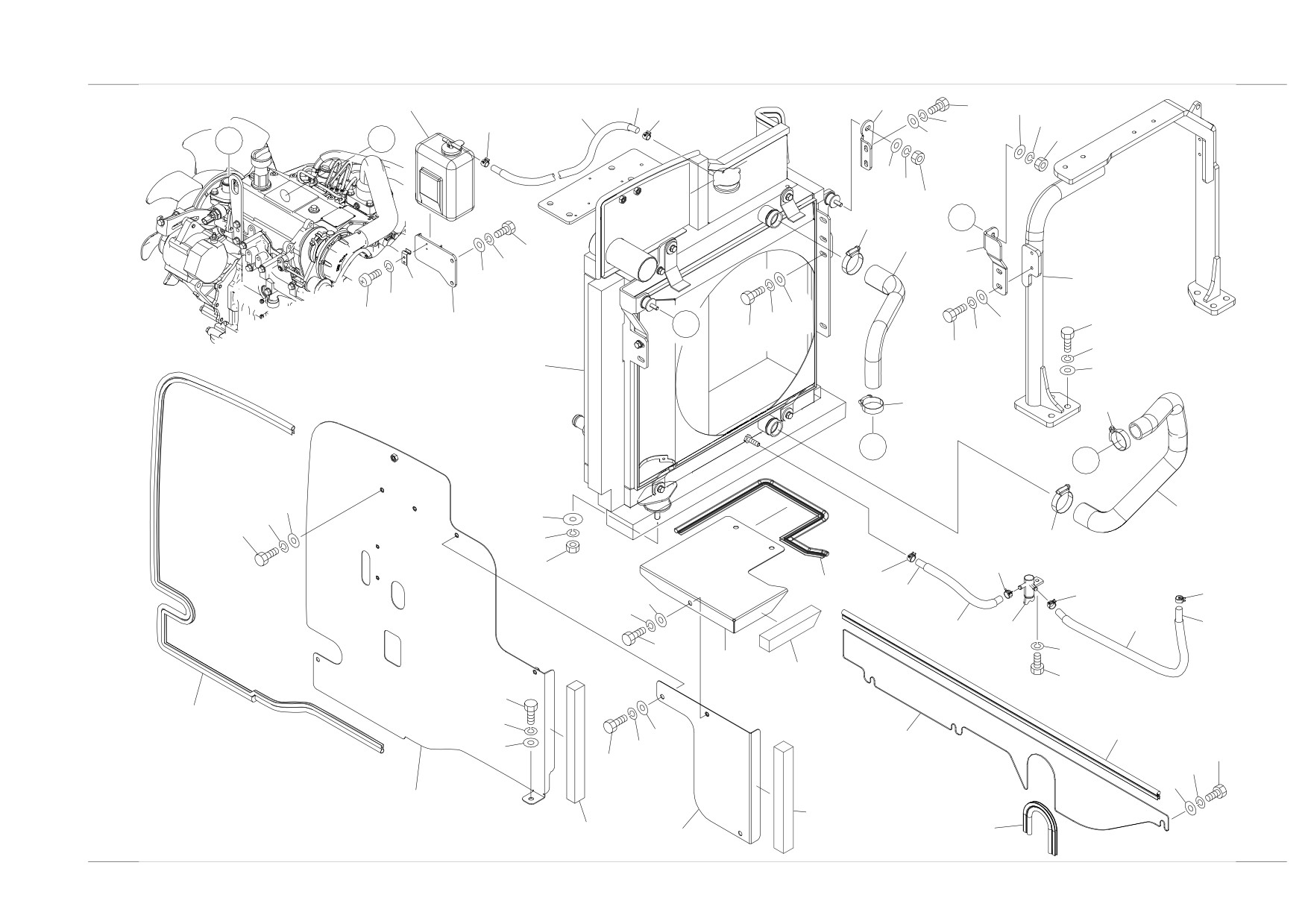

ENGINE & ACCESSORIES (3/3) (air cleaner)
8
7
2
3
6
1
5
4
Reference
Q0C030
ﾍﾟｰｼﾞ
3-4
ENGINE & ACCESSORIES (3/3) (air cleaner)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
0-2
1911260900
CLEANER, air
1
1
1911260901
COVER
1
2
1911112001
ELEMENT
1
3
1911112002
ELEMENT, secondary
1
4
0664006355
VALVE
1
5
0664006357
BRACKET
1
6
1911260906
MANIFOLD
1
7
1911260305
SWITCH, service
1
8
1911260908
BAND
1
Q0c030
Reference:Q0C030
Page:3-4
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

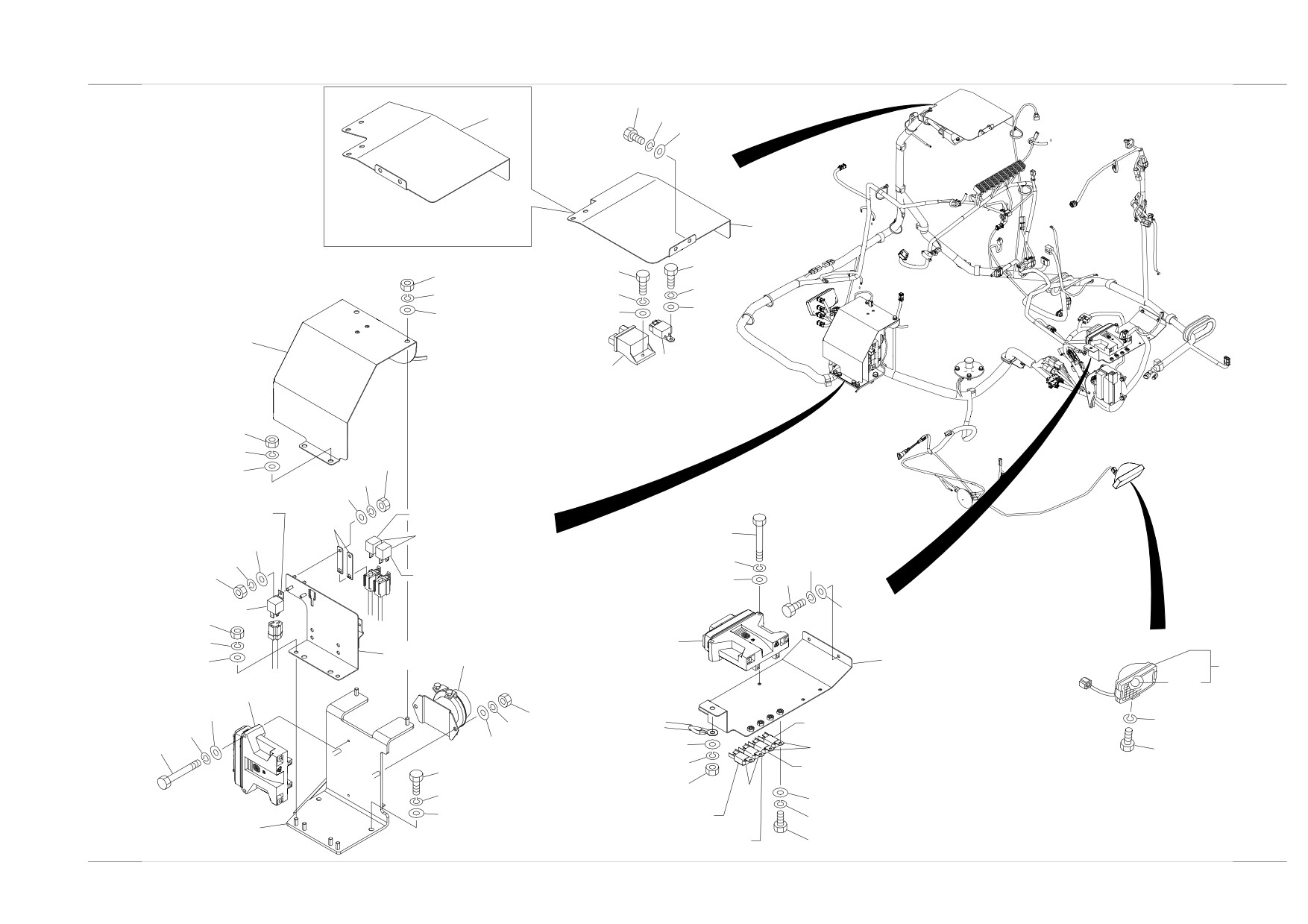

ENGINE CONTROL
6
1
10
12
9
10
15
4
7
11
15
㪨㪇㪚㪇㪋㪇
㪪㪔㪈㪆㪈㪇
Reference
Q0C040
ﾍﾟｰｼﾞ
3-5
ENGINE CONTROL
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
CONTROL ASSY, engine
1
1711910540
ACTUATOR
1
4
0554002009
BRACKET
1
6
1100040616
BOLT
3
7
1100040820
BOLT
2
9
1130040006
NUT
1
10
1140020006
WASHER, spring
4
11
1140020008
WASHER, spring
2
12
1141110006
WASHER
3
15
1652231250
BAND
5
Q0c040
Reference:Q0C040
Page:3-5
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

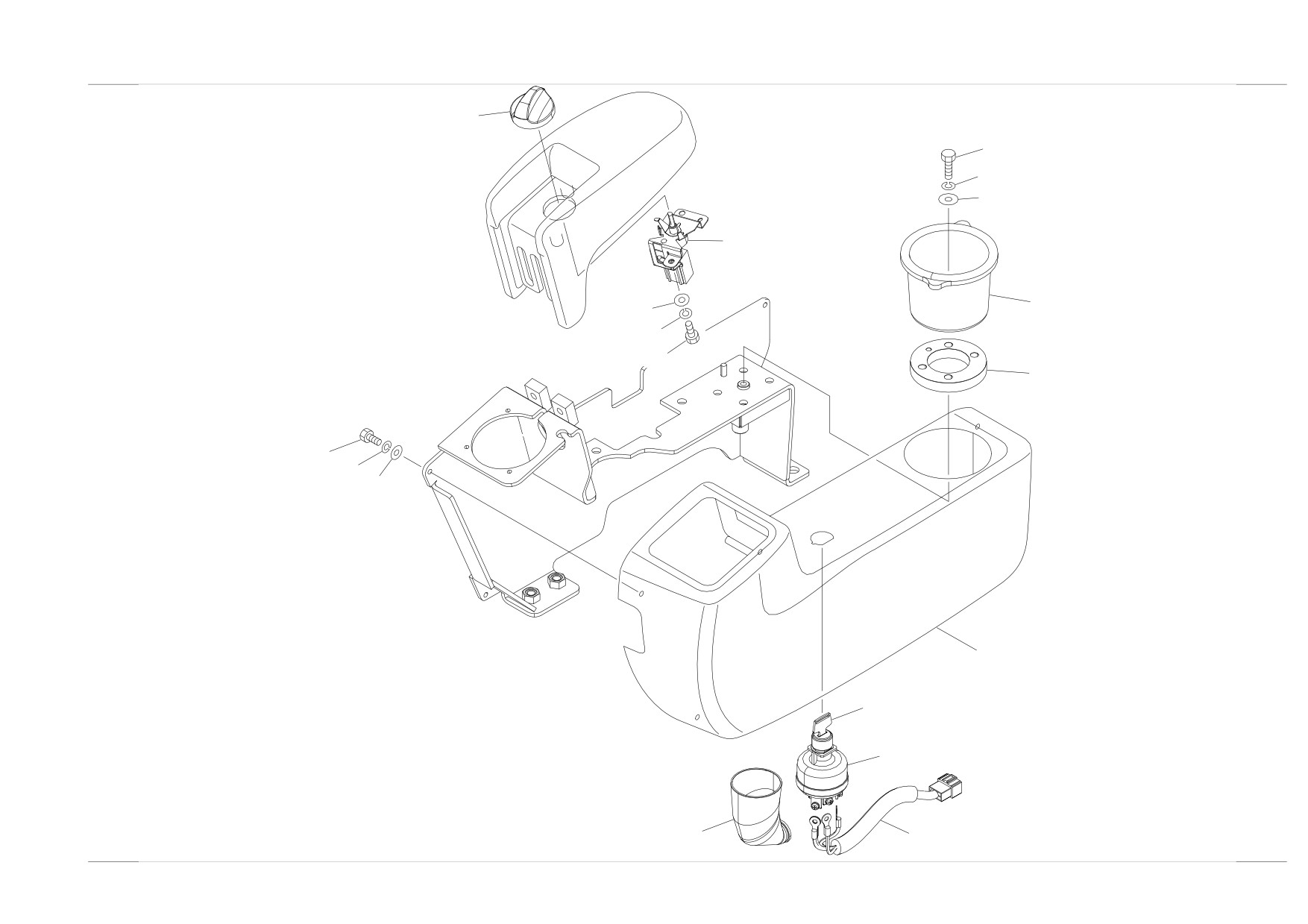

CONTROL BOX (R.H.)
3
9
12
15
4
6
14
11
8
5
7
10
13
1
2-1-1
2-1
2-2
2-3
㪨㪇㪚㪇㪏㪇
㪪㪔㪈㪆㪍
Reference
Q0C080
ﾍﾟｰｼﾞ
3-6
CONTROL BOX (R.H.)
Item
Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
BOX ASSY, control (R.H.)
1
0565127530
COVER (R.H.)
1
2
0574301410
SWITCH ASSY, starter
1
2-1
1700100098
SWITCH, starter
1
2-1-1
1700100019
KEY
1
2-2
0870431821
COVER
1
2-3
0574300530
HARNESS ASSY
1
3
1700000059
KNOB
1
4
1700000060
RESISTER ASSY
1
5
0378606131
SPONGE
1
6
0578601010
HOLDER
1
7
1100040514
BOLT
4
8
1100040620
BOLT
2
9
1100040816
BOLT
1
10
1140020005
WASHER, spring
4
11
1140020006
WASHER, spring
2
12
1140020008
WASHER, spring
1
13
1141110005
WASHER
4
14
1141110006
WASHER
2
15
0003608003
WASHER
1
Q0c080
Reference:Q0C080
Page:3-6
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

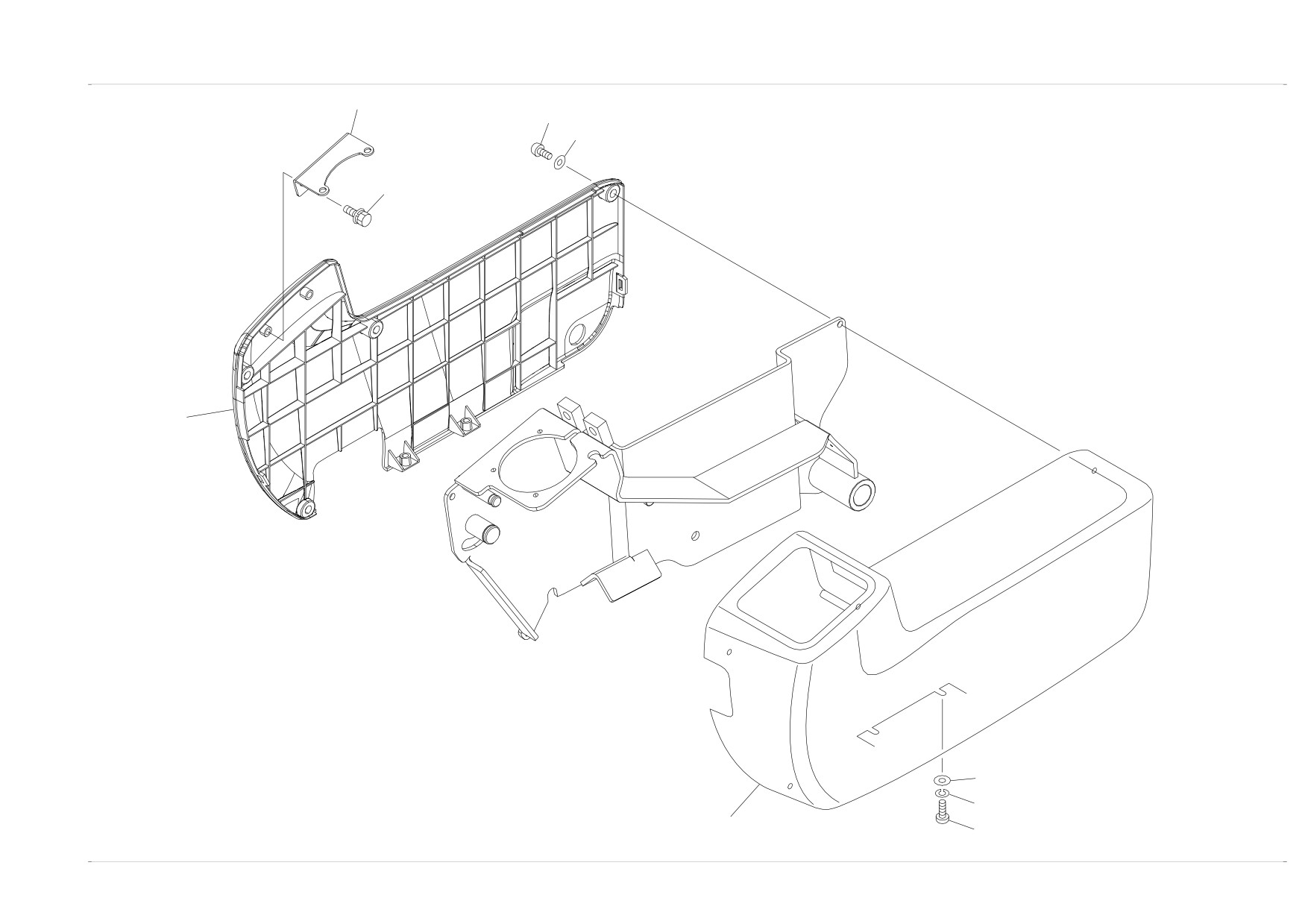

CONTROL BOX (L.H.)
3
5
7
8
2
7
6
1
4
㪨㪇㪚㪇㪐㪇
㪪㪔㪈㪆㪍
Reference
Q0C090
ﾍﾟｰｼﾞ
3-7
CONTROL BOX (L.H.)
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
BOX ASSY, control (L.H.)
1
0565127510
COVER (L.H.)
1
2
0565127520
COVER
1
3
0565127522
PLATE
1
4
1120590512
SCREW
2
5
1120590516
SCREW
4
6
1140090005
WASHER, spring
2
7
1141190005
WASHER
6
8
1150420510
BOLT
2
Q0c090
Reference:Q0C090
Page:3-7
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
ILLUSTRATION 1/4
㪹
㪹
㪹
㪹
47
㪸
47-2
47-3
47-4
47-5
㪹
㪸
㪹
47-1
㪨㪇㪚㪇㪌㪈㪸
㪪㪔㪈㪆㪈㪌㪃㩷㪈㪆㪊㪇
Reference
Q0C051a
ﾍﾟｰｼﾞ
3-8
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
ILLUSTRATION 2/4
45
43
46
46-3
㪺
㪺
46-2
46-1
2319
㪨㪇㪚㪇㪌㪈㪹
28
㪪㪔㪈㪆㪈㪇㪃㩷㪈㪆㪉㪇
Reference
Q0C051a
ﾍﾟｰｼﾞ
3-8
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

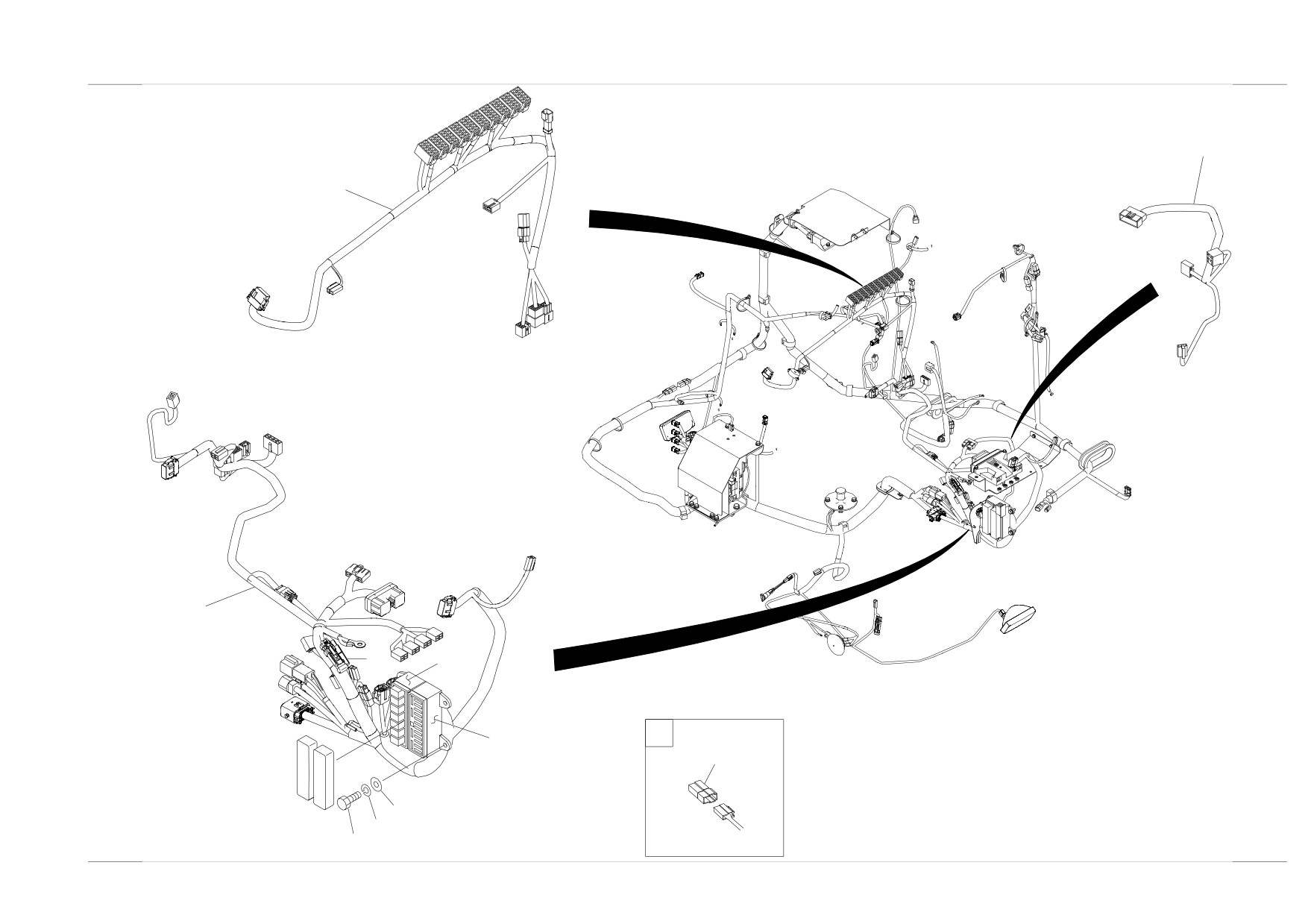

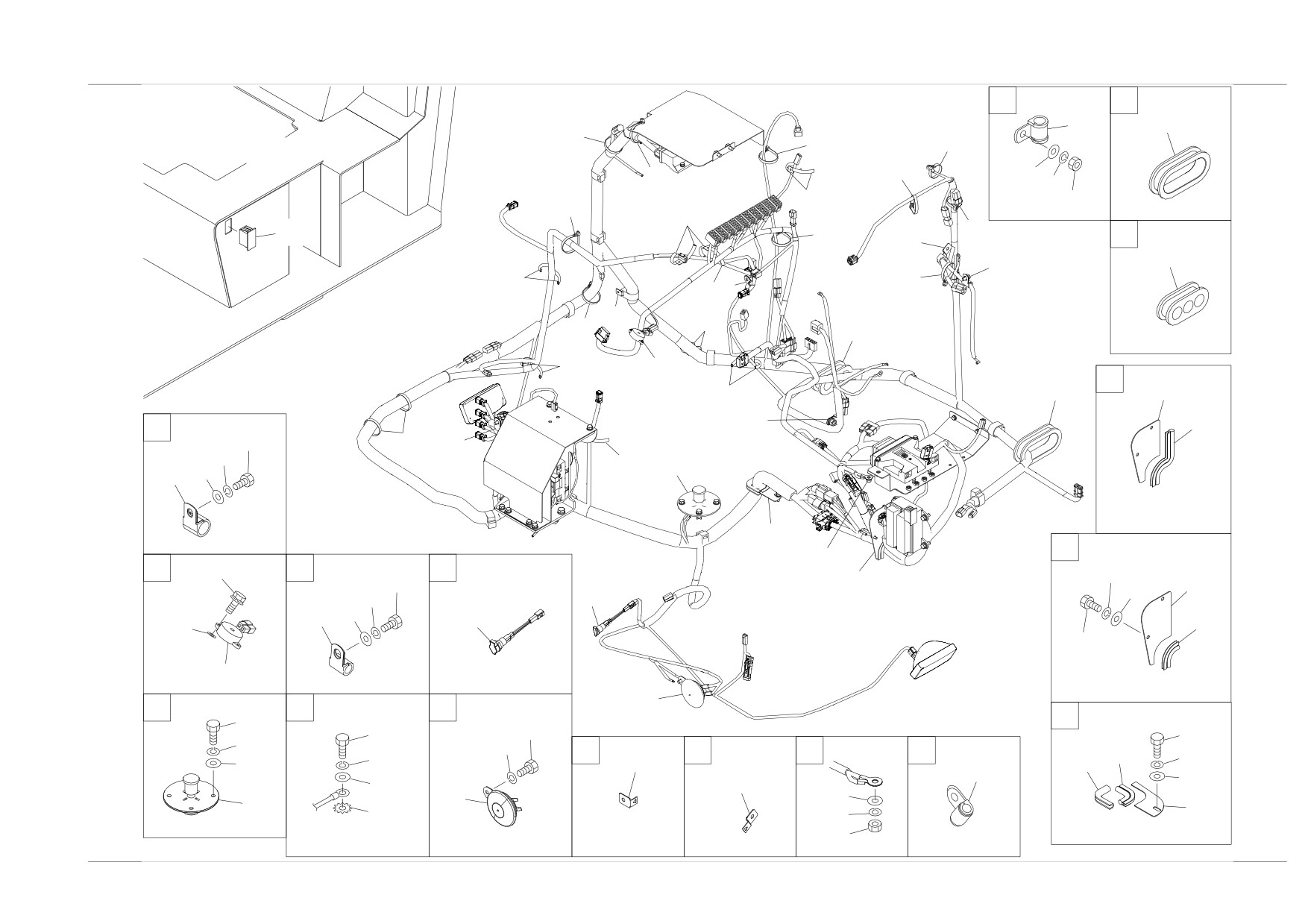

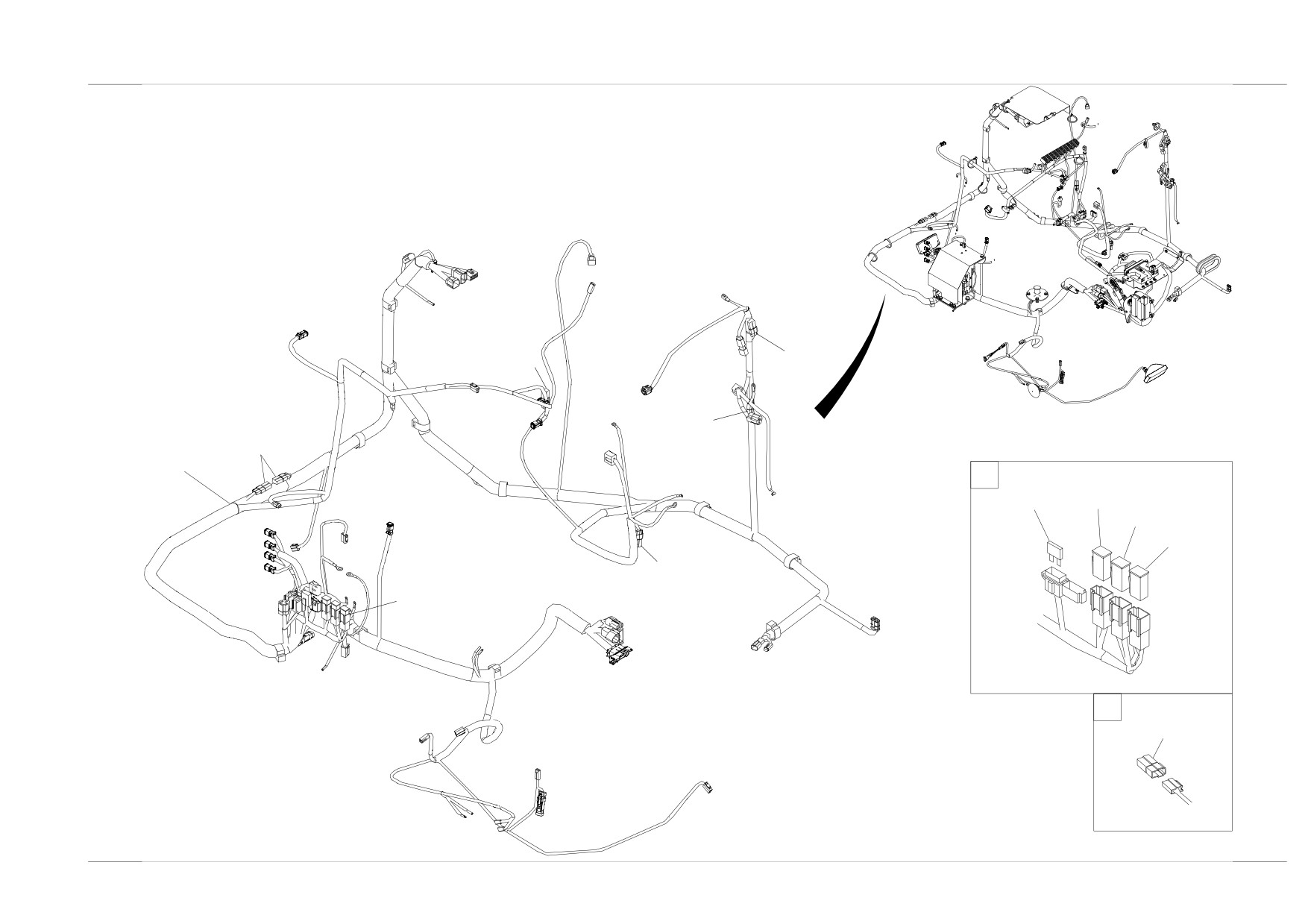

ILLUSTRATION 3/4
41
29 23
19
㪈㪉㪍㪇㪇㪇㪇㪇㪉㫕㪈㪉㪍㪇㪇㪇㪈㪉㪉
41
33
34
25
24
24
23
20
20
19
42
6
53
25
23
26
19
24
20
㪦㫇㫋㫀㫆㫅㩷㪣㫀㪾㪿㫋㩷㪩㪼㫃㪸㫐
㪘㫀㫉㩷㪟㪼㪸㫋㪼㫉㩷㪩㪼㫃㪸㫐
36
2
31
20
24
24
24
26
㪪㫋㫆㫇㩷㪪㫆㫃㪼㫅㫆㫀㪻㩷㪩㪼㫃㪸㫐
34
20
5
20
25
23
51
40
4
48
19
9
9-1
3
20
25
㪙㫃㫆㫎㪼㫉㩷㪩㪼㫃㪸㫐
23
24
23
31
19
19
1
29
23
㪚㫆㫄㫇㫉㪼㫊㫊㫆㫉㩷㪚㫃㫌㫋㪺㪿㩷
27
㪩㪼㫃㪸㫐
22
25
1
20
18
㪙㫃㫆㫎㪼㫉㩷㪟㫀㩷㪩㪼㫃㪸㫐
24
44
㪙㫃㫆㫎㪼㫉㩷㪣㫆㩷㪩㪼㫃㪸㫐
㪨㪇㪚㪇㪌㪈㪺
34
㪪㪔㪈㪆㪈㪉㪃㩷㪈㪆㪉㪉
Reference
Q0C051a
ﾍﾟｰｼﾞ
3-8
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-
ILLUSTRATION 4/4
㫋
㫉
56
38
16
16
59
㪪㪼㪼㩷㩹㪝㪣㪦㪦㪩㩷㪝㪩㪘㪤㪜㩹
16
18
16
22
16
35
58
35
54
16
59
㫊
㫅
㪾
39
35
16
㫍
35
㫄
㪿
16
㫊
35
㪼
㫈
㫉
50
35
㫋
12
㪻
29
㪻
16
23
35
㪽
19
55
㪈㪉㪍㪇㪇㪇㪇㪇㪉㫕
㪈㪉㪍㪇㪇㪇㪇㪉㪏
㫇
㫈
㫌
㪼
㪾
㫁
17
24
29
㫈
50
20
㫁
23
19
7
52
13
60
34
37
㪈㪉㪍㪇㪇㪇㪇㪉㪐㫕
㫂
㪽
㪿
㫂
㫇
28
30
57
32
23
23
㫄
㫅
㫌
㫍
13
22
14
11
24
19
62
15
20
18
19
8
10
49
21
23
㪈㪉㪍㪇㪇㪇㪇㪇㪉㫕
25
㪈㪉㪍㪇㪇㪇㪇㪉㪏
㪨㪇㪚㪇㪌㪈㪻
㪪㪔㪈㪆㪈㪉㪃㩷㪈㪆㪈㪌
Reference
Q0C051a
ﾍﾟｰｼﾞ
3-8















Content      ..     2      3      4      5     ..
