TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

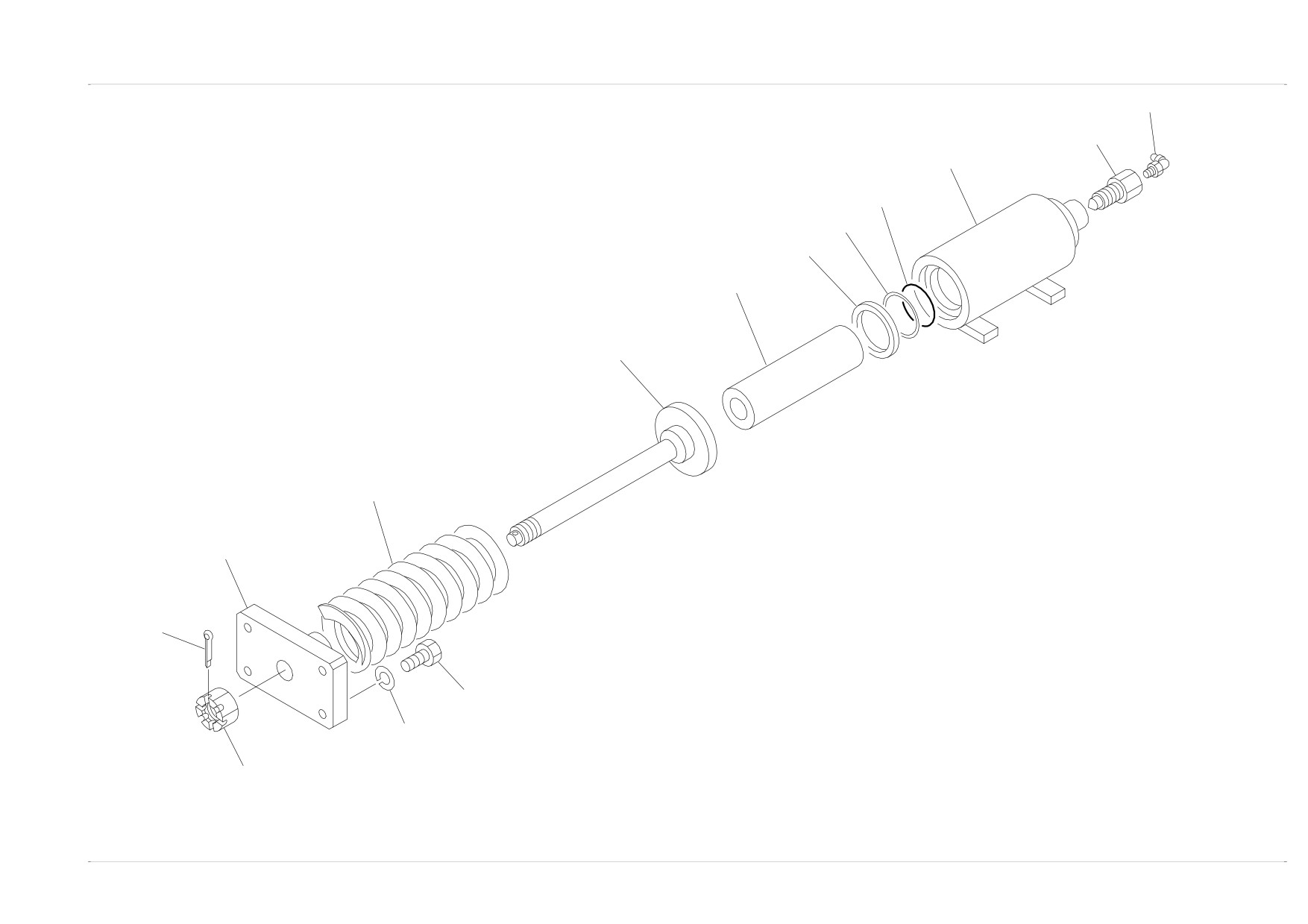

TRACK ADJUSTER
5
2-1
2-2
2-4
2-5
2-6
2-3
1-1
1-3
1-2
1-5
3
4
1-4
㪨㪇㪘㪇㪍㪇
㪪㪔㪝㪩㪜㪜
Reference
Q0A060
ﾍﾟｰｼﾞ
1-8
TRACK ADJUSTER
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
SPRING ASSY
1
0551501500
SPRING ASSY
2
1-1
ROD
1
1-2
PLATE
1
1-3
SPRING
1
1-4
NUT
1
1-5
PIN, spring
1
2
0551501600
CYLINDER ASSY
2
2-1
VALVE ASSY, check
1
2-2
CYLINDER, grease
1
2-3
PISTON
1
2-4
O-RING
1
2-5
RING, back-up
1
2-6
SEAL
1
3
1101041245
BOLT
8
4
1140020012
WASHER, spring
8
5
1560001900
FITTING, grease
2
Q0a060
Reference:Q0A060
Page:1-8
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

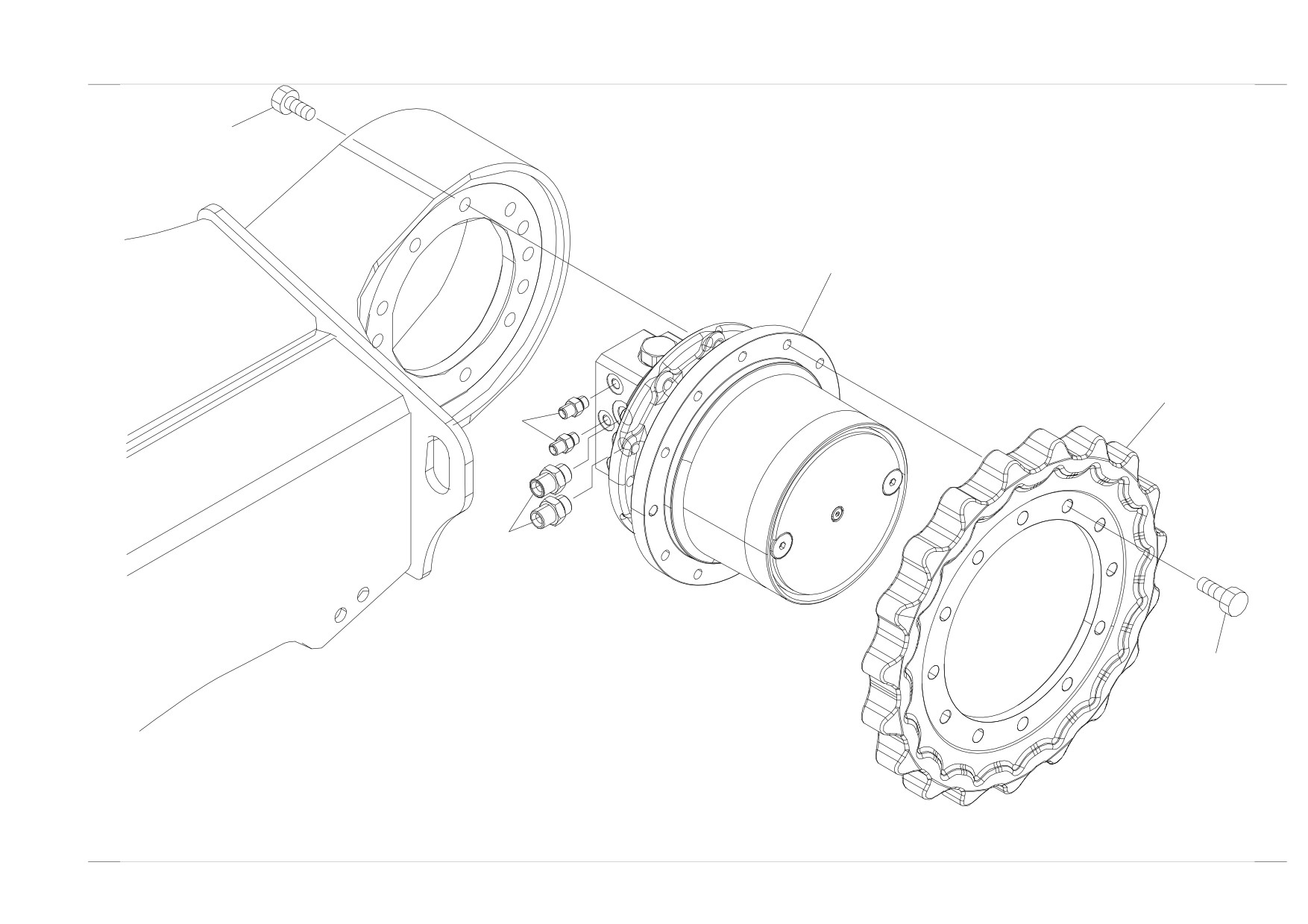

TRAVEL DEVICE
3
1
2
4
5
3
㪨㪇㪘㪇㪎㪇
㪪㪔㪈㪆㪍
Reference
Q0A070
ﾍﾟｰｼﾞ
1-9
TRAVEL DEVICE
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
MOTOR ASSY, travel
1
1903130400
MOTOR, travel
2
2
0551600120
SPROCKET
2
3
1100041435
BOLT
48
4
1515600200
ADAPTOR
4
1420010110
O-RING
1
5
1515600202
ADAPTOR
4
1420010180
O-RING
1
Q0a070
Reference:Q0A070
Page:1-9
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

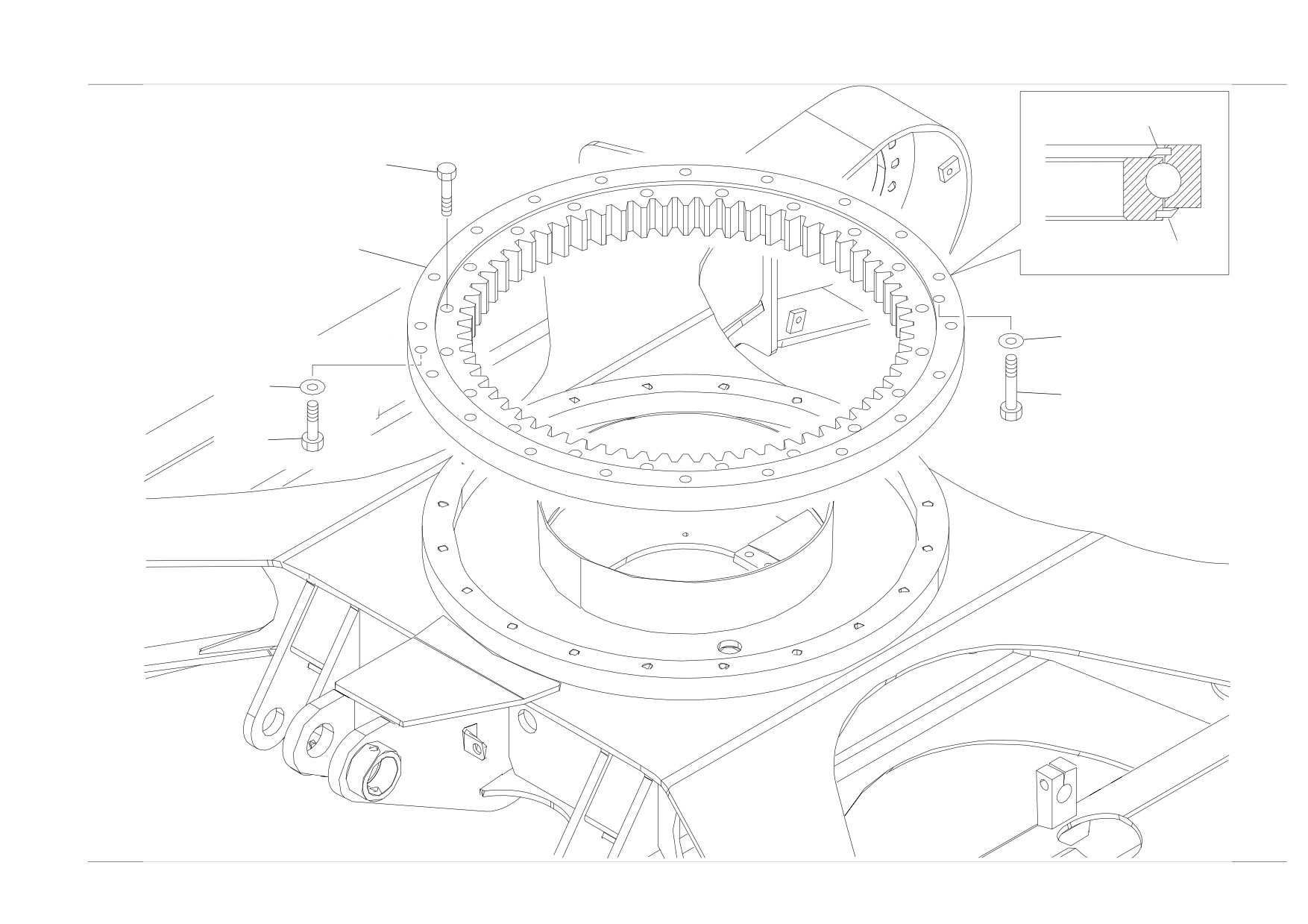

SLEW BEARING
1-1
2
1
1-2
3
3
4
2
㪨㪇㪘㪇㪏㪇
㪪㪔㪝㪩㪜㪜
Reference
Q0A080
ﾍﾟｰｼﾞ
1-10
SLEW BEARING
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
BEARING ASSY, slew
1
1913005650
BEARING
1
M
1-1
1913005658
SEAL
1
M
1-2
1913005659
SEAL
1
M
2
1101051680
BOLT
39
3
1141550016
WASHER
20
4
0392000100
BOLT
1
Q0a081
Reference:Q0A080
Page:1-10
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

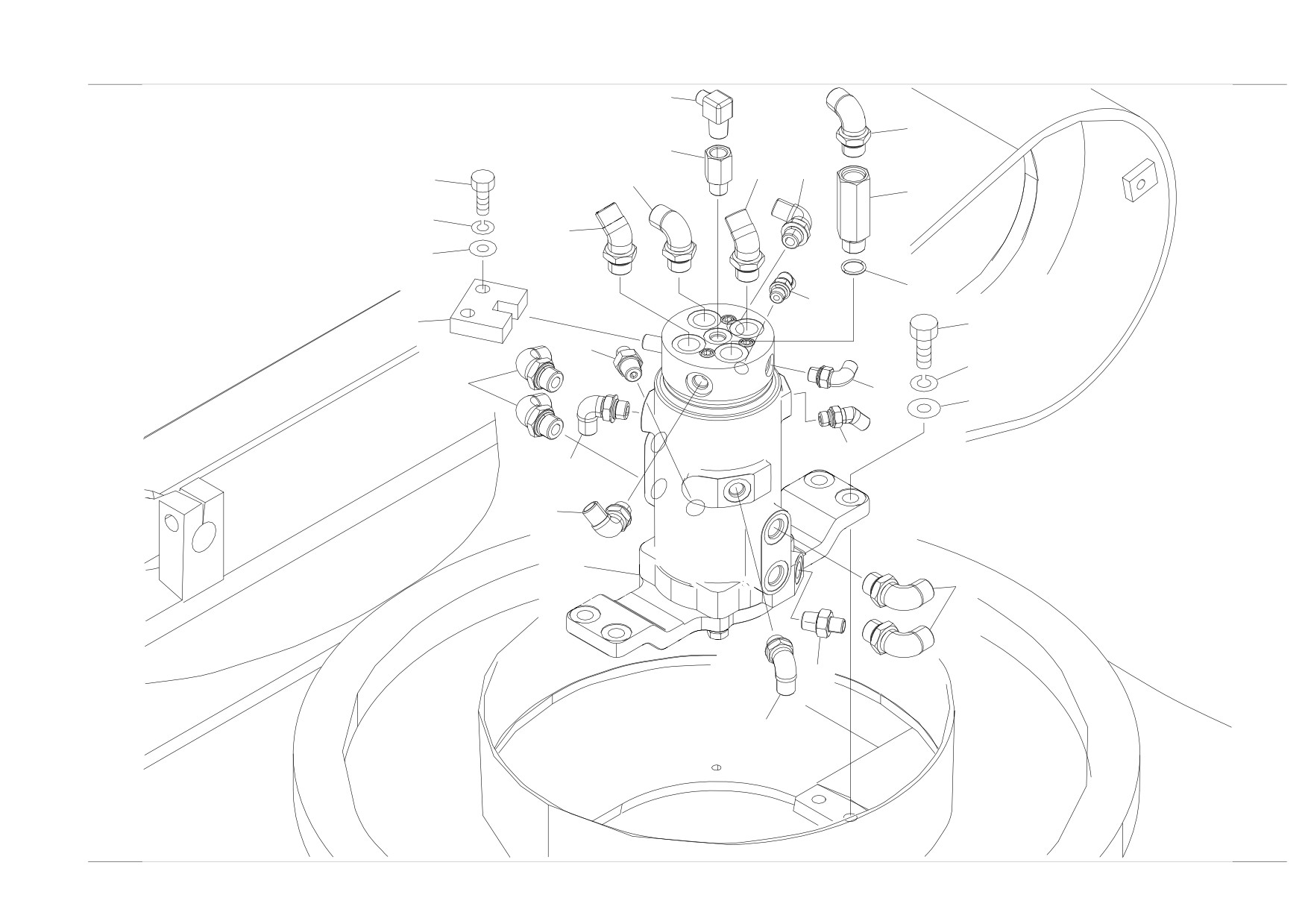

SWIVEL JOINT & ACCESSORIES
16
12
10
17
13
12
4
11
6
17
8
18
14
2
3
9
5
12
15
7
14
13
13
1
12
9
13
㪨㪇㪘㪇㪐㪇
㪪㪔㪈㪆㪌
Reference
Q0A090
ﾍﾟｰｼﾞ
1-11
SWIVEL JOINT & ACCESSORIES
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
JOINT ASSY, swivel
1
1904006300
JOINT, swivel
1
2
0442100100
STOPPER
1
3
1101041440
BOLT
4
4
1101041240
BOLT
2
5
1140020014
WASHER, spring
4
6
1140020012
WASHER, spring
2
7
1141110014
WASHER
4
8
1141110012
WASHER
2
9
0007203057
ADAPTOR
2
10
0007210028
BUSHING
1
11
0007213038
BUSHING
1
12
1515012042
ELBOW
6
1420010180
O-RING
1
13
1515012041
ELBOW
4
1420010140
O-RING
1
14
1515100110
ELBOW
2
1420010110
O-RING
1
15
1515012040
ELBOW
1
1420010110
O-RING
1
16
1511150203
ADAPTOR
1
17
1515102112
ELBOW
2
18
1420010180
O-RING
1
Q0a090
Reference:Q0A090
Page:1-11
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

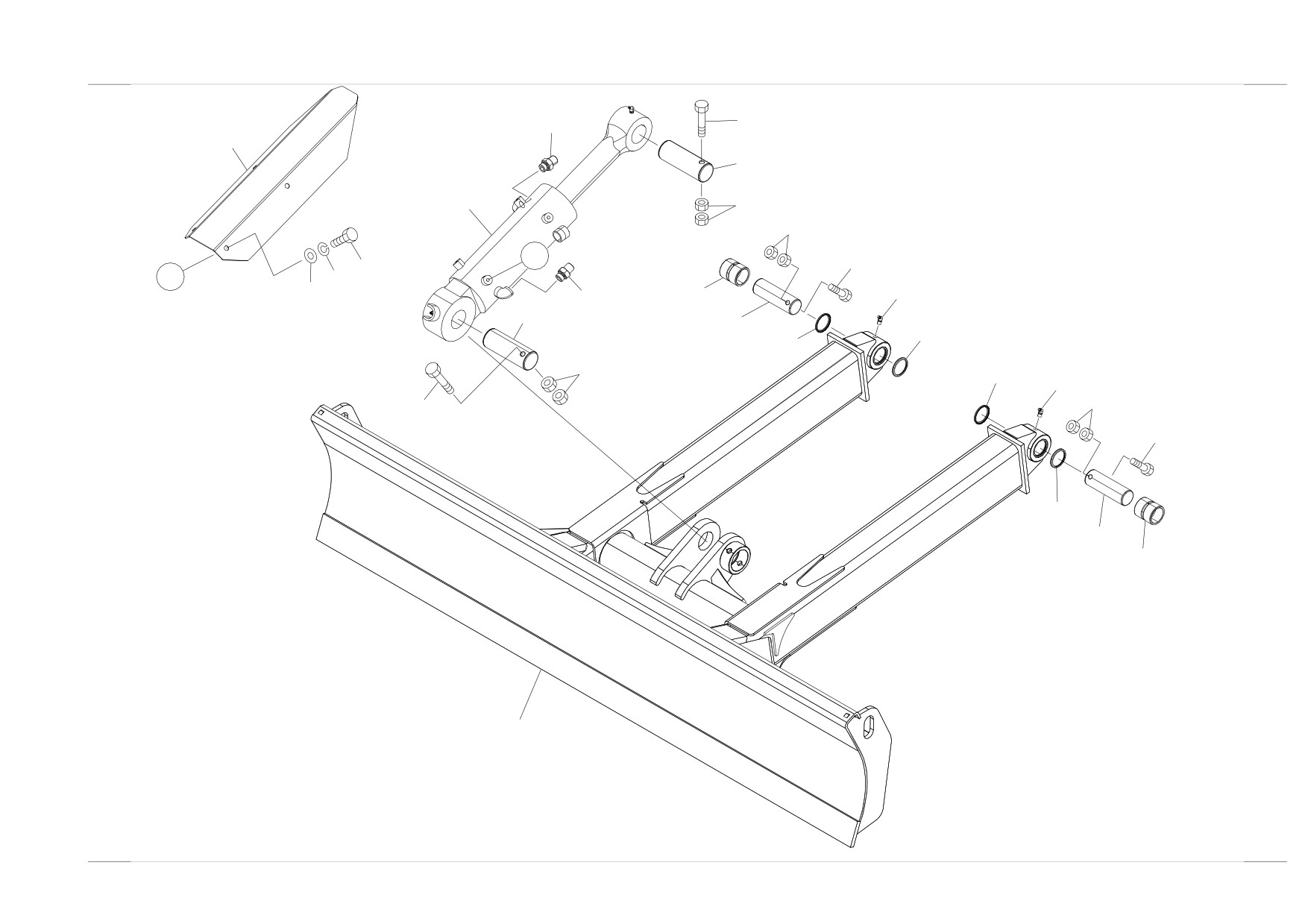

DOZER BLADE
12
7
13
4
2
9
8
㪯
6
5
㪯
10
1-25
11
1-23
12
4
3
1-24
1-24
9
1-24
1-25
8
7
6
1-24
3
1-23
1
㪨㪇㪘㪈㪇㪇
㪪㪔㪈㪆㪈㪌
Reference
Q0A100
ﾍﾟｰｼﾞ
1-12
DOZER BLADE
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
BLADE ASSY, dozer
1
0556300100
BLADE, dozer
1
1-23
0002200014
BUSHING
2
1-24
1432200045
SEAL, dust
4
1-25
1560001675
FITTING, grease
2
2
1900113200
CYLINDER, dozer blade
1
3
0001614009
PIN
2
4
0001616001
PIN
2
5
1100041020
BOLT
4
6
1100041090
BOLT
2
7
1100141205
BOLT
2
8
1130040010
NUT
4
9
1130040012
NUT
4
10
1140020010
WASHER, spring
4
11
1141110010
WASHER
4
12
1515600201
ADAPTOR
2
1420010140
O-RING
1
13
0556300050
COVER
1
Q0a100
Reference:Q0A100
Page:1-12
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

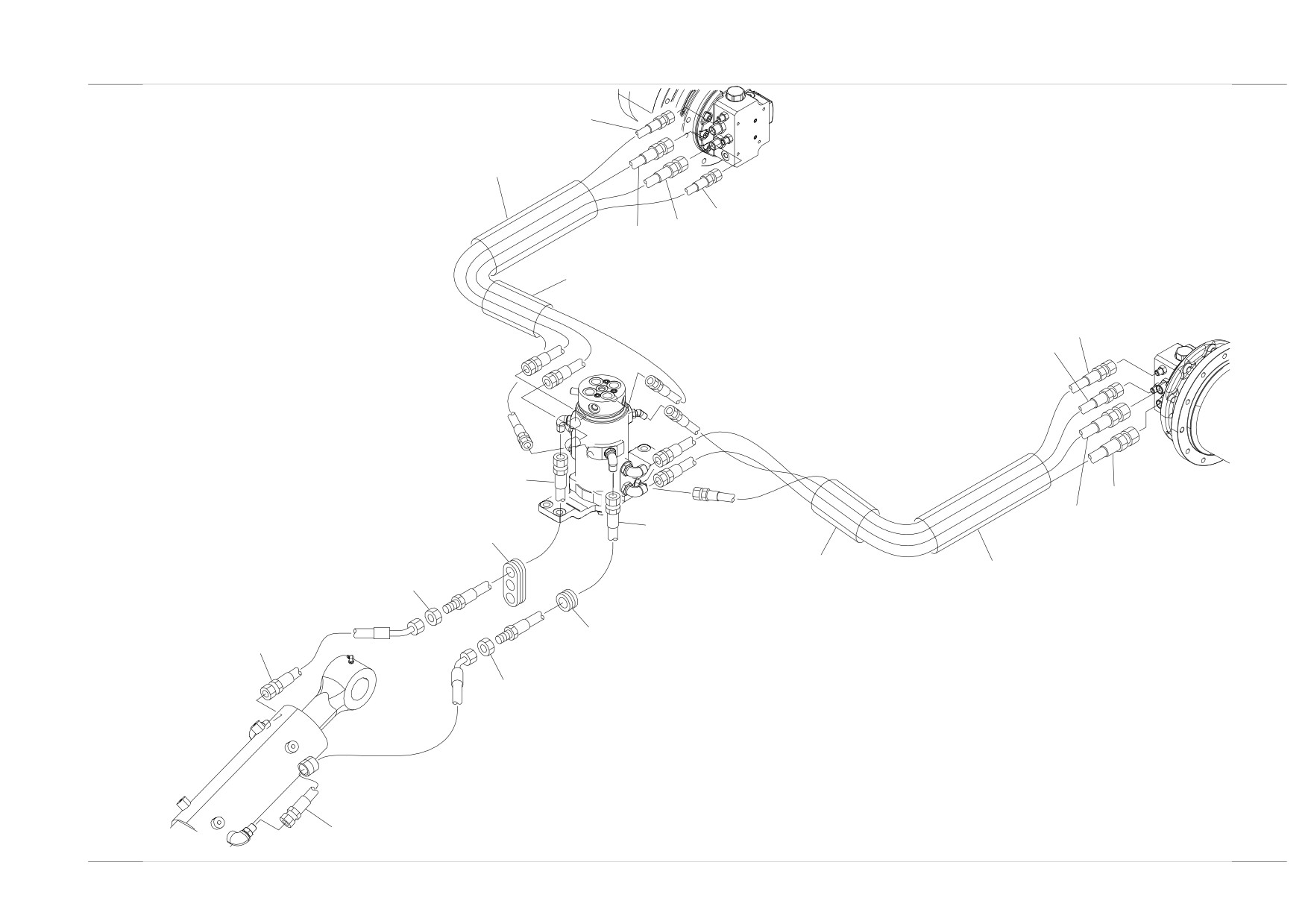

PIPING; LOWER
4
12
3
1
2
11
4
3
5
1
2
5
10
11
12
8
9
7
8
6
㪨㪇㪘㪈㪈㪇
㪪㪔㪈㪆㪈㪉
Reference
Q0A110
ﾍﾟｰｼﾞ
1-13
PIPING; LOWER
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
PIPING ASSY, lower
1
1804540128
HOSE ASSY
2
2
0557200007
HOSE ASSY
2
18045-40128
3
0557200008
HOSE ASSY
2
18010-22130
4
1801022124
HOSE ASSY
2
5
0557200009
HOSE ASSY
2
6
1801627084
HOSE ASSY
1
7
1801627058
HOSE ASSY
1
8
0007200154
NUT
2
9
0437200100
GUARD
1
10
0097022400
GUARD
1
11
1531350020
PROTECTOR
2
sold by the meter
12
1531350040
PROTECTOR
2
sold by the meter
Q0a110
Reference:Q0A110
Page:1-13
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

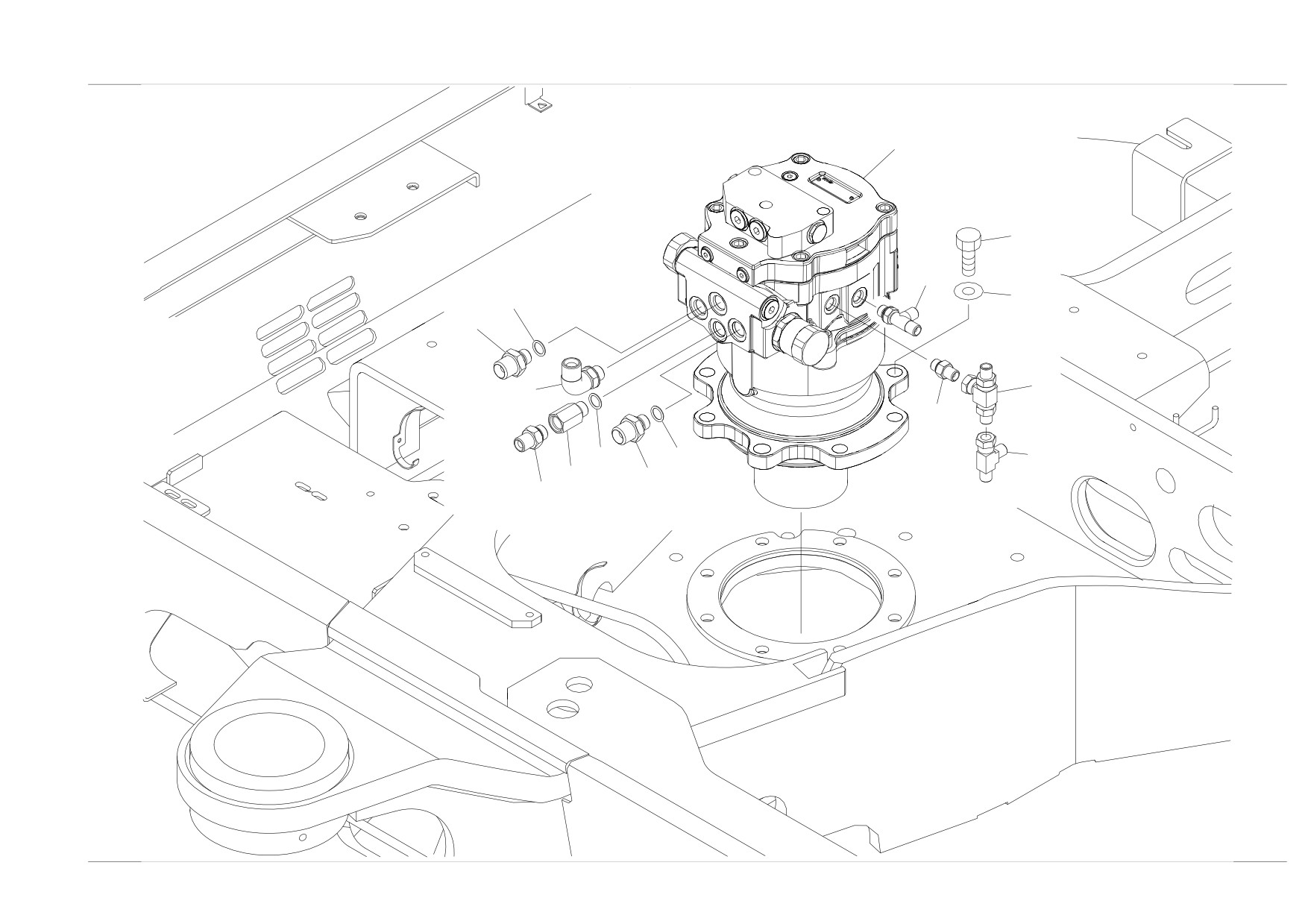

SLEWING DEVICE
1
2
7
11
3
4
6
8
5
12
11
11
9
4
10
㪨㪇㪙㪇㪈㪇
㪪㪔㪈㪆㪍
Reference
Q0B010
ﾍﾟｰｼﾞ
2-1
SLEWING DEVICE
Item Part number
Description
Q'ty Chan. Serial No. Serv.
Remarks
DEVICE ASSY, slewing (with shut-off valve)
DEVICE ASSY, slewing (with boom shut-off valve)
1
1903130500
MOTOR, slew
1
2
1101041640
BOLT
8
3
1141550016
WASHER
8
4
0007203063
ADAPTOR
2
5
1515600200
ADAPTOR
1
1420010110
O-RING
1
6
1901754100
VALVE, shuttle
1
7
1512370011
TEE
1
1420010110
O-RING
1
8
1515010131
ELBOW
1
1420010140
O-RING
1
9
0007213016
BUSHING
1
10
1515600201
ADAPTOR
1
1420010140
O-RING
1
11
1420010140
O-RING
3
12
1513390015
TEE
1
with shut-off valve
Q0b010
Reference:Q0B010
Page:2-1
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

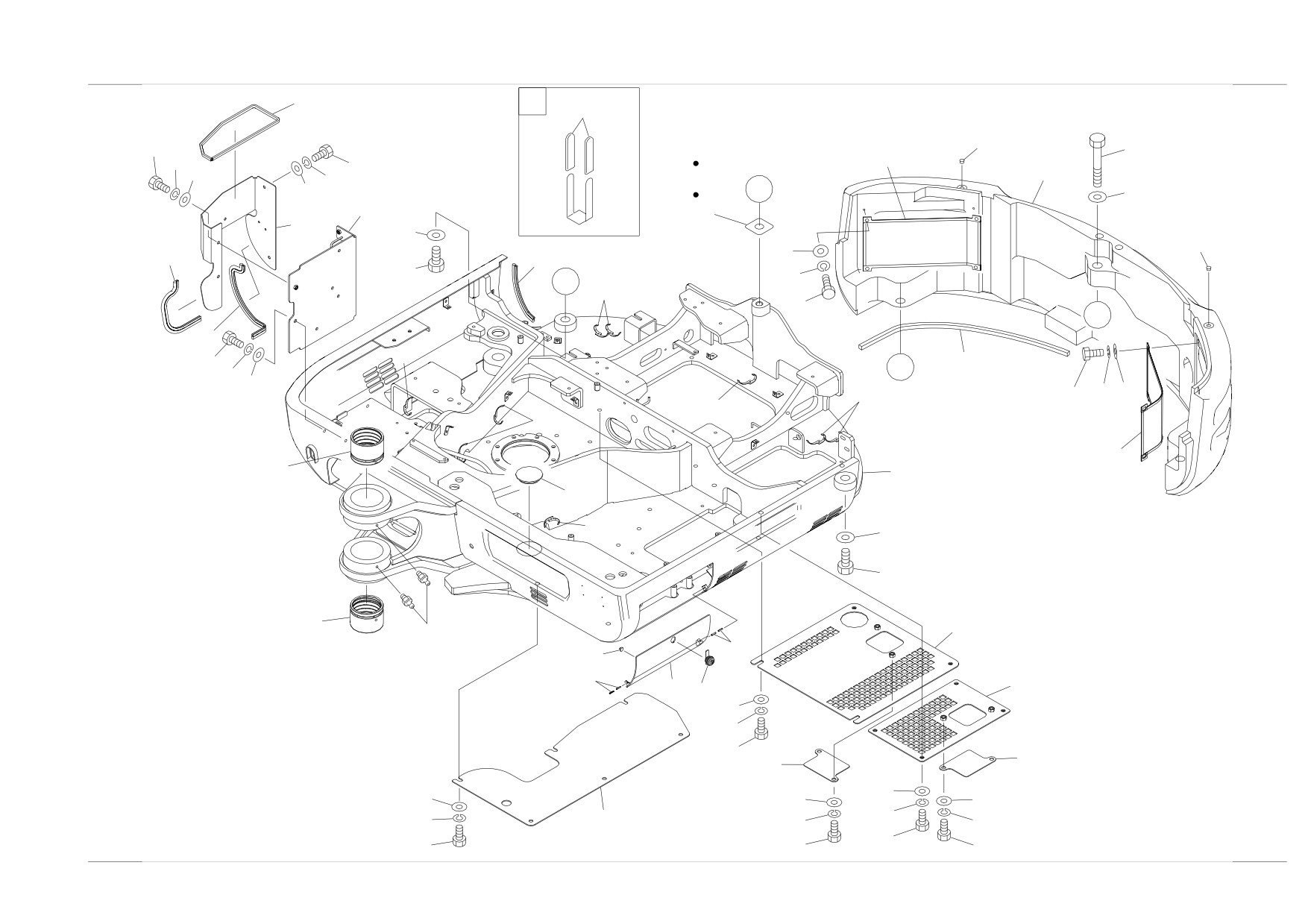

TURNTABLE
38
㪸
41
12
18
32
14
26
17
34
18
2
17
33
㪰
13
34
27
44
28
13
12
16
29
43
15
17
㪯
㪸
18
㪰
30
㪸
37
㪯
24
40
39
㪸
17
16
18
㪸
㪸
25
1-2
1
11
㪸
13
15
1-2
5
23
9
10
9
6
4
42
20
21
22
8
8
20
20
19
19
21
21
7
21
21
22
㪨㪇㪙㪇㪉㪈
22
22
22
㪪㪔㪈㪆㪉㪇
Reference
Q0B021
ﾍﾟｰｼﾞ
2-2
TURNTABLE
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
TURNTABLE ASSY
1
X
**********
TURNTABLE ASSY
1
1-2
0553003093
BUSHING
2
2
0553000013
COUNTERWEIGHT
1
4
0553000006
COVER ASSY
1
5
0553000020
COVER
1
6
0553000022
COVER
1
7
0553000063
COVER
1
8
0553000017
COVER
2
9
1213000420
PIN, spring
4
10
1652515000
RUBBER, cushion
2
11
1652030012
GROMMET
1
12
1652533021
CAP
2
13
0003600235
WASHER
3
14
1101342420
BOLT
1
15
1101242470
BOLT
2
16
0003608252
WASHER
8
17
1140020008
WASHER, spring
11
18
1100040820
BOLT
11
19
1141110012
WASHER
4
20
0003600024
WASHER
14
21
1140020012
WASHER, spring
18
22
1101041225
BOLT
18
23
1560001000
FITTING, grease
2
24
1654349080
SPONGE
1
M
sold by the meter
25
0553000052
NET
1
26
0553000056
NET
1
27
0553000084
PLATE
1
28
0553000086
PLATE ASSY
1
29
1654619038
SEAL
1
sold by the meter
30
1654619042
SEAL
1
sold by the meter
32
0003600306
SHIM
AR
M
t=1.2mm
33
0003600305
SHIM
AR
M
t=2.3mm
34
1141110008
WASHER
3
37
1100041025
BOLT
3
38
1653916089
TRIM
1
sold by the meter
39
1141110010
WASHER
3
40
1140020010
WASHER, spring
3
41
0872433150
TUBE
48
42
1653601395
LOCK
1
43
1654349020
SPONGE
1
M
sold by the meter
44
0003600307
SHIM
AR
M
t=2.0mm
Q0b021
Reference:Q0B021
Page:2-2
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

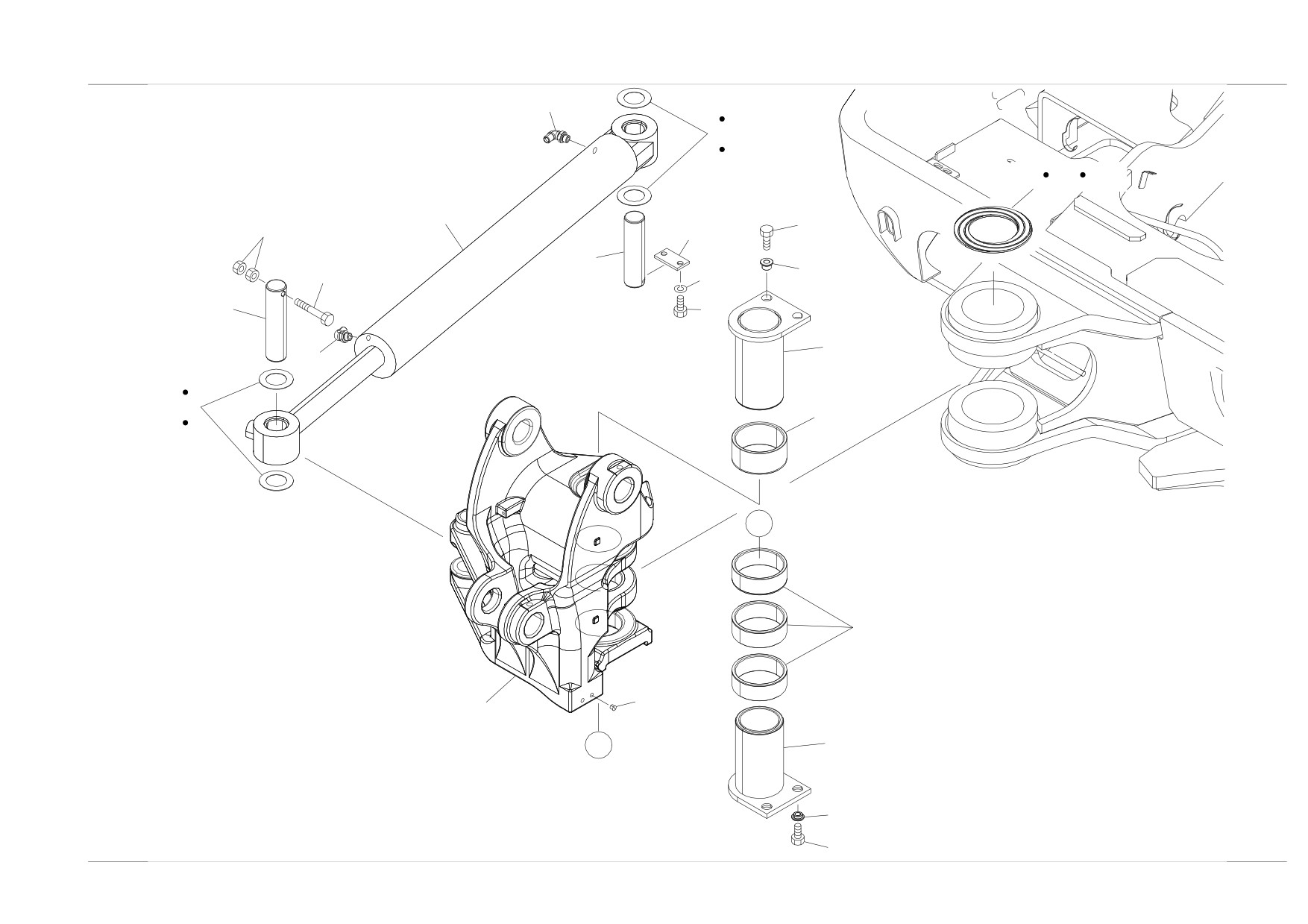

BOOM SWING
7
16
17
18
19
20
21
9
13
8
11
5
6
12
22
4
10
2
7
16
17
1-5
18
㪯
1-6
14
1
㪯
3
15
㪨㪇㪙㪇㪊㪇
㪪㪔㪈㪆㪈㪉
11
Reference
Q0B030
ﾍﾟｰｼﾞ
2-3
BOOM SWING
Item
Part number
Description
Q'ty
Chan.
Serial No.
Serv.
Remarks
SWING ASSY, boom
1
0553100300
BRACKET
1
1-5
0393113155
BUSHING
1
1-6
0553100130
BUSHING
3
2
0553100006
PIN
1
3
0553100220
PIN
1
4
0001614190
PIN
1
5
0001694012
PIN
1
6
1103041085
BOLT
1
7
1515012041
ELBOW
2
1420010140
O-RING
1
8
0433105700
PLATE
1
9
1900113100
CYLINDER, swing
1
10
1101041220
BOLT
2
11
1101041230
BOLT
4
12
1140020012
WASHER, spring
2
13
1130240010
NUT
2
14
1652533018
CAP
2
15
0003900081
WASHER
2
16
0456008600
SHIM
AR
t=1.0mm
17
0003600056
SHIM
AR
t=0.5mm
18
0003600055
SHIM
AR
t=0.2mm
19
0393114021
WASHER
1
20
0393114022
WASHER
1
21
0393114023
WASHER
1
22
0003900092
WASHER
2
Q0b030
Reference:Q0B030
Page:2-3
TB260
[P-TB260A-AH] Book No. BQ0Z001-4 S/N 126000002-

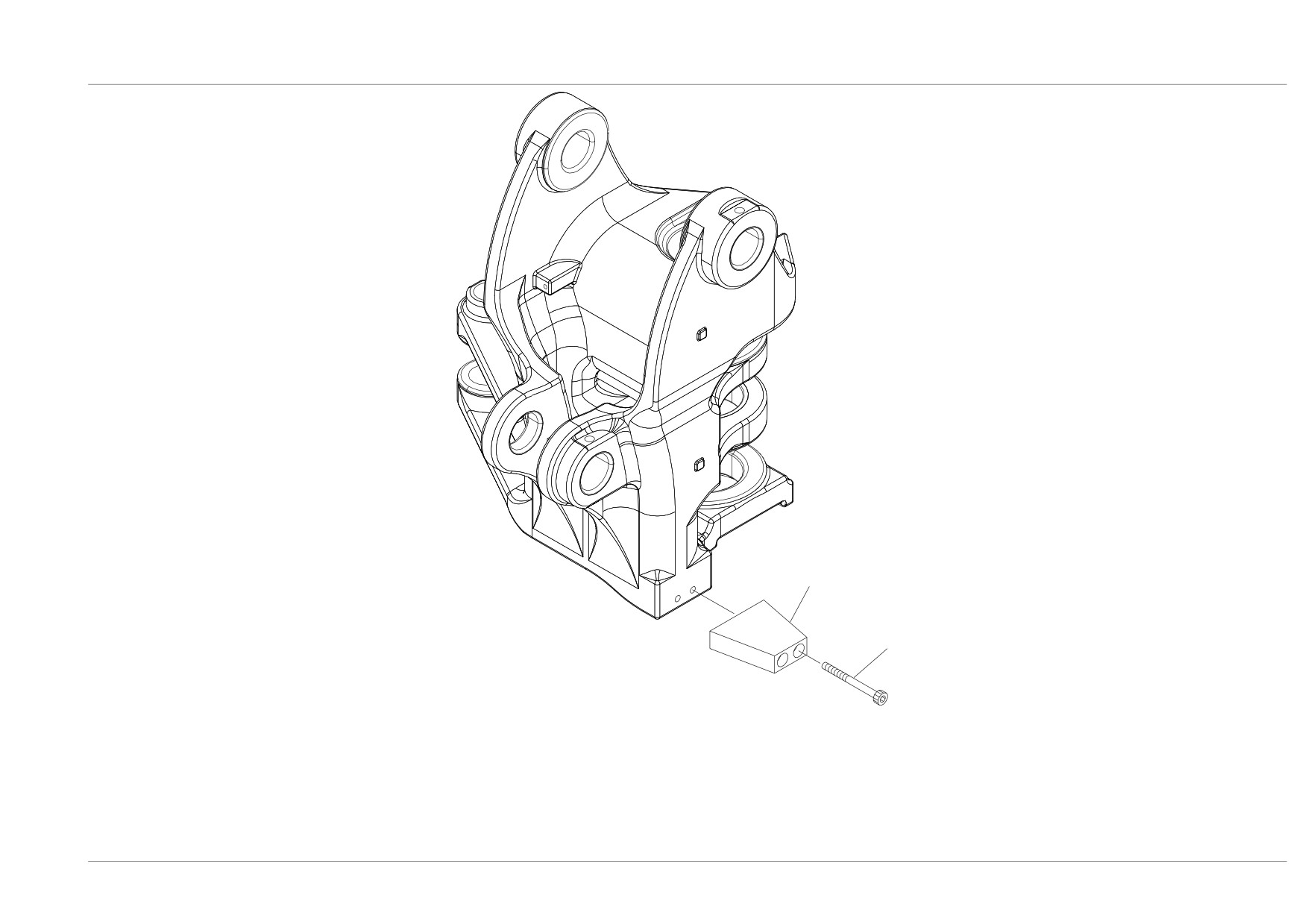

SWING STOPPER
1
2
㪨㪇㪙㪇㪋㪇
㪪㪔㪈㪆㪏
Reference
Q0B040
ﾍﾟｰｼﾞ
2-4
SWING STOPPER
Item Part number
Description
Q'ty Chan. Serial No. Serv. Remarks
STOPPER ASSY, swing
1
0563900100
PLATE
1
2
1111141200
SCREW, cap
2
Q0b040
Reference:Q0B040
Page:2-4
